2002 Hyundai Getz Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 53

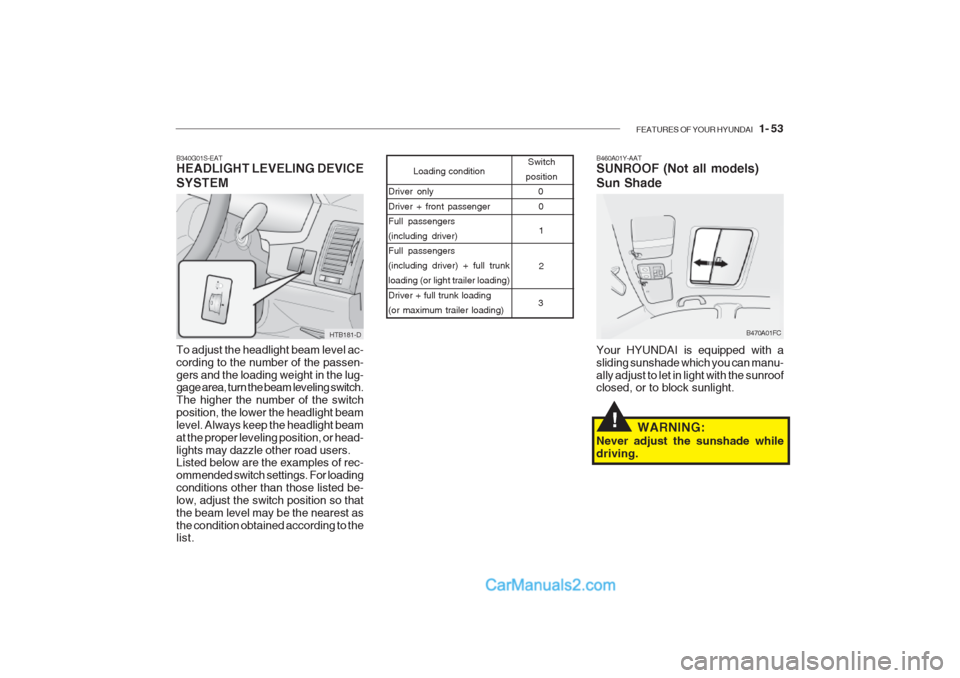

B460A01Y-AAT SUNROOF (Not all models) Sun Shade Your HYUNDAI is equipped with a sliding sunshade which you can manu-ally adjust to let in light with the sunroof closed, or to block sunlight.
Loading condition Switch
position
Driver only Driver + front passenger Full passengers(including driver)Full passengers(including driver) + full trunkloading (or light trailer loading) Driver + full trunk loading (or maximum trailer loading) 0
1 2
3 0
B470A01FC
WARNING:
Never adjust the sunshade while driving.!
B340G01S-EAT HEADLIGHT LEVELING DEVICE SYSTEM To adjust the headlight beam level ac- cording to the number of the passen-gers and the loading weight in the lug- gage area, turn the beam leveling switch. The higher the number of the switchposition, the lower the headlight beamlevel. Always keep the headlight beamat the proper leveling position, or head-lights may dazzle other road users. Listed below are the examples of rec- ommended switch settings. For loadingconditions other than those listed be-low, adjust the switch position so thatthe beam level may be the nearest asthe condition obtained according to the list. HTB181-D

1- 54 FEATURES OF YOUR HYUNDAI

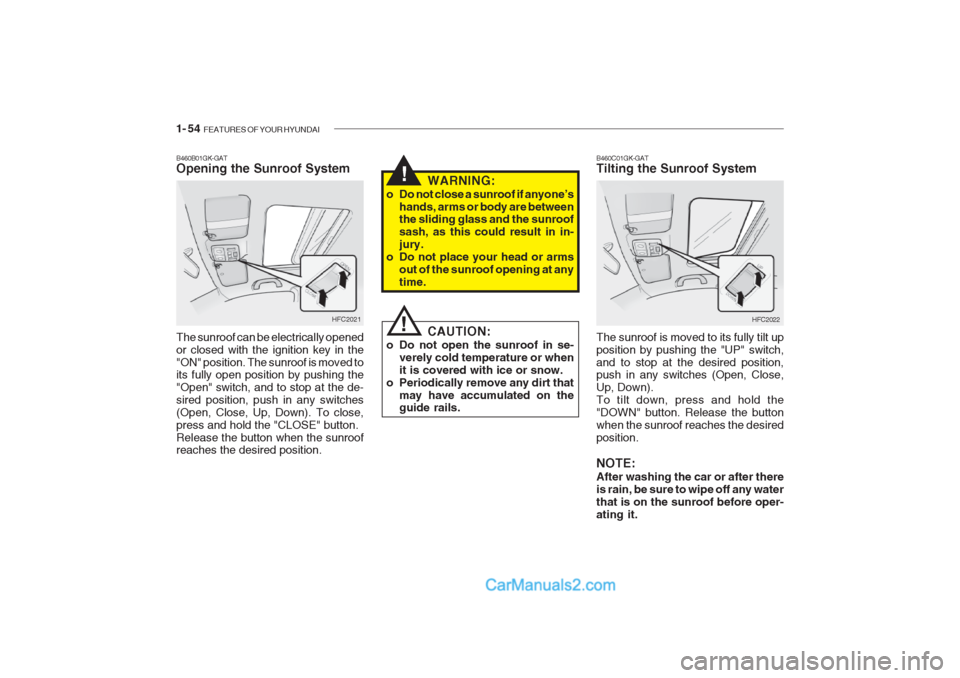

B460B01GK-GAT Opening the Sunroof System The sunroof can be electrically opened or closed with the ignition key in the"ON" position. The sunroof is moved to its fully open position by pushing the "Open" switch, and to stop at the de-sired position, push in any switches(Open, Close, Up, Down). To close,press and hold the "CLOSE" button.Release the button when the sunroof reaches the desired position. HFC2021
HFC2022
B460C01GK-GAT Tilting the Sunroof System The sunroof is moved to its fully tilt up position by pushing the "UP" switch,and to stop at the desired position, push in any switches (Open, Close, Up, Down).To tilt down, press and hold the"DOWN" button. Release the buttonwhen the sunroof reaches the desiredposition. NOTE: After washing the car or after there is rain, be sure to wipe off any waterthat is on the sunroof before oper-ating it.
WARNING:
o Do not close a sunroof if anyone’s hands, arms or body are between the sliding glass and the sunroof sash, as this could result in in-jury.
o Do not place your head or arms
out of the sunroof opening at anytime.
CAUTION:
o Do not open the sunroof in se- verely cold temperature or whenit is covered with ice or snow.
o Periodically remove any dirt that
may have accumulated on the guide rails.
!
!

FEATURES OF YOUR HYUNDAI 1- 55
2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found inthe vehicle’s trunk or glove box.
3. Turn the wrench counterclockwise to open or clockwise to close the sunroof. HGK033B460E01TB-GAT Resetting the Sunroof System If the battery has been recharged, disconnected, if the sunroof is oper-ated with the hexagonal head wrenchmanually, or if the sunroof operation isstopped by that ignition key is turned tothe "OFF" position while it is moving, you may need to reset the sunroof. To do this;
1. Turn the ignition switch "OFF".
2. With pressing "open" "up" button at
the same time, turn the ignition switch "ON".
3. If the sunroof is set like this, the
sunroof is reset with tilting up/down automatically once for all.
! CAUTION:
If the sunroof is not reset, it may not be operated properly.
B460D01TB-AAT Manual Operation of Sunroof If the sunroof does not electrically op- erate:
HGK032
1. Remove the cap located in the rear roof panel by using a coin or screwdriver.

1- 56 FEATURES OF YOUR HYUNDAI
With Sunroof

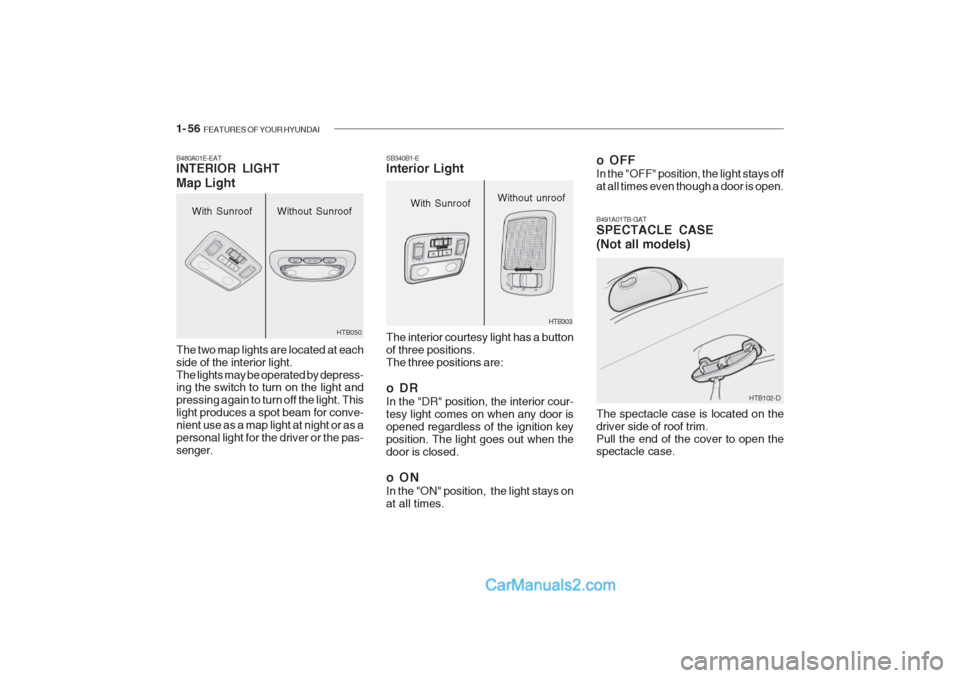

B480A01E-EAT INTERIOR LIGHT Map Light The two map lights are located at each side of the interior light.The lights may be operated by depress- ing the switch to turn on the light and pressing again to turn off the light. Thislight produces a spot beam for conve-nient use as a map light at night or as apersonal light for the driver or the pas-senger.Without Sunroof
HTB050
HTB102-D
B491A01TB-GAT SPECTACLE CASE (Not all models) The spectacle case is located on the driver side of roof trim.Pull the end of the cover to open the spectacle case.
HTB303
With Sunroof
Without unroof
SB340B1-E Interior Light The interior courtesy light has a button of three positions.The three positions are:
oDR In the "DR" position, the interior cour- tesy light comes on when any door isopened regardless of the ignition keyposition. The light goes out when thedoor is closed.
oON In the "ON" position, the light stays on at all times. o OFF In the "OFF" position, the light stays off at all times even though a door is open.

FEATURES OF YOUR HYUNDAI 1- 57

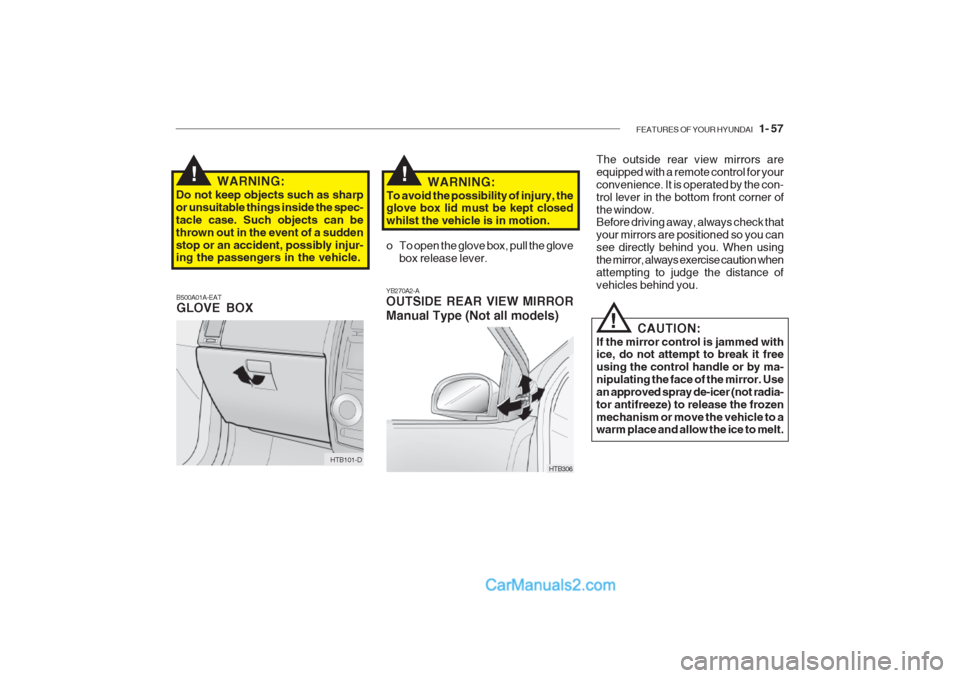

WARNING:
To avoid the possibility of injury, the glove box lid must be kept closed whilst the vehicle is in motion.
o To open the glove box, pull the glove box release lever.!
YB270A2-A OUTSIDE REAR VIEW MIRROR Manual Type (Not all models) The outside rear view mirrors are equipped with a remote control for yourconvenience. It is operated by the con-trol lever in the bottom front corner ofthe window. Before driving away, always check that your mirrors are positioned so you cansee directly behind you. When usingthe mirror, always exercise caution whenattempting to judge the distance ofvehicles behind you.
HTB306
B500A01A-EAT GLOVE BOX
HTB101-D
WARNING:
Do not keep objects such as sharp or unsuitable things inside the spec-tacle case. Such objects can bethrown out in the event of a suddenstop or an accident, possibly injur- ing the passengers in the vehicle.
!
CAUTION:
If the mirror control is jammed with ice, do not attempt to break it free using the control handle or by ma-nipulating the face of the mirror. Usean approved spray de-icer (not radia-tor antifreeze) to release the frozenmechanism or move the vehicle to a warm place and allow the ice to melt.!

1- 58 FEATURES OF YOUR HYUNDAI
To adjust the position of either mirror:
1. Move the selecting switch to the "L"
(or "R") position to activate the ad- justable mechanism for the adjust-ing door mirror.
2. Now, adjust mirror angle by depress- ing the appropriate perimeter switchas illustrated.
HTB213CAUTION:
o Do not leave the switch on for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge, soft cloth or approved deicer.
o Be careful when judging the size or distance of any object seen in the passenger side rear view mir-ror. It is a convex mirror with acurved surface, any objects seen in this mirror are closer than they appear.
!
B510B01FC-EAT OUTSIDE REAR VIEW MIRROR Electric Type (Not all models) The outside rear view mirror can be adjusted in any direction to give themaximum rear view vision.The remote control outside rear viewmirror switch controls the adjustmentsfor passenger side door mirror. HTB104-D

FEATURES OF YOUR HYUNDAI 1- 59

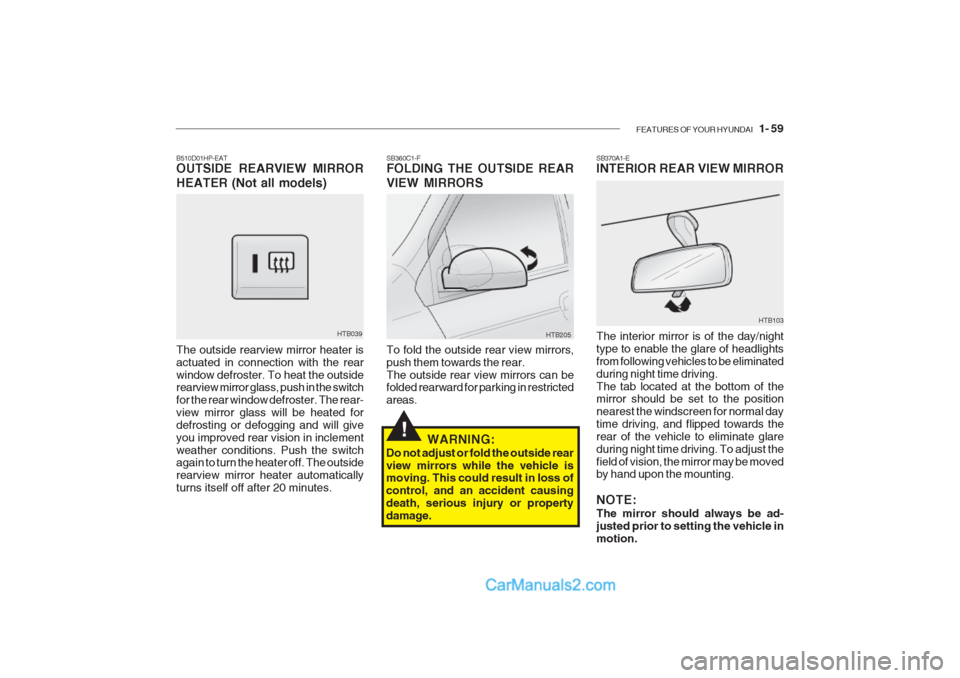

SB370A1-E INTERIOR REAR VIEW MIRROR The interior mirror is of the day/night type to enable the glare of headlightsfrom following vehicles to be eliminatedduring night time driving.The tab located at the bottom of the mirror should be set to the position nearest the windscreen for normal daytime driving, and flipped towards therear of the vehicle to eliminate glareduring night time driving. To adjust thefield of vision, the mirror may be moved by hand upon the mounting. NOTE: The mirror should always be ad- justed prior to setting the vehicle inmotion. HTB103B510D01HP-EAT OUTSIDE REARVIEW MIRROR HEATER (Not all models) The outside rearview mirror heater is actuated in connection with the rearwindow defroster. To heat the outside rearview mirror glass, push in the switch for the rear window defroster. The rear-view mirror glass will be heated fordefrosting or defogging and will giveyou improved rear vision in inclementweather conditions. Push the switch again to turn the heater off. The outside rearview mirror heater automaticallyturns itself off after 20 minutes. SB360C1-F FOLDING THE OUTSIDE REAR VIEW MIRRORS To fold the outside rear view mirrors, push them towards the rear.The outside rear view mirrors can be folded rearward for parking in restricted areas.
HTB039
HTB205
WARNING:
Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss of control, and an accident causingdeath, serious injury or propertydamage.
!

1- 60 FEATURES OF YOUR HYUNDAI

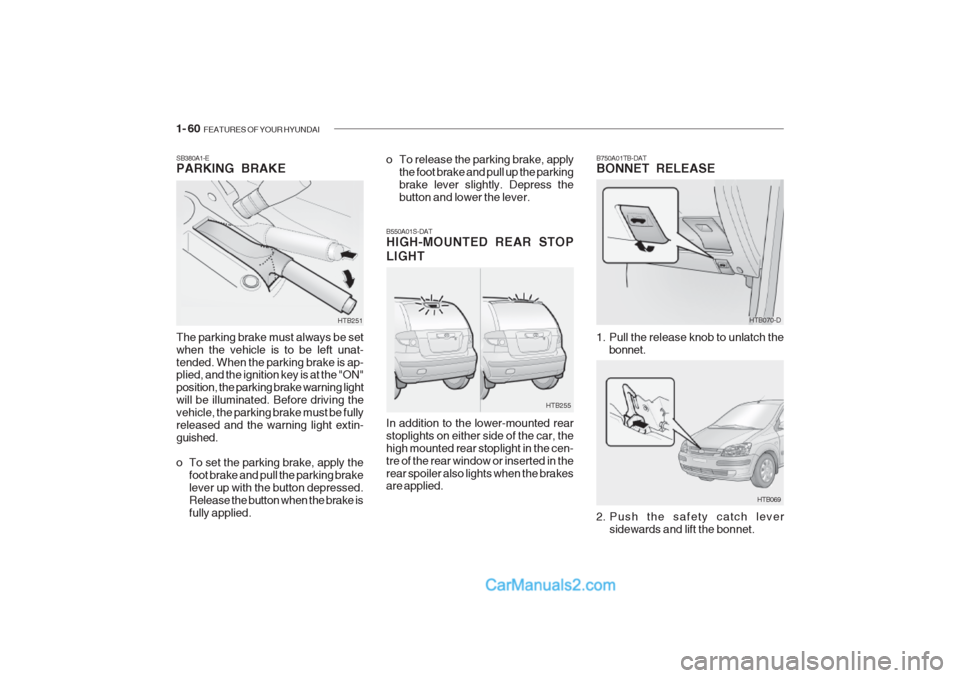

The parking brake must always be set when the vehicle is to be left unat-tended. When the parking brake is ap- plied, and the ignition key is at the "ON" position, the parking brake warning lightwill be illuminated. Before driving thevehicle, the parking brake must be fullyreleased and the warning light extin-guished.
o To set the parking brake, apply the
foot brake and pull the parking brake lever up with the button depressed.Release the button when the brake isfully applied.
SB380A1-E PARKING BRAKE
B550A01S-DAT HIGH-MOUNTED REAR STOP LIGHT In addition to the lower-mounted rear stoplights on either side of the car, thehigh mounted rear stoplight in the cen-tre of the rear window or inserted in therear spoiler also lights when the brakes are applied.
HTB251
HTB255
o To release the parking brake, apply
the foot brake and pull up the parking brake lever slightly. Depress thebutton and lower the lever.
B750A01TB-DAT BONNET RELEASE
HTB070-D
1. Pull the release knob to unlatch the bonnet.
HTB069
2. Push the safety catch lever sidewards and lift the bonnet.
