2002 Hyundai Getz Owner's Manual

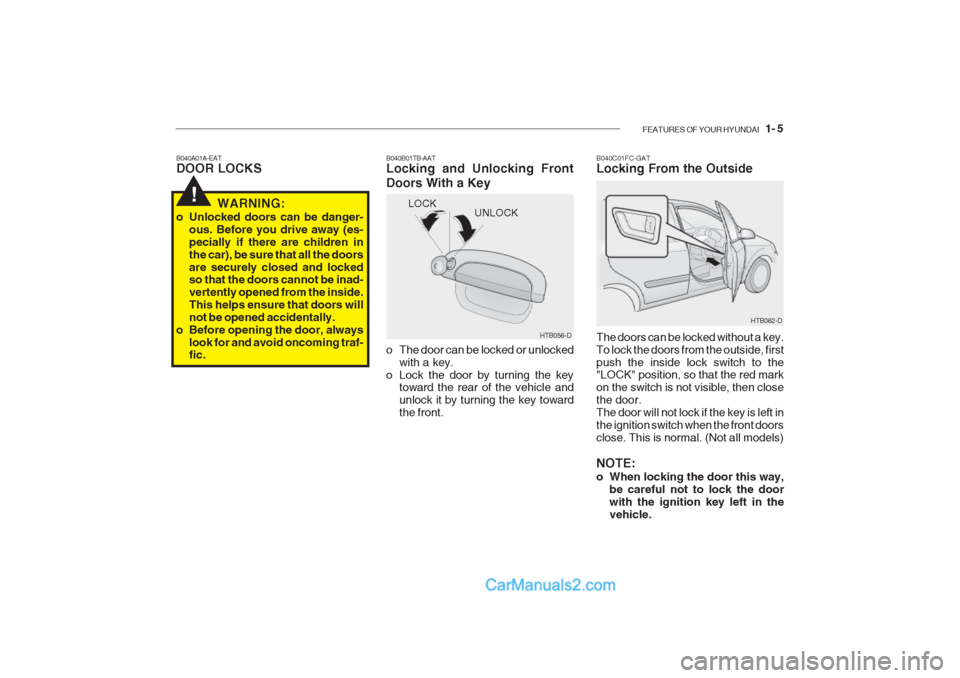

FEATURES OF YOUR HYUNDAI 1- 5
B040A01A-EAT DOOR LOCKS B040B01TB-AATLocking and Unlocking Front Doors With a Key
!WARNING:
o Unlocked doors can be danger- ous. Before you drive away (es- pecially if there are children inthe car), be sure that all the doorsare securely closed and locked so that the doors cannot be inad- vertently opened from the inside.This helps ensure that doors willnot be opened accidentally.
o Before opening the door, always
look for and avoid oncoming traf- fic. o The door can be locked or unlocked
with a key.
o Lock the door by turning the key toward the rear of the vehicle and unlock it by turning the key towardthe front. B040C01FC-GAT Locking From the Outside The doors can be locked without a key. To lock the doors from the outside, firstpush the inside lock switch to the "LOCK" position, so that the red mark on the switch is not visible, then closethe door.The door will not lock if the key is left inthe ignition switch when the front doorsclose. This is normal. (Not all models) NOTE:
o When locking the door this way,
be careful not to lock the door with the ignition key left in thevehicle.UNLOCK
HTB056-D
LOCK
HTB062-D

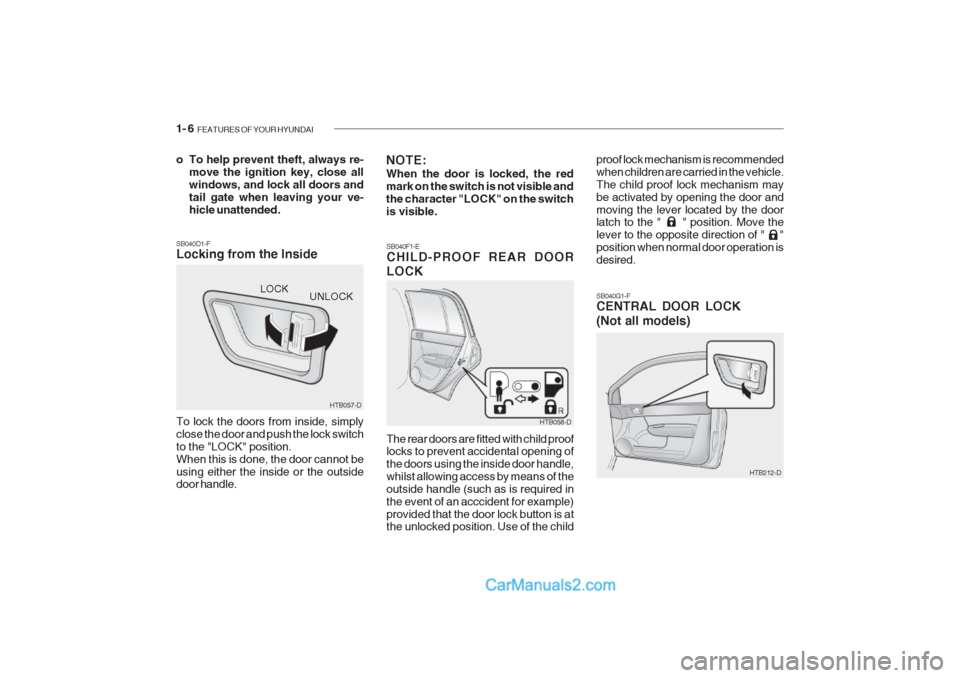

1- 6 FEATURES OF YOUR HYUNDAI
SB040G1-F CENTRAL DOOR LOCK (Not all models)
SB040D1-F Locking from the Inside To lock the doors from inside, simply close the door and push the lock switchto the "LOCK" position.When this is done, the door cannot beusing either the inside or the outside door handle. SB040F1-ECHILD-PROOF REAR DOOR LOCK The rear doors are fitted with child proof locks to prevent accidental opening of the doors using the inside door handle,whilst allowing access by means of theoutside handle (such as is required inthe event of an acccident for example)provided that the door lock button is at the unlocked position. Use of the child
o To help prevent theft, always re-
move the ignition key, close all windows, and lock all doors andtail gate when leaving your ve-hicle unattended.
NOTE: When the door is locked, the red mark on the switch is not visible andthe character "LOCK" on the switchis visible. proof lock mechanism is recommendedwhen children are carried in the vehicle.The child proof lock mechanism maybe activated by opening the door andmoving the lever located by the door latch to the " " position. Move the lever to the opposite direction of " "position when normal door operation isdesired.
HTB057-D
UNLOCK
LOCK
HTB058-D
HTB212-D

FEATURES OF YOUR HYUNDAI 1- 7
B070A01A-EAT ANTI-THEFT ALARM SYSTEM (Not all models) This system is designed to provide protection from unauthorized entry intothe car. This system is operated inthree stages: the first is the "Armed"stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If triggered, the system provides an au-dible alarm with blinking of the turnsignal lights.
The central door locking is operated bypushing the driver's door lock switchtoward the front or rear of the vehicle. Ifthe passenger and rear doors are openwhen the switch is pushed, the door will remain locked when closed. NOTE:
o When pushing the switch toward
the rear, all doors and tail gate will unlock.When pushing the switch towardthe front, all doors and tail gate will lock.
o When the door is unlocked, the red mark on the switch is visible and the character "LOCK" on theswitch is visible.
o The central door locking is oper- ated by turning the key (with theft-alarm system: driver's door andpassenger's door, without theft-alarm system: driver's door only)toward the front or rear of thevehicle. Park the car and stop the engine. Armthe system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine bonnet
and tail gate are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once to indicate that the system is armed. NOTE:
1) If any door, tail gate or engine bonnet remains open, the system will not be armed.
2) If this happens, rearm the system as described above.
CAUTION:
Do not arm the system until all pas-sengers have left the car. If the sys-tem is armed while a passenger(s)remains in the car, the alarm may beactivated when the remaining passenger(s) leaves the car.
!
HTB052-D
B070B01O-DAT Armed Stage

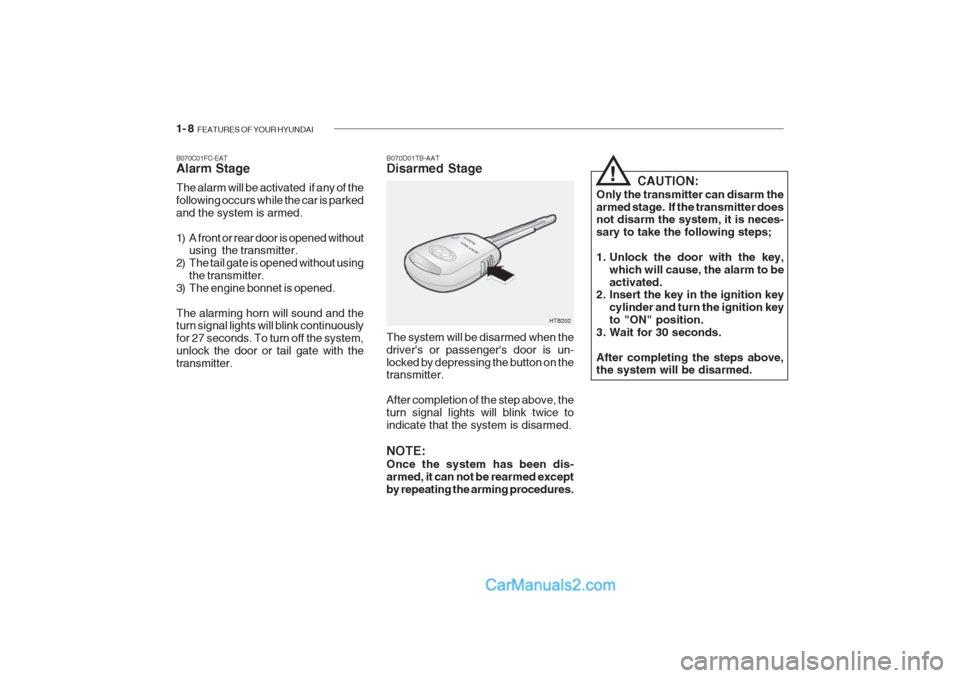

1- 8 FEATURES OF YOUR HYUNDAI
HTB202
B070D01TB-AAT Disarmed Stage
B070C01FC-EATAlarm Stage The alarm will be activated if any of the following occurs while the car is parkedand the system is armed.
1) A front or rear door is opened without
using the transmitter.
2) The tail gate is opened without using the transmitter.
3) The engine bonnet is opened.The alarming horn will sound and the turn signal lights will blink continuously for 27 seconds. To turn off the system,unlock the door or tail gate with thetransmitter. The system will be disarmed when thedriver's or passenger's door is un-locked by depressing the button on the transmitter. After completion of the step above, the turn signal lights will blink twice toindicate that the system is disarmed. NOTE: Once the system has been dis- armed, it can not be rearmed exceptby repeating the arming procedures. CAUTION:
Only the transmitter can disarm thearmed stage. If the transmitter does not disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause, the alarm to be activated.
2. Insert the key in the ignition key
cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.
!

FEATURES OF YOUR HYUNDAI 1- 9
HTB053
B070F01TB-EAT Keyless Entry System (Not all models) Locking doors
1. Close all doors.
2. Push the button on the transmitter.
3. At the same time all doors lock, the
turn signal light will blink once toindicate that the system is armed.
Unlocking doors
1. Push the button on the transmitter.
2. At the same time all doors unlock, the turn signal light will blink twice toindicate that the system is disarmed. B070E01TB-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock thedoors, and the LED will not light. Re-place the battery as soon as possible. Battery type : CR1220 Replacement instructions:
1. Remove the screw with a (+) screw-
driver.
2. Separate the case with a (-) screw-
driver as shown in the illustration. 3. Remove four screws back side of the
built-in circuit. HTB054
HTB055
Battery
4. Remove the old battery from the case and note the polarity. Make sure the polarity of the new batteryis the same (+side facing up), theninsert it in the transmitter.

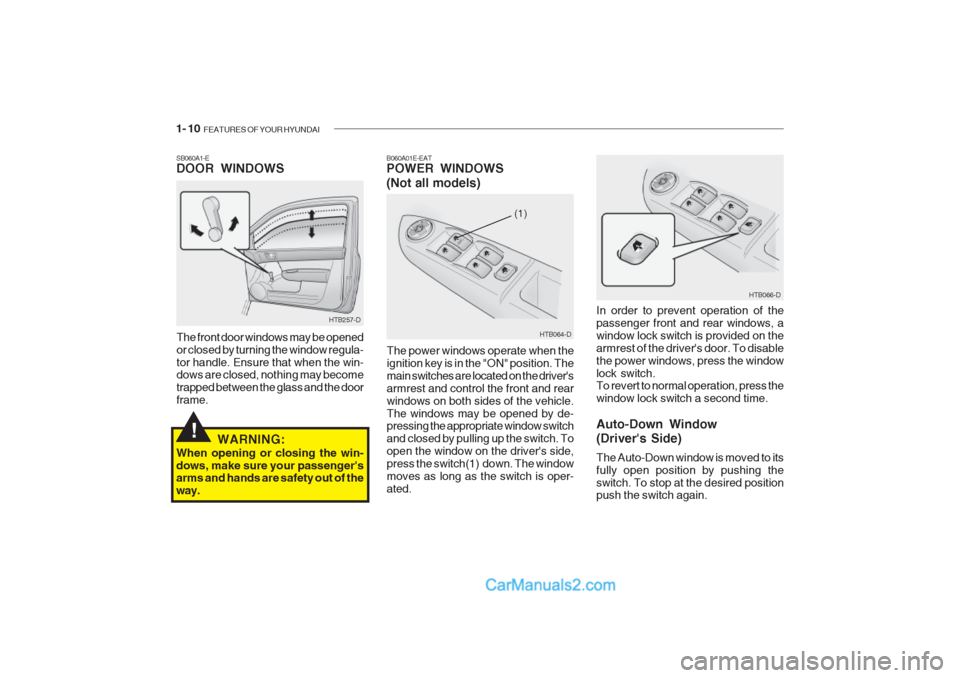

1- 10 FEATURES OF YOUR HYUNDAI
HTB257-D
SB060A1-E DOOR WINDOWS
The front door windows may be opened or closed by turning the window regula-tor handle. Ensure that when the win- dows are closed, nothing may become trapped between the glass and the doorframe. HTB064-D
(1)
HTB066-D
In order to prevent operation of the passenger front and rear windows, awindow lock switch is provided on thearmrest of the driver's door. To disablethe power windows, press the windowlock switch. To revert to normal operation, press the window lock switch a second time. Auto-Down Window (Driver's Side) The Auto-Down window is moved to its fully open position by pushing theswitch. To stop at the desired position push the switch again.
B060A01E-EAT POWER WINDOWS (Not all models)
The power windows operate when the ignition key is in the "ON" position. Themain switches are located on the driver'sarmrest and control the front and rearwindows on both sides of the vehicle.The windows may be opened by de- pressing the appropriate window switch and closed by pulling up the switch. Toopen the window on the driver's side,press the switch(1) down. The windowmoves as long as the switch is oper-ated.
WARNING:
When opening or closing the win-dows, make sure your passenger's arms and hands are safety out of the way.
!

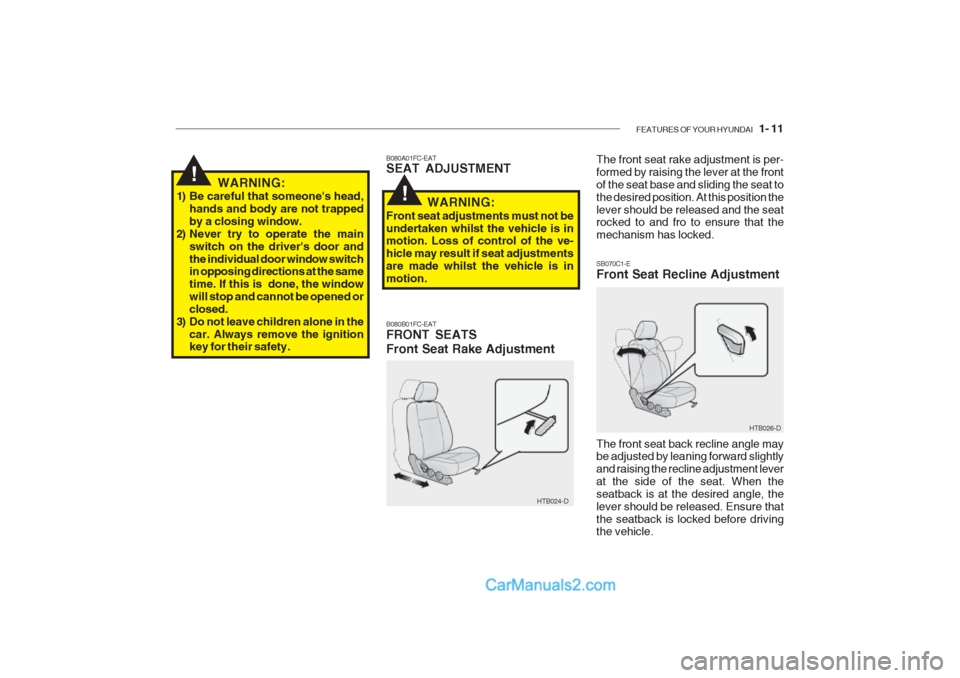

FEATURES OF YOUR HYUNDAI 1- 11
HTB026-D
HTB024-D
B080A01FC-EAT SEAT ADJUSTMENT B080B01FC-EAT FRONT SEATS Front Seat Rake Adjustment
The front seat rake adjustment is per- formed by raising the lever at the frontof the seat base and sliding the seat tothe desired position. At this position thelever should be released and the seat rocked to and fro to ensure that the mechanism has locked.
!WARNING:
Front seat adjustments must not be undertaken whilst the vehicle is in motion. Loss of control of the ve- hicle may result if seat adjustmentsare made whilst the vehicle is inmotion. SB070C1-E Front Seat Recline Adjustment
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main switch on the driver's door andthe individual door window switch in opposing directions at the same time. If this is done, the windowwill stop and cannot be opened orclosed.
3) Do not leave children alone in the
car. Always remove the ignition key for their safety.
!
The front seat back recline angle may be adjusted by leaning forward slightly and raising the recline adjustment leverat the side of the seat. When theseatback is at the desired angle, thelever should be released. Ensure thatthe seatback is locked before driving the vehicle.

1- 12 FEATURES OF YOUR HYUNDAI
HTB025-D
SB070F1-F Seat Cushion Height Adjustment (Not all models) (Driver's seatonly)
To raise or lower the front part of the seat cushion, turn the front knob for-ward or rearward. To raise or lower the rear part of the seat cushion, turn the rear knob forward orrearward.HTB027-D
SB070E1-E Lumbar Support Adjustment (Not all models) (Driver's seatonly)
HFC2028
Lock knob
SB070D2-E Head Restraint Adjustment To raise the head restraint, pull it up. To lower it, push it down while pressing thelock knob. For maximum effectiveness in the event of an accident, the restraint must be adjusted so that the restraint isapproximately at the level of the seatoccupant's ears. The restraint mustnever be so adjusted that it is centredabout the level of the seat occupant's neck.
!WARNING:
Do not operate the vehicle with the restraints removed. The restraintsprovide protection against neck in- jury when installed and correctly adjusted. Some models are fitted with adjustabledriver seat lumbar support which maybe used to increase the amount oflumbar support offered by the seat back.Adjustment is performed by moving the handle at the side of the backrest in a forward direction to increase the sup-port.
