2002 Hyundai Getz Owner's Manual

FEATURES OF YOUR HYUNDAI 1- 13

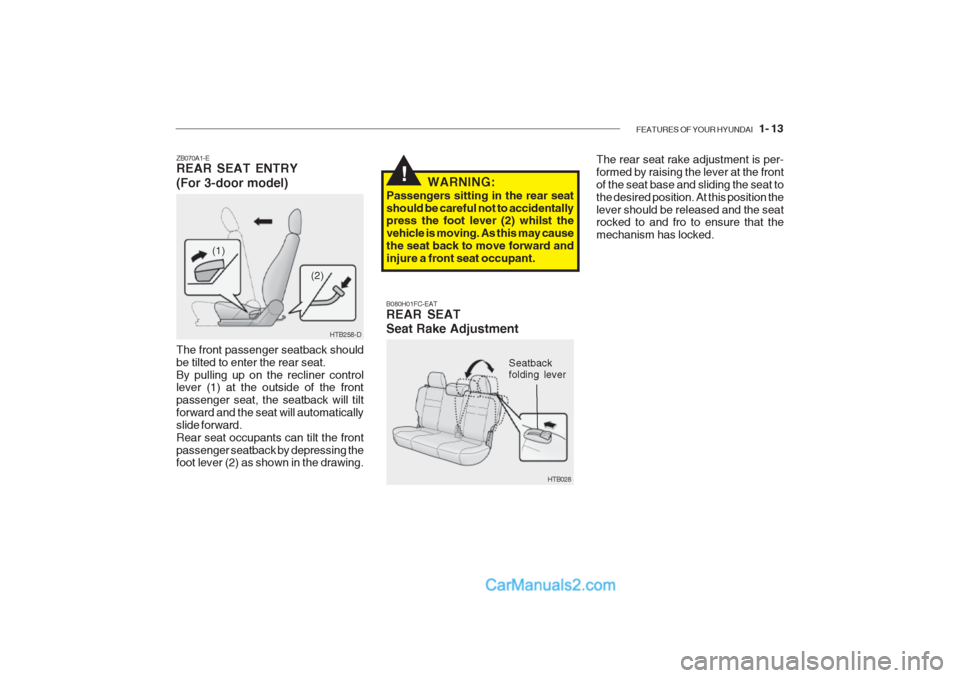

ZB070A1-E REAR SEAT ENTRY (For 3-door model) The front passenger seatback should be tilted to enter the rear seat.By pulling up on the recliner control lever (1) at the outside of the front passenger seat, the seatback will tiltforward and the seat will automaticallyslide forward.Rear seat occupants can tilt the frontpassenger seatback by depressing the foot lever (2) as shown in the drawing. WARNING:
Passengers sitting in the rear seat should be careful not to accidentally press the foot lever (2) whilst the vehicle is moving. As this may causethe seat back to move forward andinjure a front seat occupant.
!
HTB028
Seatback folding lever
B080H01FC-EAT REAR SEAT Seat Rake Adjustment
HTB258-D
(1)
(2) The rear seat rake adjustment is per- formed by raising the lever at the frontof the seat base and sliding the seat tothe desired position. At this position thelever should be released and the seat rocked to and fro to ensure that the mechanism has locked.

1- 14 FEATURES OF YOUR HYUNDAI
HTB294

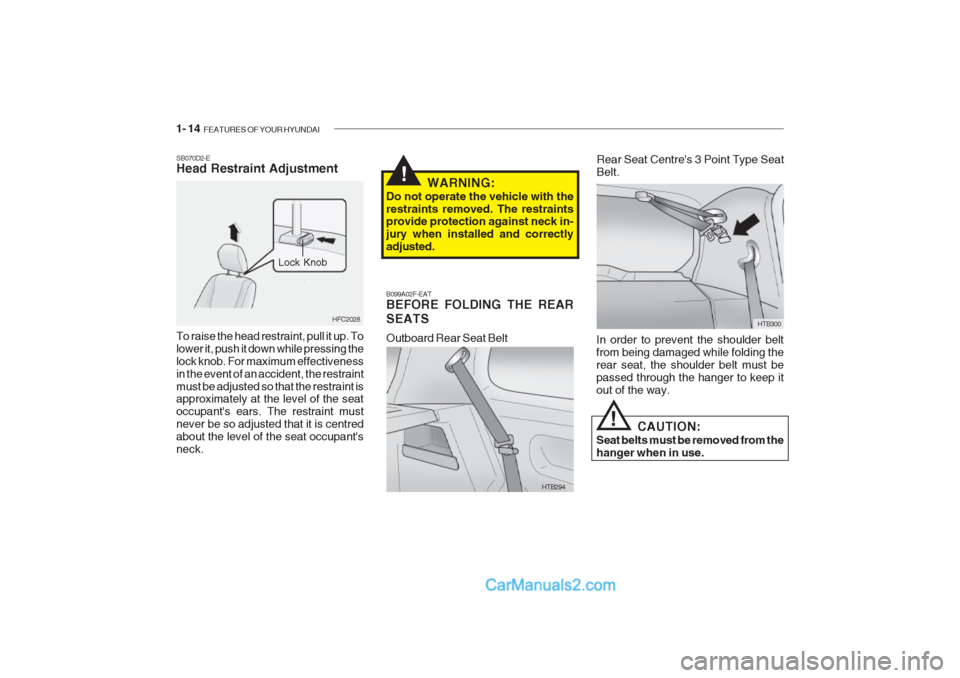

B099A02F-EAT BEFORE FOLDING THE REAR SEATS Outboard Rear Seat Belt
HTB300
!
Rear Seat Centre's 3 Point Type Seat Belt.
Lock Knob
SB070D2-E Head Restraint Adjustment To raise the head restraint, pull it up. To lower it, push it down while pressing thelock knob. For maximum effectivenessin the event of an accident, the restraintmust be adjusted so that the restraint is approximately at the level of the seat occupant's ears. The restraint mustnever be so adjusted that it is centredabout the level of the seat occupant'sneck.
HFC2028
!WARNING:
Do not operate the vehicle with the restraints removed. The restraints provide protection against neck in- jury when installed and correctlyadjusted.
In order to prevent the shoulder beltfrom being damaged while folding therear seat, the shoulder belt must bepassed through the hanger to keep itout of the way.CAUTION:
Seat belts must be removed from thehanger when in use.

FEATURES OF YOUR HYUNDAI 1- 15
WARNING:
o When you return the folded down seatback to its upright position, make sure the seat belts are in position to be accessible and tofunction properly.
o When you return the folded down
seatback to its upright position,be careful not to get your fingers or legs in.
o The purpose of the fold down
rear seatback and the fold for- ward rear seat cushion is to in-crease cargo space. Do not allowpassengers to sit in the cargo area while the car is moving. This is not a proper seating position
3. Pull the seat cushion release handle
rear ward, then lift up a desired seatcushion.
4. To secure the seat, hook the secur-
ing strap under the seat back to the headrest stay of front driver andpassenger seat.
5. To return the seatback and seat cushion to its normal position, re-verse the above procedure.
o When you return the seatback to its
upright position, always be sure it islocked into position by pulling andpushing on the top of seatback.
HTB030A
Seat cushion release handle
HTB031Securing strap
!
Securing Strap
HTB029Seatback folding lever
B090B01TB-EAT Folding Rear Seatback and Seat Cushion For greater convenience, the entire seatback and seat cushion may befolded down and up.
1. Push the headrest down to the low-
est position.
2. To fold down the seatback , push
and hold the seatback folding lever toward the headrest, then push downthe seatback.

1- 16 FEATURES OF YOUR HYUNDAI
HTB195
B140A01B-GAT REAR SEAT WARNING
For the safety of all passengers, lug- gage or other cargo should not be piledhigher than the top of the seatback.
and no seat belts are available foruse when the seatback is foldeddown. Passengers who are notproperly seated and wearing seatbelts could sustain serious inju- ries or death in case of an accident or a sudden stop.
o Objects should not extend higher than the top of the front seatbacks.This could allow cargo to slideforward and cause injury or dam- age during sudden stops.
o When you return the folded down seatback to its upright position, always be sure to install the head-rests in their proper positions.Headrests are important to the safety of occupants in a rear colli- sion. If the headrests are notinstalled in their proper position,serious injury or death could re-sult if a rear end collision occurs. SB090A1-E SEAT BELT PRECAUTIONS Seat belts should be worn at all times by all occupants front and rear. Thepossibility of injury or the severity ofinjuries suffered in the event of anaccident will be greatly reduced by the wearing of seat belts. In addition the following recommenda-tions should be observed.
SB090B1-E Babies/Small Children Babies and small children must be restrained using a restraint system spe-cifically designed for this purpose. Un-der no circumstances should a child be carried in the vehicle without the use of a suitable restraint which meets theregulations in force in the country wherethe vehicle is in operation.

FEATURES OF YOUR HYUNDAI 1- 17

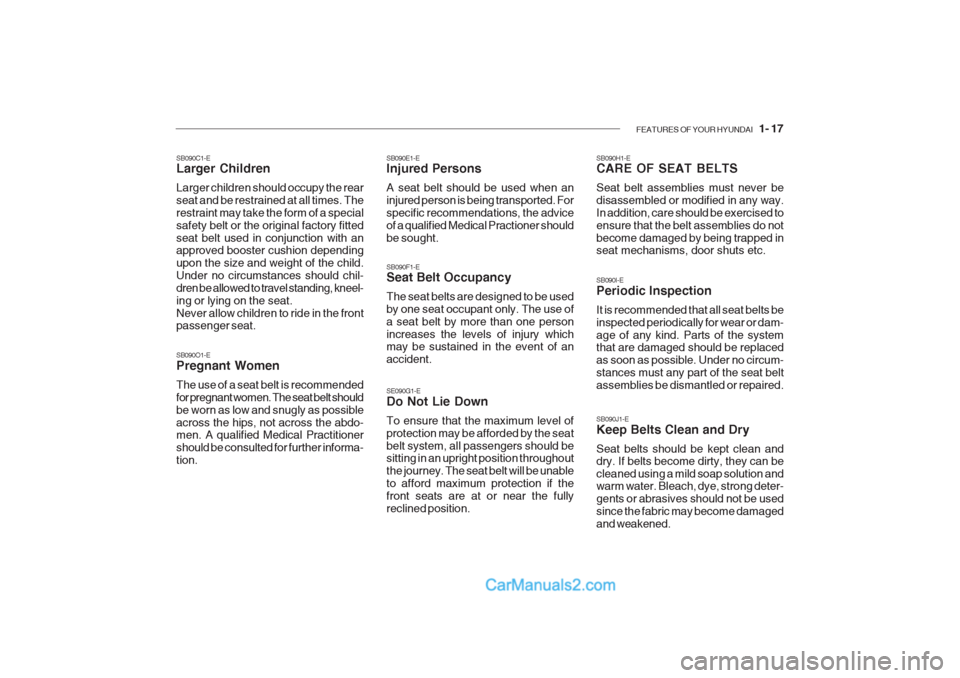

SB090C1-E Larger Children Larger children should occupy the rear seat and be restrained at all times. Therestraint may take the form of a specialsafety belt or the original factory fittedseat belt used in conjunction with an approved booster cushion depending upon the size and weight of the child.Under no circumstances should chil-dren be allowed to travel standing, kneel-ing or lying on the seat.Never allow children to ride in the front passenger seat. SB090O1-E Pregnant Women The use of a seat belt is recommended for pregnant women. The seat belt shouldbe worn as low and snugly as possibleacross the hips, not across the abdo- men. A qualified Medical Practitioner should be consulted for further informa-tion. SB090E1-E Injured Persons A seat belt should be used when an injured person is being transported. Forspecific recommendations, the adviceof a qualified Medical Practioner shouldbe sought. SB090F1-E Seat Belt Occupancy The seat belts are designed to be used by one seat occupant only. The use ofa seat belt by more than one personincreases the levels of injury which may be sustained in the event of an accident. SE090G1-E Do Not Lie Down To ensure that the maximum level of protection may be afforded by the seatbelt system, all passengers should be sitting in an upright position throughout the journey. The seat belt will be unableto afford maximum protection if thefront seats are at or near the fullyreclined position.SB090H1-E CARE OF SEAT BELTS Seat belt assemblies must never be disassembled or modified in any way.In addition, care should be exercised toensure that the belt assemblies do notbecome damaged by being trapped in seat mechanisms, door shuts etc. SB090I-E Periodic Inspection It is recommended that all seat belts be inspected periodically for wear or dam-age of any kind. Parts of the system that are damaged should be replaced as soon as possible. Under no circum-stances must any part of the seat beltassemblies be dismantled or repaired. SB090J1-E Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can be cleaned using a mild soap solution andwarm water. Bleach, dye, strong deter-gents or abrasives should not be usedsince the fabric may become damagedand weakened.

1- 18 FEATURES OF YOUR HYUNDAI
SB090P1-E SEAT BELTS (3-Point Type) To Fasten The Seat Belt
B180A01L-D
The seat belts are fastened by pulling the belt buckle towards the seat beltstalk and inserting the metal tongue of the buckle into the stalk. The buckle should be firmly pressed into the stalkuntil locked which will be indicated byan audible "click".The length of the seat belt webbing willbe automatically adjusted by the seat belt mechanism to allow the wearer maximum freedom of movement whilstthe belt is being worn. However, in theevent of rapid deceleration or impact,the belt mechanism will automaticallylock.
B170A01L
SB090K1-E Replacement of Seat Belts The entire seat belt assembly or as- semblies should be replaced if the ve-hicle has been involved in an accidenteven if no damage is evident. Addi- tional questions concerning seat belt operation should be directed to a HyundaiDealer. B170A04A-EAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT(Not all models)
You can adjust the height of the shoul- der belt anchor to one of the 4 positions.If the height of the adjusting seat belt istoo near your neck, you will not begetting the most effective protection. The shoulder portion should be ad- justed so that it lies across your chestand midway over your shoulder nearestthe door and not your neck.To adjust the height of the seat beltanchor, lower or raise the height ad- juster into an appropriate position. To raise the height adjuster, pull it up. Tolower it, push it down while pressing theheight adjuster button.Release the button to lock the anchorinto position. Try sliding the release button to make sure that it has locked into the position.
WARNING:
o The height adjuster must be in the locked position when the vehicle is moving.
o The misadjustment of height of
the shoulder belt could reduce the effectiveness of the seat belt in acrash.
!

FEATURES OF YOUR HYUNDAI 1- 19

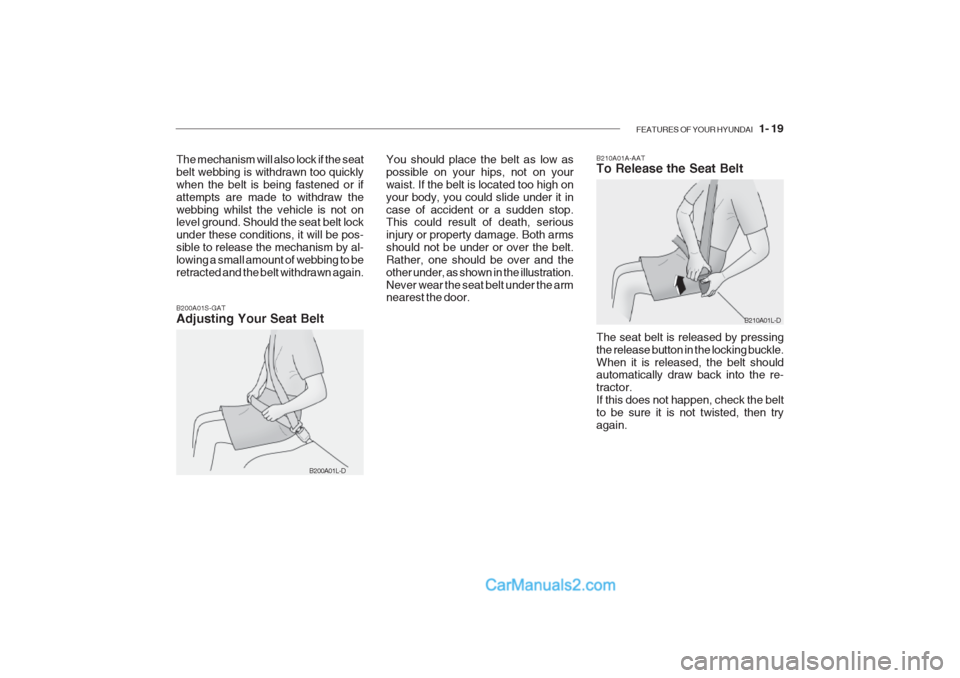

B200A01S-GAT Adjusting Your Seat Belt B210A01A-AAT To Release the Seat Belt The seat belt is released by pressing the release button in the locking buckle.When it is released, the belt should automatically draw back into the re- tractor.If this does not happen, check the beltto be sure it is not twisted, then tryagain.
B200A01L-DYou should place the belt as low as possible on your hips, not on yourwaist. If the belt is located too high onyour body, you could slide under it incase of accident or a sudden stop. This could result of death, serious injury or property damage. Both armsshould not be under or over the belt.Rather, one should be over and theother under, as shown in the illustration.Never wear the seat belt under the arm nearest the door.
B210A01L-D
The mechanism will also lock if the seat belt webbing is withdrawn too quicklywhen the belt is being fastened or ifattempts are made to withdraw thewebbing whilst the vehicle is not on level ground. Should the seat belt lock under these conditions, it will be pos-sible to release the mechanism by al-lowing a small amount of webbing to beretracted and the belt withdrawn again.

1- 20 FEATURES OF YOUR HYUNDAI

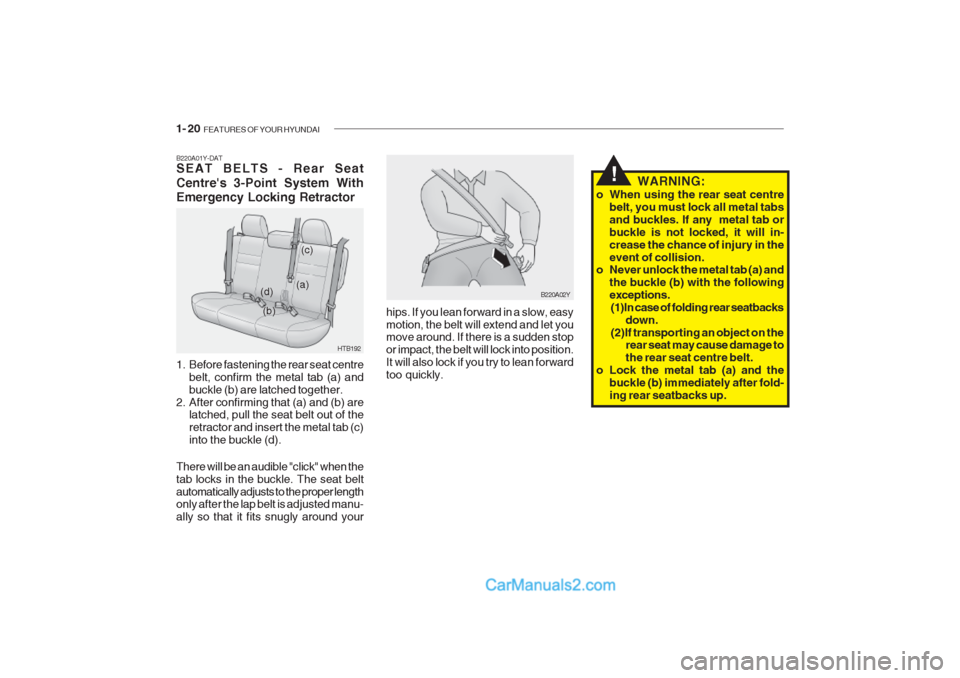

B220A01Y-DAT SEAT BELTS - Rear Seat Centre's 3-Point System With Emergency Locking Retractor
1. Before fastening the rear seat centre
belt, confirm the metal tab (a) and buckle (b) are latched together.
2. After confirming that (a) and (b) are latched, pull the seat belt out of theretractor and insert the metal tab (c)into the buckle (d).
There will be an audible "click" when thetab locks in the buckle. The seat beltautomatically adjusts to the proper length only after the lap belt is adjusted manu- ally so that it fits snugly around your HTB192
hips. If you lean forward in a slow, easymotion, the belt will extend and let you move around. If there is a sudden stop or impact, the belt will lock into position.It will also lock if you try to lean forwardtoo quickly. WARNING:
o When using the rear seat centre belt, you must lock all metal tabsand buckles. If any metal tab orbuckle is not locked, it will in-crease the chance of injury in theevent of collision.
o Never unlock the metal tab (a) and
the buckle (b) with the followingexceptions.(1)In case of folding rear seatbacks
down.
(2)If transporting an object on the rear seat may cause damage tothe rear seat centre belt.
o Lock the metal tab (a) and the buckle (b) immediately after fold-ing rear seatbacks up.
!
(a)
(b) (c)
(d) B220A02Y
