2002 Hyundai Getz Owner's Manual

1- 92 FEATURES OF YOUR HYUNDAI
K240B01TB-GAT 1. POWER ON/OFF, VOLUME Press this button to turn on/off the audio when the ignition switch is atACC or ON position. Once the system is on, you can increase or decrease the volume by rotating the knob clock-wise or counter-clockwise. Press this button again to turn it off. 2. TUNE Press the button not more than 0.5 second then frequency is increased.Likewise press the button not more than 0.5 second to decrease the fre- quency.With the button held down for 0.5 sec or more, the beep sound will be heard and frequency will increase or decreaserapidly. if you release the button after the beep sound, seek function is in operation. o SEEK Press the button for over 0.5 second and release the button after beep sound,then it will tune to the next receivable higher frequency station. Likewise, press the button for over 0.5 secondand release the button after the beep sound, then it will tune to the next receivable lower frequency station. ifthe selected station is in the preset memory, memorized channel will be on the display too. 3. PRESET Press any of these buttons not more than 2 seconds to listen to the stationin memory. Press the preset button for 2 seconds or more, then the current station will be stored into the memoryof the preset button with the sound.
4. SCAN Button When this button is pressed, the fre- quency will be increased to be tuned tothe next receivable station one after another, receiving each station for 5 seconds. if the desirable station istuned, press this button (scan) again to cancel scan function. 5. BASS/BAL- pull Press to pop the knob out, To increase the bass, rotate the knob clockwise, while to decrease the Bass, rotate theknob counterclockwise. Further pull the popped-ed knob for the balance control. Rotate the knob clockwise toemphasize right speaker sound. (Left speaker sound will be attenuated) When the control knob is turnedcounter-clockwise, left speaker sound will be emphasized. (Right speaker will be attenuated)

FEATURES OF YOUR HYUNDAI 1- 93
6. TREB/pull-FAD Press the pop the knob out and turn clockwise to increase the treble orcounterclockwise to decrease the treble. Further pull the popped-up knob for the Fader control. Turn the controlknob counter clockwise to emphasize front speaker sound. (Rear speaker sound will be attenu-ated) When the control knob is turned clockwise, rear speaker sound will be emphasized. (Front speaker sound willbe attenuated) 7. FM/AM Button FM/AM band button, which is used to change the band repeatedly in the following manner . FM1 FM2 AM FM1
(FM1 FM2 M L FM1 : Europe) 8. LCD LCD shows the following information; band of FM1/FM2/AM frequency, pre-set channel number, ST in case of FM Stereo.

1- 94 FEATURES OF YOUR HYUNDAI

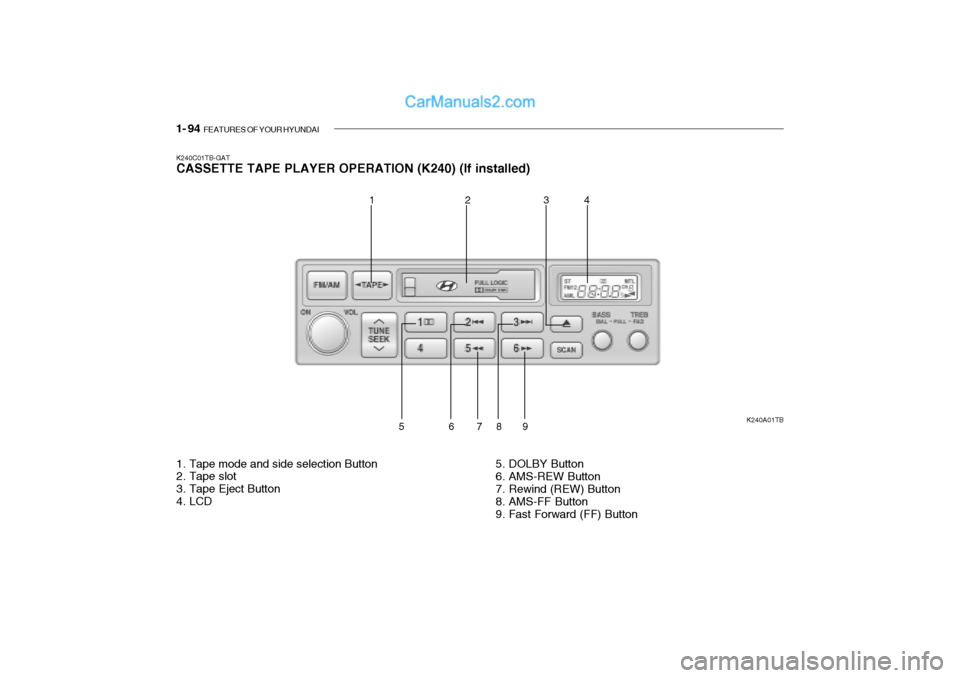

K240C01TB-GAT CASSETTE TAPE PLAYER OPERATION (K240) (If installed)
K240A01TB
1
1. Tape mode and side selection Button
2. Tape slot
3. Tape Eject Button
4. LCD 5. DOLBY Button
6. AMS-REW Button
7. Rewind (REW) Button
8. AMS-FF Button
9. Fast Forward (FF) Button
23
4
56 78 9

FEATURES OF YOUR HYUNDAI 1- 95
K240D01TB-GAT 1. Tape mode and side selection Button Press this button to play the tape when it is in the cassette deck. Once the tape mode is selected, you can play thereverse side of the tape by merely depressing the button again. 2. Cassette tape loading slot Insert the tape into the loading slot as the open side faces the right. Theplayer will pull the tape in and auto- matically begin playback even when the audio power is off and the ignitionswitch is either in the position of "ACC"or "ON". 3. Tape Eject Button ( ) Press this button to eject the cassette tape. Tape will be ejected even when the ignition switch is in the position of"OFF". 4. LCD LCD shows the operating conditions of the cassette in play. It informs thedriver of playing status, tape direction, FF or REW, MTL in metallic tape use, and Dolby etc. 5. Dolby Button When you play the Dolby recorded tape, press this button to reduce thebackground noise. If you press this button is displayed. One more press will let the disappear from the dis-play. 6. AMS-REW Button ( ) Press button to rewind the tape quickly and start replay at the beginning of the current music. During the AMS-RE-WINDING. "REW" sign blinks on the display. Press the button once more to stopREWINDING and start play again.7. Rewind button ( ) You can rewind the tape to the begin- ning of the tape by pressing the " "
button during the play ("REW" is shown on the display). Tape play starts when the " " button is pressed again duringthe REW mode. 8. AMS-FF Button ( ) Press button to fast forward the tape and start play at the beginning of next music segment. During the AMS-FF, "FF"sign blinks on the display.Press the button again to stop FF action and start play. 9. Fast Forward Button ( ) You can fast forward the tape to the end of the tape by pressing the " " button during the play. (Then "FF" is shown on the display). Tape play startswhen the button is pressed again
during the FF mode.

1- 96 FEATURES OF YOUR HYUNDAI

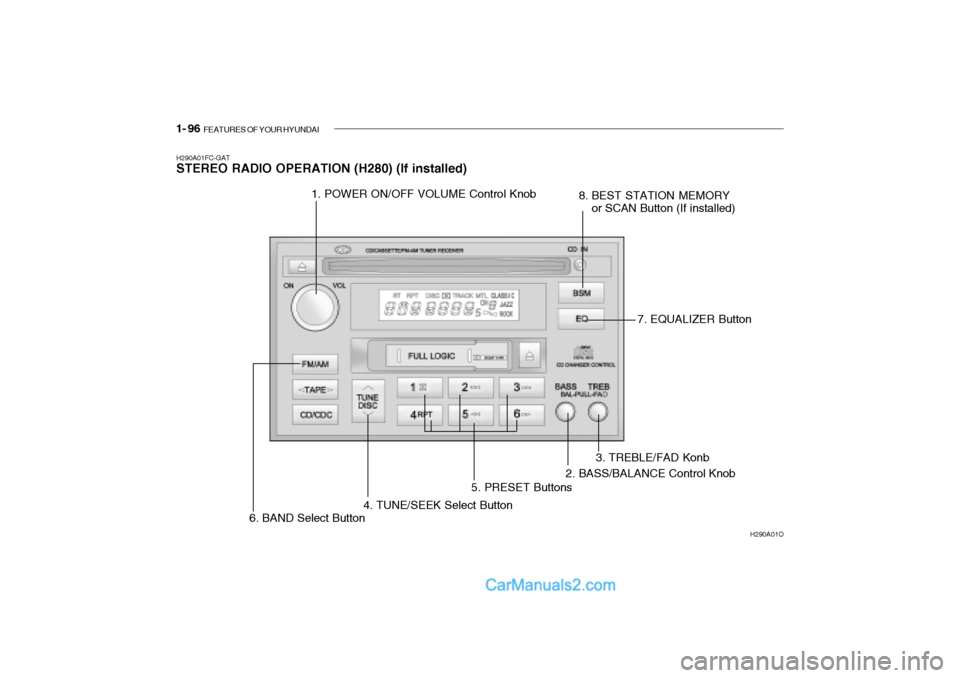

H290A01FC-GAT STEREO RADIO OPERATION (H280) (If installed)
H290A01O
1. POWER ON/OFF VOLUME Control Knob
8. BEST STATION MEMORY
or SCAN Button (If installed)
5. PRESET Buttons
4. TUNE/SEEK Select Button
6. BAND Select Button 7. EQUALIZER Button
3. TREBLE/FAD Konb
2. BASS/BALANCE Control Knob

FEATURES OF YOUR HYUNDAI 1- 97
H290B03E-GAT
1. POWER ON-OFF Control Knob The radio unit may be operated when the ignition key is in the "ACC" or "ON"position. Press the button to switch the power on. The display shows the radio frequency in the radio mode, the tapedirection indicator in the tape mode or CD track in either the CD mode or CD AUTO CHANGER mode. To switchthe power off, press the button again. VOLUME Control Rotate the knob clockwise to increase the volume and turn the knob counter- clockwise to reduce the volume.
2. BASS/BALANCE
Control Knob BASS Control Knob
Press to pop the knob out. To increase the bass, rotate the knob clockwise, while to decrease the bass, rotate theknob counterclockwise. BALANCE Control knob Pull the Bass control knob out further. Rotate the knob clockwise to empha-size right speaker sound. (Left speaker sound will be attenuated) When the control knob is turned counterclock-wise, left speaker sound will be em- phasized (Right speaker sound will be attenuated).
3. TREBLE/FAD Knob
TREBLE Control Knob
Press to pop the knob out and turn to the left or right for the desired trebletone. FAD (Fader Control) Knob Pull the Bass control knob out further. Turn the control knob counterclock- wise to emphasize front speaker sound. (Rear speaker sound will be attenu-ated) When the control knob is turned clockwise, rear speaker sound will be emphasized. (Front speaker sound willbe attenuated) 4. TUNE (Manual) Select Button Press the ( ) side or ( ) side to increase or to decrease the frequency.Press either button and hold down to continuously scroll, Release button once the desired station is reached. SEEK Operation (Automatic Channel Selection) Press the TUNE select button for 0.5 sec or more. Releasing it will automati- cally tune to the next available stationwith a beep sound. When the ( ) side is pressed longer than 0.5 second, releasing will auto-matically tune to the next higher fre- quency and when the ( ) side is pressed longer than 0.5 second andreleasing will automatically tune to the next lower frequency.
5. PRESET STATION Select
Buttons
Six (6) stations for AM, FM and FM2 respectively can be preset in the elec- tronic memory circuit.

1- 98 FEATURES OF YOUR HYUNDAI
HOW TO PRESET STATIONS Six AM and twelve FM stations may be programmed into the memory of theradio. Then, by simply pressing the band select button and/or one of the six station select buttons, you mayrecall any of these stations instantly. To program the stations, follow these steps:
o Press band selector to set the band
for AM, FM or FM2.
o Select the desired station to be stored by seek or manual tuning.
o Determine the preset station select button you wish to use to access that station.
o Press the station select button for more than two seconds. A selectbutton indicator will show in the dis- play indicating which select buttonyou have depressed. The frequency display will flash after it has been stored into the memory with beepsound. You should then release the button, and proceed to program the next desired station. A total of 18stations can be programmed by selecting one AM and two FM sta- tion per button. o When completed, any preset sta-
tion may be recalled by selectingAM, FM or FM2 band and the appro-priate station button.
6. BAND Selector Pressing the button changes the AM, FM1 and FM2 bands. The mode selected is shown on the display.
7. EQUALIZER Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEATMODE for the desired tone quality. Each press of the button changes the display as follows;
CLASSIC JAZZ ROCK DEFEAT

FM/AM 8. Best Station Memory Button
(BSM) (If installed)
When the BSM button is pressed for two seconds or longer, the six chan- nels from the highest field intensity areselected next and stored in memory. The stations selected are stored in the sequence frequency from the first pre-set key. SCAN Button (If installed) When the scan button is pressed, the frequency will increase and the receiv- able stations will be tuned in one afteranother, receiving each station for 5 seconds. To stop scanning, press the scan button again.

FEATURES OF YOUR HYUNDAI 1- 99
H290C01FC-GAT

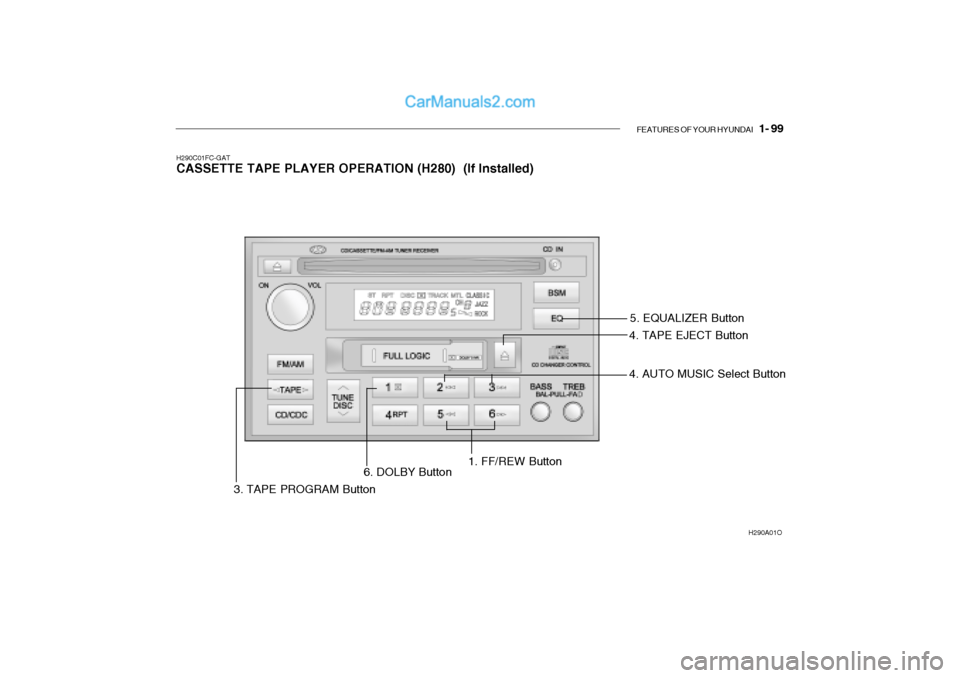

CASSETTE TAPE PLAYER OPERATION (H280) (If Installed)
H290A01O
5. EQUALIZER Button
4. TAPE EJECT Button
3. TAPE PROGRAM Button 6. DOLBY Button
1. FF/REW Button 4. AUTO MUSIC Select Button
