FEATURES OF YOUR HYUNDAI 1- 9
HTB052 Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine hood and
tail gate are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once to indicate that the system is armed. NOTE:
1) If any door, tail gate or engine hood remains open, the system will not be armed.
2) If this happens, rearm the system as described above.
The central door locking is operated bypushing the driver's door lock switchtoward the front or rear of the vehicle.If the passenger and rear doors areopen when the switch is pushed, the door will remain locked when closed. NOTE:
o When pushing the switch toward
the rear, all doors and tail gate will unlock.When pushing the switch towardthe front, all doors and tail gate will lock.
o When the door is unlocked, the red mark on the switch is visible and the character "LOCK" on theswitch is visible.
o The central door locking is oper- ated by turning the key (with theft-alarm system: driver's door andpassenger's door, without theft-alarm system: driver's door only)toward the front or rear of thevehicle. B070A01A-AAT THEFT-ALARM SYSTEM (If Installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated inthree stages: the first is the "Armed"stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If triggered, the system provides anaudible alarm with blinking of the turnsignal lights. B070B01O-GAT Armed Stage
CAUTION:
Do not arm the system until all passengers have left the car. If thesystem is armed while apassenger(s) remains in the car,the alarm may be activated when the remaining passenger(s) leaves the car.
!

FEATURES OF YOUR HYUNDAI 1- 11
HTB053
B070F01TB-GAT Keyless Entry System
(If Installed) Locking doors
1. Close all doors.
2. Push the button on the transmitter.
3. At the same time all doors lock, the
turn signal lights will blink once toindicate that the system is armed.
Unlocking doors
1. Push the button on the transmitter.
2. At the same time all doors unlock, the turn signal light will blink twice toindicate that the system is disarmed. B070E01TB-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock thedoors, and the LED will not light. Re-place the battery as soon as possible. Battery type : CR1220 Replacement instructions:
1. Remove the screw with a (+) screw-
driver.
2. Separate the case with a (-) screw-
driver as shown in the illustration. 3. Remove four screws back side of
the built-in circuit. HTB054
HTB055
Battery
4. Remove the old battery from the case and note the polarity. Make sure the polarity of the new batteryis the same (+side facing up), theninsert it in the transmitter.

FEATURES OF YOUR HYUNDAI 1- 7

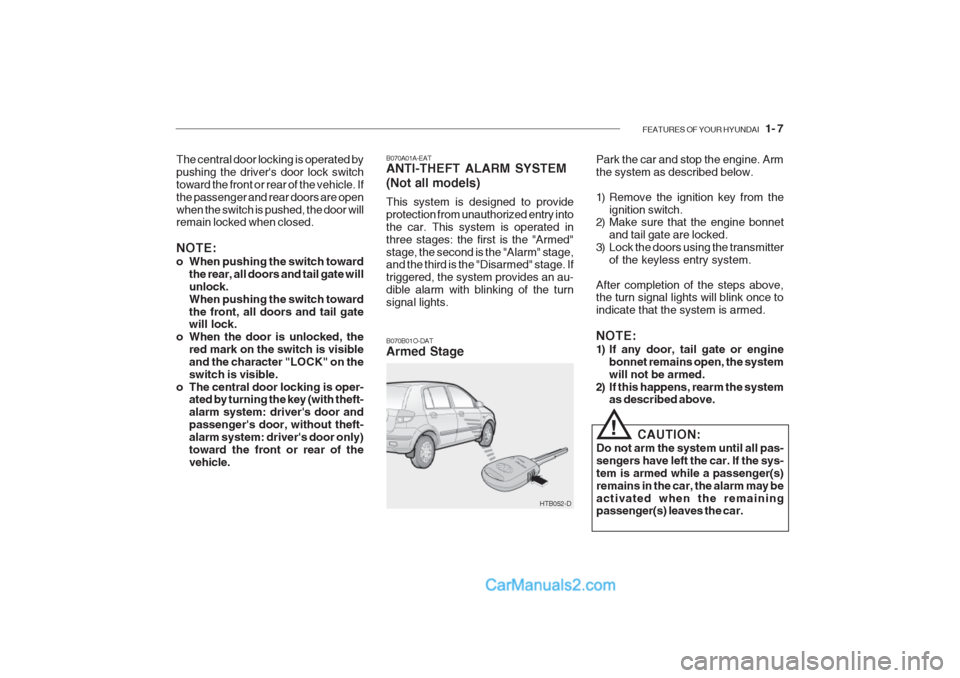

B070A01A-EAT ANTI-THEFT ALARM SYSTEM (Not all models) This system is designed to provide protection from unauthorized entry intothe car. This system is operated inthree stages: the first is the "Armed"stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If triggered, the system provides an au-dible alarm with blinking of the turnsignal lights.
The central door locking is operated bypushing the driver's door lock switchtoward the front or rear of the vehicle. Ifthe passenger and rear doors are openwhen the switch is pushed, the door will remain locked when closed. NOTE:
o When pushing the switch toward
the rear, all doors and tail gate will unlock.When pushing the switch towardthe front, all doors and tail gate will lock.
o When the door is unlocked, the red mark on the switch is visible and the character "LOCK" on theswitch is visible.
o The central door locking is oper- ated by turning the key (with theft-alarm system: driver's door andpassenger's door, without theft-alarm system: driver's door only)toward the front or rear of thevehicle. Park the car and stop the engine. Armthe system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine bonnet
and tail gate are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
After completion of the steps above, the turn signal lights will blink once to indicate that the system is armed. NOTE:
1) If any door, tail gate or engine bonnet remains open, the system will not be armed.
2) If this happens, rearm the system as described above.
CAUTION:
Do not arm the system until all pas-sengers have left the car. If the sys-tem is armed while a passenger(s)remains in the car, the alarm may beactivated when the remaining passenger(s) leaves the car.
!
HTB052-D
B070B01O-DAT Armed Stage

FEATURES OF YOUR HYUNDAI 1- 9
HTB053
B070F01TB-EAT Keyless Entry System (Not all models) Locking doors
1. Close all doors.
2. Push the button on the transmitter.
3. At the same time all doors lock, the
turn signal light will blink once toindicate that the system is armed.
Unlocking doors
1. Push the button on the transmitter.
2. At the same time all doors unlock, the turn signal light will blink twice toindicate that the system is disarmed. B070E01TB-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock thedoors, and the LED will not light. Re-place the battery as soon as possible. Battery type : CR1220 Replacement instructions:
1. Remove the screw with a (+) screw-
driver.
2. Separate the case with a (-) screw-
driver as shown in the illustration. 3. Remove four screws back side of the
built-in circuit. HTB054
HTB055
Battery
4. Remove the old battery from the case and note the polarity. Make sure the polarity of the new batteryis the same (+side facing up), theninsert it in the transmitter.
