2001 Peugeot 306 C Dag Owner's Manual

62
YOUR 306 CABRIOLET IN DETAIL
Setting the right/left sound distribution (Balance) When Ò BALÓ is displayed, press the Ò GÓ or Ò HÓ buttons to vary the setting.
The ÒGÓ button increases the volume on the right-hand side.
The ÒHÓbutton increases the volume on the left-hand side.
RADIO Notes on radio reception
Your car radio receiver is subject to phenomena which do not affect domestic sets. Both MW/LW and FM recep- tion are subject to various forms of interference which are not a reflection on the quality of your set, but are dueto the nature of the signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing underneath high voltage power lines or bridges or in tunnels.
On FM, interference may be the result of distance from the transmitter, reflection of the signal by obstacles
(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting the radio Press the "SRC"button, until the radio is selected.
Selecting a wavebandBy short presses on the " BND/AST" button, you can select the FMI, FM2, FM3, and AM wavebands.
Automatic station searchBriefly press button " J" or " K" to search for the next station up or down the waveband. By continuing to press the
button in the direction selected, you will obtain continous scrolling of the frequency. The scrolling stops at the first station found as soon as you release the button.
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.Searching for a station occurs first in " LO" sensitivity (selection of the most powerful transmitters), while scanning
the waveband, then in " DX" sensitivity (selection of weaker and more distant transmitters).

62
YOUR 306 CABRIOLET IN DETAIL
Setting the right/left sound distribution (Balance) When Ò BALÓ is displayed, press the Ò GÓ or Ò HÓ buttons to vary the setting.
The ÒGÓ button increases the volume on the right-hand side.
The ÒHÓbutton increases the volume on the left-hand side.
RADIO Notes on radio reception
Your car radio receiver is subject to phenomena which do not affect domestic sets. Both MW/LW and FM recep- tion are subject to various forms of interference which are not a reflection on the quality of your set, but are dueto the nature of the signals and the way in which they are transmitted.
On MW/LW, interference may be noticed when passing underneath high voltage power lines or bridges or in tunnels.
On FM, interference may be the result of distance from the transmitter, reflection of the signal by obstacles
(mountains, hills, buildings etc), or of being in an area which is not covered by a transmitter. Selecting the radio Press the "SRC"button, until the radio is selected.
Selecting a wavebandBy short presses on the " BND/AST" button, you can select the FMI, FM2, FM3, and AM wavebands.
Automatic station searchBriefly press button " J" or " K" to search for the next station up or down the waveband. By continuing to press the
button in the direction selected, you will obtain continous scrolling of the frequency. The scrolling stops at the first station found as soon as you release the button.
If the TA traffic programme is selected, only stations broadcasting this type of programme are selected.Searching for a station occurs first in " LO" sensitivity (selection of the most powerful transmitters), while scanning
the waveband, then in " DX" sensitivity (selection of weaker and more distant transmitters).

YOUR 306 CABRIOLET IN DETAIL63
Manual station search Press the Ò MANÓ button.
Briefly press button ÒJÓ orÒKÓ respectively to increase or reduce the frequency displayed.
By continuing to press the button in the direction selected, you will obtain continuous scrolling of the frequency. Scrolling stops as soon as you release the button.Pressing the ÒMANÓbutton again returns you to automatic station search.
Manual storing of stations in the memory Select the station required. Press for more than two seconds one of the buttons Ò 1Ó to Ò 6Ó.
The sound stops then becomes audible again, confirming that the station has been stored in memory. Automatic storing of FM stations in the memory (autostore) Press the Ò BND/ASTÓ button for more than two seconds, to automatically store the 6 stations with the strongest
signal in FM. These stations are stored in the FMIII waveband.
- If it is not possible to find 6 stations, the remaining memories are empty. Recalling stations stored in the memory For each waveband, briefly pressing the buttons Ò1Óto Ò6Ó recalls the corresponding stored station.
RDS FUNCTION Using the RDS (Radio Data System) function on FM RDS allows you to continue to listen to the same station, whatever frequency it is using for the region you are going through.
Switch the function on or off by briefly pressing the Ò RDSÓ button.
RDS station following
The display indicates the name of the station selected. The radio is continually searching for the station which has the best reception and which is transmitting the same programme.

64
YOUR 306 CABRIOLET IN DETAIL
Traffic information programmes Press the Ò TAÓ button to switch the function on or off.
Any traffic information flash will be given priority, whatever source you are listening to (radio, cassette or CD). If you wish to interrupt a message, press the Ò TAÓ button; this switches off the function.
Note : the volume of the traffic information announcements is independent of the volume of normal radio
listening. You can adjust it using the volume button. The setting will be stored and will be used when thenext messages are broadcast.
While traffic information is being broadcast, the display will alternately show Ò TRAFFICÓ and the name of the
station.
When the station selected cannot broadcast traffic information, the display shows Ò NO TAÓ.
Regional following mode (REG) When they are part of a network, certain stations broadcast regional programmes in the various areas they serve. With regional following mode you can keep listening to the same programme.
To do this press the ÒRDSÓbutton for more than two seconds to switch this function on or off.

65
YOUR 306 CABRIOLET IN DETAIL
CASSETTE Selecting cassette mode
When a cassette is inserted, the cassette player will start automaticaily. If a cassette is already inserted, press the ÒSRCÓ button until the cassette is selected. Ejecting the cassette Fully press both buttons Ò EÓ and Ò FÓ to eject the cassette from the player.
Direction of play
The player will play sides 1 and 2 of the cassette alternately, by automatically reversing the direction of play at the end of a side.
To manually reverse the direction of play, press both buttons Ò EÓ and Ò FÓ part way.
Fast forward/rewind Fully press one of the buttons Ò EÓ or Ò FÓ to fast forward or fast rewind the cassette. At the end of the fast
forward rewind, the set plays the current side.
Note: - During rewind or fast forward of a cassette, the radio will transmit on the last station listened to.
- Never insert a damaged cassette.

66
YOUR 306 CABRIOLET IN DETAIL
CD CHANGER (Available as an accessory) Selecting the CD changer Press the Ò SRCÓ button until the CD changer is selected.
Selecting a discPress a button from Ò 1Ó to Ò 6Ó to select the corresponding disc.
Selecting a trackPress button Ò JÓ to select the next track.
Press button Ò KÓ to return to the start of the current track or to select the previous track.
Accelerated playPress the Ò MANÓ button.
Keep button Ò JÓ or Ò KÓ pressed for forwards or backwards accelerated play.
Accelerated play stops as soon as you release the button. Buttons Ò JÓ and Ò KÓ resume the Òtrack selectionÓ function when the Ò MANÓ button is pressed again.
Shuffle (RAND) When the CD multi-changer is selected, keep the Ò SRCÓ button pressed for two seconds. The tracks will be played
in random sequence. Pressing the Ò SRCÓ button again for two seconds returns you to normal play.

CD
CBA
67
YOUR 306 CABRIOLET IN DETAIL
CD CHANGER (Available as an accessory)
To insert a disc into the player:
Ð open sliding panel A,
Ð press button Bto eject the cartridge C,
Ð open one of the six compartments of the cartridge by pulling tab D,
Ð insert the disc with the printed face upwards and close the compartment,
Ð insert the cartridge into the player,
Ð close the sliding panel A.

4
1
3
ABC
D
E
MJKFGIHL
2
68

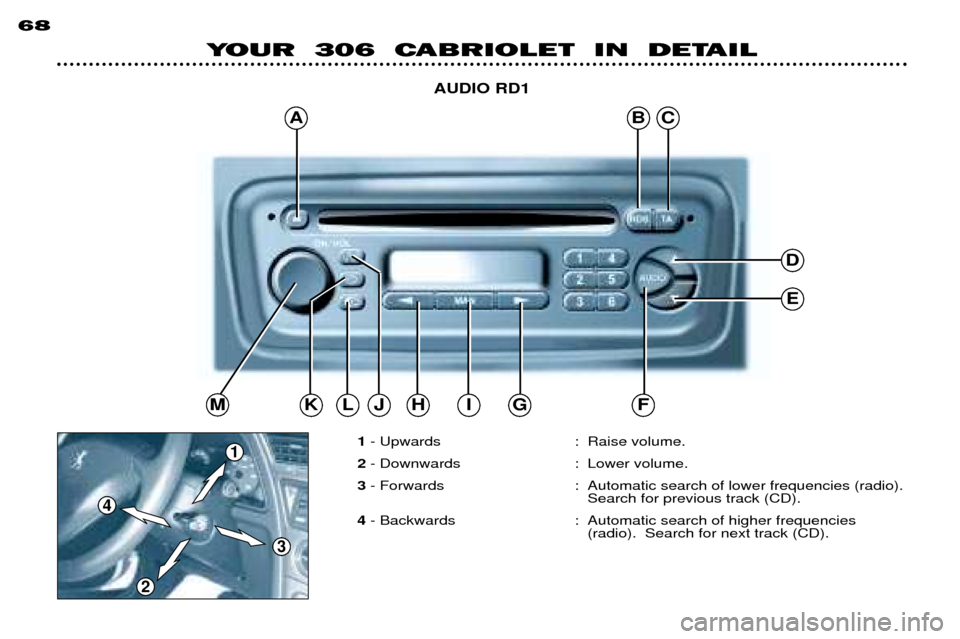

YOUR 306 CABRIOLET IN DETAILAUDIO RD1
1 - Upwards : Raise volume.
2 - Downwards : Lower volume.
3 - Forwards : Automatic search of lower frequencies (radio).
Search for previous track (CD).
4 - Backwards : Automatic search of higher frequencies
(radio). Search for next track (CD).
