MAINTENANCE OF YOUR 306 CABRIOLET21
PEUGEOT SERVICING LEVELS A AND C
: All driving conditions : Specific conditions Level
Operations Description of operations for 1st service
ServicesACIntermediate visitDRAIN AND REFILL- Engine drain and refill.- Oil filter.- Fuel filter (Petrol).- Air filter element.- Spark plugs (Petrol).- Engine oil (check + top up).- Manual gearbox oil (check + top up).- Battery (check + top up) if plug is removable.LEVEL- Front/rear windscreen wash (check + top up).- Coolant (check + top up).- Brake fluid (check + top up).- Power steering fluid (check + top up according to specification).- Operation of lights and indicators.- Condition of glass, headlamp and light lenses and mirrors.- Horn.- Windscreen washer jets.- Condition of wiper blades.- Condition and tension of ancillary drive belts.- Handbrake.- Condition of hydraulic circuits (hoses and covers), check for leaks.CHECK- Condition of rubber boots and gaiters.- Brake pad wear. - Clearances, hubs, rods, ball joints, flxible mountings.- Sealing of dampers.- Wear of rear linings.- Condition and pressure of tyres (including spare wheel).- Emission control check according to current legislation (Petrol).- Pollen filter check (according to specification). - Visual check of the whole vehicle by a PEUGEOT dealer.
SERVICE- Courtesy vehicle
ROAD TEST
REPLACEMENT

TOTAL
F
NL
SF
GR
A
D
CH
I
N
P
E
B
DK
GB
L
S
IRL
ACTIVA 7000
10W 40
AC TIV
A 9000
5W 40
A CTIV A 9000
5W 30*
Q UA R
TZ 7000
15W 50
U
LT R A
10W 40
U LT R A
5W 30*
U LT R O
N

5W 40
U LT R ON

0W 30
QUA
RTZ 7000
10W 40
Q U
AR TZ 9000
0W 40
Q U
AR
TZ 9000
5W 40
Q UAR TZ 9000
5W 30*

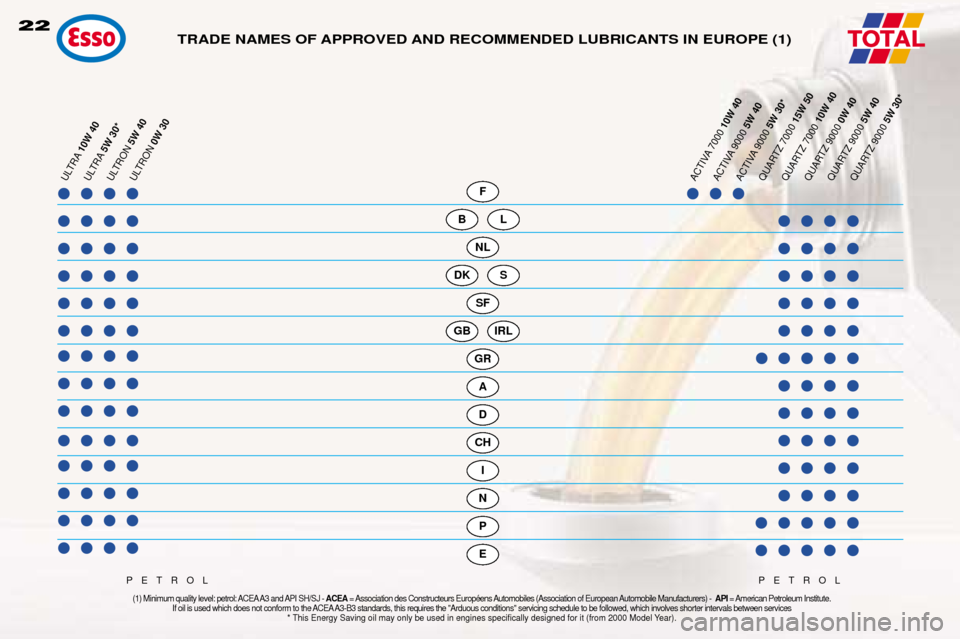

TRADE NAMES OF APPROVED AND RECOMMENDED LUBRICANTS IN EUROPE (1)
(1) Minimum quality level: petrol: ACEA A3 and API SH/SJ -
ACEA= Association des Constructeurs EuropŽens Automobiles (Association of European Automobile Manufacturers) - API= American Petroleum Institute.
If oil is used which does not conform to the ACEA A3-B3 standards, this requires the "Arduous conditions" servicing schedule to be followed, which involves shorter intervals between services * This Energy Saving oil may only be used in engines specifically designed for it (from 2000 Model Year).
PETROL PETROL
22

0W203040
50
20W
15W
10W
5W
TOTAL
23
MAINTENANCE OF YOUR 306 CABRIOLET
RECOMMENDATIONS FOR APPROVED LUBRICANTS The oils which appear in the table opposite are suitable for most pur-poses. The diagram opposite states the optimum range of viscosity depen-ding on the temperatures at which theoils are to be used. It is also possible to use synthetic oils
of 'superior quality. In the absence of semi-synthetic or
synthetic oils, oils of API SH/SJ maybe used by following the 'ArduousConditions' maintenance schedulewhich specifies shorter intervals. Do not hesitate to ask for advice from
a PEUGEOT dealer to maintaindriving pleasure and to minimise themaintenance cost of your vehicle. For countries outside Europe, please
contact a local PEUGEOT dealer.
ESSENTIAL ESSENTIAL
Manual ESSO GEAR OIL BVTOTAL TRANSMISSION BVgearbox 75W-80 PR 9736.41 75W-80 Automatic ESSENTIAL
gearbox AL4 ATF 4HP20-AL4 PR 9736.22
Automatic ESSO ATF D TOTAL FLUIDE AT42
gearbox PR 9730.944 HP-14
Power steering ESSO ATF D TOTAL FLUIDE AT42 PR 9730.94
Brake fluid PEUGEOT DOT4 Coolant
PROCOR TM108 / GLYSANTIN G33 or REVKOGEL 2000ESSENTIAL Protection to minus 35 ¡C
Other approved products

1
9
8
7
6
5
432
24
MAINTENANCE OF YOUR 306 CABRIOLET
1
Power steering fluid reservoir*.
2 Engine oil filler cap.
3 Air filter. 4
Brake fluid reservoir.
5 Battery.
6 Engine oil dipstick. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.

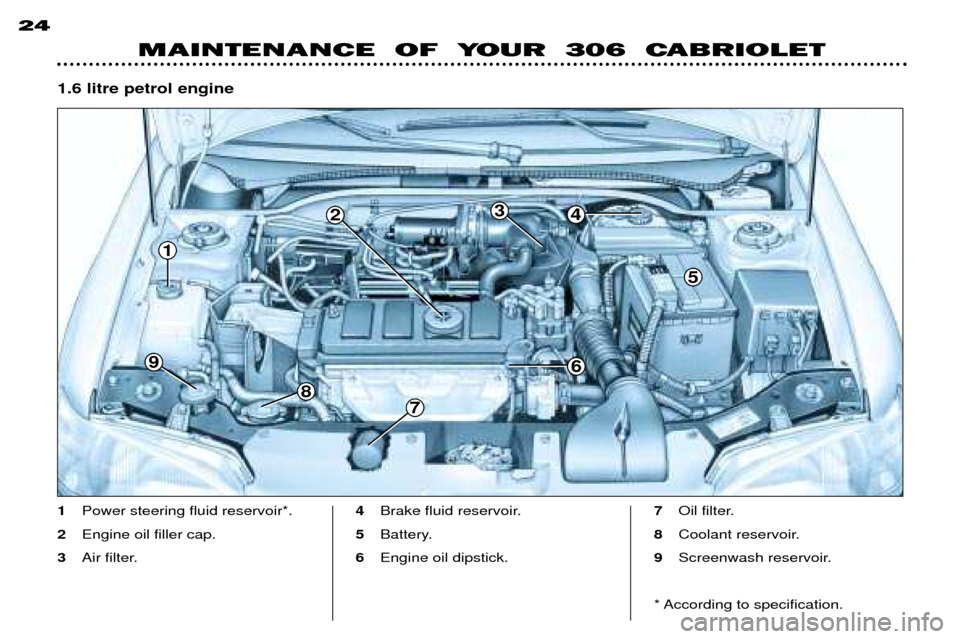

1.6 litre petrol engine

1
9
7
6
5
4
8
23

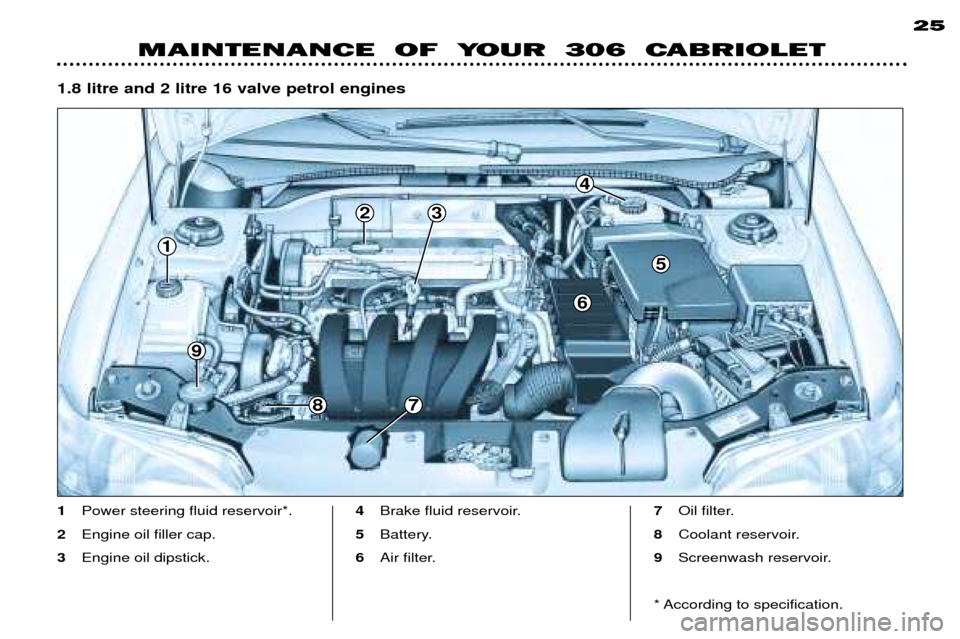

1.8 litre and 2 litre 16 valve petrol engines
25
MAINTENANCE OF YOUR 306 CABRIOLET
1
Power steering fluid reservoir*.
2 Engine oil filler cap.
3 Engine oil dipstick. 4
Brake fluid reservoir.
5 Battery.
6 Air filter. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.

A
B
A
B
MAINTENANCE OF YOUR 306 CABRIOLET
26
CHECKING THE LEVELS Engine Checking the oil level Check the level regularly and top up between changes
(maximum
consumption is 0.5 litres per 600 miles (1,000 km). The oil level should be checked with the vehicle level, engine cold. There are two marks on the dipstick:
A= maximum.
B = minimum. Oil change:
according to the manu-
facturerÕs servicing schedule.
Ð Dipstick. Never fill past the maximum mark A.
Ð Oil level gauge on the instrument panel.
Viscosity selectionIn all cases, the oil selected must meet the manufacturer's require-ments. Oil filter Change the filter regularly in accor- dance with the maintenance schedule. Used oil Prevent used oil from coming into pro- longed contact with the skin. Do not dispose of used oil into drains or into the ground.
To maintain the reliability of engines and emission control systems, the useof additives in the engine oil is pro-hibited. Brake fluid reservoir
Ð The level should always be above
the DANGER mark on the reservoir.
Ð If the level drops substantially, contact a PEUGEOT dealer imme-
diately.
Fluid change
Ð must be carried out according to the manufacturerÕs schedule.
Ð use fluids approved by the manu- facturer, which fulfil DOT4 stan- dards.
Coolant reservoir Use the fluid approved by the manu-
facturer. When the engine is warm, the tem- perature of the coolant is controlledby the engine fan: because this fancan operate with the ignition keyremoved, and because the coolingsystem is pressurised, wait for at leastone hour after the engine has stoppedbefore carrying out any work.
If necessary, in a breakdown, slacken the cap to the first notch to release thepressure to prevent any risk of scald-ing. When the pressure has droppedremove the cap and top up the level.

MAINTENANCE OF YOUR 306 CABRIOLET27
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4,4 litres or 6 litres withheadlight wash). Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer. Air filter Regular replacement of the filter element is essential. If you drive invery dusty conditions, change it twiceas often. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town or for shortjourneys or which are driven in a
sporty manner. It may be necessaryto check the thickness of the padseven between services. Manual gearbox This does not need an oil change. Check the level according to the man-
ufacturerÕs service schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a
PEUGEOT dealer according to the
manufacturerÕs service schedule.
Only use products
approved by Automobiles
PEUGEOT.
To ensure best perfor-
mance from components as impor- tant as the power steering and thebraking system, PEUGEOT selectsand offers quite specific products. Fuel supply cut-off* In a serious collision, a system pre- vents fuel from reaching the engine.
To re-establish the fuel supply, press the switch on the angle of the front
left-hand suspension assembly, underthe bonnet.
* According to specification.

1
2
MAINTENANCE OF YOUR 306 CABRIOLET
28

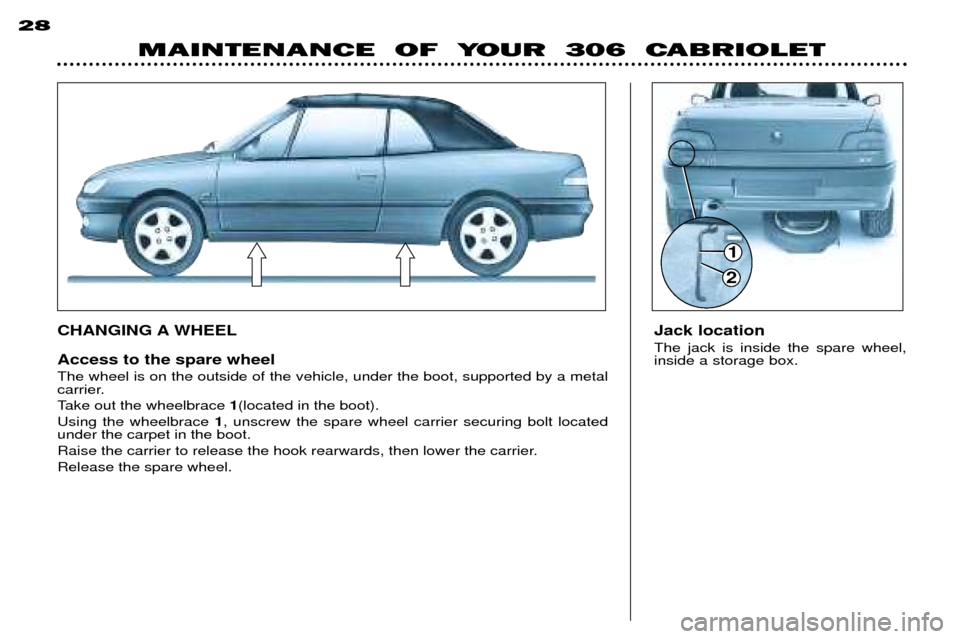

Jack location The jack is inside the spare wheel, inside a storage box.
CHANGING A WHEEL Access to the spare wheel The wheel is on the outside of the vehicle, under the boot, supported by a metal
carrier.
Take out the wheelbrace
1(located in the boot).
Using the wheelbrace 1, unscrew the spare wheel carrier securing bolt located
under the carpet in the boot.
Raise the carrier to release the hook rearwards, then lower the carrier.Release the spare wheel.
