2001 Peugeot 306 C Dag Owner's Manual

123Never leave a child in a vehicle which is exposedto the sun and has thewindows closed.
To protect young children
from the sun, fit sunblinds to the rear windows. Never leave the keys in the reach
of children inside the car. Strap children into their child seats even on short journeys.
84
YOUR 306 CABRIOLET IN DETAIL
Observe the precautions concern- ing the passenger airbag.
CHILD SEATS All children under the age of 10 are required to travel in approved child safety seats*, fitted with seat belts.
After carrying out numerous tests, PEUGEOT recommend the following systems :Up to 9 months (up to 22 lbs. or 10 kg)
ÇBaby SafeÈ, a seat secured with its back to the engine and secured with a three-point seat belt, on either the front or rear seat.
From 9 months to 3 or 4 years (20 to 40 lbs. or 9 to 18 kg)
ÇRšmer PeggyÈ is fitted to the rear seat with a three-point belt.
For your childÕs safety, the seat cushion and the tray must never be separated.
Over 3 or 10 years old (33 to 80 lbs or 15 to 36 kg) ÒKlippan OptimaÓ : is fitted in the rear with a three point belt (removable seatback). from 33 to 55 lbs. [15 to 25 kg] : booster + seatback.from 55 to 80 lbs. [25 to 36 kg] : use the booster on its own.
For maximum safety, fasten the three-point seat belts or the child seat straps keeping
the slack in relation to the childÕs body to a minimum, even for short journeys. Also, do not open the rear windows more than a third.
This was one of PEUGEOTÕs main criteria when designing your vehicle, however the safety of your children also depends on you. For maximum peace of mind,please follow these simple precautions:
* According to current legal requirements.
1
2
3

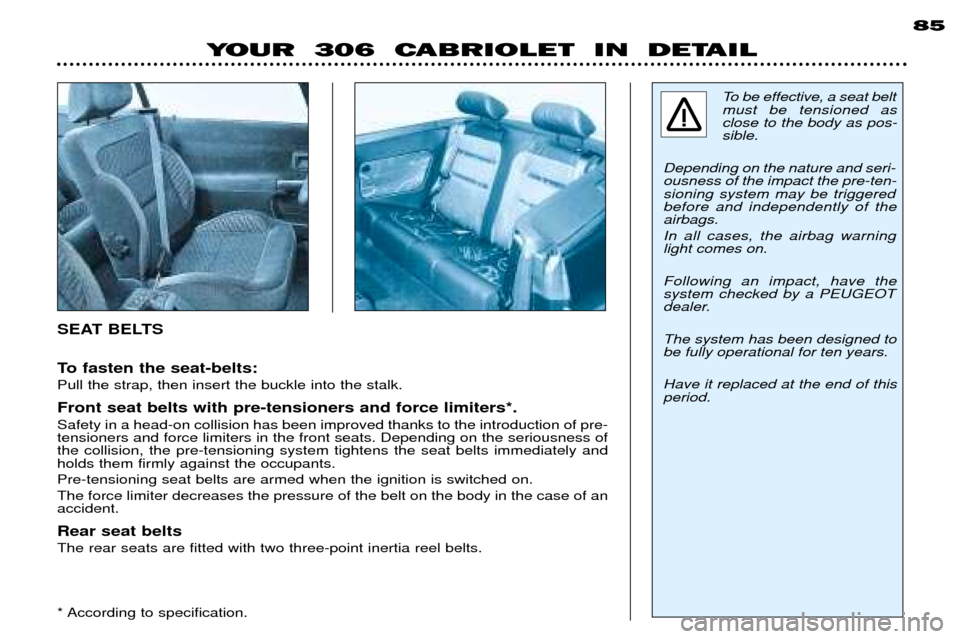

To fasten the seat-belts: Pull the strap, then insert the buckle into the stalk. Front seat belts with pre-tensioners and force limiters*. Safety in a head-on collision has been improved thanks to the introduction of pre- tensioners and force limiters in the front seats. Depending on the seriousness ofthe collision, the pre-tensioning system tightens the seat belts immediately andholds them firmly against the occupants. Pre-tensioning seat belts are armed when the ignition is switched on.The force limiter decreases the pressure of the belt on the body in the case of an accident. Rear seat belts The rear seats are fitted with two three-point inertia reel belts.
* According to specification.To be effective, a seat belt must be tensioned asclose to the body as pos-sible.
Depending on the nature and seri-ousness of the impact the pre-ten-sioning system may be triggeredbefore and independently of theairbags. In all cases, the airbag warning light comes on. Following an impact, have the system checked by a PEUGEOT
dealer. The system has been designed to be fully operational for ten years. Have it replaced at the end of this period. 85
YOUR 306 CABRIOLET IN DETAIL
SEAT BELTS

THE REMOTE CONTROL
A single press on button Alocks the
doors and boot, this is displayed by the direction indicators staying on forabout 2 seconds.
A single press on button Bunlocks the
vehicle, this is displayed by the direc-
tion indicators flashing rapidly.
KEYS
Without central locking The key individually Iocks and unlocks the doors and boot.
With central locking
Turning the key in the driverÕs door lock will lock or unlock the doors andboot. If either of the front doors is notclosed, the central locking will notwork.
A
B
YOUR
306 CABRIOLET IN DETAIL
78
CHANGING THE REMOTE
CONTROL BATTERIES
To gain access to the battery, unclip the key casing with a coin where youcan see the ring (CR
1620/3 volt
battery). If the remote control does not work after the battery has been changed,re-programme the remote control.
PROGRAMMING THEREMOTE CONTROL Manual synchronisation
- Switch off the ignition,
- Switch on the ignition,
- Immediately after switching on the ignition press button A.
The remote control is now working again. Automatic synchronisation
- Switch on the ignition (position M),
- Switch off the ignition and, during the next four minutes, lock the vehicle using the remote control(button A).
The remote control is now workingagain.
Note: Do not repeatedly press the button of your remote control out of range of
your vehicle. You risk causing it not towork and the remote control wouldhave to be reprogrammed.

1
2
79
YOUR 306 CABRIOLET IN DETAIL
Locking or unlocking the boot The boot can be locked indepen- dently using the key or togerther withthe doors by way of the central lock-ing function. The boot can only be unlocked using
the key. This system prevents unauthorised access to the boot when the hood isopen.
Opening and closing thedoors from inside the vehicle 1
Locking control.
2 Opening handle. Take careful note of the numbers on the keys. The key number is coded on the label attached to
the key. If the key is lost
your PEUGEOT dealer can rapid-ly supply you with new keys or aremote control. As a safety precaution (with chil- dren on board) remove the igni-tion key when you leave the vehi-cle, even for a short time. The high frequency remote con- trol is a high-performance systemwhich has a powerful beam.Therefore do not operate it while itis in your pocket as there is a pos-sibility that it may unlock yourvehicle.

Bonnet Inside the vehicle:pull the handle. Outside the vehicleRaise the catch
1and support the
bonnet as it rises. Bonnet strutsThe struts open the bonnet and keep it open.
To close : Lower the bonnet and release it at the end of its travel.
1
80
YOUR
306 CABRIOLET IN DETAIL

Fuel filler flap The fuel filler flap is locked and
unlocked using the ignition key,whether the doors are locked or not. There is a holder for the fuel filler cap.Filling with fuel Switch off the engine.
A label on the inside of the flap shows which fuels are permitted andwhich are not allowed. The tank capacity is approximate-
ly 11 gallons (50 litres).Fuel supply cut-off switch
Should a serious collision occur, your vehicle is fitted with a system whichprevents fuel from reaching theengine.
To restore the supply, press the switch.
YOUR
306 CABRIOLET IN DETAIL 81

Horn Press the end of the lighting stalk.
AB
86
YOUR 306 CABRIOLET IN DETAIL
LIGHTING CONTROL
Front lights (ring A)
Selection is by turning ring A.* According to specification.
Lights off. Side lights on.
Dipped beam/main beam. Dipped beam/main beam change Pull the stalk fully towards you.
Front and rear (ring B)
Lights off. Front fog lights on.
These operate with the side lights and the dipped/main beam headlamps.
Front and rear fog lightson. These operate with the side lights and the
dipped/main beam headlights. When
the side lights are switched off, thereis a return to the front fog lights onlyposition.
Direction indicators(flashers) Left : downwards.Right : upwards.
Front and rear fog lights
To switch on, turn the ring. The posi- tion is confirmed by the light on theinstrument panel.
Note:
when the ignition is switched
off, if the driverÕs door or front pas-senger door* is left open, a buzzersounds if you forget that you have leftyour lights on.

3
2
1
0
4
87
In good weather or in rain, both day and night, if therear fog lamp is lit itcauses glare and is pro-
hibited. Do not forget to switch it off as soon as it is no longer needed.
YOUR 306 CABRIOLET IN DETAIL
WINDSCREEN WIPERS Front windscreen wipers 3 Fast wipe.
2 Normal wipe.
1 Intermittent or automatic wipe.
0 Park.
4 Single wipe.
Windscreen and headlight wash* Pull the wipers stalk towards you. The headlight wash works if the dipped or main beam headlights areon.
* According to specification.
