2001 Peugeot 306 C Dag Owner's Manual

A
B
A
B
MAINTENANCE OF YOUR 306 CABRIOLET
26
CHECKING THE LEVELS Engine Checking the oil level Check the level regularly and top up between changes
(maximum
consumption is 0.5 litres per 600 miles (1,000 km). The oil level should be checked with the vehicle level, engine cold. There are two marks on the dipstick:
A= maximum.
B = minimum. Oil change:
according to the manu-
facturerÕs servicing schedule.
Ð Dipstick. Never fill past the maximum mark A.
Ð Oil level gauge on the instrument panel.
Viscosity selectionIn all cases, the oil selected must meet the manufacturer's require-ments. Oil filter Change the filter regularly in accor- dance with the maintenance schedule. Used oil Prevent used oil from coming into pro- longed contact with the skin. Do not dispose of used oil into drains or into the ground.
To maintain the reliability of engines and emission control systems, the useof additives in the engine oil is pro-hibited. Brake fluid reservoir
Ð The level should always be above
the DANGER mark on the reservoir.
Ð If the level drops substantially, contact a PEUGEOT dealer imme-
diately.
Fluid change
Ð must be carried out according to the manufacturerÕs schedule.
Ð use fluids approved by the manu- facturer, which fulfil DOT4 stan- dards.
Coolant reservoir Use the fluid approved by the manu-
facturer. When the engine is warm, the tem- perature of the coolant is controlledby the engine fan: because this fancan operate with the ignition keyremoved, and because the coolingsystem is pressurised, wait for at leastone hour after the engine has stoppedbefore carrying out any work.
If necessary, in a breakdown, slacken the cap to the first notch to release thepressure to prevent any risk of scald-ing. When the pressure has droppedremove the cap and top up the level.

MAINTENANCE OF YOUR 306 CABRIOLET27
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4,4 litres or 6 litres withheadlight wash). Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer. Air filter Regular replacement of the filter element is essential. If you drive invery dusty conditions, change it twiceas often. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town or for shortjourneys or which are driven in a
sporty manner. It may be necessaryto check the thickness of the padseven between services. Manual gearbox This does not need an oil change. Check the level according to the man-
ufacturerÕs service schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a
PEUGEOT dealer according to the
manufacturerÕs service schedule.
Only use products
approved by Automobiles
PEUGEOT.
To ensure best perfor-
mance from components as impor- tant as the power steering and thebraking system, PEUGEOT selectsand offers quite specific products. Fuel supply cut-off* In a serious collision, a system pre- vents fuel from reaching the engine.
To re-establish the fuel supply, press the switch on the angle of the front
left-hand suspension assembly, underthe bonnet.
* According to specification.

MAINTENANCE OF YOUR 306 CABRIOLET27
Power steering reservoir
Open the reservoir, with the engine
cold. The level should always beabove the MINI mark, close to theMAXI mark.
Windscreen and headlamp wash reservoir* For best quality cleaning and for your
safety, we recommend that you useproducts approved by PEUGEOT(capacity 4,4 litres or 6 litres withheadlight wash). Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer. Air filter Regular replacement of the filter element is essential. If you drive invery dusty conditions, change it twiceas often. Brake pads Brake pad wear depends on the style of driving, in particular for vehicleswhich are used in town or for shortjourneys or which are driven in a
sporty manner. It may be necessaryto check the thickness of the padseven between services. Manual gearbox This does not need an oil change. Check the level according to the man-
ufacturerÕs service schedule. Autoadaptive automatic gearbox This does not need an oil change: have the level checked by a
PEUGEOT dealer according to the
manufacturerÕs service schedule.
Only use products
approved by Automobiles
PEUGEOT.
To ensure best perfor-
mance from components as impor- tant as the power steering and thebraking system, PEUGEOT selectsand offers quite specific products. Fuel supply cut-off* In a serious collision, a system pre- vents fuel from reaching the engine.
To re-establish the fuel supply, press the switch on the angle of the front
left-hand suspension assembly, underthe bonnet.
* According to specification.

96
12
34
A
94
ELECTRIC WINDOWS
1. Driver's electric window
Manual mode: press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic mode: press or pull the switch firmly. One touch completely opens
or closes the window. Automatic opening and closing only work when the engine is running.
2. PassengerÕs electric window.
3. Left rear electric window.
4. Right rear electric window.
YOUR 306 CABRIOLET AT A GLANCE
8
ADJUSTING THE HEIGHT OF THE STEERING WHEEL Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handleto lock it into position.
ELECTRIC MIRRORS
Turn the knob
Ato the right or to the left to select the
corresponding mirror.
Move the knob in all four directions to adjust the mirror.

88
1
YOUR 306 CABRIOLET AT A GLANCE9
9
FUEL FILLER FLAP
To open: firmly pull the handle on the floor to the outside of the driverÕs seat.
To close: from outside, push the flap back and check that it is secured
correctly. Filling with fuel Switch off the engine. There is a holder for the fuel filler cap.
A label on the inside of the flap shows which fuels are permitted and which are not allowed.
The capacity of the tank is approximately 11 gallons (50 litres).
Fuel low warning light The fuel low warning light indicates that the quantity of fuel remaining in the tank is approximately 1.3 gallons (6 litres).
Outside the vehicle Raise the catch 1and support the
bonnet as it rises.
OPENING THE BONNET Inside the vehicle:
Pull the
handle.
81

82
5
3
21
4
82
YOUR 306 CABRIOLET AT A GLANCE
10
FRONT - REAR HEAD RESTRAINT - Height adjustment: slide them.
- Adjusting the angle: tilt them.
To remove the head restraint, posi- tion it at maximum height andpress the tab.
ADJUSTING THE FRONT SEATS
1 Forwards-backwards adjustment.
2 Seat back angle adjustment.
3 DriverÕs seat height adjustment: pull the telescopic handle and
pivot it.
4 Lumbar adjustment.
5 Access to rear seats.

46
1
12
YOUR 306 CABRIOLET AT A GLANCE11

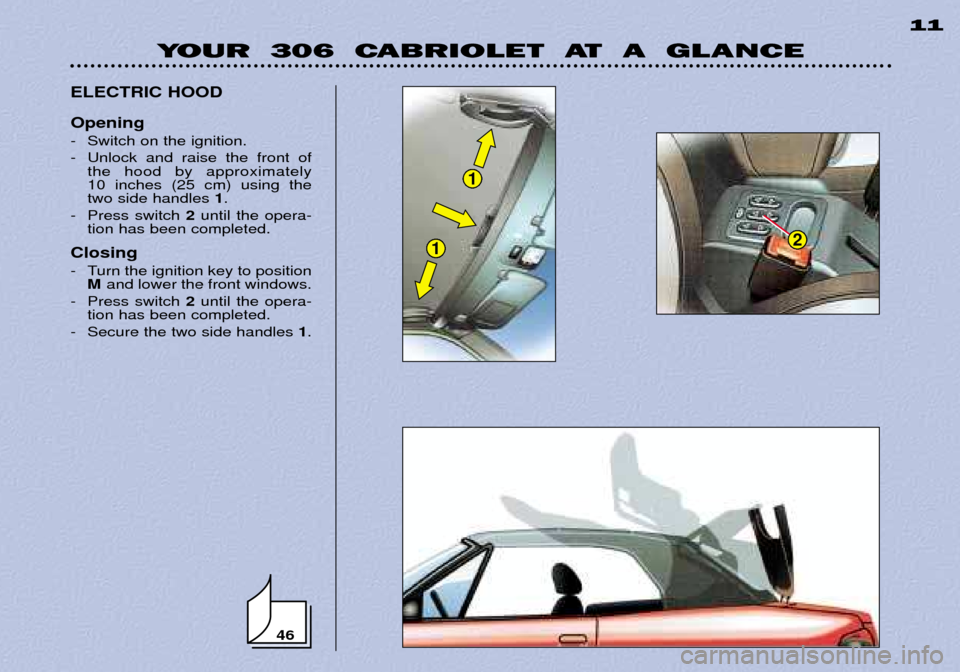

ELECTRIC HOOD Opening
- Switch on the ignition.
- Unlock and raise the front of the hood by approximately 10 inches (25 cm) using thetwo side handles 1.
- Press switch 2until the opera-
tion has been completed.
Closing
- Turn the ignition key to position M and lower the front windows.
- Press switch 2until the opera-
tion has been completed.
- Secure the two side handles 1.

56
123
123
45
YOUR 306 CABRIOLET AT A GLANCE
12
5 Recirculation of interior air.

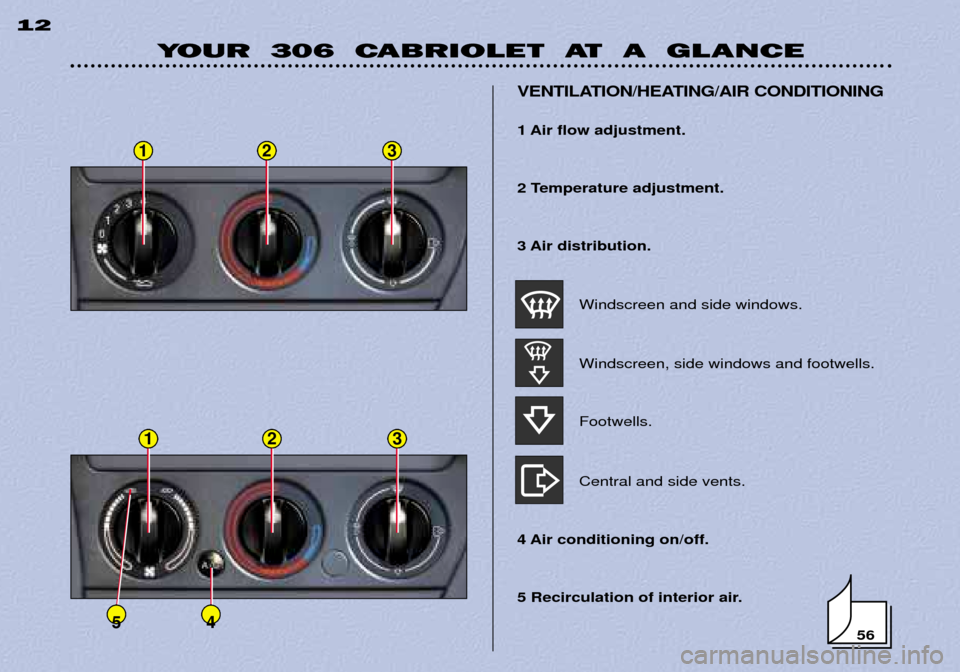

VENTILATION/HEATING/AIR CONDITIONING
1 Air flow adjustment.
2 Temperature adjustment.
3 Air distribution.
Windscreen and side windows. Windscreen, side windows and footwells. Footwells. Central and side vents.
4 Air conditioning on/off.
