2001 Peugeot 306 C Dag Owner's Manual

1
234
94
YOUR 306 CABRIOLET IN DETAIL
Control for rear window lock (child safety) This allows the rear windows to be locked in any position. NOTE:as a safety measure (children
on board), remove the ignition key when leaving the vehicle even for ashort time.
* According to specification.

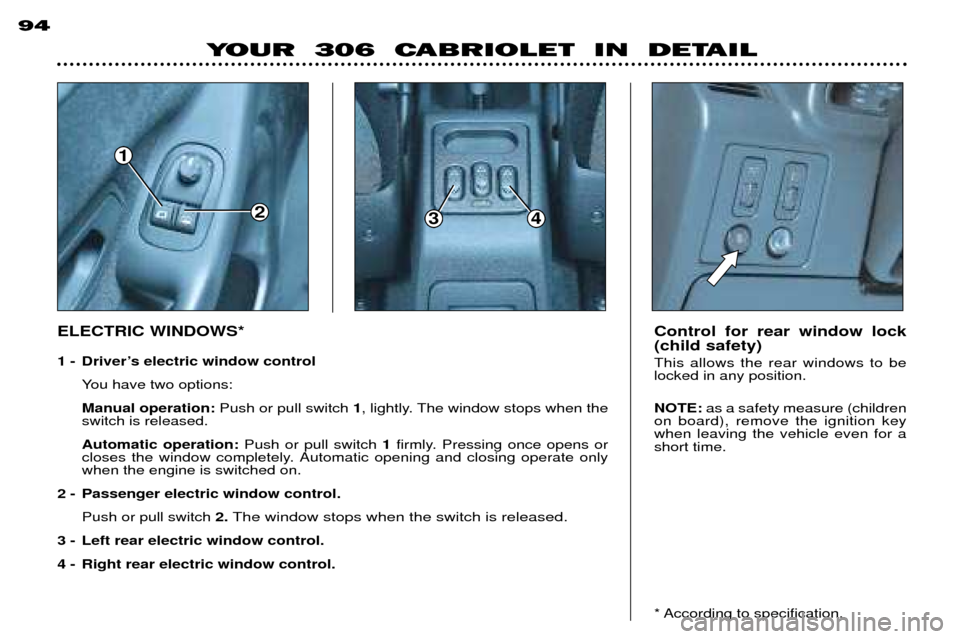

ELECTRIC WINDOWS*
1 - DriverÕs electric window control
You have two options: Manual operation: Push or pull switch 1, lightly. The window stops when the
switch is released.Automatic operation: Push or pull switch 1firmly. Pressing once opens or
closes the window completely. Automatic opening and closing operate only when the engine is switched on.
2 - Passenger electric window control. Push or pull switch 2
.The window stops when the switch is released.
3 - Left rear electric window control.
4 - Right rear electric window control.

Electric mirrors
Turn the control 2to the right or to the
left to select the corresponding mirror. Move the control 2in all four direc-
tions to adjust.
Interior mirror The interior mirror has two positions: day (normal) and night (anti-dazzle).
To change from one to the other, push or pull the lever on the loweredge.
2
YOUR 306 CABRIOLET IN DETAIL
95
The glass of the driverÕs mirror is convex* in order to eliminate the
blind spot. As a result, objects observed in the mirror are closer than
they appear. This must be taken into account to correctly judge the
distance of vehicles approaching from the rear.
* According to country.When parked, the mirrors can be folded back manually.

Digital clock* Setting: 1- Adjusting of hours.
2 - Adjusting of minutes.
Outside temperature display* This indicates the outside temperature. When the temperature is betweenminus 3 ¡C and + 5 ¡C, the ¡C symbolflashes indicating a risk of ice.
1
2
YOUR 306 CABRIOLET IN DETAIL 97
Rear screen demisting Rear screen (and mirrors)* electric demisting control. Goes out automatically after
approximately 12 minutes to avoid excessive power consumption. Pressing the button again will operate the demisting for another 12 minutes.
* According to specification.
Hazard warning lights The switch and the direction indicators flash. This controls the indicator
lights simultaneously and continu-
ously.
Only use in case of danger, in an emergency stop or for driving inunusual conditions.
They can operate with the ignition off.

Lower glove compartment
To open the glove compartment, pull the handle or turn the knob. Lock it using the ignition key*.
Sun visor
To avoid direct dazzle, fold the sun visor downwards. In the event of dazzle from the front windows, release the sun visor fromits interior fastener and pivot it side-ways. The sun visors are fitted with a cour-
tesy mirror, with a concealing flap onthe driver's side. 99
YOUR 306 CABRIOLET IN DETAIL
Off.
Front courtesy light Gradual illumination on
opening or closing a door. Light permanently on with the key in the accessoriesposition or with the ignitionon.
* According to specification.

Front ashtray
To empty:
- open and pull the unit.
To replace:
- push in fully.Rear ashtray
To empty, open and pull towards you.
YOUR 306 CABRIOLET IN DETAIL
98
Lighter Press and wait a few moments until it pops out
automatically.

Lower glove compartment
To open the glove compartment, pull the handle or turn the knob. Lock it using the ignition key*.
Sun visor
To avoid direct dazzle, fold the sun visor downwards. In the event of dazzle from the front windows, release the sun visor fromits interior fastener and pivot it side-ways. The sun visors are fitted with a cour-
tesy mirror, with a concealing flap onthe driver's side. 99
YOUR 306 CABRIOLET IN DETAIL
Off.
Front courtesy light Gradual illumination on
opening or closing a door. Light permanently on with the key in the accessoriesposition or with the ignitionon.
* According to specification.

1
B
A
DRIVING YOUR 306 CABRIOLET
100
AUTOMATIC AUTOADAPTIVE GEARBOX Positions of the selector lever These positions are displayed on the instrument panel. P.
Park: use with the handbrake when parked.
R. Reverse: this must only be engaged when the vehicle is stationary and the engine idling.
N. Neutral: if Nis engaged by mistake while the car is moving, allow the engine
to return to idling speed before engaging a new forward gear.
D. Drive: in this position, the four gear ratios change automatically. The gearchange points vary depending on the programme selected.
3. Automatic changes of the first three gears only. Select this position when you notice frequent changes between third and fourth gear (town driving or on winding roads).
2 Automatic changes of the first two gears only. This position is particularly suitable for mountain roads, when going uphill (to make the best use of the engine's power) and downhill (engine braking).
1. Selection of first gear only.
For use on steep gradients, especially when towing a trailer.Selection of first gear is by pressing switch 1with the lever in position 2.
To exit position 1, press switch 1again or move the selector lever.
Starting
To start the engine, put the selector lever in
Nor P.
Press the brake pedal when starting the engine and in order to move the lever
from position P .

DRIVING YOUR 306 CABRIOLET101
Any disruption of the system is signalled by theflashing of the Sport andSnow lights on the instru-ment panel. In such a case,
the gearbox will operate in down-
graded mode. You may feel a sub-stantial knock when reverse isselected from Pto R, or from Nto R
(without any risk of damage to thegearbox). Do not exceed 60 m.p.h. (100km/h). Contact a PEUGEOT dealer
without delay. When the engine is idling with the
car in gear, the car will move evenwithout you accelerating. Do not accelerate while a gear is being selected, when the vehicle is
stationary.
When stationary, have your foot on the
brake pedal when selecting a gear. Do not accelerate in gear with the brakes on. If work needs to be done with the engine running, apply the hand-brake and select position P.
Do not change down to brake onslippery roads. Never select position Nwhen the
vehicle is moving.Never engage Por Rif the vehicle
is not stationary. Do not allow children inside the vehicle unsupervised when theengine is running.
Operating programmes
You have a choice of three operating programmes:
- Auto-adaptive (normal).
- Sport.
- Snow.One press on button
Aor Bwill select
Sport or Snow respectively. The selec- tion is displayed on the instrumentpanel. Pressing the button a secondtime will return to the auto-adaptive(normal) programme. Auto-adaptive programme (normal) Gear changes are carried out on the basis of various parameters, such as:
- driving style,
- road characteristics,
- the vehicleÕs load.The gearbox continuously scans the
different programmes in the memoryand selects the one most suitable forthe driving conditions at any givenmoment. Sport programme The Sport programme favours perfor- mance for sporty driving and moredynamic acceleration. Snow Programme In position
Dthe Snow programme
provides smooth driving suited to slip- pery roads in order to improve trac-
tion and stability. Starting is in 2ndgear and changing down is at lowengine speeds. Special operating features During prolonged braking, the
gearbox changes down automatically,
so as to provide efficient enginebraking.
- If you take your foot off the accel- erator suddenly (when you are taken by surprise, for example), thegearbox will not change up, so as to
improve safety.
-When the engine is cold, thegearbox automatically selects aspecial programme which enablesthe engine to reach its ideal tem-perature more quickly to decrease pollution.
Kickdown For immediate maximum acceleration
without touching the gear lever, pressthe accelerator pedal down as far as
it will go. The gearbox will changedown automatically or stay in the gearselected, up to maximum enginespeed.
