2001 Peugeot 306 C Dag Owner's Manual

90
YOUR 306 CABRIOLET IN DETAIL
A warning light which remains perma- nently lit indicates that the unit con-
cerned is not operating correctly. Donot ignore this warning: contact a
PEUGEOT dealer as soon as possi-ble.
* According to specification.
Handbrake warning light, brake fluid low level andelectronic brake force dis-tribution Indicates either:
- that the handbrake is on or has not been released correctly,
- an excessive drop in the brake fluid level (if the light remains lit even with the handbrake released),
- lit at the same time as the ABS war- ning light, it indicates a malfunction ofthe braking system.
Stop immediately.
Contact a PEUGEOT dealer.
STOP warning light
(Together with the oil pressure warning light)
You must stop.
Contact a PEUGEOT dealer. Oil pressure warning light
Together with the STOP warning light.
You must stop. Indicates either:
- oil pressure is too low
- a lack of oil in the lubricating circuit
Top up the oil level if necessary.
Contact a PEUGEOT dealer.
Battery charge warning light Indicates either:
- faulty operation of the
battery charging circuit
- loose battery or starter terminals
- a broken or loose alternator drive belt
- an alternator fault
Contact a PEUGEOT dealer.
Low coolant level warning light*
You must stop.
Wait until the engine cools before topping up.
The cooling circuit is pressurised. When opening to top up, turn the cap to the first notch to let the pressuredrop.
Contact a PEUGEOT dealer. Engine autodiagnostic warning light* This comes on each time the ignition is switched on. If itcomes on when driving, this
indicates faulty operation of the injec-tion, ignition or emission controlsystem. There is a risk of damage to the cat- alytic converter if your vehicle is fitted with one.
Contact a PEUGEOT dealer.
Low fuel warning lightIndicates that there are approximately 1.3 gallons(6 litres) of fuel remainingin the fuel tank.
(The capacity of the tank is approxi-mately 50 litres).
INSTRUMENTS AND CONTROLS

Oil gauge* When the ignition is on, this indicates the oil level: The reading is only valid if the vehicle is on level ground and the engine has
been switched off for 10 minutes.
- needle in zone C, the oil level is
correct
- needle in zone D, check the oil level
using the dipstick and top up if nec-
essary.
Never exceed the maximum level onthe dipstick.
The oil level indicator switches off approximately 15 seconds after start-ing the engine.
Coolant temperature gauge
- needle in zone
A, the temperature
is correct.
- needle in zone B, the temperature
is too high.
The STOP warning light comes on.
You must stop.
Contact a PEUGEOT dealer.
DCA
B 91
YOUR 306 CABRIOLET IN DETAIL
Anti-lock braking system (ABS) warninglight It comes on for 3 seconds
each time the ignition is switched on. If it comes on at over 8 m.p.h. (12 km/h.) it indicates a malfunction
of the ABS.
However, the vehicle retains conven- tional servo-assisted braking.
Contact a PEUGEOT dealer.
Front airbags* and disarming thepassenger air bag* For operation, see section on AIR BAGS.
Side airbags** For operation, see
section on AIR BAGS.
* According to specification.
Front brake pad wearwarning light*
For your safety, change the brake pads when thewarning light comes on.
Contact a PEUGEOT dealer.

Oil gauge* When the ignition is on, this indicates the oil level: The reading is only valid if the vehicle is on level ground and the engine has
been switched off for 10 minutes.
- needle in zone C, the oil level is
correct
- needle in zone D, check the oil level
using the dipstick and top up if nec-
essary.
Never exceed the maximum level onthe dipstick.
The oil level indicator switches off approximately 15 seconds after start-ing the engine.
Coolant temperature gauge
- needle in zone
A, the temperature
is correct.
- needle in zone B, the temperature
is too high.
The STOP warning light comes on.
You must stop.
Contact a PEUGEOT dealer.
DCA
B 91
YOUR 306 CABRIOLET IN DETAIL
Anti-lock braking system (ABS) warninglight It comes on for 3 seconds
each time the ignition is switched on. If it comes on at over 8 m.p.h. (12 km/h.) it indicates a malfunction
of the ABS.
However, the vehicle retains conven- tional servo-assisted braking.
Contact a PEUGEOT dealer.
Front airbags* and disarming thepassenger air bag* For operation, see section on AIR BAGS.
Side airbags** For operation, see
section on AIR BAGS.
* According to specification.
Front brake pad wearwarning light*
For your safety, change the brake pads when thewarning light comes on.
Contact a PEUGEOT dealer.

Adjusting the height of the steering wheel Push the handle to unlock the steering wheel. Adjust the steering wheel to the desired height and pull the handle tolock it into position.
1
2
96
YOUR 306 CABRIOLET IN DETAIL
1 - Lighting rheostat* Dim or brighten the instru- ment panel lighting by turningthe knob.
This only operates when the exteriorlights are on. 2 - Headlight heightadjustment*
Depending on the vehicleÕs load, it is advisable to adjust
the headlight beam. 0 - 1 or 2 people in the front seats.
- - 3 people.
1 - 4 people.
2 - 4 people + maximum authorised
load.
3 - Driver + maximum authorised
load.
This adjustment can only be carried out with the lighting stalk in thedipped/main beam headlights posi-tion. Initial setting: 0.
* According to specification.

1
4
YOUR 306 CABRIOLET IN DETAIL
46

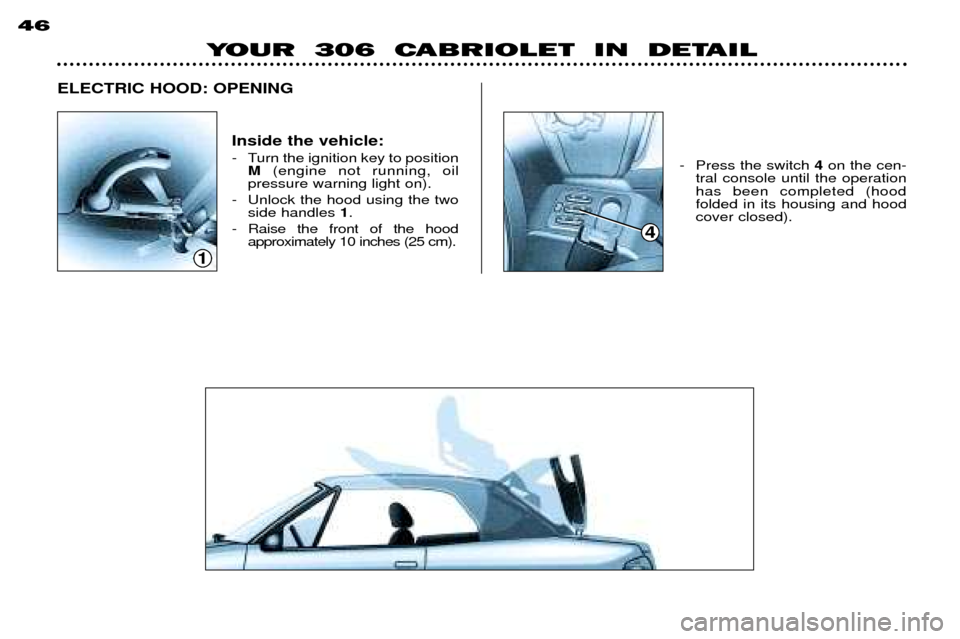

Inside the vehicle:
- Turn the ignition key to positionM (engine not running, oil
pressure warning light on).
- Unlock the hood using the two side handles 1.
- Raise the front of the hood approximately 10 inches (25 cm). - Press the switch
4on the cen-
tral console until the operation has been completed (hoodfolded in its housing and hoodcover closed).
ELECTRIC HOOD: OPENING

Using the centre handle and a side handle, fold down the front of thehood, position the side handle hooksin their housings and secure the twohandles.
ELECTRIC HOOD: CLOSING Inside the vehicle:
- Turn the ignition key to position
M
(engine not running, oil pressure warning light on) and lower thefront windows.
- Press the switch 4on the central
console until the operation hasbeen completed (hood unfoldeduntil it stops not quite flush with thewindscreen).
4 As a safety precaution, opening and closingoperations must be car-
ried out when stationary.Driving with the hood
cover open is prohibited. If the boot is not closed, the hood cannot be opened or raised. If the front of the hood is not raised, the hood cannot beopened. Do not carry out too many opera- tions in succession as there is arisk that the battery may becomeflat. Do not place anything in the com- partment reserved for storing thehood as there is a risk of damage. Before opening the hood:
- Ensure that the hood and rear screen are clean.
- Ensure that the hood is dry, oth- erwise the compression it is subjected to when it is foldedwill result in marks or evenstains caused by moisture overtime.
Y OUR 306 CABRIOLET IN DETAIL 47

- From inside the vehicle, using thecentre handle and a side handle, fold down the front of the hood,position the side handle hooks intheir housings and secure the twohandles.
If the fault persists, contact your
PEUGEOT dealer.
A
B
1

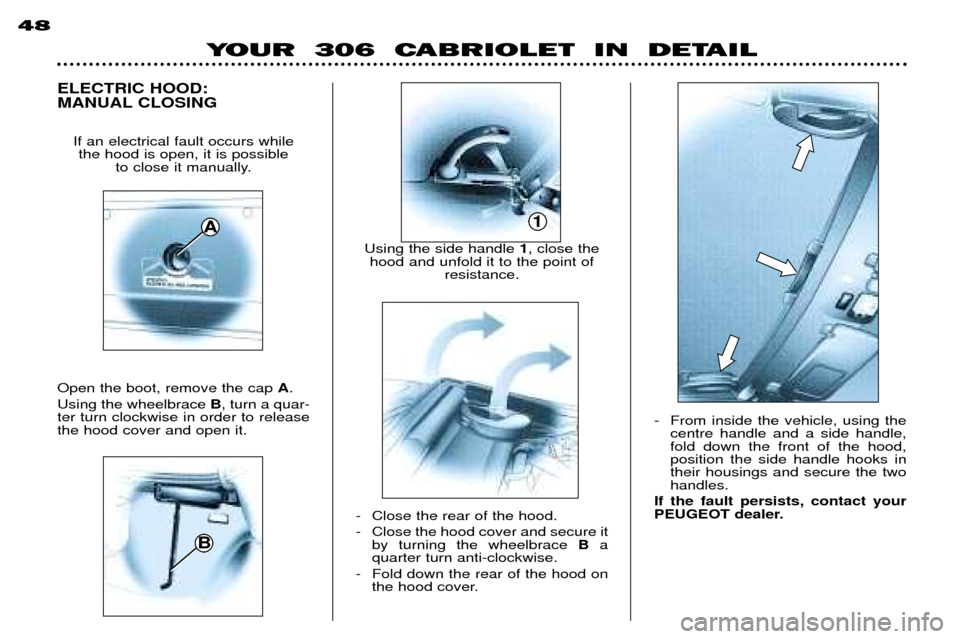

If an electrical fault occurs while the hood is open, it is possible to close it manually.
Using the side handle 1, close the
hood and unfold it to the point of resistance.
- Close the rear of the hood.
- Close the hood cover and secure it by turning the wheelbrace Ba
quarter turn anti-clockwise.
- Fold down the rear of the hood on the hood cover.
Y OUR 306 CABRIOLET IN DETAIL
48
ELECTRIC HOOD:
MANUAL CLOSING Open the boot, remove the cap A.
Using the wheelbrace B, turn a quar-
ter turn clockwise in order to release the hood cover and open it.

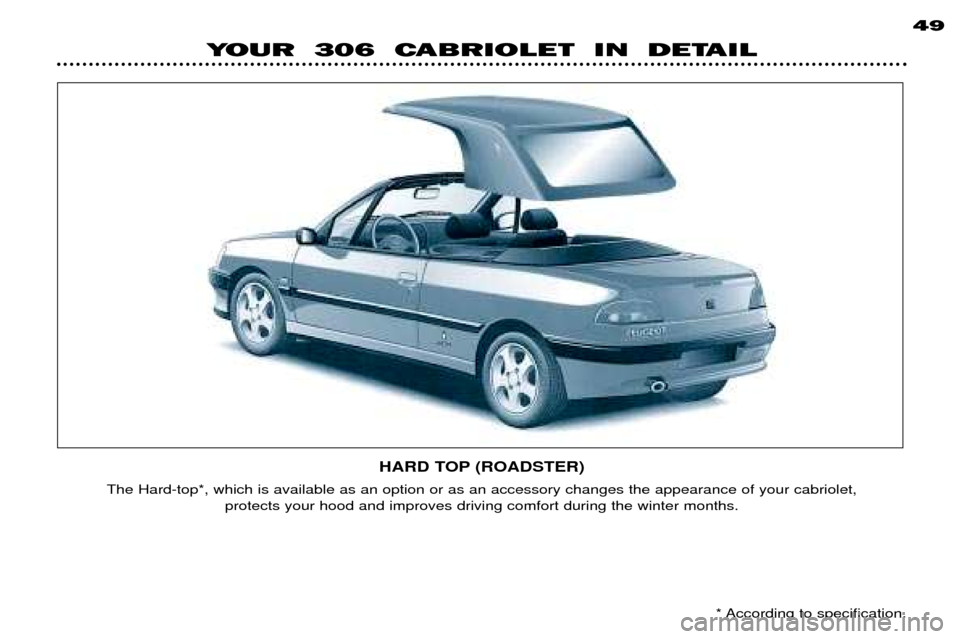

HARD TOP (ROADSTER)
The Hard-top*, which is available as an option or as an accessory changes the appearance of your cabriolet, protects your hood and improves driving comfort during the winter months.
YOUR 306 CABRIOLET IN DETAIL 49
* According to specification.
