Page 81 of 133
Handbrake Application When you have parked the vehicle, pull up the handbrake to apply it.
To ease application and release of the handbrake, press the brake pedal andpull up the handbrake with the enginerunning. Release Press the button before releasing the handbrake.
Manual gearbox The positions are indicated on the gear lever knob. Reverse gear can only be engaged from neutral when the vehicle is
stationary, with the engine idling.
102
DRIVING YOUR 306 CABRIOLET
THE ABS ANTI-LOCK BRAKING SYSTEM* In conjunction with tyres in good con- dition and of an approved make, theABS system with electronic brakeforce distribution improves the stabil-ity and handling of your vehicle, par-ticularly on an uneven or slipperysurface. The anti-lock braking system comes into operation automatically whenthere is a risk of wheel lock.
In the event of emergency braking,press very firmly without reducingthe pressure. In some conditions the normal oper-
ation of the ABS may be felt asvibrations of the brake pedal.
* According to specification.
Power steering*
This is a comfort device which offers the best compromise for parking, andfor driving at high speeds.
Page 82 of 133
103
DRIVING YOUR 306 CABRIOLET
AIRBAGSFRONT AIRBAGS
The airbag system has been designed to maximise the safety ofthe occupants in the event of seriouscollisions. It works in conjunction withthe seat belts. The electronic detectors register and analyse any abrupt deceleration of thevehicle; if the triggering threshold isreached the airbags inflate instantlyand come between the occupants andthe vehicle. Immediately after the impact, the
airbags deflate rapidly, so that they donot hinder the visibility of the occu-pants and their exit if necessary fromthe vehicle. The airbags are not deployed in the case of collisions which are notserious, for which the seat belt is suf-ficient to ensure maximum protection.The seriousness of a collisiondepends on the nature of the obstacleand the speed of the vehicle at themoment of the collision. Airbags only operate when the ignition is switched on. Note:
the gas escaping from the
cushion can be a minor irritant. These are folded in the centre of the steering wheel for the driver and in
the fascia for the front passenger.They are deployed simultaneously(except in cases where the airbag isdisarmed), for frontal impacts wherethere is a risk of injury to the head orchest. DISARMING THE
PASSENGER AIRBAG
To ensure the safety of your child, it is essential to disarm the pas-senger airbag when you install arearwards-facing child seat on thefront passenger seat.
Remove the ignition key, insert it into the passenger airbag switch
1and
turn it to the Ò OFFÓ position.
Ð The airbag warning light on the instrument panel is lit throughoutthe disarming process.
In the ÒOFFÓ position, the passenger
airbag will not be triggered in theevent of an impact.
Page 83 of 133
104
DRIVING YOUR 306 CABRIOLET
Passenger airbag precautions
Vehicle fitted with a passenger airbag disarming switch: - disarm the airbagif you install arearwards-facingchild seat on thefront passengerseat,
- arm the airbag when you trans-port an adult onthe front passen-ger seat.
Vehicle not fitted with a passengerairbag disarming switch:
- do not install a rearwards-facing child seat on the front passenger seat.
Never place your feet or
any object on the fascia. Monitoring of operation This is by an indicator light on the instrument panel.
If the passenger airbag is armed (pas-senger airbag switch in the Ò ONÓ posi-
tion), the light will come on for 6 seconds when the ignition isswitched on. If the passenger airbag is disarmed (passenger airbag switch in the Ò OFFÓ
position), the light will stay on. In any case, if the light flashes,
contact a PEUGEOT dealer.
SIDE AIRBAGS These are incorporated into the front seat backrest frame on the door side. They are deployed independently of each other depending on which sidethe collision occurs, in collisions whichcould cause injury to the chest, theabdomen or the head. This is by a light on the instrumentpanel. It comes on for 6 seconds, each time the ignition is switched on.
Operating check
If the indicator light:
Ð does not light up when the ignition is switched on, or,
Ð does not go out after 6 seconds or,
Ð flashes for 5 minutes then stays on, contact a PEUGEOT dealer.
* According to specification.
* According to specification.
As soon as you remove the rear- wards-facing child seat from the frontpassenger seat, turn the airbag switchto the Ò ONÓ position, to arm the airbag
and thus ensure the safety of yourpassenger in an impact.
Page 84 of 133
105
DRIVING YOUR 306 CABRIOLET

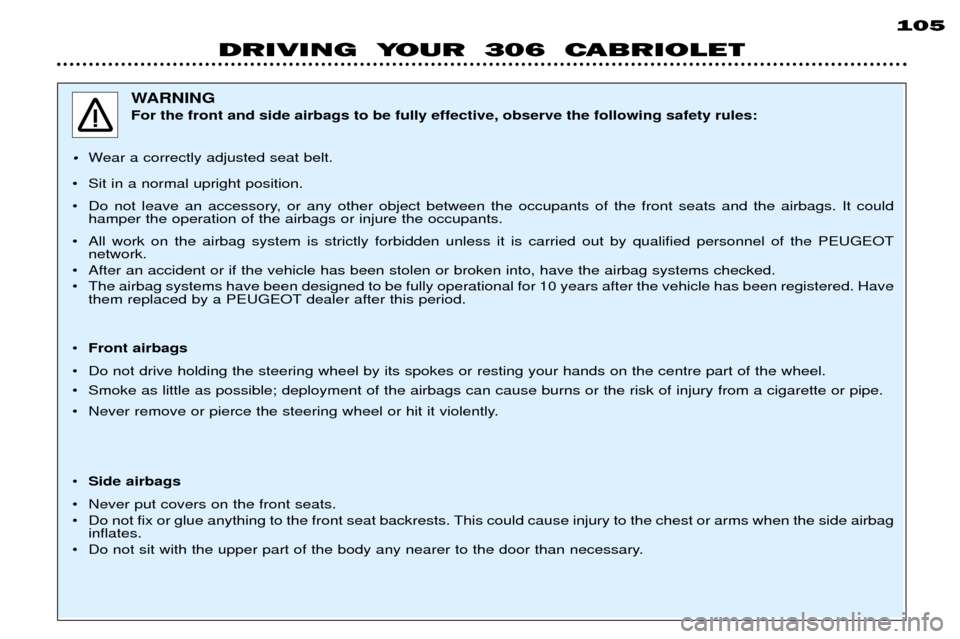

WARNING For the front and side airbags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave an accessory, or any other object between the occupants of the front seats and the airbags. It could hamper the operation of the airbags or injure the occupants.
¥ All work on the airbag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the airbag systems checked.
¥ The airbag systems have been designed to be fully operational for 10 years after the vehicle has been registered. Have them replaced by a PEUGEOT dealer after this period.
¥ Front airbags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Smoke as little as possible; deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. ¥ Side airbags
¥ Never put covers on the front seats.
¥ Do not fix or glue anything to the front seat backrests. This could cause injury to the chest or arms when the side airbag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Page 85 of 133
104
DRIVING YOUR 306 CABRIOLET
Passenger airbag precautions
Vehicle fitted with a passenger airbag disarming switch: - disarm the airbagif you install arearwards-facingchild seat on thefront passengerseat,
- arm the airbag when you trans-port an adult onthe front passen-ger seat.
Vehicle not fitted with a passengerairbag disarming switch:
- do not install a rearwards-facing child seat on the front passenger seat.
Never place your feet or
any object on the fascia. Monitoring of operation This is by an indicator light on the instrument panel.
If the passenger airbag is armed (pas-senger airbag switch in the Ò ONÓ posi-
tion), the light will come on for 6 seconds when the ignition isswitched on. If the passenger airbag is disarmed (passenger airbag switch in the Ò OFFÓ
position), the light will stay on. In any case, if the light flashes,
contact a PEUGEOT dealer.
SIDE AIRBAGS These are incorporated into the front seat backrest frame on the door side. They are deployed independently of each other depending on which sidethe collision occurs, in collisions whichcould cause injury to the chest, theabdomen or the head. This is by a light on the instrumentpanel. It comes on for 6 seconds, each time the ignition is switched on.
Operating check
If the indicator light:
Ð does not light up when the ignition is switched on, or,
Ð does not go out after 6 seconds or,
Ð flashes for 5 minutes then stays on, contact a PEUGEOT dealer.
* According to specification.
* According to specification.
As soon as you remove the rear- wards-facing child seat from the frontpassenger seat, turn the airbag switchto the Ò ONÓ position, to arm the airbag
and thus ensure the safety of yourpassenger in an impact.
Page 86 of 133
105
DRIVING YOUR 306 CABRIOLET
WARNING For the front and side airbags to be fully effective, observe the following safety rules:
¥ Wear a correctly adjusted seat belt.
¥ Sit in a normal upright position.
¥ Do not leave an accessory, or any other object between the occupants of the front seats and the airbags. It could hamper the operation of the airbags or injure the occupants.
¥ All work on the airbag system is strictly forbidden unless it is carried out by qualified personnel of the PEUGEOT network.
¥ After an accident or if the vehicle has been stolen or broken into, have the airbag systems checked.
¥ The airbag systems have been designed to be fully operational for 10 years after the vehicle has been registered. Have them replaced by a PEUGEOT dealer after this period.
¥ Front airbags
¥ Do not drive holding the steering wheel by its spokes or resting your hands on the centre part of the wheel.
¥ Smoke as little as possible; deployment of the airbags can cause burns or the risk of injury from a cigarette or pipe.
¥ Never remove or pierce the steering wheel or hit it violently. ¥ Side airbags
¥ Never put covers on the front seats.
¥ Do not fix or glue anything to the front seat backrests. This could cause injury to the chest or arms when the side airbag inflates.
¥ Do not sit with the upper part of the body any nearer to the door than necessary.
Page 87 of 133
1
9
8
7
6
5
432
24

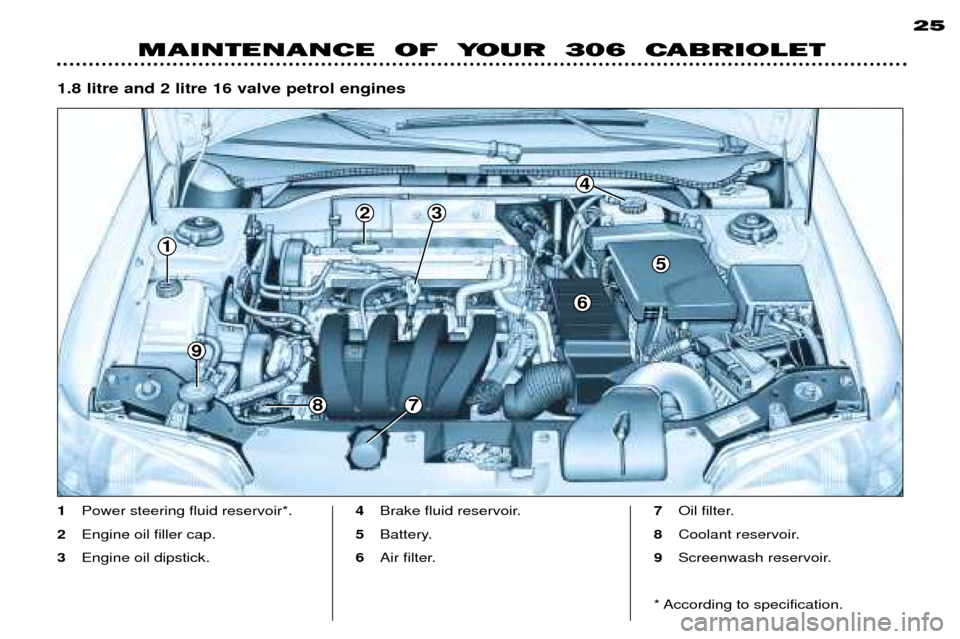

MAINTENANCE OF YOUR 306 CABRIOLET
1
Power steering fluid reservoir*.
2 Engine oil filler cap.
3 Air filter. 4
Brake fluid reservoir.
5 Battery.
6 Engine oil dipstick. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.
1.6 litre petrol engine
Page 88 of 133
1
9
7
6
5
4
8
23
1.8 litre and 2 litre 16 valve petrol engines
25
MAINTENANCE OF YOUR 306 CABRIOLET
1
Power steering fluid reservoir*.
2 Engine oil filler cap.
3 Engine oil dipstick. 4
Brake fluid reservoir.
5 Battery.
6 Air filter. 7
Oil filter.
8 Coolant reservoir.
9 Screenwash reservoir.
* According to specification.
