2001 NISSAN PICK-UP ECO mode

CONSULT-II Reference Value in Data Monitor
Mode
NEEC0042Remarks:
+Specification data are reference values.
+Specification data are output/input values which are detected or supplied by the ECM at the connector.
* Specification data may not be directly related to their components signals/values/operations.
(i.e., Adjust ignition timing with a timing light before monitoring IGN TIMING. Specification data might be displayed even when igni-
tion timing is not adjusted to specification. This IGN TIMING monitors the data calculated by the ECM according to the input signals
from the camshaft position sensor and other ignition timing related sensors.)
MONITOR ITEM CONDITION SPECIFICATION
ENG SPEED+Tachometer: Connect
+Run engine and compare tachometer indication with the CONSULT-II
value.Almost the same speed as the
CONSULT-II value.
MAS A/F SE-B1+Engine: After warming up
+Air conditioner switch: ªOFFº
+Shift lever: ªNº
+No-loadIdle 0.9 - 1.8V
2,500 rpm 1.9 - 2.3V
COOLAN TEMP/S+Engine: After warming up More than 70ÉC (158ÉF)
HO2S1 (B1)
+Engine: After warming upMaintaining engine speed at 2,000
rpm0 - 0.3V¨Approx. 0.6 - 1.0V
HO2S1 MNTR (B1)LEAN¨RICH
Changes more than 5 times
during 10 seconds.
HO2S2 (B1)
+Engine: After warming upRevving engine from idle to 3,000
rpm quickly0 - 0.3V¨Approx. 0.6 - 1.0V
HO2S2 MNTR (B1)LEAN¨RICH
VHCL SPEED SE+Turn drive wheels and compare speedometer indication with the CON-
SULT-II valueAlmost the same speed as the
CONSULT-II value
BATTERY VOLT+Ignition switch: ON (Engine stopped) 11 - 14V
THRTL POS SEN+Engine: After warming up
+Ignition switch: ON
(Engine stopped)Throttle valve fully closed 0.2 - 0.8V
Throttle valve fully opened 3.5 - 4.5V
START SIGNAL+Ignition switch: ON®START®ON OFF®ON®OFF
CLSD THL/P SW+Engine: After warming up
+Ignition switch: ON
(Engine stopped)Throttle valve: Idle position ON
Throttle valve: Slightly open OFF
CLSD THL POS+Engine: After warming up
+Ignition switch: ON
(Engine stopped)Throttle valve: Idle position ON
Throttle valve: Slightly open OFF
AIR COND SIG+Engine: After warming up, idle
the engineA/C switch: OFF OFF
A/C switch: ON (Compressor oper-
ates.)ON
P/N POSI SW+Ignition switch: ONShift lever: ªNº ON
Except above OFF
PW/ST SIGNAL+Engine: After warming up, idle
the engineSteering wheel in neutral position
(forward direction)OFF
The steering wheel is turned ON
IGNITION SW+Ignition switch: ON®OFF®ON ON®OFF®ON
INJ PULSE-B1+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle 2.5 - 3.3 msec
2,000 rpm 2.4 - 3.2 msec
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
CONSULT-II Reference Value in Data Monitor Mode
EC-3106

MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle 0.8 - 1.2 msec
2,000 rpm 0.8 - 1.2 msec
IGN TIMING+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle Approx. 15É BTDC
2,000 rpm More than 30É BTDC
IACV-AAC/V+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle Approx. 30%
2,000 rpm Ð
PURG VOL C/V+Engine: After warming up
+Air conditioner switch: OFF
+No-loadIdle 0%
2,000 rpm (More than 200 seconds
after starting engine)Ð
A/F ALPHA-B1+Engine: After warming upMaintaining engine speed at 2,000
rpm50 - 159%
AIR COND RLY+Air conditioner switch: OFF®ON OFF®ON
FUEL PUMP RLY+Ignition switch is turned to ON (Operates for 5 seconds)
+Engine running and crankingON
+Except as shown above OFF
HO2S1 HTR (B1)+Engine speed: Below 3,600 rpm ON
+Engine speed: Above 3,600 rpm OFF
HO2S2 HTR (B1)+Engine speed: Idle after driving for 2 minutes at 70 km/h (43 MPH) or
moreON
+Ignition switch: ON (Engine stopped) OFF
CAL/LD VALUE+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle 9.5 - 34.0%
2,500 rpm 13.9 - 24.9%
ABSOL TH´P/S+Engine: After warming up,
engine stopped
+Ignition switch: ONThrottle valve: fully closed 0.0%
Throttle valve: fully opened Approx. 80%
MASS AIRFLOW+Engine: After warming up
+Air conditioner switch: OFF
+Shift lever: ªNº
+No-loadIdle 0.9 - 5.8 g´m/s
2,500 rpm 7.5 - 13.2 g´m/s
ABSOL PRES/SE+Engine: More than 5 seconds after starting engine (After warming up) Approx. 1.2V
Major Sensor Reference Graph in Data Monitor
Mode
NEEC0043The following are the major sensor reference graphs in ªDATA MONITORº mode.
(Select ªMANU TRIGº in ªDATA MONITORº with CONSULT-II. ªTrigger Pointº is set to 100%, ªRecording
Speedº is set to MAX.)
THRTL POS SEN, ABSOL TH´P/S, CLSD THL POSNEEC0043S01Below is the data for ªTHRTL POS SENº, ªABSOL TH´P/Sº and ªCLSD THL POSº when depressing the accel-
erator pedal with the ignition switch ON.
The signal of ªTHRTL POS SENº and ªABSOL TH´P/Sº should rise gradually without any intermittent drop or
rise after ªCLSD THL POSº is changed from ªONº to ªOFFº.
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
CONSULT-II Reference Value in Data Monitor Mode
EC-3107

TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
9 BR/WAmbient air tempera-
ture switch[Engine is running]
+Idle speed
+Ambient air temperature is above 23ÉC (73ÉF)
+Air conditioner is operating0V
[Engine is running]
+Idle speed
+Ambient air temperature is above 23ÉC (73ÉF)
+Air conditioner is operatingBATTERY VOLTAGE
(11 - 14V)
[Engine is running]
+Idle speed
+Ambient air temperature is above 23ÉC (73ÉF)
+Air conditioner is not operatingApproximately 5V
10 B/P ECM ground[Engine is running]
+Idle speedEngine ground
11*1 Y Fuel pump relay[Ignition switch ON]
+For 5 seconds after turning ignition switch ON
[Engine is running]0-1V
[Ignition switch ON]
+More than 5 seconds after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
12 G/W Air conditioner relay[Engine is running]
+Both A/C switch and blower switch are ON*
*: Any mode except ªOFFº, ambient air tem-
perature above 10ÉC (50ÉF).Approximately 0V
[Engine is running]
+A/C switch is OFFBATTERY VOLTAGE
(11 - 14V)
14*2 Y Fuel pump relay[Ignition switch ON]
+For 5 seconds after turning ignition switch0-1V
[Ignition switch ON]
+More than 5 seconds after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V)
18 OR/B Malfunction indicator[Ignition switch ON]0-1V
[Engine is running]
+Idle speedBATTERY VOLTAGE
(11 - 14V)
19 B/P ECM ground[Engine is running]
+Idle speedEngine ground
20 R Start signal[Ignition switch ON]Approximately 0V
[Ignition switch START]BATTERY VOLTAGE
(11 - 14V)
21 YAir conditioner pres-
sure switch[Engine is running]
+Both air conditioner switch and blower switch
are ON (Compressor operates)Approximately 0V
[Engine is running]
+Air conditioner switch is OFFBATTERY VOLTAGE
(11 - 14V)
22 Y/RPark/neutral position
(PNP) switch[Ignition switch ON]
+Gear position is ªNºApproximately 0V
[Ignition switch ON]
+Except the above gear positionApproximately 5V
TROUBLE DIAGNOSIS Ð GENERAL
DESCRIPTION
KA24DE (EURO OBD)
ECM Terminals and Reference Value
EC-3113

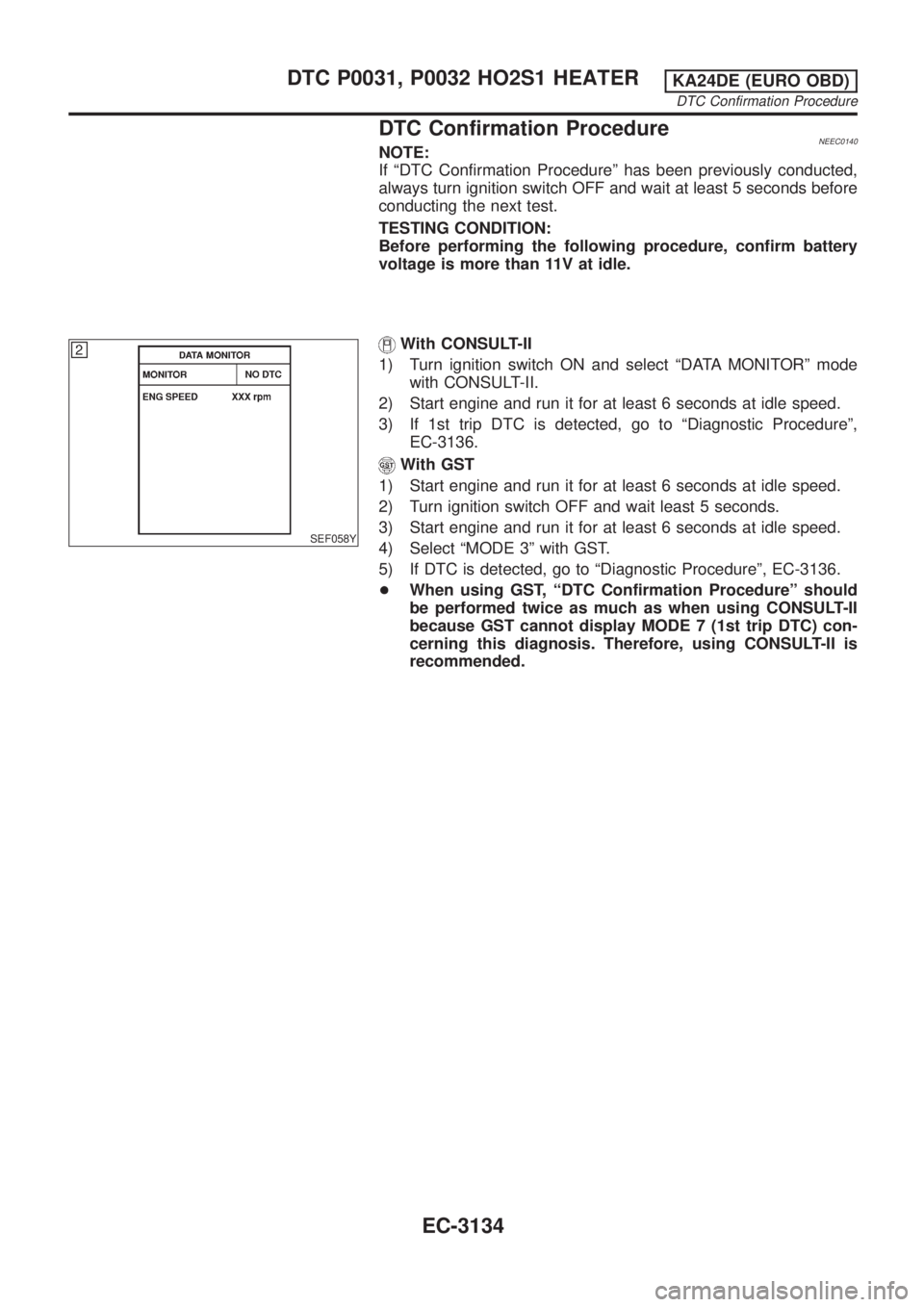

DTC Confirmation ProcedureNEEC0140NOTE:
If ªDTC Confirmation Procedureº has been previously conducted,
always turn ignition switch OFF and wait at least 5 seconds before
conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm battery
voltage is more than 11V at idle.
SEF058Y
With CONSULT-II
1) Turn ignition switch ON and select ªDATA MONITORº mode
with CONSULT-II.
2) Start engine and run it for at least 6 seconds at idle speed.
3) If 1st trip DTC is detected, go to ªDiagnostic Procedureº,
EC-3136.
With GST
1) Start engine and run it for at least 6 seconds at idle speed.
2) Turn ignition switch OFF and wait least 5 seconds.
3) Start engine and run it for at least 6 seconds at idle speed.
4) Select ªMODE 3º with GST.
5) If DTC is detected, go to ªDiagnostic Procedureº, EC-3136.
+When using GST, ªDTC Confirmation Procedureº should
be performed twice as much as when using CONSULT-II
because GST cannot display MODE 7 (1st trip DTC) con-
cerning this diagnosis. Therefore, using CONSULT-II is
recommended.
DTC P0031, P0032 HO2S1 HEATERKA24DE (EURO OBD)
DTC Confirmation Procedure
EC-3134

DTC No.Trouble diag-
nosis nameDTC detecting condition Possible cause
P0038
0038Heated oxy-
gen sensor 2
heater con-
trol circuit
high+The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to
ECM through the heated oxygen sensor 2
heater.)+Harness or connectors
(The heated oxygen sensor 2 heater circuit
is shorted.)
+Heated oxygen sensor 2 heater
DTC Confirmation ProcedureNEEC0184NOTE:
If ªDTC Confirmation Procedureº has been previously conducted,
always turn ignition switch OFF and wait at least 5 seconds before
conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that bat-
tery voltage is in between 10.5V at idle.
SEF175Y
With CONSULT-II
1) Turn ignition switch ON and select ªDATA MONITORº mode
with CONSULT-II.
2) Start engine and drive vehicle at a speed of more than 70 km/h
(43 MPH) for 2 consecutive minutes.
3) If 1st trip DTC is detected, go to ªDiagnostic Procedureº,
EC-3141.
With GST
1) Start engine.
2) Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2
consecutive minutes.
3) Stop vehicle and let engine idle for at least 6 seconds.
4) Turn ignition switch OFF and wait at least 10 seconds.
5) Start engine.
6) Drive vehicle at a speed of more than 70 km/h (43 MPH) for 2
consecutive minutes
7) Stop vehicle and let engine idle for at least 6 seconds.
8) Select ªMODE 3º with GST.
9) If DTC is detected, go to ªDiagnostic Procedureº, EC-3141.
When using GST, ªDTC Confirmation Procedureº should be
performed twice as much as when using CONSULT-II because
GST cannot display MODE 7 (1st trip DTC) concerning this
diagnosis. Therefore, using CONSULT-II is recommended.
DTC P0037, P0038 HO2S2 HEATERKA24DE (EURO OBD)
On Board Diagnosis Logic
EC-3139

DTC No. Malfunction is detected when ... Check Items (Possible Cause)
P0101
0101B) A low voltage from the sensor is sent to ECM* under
heavy load driving condition.+Harness or connectors
(The sensor circuit is open or shorted.)
+Intake air leaks
+Mass air flow sensor
*: When this malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
FAIL-SAFE MODENEEC0053S01
Detected items Engine operating condition in fail-safe mode
Mass air flow sensor circuitEngine speed will not rise more than 2,400 rpm due to the fuel
cut.
DTC Confirmation ProcedureNEEC0054CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDTC Confirmation Procedureº has been previously conducted,
always turn ignition switch OFF and wait at least 5 seconds before
conducting the next test.
SEF174Y
PROCEDURE FOR MALFUNCTION ANEEC0054S03NOTE:
If engine will not start or stops soon, wait at least 10 seconds
with engine stopped (Ignition switch ªONº) instead of running
engine at idle speed.
With CONSULT-II
1) Turn ignition switch ON.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Start engine and warm it up to normal operating temperature.
4) Run engine for at least 10 seconds at idle speed.
5) If 1st trip DTC is detected, go to ªDiagnostic Procedureº,
EC-3147.
With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P0101 MAF SENSORKA24DE (EURO OBD)
On Board Diagnosis Logic
EC-3144

SEF243Y
SEF175Y
PROCEDURE FOR MALFUNCTION BNEEC0054S04With CONSULT-II
1) Turn ignition switch ON.
2) Start engine and warm it up to normal operating temperature.
If engine cannot be started, go to ªDiagnostic Procedureº,
EC-3147.
3) Select ªDATA MONITORº mode with CONSULT-II.
4) Check the voltage of ªMAS A/F SE-B1º with ªDATA MONITORº.
5) Increases engine speed to about 4,000 rpm.
6) Monitor the linear voltage rise in response to engine speed
increases.
If NG, go to ªDiagnostic Procedureº, EC-3147.
If OK, go to following step.
7) Maintain the following conditions for at least 10 consecutive
seconds.
ENG SPEED More than 2,000 rpm
THRTL POS SEN More than 3V
Selector lever Suitable position
Driving location Driving vehicle uphill (Increased engine load)
will help maintain the driving conditions
required for this test.
8) If 1st trip DTC is detected, go to ªDiagnostic Procedureº,
EC-3147.
SEF534P
Overall Function CheckNEEC0055Use this procedure to check the overall function of the mass air flow
sensor circuit. During this check, a 1st trip DTC might not be con-
firmed.
PROCEDURE FOR MALFUNCTION BNEEC0055S01With GST
1) Turn ignition switch ON.
2) Start engine and warm it up to normal operating temperature.
3) Select ªMODE 1º with GST.
4) Check the mass air flow sensor signal with ªMODE 1º.
5) Check for linear mass air flow rise in response to increases to
about 4,000 rpm in engine speed.
6) If NG, go to ªDiagnostic Procedureº, EC-3147.
DTC P0101 MAF SENSORKA24DE (EURO OBD)
DTC Confirmation Procedure
EC-3145

DTC No. Malfunction is detected when ... Check Items (Possible Cause)
P0102
0102An excessively low voltage from the sensor is sent to
ECM* when engine is running.+Harness or connectors
(The sensor circuit is open or shorted.)
+Intake air leaks
+Mass air flow sensor
*: When this malfunction is detected, the ECM enters fail-safe mode and the MI lights up.
FAIL-SAFE MODENEEC1551S01
Detected items Engine operating condition in fail-safe mode
Mass air flow sensor circuitEngine speed will not rise more than 2,400 rpm due to the fuel
cut.
DTC Confirmation ProcedureNEEC1552CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If ªDTC Confirmation Procedureº has been previously conducted,
always turn ignition switch OFF and wait at least 5 seconds before
conducting the next test.
SEF058Y
PROCEDURE FOR DTC P0103NEEC1552S01With CONSULT-II
1) Turn ignition switch ON.
2) Select ªDATA MONITORº mode with CONSULT-II.
3) Wait at least 6 seconds.
4) If 1st trip DTC is detected, go to ªDiagnostic Procedureº,
EC-3155.
If 1st trip DTC is not detected, go to next step.
5) Start engine and let it idle for at least 6 seconds.
6) If 1st trip DTC is detected, go to ªDiagnostic Procedureº,
EC-3155.
With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P0102, P0103 MAF SENSORKA24DE (EURO OBD)
On Board Diagnosis Logic
EC-3152
