DescriptionNJAT0323The vehicle speed sensor´MTR is built into the speedometer
assembly. The sensor functions as an auxiliary device to the revo-
lution sensor when it is malfunctioning. The TCM will then use a
signal sent from the vehicle speed sensor´MTR.
TCM TERMINALS AND REFERENCE VALUENJAT0323S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
40 PU/RVehicle speed
sensor
When moving vehicle at 2 to 3 km/h
(1 to 2 MPH) for1m(3ft)ormore.Voltage varies
between less
than 1V and more
than 4.5V
ON BOARD DIAGNOSIS LOGICNJAT0323S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: VHCL SPEED SEN´MTR
TCM does not receive the proper voltage
signal from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+Vehicle speed sensor
: 2nd judgement flicker
DTC VHCL SPEED SEN´MTR VEHICLE SPEED
SENSOR´MTR
EURO-OBD
Description
AT-278

Diagnostic ProcedureNJAT0325
1 CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select ªECU INPUT SIGNALSº in ªDATA MONITORº mode for ªA/Tº with CONSULT-II.
3. Read out the value of ªVHCL/S SE´MTRº while driving.
Check the value changes according to driving speed.
SAT614J
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 40 and ground while driving at 2 to 3 km/h (1 to 2 MPH) for1m(3ft)ormore.
Voltage:
Voltage varies between less than 1V and more than 4.5V.
SAT465JB
OK or NG
OK©GO TO 2.
NG©Check the following items:
+Vehicle speed sensor and ground circuit for vehicle speed sensor
Refer to EL-89, ªMETERS AND GAUGESº.
+Harness for short or open between TCM and vehicle speed sensor (Main harness)
2 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-279.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
DTC VHCL SPEED SEN´MTR VEHICLE SPEED
SENSOR´MTR
EURO-OBD
Diagnostic Procedure
AT-281

2 CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between TCM terminals 25, 48 and ground.
SAT468J
Continuity should exist.
If OK, check harness for short to ground and short to power.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors. Refer
to ªWiring Diagram Ð AT Ð MAINº, AT-121.
3 CHECK LAMP CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Check resistance between TCM terminals 13 and 10.
Resistance: 50 - 100W
SAT469JB
3. Reinstall any part removed.
OK or NG
OK©GO TO 4.
NG©Check the following items:
+O/D OFF indicator lamp.
Refer to EL-89, ªMETERS AND GAUGESº.
+Harness and fuse for short or open between ignition switch and O/D OFF indicator
lamp (Main harness)
Refer to EL-10, ªPOWER SUPPLY ROUTINGº.
+Harness for short or open between O/D OFF indicator lamp and TCM.
TROUBLE DIAGNOSES FOR SYMPTOMS
1. O/D OFF Indicator Lamp Does Not Come On (Cont'd)
AT-289

SAT115D

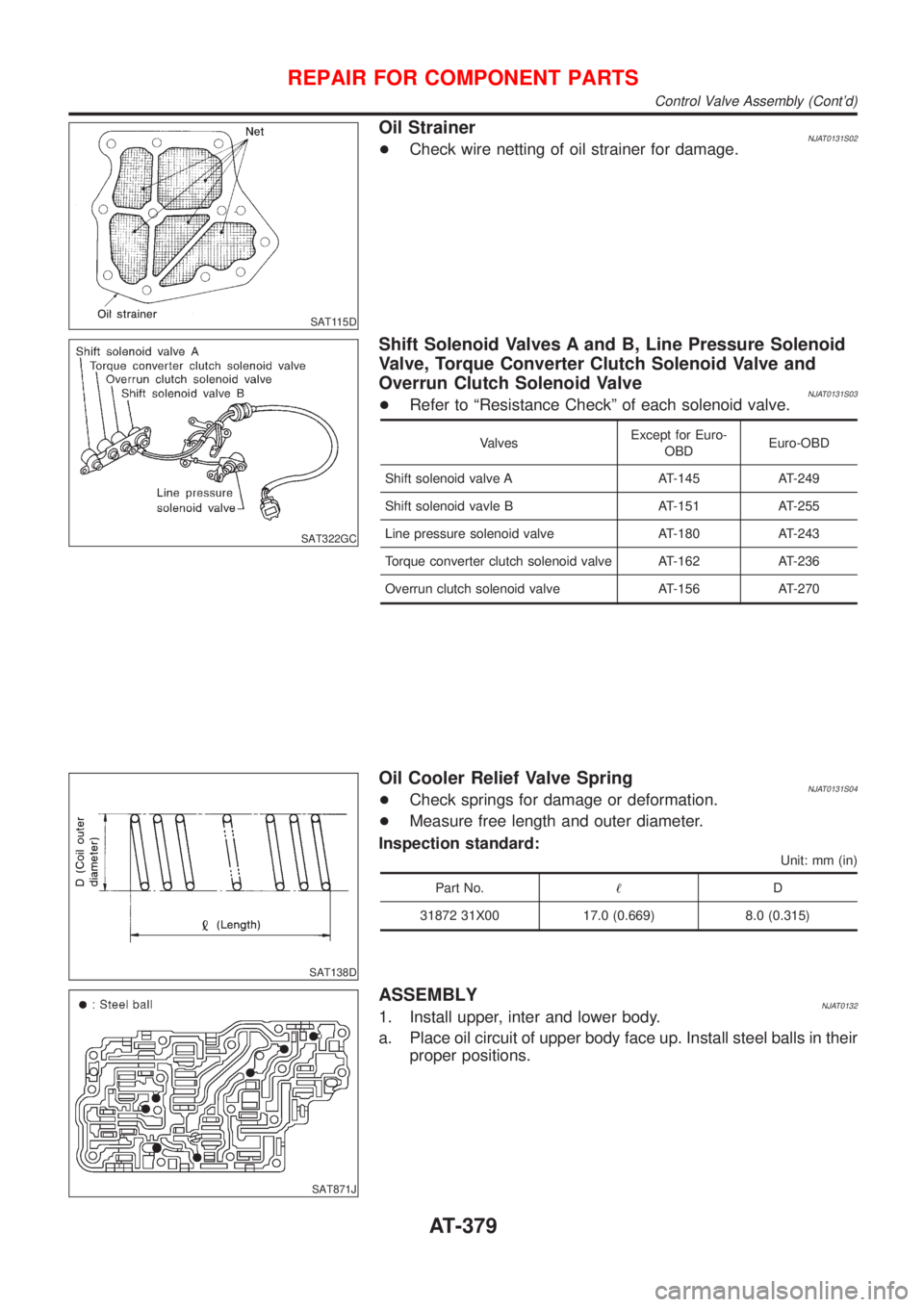

Oil StrainerNJAT0131S02+Check wire netting of oil strainer for damage.
SAT322GC
Shift Solenoid Valves A and B, Line Pressure Solenoid
Valve, Torque Converter Clutch Solenoid Valve and
Overrun Clutch Solenoid Valve
NJAT0131S03+Refer to ªResistance Checkº of each solenoid valve.
ValvesExcept for Euro-
OBDEuro-OBD
Shift solenoid valve A AT-145 AT-249
Shift solenoid vavle B AT-151 AT-255
Line pressure solenoid valve AT-180 AT-243
Torque converter clutch solenoid valve AT-162 AT-236
Overrun clutch solenoid valve AT-156 AT-270
SAT138D
Oil Cooler Relief Valve SpringNJAT0131S04+Check springs for damage or deformation.
+Measure free length and outer diameter.
Inspection standard:
Unit: mm (in)
Part No.!D
31872 31X00 17.0 (0.669) 8.0 (0.315)
SAT871J
ASSEMBLYNJAT01321. Install upper, inter and lower body.
a. Place oil circuit of upper body face up. Install steel balls in their
proper positions.
REPAIR FOR COMPONENT PARTS
Control Valve Assembly (Cont'd)
AT-379

SAT321G
DISASSEMBLYNJAT01341. Remove valves at retainer plates.
+Do not use a magnetic ªhandº.
SAT135D
a. Use a screwdriver to remove retainer plates.
SAT136D
b. Remove retainer plates while holding spring, plugs or sleeves.
+Remove plugs slowly to prevent internal parts from jump-
ing out.
SAT137D
c. Place mating surface of valve body face down, and remove
internal parts.
+If a valve is hard to remove, place valve body face down
and lightly tap it with a soft hammer.
+Be careful not to drop or damage valves and sleeves.
SAT138D
INSPECTIONNJAT0135Valve SpringNJAT0135S01+Measure free length and outer diameter of each valve spring.
Also check for damage or deformation.
Inspection standard:
Refer to SDS, AT-450.
+Replace valve springs if deformed or fatigued.
Control ValvesNJAT0135S02+Check sliding surfaces of valves, sleeves and plugs.
REPAIR FOR COMPONENT PARTS
Control Valve Upper Body (Cont'd)
AT-385

SAT872J
DISASSEMBLYNJAT0138Remove valves at retainer plate.
For removal procedures, refer to AT-376.
SAT138D
INSPECTIONNJAT0139Valve SpringsNJAT0139S01+Check each valve spring for damage or deformation. Also
measure free length and outer diameter.
Inspection standard:
Refer to SDS, AT-450.
+Replace valve springs if deformed or fatigued.
Control ValvesNJAT0139S02+Check sliding surfaces of control valves, sleeves and plugs for
damage.
SAT872J
ASSEMBLYNJAT0140+Install control valves.
For installation procedures, refer to AT-386.
SAT089F
Retainer Plate (for control valve lower body)NJAT0140S01Refer to AT-388.
Unit: mm (in)
Name of control valve No. Length A Length B Type
Pressure regulator valve 14
6.0
(0.236)28.0
(1.102)I Accumulator control valve 24
Shift valve A 28
Overrun clutch control valve 20
Pressure modifier valve 12
Shuttle control valve 31
Shift valve B 5 Ð Ð II
+Install proper retainer plates.
REPAIR FOR COMPONENT PARTS
Control Valve Lower Body (Cont'd)
AT-389

SAT140E

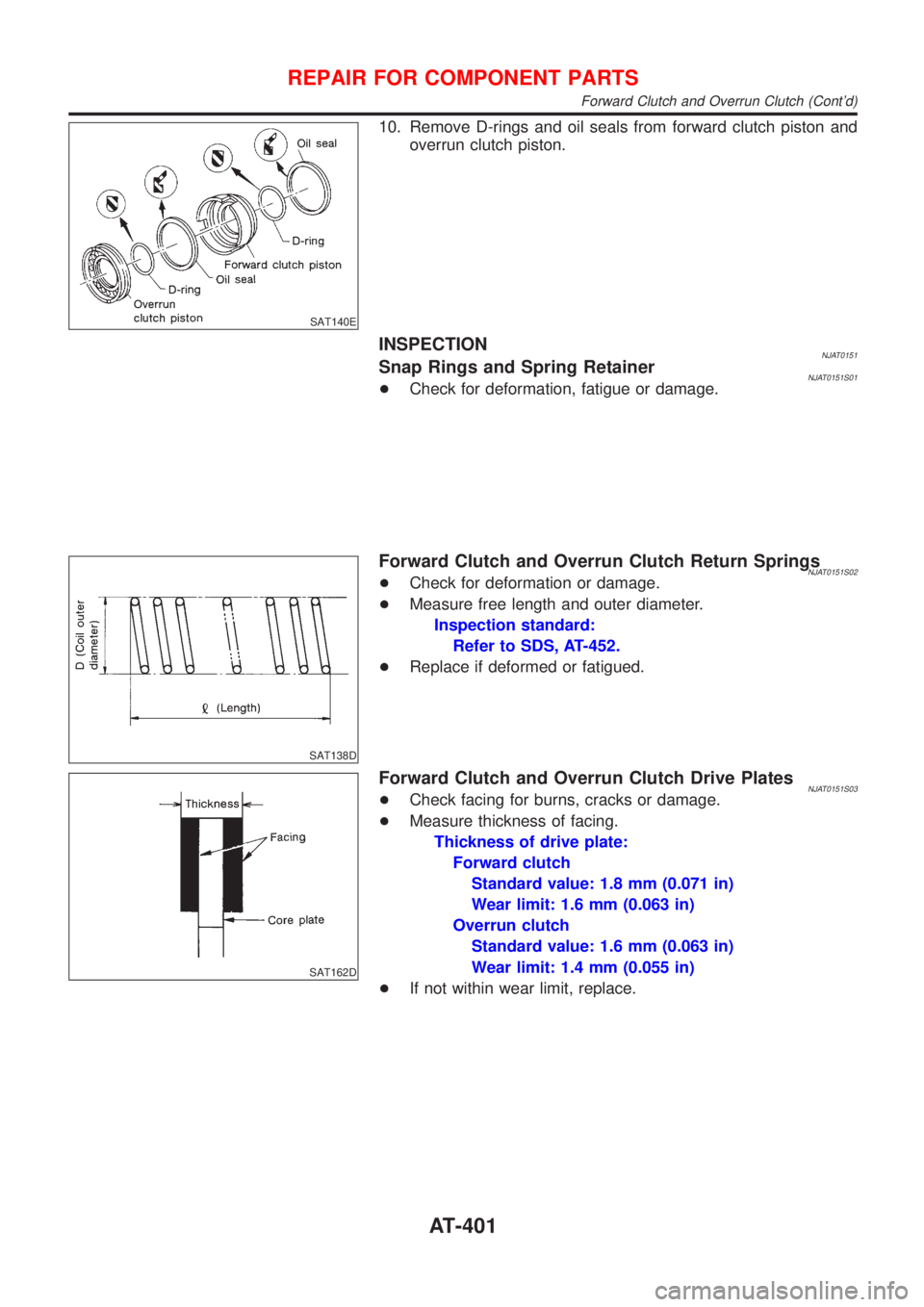

10. Remove D-rings and oil seals from forward clutch piston and
overrun clutch piston.
INSPECTIONNJAT0151Snap Rings and Spring RetainerNJAT0151S01+Check for deformation, fatigue or damage.
SAT138D
Forward Clutch and Overrun Clutch Return SpringsNJAT0151S02+Check for deformation or damage.
+Measure free length and outer diameter.
Inspection standard:
Refer to SDS, AT-452.
+Replace if deformed or fatigued.
SAT162D
Forward Clutch and Overrun Clutch Drive PlatesNJAT0151S03+Check facing for burns, cracks or damage.
+Measure thickness of facing.
Thickness of drive plate:
Forward clutch
Standard value: 1.8 mm (0.071 in)
Wear limit: 1.6 mm (0.063 in)
Overrun clutch
Standard value: 1.6 mm (0.063 in)
Wear limit: 1.4 mm (0.055 in)
+If not within wear limit, replace.
REPAIR FOR COMPONENT PARTS
Forward Clutch and Overrun Clutch (Cont'd)
AT-401

SAT296DA
9. Remove O-rings from servo piston retainer.
SAT594GA
10. Remove D-rings from band servo piston.
SAT298DA
INSPECTIONNJAT0167Pistons, Retainers and Piston StemNJAT0167S01+Check frictional surfaces for abnormal wear or damage.
SAT138D
Return SpringsNJAT0167S02+Check for deformation or damage.
+Measure free length and outer diameter.
Band servo inspection standard:
Refer to SDS, AT-458.
SAT595GA
ASSEMBLYNJAT01681. Install D-rings to servo piston retainer.
+Apply ATF to O-rings.
+Pay attention to position of each O-ring.
REPAIR FOR COMPONENT PARTS
Band Servo Piston Assembly (Cont'd)
AT-421
