2001 DODGE RAM sensor

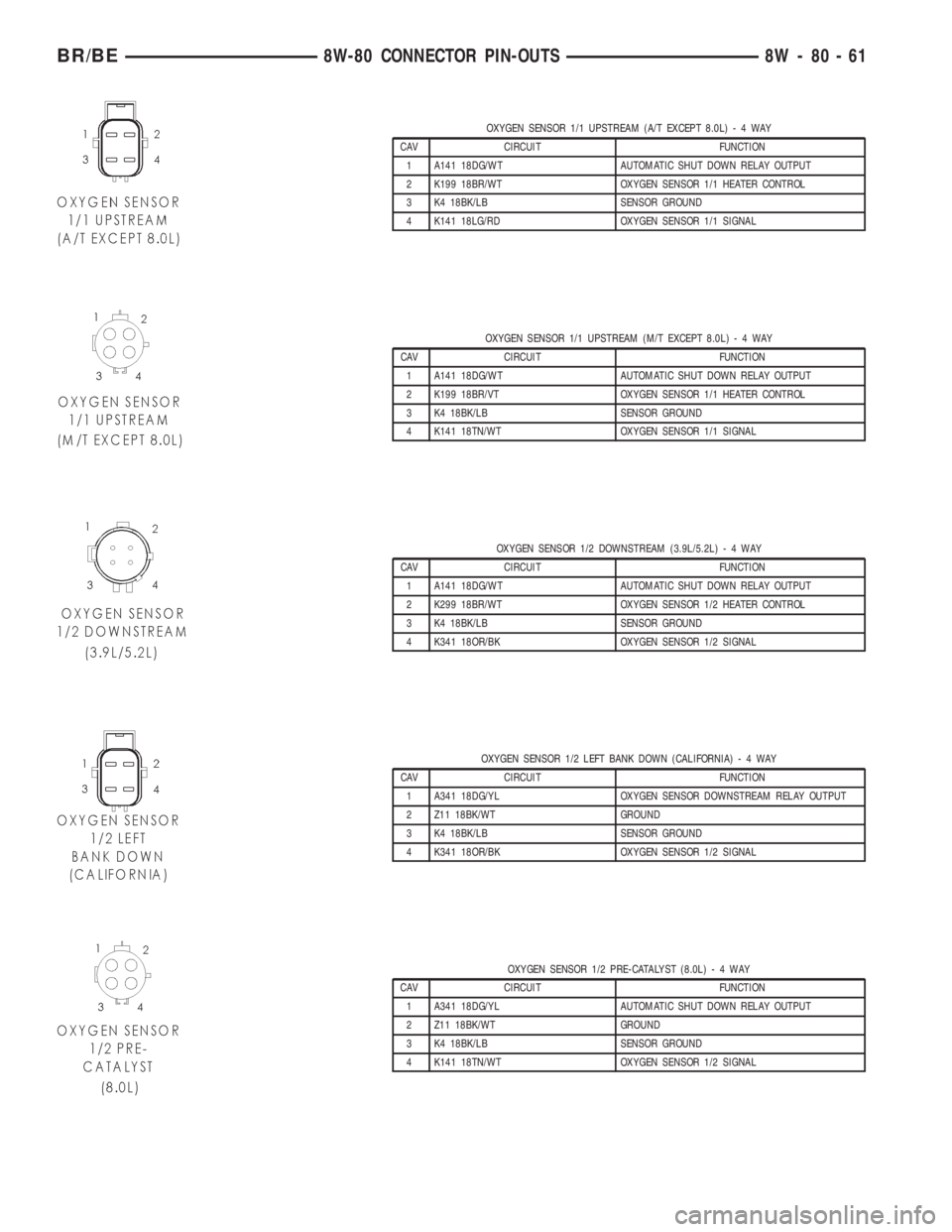

OXYGEN SENSOR 1/1 UPSTREAM (A/T EXCEPT 8.0L)-4WAY
CAV CIRCUIT FUNCTION
1 A141 18DG/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K199 18BR/WT OXYGEN SENSOR 1/1 HEATER CONTROL
3 K4 18BK/LB SENSOR GROUND
4 K141 18LG/RD OXYGEN SENSOR 1/1 SIGNAL
OXYGEN SENSOR 1/1 UPSTREAM (M/T EXCEPT 8.0L)-4WAY
CAV CIRCUIT FUNCTION
1 A141 18DG/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K199 18BR/VT OXYGEN SENSOR 1/1 HEATER CONTROL
3 K4 18BK/LB SENSOR GROUND
4 K141 18TN/WT OXYGEN SENSOR 1/1 SIGNAL
OXYGEN SENSOR 1/2 DOWNSTREAM (3.9L/5.2L)-4WAY
CAV CIRCUIT FUNCTION
1 A141 18DG/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K299 18BR/WT OXYGEN SENSOR 1/2 HEATER CONTROL
3 K4 18BK/LB SENSOR GROUND
4 K341 18OR/BK OXYGEN SENSOR 1/2 SIGNAL
OXYGEN SENSOR 1/2 LEFT BANK DOWN (CALIFORNIA)-4WAY
CAV CIRCUIT FUNCTION
1 A341 18DG/YL OXYGEN SENSOR DOWNSTREAM RELAY OUTPUT
2 Z11 18BK/WT GROUND
3 K4 18BK/LB SENSOR GROUND
4 K341 18OR/BK OXYGEN SENSOR 1/2 SIGNAL
OXYGEN SENSOR 1/2 PRE-CATALYST (8.0L)-4WAY
CAV CIRCUIT FUNCTION
1 A341 18DG/YL AUTOMATIC SHUT DOWN RELAY OUTPUT
2 Z11 18BK/WT GROUND
3 K4 18BK/LB SENSOR GROUND
4 K141 18TN/WT OXYGEN SENSOR 1/2 SIGNAL
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 61

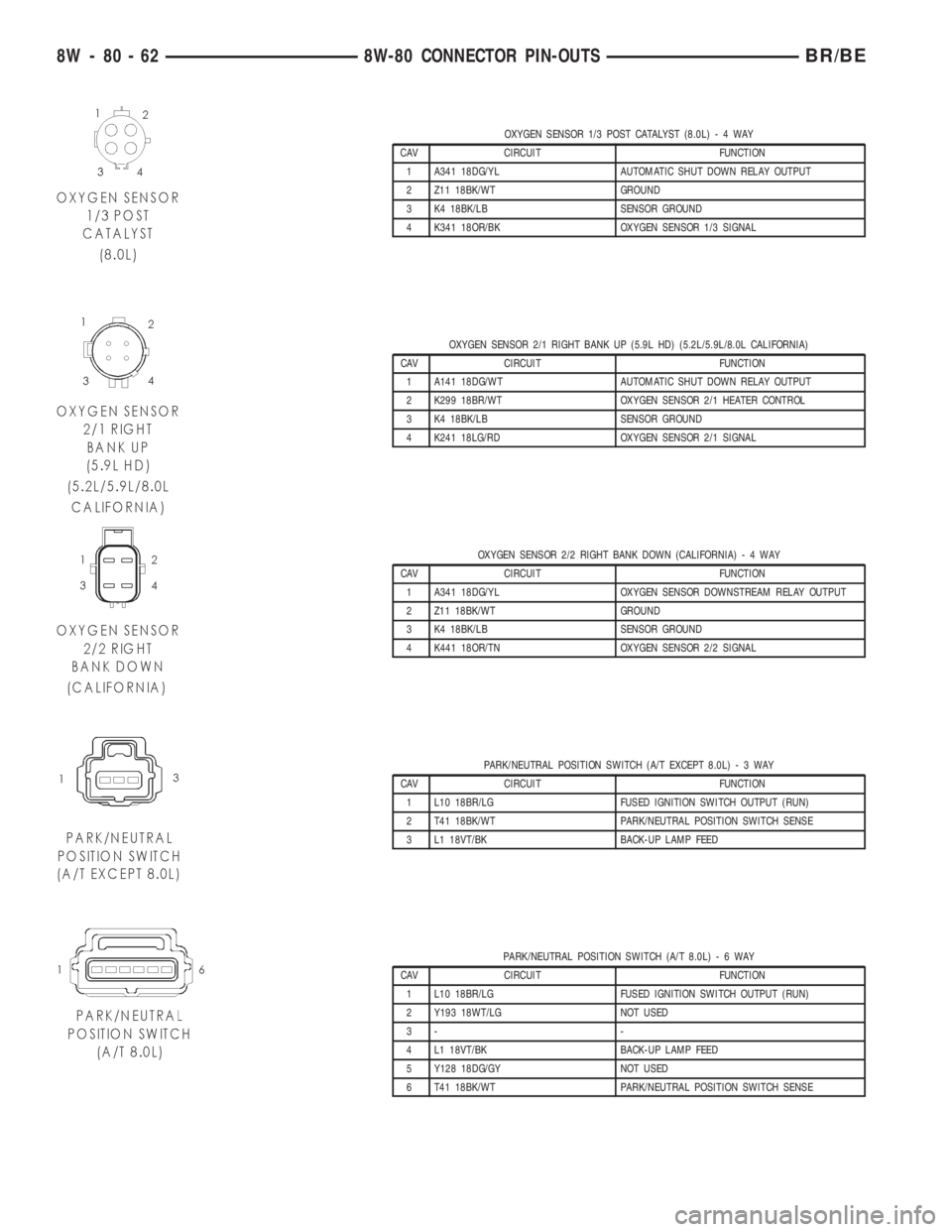

OXYGEN SENSOR 1/3 POST CATALYST (8.0L)-4WAY
CAV CIRCUIT FUNCTION
1 A341 18DG/YL AUTOMATIC SHUT DOWN RELAY OUTPUT
2 Z11 18BK/WT GROUND
3 K4 18BK/LB SENSOR GROUND
4 K341 18OR/BK OXYGEN SENSOR 1/3 SIGNAL
OXYGEN SENSOR 2/1 RIGHT BANK UP (5.9L HD) (5.2L/5.9L/8.0L CALIFORNIA)
CAV CIRCUIT FUNCTION
1 A141 18DG/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K299 18BR/WT OXYGEN SENSOR 2/1 HEATER CONTROL
3 K4 18BK/LB SENSOR GROUND
4 K241 18LG/RD OXYGEN SENSOR 2/1 SIGNAL
OXYGEN SENSOR 2/2 RIGHT BANK DOWN (CALIFORNIA)-4WAY
CAV CIRCUIT FUNCTION
1 A341 18DG/YL OXYGEN SENSOR DOWNSTREAM RELAY OUTPUT
2 Z11 18BK/WT GROUND
3 K4 18BK/LB SENSOR GROUND
4 K441 18OR/TN OXYGEN SENSOR 2/2 SIGNAL
PARK/NEUTRAL POSITION SWITCH (A/T EXCEPT 8.0L)-3WAY
CAV CIRCUIT FUNCTION
1 L10 18BR/LG FUSED IGNITION SWITCH OUTPUT (RUN)
2 T41 18BK/WT PARK/NEUTRAL POSITION SWITCH SENSE
3 L1 18VT/BK BACK-UP LAMP FEED
PARK/NEUTRAL POSITION SWITCH (A/T 8.0L)-6WAY
CAV CIRCUIT FUNCTION
1 L10 18BR/LG FUSED IGNITION SWITCH OUTPUT (RUN)
2 Y193 18WT/LG NOT USED
3- -
4 L1 18VT/BK BACK-UP LAMP FEED
5 Y128 18DG/GY NOT USED
6 T41 18BK/WT PARK/NEUTRAL POSITION SWITCH SENSE
8W - 80 - 62 8W-80 CONNECTOR PIN-OUTSBR/BE

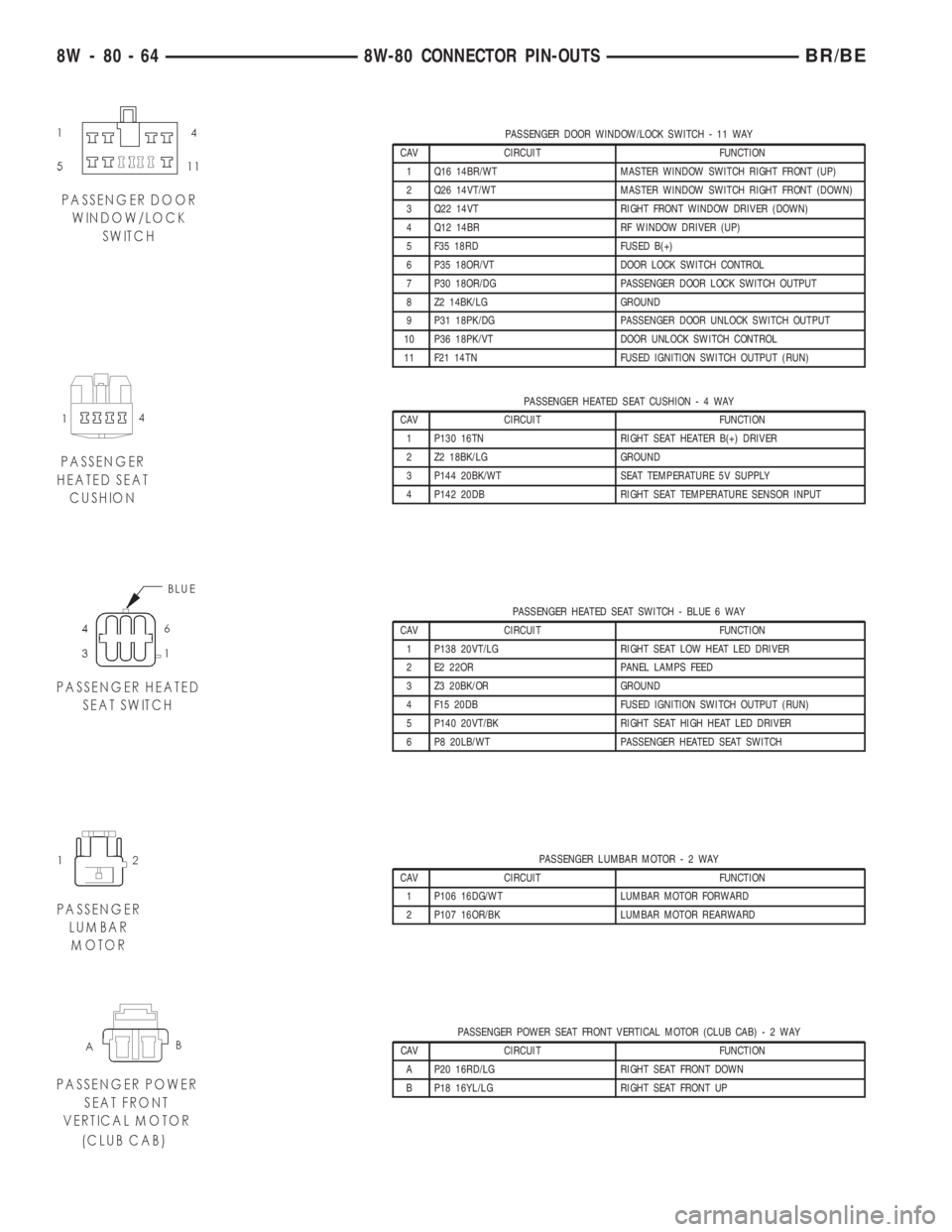

PASSENGER DOOR WINDOW/LOCK SWITCH - 11 WAY
CAV CIRCUIT FUNCTION
1 Q16 14BR/WT MASTER WINDOW SWITCH RIGHT FRONT (UP)
2 Q26 14VT/WT MASTER WINDOW SWITCH RIGHT FRONT (DOWN)
3 Q22 14VT RIGHT FRONT WINDOW DRIVER (DOWN)
4 Q12 14BR RF WINDOW DRIVER (UP)
5 F35 18RD FUSED B(+)
6 P35 18OR/VT DOOR LOCK SWITCH CONTROL
7 P30 18OR/DG PASSENGER DOOR LOCK SWITCH OUTPUT
8 Z2 14BK/LG GROUND
9 P31 18PK/DG PASSENGER DOOR UNLOCK SWITCH OUTPUT
10 P36 18PK/VT DOOR UNLOCK SWITCH CONTROL
11 F21 14TN FUSED IGNITION SWITCH OUTPUT (RUN)
PASSENGER HEATED SEAT CUSHION-4WAY
CAV CIRCUIT FUNCTION
1 P130 16TN RIGHT SEAT HEATER B(+) DRIVER
2 Z2 18BK/LG GROUND
3 P144 20BK/WT SEAT TEMPERATURE 5V SUPPLY
4 P142 20DB RIGHT SEAT TEMPERATURE SENSOR INPUT
PASSENGER HEATED SEAT SWITCH - BLUE 6 WAY
CAV CIRCUIT FUNCTION
1 P138 20VT/LG RIGHT SEAT LOW HEAT LED DRIVER
2 E2 22OR PANEL LAMPS FEED
3 Z3 20BK/OR GROUND
4 F15 20DB FUSED IGNITION SWITCH OUTPUT (RUN)
5 P140 20VT/BK RIGHT SEAT HIGH HEAT LED DRIVER
6 P8 20LB/WT PASSENGER HEATED SEAT SWITCH
PASSENGER LUMBAR MOTOR-2WAY
CAV CIRCUIT FUNCTION
1 P106 16DG/WT LUMBAR MOTOR FORWARD
2 P107 16OR/BK LUMBAR MOTOR REARWARD
PASSENGER POWER SEAT FRONT VERTICAL MOTOR (CLUB CAB)-2WAY
CAV CIRCUIT FUNCTION
A P20 16RD/LG RIGHT SEAT FRONT DOWN
B P18 16YL/LG RIGHT SEAT FRONT UP
8W - 80 - 64 8W-80 CONNECTOR PIN-OUTSBR/BE

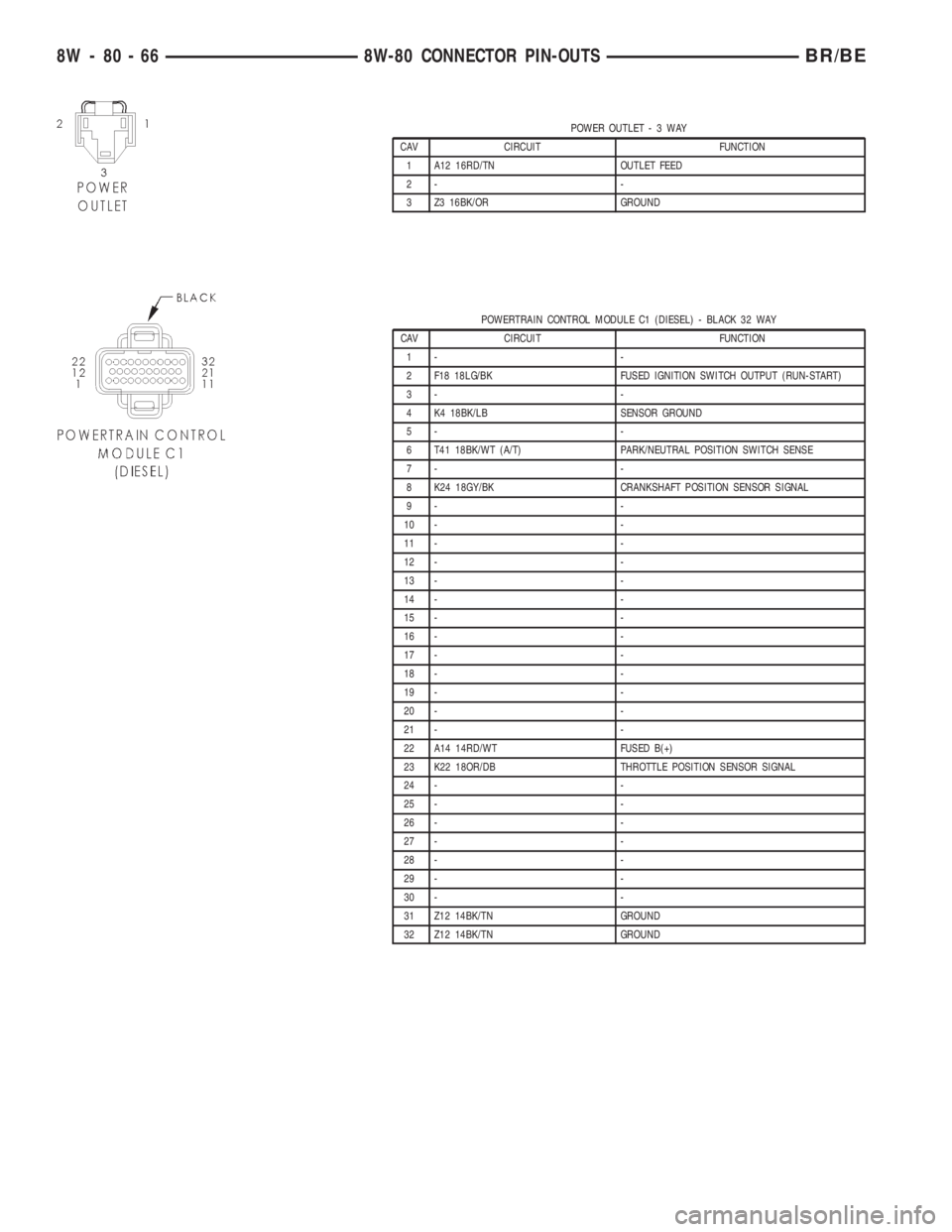

POWER OUTLET-3WAY
CAV CIRCUIT FUNCTION
1 A12 16RD/TN OUTLET FEED
2- -
3 Z3 16BK/OR GROUND
POWERTRAIN CONTROL MODULE C1 (DIESEL) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
1- -
2 F18 18LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
3- -
4 K4 18BK/LB SENSOR GROUND
5- -
6 T41 18BK/WT (A/T) PARK/NEUTRAL POSITION SWITCH SENSE
7- -
8 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
9- -
10 - -
11 - -
12 - -
13 - -
14 - -
15 - -
16 - -
17 - -
18 - -
19 - -
20 - -
21 - -
22 A14 14RD/WT FUSED B(+)
23 K22 18OR/DB THROTTLE POSITION SENSOR SIGNAL
24 - -
25 - -
26 - -
27 - -
28 - -
29 - -
30 - -
31 Z12 14BK/TN GROUND
32 Z12 14BK/TN GROUND
8W - 80 - 66 8W-80 CONNECTOR PIN-OUTSBR/BE

POWERTRAIN CONTROL MODULE C1 (GAS) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
1 K32 18YL/GY (8.0L) IGNITION COIL NO. 4 DRIVER
2 F18 18LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
3 K18 18RD/BK (8.0L) IGNITION COIL NO. 3 DRIVER
4 K4 18BK/LB SENSOR GROUND
5 K43 18DG/GY (8.0L) IGNITION COIL NO. 5 DRIVER
6 T41 18BK/WT (A/T) PARK/NEUTRAL POSITION SWITCH SENSE
7 K19 16BK/GY (3.9L/5.2L/5.9L) IGNITION COIL NO. 1 DRIVER
7 K19 18BK/GY (8.0L) IGNITION COIL NO. 1 DRIVER
8 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
9 K17 18DB/WT (8.0L) IGNITION COIL NO. 2 DRIVER
10 K60 18YL/BK IDLE AIR CONTROL NO. 2 DRIVER
11 K40 18BR/WT IDLE AIR CONTROL NO. 3 DRIVER
12 - -
13 G113 18OR PTO SWITCH SENSE
14 - -
15 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
16 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
17 K6 18VT/WT 5V SUPPLY
18 K44 18TN/YL CAMSHAFT POSITION SENSOR SIGNAL
19 K39 18GY/RD IDLE AIR CONTROL NO. 1 DRIVER
20 K59 18VT/BK IDLE AIR CONTROL NO. 4 DRIVER
21 - -
22 A14 16RD/WT FUSED B(+)
23 K22 18OR/DB THROTTLE POSITION SENSOR SIGNAL
24 K141 18TN/WT (3.9L/5.2L/5.9L) (CALI-
FORNIA EXCEPT 8.0L)OXYGEN SENSOR 1/1 SIGNAL
24 K41 18BK/DG (5.9L HD/8.0L) OXYGEN SENSOR 1/1 SIGNAL
25 K341 18OR/BK (3.9L/5.2L) (CALIFOR-
NIA)OXYGEN SENSOR 1/2 SIGNAL
25 K341 18OR/BK (8.0L) OXYGEN SENSOR 1/3 SIGNAL
26 K241 18LG/RD (8.0L) (5.9L HD) OXYGEN SENSOR 2/1 SIGNAL
26 K241 18LG/RD (CALIFORNIA) OXYGEN SENSOR 2/1 SIGNAL
27 K1 18DG/RD MAP SENSOR SIGNAL
28 - -
29 K441 18OR/TN (CALIFORNIA) OXYGEN SENSOR 2/2 SIGNAL
29 K141 18TN/WT (8.0L) OXYGEN SENSOR 1/2 SIGNAL
30 - -
31 Z12 14BK/TN GROUND
32 Z12 14BK/TN GROUND
POWERTRAIN CONTROL MODULE C2 (DIESEL) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
1 T54 18VT (A/T) TRANSMISSION TEMPERATURE SENSOR SIGNAL
2- -
3- -
4- -
5- -
6- -
7- -
8 K88 18VT/WT (A/T) GOVERNOR PRESSURE SOLENOID CONTROL
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 67

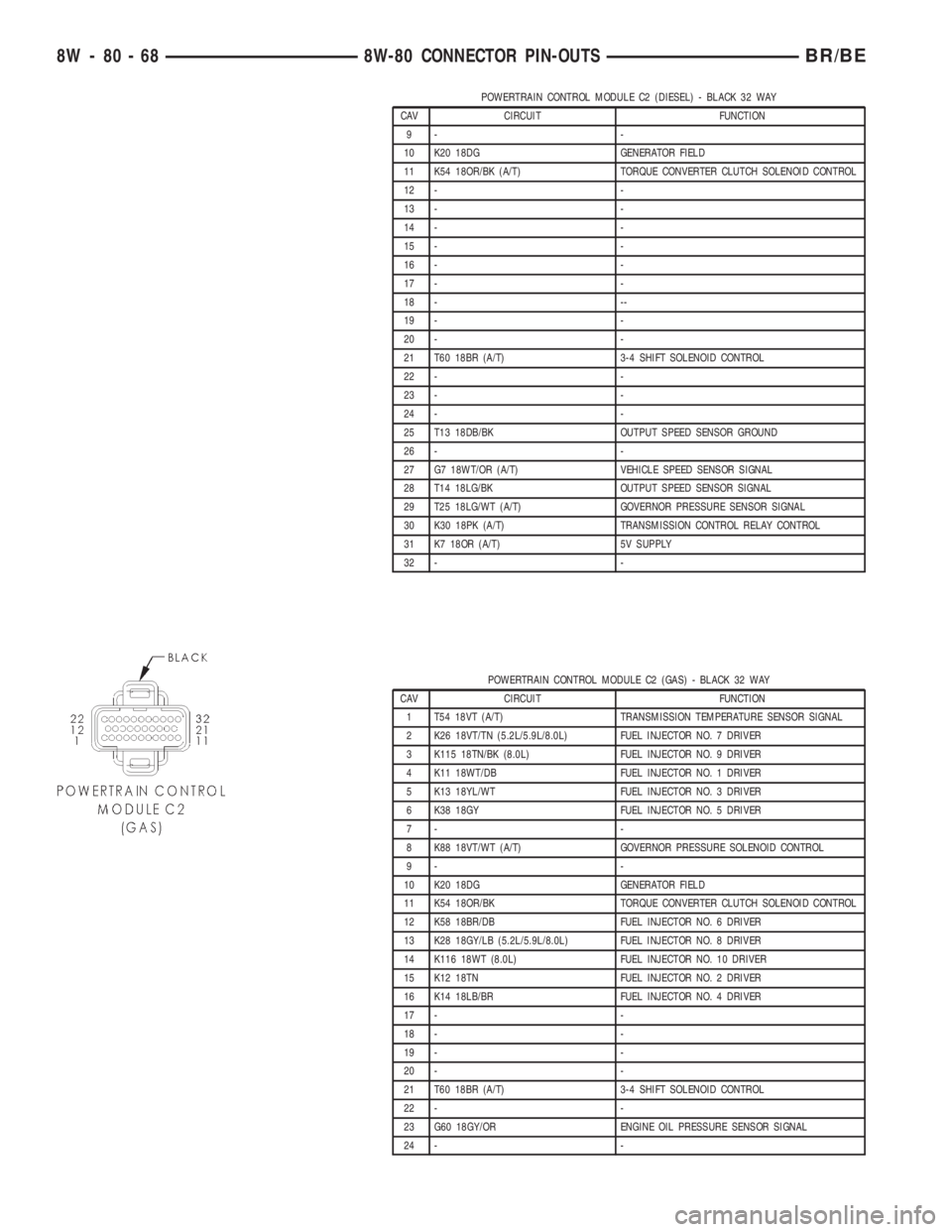

POWERTRAIN CONTROL MODULE C2 (DIESEL) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
9- -
10 K20 18DG GENERATOR FIELD
11 K54 18OR/BK (A/T) TORQUE CONVERTER CLUTCH SOLENOID CONTROL
12 - -
13 - -
14 - -
15 - -
16 - -
17 - -
18 - --
19 - -
20 - -
21 T60 18BR (A/T) 3-4 SHIFT SOLENOID CONTROL
22 - -
23 - -
24 - -
25 T13 18DB/BK OUTPUT SPEED SENSOR GROUND
26 - -
27 G7 18WT/OR (A/T) VEHICLE SPEED SENSOR SIGNAL
28 T14 18LG/BK OUTPUT SPEED SENSOR SIGNAL
29 T25 18LG/WT (A/T) GOVERNOR PRESSURE SENSOR SIGNAL
30 K30 18PK (A/T) TRANSMISSION CONTROL RELAY CONTROL
31 K7 18OR (A/T) 5V SUPPLY
32 - -
POWERTRAIN CONTROL MODULE C2 (GAS) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
1 T54 18VT (A/T) TRANSMISSION TEMPERATURE SENSOR SIGNAL
2 K26 18VT/TN (5.2L/5.9L/8.0L) FUEL INJECTOR NO. 7 DRIVER
3 K115 18TN/BK (8.0L) FUEL INJECTOR NO. 9 DRIVER
4 K11 18WT/DB FUEL INJECTOR NO. 1 DRIVER
5 K13 18YL/WT FUEL INJECTOR NO. 3 DRIVER
6 K38 18GY FUEL INJECTOR NO. 5 DRIVER
7- -
8 K88 18VT/WT (A/T) GOVERNOR PRESSURE SOLENOID CONTROL
9- -
10 K20 18DG GENERATOR FIELD
11 K54 18OR/BK TORQUE CONVERTER CLUTCH SOLENOID CONTROL
12 K58 18BR/DB FUEL INJECTOR NO. 6 DRIVER
13 K28 18GY/LB (5.2L/5.9L/8.0L) FUEL INJECTOR NO. 8 DRIVER
14 K116 18WT (8.0L) FUEL INJECTOR NO. 10 DRIVER
15 K12 18TN FUEL INJECTOR NO. 2 DRIVER
16 K14 18LB/BR FUEL INJECTOR NO. 4 DRIVER
17 - -
18 - -
19 - -
20 - -
21 T60 18BR (A/T) 3-4 SHIFT SOLENOID CONTROL
22 - -
23 G60 18GY/OR ENGINE OIL PRESSURE SENSOR SIGNAL
24 - -
8W - 80 - 68 8W-80 CONNECTOR PIN-OUTSBR/BE

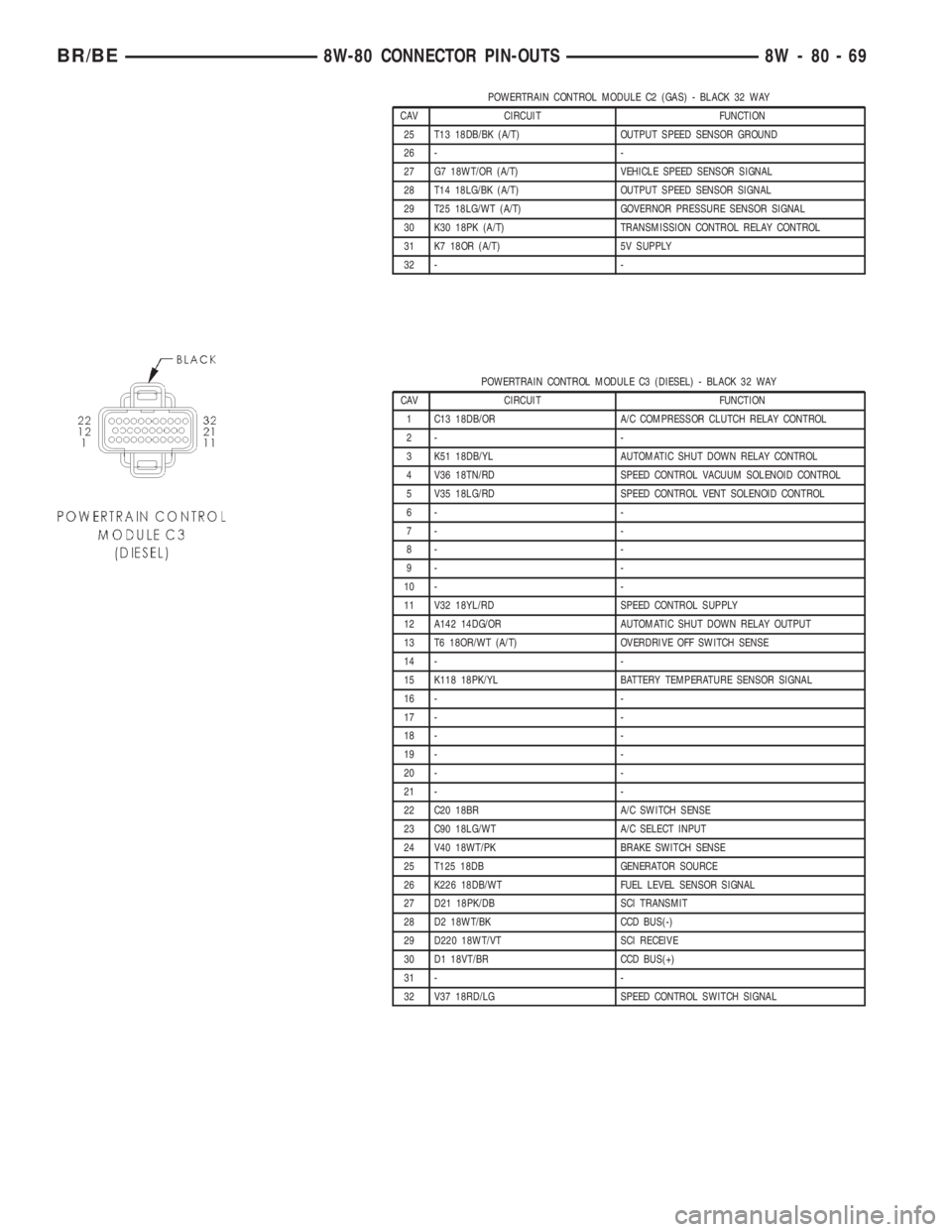

POWERTRAIN CONTROL MODULE C2 (GAS) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
25 T13 18DB/BK (A/T) OUTPUT SPEED SENSOR GROUND
26 - -
27 G7 18WT/OR (A/T) VEHICLE SPEED SENSOR SIGNAL
28 T14 18LG/BK (A/T) OUTPUT SPEED SENSOR SIGNAL
29 T25 18LG/WT (A/T) GOVERNOR PRESSURE SENSOR SIGNAL
30 K30 18PK (A/T) TRANSMISSION CONTROL RELAY CONTROL
31 K7 18OR (A/T) 5V SUPPLY
32 - -
POWERTRAIN CONTROL MODULE C3 (DIESEL) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
1 C13 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
2- -
3 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
4 V36 18TN/RD SPEED CONTROL VACUUM SOLENOID CONTROL
5 V35 18LG/RD SPEED CONTROL VENT SOLENOID CONTROL
6- -
7- -
8- -
9- -
10 - -
11 V32 18YL/RD SPEED CONTROL SUPPLY
12 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
13 T6 18OR/WT (A/T) OVERDRIVE OFF SWITCH SENSE
14 - -
15 K118 18PK/YL BATTERY TEMPERATURE SENSOR SIGNAL
16 - -
17 - -
18 - -
19 - -
20 - -
21 - -
22 C20 18BR A/C SWITCH SENSE
23 C90 18LG/WT A/C SELECT INPUT
24 V40 18WT/PK BRAKE SWITCH SENSE
25 T125 18DB GENERATOR SOURCE
26 K226 18DB/WT FUEL LEVEL SENSOR SIGNAL
27 D21 18PK/DB SCI TRANSMIT
28 D2 18WT/BK CCD BUS(-)
29 D220 18WT/VT SCI RECEIVE
30 D1 18VT/BR CCD BUS(+)
31 - -
32 V37 18RD/LG SPEED CONTROL SWITCH SIGNAL
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 69

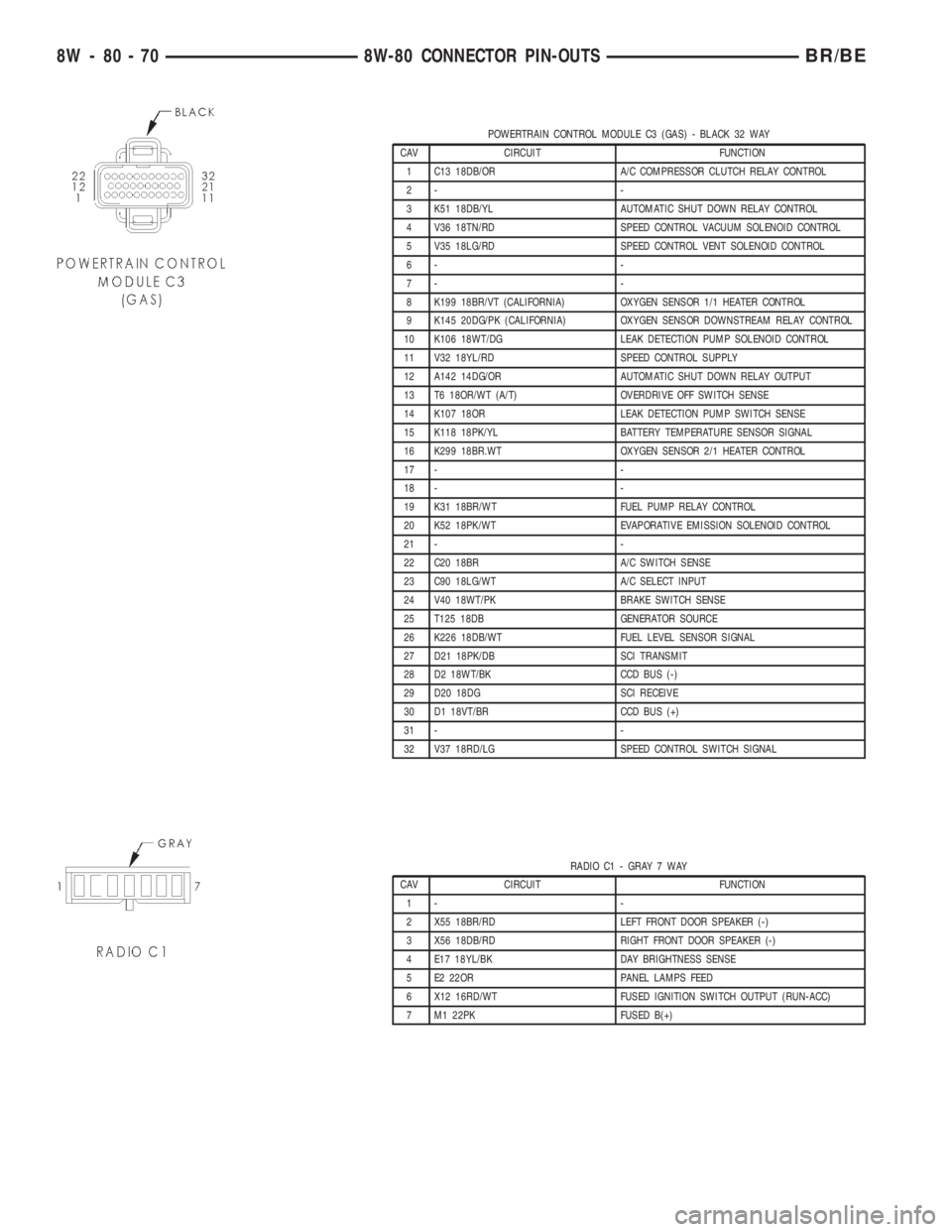

POWERTRAIN CONTROL MODULE C3 (GAS) - BLACK 32 WAY
CAV CIRCUIT FUNCTION
1 C13 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
2- -
3 K51 18DB/YL AUTOMATIC SHUT DOWN RELAY CONTROL
4 V36 18TN/RD SPEED CONTROL VACUUM SOLENOID CONTROL
5 V35 18LG/RD SPEED CONTROL VENT SOLENOID CONTROL
6- -
7- -
8 K199 18BR/VT (CALIFORNIA) OXYGEN SENSOR 1/1 HEATER CONTROL
9 K145 20DG/PK (CALIFORNIA) OXYGEN SENSOR DOWNSTREAM RELAY CONTROL
10 K106 18WT/DG LEAK DETECTION PUMP SOLENOID CONTROL
11 V32 18YL/RD SPEED CONTROL SUPPLY
12 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
13 T6 18OR/WT (A/T) OVERDRIVE OFF SWITCH SENSE
14 K107 18OR LEAK DETECTION PUMP SWITCH SENSE
15 K118 18PK/YL BATTERY TEMPERATURE SENSOR SIGNAL
16 K299 18BR.WT OXYGEN SENSOR 2/1 HEATER CONTROL
17 - -
18 - -
19 K31 18BR/WT FUEL PUMP RELAY CONTROL
20 K52 18PK/WT EVAPORATIVE EMISSION SOLENOID CONTROL
21 - -
22 C20 18BR A/C SWITCH SENSE
23 C90 18LG/WT A/C SELECT INPUT
24 V40 18WT/PK BRAKE SWITCH SENSE
25 T125 18DB GENERATOR SOURCE
26 K226 18DB/WT FUEL LEVEL SENSOR SIGNAL
27 D21 18PK/DB SCI TRANSMIT
28 D2 18WT/BK CCD BUS (-)
29 D20 18DG SCI RECEIVE
30 D1 18VT/BR CCD BUS (+)
31 - -
32 V37 18RD/LG SPEED CONTROL SWITCH SIGNAL
RADIO C1 - GRAY 7 WAY
CAV CIRCUIT FUNCTION
1- -
2 X55 18BR/RD LEFT FRONT DOOR SPEAKER (-)
3 X56 18DB/RD RIGHT FRONT DOOR SPEAKER (-)
4 E17 18YL/BK DAY BRIGHTNESS SENSE
5 E2 22OR PANEL LAMPS FEED
6 X12 16RD/WT FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
7 M1 22PK FUSED B(+)
8W - 80 - 70 8W-80 CONNECTOR PIN-OUTSBR/BE
