2001 DODGE RAM sensor

Component Page

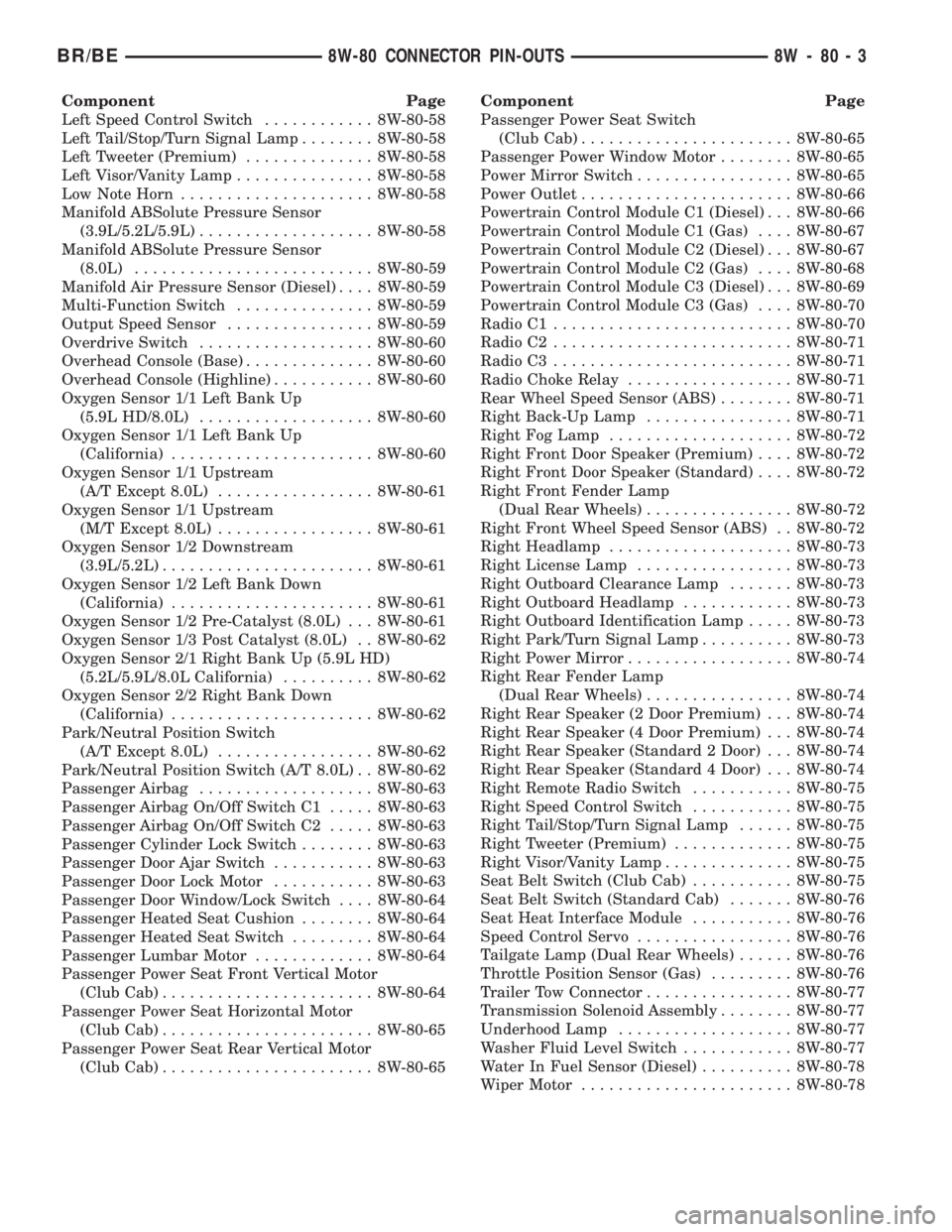

Left Speed Control Switch............ 8W-80-58
Left Tail/Stop/Turn Signal Lamp........ 8W-80-58
Left Tweeter (Premium).............. 8W-80-58
Left Visor/Vanity Lamp............... 8W-80-58
Low Note Horn..................... 8W-80-58
Manifold ABSolute Pressure Sensor
(3.9L/5.2L/5.9L)................... 8W-80-58
Manifold ABSolute Pressure Sensor
(8.0L).......................... 8W-80-59
Manifold Air Pressure Sensor (Diesel).... 8W-80-59
Multi-Function Switch............... 8W-80-59
Output Speed Sensor................ 8W-80-59
Overdrive Switch................... 8W-80-60
Overhead Console (Base).............. 8W-80-60
Overhead Console (Highline)........... 8W-80-60
Oxygen Sensor 1/1 Left Bank Up
(5.9L HD/8.0L)................... 8W-80-60
Oxygen Sensor 1/1 Left Bank Up
(California)...................... 8W-80-60
Oxygen Sensor 1/1 Upstream
(A/T Except 8.0L)................. 8W-80-61
Oxygen Sensor 1/1 Upstream
(M/T Except 8.0L)................. 8W-80-61
Oxygen Sensor 1/2 Downstream
(3.9L/5.2L)....................... 8W-80-61
Oxygen Sensor 1/2 Left Bank Down
(California)...................... 8W-80-61
Oxygen Sensor 1/2 Pre-Catalyst (8.0L) . . . 8W-80-61
Oxygen Sensor 1/3 Post Catalyst (8.0L) . . 8W-80-62
Oxygen Sensor 2/1 Right Bank Up (5.9L HD)
(5.2L/5.9L/8.0L California).......... 8W-80-62
Oxygen Sensor 2/2 Right Bank Down
(California)...................... 8W-80-62
Park/Neutral Position Switch
(A/T Except 8.0L)................. 8W-80-62
Park/Neutral Position Switch (A/T 8.0L) . . 8W-80-62
Passenger Airbag................... 8W-80-63
Passenger Airbag On/Off Switch C1..... 8W-80-63
Passenger Airbag On/Off Switch C2..... 8W-80-63
Passenger Cylinder Lock Switch........ 8W-80-63
Passenger Door Ajar Switch........... 8W-80-63
Passenger Door Lock Motor........... 8W-80-63
Passenger Door Window/Lock Switch.... 8W-80-64
Passenger Heated Seat Cushion........ 8W-80-64
Passenger Heated Seat Switch......... 8W-80-64
Passenger Lumbar Motor............. 8W-80-64
Passenger Power Seat Front Vertical Motor
(Club Cab)....................... 8W-80-64
Passenger Power Seat Horizontal Motor
(Club Cab)....................... 8W-80-65
Passenger Power Seat Rear Vertical Motor
(Club Cab)....................... 8W-80-65Component Page
Passenger Power Seat Switch
(Club Cab)....................... 8W-80-65
Passenger Power Window Motor........ 8W-80-65
Power Mirror Switch................. 8W-80-65
Power Outlet....................... 8W-80-66
Powertrain Control Module C1 (Diesel) . . . 8W-80-66
Powertrain Control Module C1 (Gas).... 8W-80-67
Powertrain Control Module C2 (Diesel) . . . 8W-80-67
Powertrain Control Module C2 (Gas).... 8W-80-68
Powertrain Control Module C3 (Diesel) . . . 8W-80-69
Powertrain Control Module C3 (Gas).... 8W-80-70
Radio C1.......................... 8W-80-70
Radio C2.......................... 8W-80-71
Radio C3.......................... 8W-80-71
Radio Choke Relay.................. 8W-80-71
Rear Wheel Speed Sensor (ABS)........ 8W-80-71
Right Back-Up Lamp................ 8W-80-71
Right Fog Lamp.................... 8W-80-72
Right Front Door Speaker (Premium).... 8W-80-72
Right Front Door Speaker (Standard).... 8W-80-72
Right Front Fender Lamp
(Dual Rear Wheels)................ 8W-80-72
Right Front Wheel Speed Sensor (ABS) . . 8W-80-72
Right Headlamp.................... 8W-80-73
Right License Lamp................. 8W-80-73
Right Outboard Clearance Lamp....... 8W-80-73
Right Outboard Headlamp............ 8W-80-73
Right Outboard Identification Lamp..... 8W-80-73
Right Park/Turn Signal Lamp.......... 8W-80-73
Right Power Mirror.................. 8W-80-74
Right Rear Fender Lamp
(Dual Rear Wheels)................ 8W-80-74
Right Rear Speaker (2 Door Premium) . . . 8W-80-74
Right Rear Speaker (4 Door Premium) . . . 8W-80-74
Right Rear Speaker (Standard 2 Door) . . . 8W-80-74
Right Rear Speaker (Standard 4 Door) . . . 8W-80-74
Right Remote Radio Switch........... 8W-80-75
Right Speed Control Switch........... 8W-80-75
Right Tail/Stop/Turn Signal Lamp...... 8W-80-75
Right Tweeter (Premium)............. 8W-80-75
Right Visor/Vanity Lamp.............. 8W-80-75
Seat Belt Switch (Club Cab)........... 8W-80-75
Seat Belt Switch (Standard Cab)....... 8W-80-76
Seat Heat Interface Module........... 8W-80-76
Speed Control Servo................. 8W-80-76
Tailgate Lamp (Dual Rear Wheels)...... 8W-80-76
Throttle Position Sensor (Gas)......... 8W-80-76
Trailer Tow Connector................ 8W-80-77
Transmission Solenoid Assembly........ 8W-80-77
Underhood Lamp................... 8W-80-77
Washer Fluid Level Switch............ 8W-80-77
Water In Fuel Sensor (Diesel).......... 8W-80-78
Wiper Motor....................... 8W-80-78
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 3

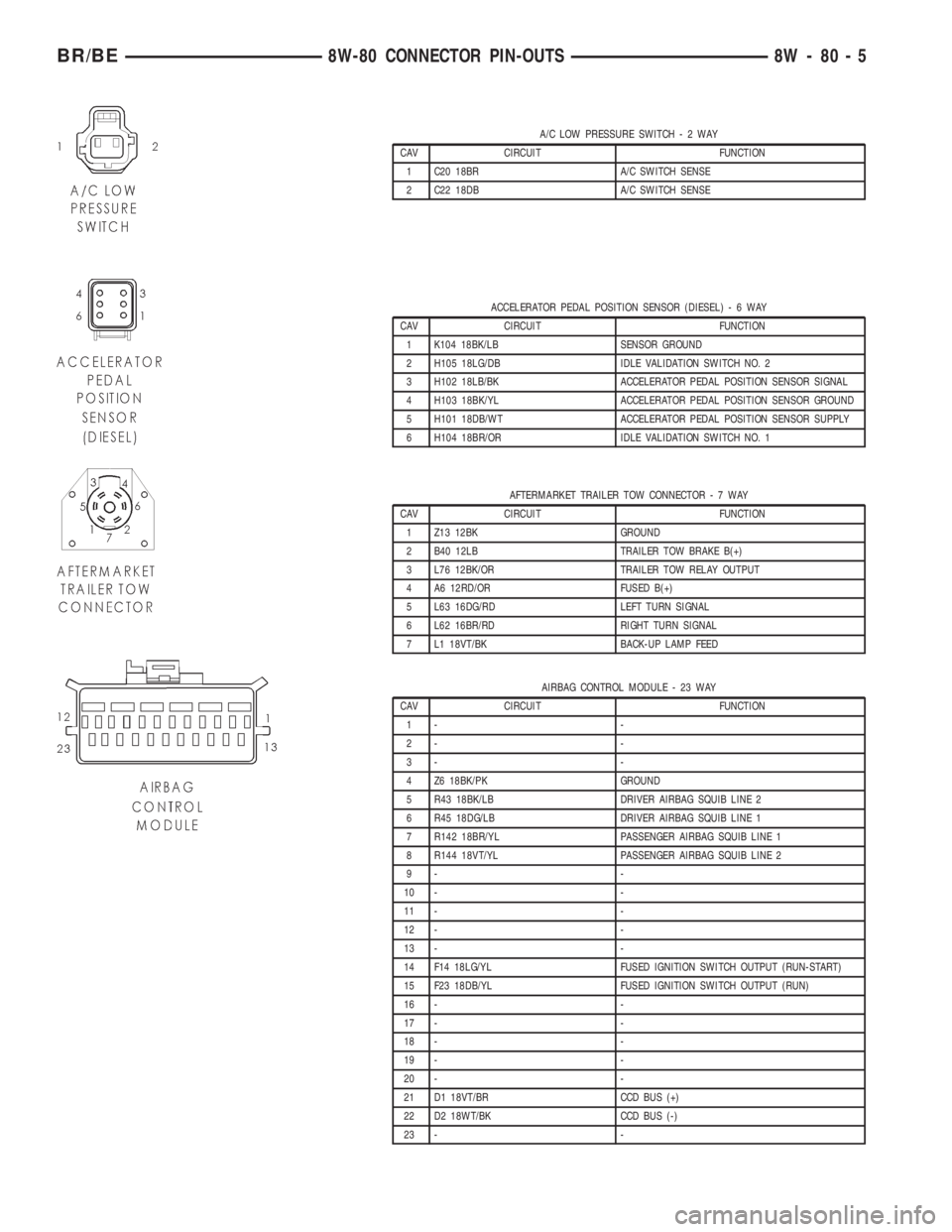

A/C LOW PRESSURE SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 C20 18BR A/C SWITCH SENSE
2 C22 18DB A/C SWITCH SENSE
ACCELERATOR PEDAL POSITION SENSOR (DIESEL)-6WAY
CAV CIRCUIT FUNCTION
1 K104 18BK/LB SENSOR GROUND
2 H105 18LG/DB IDLE VALIDATION SWITCH NO. 2
3 H102 18LB/BK ACCELERATOR PEDAL POSITION SENSOR SIGNAL
4 H103 18BK/YL ACCELERATOR PEDAL POSITION SENSOR GROUND
5 H101 18DB/WT ACCELERATOR PEDAL POSITION SENSOR SUPPLY
6 H104 18BR/OR IDLE VALIDATION SWITCH NO. 1
AFTERMARKET TRAILER TOW CONNECTOR-7WAY
CAV CIRCUIT FUNCTION
1 Z13 12BK GROUND
2 B40 12LB TRAILER TOW BRAKE B(+)
3 L76 12BK/OR TRAILER TOW RELAY OUTPUT
4 A6 12RD/OR FUSED B(+)
5 L63 16DG/RD LEFT TURN SIGNAL
6 L62 16BR/RD RIGHT TURN SIGNAL
7 L1 18VT/BK BACK-UP LAMP FEED
AIRBAG CONTROL MODULE - 23 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 Z6 18BK/PK GROUND
5 R43 18BK/LB DRIVER AIRBAG SQUIB LINE 2
6 R45 18DG/LB DRIVER AIRBAG SQUIB LINE 1
7 R142 18BR/YL PASSENGER AIRBAG SQUIB LINE 1
8 R144 18VT/YL PASSENGER AIRBAG SQUIB LINE 2
9- -
10 - -
11 - -
12 - -
13 - -
14 F14 18LG/YL FUSED IGNITION SWITCH OUTPUT (RUN-START)
15 F23 18DB/YL FUSED IGNITION SWITCH OUTPUT (RUN)
16 - -
17 - -
18 - -
19 - -
20 - -
21 D1 18VT/BR CCD BUS (+)
22 D2 18WT/BK CCD BUS (-)
23 - -
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 5

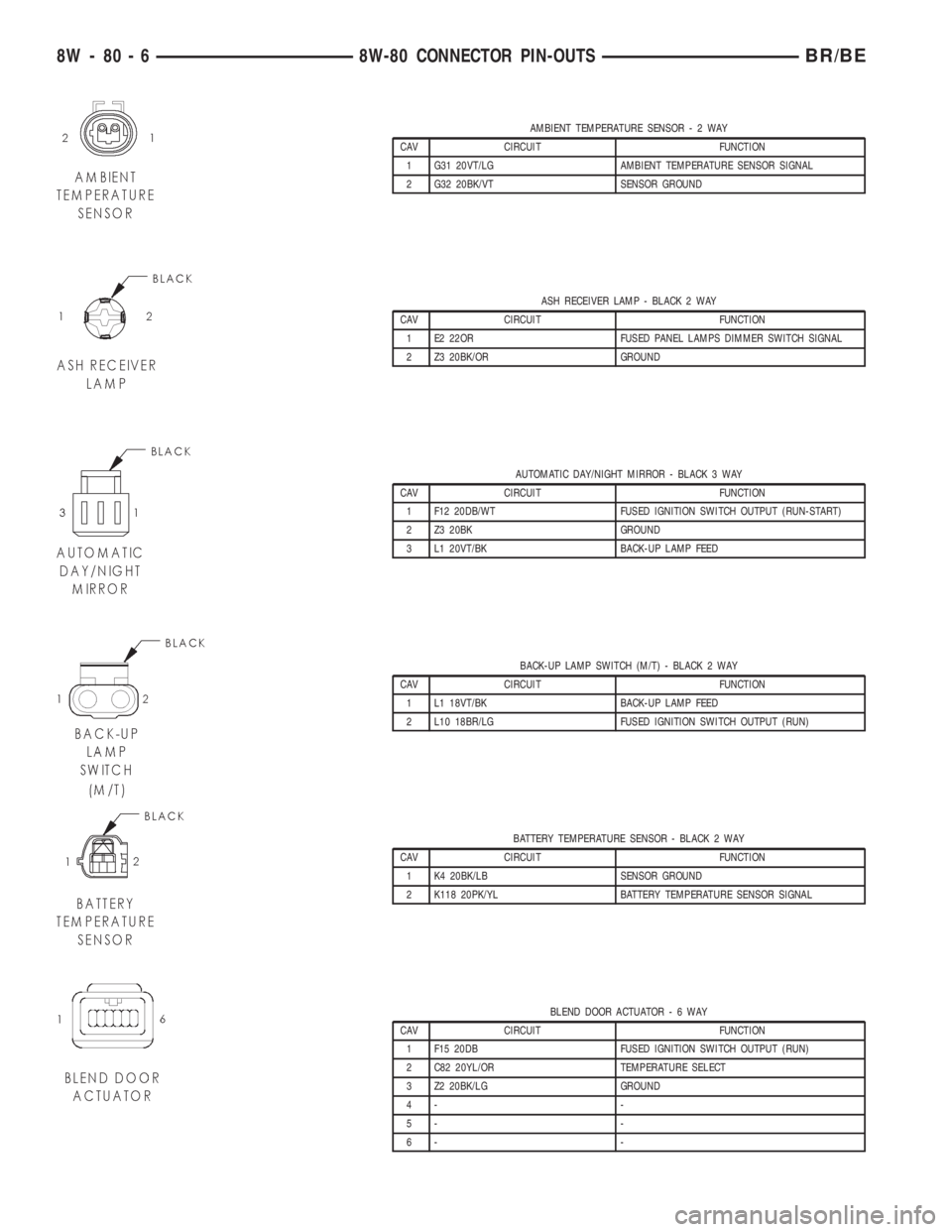

AMBIENT TEMPERATURE SENSOR-2WAY
CAV CIRCUIT FUNCTION
1 G31 20VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
2 G32 20BK/VT SENSOR GROUND
ASH RECEIVER LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 E2 22OR FUSED PANEL LAMPS DIMMER SWITCH SIGNAL
2 Z3 20BK/OR GROUND
AUTOMATIC DAY/NIGHT MIRROR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F12 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 Z3 20BK GROUND
3 L1 20VT/BK BACK-UP LAMP FEED
BACK-UP LAMP SWITCH (M/T) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L1 18VT/BK BACK-UP LAMP FEED
2 L10 18BR/LG FUSED IGNITION SWITCH OUTPUT (RUN)
BATTERY TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 K118 20PK/YL BATTERY TEMPERATURE SENSOR SIGNAL
BLEND DOOR ACTUATOR-6WAY
CAV CIRCUIT FUNCTION
1 F15 20DB FUSED IGNITION SWITCH OUTPUT (RUN)
2 C82 20YL/OR TEMPERATURE SELECT
3 Z2 20BK/LG GROUND
4- -
5- -
6- -
8W - 80 - 6 8W-80 CONNECTOR PIN-OUTSBR/BE

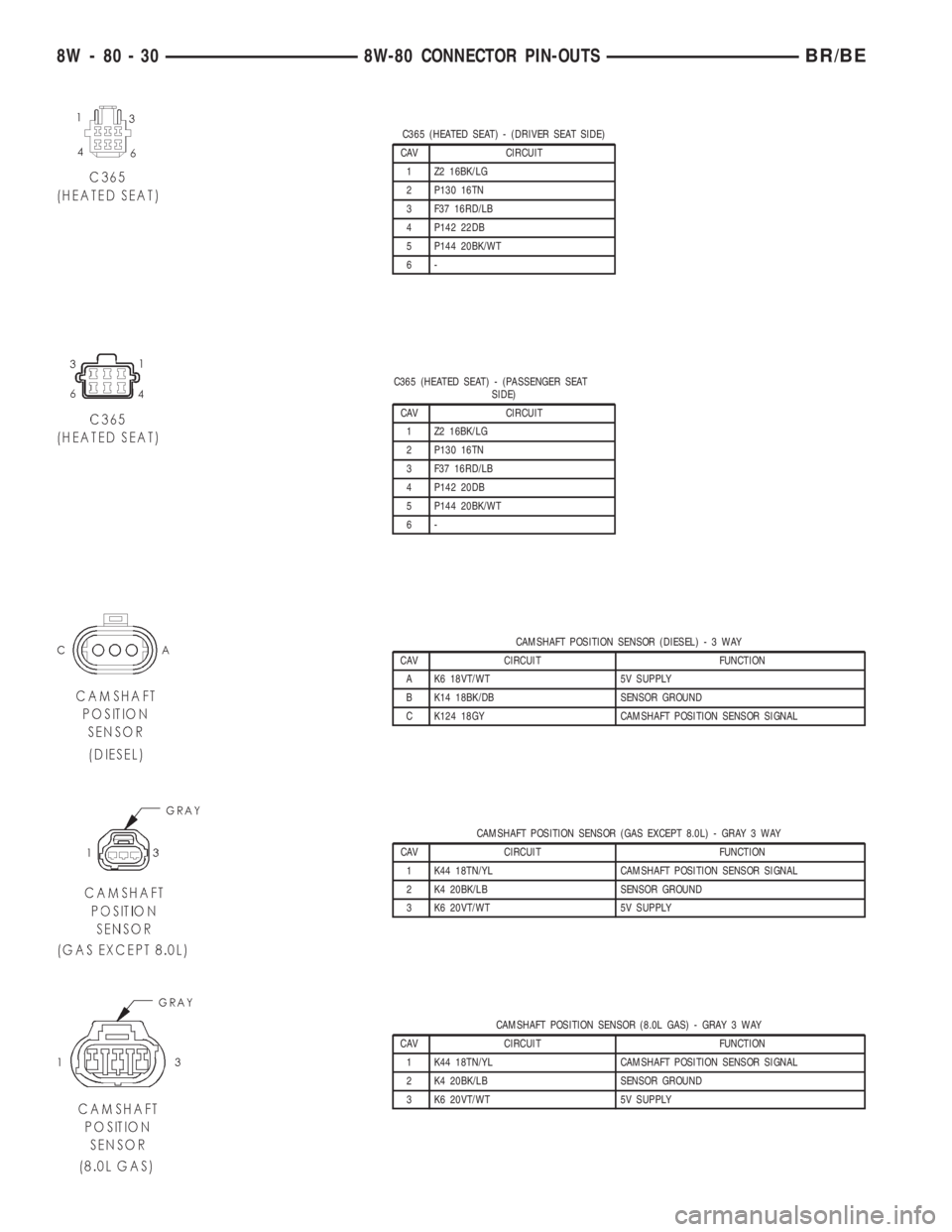

C365 (HEATED SEAT) - (DRIVER SEAT SIDE)
CAV CIRCUIT
1 Z2 16BK/LG
2 P130 16TN
3 F37 16RD/LB
4 P142 22DB
5 P144 20BK/WT
6-
C365 (HEATED SEAT) - (PASSENGER SEAT
SIDE)
CAV CIRCUIT
1 Z2 16BK/LG
2 P130 16TN
3 F37 16RD/LB
4 P142 20DB
5 P144 20BK/WT
6-
CAMSHAFT POSITION SENSOR (DIESEL)-3WAY
CAV CIRCUIT FUNCTION
A K6 18VT/WT 5V SUPPLY
B K14 18BK/DB SENSOR GROUND
C K124 18GY CAMSHAFT POSITION SENSOR SIGNAL
CAMSHAFT POSITION SENSOR (GAS EXCEPT 8.0L) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K44 18TN/YL CAMSHAFT POSITION SENSOR SIGNAL
2 K4 20BK/LB SENSOR GROUND
3 K6 20VT/WT 5V SUPPLY
CAMSHAFT POSITION SENSOR (8.0L GAS) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K44 18TN/YL CAMSHAFT POSITION SENSOR SIGNAL
2 K4 20BK/LB SENSOR GROUND
3 K6 20VT/WT 5V SUPPLY
8W - 80 - 30 8W-80 CONNECTOR PIN-OUTSBR/BE

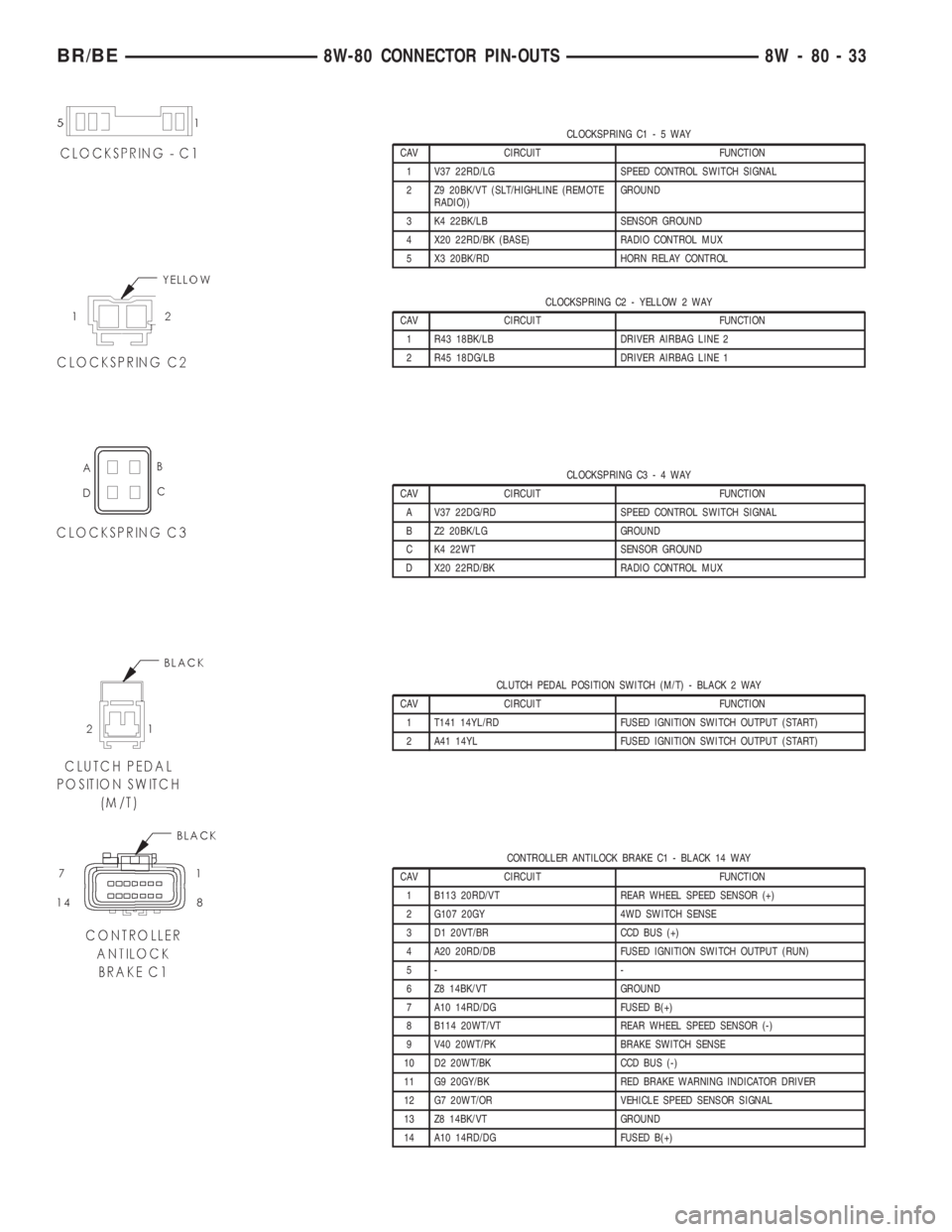

CLOCKSPRING C1-5WAY
CAV CIRCUIT FUNCTION
1 V37 22RD/LG SPEED CONTROL SWITCH SIGNAL
2 Z9 20BK/VT (SLT/HIGHLINE (REMOTE
RADIO))GROUND
3 K4 22BK/LB SENSOR GROUND
4 X20 22RD/BK (BASE) RADIO CONTROL MUX
5 X3 20BK/RD HORN RELAY CONTROL
CLOCKSPRING C2 - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R43 18BK/LB DRIVER AIRBAG LINE 2
2 R45 18DG/LB DRIVER AIRBAG LINE 1
CLOCKSPRING C3-4WAY
CAV CIRCUIT FUNCTION
A V37 22DG/RD SPEED CONTROL SWITCH SIGNAL
B Z2 20BK/LG GROUND
C K4 22WT SENSOR GROUND
D X20 22RD/BK RADIO CONTROL MUX
CLUTCH PEDAL POSITION SWITCH (M/T) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T141 14YL/RD FUSED IGNITION SWITCH OUTPUT (START)
2 A41 14YL FUSED IGNITION SWITCH OUTPUT (START)
CONTROLLER ANTILOCK BRAKE C1 - BLACK 14 WAY
CAV CIRCUIT FUNCTION
1 B113 20RD/VT REAR WHEEL SPEED SENSOR (+)
2 G107 20GY 4WD SWITCH SENSE
3 D1 20VT/BR CCD BUS (+)
4 A20 20RD/DB FUSED IGNITION SWITCH OUTPUT (RUN)
5- -
6 Z8 14BK/VT GROUND
7 A10 14RD/DG FUSED B(+)
8 B114 20WT/VT REAR WHEEL SPEED SENSOR (-)
9 V40 20WT/PK BRAKE SWITCH SENSE
10 D2 20WT/BK CCD BUS (-)
11 G9 20GY/BK RED BRAKE WARNING INDICATOR DRIVER
12 G7 20WT/OR VEHICLE SPEED SENSOR SIGNAL
13 Z8 14BK/VT GROUND
14 A10 14RD/DG FUSED B(+)
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 33

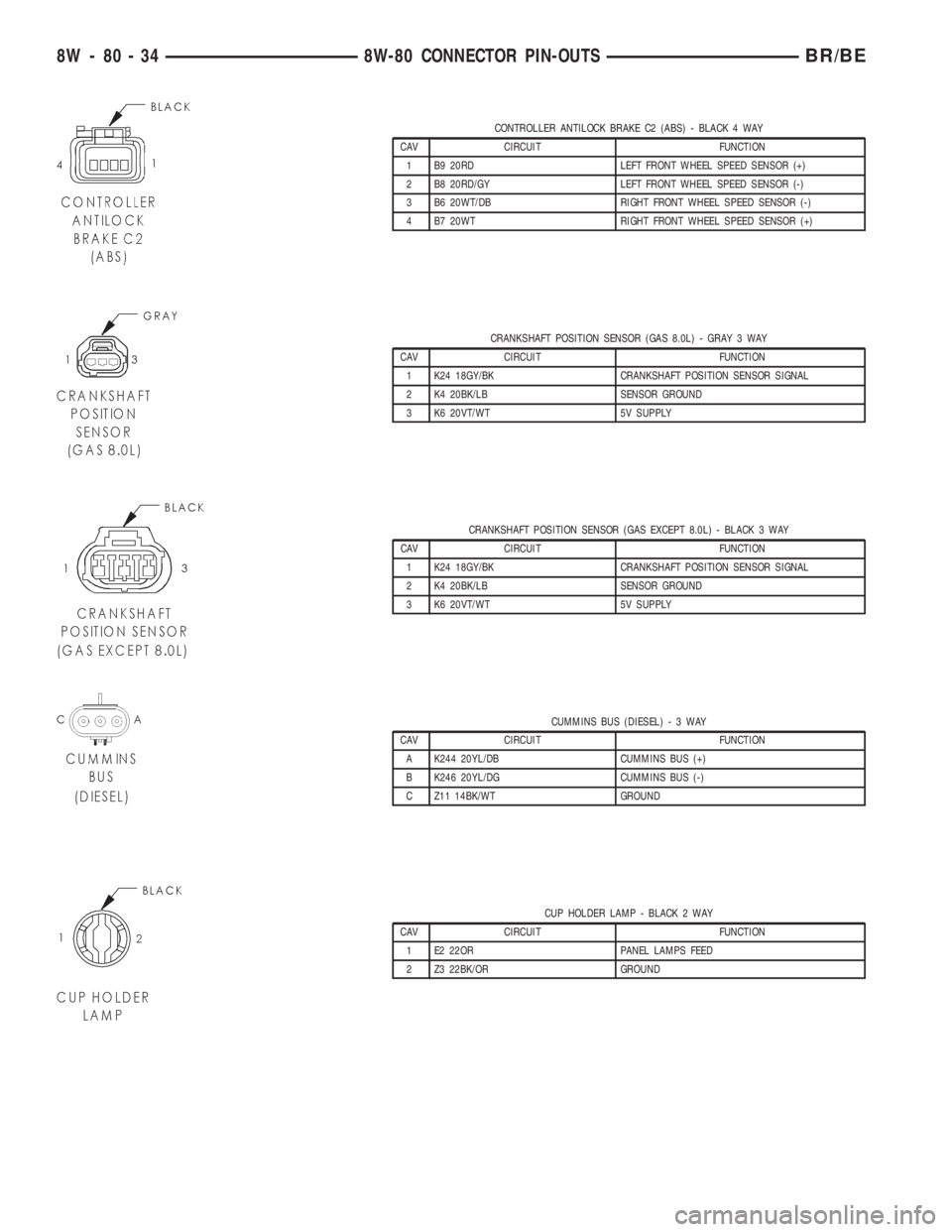

CONTROLLER ANTILOCK BRAKE C2 (ABS) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 B9 20RD LEFT FRONT WHEEL SPEED SENSOR (+)
2 B8 20RD/GY LEFT FRONT WHEEL SPEED SENSOR (-)
3 B6 20WT/DB RIGHT FRONT WHEEL SPEED SENSOR (-)
4 B7 20WT RIGHT FRONT WHEEL SPEED SENSOR (+)
CRANKSHAFT POSITION SENSOR (GAS 8.0L) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
2 K4 20BK/LB SENSOR GROUND
3 K6 20VT/WT 5V SUPPLY
CRANKSHAFT POSITION SENSOR (GAS EXCEPT 8.0L) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
2 K4 20BK/LB SENSOR GROUND
3 K6 20VT/WT 5V SUPPLY
CUMMINS BUS (DIESEL)-3WAY
CAV CIRCUIT FUNCTION
A K244 20YL/DB CUMMINS BUS (+)
B K246 20YL/DG CUMMINS BUS (-)
C Z11 14BK/WT GROUND
CUP HOLDER LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 E2 22OR PANEL LAMPS FEED
2 Z3 22BK/OR GROUND
8W - 80 - 34 8W-80 CONNECTOR PIN-OUTSBR/BE

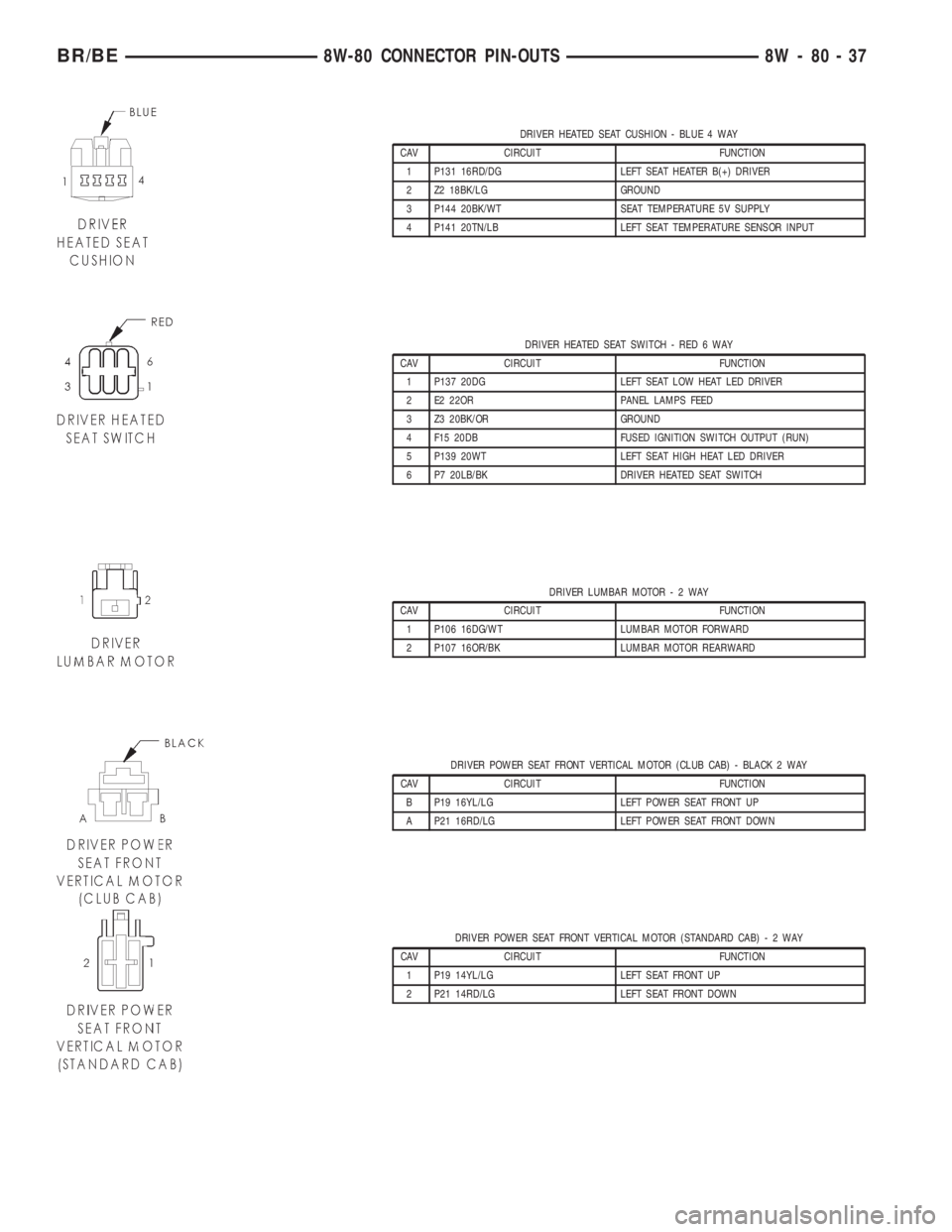

DRIVER HEATED SEAT CUSHION - BLUE 4 WAY
CAV CIRCUIT FUNCTION
1 P131 16RD/DG LEFT SEAT HEATER B(+) DRIVER
2 Z2 18BK/LG GROUND
3 P144 20BK/WT SEAT TEMPERATURE 5V SUPPLY
4 P141 20TN/LB LEFT SEAT TEMPERATURE SENSOR INPUT
DRIVER HEATED SEAT SWITCH - RED 6 WAY
CAV CIRCUIT FUNCTION
1 P137 20DG LEFT SEAT LOW HEAT LED DRIVER
2 E2 22OR PANEL LAMPS FEED
3 Z3 20BK/OR GROUND
4 F15 20DB FUSED IGNITION SWITCH OUTPUT (RUN)
5 P139 20WT LEFT SEAT HIGH HEAT LED DRIVER
6 P7 20LB/BK DRIVER HEATED SEAT SWITCH
DRIVER LUMBAR MOTOR-2WAY
CAV CIRCUIT FUNCTION
1 P106 16DG/WT LUMBAR MOTOR FORWARD
2 P107 16OR/BK LUMBAR MOTOR REARWARD
DRIVER POWER SEAT FRONT VERTICAL MOTOR (CLUB CAB) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
B P19 16YL/LG LEFT POWER SEAT FRONT UP
A P21 16RD/LG LEFT POWER SEAT FRONT DOWN
DRIVER POWER SEAT FRONT VERTICAL MOTOR (STANDARD CAB)-2WAY
CAV CIRCUIT FUNCTION
1 P19 14YL/LG LEFT SEAT FRONT UP
2 P21 14RD/LG LEFT SEAT FRONT DOWN
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 37

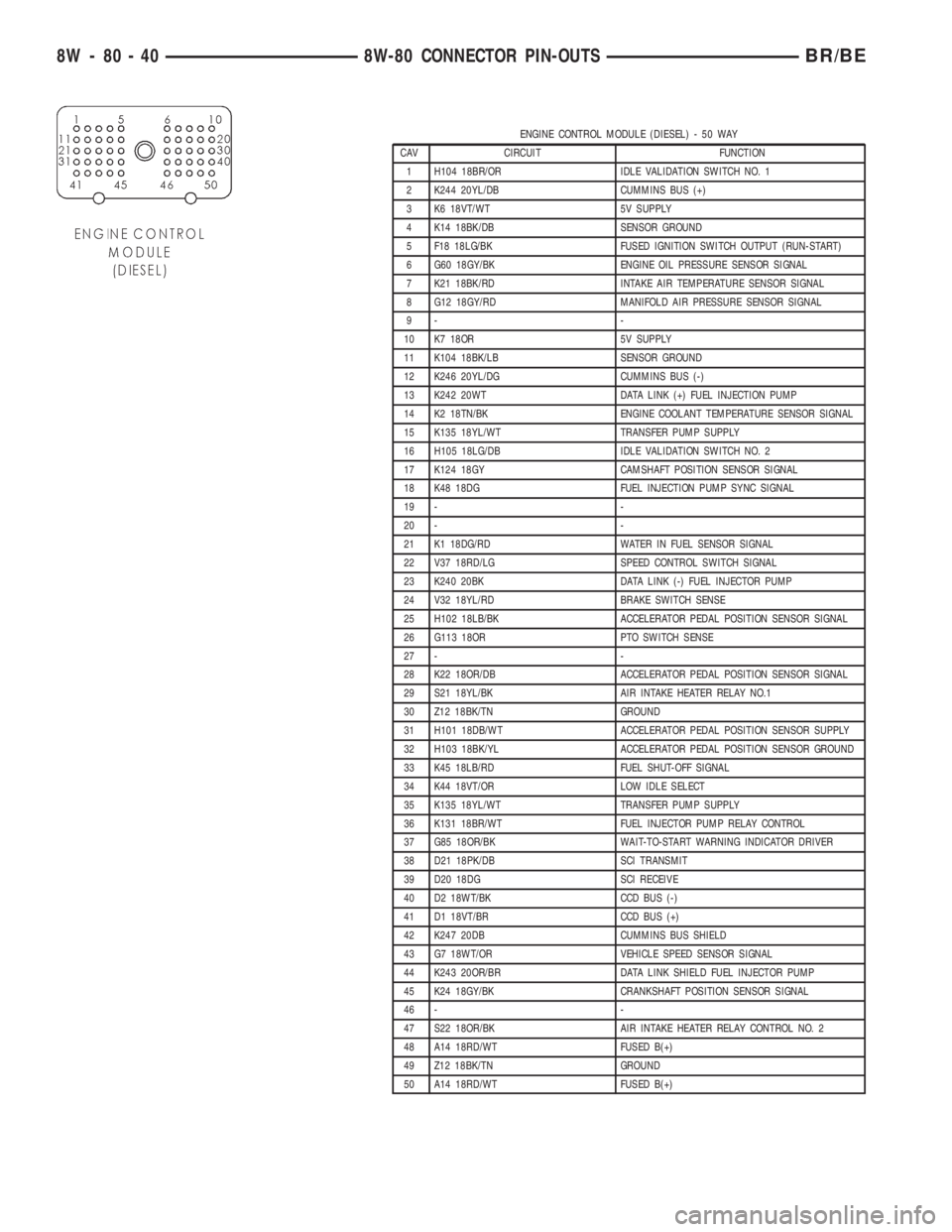

ENGINE CONTROL MODULE (DIESEL) - 50 WAY
CAV CIRCUIT FUNCTION
1 H104 18BR/OR IDLE VALIDATION SWITCH NO. 1
2 K244 20YL/DB CUMMINS BUS (+)
3 K6 18VT/WT 5V SUPPLY
4 K14 18BK/DB SENSOR GROUND
5 F18 18LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
6 G60 18GY/BK ENGINE OIL PRESSURE SENSOR SIGNAL
7 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
8 G12 18GY/RD MANIFOLD AIR PRESSURE SENSOR SIGNAL
9- -
10 K7 18OR 5V SUPPLY
11 K104 18BK/LB SENSOR GROUND
12 K246 20YL/DG CUMMINS BUS (-)
13 K242 20WT DATA LINK (+) FUEL INJECTION PUMP
14 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
15 K135 18YL/WT TRANSFER PUMP SUPPLY
16 H105 18LG/DB IDLE VALIDATION SWITCH NO. 2
17 K124 18GY CAMSHAFT POSITION SENSOR SIGNAL
18 K48 18DG FUEL INJECTION PUMP SYNC SIGNAL
19 - -
20 - -
21 K1 18DG/RD WATER IN FUEL SENSOR SIGNAL
22 V37 18RD/LG SPEED CONTROL SWITCH SIGNAL
23 K240 20BK DATA LINK (-) FUEL INJECTOR PUMP
24 V32 18YL/RD BRAKE SWITCH SENSE
25 H102 18LB/BK ACCELERATOR PEDAL POSITION SENSOR SIGNAL
26 G113 18OR PTO SWITCH SENSE
27 - -
28 K22 18OR/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
29 S21 18YL/BK AIR INTAKE HEATER RELAY NO.1
30 Z12 18BK/TN GROUND
31 H101 18DB/WT ACCELERATOR PEDAL POSITION SENSOR SUPPLY
32 H103 18BK/YL ACCELERATOR PEDAL POSITION SENSOR GROUND
33 K45 18LB/RD FUEL SHUT-OFF SIGNAL
34 K44 18VT/OR LOW IDLE SELECT
35 K135 18YL/WT TRANSFER PUMP SUPPLY
36 K131 18BR/WT FUEL INJECTOR PUMP RELAY CONTROL
37 G85 18OR/BK WAIT-TO-START WARNING INDICATOR DRIVER
38 D21 18PK/DB SCI TRANSMIT
39 D20 18DG SCI RECEIVE
40 D2 18WT/BK CCD BUS (-)
41 D1 18VT/BR CCD BUS (+)
42 K247 20DB CUMMINS BUS SHIELD
43 G7 18WT/OR VEHICLE SPEED SENSOR SIGNAL
44 K243 20OR/BR DATA LINK SHIELD FUEL INJECTOR PUMP
45 K24 18GY/BK CRANKSHAFT POSITION SENSOR SIGNAL
46 - -
47 S22 18OR/BK AIR INTAKE HEATER RELAY CONTROL NO. 2
48 A14 18RD/WT FUSED B(+)
49 Z12 18BK/TN GROUND
50 A14 18RD/WT FUSED B(+)
8W - 80 - 40 8W-80 CONNECTOR PIN-OUTSBR/BE
