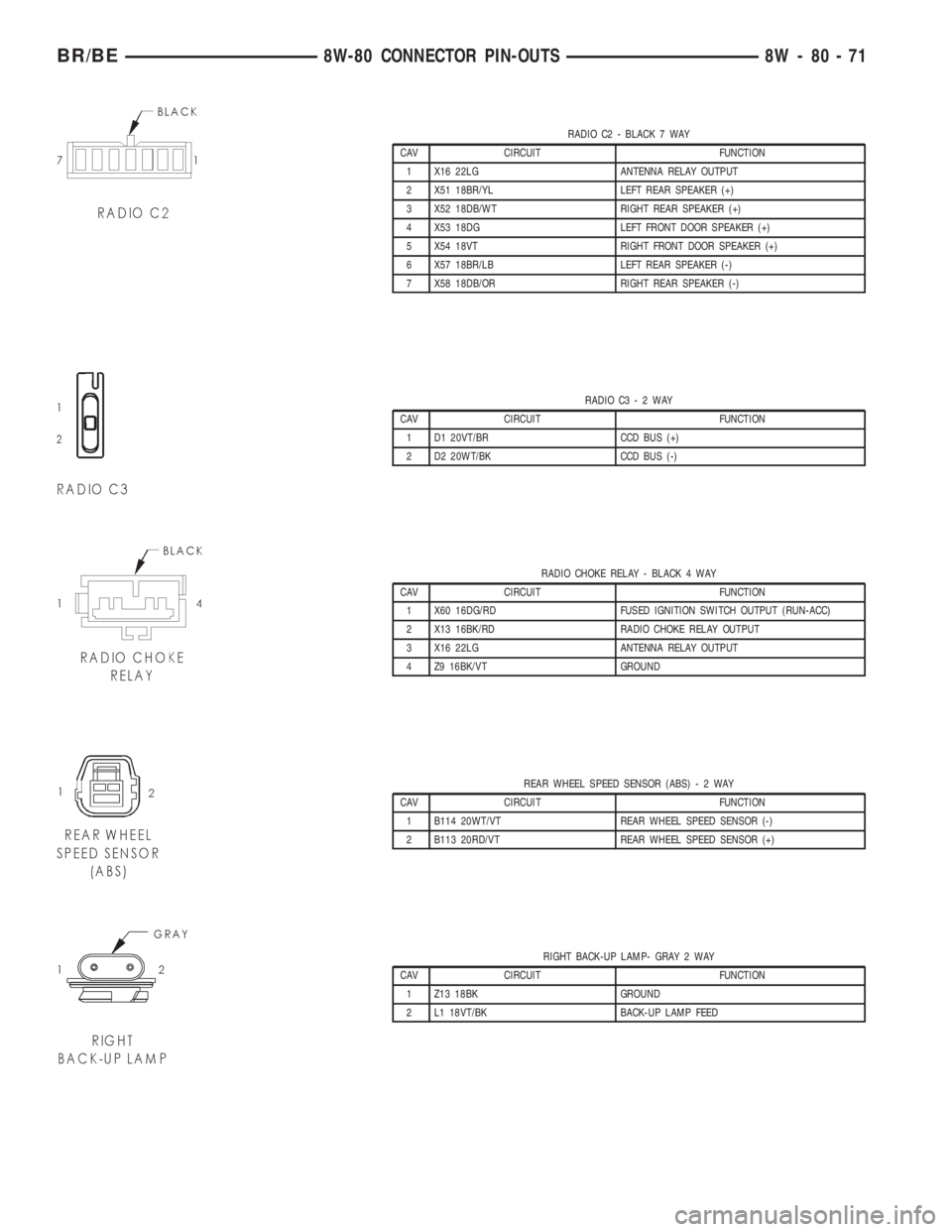

RADIO C2 - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1 X16 22LG ANTENNA RELAY OUTPUT
2 X51 18BR/YL LEFT REAR SPEAKER (+)
3 X52 18DB/WT RIGHT REAR SPEAKER (+)
4 X53 18DG LEFT FRONT DOOR SPEAKER (+)
5 X54 18VT RIGHT FRONT DOOR SPEAKER (+)
6 X57 18BR/LB LEFT REAR SPEAKER (-)
7 X58 18DB/OR RIGHT REAR SPEAKER (-)
RADIO C3-2WAY
CAV CIRCUIT FUNCTION
1 D1 20VT/BR CCD BUS (+)
2 D2 20WT/BK CCD BUS (-)
RADIO CHOKE RELAY - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 X60 16DG/RD FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2 X13 16BK/RD RADIO CHOKE RELAY OUTPUT
3 X16 22LG ANTENNA RELAY OUTPUT
4 Z9 16BK/VT GROUND
REAR WHEEL SPEED SENSOR (ABS)-2WAY
CAV CIRCUIT FUNCTION
1 B114 20WT/VT REAR WHEEL SPEED SENSOR (-)
2 B113 20RD/VT REAR WHEEL SPEED SENSOR (+)
RIGHT BACK-UP LAMP- GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 Z13 18BK GROUND
2 L1 18VT/BK BACK-UP LAMP FEED
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 71

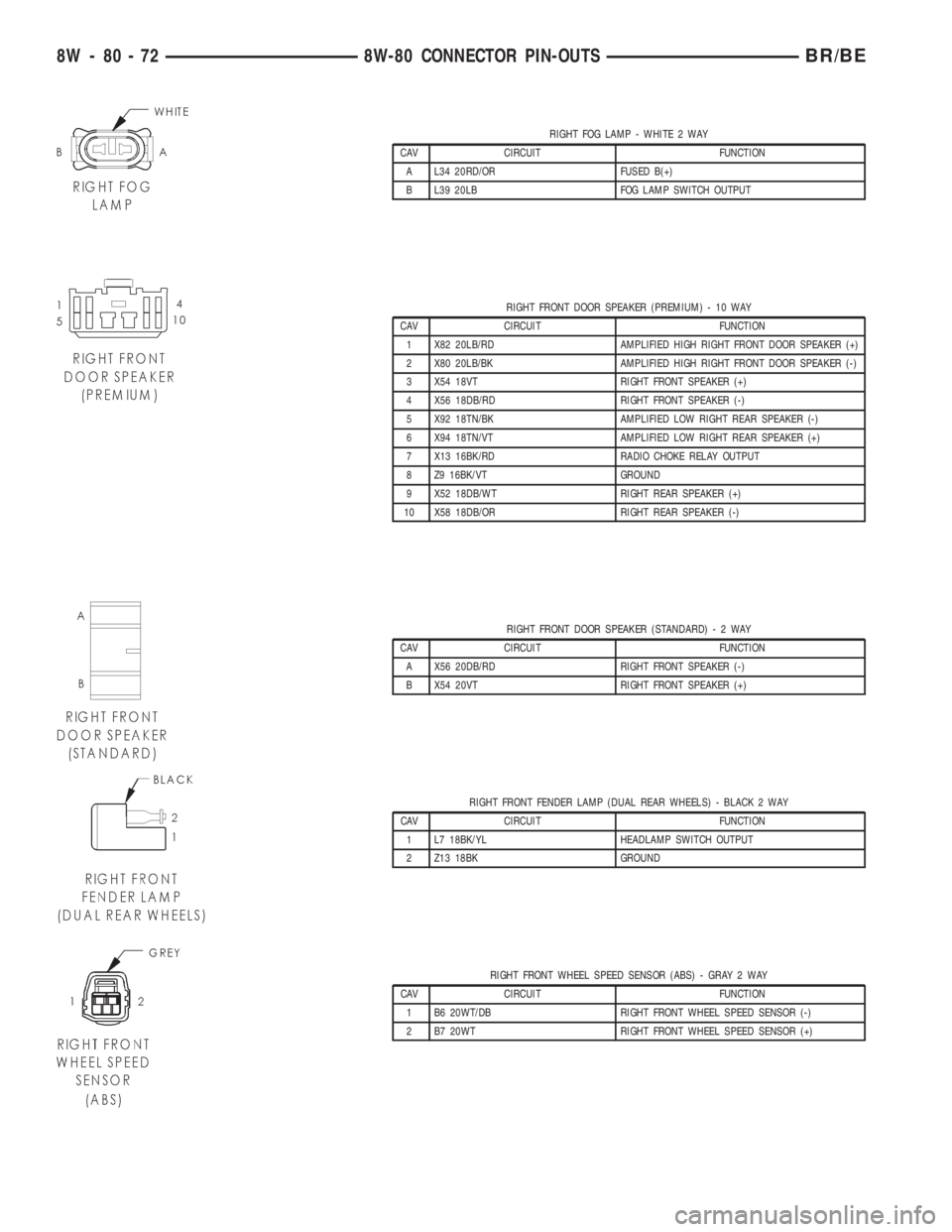

RIGHT FOG LAMP - WHITE 2 WAY
CAV CIRCUIT FUNCTION
A L34 20RD/OR FUSED B(+)
B L39 20LB FOG LAMP SWITCH OUTPUT
RIGHT FRONT DOOR SPEAKER (PREMIUM) - 10 WAY
CAV CIRCUIT FUNCTION
1 X82 20LB/RD AMPLIFIED HIGH RIGHT FRONT DOOR SPEAKER (+)
2 X80 20LB/BK AMPLIFIED HIGH RIGHT FRONT DOOR SPEAKER (-)
3 X54 18VT RIGHT FRONT SPEAKER (+)
4 X56 18DB/RD RIGHT FRONT SPEAKER (-)
5 X92 18TN/BK AMPLIFIED LOW RIGHT REAR SPEAKER (-)
6 X94 18TN/VT AMPLIFIED LOW RIGHT REAR SPEAKER (+)
7 X13 16BK/RD RADIO CHOKE RELAY OUTPUT
8 Z9 16BK/VT GROUND
9 X52 18DB/WT RIGHT REAR SPEAKER (+)
10 X58 18DB/OR RIGHT REAR SPEAKER (-)
RIGHT FRONT DOOR SPEAKER (STANDARD)-2WAY
CAV CIRCUIT FUNCTION
A X56 20DB/RD RIGHT FRONT SPEAKER (-)
B X54 20VT RIGHT FRONT SPEAKER (+)
RIGHT FRONT FENDER LAMP (DUAL REAR WHEELS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL HEADLAMP SWITCH OUTPUT
2 Z13 18BK GROUND
RIGHT FRONT WHEEL SPEED SENSOR (ABS) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B6 20WT/DB RIGHT FRONT WHEEL SPEED SENSOR (-)
2 B7 20WT RIGHT FRONT WHEEL SPEED SENSOR (+)
8W - 80 - 72 8W-80 CONNECTOR PIN-OUTSBR/BE

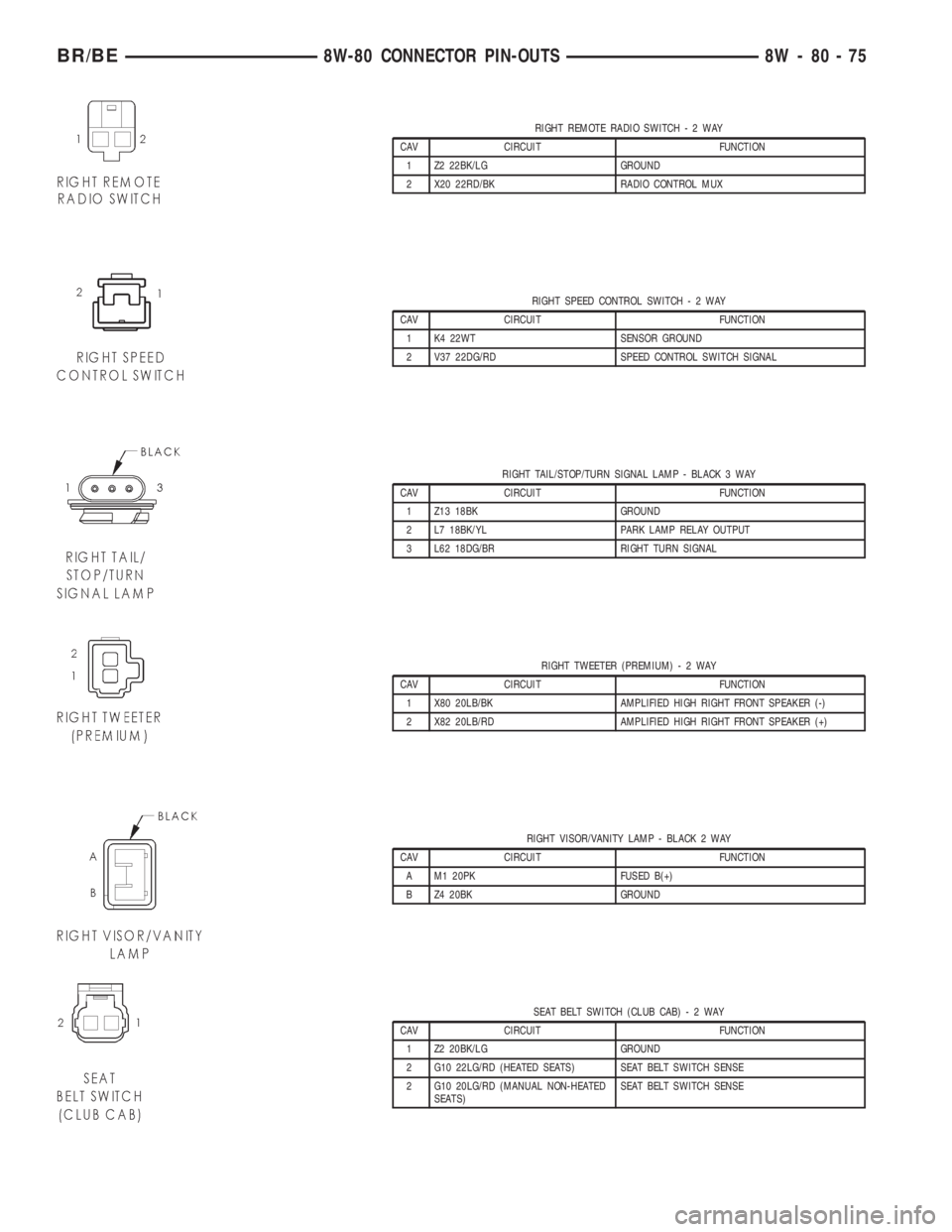

RIGHT REMOTE RADIO SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 Z2 22BK/LG GROUND
2 X20 22RD/BK RADIO CONTROL MUX
RIGHT SPEED CONTROL SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 K4 22WT SENSOR GROUND
2 V37 22DG/RD SPEED CONTROL SWITCH SIGNAL
RIGHT TAIL/STOP/TURN SIGNAL LAMP - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z13 18BK GROUND
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 L62 18DG/BR RIGHT TURN SIGNAL
RIGHT TWEETER (PREMIUM)-2WAY
CAV CIRCUIT FUNCTION
1 X80 20LB/BK AMPLIFIED HIGH RIGHT FRONT SPEAKER (-)
2 X82 20LB/RD AMPLIFIED HIGH RIGHT FRONT SPEAKER (+)
RIGHT VISOR/VANITY LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A M1 20PK FUSED B(+)
B Z4 20BK GROUND
SEAT BELT SWITCH (CLUB CAB)-2WAY
CAV CIRCUIT FUNCTION
1 Z2 20BK/LG GROUND
2 G10 22LG/RD (HEATED SEATS) SEAT BELT SWITCH SENSE
2 G10 20LG/RD (MANUAL NON-HEATED
SEATS)SEAT BELT SWITCH SENSE
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 75

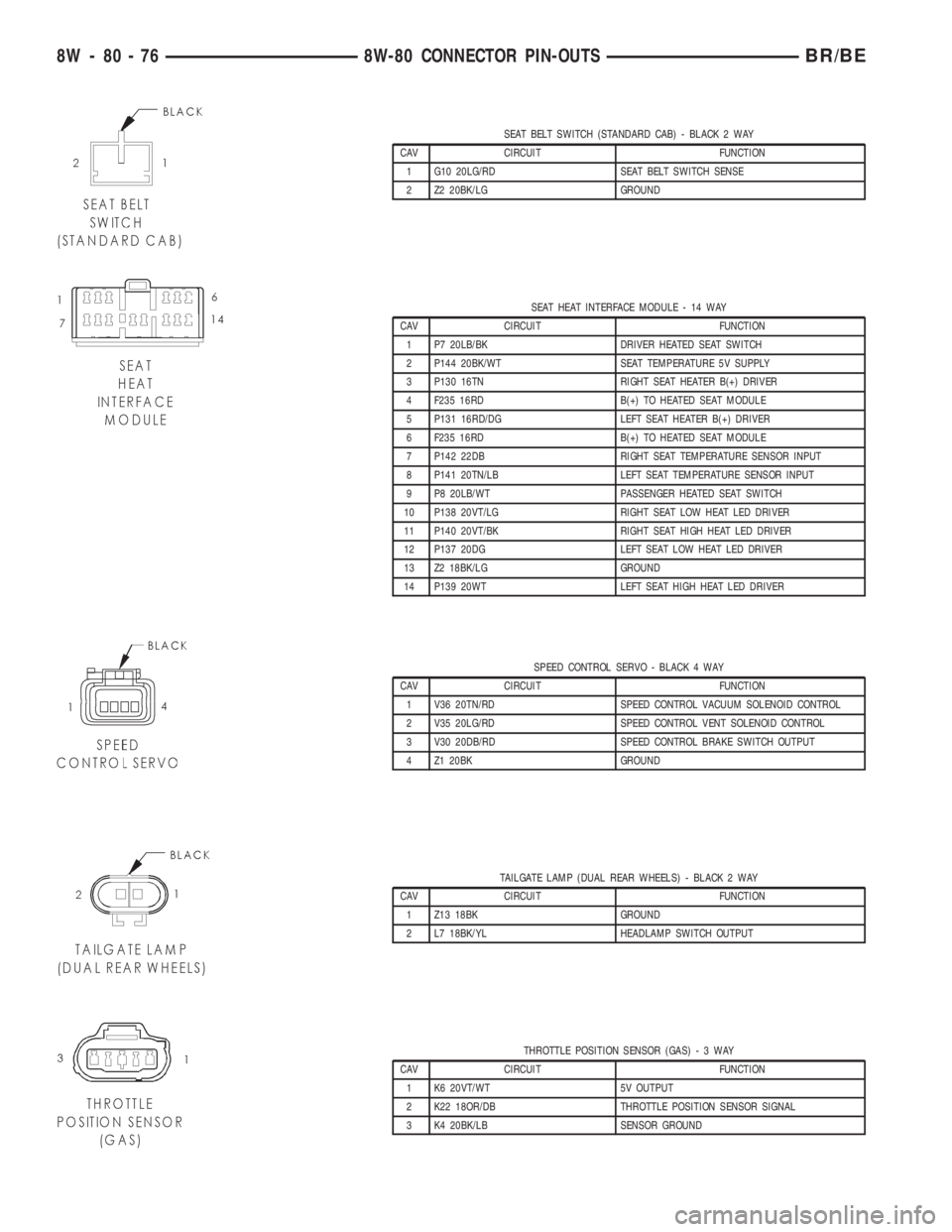

SEAT BELT SWITCH (STANDARD CAB) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G10 20LG/RD SEAT BELT SWITCH SENSE
2 Z2 20BK/LG GROUND
SEAT HEAT INTERFACE MODULE - 14 WAY
CAV CIRCUIT FUNCTION
1 P7 20LB/BK DRIVER HEATED SEAT SWITCH
2 P144 20BK/WT SEAT TEMPERATURE 5V SUPPLY
3 P130 16TN RIGHT SEAT HEATER B(+) DRIVER
4 F235 16RD B(+) TO HEATED SEAT MODULE
5 P131 16RD/DG LEFT SEAT HEATER B(+) DRIVER
6 F235 16RD B(+) TO HEATED SEAT MODULE
7 P142 22DB RIGHT SEAT TEMPERATURE SENSOR INPUT
8 P141 20TN/LB LEFT SEAT TEMPERATURE SENSOR INPUT
9 P8 20LB/WT PASSENGER HEATED SEAT SWITCH
10 P138 20VT/LG RIGHT SEAT LOW HEAT LED DRIVER
11 P140 20VT/BK RIGHT SEAT HIGH HEAT LED DRIVER
12 P137 20DG LEFT SEAT LOW HEAT LED DRIVER
13 Z2 18BK/LG GROUND
14 P139 20WT LEFT SEAT HIGH HEAT LED DRIVER
SPEED CONTROL SERVO - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 V36 20TN/RD SPEED CONTROL VACUUM SOLENOID CONTROL
2 V35 20LG/RD SPEED CONTROL VENT SOLENOID CONTROL
3 V30 20DB/RD SPEED CONTROL BRAKE SWITCH OUTPUT
4 Z1 20BK GROUND
TAILGATE LAMP (DUAL REAR WHEELS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z13 18BK GROUND
2 L7 18BK/YL HEADLAMP SWITCH OUTPUT
THROTTLE POSITION SENSOR (GAS)-3WAY
CAV CIRCUIT FUNCTION
1 K6 20VT/WT 5V OUTPUT
2 K22 18OR/DB THROTTLE POSITION SENSOR SIGNAL
3 K4 20BK/LB SENSOR GROUND
8W - 80 - 76 8W-80 CONNECTOR PIN-OUTSBR/BE

TRAILER TOW CONNECTOR - 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 L62 16BR/RD RIGHT TURN SIGNAL
3 L1 18VT/BK BACK-UP LAMP FEED
4 A6 14RD/OR FUSED B(+)
5 L76 14BK/OR TRAILER TOW RELAY OUTPUT
6- -
7 B40 14LB TRAILER TOW BRAKE B(+)
8 Z13 14BK GROUND
9 Z13 14BK GROUND
10 L63 16DG/RD LEFT TURN SIGNAL
TRANSMISSION SOLENOID ASSEMBLY-8WAY
CAV CIRCUIT FUNCTION
1 T16 18RD TRANSMISSION CONTROL RELAY OUTPUT
2 K7 18OR 5V SUPPLY
3 K4 18BK/LB SENSOR GROUND
4 T25 18LG/WT GOVERNOR PRESSURE SENSOR SIGNAL
5 K88 18VT/WT GOVERNOR PRESSURE SOLENOID CONTROL
6 T60 18BR 3-4 SHIFT SOLENOID CONTROL
7 K54 18OR/BK TORQUE CONVERTER CLUTCH SOLENOID CONTROL
8 T54 18VT TRANSMISSION TEMPERATURE SENSOR SIGNAL
UNDERHOOD LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 M1 20PK FUSED B(+)
WASHER FLUID LEVEL SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G29 18BK/WT WASHER FLUID SWITCH SENSE
2 Z1 18BK GROUND
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 77

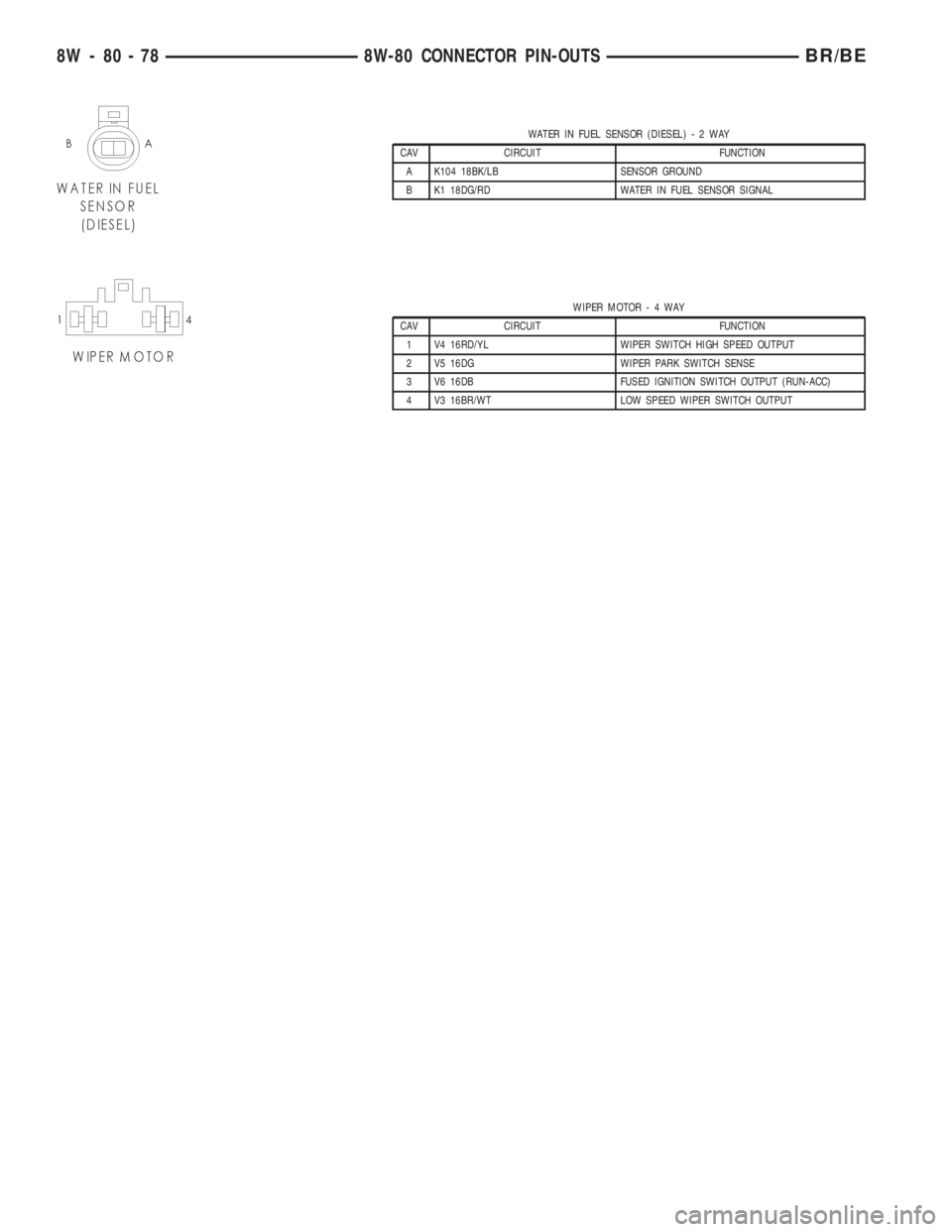

WATER IN FUEL SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
A K104 18BK/LB SENSOR GROUND
B K1 18DG/RD WATER IN FUEL SENSOR SIGNAL
WIPER MOTOR-4WAY
CAV CIRCUIT FUNCTION
1 V4 16RD/YL WIPER SWITCH HIGH SPEED OUTPUT
2 V5 16DG WIPER PARK SWITCH SENSE
3 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
4 V3 16BR/WT LOW SPEED WIPER SWITCH OUTPUT
8W - 80 - 78 8W-80 CONNECTOR PIN-OUTSBR/BE

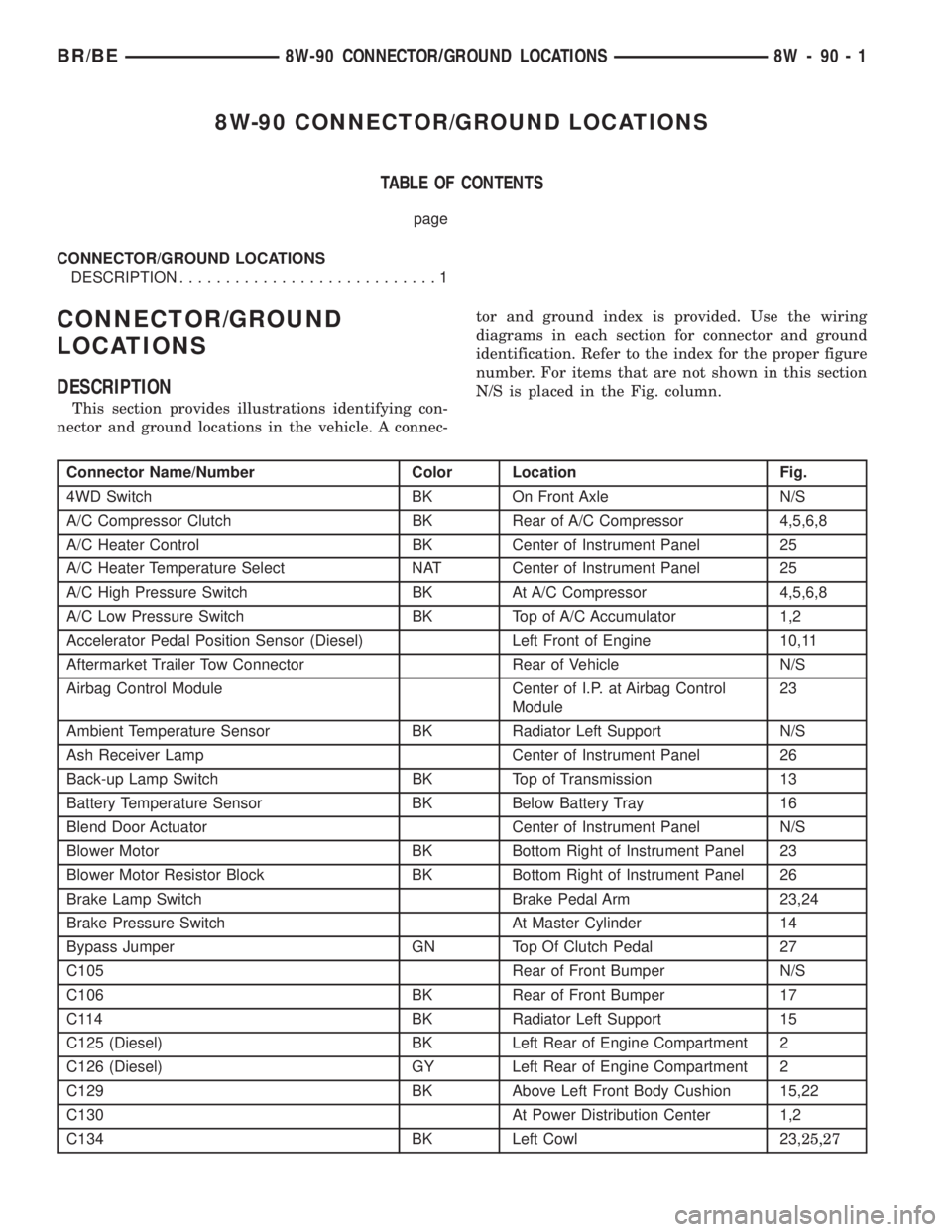

8W-90 CONNECTOR/GROUND LOCATIONS
TABLE OF CONTENTS
page
CONNECTOR/GROUND LOCATIONS
DESCRIPTION............................1
CONNECTOR/GROUND
LOCATIONS
DESCRIPTION
This section provides illustrations identifying con-
nector and ground locations in the vehicle. A connec-tor and ground index is provided. Use the wiring
diagrams in each section for connector and ground
identification. Refer to the index for the proper figure
number. For items that are not shown in this section
N/S is placed in the Fig. column.
Connector Name/Number Color Location Fig.
4WD Switch BK On Front Axle N/S
A/C Compressor Clutch BK Rear of A/C Compressor 4,5,6,8
A/C Heater Control BK Center of Instrument Panel 25
A/C Heater Temperature Select NAT Center of Instrument Panel 25
A/C High Pressure Switch BK At A/C Compressor 4,5,6,8
A/C Low Pressure Switch BK Top of A/C Accumulator 1,2
Accelerator Pedal Position Sensor (Diesel) Left Front of Engine 10,11
Aftermarket Trailer Tow Connector Rear of Vehicle N/S
Airbag Control Module Center of I.P. at Airbag Control
Module23
Ambient Temperature Sensor BK Radiator Left Support N/S
Ash Receiver Lamp Center of Instrument Panel 26
Back-up Lamp Switch BK Top of Transmission 13
Battery Temperature Sensor BK Below Battery Tray 16
Blend Door Actuator Center of Instrument Panel N/S
Blower Motor BK Bottom Right of Instrument Panel 23
Blower Motor Resistor Block BK Bottom Right of Instrument Panel 26
Brake Lamp Switch Brake Pedal Arm 23,24
Brake Pressure Switch At Master Cylinder 14
Bypass Jumper GN Top Of Clutch Pedal 27
C105 Rear of Front Bumper N/S
C106 BK Rear of Front Bumper 17
C114 BK Radiator Left Support 15
C125 (Diesel) BK Left Rear of Engine Compartment 2
C126 (Diesel) GY Left Rear of Engine Compartment 2
C129 BK Above Left Front Body Cushion 15,22
C130 At Power Distribution Center 1,2
C134 BK Left Cowl 23,25,27
BR/BE8W-90 CONNECTOR/GROUND LOCATIONS 8W - 90 - 1

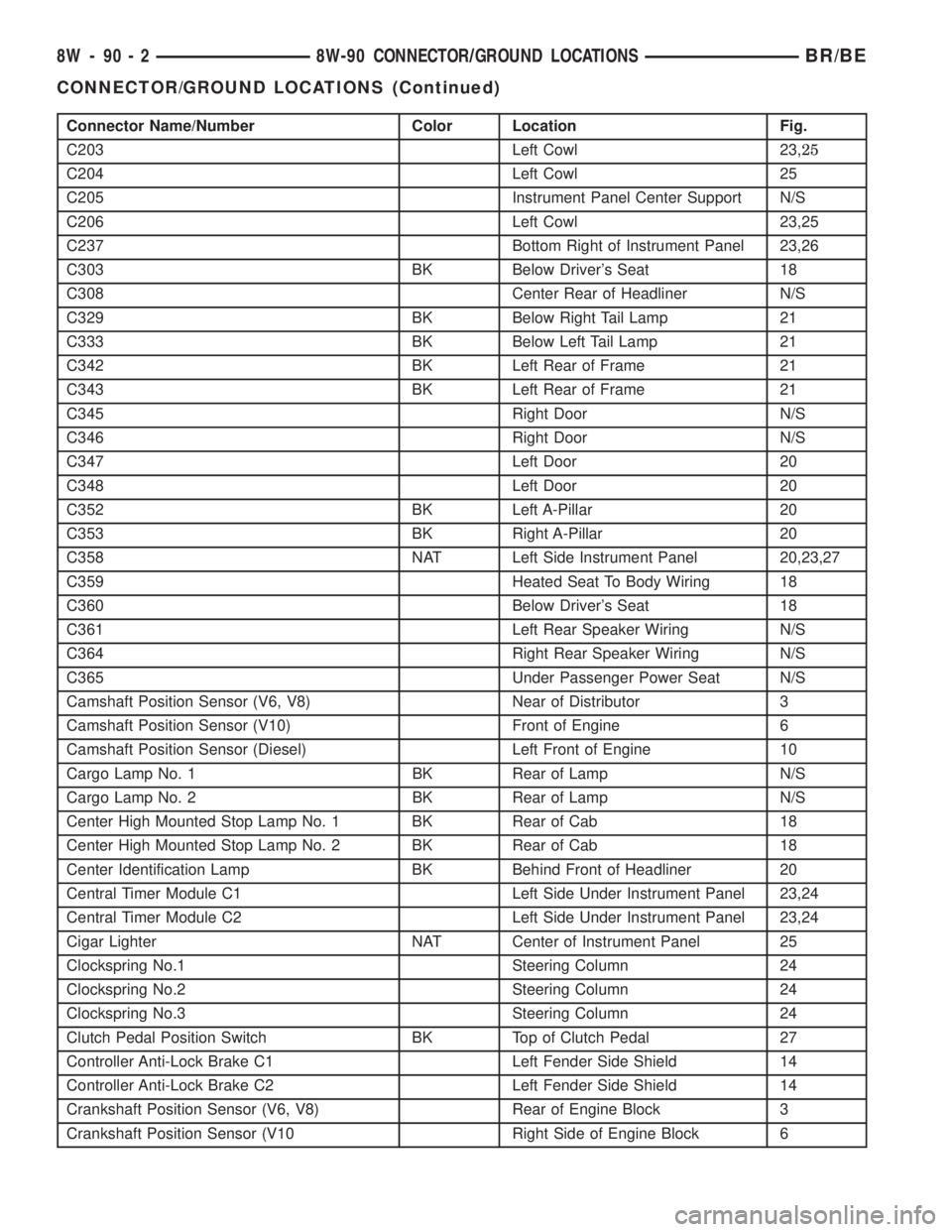

Connector Name/Number Color Location Fig.
C203 Left Cowl 23,25
C204 Left Cowl 25
C205 Instrument Panel Center Support N/S
C206 Left Cowl 23,25
C237 Bottom Right of Instrument Panel 23,26
C303 BK Below Driver's Seat 18
C308 Center Rear of Headliner N/S
C329 BK Below Right Tail Lamp 21
C333 BK Below Left Tail Lamp 21
C342 BK Left Rear of Frame 21
C343 BK Left Rear of Frame 21
C345 Right Door N/S
C346 Right Door N/S
C347 Left Door 20
C348 Left Door 20
C352 BK Left A-Pillar 20
C353 BK Right A-Pillar 20
C358 NAT Left Side Instrument Panel 20,23,27
C359 Heated Seat To Body Wiring 18
C360 Below Driver's Seat 18
C361 Left Rear Speaker Wiring N/S
C364 Right Rear Speaker Wiring N/S
C365 Under Passenger Power Seat N/S
Camshaft Position Sensor (V6, V8) Near of Distributor 3
Camshaft Position Sensor (V10) Front of Engine 6
Camshaft Position Sensor (Diesel) Left Front of Engine 10
Cargo Lamp No. 1 BK Rear of Lamp N/S
Cargo Lamp No. 2 BK Rear of Lamp N/S
Center High Mounted Stop Lamp No. 1 BK Rear of Cab 18
Center High Mounted Stop Lamp No. 2 BK Rear of Cab 18
Center Identification Lamp BK Behind Front of Headliner 20
Central Timer Module C1 Left Side Under Instrument Panel 23,24
Central Timer Module C2 Left Side Under Instrument Panel 23,24
Cigar Lighter NAT Center of Instrument Panel 25
Clockspring No.1 Steering Column 24
Clockspring No.2 Steering Column 24
Clockspring No.3 Steering Column 24
Clutch Pedal Position Switch BK Top of Clutch Pedal 27
Controller Anti-Lock Brake C1 Left Fender Side Shield 14
Controller Anti-Lock Brake C2 Left Fender Side Shield 14
Crankshaft Position Sensor (V6, V8) Rear of Engine Block 3
Crankshaft Position Sensor (V10 Right Side of Engine Block 6
8W - 90 - 2 8W-90 CONNECTOR/GROUND LOCATIONSBR/BE
CONNECTOR/GROUND LOCATIONS (Continued)
