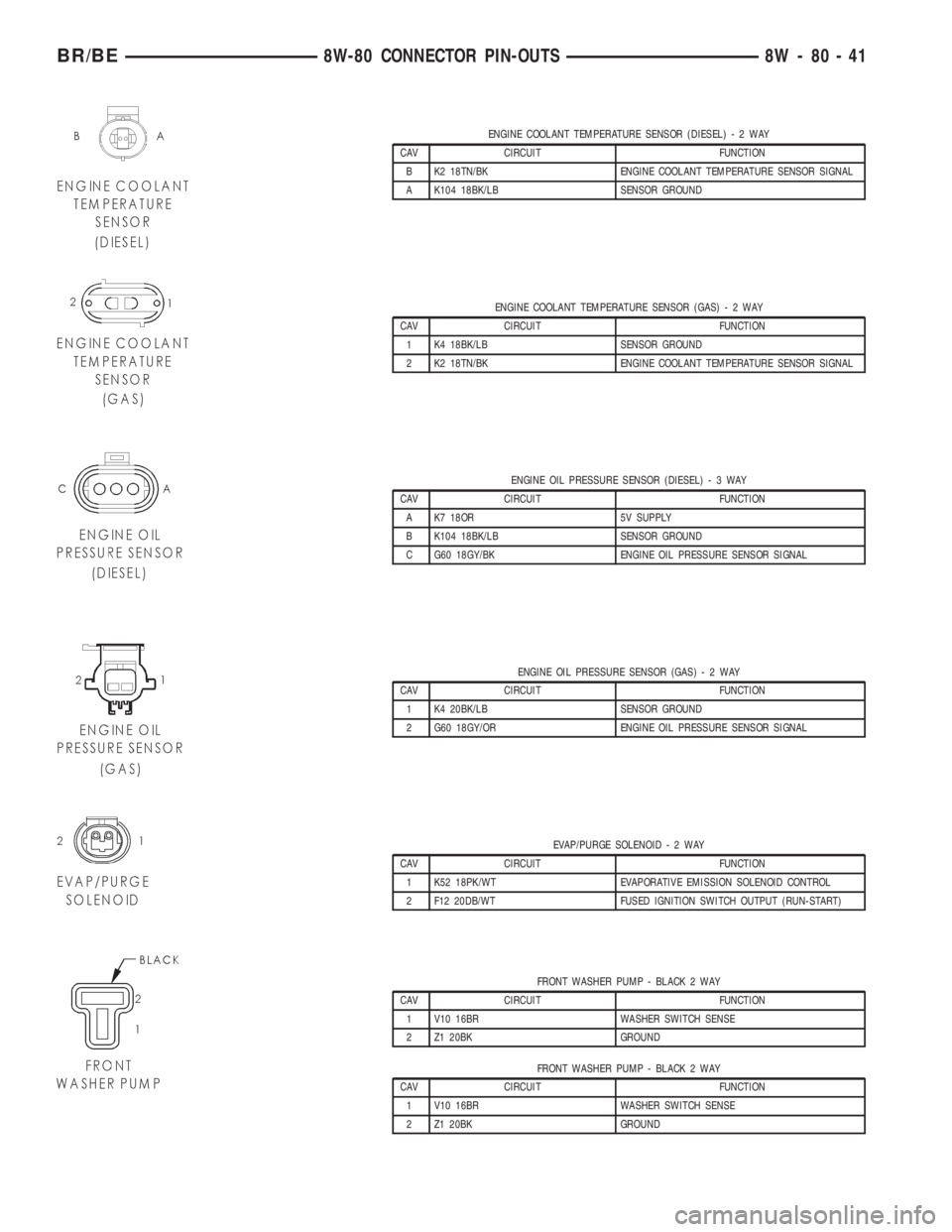

2001 DODGE RAM sensor

ENGINE COOLANT TEMPERATURE SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
B K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
A K104 18BK/LB SENSOR GROUND
ENGINE COOLANT TEMPERATURE SENSOR (GAS)-2WAY
CAV CIRCUIT FUNCTION
1 K4 18BK/LB SENSOR GROUND
2 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
ENGINE OIL PRESSURE SENSOR (DIESEL)-3WAY
CAV CIRCUIT FUNCTION
A K7 18OR 5V SUPPLY
B K104 18BK/LB SENSOR GROUND
C G60 18GY/BK ENGINE OIL PRESSURE SENSOR SIGNAL
ENGINE OIL PRESSURE SENSOR (GAS)-2WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 G60 18GY/OR ENGINE OIL PRESSURE SENSOR SIGNAL
EVAP/PURGE SOLENOID-2WAY
CAV CIRCUIT FUNCTION
1 K52 18PK/WT EVAPORATIVE EMISSION SOLENOID CONTROL
2 F12 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
FRONT WASHER PUMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 V10 16BR WASHER SWITCH SENSE
2 Z1 20BK GROUND
FRONT WASHER PUMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 V10 16BR WASHER SWITCH SENSE
2 Z1 20BK GROUND
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 41

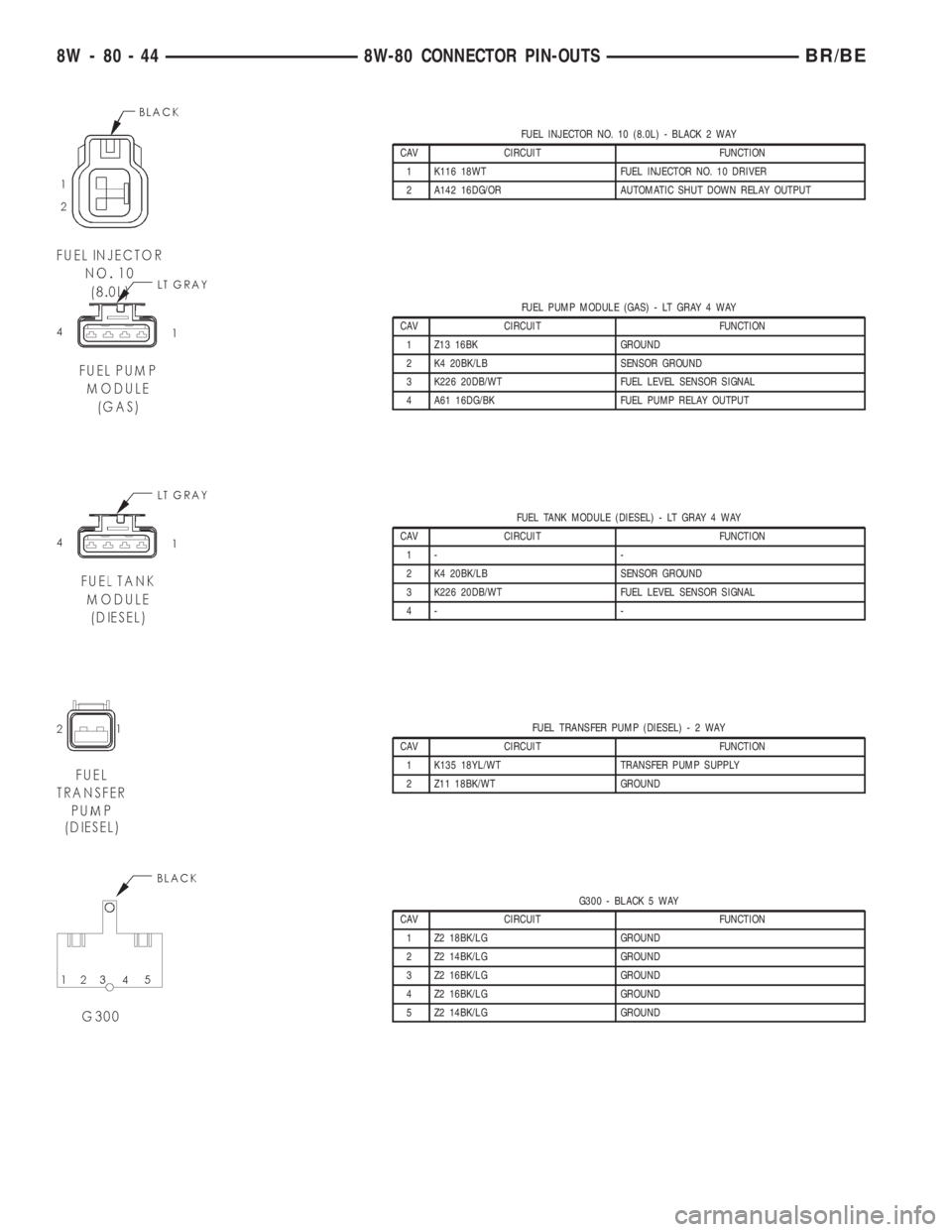

FUEL INJECTOR NO. 10 (8.0L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K116 18WT FUEL INJECTOR NO. 10 DRIVER
2 A142 16DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
FUEL PUMP MODULE (GAS) - LT GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z13 16BK GROUND
2 K4 20BK/LB SENSOR GROUND
3 K226 20DB/WT FUEL LEVEL SENSOR SIGNAL
4 A61 16DG/BK FUEL PUMP RELAY OUTPUT
FUEL TANK MODULE (DIESEL) - LT GRAY 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 K4 20BK/LB SENSOR GROUND
3 K226 20DB/WT FUEL LEVEL SENSOR SIGNAL
4- -
FUEL TRANSFER PUMP (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K135 18YL/WT TRANSFER PUMP SUPPLY
2 Z11 18BK/WT GROUND
G300 - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 Z2 18BK/LG GROUND
2 Z2 14BK/LG GROUND
3 Z2 16BK/LG GROUND
4 Z2 16BK/LG GROUND
5 Z2 14BK/LG GROUND
8W - 80 - 44 8W-80 CONNECTOR PIN-OUTSBR/BE

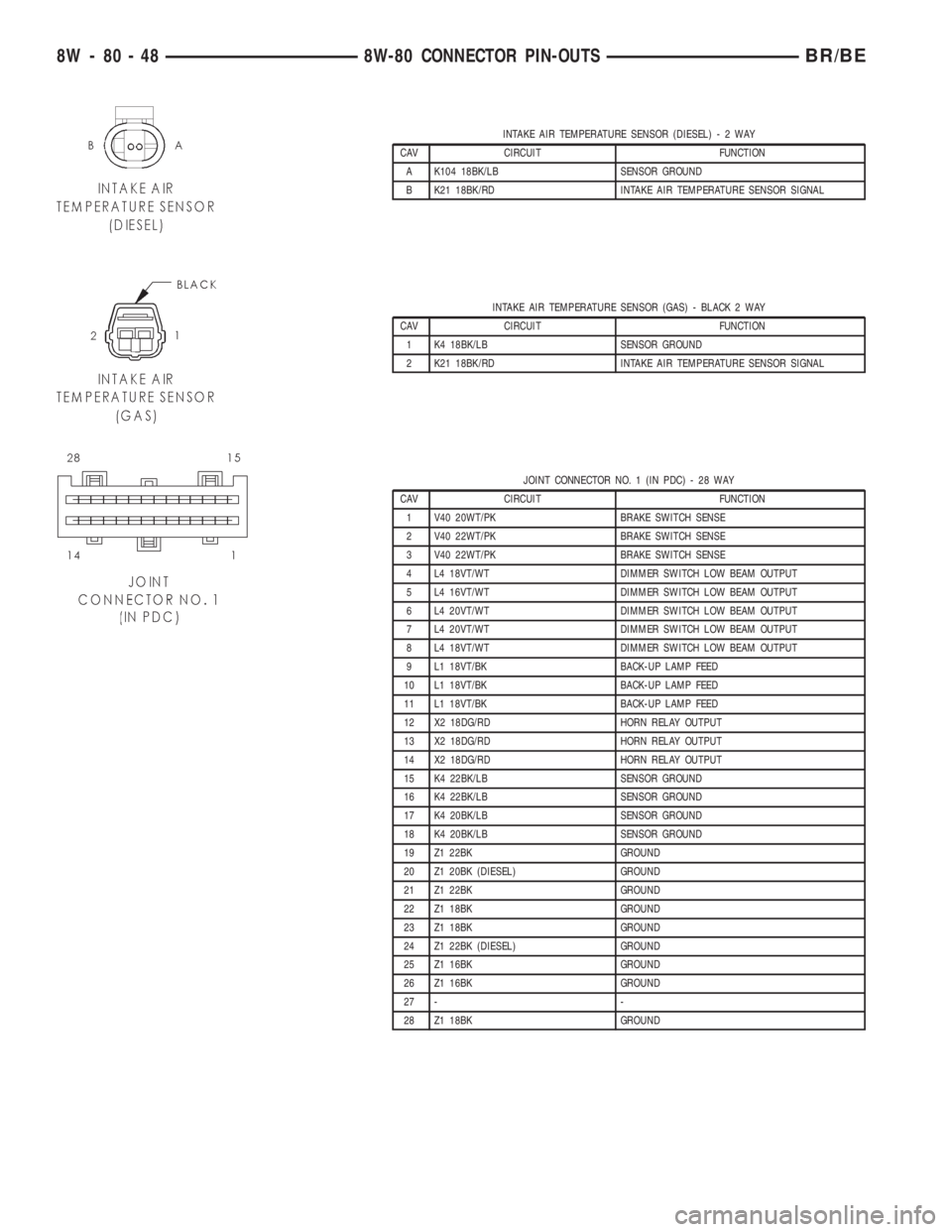

INTAKE AIR TEMPERATURE SENSOR (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
A K104 18BK/LB SENSOR GROUND
B K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
INTAKE AIR TEMPERATURE SENSOR (GAS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K4 18BK/LB SENSOR GROUND
2 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
JOINT CONNECTOR NO. 1 (IN PDC) - 28 WAY
CAV CIRCUIT FUNCTION
1 V40 20WT/PK BRAKE SWITCH SENSE
2 V40 22WT/PK BRAKE SWITCH SENSE
3 V40 22WT/PK BRAKE SWITCH SENSE
4 L4 18VT/WT DIMMER SWITCH LOW BEAM OUTPUT
5 L4 16VT/WT DIMMER SWITCH LOW BEAM OUTPUT
6 L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT
7 L4 20VT/WT DIMMER SWITCH LOW BEAM OUTPUT
8 L4 18VT/WT DIMMER SWITCH LOW BEAM OUTPUT
9 L1 18VT/BK BACK-UP LAMP FEED
10 L1 18VT/BK BACK-UP LAMP FEED
11 L1 18VT/BK BACK-UP LAMP FEED
12 X2 18DG/RD HORN RELAY OUTPUT
13 X2 18DG/RD HORN RELAY OUTPUT
14 X2 18DG/RD HORN RELAY OUTPUT
15 K4 22BK/LB SENSOR GROUND
16 K4 22BK/LB SENSOR GROUND
17 K4 20BK/LB SENSOR GROUND
18 K4 20BK/LB SENSOR GROUND
19 Z1 22BK GROUND
20 Z1 20BK (DIESEL) GROUND
21 Z1 22BK GROUND
22 Z1 18BK GROUND
23 Z1 18BK GROUND
24 Z1 22BK (DIESEL) GROUND
25 Z1 16BK GROUND
26 Z1 16BK GROUND
27 - -
28 Z1 18BK GROUND
8W - 80 - 48 8W-80 CONNECTOR PIN-OUTSBR/BE

JUNCTION BLOCK C1 - BLUE 15 WAY
CAV CIRCUIT FUNCTION
1- -
2 G31 20VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
3 A20 20RD/DB FUSED IGNITION SWITCH OUTPUT (RUN)
4 L61 18LG LEFT TURN SIGNAL
5 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
6- -
7- -
8- -
9 L7 18BK/YL PARK LAMP RELAY OUTPUT
10 F18 20LG/BK FUSED IGNITION SWITCH OUTPUT (RUN-START)
11 L1 18VT/BK BACK-UP LAMP FEED
12 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
13 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
14 G32 20BK/VT SENSOR GROUND
15 - -
JUNCTION BLOCK C2 - NATURAL 6 WAY
CAV CIRCUIT FUNCTION
1 A7 10RD/BK FUSED B(+)
2 L9 16BK/VT FUSED FLASHER FEED
3 M1 20PK FUSED B(+)
4- -
5 L60 18TN RIGHT TURN SIGNAL
6- -
JUNCTION BLOCK C3 - 14 WAY
CAV CIRCUIT FUNCTION
1 G32 22BK/LB SENSOR GROUND
2 Z2 20BK/LG GROUND
3 M2 22YL COURTESY LAMPS DRIVER
4- -
5 G31 22VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
6 M1 22PK (BASE) FUSED B(+)
6 M1 20PK (HIGHLINE) FUSED B(+)
7- -
8 L7 18BK/YL (CLEARANCE/ID LAMPS) PARK LAMP RELAY OUTPUT
9- -
10 - -
11 L1 20VT/BK BACK-UP LAMP FEED
12 - -
13 Z3 18BK (HIGHLINE) GROUND
14 F12 20DB/WT (HIGHLINE) FUSED IGNITION SWITCH OUTPUT (RUN-START)
8W - 80 - 52 8W-80 CONNECTOR PIN-OUTSBR/BE

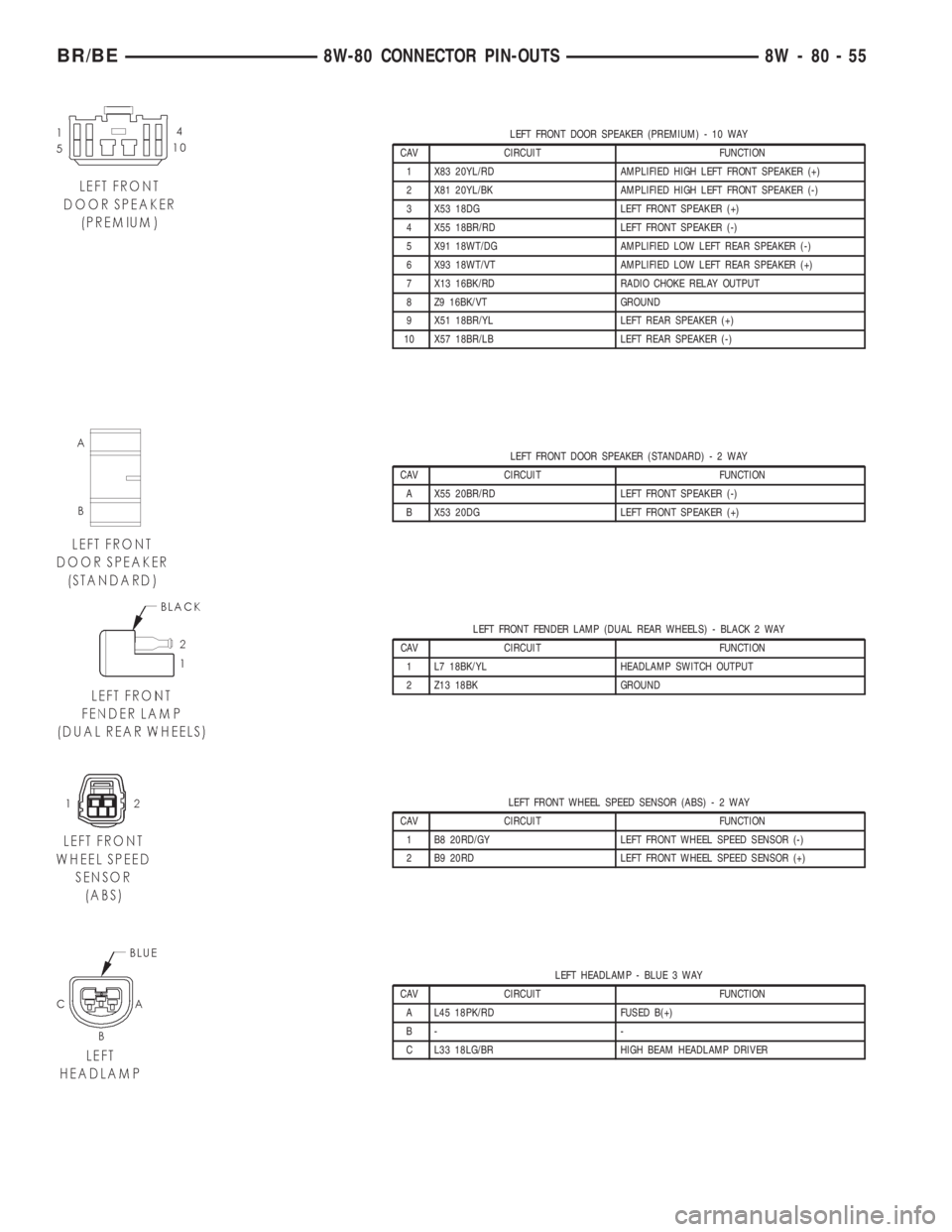

LEFT FRONT DOOR SPEAKER (PREMIUM) - 10 WAY
CAV CIRCUIT FUNCTION
1 X83 20YL/RD AMPLIFIED HIGH LEFT FRONT SPEAKER (+)
2 X81 20YL/BK AMPLIFIED HIGH LEFT FRONT SPEAKER (-)
3 X53 18DG LEFT FRONT SPEAKER (+)
4 X55 18BR/RD LEFT FRONT SPEAKER (-)
5 X91 18WT/DG AMPLIFIED LOW LEFT REAR SPEAKER (-)
6 X93 18WT/VT AMPLIFIED LOW LEFT REAR SPEAKER (+)
7 X13 16BK/RD RADIO CHOKE RELAY OUTPUT
8 Z9 16BK/VT GROUND
9 X51 18BR/YL LEFT REAR SPEAKER (+)
10 X57 18BR/LB LEFT REAR SPEAKER (-)
LEFT FRONT DOOR SPEAKER (STANDARD)-2WAY
CAV CIRCUIT FUNCTION
A X55 20BR/RD LEFT FRONT SPEAKER (-)
B X53 20DG LEFT FRONT SPEAKER (+)
LEFT FRONT FENDER LAMP (DUAL REAR WHEELS) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 L7 18BK/YL HEADLAMP SWITCH OUTPUT
2 Z13 18BK GROUND
LEFT FRONT WHEEL SPEED SENSOR (ABS)-2WAY
CAV CIRCUIT FUNCTION
1 B8 20RD/GY LEFT FRONT WHEEL SPEED SENSOR (-)
2 B9 20RD LEFT FRONT WHEEL SPEED SENSOR (+)
LEFT HEADLAMP - BLUE 3 WAY
CAV CIRCUIT FUNCTION
A L45 18PK/RD FUSED B(+)
B- -
C L33 18LG/BR HIGH BEAM HEADLAMP DRIVER
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 55

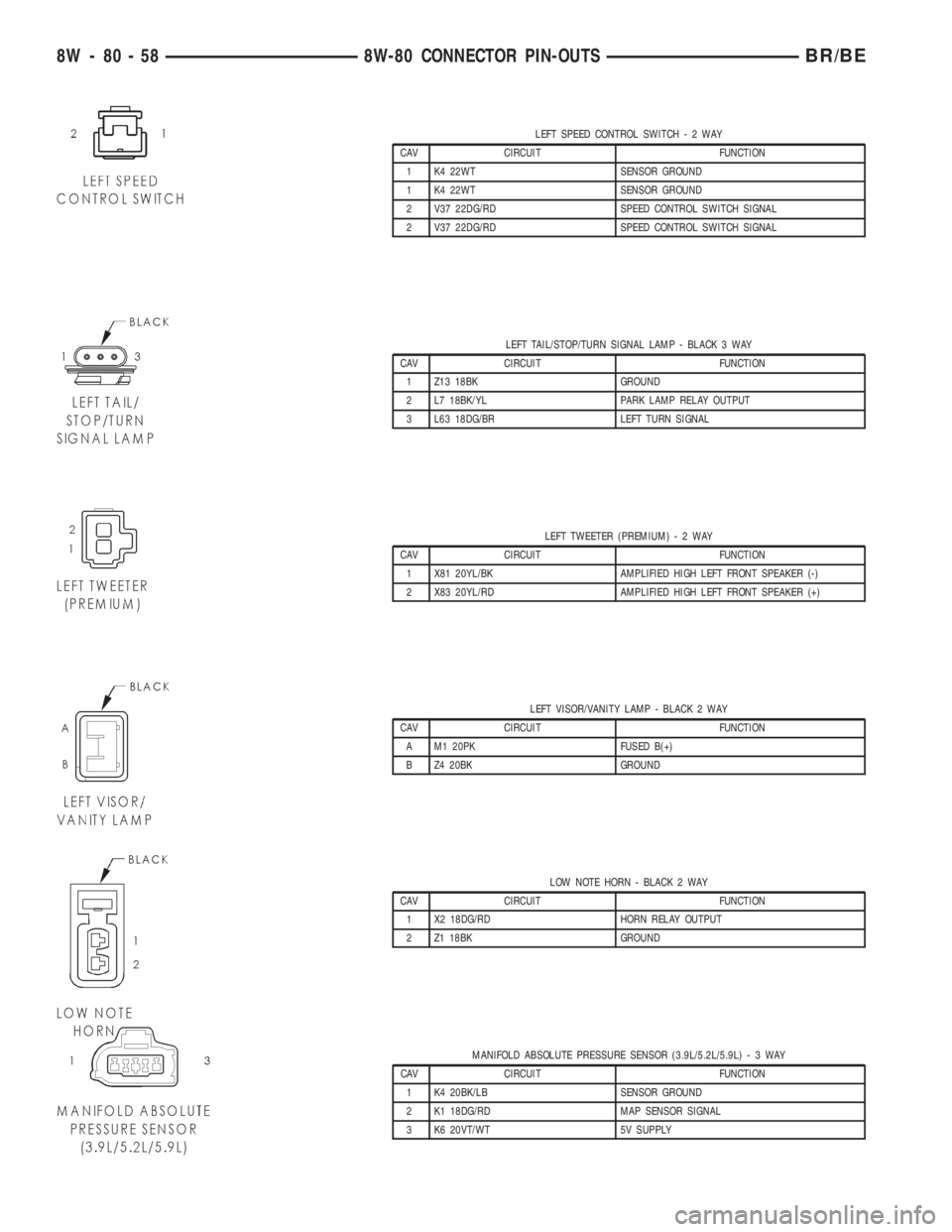

LEFT SPEED CONTROL SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 K4 22WT SENSOR GROUND
1 K4 22WT SENSOR GROUND
2 V37 22DG/RD SPEED CONTROL SWITCH SIGNAL
2 V37 22DG/RD SPEED CONTROL SWITCH SIGNAL
LEFT TAIL/STOP/TURN SIGNAL LAMP - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z13 18BK GROUND
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 L63 18DG/BR LEFT TURN SIGNAL
LEFT TWEETER (PREMIUM)-2WAY
CAV CIRCUIT FUNCTION
1 X81 20YL/BK AMPLIFIED HIGH LEFT FRONT SPEAKER (-)
2 X83 20YL/RD AMPLIFIED HIGH LEFT FRONT SPEAKER (+)
LEFT VISOR/VANITY LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A M1 20PK FUSED B(+)
B Z4 20BK GROUND
LOW NOTE HORN - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X2 18DG/RD HORN RELAY OUTPUT
2 Z1 18BK GROUND
MANIFOLD ABSOLUTE PRESSURE SENSOR (3.9L/5.2L/5.9L)-3WAY
CAV CIRCUIT FUNCTION
1 K4 20BK/LB SENSOR GROUND
2 K1 18DG/RD MAP SENSOR SIGNAL
3 K6 20VT/WT 5V SUPPLY
8W - 80 - 58 8W-80 CONNECTOR PIN-OUTSBR/BE

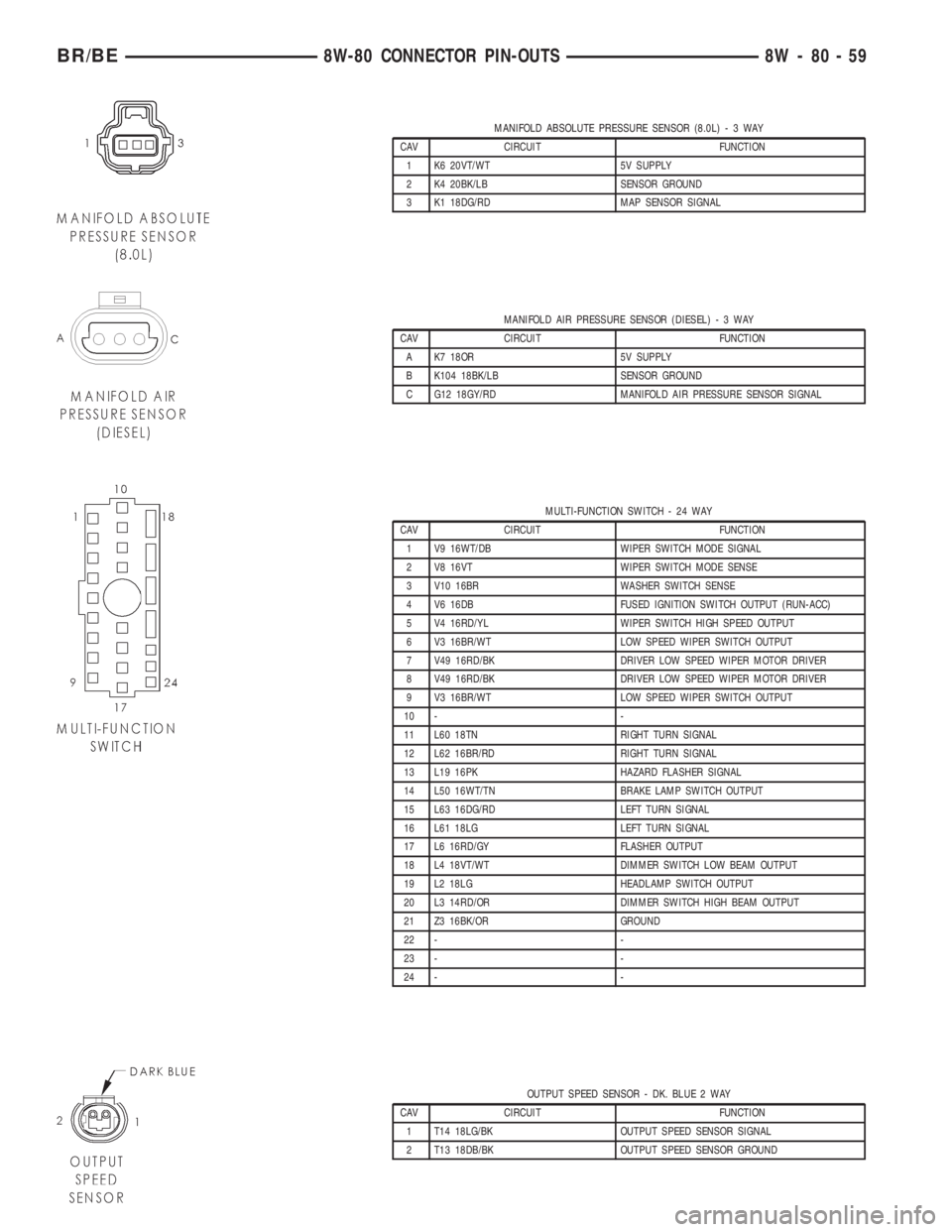

MANIFOLD ABSOLUTE PRESSURE SENSOR (8.0L)-3WAY
CAV CIRCUIT FUNCTION
1 K6 20VT/WT 5V SUPPLY
2 K4 20BK/LB SENSOR GROUND
3 K1 18DG/RD MAP SENSOR SIGNAL
MANIFOLD AIR PRESSURE SENSOR (DIESEL)-3WAY
CAV CIRCUIT FUNCTION
A K7 18OR 5V SUPPLY
B K104 18BK/LB SENSOR GROUND
C G12 18GY/RD MANIFOLD AIR PRESSURE SENSOR SIGNAL
MULTI-FUNCTION SWITCH - 24 WAY
CAV CIRCUIT FUNCTION
1 V9 16WT/DB WIPER SWITCH MODE SIGNAL
2 V8 16VT WIPER SWITCH MODE SENSE
3 V10 16BR WASHER SWITCH SENSE
4 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
5 V4 16RD/YL WIPER SWITCH HIGH SPEED OUTPUT
6 V3 16BR/WT LOW SPEED WIPER SWITCH OUTPUT
7 V49 16RD/BK DRIVER LOW SPEED WIPER MOTOR DRIVER
8 V49 16RD/BK DRIVER LOW SPEED WIPER MOTOR DRIVER
9 V3 16BR/WT LOW SPEED WIPER SWITCH OUTPUT
10 - -
11 L60 18TN RIGHT TURN SIGNAL
12 L62 16BR/RD RIGHT TURN SIGNAL
13 L19 16PK HAZARD FLASHER SIGNAL
14 L50 16WT/TN BRAKE LAMP SWITCH OUTPUT
15 L63 16DG/RD LEFT TURN SIGNAL
16 L61 18LG LEFT TURN SIGNAL
17 L6 16RD/GY FLASHER OUTPUT
18 L4 18VT/WT DIMMER SWITCH LOW BEAM OUTPUT
19 L2 18LG HEADLAMP SWITCH OUTPUT
20 L3 14RD/OR DIMMER SWITCH HIGH BEAM OUTPUT
21 Z3 16BK/OR GROUND
22 - -
23 - -
24 - -
OUTPUT SPEED SENSOR - DK. BLUE 2 WAY
CAV CIRCUIT FUNCTION
1 T14 18LG/BK OUTPUT SPEED SENSOR SIGNAL
2 T13 18DB/BK OUTPUT SPEED SENSOR GROUND
BR/BE8W-80 CONNECTOR PIN-OUTS 8W - 80 - 59

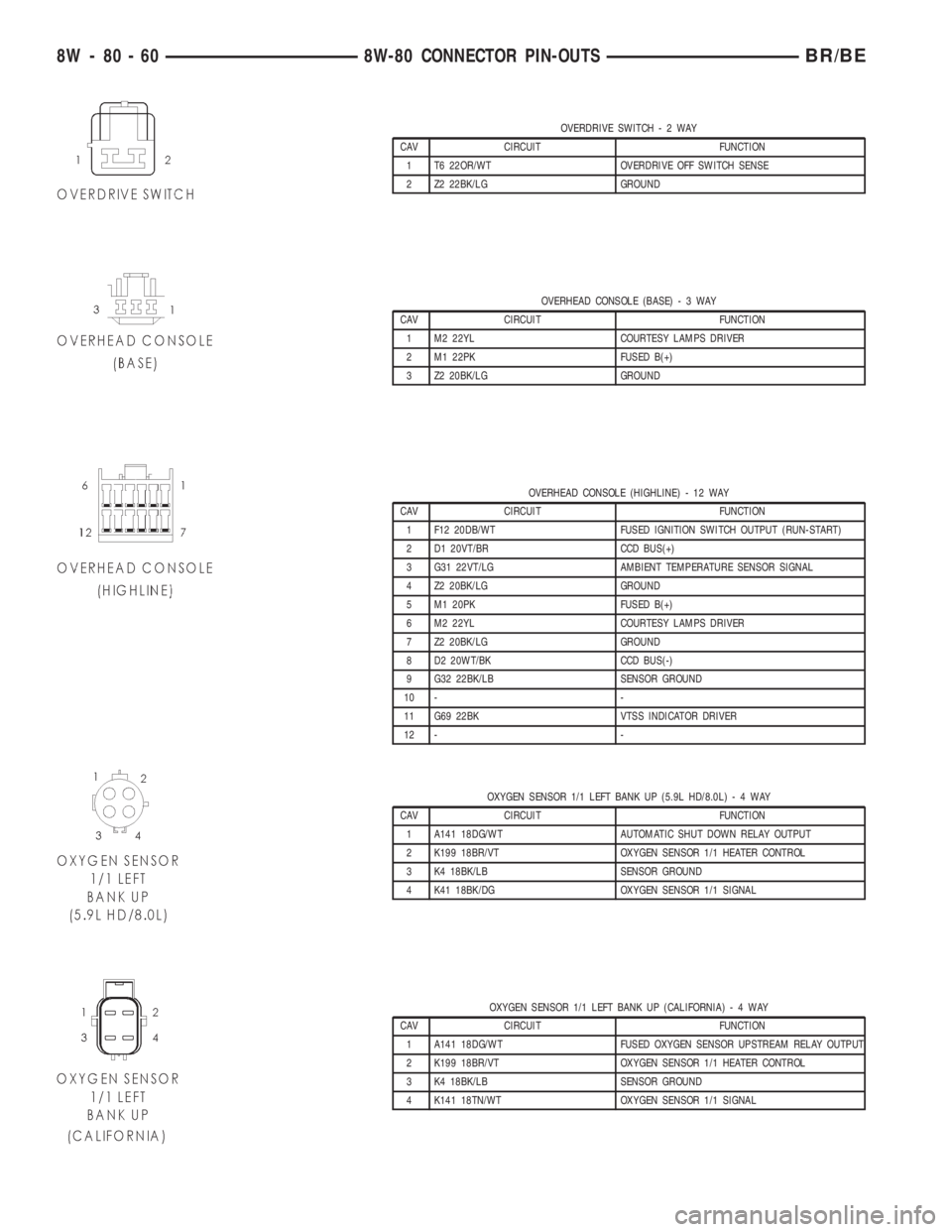

OVERDRIVE SWITCH-2WAY
CAV CIRCUIT FUNCTION
1 T6 22OR/WT OVERDRIVE OFF SWITCH SENSE
2 Z2 22BK/LG GROUND
OVERHEAD CONSOLE (BASE)-3WAY
CAV CIRCUIT FUNCTION
1 M2 22YL COURTESY LAMPS DRIVER
2 M1 22PK FUSED B(+)
3 Z2 20BK/LG GROUND
OVERHEAD CONSOLE (HIGHLINE) - 12 WAY
CAV CIRCUIT FUNCTION
1 F12 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
2 D1 20VT/BR CCD BUS(+)
3 G31 22VT/LG AMBIENT TEMPERATURE SENSOR SIGNAL
4 Z2 20BK/LG GROUND
5 M1 20PK FUSED B(+)
6 M2 22YL COURTESY LAMPS DRIVER
7 Z2 20BK/LG GROUND
8 D2 20WT/BK CCD BUS(-)
9 G32 22BK/LB SENSOR GROUND
10 - -
11 G69 22BK VTSS INDICATOR DRIVER
12 - -
OXYGEN SENSOR 1/1 LEFT BANK UP (5.9L HD/8.0L)-4WAY
CAV CIRCUIT FUNCTION
1 A141 18DG/WT AUTOMATIC SHUT DOWN RELAY OUTPUT
2 K199 18BR/VT OXYGEN SENSOR 1/1 HEATER CONTROL
3 K4 18BK/LB SENSOR GROUND
4 K41 18BK/DG OXYGEN SENSOR 1/1 SIGNAL
OXYGEN SENSOR 1/1 LEFT BANK UP (CALIFORNIA)-4WAY
CAV CIRCUIT FUNCTION
1 A141 18DG/WT FUSED OXYGEN SENSOR UPSTREAM RELAY OUTPUT
2 K199 18BR/VT OXYGEN SENSOR 1/1 HEATER CONTROL
3 K4 18BK/LB SENSOR GROUND
4 K141 18TN/WT OXYGEN SENSOR 1/1 SIGNAL
8W - 80 - 60 8W-80 CONNECTOR PIN-OUTSBR/BE
