Checking Cooling System ....................................... 42
Checking Fuel Lines ................................................ 43
Checking and Replacing Fuel Filter and Draining
Water ....................................................................... 43
Changing Air Cleaner Filter ..................................... 44
Changing Engine Oil................................................ 45
Changing Engine Oil Filter ...................................... 45
Checking Injection Nozzles ..................................... 46
Replacing Timing Belt .............................................. 47
CHASSIS AND BODY MAINTENANCE..................... 48
Checking Exhaust System....................................... 48
Checking Clutch Fluid Level and Leaks .................. 48
Checking Clutch System ......................................... 48
Checking M/T Oil ..................................................... 48
Changing M/T Oil..................................................... 49
Checking CVT Fluid Level ....................................... 49
Changing CVT Fluid ................................................ 50
Checking Brake Fluid Level and Leaks................... 51
Checking Brake System .......................................... 51
Changing Brake Fluid .............................................. 51
Checking Brake Booster, Vacuum Hoses,
Connections and Check Valve ................................ 51
Checking Disc Brake ............................................... 51
Balancing Wheels .................................................... 53Tire Rotation ............................................................ 53
Checking Steering Gear and Linkage ..................... 53
Checking Power Steering Fluid and Lines .............. 53
Lubricating Hood Latches, Locks and Hinges......... 54
Checking Seat Belts, Buckles, Retractors,
Anchors and Adjusters............................................. 54
Checking Body Corrosion ........................................ 55
QG
SERVICE DATA AND SPECIFICATIONS (SDS)........ 56
Engine Maintenance ................................................ 56
SR20DE
SERVICE DATA AND SPECIFICATIONS (SDS)........ 57
Engine Maintenance ................................................ 57
CD20T
SERVICE DATA AND SPECIFICATIONS (SDS)........ 58
Engine Maintenance ................................................ 58
SERVICE DATA AND SPECIFICATIONS (SDS)........ 59
Chassis and Body Maintenance .............................. 59
MA-2

Shown below are Pre-delivery Inspection Items required for the new vehicle. It is recommended that
necessary items other than those listed here be added, paying due regard to the conditions in each
country.
Perform applicable items on each model. Consult text of this section for specifications.
UNDER HOOD engine off
Radiator coolant level and coolant hose con-
nections for leaks
Battery fluid level, specific gravity and condi-
tions of battery terminals
Drive belts tension
Fuel filter for water or dust, fuel lines and con-
nections for leaks
Engine oil level and oil leaks
Clutch and brake reservoir fluid level and fluid
lines for leaks
Windshield and rear window washer and head-
lamp cleaner reservoir fluid level
Power steering reservoir fluid level and hose
connections for leaks
ON INSIDE AND OUTSIDE
Remove front spring/strut spacer (If applicable)
Operation of all instruments, gauges, lights and
accessories
Operation of horn(s), wiper and washer
Steering lock for operation
Check air conditioner for gas leaks
Front and rear seats, and seat belts for opera-
tion
All moldings, trims and fittings for fit and align-
ment
All windows for operation and alignment
Hood, trunk lid, door panels for fit and align-
ment
Latches, keys and locks for operation
Weatherstrips for adhesion and fit
Headlamp aiming
Tighten wheel nuts (Inc. inner nuts if appli-
cable)
Tire pressure (Inc. spare tire)
Check front wheels for toe-in
Install clock/voltmeter/room lamp fuse (If appli-
cable)
Install deodorizing filter to air purifier (If appli-
cable)
Remove wiper blade protectors (If applicable)
UNDER BODY
Manual transmission/transaxle, transfer and
differential gear oil level
Brake and fuel lines and oil/fluid reservoirs for
leaks
Tighten bolts and nuts of steering linkage and
gear box, suspension, propeller shafts and
drive shafts
Tighten rear body bolts and nuts (Models with
wooden bed only)
ROAD TEST
Clutch operation
Parking brake operation
Service brake operation
Automatic transmission/transaxle shift timing
and kickdown
Steering control and returnability
Engine performance
Squeaks and rattles
ENGINE OPERATING AND HOT
Adjust idle mixture and speed (and ignition tim-
ing*1)
Automatic transmission/transaxle fluid level
Engine idling and stop knob operation (Diesel
only)
FINAL INSPECTION
Install necessary parts (outside mirror, wheel
covers, seat belts, mat, carpet or mud flaps)
Inspect for interior and exterior metal and paint
damage
Check for spare tire, jack, tools (wheel chock),
and literature
Wash, clean interior and exterior
*1: Not required on models with a direct ignition system
: Not applicable to this model.
PRE-DELIVERY INSPECTION ITEMS
MA-4

Maintenance Schedule for Diesel Engines
(Annual Mileage < 30,000 km/year)
CD20T engine
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary C = Clean [ ] = At the specified mileage only
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Perform on a kilometer basis, but on a
semi-annual basis when driving less than
20,000 km (12,000 miles) per year.km×1,000 10 20 30 40 50 60 70 80 90 100 110 120
(miles x 1,000) (6) (12) (18) (24) (30) (36) (42) (48) (54) (60) (66) (72)
Months 6 12 18 24 30 36 42 48 54 60 66 72 CD20T
Engine compartment and under vehicleReference
pages
Engine oil (Use recommended oil)*RRRRRRRRRRRRMA-45
Engine oil filter (Use NISSAN genuine part or equivalent)*RRRRRRRRRRRRMA-45
Drive beltsIIIIIIIIIIIIMA-39
Timing beltsCamshaft [R] EM-59
Injection pump [R] EM-59
Cooling systemIIIIIIMA-42
Engine anti-freeze coolant (Use genuine
NISSAN Anti-freeze Coolant (L2N) or
equivalent)See NOTE (1) MA-40
Air cleaner filter*R R MA-44
Fuel linesI I I MA-43
Injection nozzles See NOTE (2) MA-46
Fuel filterR R R MA-43
NOTE: (1) First replace at 80,000 km (48,000 miles)/48 months, then every 60,000 km (36,000 miles)/36 months.
(2) If engine power decreases, black exhaust smoke is emitted or engine noise increases, inspect and if necessary,
adjust the fuel injection nozzles starting pressure and spray pattern.
* Maintenance items with“*”should be performed more frequently according to“Maintenance under severe driving
conditions”.
PERIODIC MAINTENANCE
MA-8

Maintenance Schedule for Diesel Engines
(Annual Mileage > 30,000 km/year)
CD20T engine
Abbreviations: R = Replace I = Inspect: Correct or replace if necessary C = Clean
MAINTENANCE OPERATION MAINTENANCE INTERVAL
Perform on a kilometer basis only.km×1,000 10 20 30 40 50 60 70 80 90 100 110 120
(miles x 1,000) (6) (12) (18) (24) (30) (36) (42) (48) (54) (60) (66) (72) CD20T
Engine compartment and under vehicleReference
pages
Engine oil (Use recommended oil)*RRRRRRRRRRRRMA-45
Engine oil filter (Use NISSAN genuine part or equivalent)*RRRRRRRRRRRRMA-45
Drive beltsIIIIIIIIIIIIMA-39
Timing beltsCamshaftR MA-47
Injection pump R MA-47
Cooling systemIIIIMA-42
Engine anti-freeze coolant (Use genuine NISSAN
Anti-Freeze Coolant (L2N) or equivalent)See NOTE (1) MA-40
Air cleaner filter*R R MA-44
Fuel linesI I MA-43
Injection nozzles See NOTE (2) MA-46
Fuel filterR R MA-43
NOTE: (1) First replace at 90,000 km (54,000 miles), then every 60,000 km (36,000 miles).
(2) If engine power decreases, black exhaust smoke is emitted or engine noise increases, inspect and if necessary,
adjust the fuel injection nozzles starting pressure and spray pattern.
* Maintenance items with“*”should be performed more frequently according to“Maintenance under severe driv-
ing conditions”.
PERIODIC MAINTENANCE
MA-13

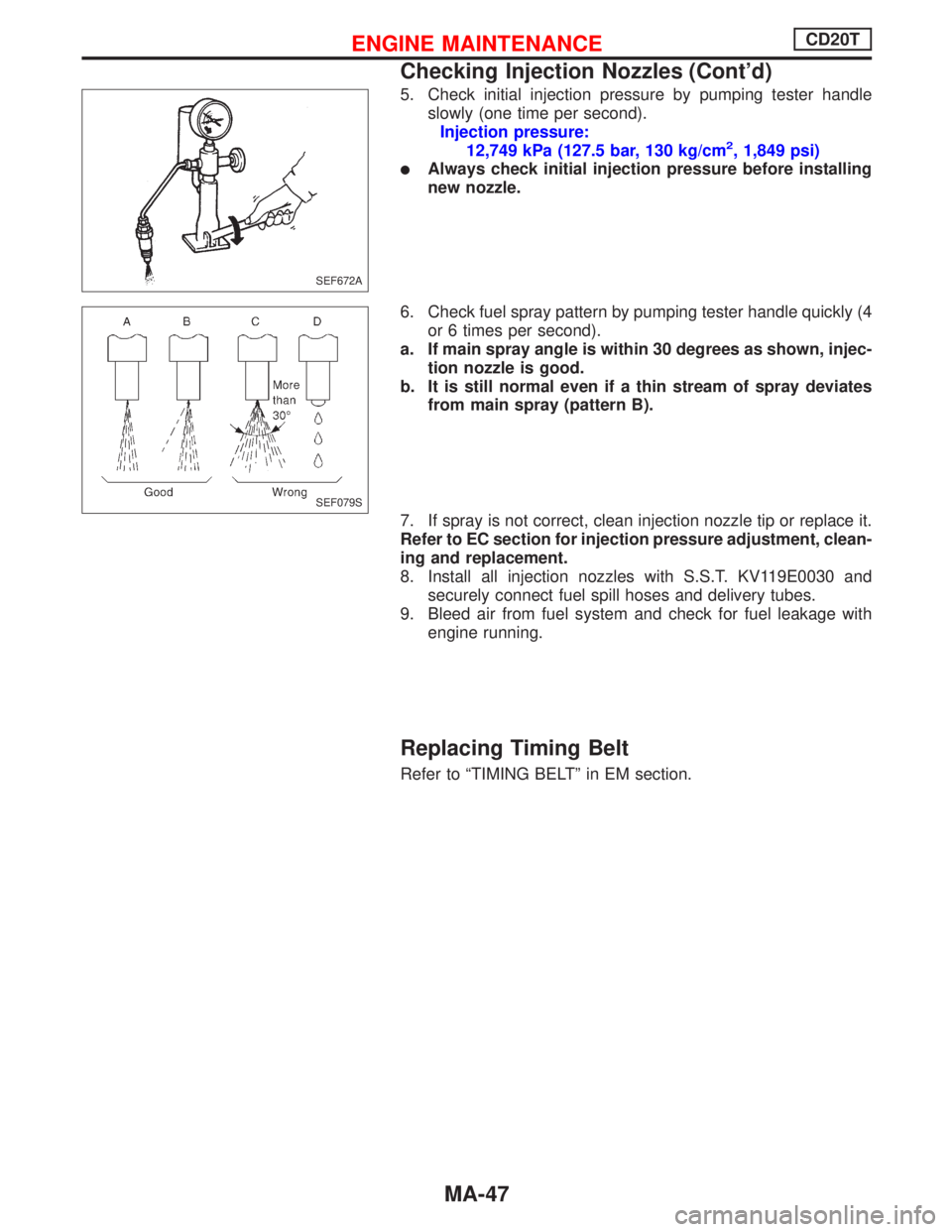

5. Check initial injection pressure by pumping tester handle
slowly (one time per second).
Injection pressure:
12,749 kPa (127.5 bar, 130 kg/cm
2, 1,849 psi)

Always check initial injection pressure before installing
new nozzle.
6. Check fuel spray pattern by pumping tester handle quickly (4
or 6 times per second).
a. If main spray angle is within 30 degrees as shown, injec-
tion nozzle is good.
b. It is still normal even if a thin stream of spray deviates
from main spray (pattern B).
7. If spray is not correct, clean injection nozzle tip or replace it.
Refer to EC section for injection pressure adjustment, clean-
ing and replacement.
8. Install all injection nozzles with S.S.T. KV119E0030 and
securely connect fuel spill hoses and delivery tubes.
9. Bleed air from fuel system and check for fuel leakage with
engine running.
Replacing Timing Belt
Refer to“TIMING BELT”in EM section.
SEF672A
SEF079S
ENGINE MAINTENANCECD20T
Checking Injection Nozzles (Cont’d)
