1999 NISSAN PRIMERA timing belt

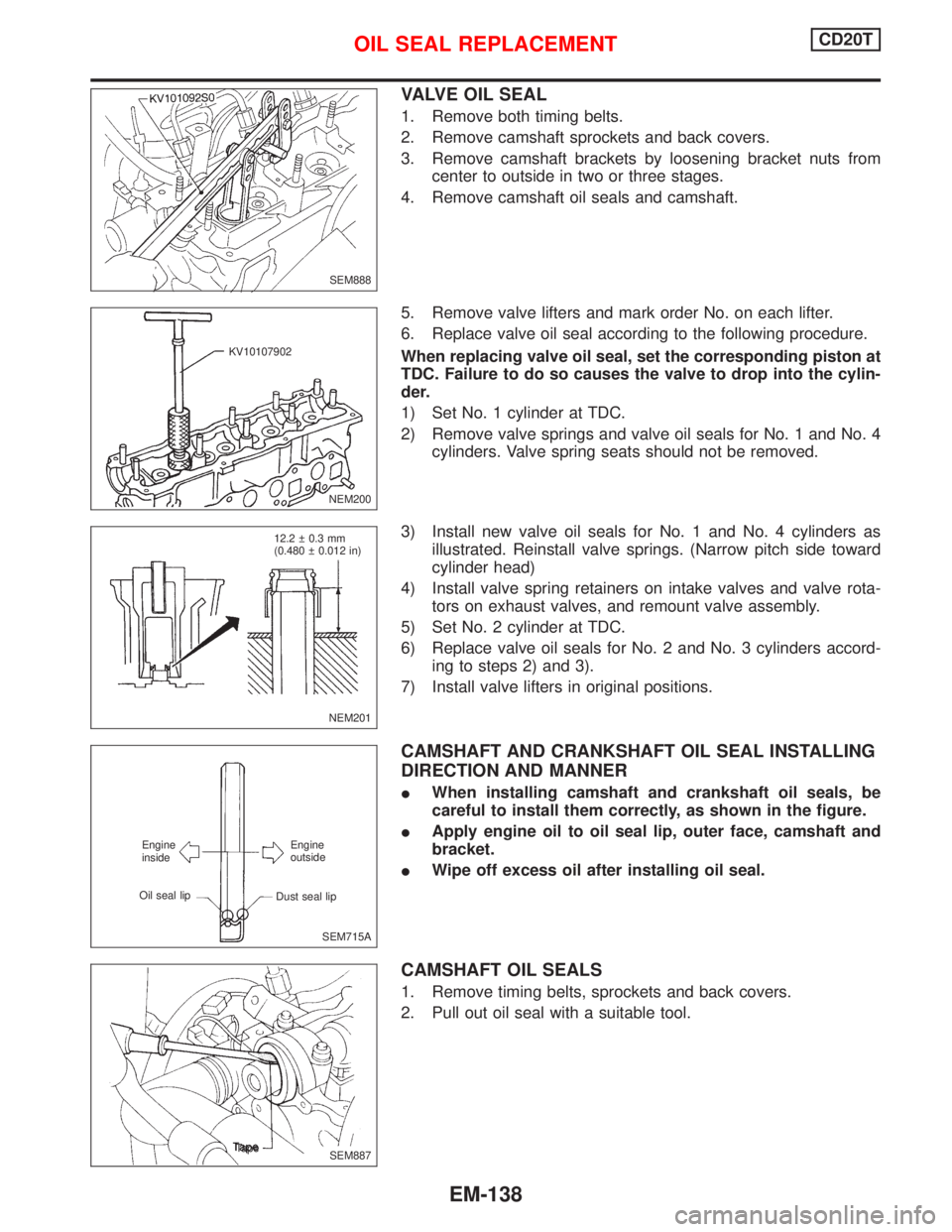

VALVE OIL SEAL
1. Remove both timing belts.
2. Remove camshaft sprockets and back covers.
3. Remove camshaft brackets by loosening bracket nuts from
center to outside in two or three stages.
4. Remove camshaft oil seals and camshaft.
5. Remove valve lifters and mark order No. on each lifter.
6. Replace valve oil seal according to the following procedure.
When replacing valve oil seal, set the corresponding piston at
TDC. Failure to do so causes the valve to drop into the cylin-
der.
1) Set No. 1 cylinder at TDC.
2) Remove valve springs and valve oil seals for No. 1 and No. 4
cylinders. Valve spring seats should not be removed.
3) Install new valve oil seals for No. 1 and No. 4 cylinders as
illustrated. Reinstall valve springs. (Narrow pitch side toward
cylinder head)
4) Install valve spring retainers on intake valves and valve rota-
tors on exhaust valves, and remount valve assembly.
5) Set No. 2 cylinder at TDC.
6) Replace valve oil seals for No. 2 and No. 3 cylinders accord-
ing to steps 2) and 3).
7) Install valve lifters in original positions.
CAMSHAFT AND CRANKSHAFT OIL SEAL INSTALLING
DIRECTION AND MANNER
IWhen installing camshaft and crankshaft oil seals, be
careful to install them correctly, as shown in the figure.
IApply engine oil to oil seal lip, outer face, camshaft and
bracket.
IWipe off excess oil after installing oil seal.
CAMSHAFT OIL SEALS
1. Remove timing belts, sprockets and back covers.
2. Pull out oil seal with a suitable tool.
SEM888
NEM200 KV10107902
NEM201 12.2   0.3 mm
(0.480   0.012 in)
SEM715A Engine
inside
Oil seal lipEngine
outside
Dust seal lip
.SEM887 Tape
OIL SEAL REPLACEMENTCD20T
EM-138

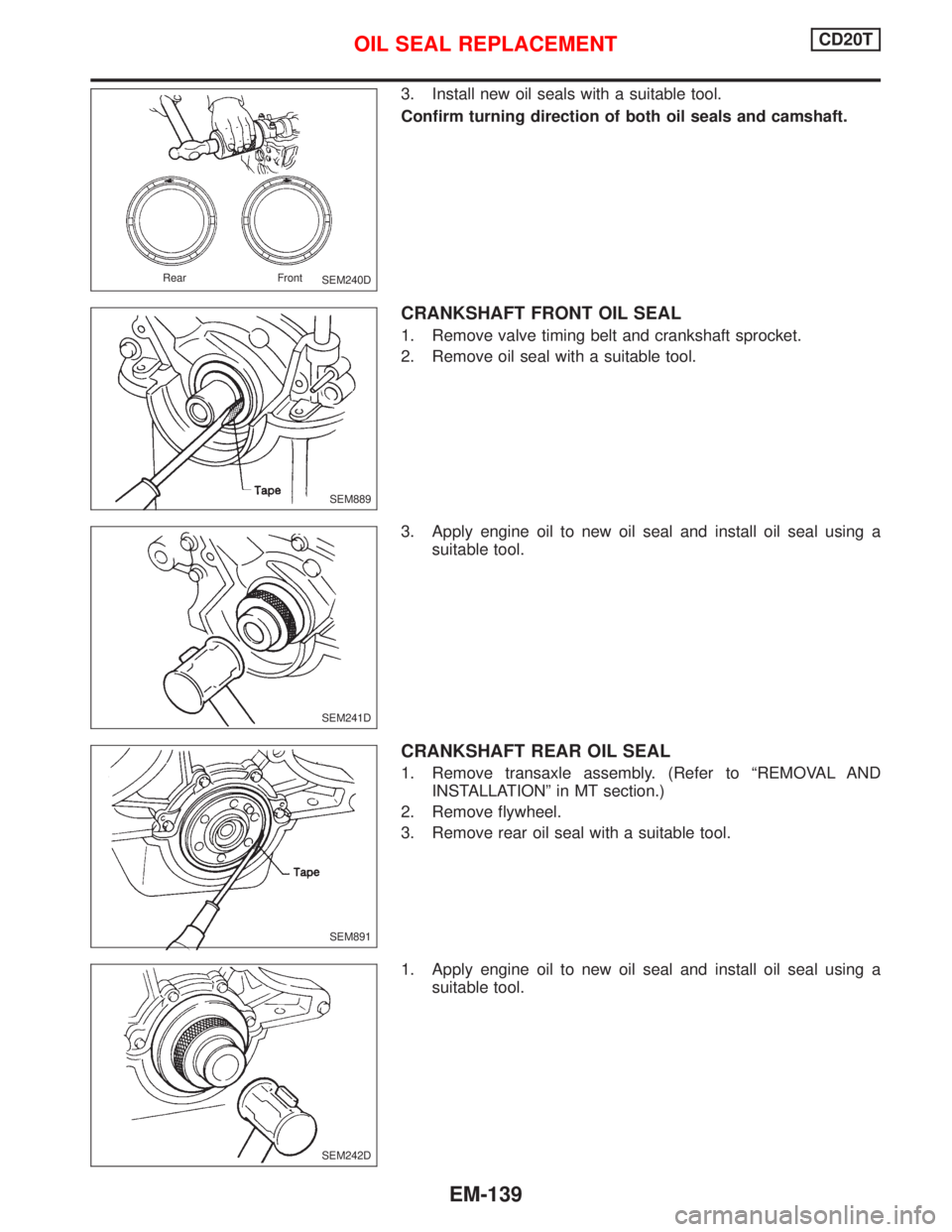

3. Install new oil seals with a suitable tool.
Confirm turning direction of both oil seals and camshaft.
CRANKSHAFT FRONT OIL SEAL
1. Remove valve timing belt and crankshaft sprocket.
2. Remove oil seal with a suitable tool.
3. Apply engine oil to new oil seal and install oil seal using a
suitable tool.
CRANKSHAFT REAR OIL SEAL
1. Remove transaxle assembly. (Refer to ªREMOVAL AND
INSTALLATIONº in MT section.)
2. Remove flywheel.
3. Remove rear oil seal with a suitable tool.
1. Apply engine oil to new oil seal and install oil seal using a
suitable tool.
SEM240D Rear Front
SEM889
SEM241D
SEM891
SEM242D
OIL SEAL REPLACEMENTCD20T
EM-139

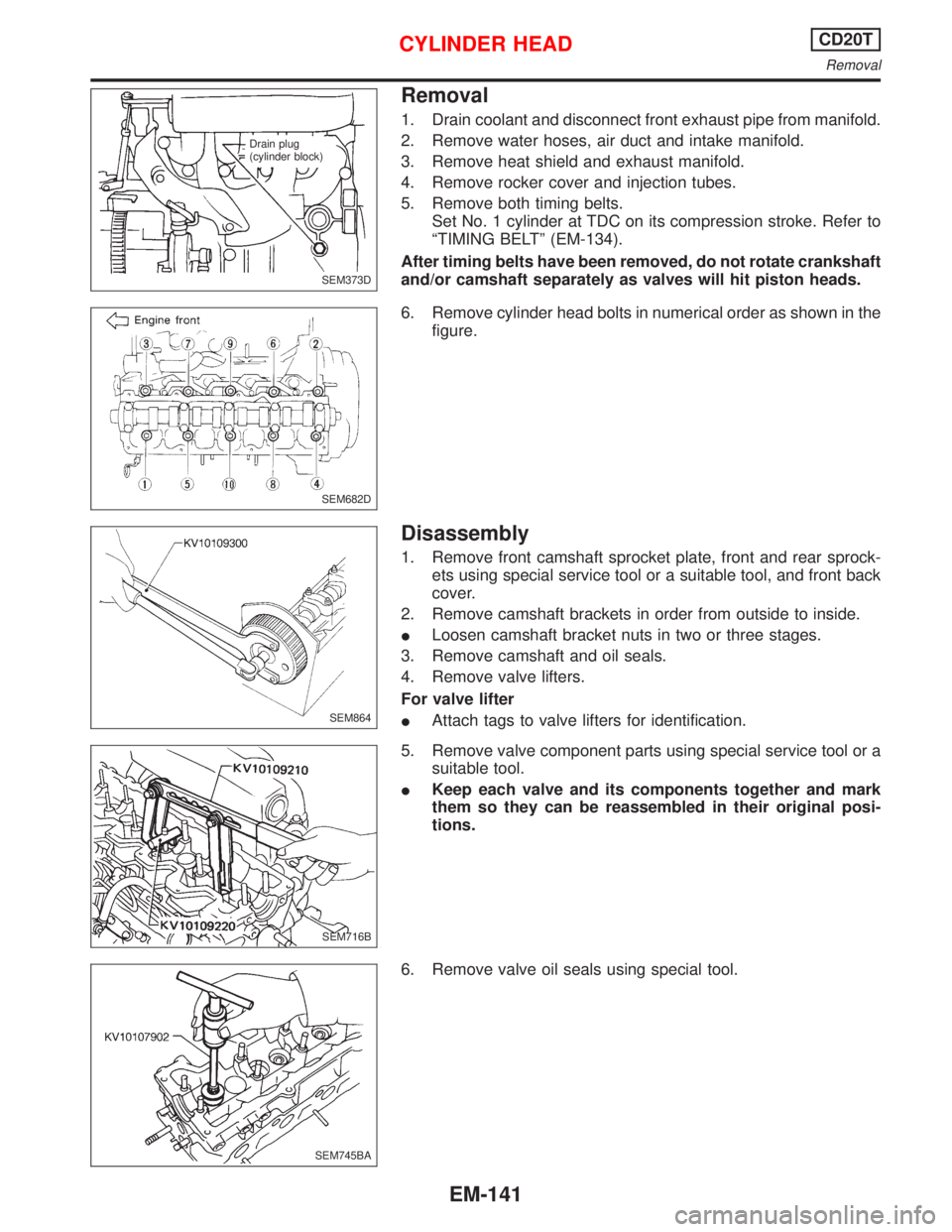

Removal
1. Drain coolant and disconnect front exhaust pipe from manifold.
2. Remove water hoses, air duct and intake manifold.
3. Remove heat shield and exhaust manifold.
4. Remove rocker cover and injection tubes.
5. Remove both timing belts.
Set No. 1 cylinder at TDC on its compression stroke. Refer to
ªTIMING BELTº (EM-134).
After timing belts have been removed, do not rotate crankshaft
and/or camshaft separately as valves will hit piston heads.
6. Remove cylinder head bolts in numerical order as shown in the
figure.
Disassembly
1. Remove front camshaft sprocket plate, front and rear sprock-
ets using special service tool or a suitable tool, and front back
cover.
2. Remove camshaft brackets in order from outside to inside.
ILoosen camshaft bracket nuts in two or three stages.
3. Remove camshaft and oil seals.
4. Remove valve lifters.
For valve lifter
IAttach tags to valve lifters for identification.
5. Remove valve component parts using special service tool or a
suitable tool.
IKeep each valve and its components together and mark
them so they can be reassembled in their original posi-
tions.
6. Remove valve oil seals using special tool.
SEM373D Drain plug
(cylinder block)
SEM682D
SEM864
SEM716B
SEM745BA
CYLINDER HEADCD20T
Removal
EM-141

Preparation
IDrill a hole into the attachment (KV10108101).
Disassembly
PISTON AND CRANKSHAFT
1. Place engine on a work stand.
2. Drain coolant and oil.
3. Remove timing belt.
4. Remove water pump.
5. Remove oil pan and oil pump.
6. Remove cylinder head.
7. Remove pistons with connecting rods.
When disassembling piston and connecting rod, heat piston
to 60 to 70ÉC (140 to 158ÉF) or use piston pin press stand at
room temperature.
8. Remove main bearing cap and crankshaft.
Place the bearings and caps in their proper order.
Upper bearings (cylinder block side) have oil groove.
9. Remove piston rings with a tool.
SEM707D
SEM895
SEM360D Piston with connecting rod
Heater
SEM359F Engine front
Loosen in numerical order
SEM291
CYLINDER BLOCKCD20T
Preparation
EM-167

S/SIG - Wiring diagram ....EC-QG-333, EC-SR-313,
EC-CD-145
Stabilizer bar (front) ........................................FA-32
Stall test (A/T) .................................................AT-34
Standardized relay ............................................EL-8
START - Wiring diagram .................................EL-37
Start signal .................EC-QG-38, 332, EC-SR-312,
EC-CD-145
Starter .......................................................EL-37, 43
Starting system ...............................................EL-37
Steering gear and linkage inspection ............MA-53
Steering knuckle........................................FA-11, 12
Stop lamp ......................................................EL-104
STOP/L - Wiring diagram..............................EL-104
Sun roof, electric ...........................................EL-230
Sunload sensor ..............................................HA-86
Sunroof .....................................................BT-31, 46
Super lock .............................................EL-245, 265
Supplemental Restraint System .......................RS-8
Supplemental restraint system - Wiring
diagram .......................................................RS-33
Symbols and abbreviations .............................GI-38
Symptom matrix chart ...........EC-QG-82, EC-SR-94
Synchronizer (M/T) ......................MT-22, 27, 59, 65
System readiness test (SRT) code ..........EC-SR-50
T
Tachometer ...........................................EL-141, 146
Tail lamp ........................................................EL-100
TCM circuit diagram ........................................AT-10
TCM inspection table ......................................AT-41
Temperature control cable and linkage
adjustment ..................................................HA-83
THEFT - Wiring diagram ...............................EL-316
Theft warning system ....................................EL-311
Thermal protector .........................................HA-113
Thermo control amp .......................................HA-80
Thermostat ..........................................LC-11, 23, 34
Third link (front susp.) .....................................FA-29
Three way catalyst ............EC-QG-258, EC-SR-246
Three way catalyst precautions.........................GI-6
Throttle position sensor
(TPS) .............................EC-QG-125, EC-SR-137
Throttle position sensor
adjustment .........................EC-QG-72, EC-SR-84
Throttle position switch ...............EC-SR-271, AT-85
Tightening torque of standard bolts.................GI-50
Time control system ......................................EL-306
Timing belt....................................................EM-131
Timing chain.............................................EM-19, 75
Tire rotation ....................................................MA-53
Tire size ...........................................................GI-45
Torque converter installation .........................AT-117
Torque convertor clutch solenoid valve...........AT-69
Tow truck towing ..............................................GI-46
Towing point.....................................................GI-49
TP/SW - Wiring diagram ........................EC-SR-273
TPS - Wiring diagram .......EC-QG-128, EC-SR-140
Transmission case (M/T) ................................MT-39Transverse link (front) .....................................FA-32
Trim .................................................................BT-18
Triple pressure switch ....................................HA-79
Trouble diagnoses ...........................................GI-35
Trunk lid ............................................................BT-7
Trunk lid opener - See Trunk lid .......................BT-7
Trunk room lamp...................................EL-130, 131
Trunk room trim...............................................BT-28
Turbocharger........................................EM-156, 201
Turbocharger precautions..................................GI-6
TURN - Wiring diagram.................................EL-118
Turn signal lamp............................................EL-117
Two trip detection logic .........EC-QG-36, EC-SR-48
U
Upper link (front susp.) ...................................FA-29
V
Vacuum hose (brake system).........................BR-20
Vacuum hose drawing (Engine
control) ............EC-QG-19, EC-SR-21, EC-CD-13
Valve clearance .............................EM-40, 179, 191
Valve guide..............EM-36, 93, 142, 180, 189, 197
Valve lifter ..............................EM-40, 145, 179, 198
Valve seat................EM-38, 95, 143, 182, 190, 198
Valve spring.............EM-39, 96, 145, 179, 189, 197
Vehicle identification number...........................GI-43
Vehicle speed sensor
(VSS) ..........EC-QG-267, EC-SR-255, EC-CD-70
Viscosity number (SAE) .................................MA-17
VSS - Wiring
diagram .......EC-QG-269, EC-SR-257, EC-CD-71
W
WARN - Wiring diagram ...............................EL-167
Warning buzzer .............................................EL-180
Warning chime ..............................................EL-180
Warning lamps ..............................................EL-165
Washer, front .................................................EL-186
Washer, rear..................................................EL-193
Water cock control rod adjustment ................HA-82
Water pump ........................................LC-10, 22, 33
Water temperature gauge .....................EL-141, 146
Weatherstrip - See Exterior ............................BT-31
Wheel alignment (front) ..................................FA-35
Wheel alignment (rear).....................................RA-6
Wheel balance ...............................................MA-53
Wheel bearing (front axle) ....................FA-6, 12, 35
Wheel bearing (rear) ........................................RA-5
Wheel hub (front) ............................................FA-12
Wheel hub (rear) ..............................................RA-7
Wheel sensors (ABS) .....................................BR-53
Wheel size .......................................................GI-45
Wheelbase (Dimensions) ................................GI-45
ALPHABETICAL INDEX
IDX-7

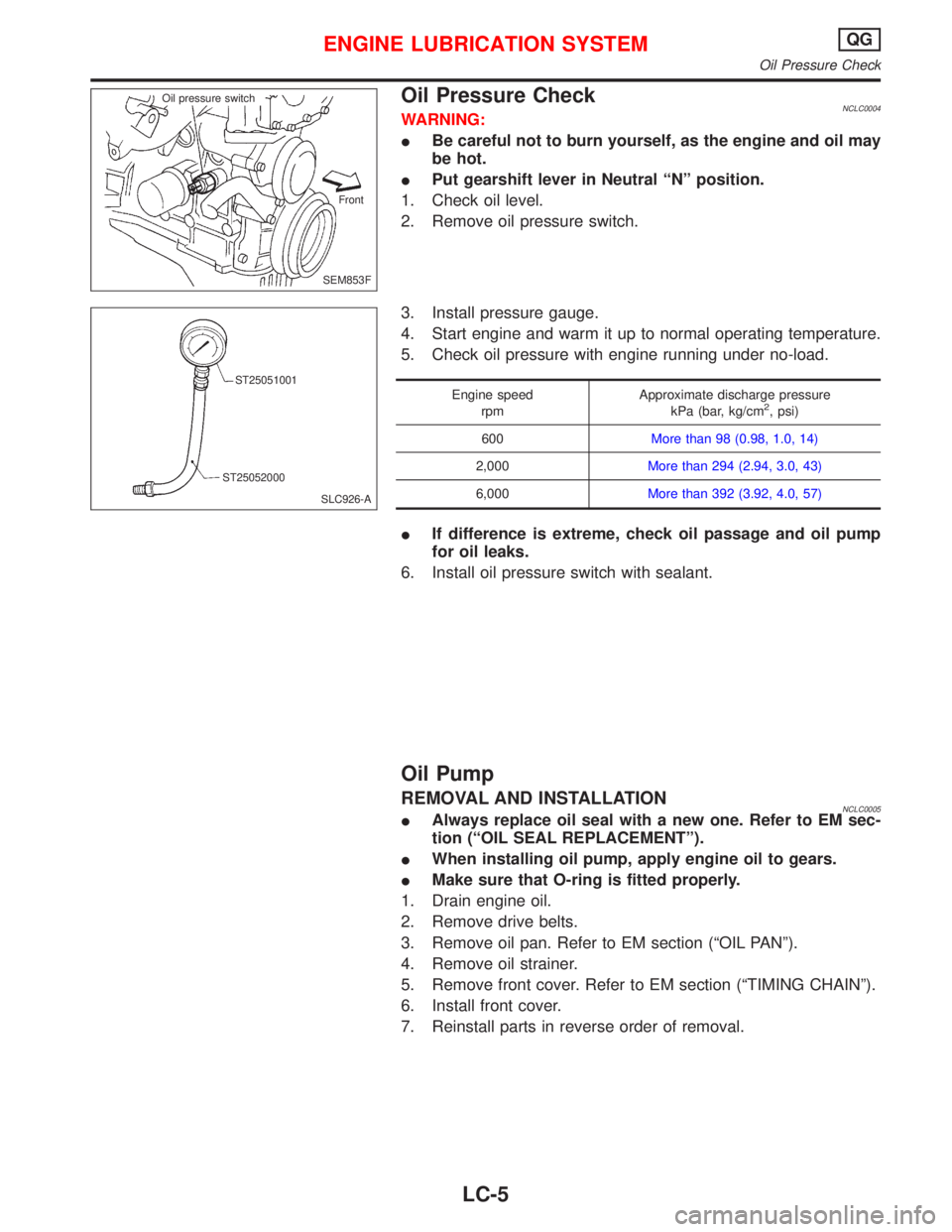

Oil Pressure CheckNCLC0004WARNING:

Be careful not to burn yourself, as the engine and oil may
be hot.

Put gearshift lever in Neutral “N” position.
1. Check oil level.
2. Remove oil pressure switch.
3. Install pressure gauge.
4. Start engine and warm it up to normal operating temperature.
5. Check oil pressure with engine running under no-load.
Engine speed
rpmApproximate discharge pressure
kPa (bar, kg/cm2, psi)
600More than 98 (0.98, 1.0, 14)
2,000More than 294 (2.94, 3.0, 43)
6,000More than 392 (3.92, 4.0, 57)

If difference is extreme, check oil passage and oil pump
for oil leaks.
6. Install oil pressure switch with sealant.
Oil Pump
REMOVAL AND INSTALLATIONNCLC0005
Always replace oil seal with a new one. Refer to EM sec-
tion (“OIL SEAL REPLACEMENT”).

When installing oil pump, apply engine oil to gears.

Make sure that O-ring is fitted properly.
1. Drain engine oil.
2. Remove drive belts.
3. Remove oil pan. Refer to EM section (“OIL PAN”).
4. Remove oil strainer.
5. Remove front cover. Refer to EM section (“TIMING CHAIN”).
6. Install front cover.
7. Reinstall parts in reverse order of removal.
SEM853F Oil pressure switch
Front
SLC926-A ST25051001
ST25052000
ENGINE LUBRICATION SYSTEMQG
Oil Pressure Check
LC-5

Oil Pressure Check
WARNING:

Be careful not to burn yourself, as the engine and oil may
be hot.

Oil pressure check should be done in“Neutral”gear posi-
tion.
1. Check oil level.
2. Remove oil pressure switch.
3. Install pressure gauge.
4. Start engine and warm it up to normal operating temperature.
5. Check oil pressure with engine running under no-load.
Engine rpm Approximate discharge pressure
kPa (bar, kg/cm2, psi)
Idle speedMore than 59 (0.59, 0.6, 9)
2,000294 (2.9, 3, 43)
If difference is extreme, check oil passage and oil pump for oil
leaks.
6. Install oil pressure switch with sealant.
Oil Pump
REMOVAL AND INSTALLATION
1. Drain engine coolant and engine oil.
2. Remove upper radiator hose, drive belts, crank pulley, timing
belt covers and timing belt. (Refer to EM section).
3. Remove exhaust front tube, timing belt pulley and rear engine
gusset (bar type), then remove oil pan. (Refer to EM section).
4. Remove crankshaft position sensor (TDC).
5. Remove oil pump assembly with oil strainer.
6. Reinstall any part removed. Refill engine oil and engine cool-
ant.

Apply liquid gasket to oil pump.

Apply liquid gasket to oil pan.

Apply liquid gasket to both ends of oil pan oil seals.

Install oil pan, fitting oil seals in the correct position.
SLC461
Oil filter
Oil pressure switch
SLC926-A ST2051001
ST25052000
SLC462A Rear engine gusset
SLC087B
9.2 - 10.8 N·m
(0.94 - 1.10 kg-m,
81.4 - 95.6 in-lb)Crankshaft
position
sensor
(TDC)
12 - 16 N·m
(1.2 - 1.6 kg-m,
9 - 12 ft-lb)
ENGINE LUBRICATION SYSTEMCD20T
Oil Pressure Check
LC-27

Water Pump
REMOVAL AND INSTALLATION
CAUTION:

When removing water pump assembly, be careful not to
get coolant on drive belt.

Water pump cannot be disassembled and should be
replaced as a unit.

After installing water pump, connect hose and clamp
securely, then check for leaks using radiator cap tester.
1. Remove radiator lower hose from radiator and drain engine
coolant.
2. Drain engine coolant from cylinder block.
3. Remove upper radiator hose, timing belt covers, front engine
mounting bracket and timing belt. (Refer to EM section).
4. Remove timing belt tensioner and idler and timing belt lower
back cover.
5. Remove water pump.

When installing water pump, replace the gasket with a new
one.
INSPECTION

Check body assembly for rust or corrosion.

Check for rough operation due to excessive end play.
.NLC040
.Radiator
.Radiator lower.hose
NLC041 Drain plug
(cylinder block)
.SLC562AA Water pump
SLC086B
22 - 25 N·m (2.2 - 2.6 kg-m, 16 - 19 ft-lb)
SLC760
ENGINE COOLING SYSTEMCD20T
Water Pump
LC-33
