CHASSIS AND BODY DIMENSIONS
77-1-14 BODY DIMENSIONS
Front end/side information
Gaps
The tolerance for gap 'e' is ± 1.0 (0.039), and for gap 'x' is ± 0.5 (0.019).
Profile
Section Gap Description Dimension
E-E e Bonnet to wing 6.0 (0.236)
x Fuel filler lid to body side panel 3.0 (0.118)
Section Description Dimension
E-E Profile of bonnet to wing +1.0 (0.039) -0.0

CHASSIS AND BODY DIMENSIONS
BODY DIMENSIONS 77-1-15
Side information
Gaps
The tolerance for gap 'f', 'g' and 'h' is ± 1.0 (0.039), and for gap 'j' is ± 2.0 (0.078).
Profiles
Section Gap Description Dimension
F-F f Wing to front door 6.0 (0.236)
G-G g Front door to rear door 6.0 (0.236)
H-H h Rear door to panel body side 6.0 (0.236)
J-J j Panel body side to roof 3.0 (0.118)
Section Description Dimension
F-F Profile of wing to front door +1.0 (0.039) -0.0
G-G Profile of front door to rear door +1.0 (0.039) -0.0
H-H Profile of rear door to panel body side +1.0 (0.039) -0.0

CHASSIS AND BODY DIMENSIONS
77-1-16 BODY DIMENSIONS
Rear end information
Gaps
The tolerance for gap 'k' and 'l' is ± 1.0 (0.039), and for gap 'm' is ± 2.0 (0.078).
Section Gap Description Dimension
K-K k Taildoor to body side panel 7.0 (0.275)
L-L l Taildoor to body side panel 7.0 (0.275)
M-M m Taildoor to roof 23.0 (0.905)

PANEL REPAIRS
REPLACEMENT PANELS 77-2-1
PANEL REPAIRS REPLACE ME NT PA NELS
Replacement panels
Front end outer panels
1Bonnet assembly
2Front wing3Wing support bracket

PANEL REPAIRS
77-2-2 REPLACEMENT PANELS

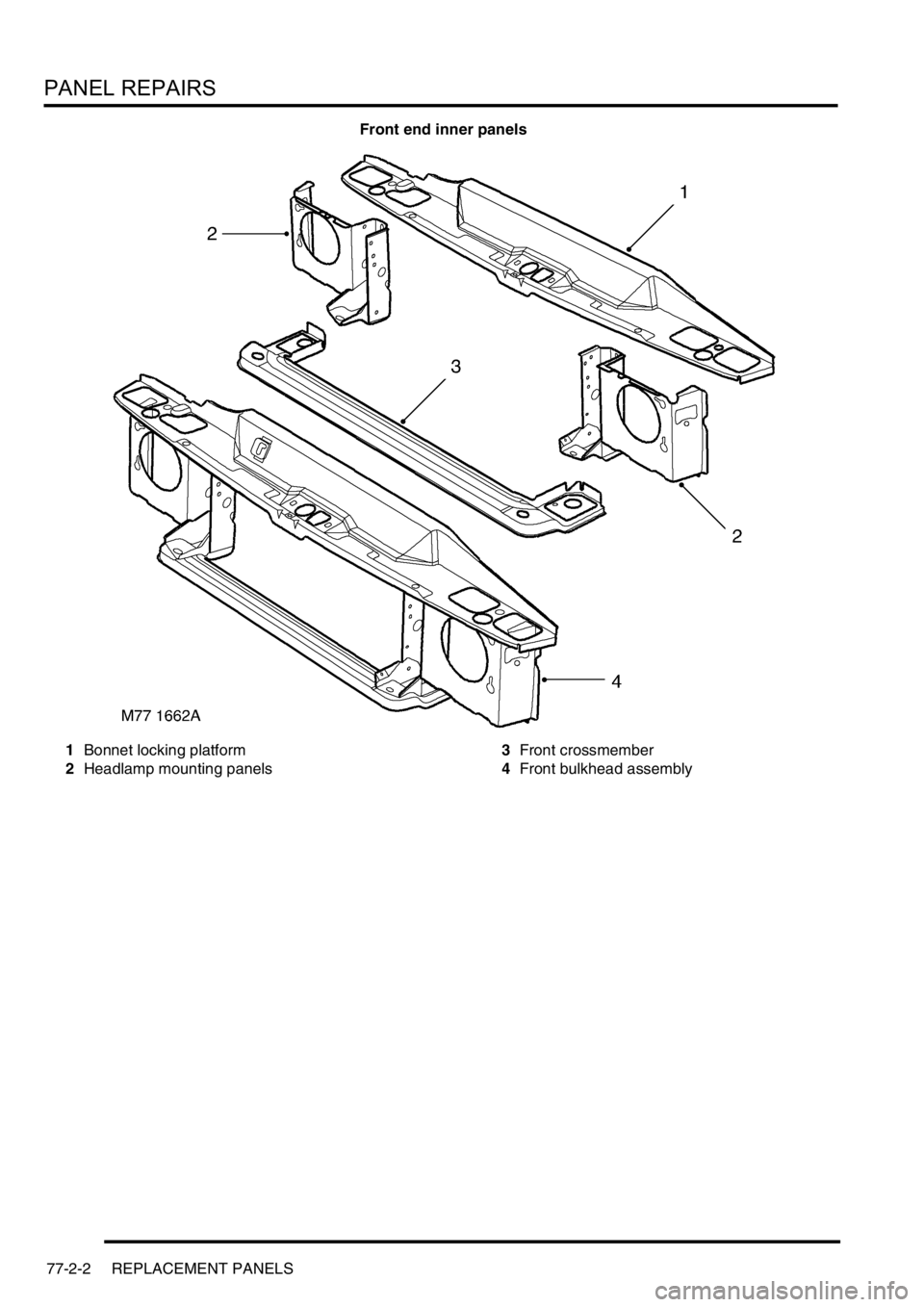

Front end inner panels
1Bonnet locking platform
2Headlamp mounting panels3Front crossmember
4Front bulkhead assembly

PANEL REPAIRS
REPLACEMENT PANELS 77-2-3

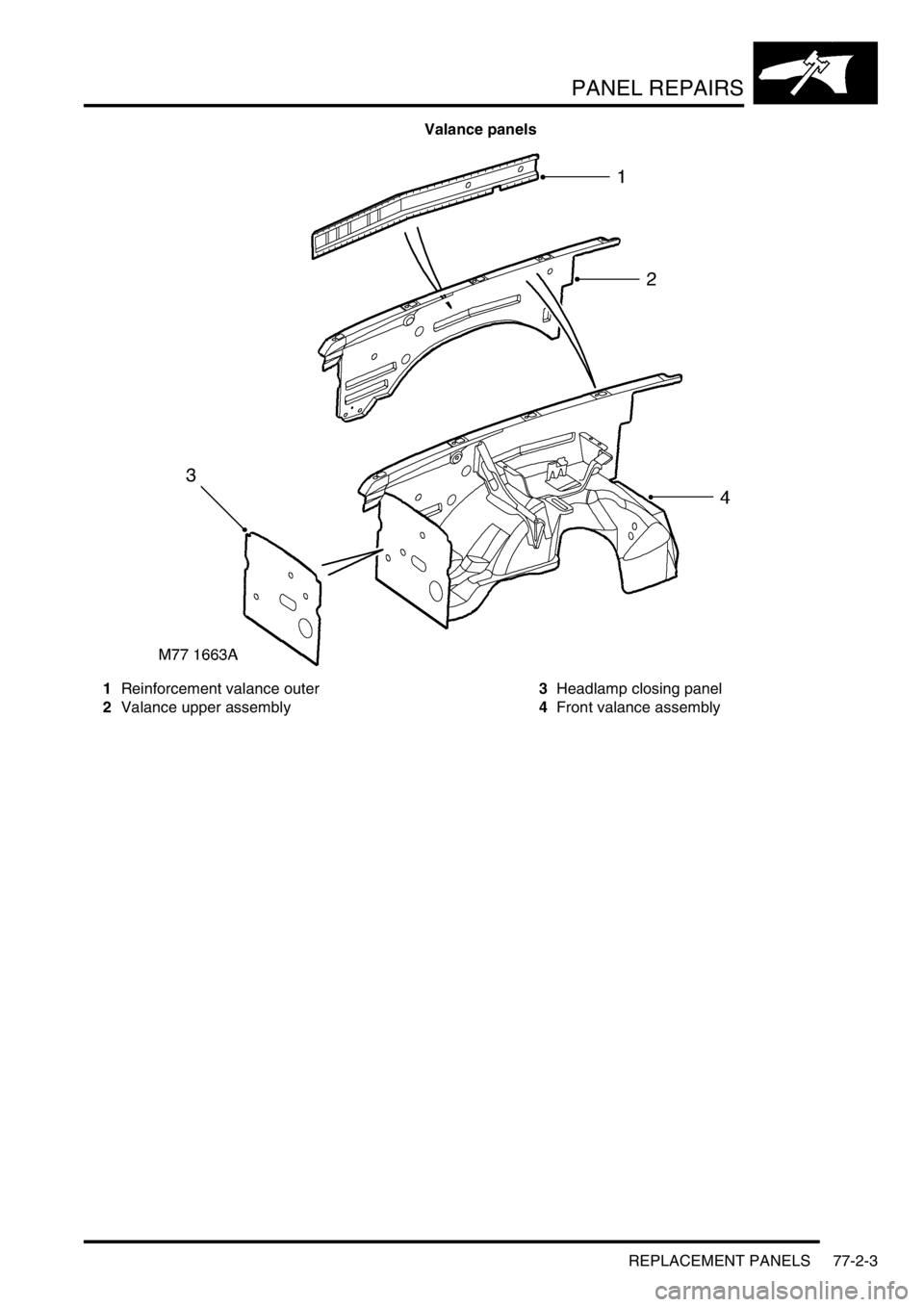

Valance panels
1Reinforcement valance outer
2Valance upper assembly3Headlamp closing panel
4Front valance assembly

PANEL REPAIRS
77-2-4 REPLACEMENT PANELS

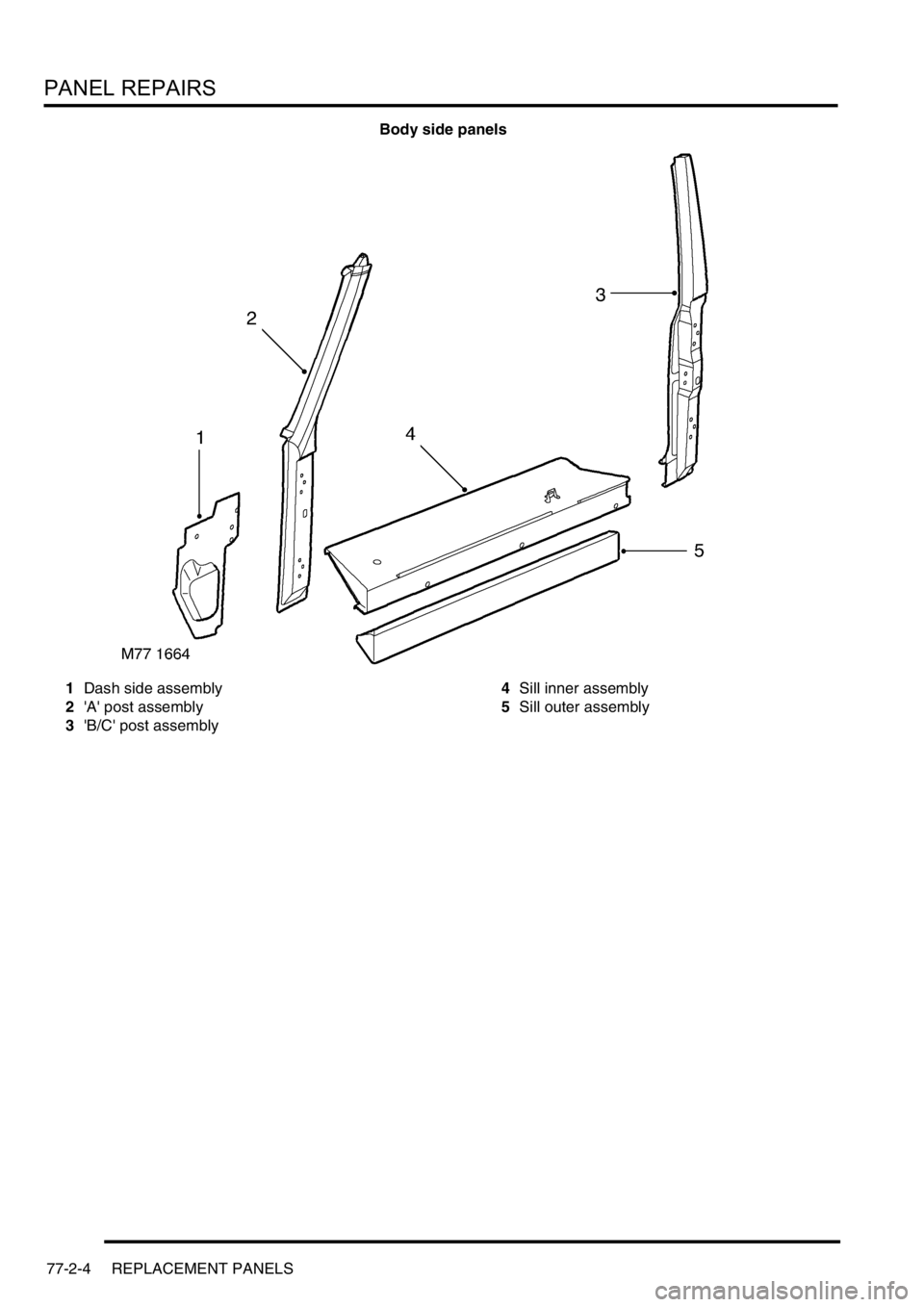

Body side panels
1Dash side assembly
2'A' post assembly
3'B/C' post assembly4Sill inner assembly
5Sill outer assembly

PANEL REPAIRS
REPLACEMENT PANELS 77-2-5

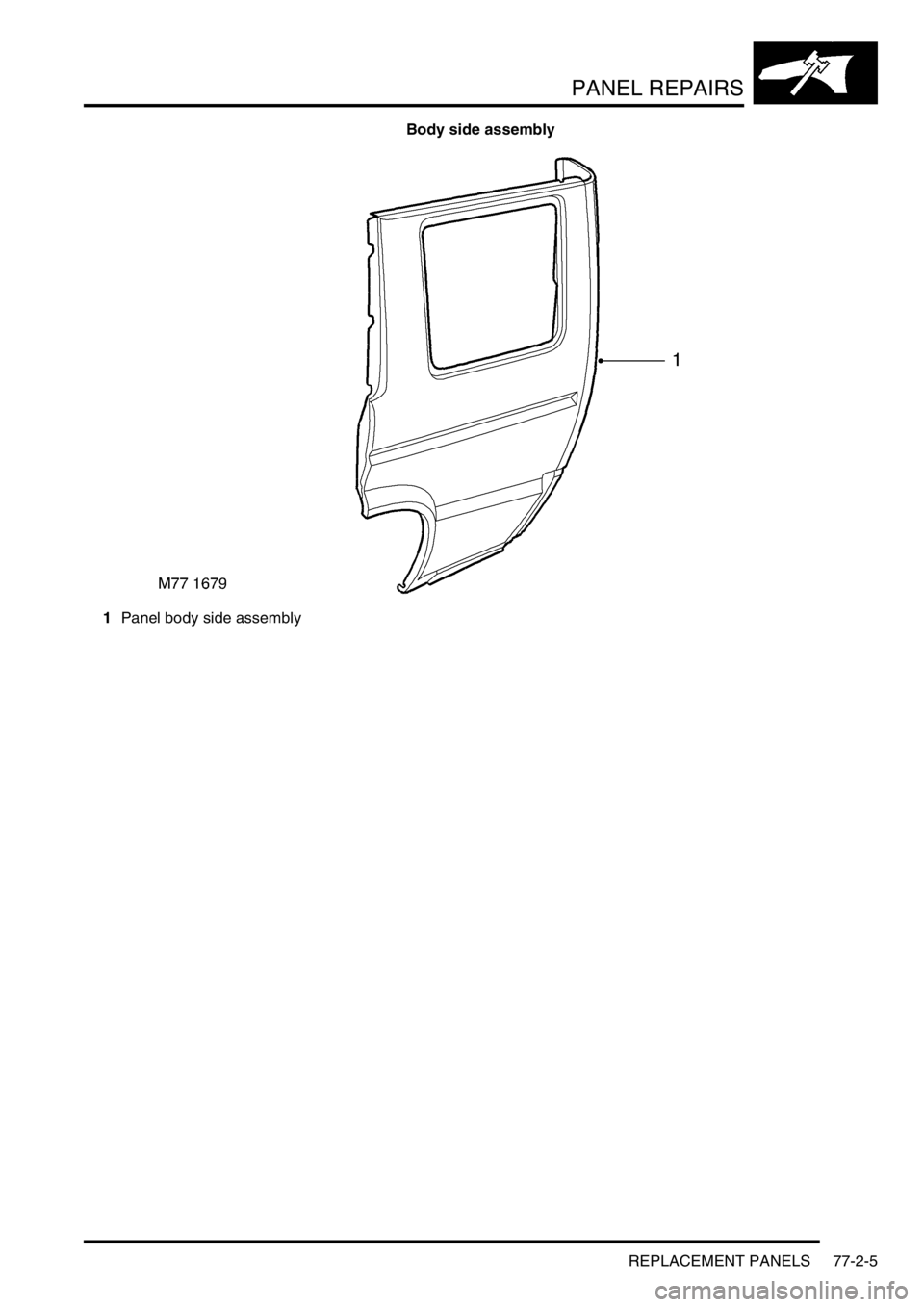

Body side assembly
1Panel body side assembly
