1999 LAND ROVER DISCOVERY Workshop Manual

LIGHTING
ADJUSTMENTS 86-2-1
LIGHTING ADJUST ME NTS
Headlamps beam alignment - up to 03MY
$% 86.40.17
Check
1.Ensure vehicle is unladen and tyres are at
correct pressures.
2. Models with SLS: Ensure vehicle is at
standard ride height.
3. Models with headlamp levelling: Ensure
headlamp levelling switch is set to '0'.
4.Align suitable beam setting equipment to
headlamp.
5.Switch headlamps on and measure main beam
settings. Beam must be 1.4% below the
horizontal and parallel to the vehicle centre line.
If necessary, adjust headlamp to get correct
beam settings.
6.Align beam setting equipment to 2nd headlamp
and repeat check.
7.Switch off headlamps and remove beam setting
equipment.Adjust
1. For RH headlamps: Release fixings and
remove battery cover
2.Remove headlamp access cover.
3.Turn vertical adjuster as necessary to get
correct beam setting. Use a 7 mm Allen key for
models with headlamp levelling, or a 10 mm
spanner for models without headlamp levelling.
4.Turn horizontal adjuster as necessary to get
correct beam setting. Use a 10 mm spanner.
5.Fit headlamp access cover.
6. For RH headlamp adjustment: Fit battery
cover and secure fixings.

LIGHTING
86-2-2 ADJUSTMENTS
Headlamps beam alignment - from 03MY
$% 86.40.17
Check
1.Ensure vehicle is unladen and tyres are set at
the correct pressures.
2. Models with SLS: Ensure vehicle is at the
standard ride height.
3. Models without SLS: Set headlamp leveling
switch to zero.
4.Align beam setting equipment to headlamp.
5.Switch on headlamps. Headlamp setting 1.2%
below horizontal and parallel.
6.Align beam setting equipment to second
headlamp and repeat the check.
Adjust
1.Using a flat blade screwdriver rotate the
headlamp adjusters until correct alignment is
achieved
2.Rotate inboard adjuster for verticle alignment.
3.Rotate outboard adjuster for horizontal
alignment.
4.Adjust 2nd headlamp as detailed above.
5.Switch off headlamps and remove beam setting
equipment.

LIGHTING
REPAIRS 86-2-3
REPAIRS
Lamp - front repeater - up to 03MY
$% 86.40.42
Remove
1. For RH repeater lamp: Release fixings and
remove battery cover.
2.Remove headlamp access cover from body.
3.Remove screw securing repeater lamp to body
and release lamp from 2 locating peg sockets in
wing.
4.Disconnect 2 multiplugs from repeater lamp
and remove lamp. Refit
1.Position new repeater lamp and connect
multiplugs.
2.Fit repeater lamp to body and tighten screw.
3.Fit headlamp access cover.
4. For RH repeater lamp: Fit battery cover and
secure fixings.

LIGHTING
86-2-4 REPAIRS
Headlamp - up to 03MY
$% 86.40.49
Remove
1. For RH headlamp: Release fixings and
remove battery cover.
2.Remove headlamp access cover from body.
3.Release headlamp from locating sockets.
4.Disconnect multiplugs from headlamp and side
lamp bulbs.
5.Remove headlamp.
NOTE: Do not carry out further dismantling if
component is removed for access only.6.Remove side lamp bulb holder from headlamp.
7.Remove rubber cover from headlamp.
8.Release headlamp bulb retaining clip and
remove headlamp bulb.
9.Remove 6 screws and remove headlamp
retaining sockets.
Refit
1.Fit retaining sockets to new headlamp and
secure with screws.
2.Fit headlamp bulb and secure with clip.
3.Fit rubber cover.
4.Fit side lamp bulb holder.
5.Position headlamp and connect multiplugs.
6.Fit headlamp onto locating pins.
7.Check headlamp beam alignment.

+ LIGHTING, ADJUSTMENTS,
Headlamps beam alignment - up to 03MY.
8.Fit headlamp access cover.
9. For RH headlamp: Fit battery cover and
secure with fixings.

LIGHTING
REPAIRS 86-2-5

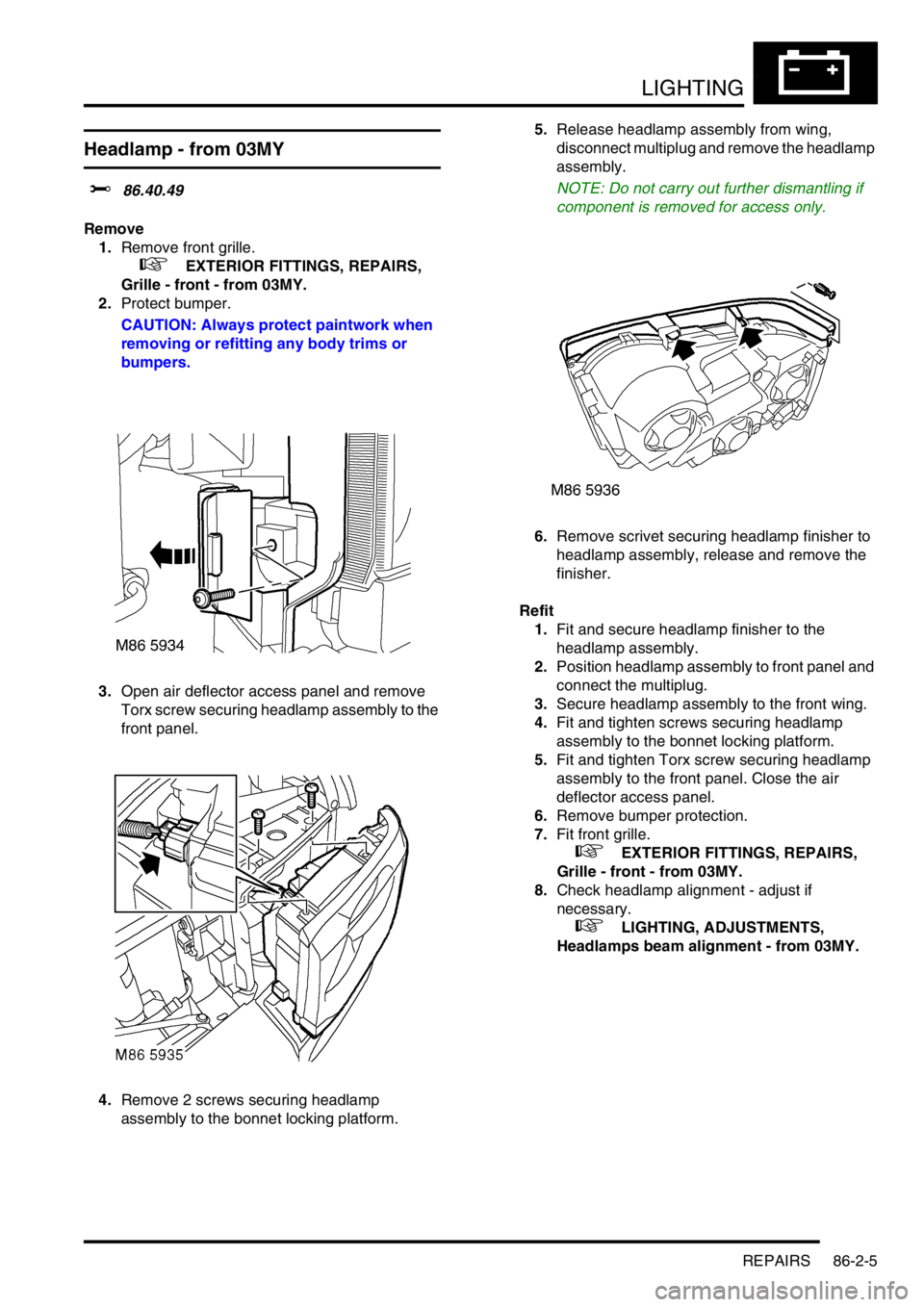

Headlamp - from 03MY
$% 86.40.49
Remove
1.Remove front grille.

+ EXTERIOR FITTINGS, REPAIRS,
Grille - front - from 03MY.
2.Protect bumper.
CAUTION: Always protect paintwork when
removing or refitting any body trims or
bumpers.
3.Open air deflector access panel and remove
Torx screw securing headlamp assembly to the
front panel.
4.Remove 2 screws securing headlamp
assembly to the bonnet locking platform.5.Release headlamp assembly from wing,
disconnect multiplug and remove the headlamp
assembly.
NOTE: Do not carry out further dismantling if
component is removed for access only.
6.Remove scrivet securing headlamp finisher to
headlamp assembly, release and remove the
finisher.
Refit
1.Fit and secure headlamp finisher to the
headlamp assembly.
2.Position headlamp assembly to front panel and
connect the multiplug.
3.Secure headlamp assembly to the front wing.
4.Fit and tighten screws securing headlamp
assembly to the bonnet locking platform.
5.Fit and tighten Torx screw securing headlamp
assembly to the front panel. Close the air
deflector access panel.
6.Remove bumper protection.
7.Fit front grille.

+ EXTERIOR FITTINGS, REPAIRS,
Grille - front - from 03MY.
8.Check headlamp alignment - adjust if
necessary.

+ LIGHTING, ADJUSTMENTS,
Headlamps beam alignment - from 03MY.

LIGHTING
86-2-6 REPAIRS

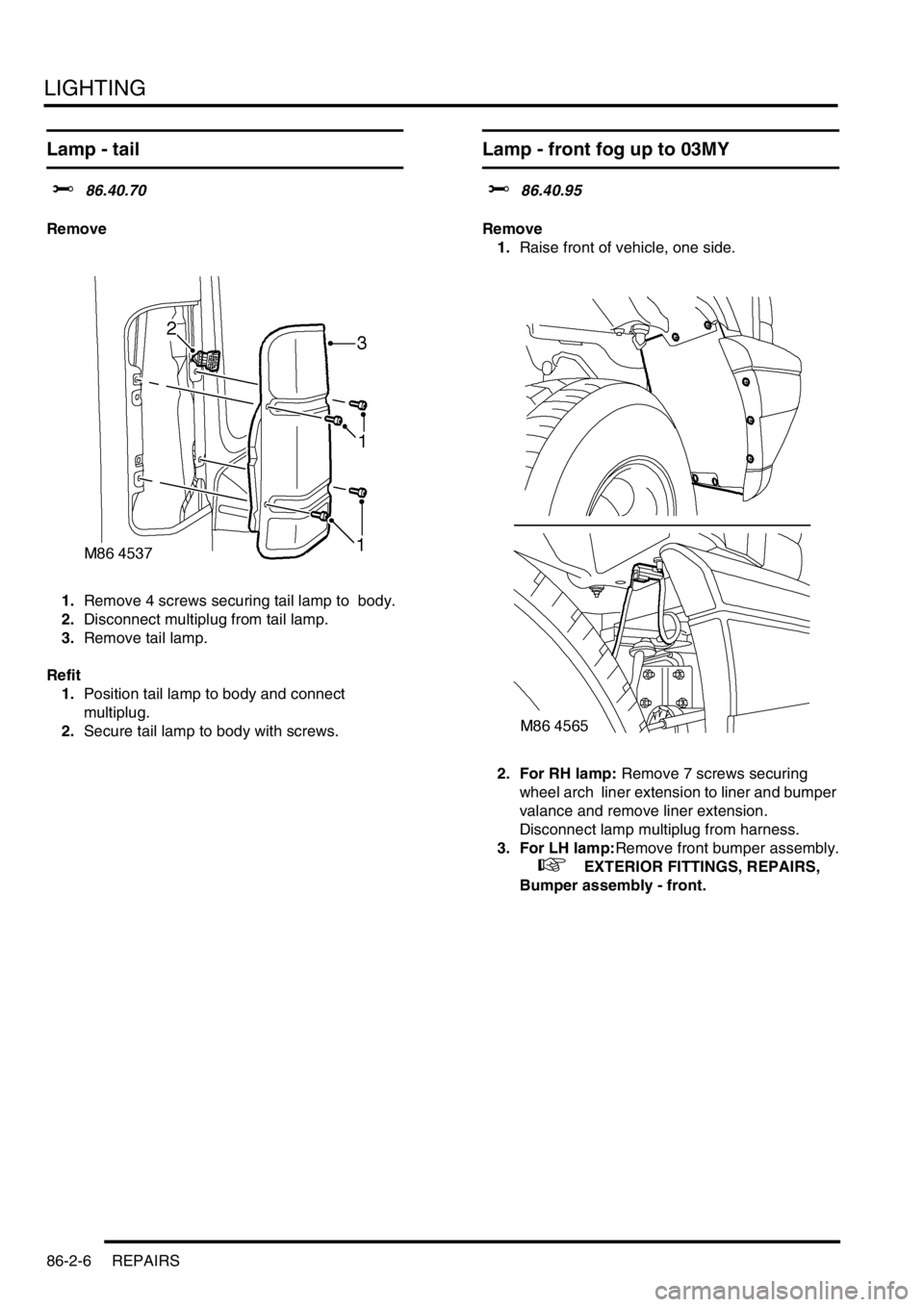

Lamp - tail
$% 86.40.70
Remove
1.Remove 4 screws securing tail lamp to body.
2.Disconnect multiplug from tail lamp.
3.Remove tail lamp.
Refit
1.Position tail lamp to body and connect
multiplug.
2.Secure tail lamp to body with screws.

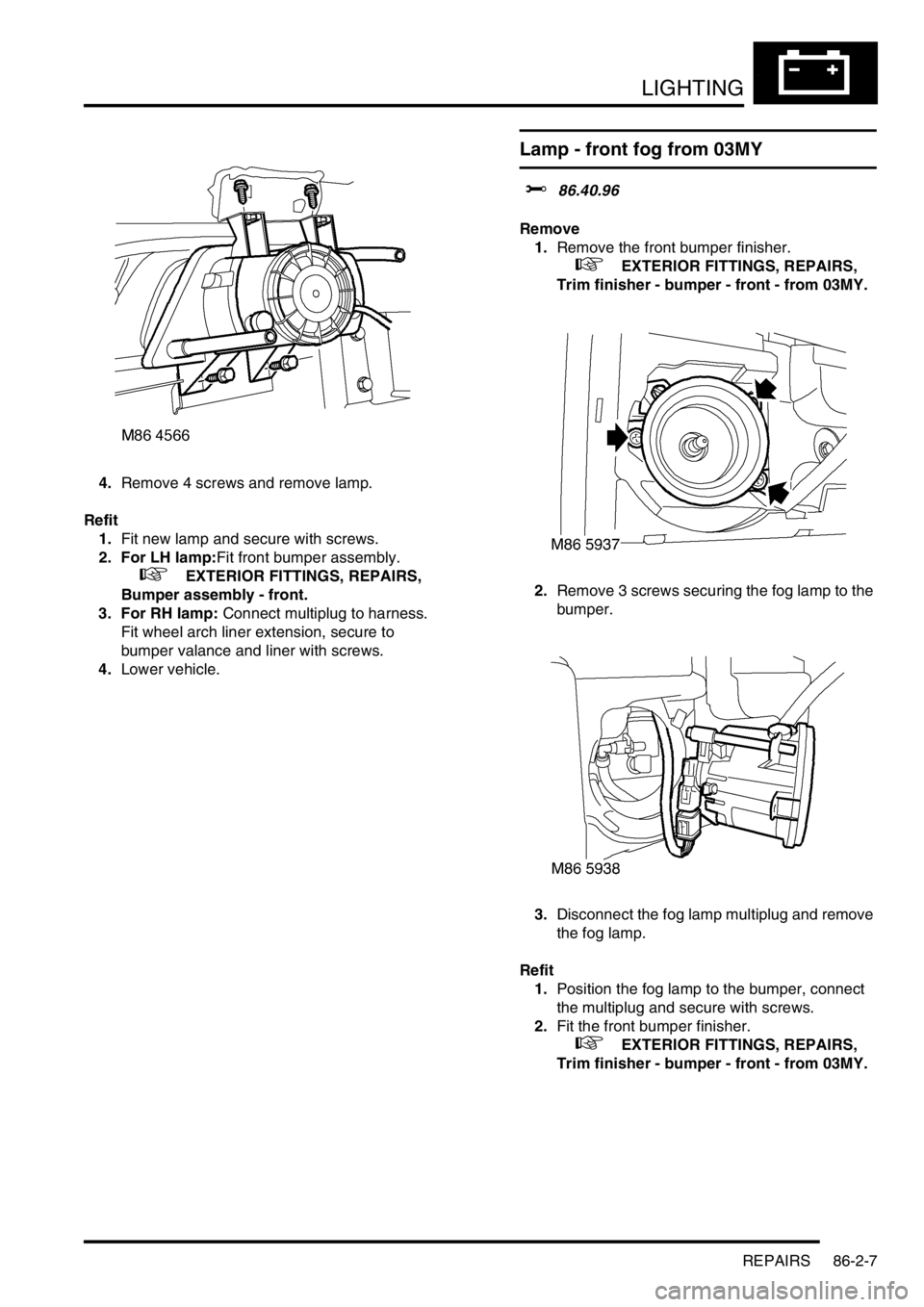

Lamp - front fog up to 03MY
$% 86.40.95
Remove
1.Raise front of vehicle, one side.
2. For RH lamp: Remove 7 screws securing
wheel arch liner extension to liner and bumper
valance and remove liner extension.
Disconnect lamp multiplug from harness.
3. For LH lamp:Remove front bumper assembly.

+ EXTERIOR FITTINGS, REPAIRS,
Bumper assembly - front.

LIGHTING
REPAIRS 86-2-7
4.Remove 4 screws and remove lamp.
Refit
1.Fit new lamp and secure with screws.
2. For LH lamp:Fit front bumper assembly.

+ EXTERIOR FITTINGS, REPAIRS,
Bumper assembly - front.
3. For RH lamp: Connect multiplug to harness.
Fit wheel arch liner extension, secure to
bumper valance and liner with screws.
4.Lower vehicle.
Lamp - front fog from 03MY
$% 86.40.96
Remove
1.Remove the front bumper finisher.

+ EXTERIOR FITTINGS, REPAIRS,
Trim finisher - bumper - front - from 03MY.
2.Remove 3 screws securing the fog lamp to the
bumper.
3.Disconnect the fog lamp multiplug and remove
the fog lamp.
Refit
1.Position the fog lamp to the bumper, connect
the multiplug and secure with screws.
2.Fit the front bumper finisher.

+ EXTERIOR FITTINGS, REPAIRS,
Trim finisher - bumper - front - from 03MY.
