1997 SUBARU LEGACY torque

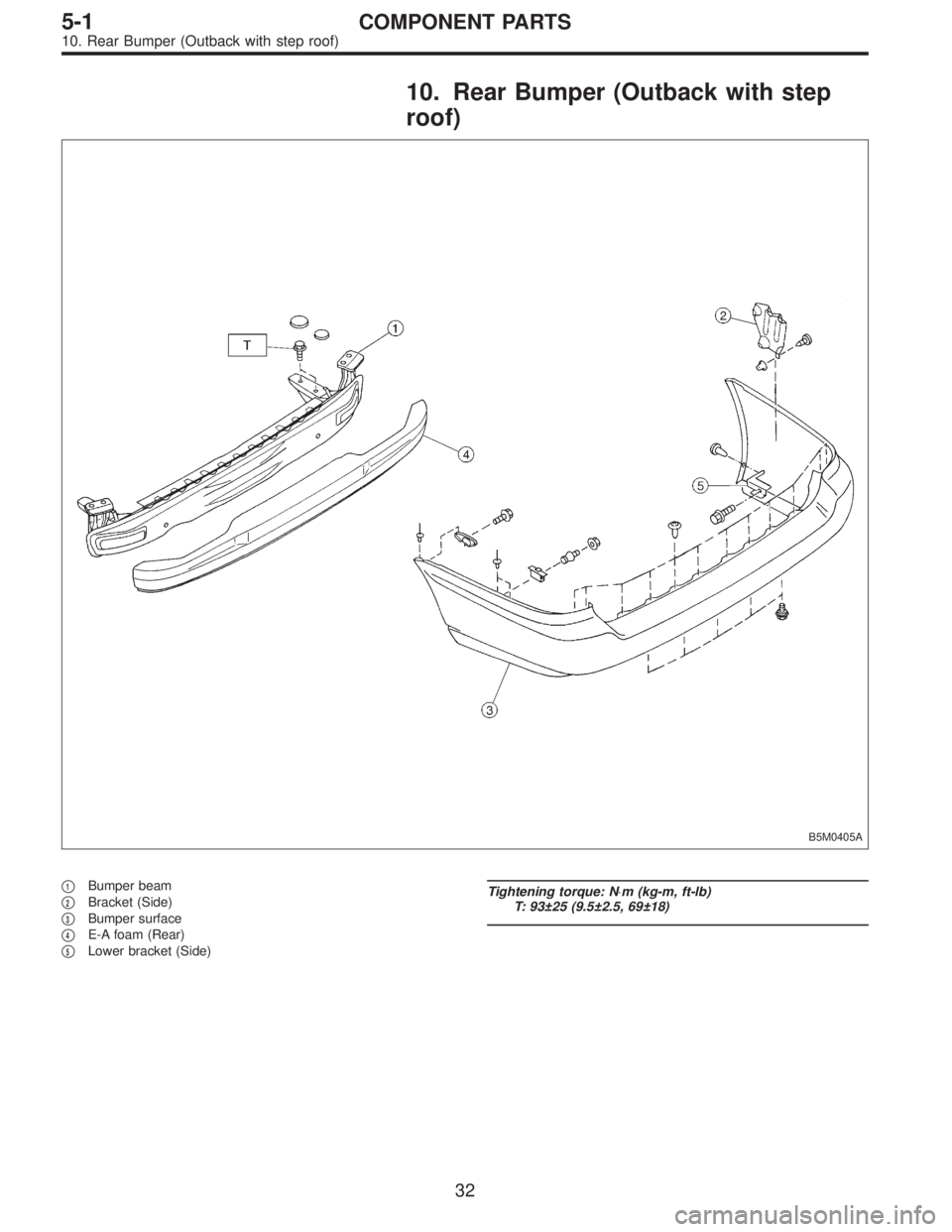

10. Rear Bumper (Outback with step
roof)
B5M0405A
1Bumper beam

2Bracket (Side)

3Bumper surface

4E-A foam (Rear)

5Lower bracket (Side)
Tightening torque: N⋅m (kg-m, ft-lb)
T: 93±25 (9.5±2.5, 69±18)
32
5-1COMPONENT PARTS
10. Rear Bumper (Outback with step roof)

5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0305
20. Roof Spoiler (Station Wagon 2500
cc GT model only)
A: REMOVAL AND INSTALLATION
1) Open rear gate and remove rear gate trim upper and
side.
2) Remove high-mount stop light.
B5M0415A
3) Remove plastic caps and harness covers.
B5M0306
4) Remove roof spoiler mounting nuts.
CAUTION:

When removing nuts, be careful not to drop them
inside rear gate.

Be careful since two-sided tape is placed between
roof spoiler and body panel.
5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0416
21. Side Spoiler (2500 cc GT model
only)
A: REMOVAL AND INSTALLATION
1) Remove tapping screws, clip and end cover.
2) Installation is in the reverse order of removal.
60
5-1SERVICE PROCEDURE
19. Rear Spoiler (4 Door Sedan 2500 cc GT model only) - 21. Side Spoiler (2500 cc GT model only)

5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0305
20. Roof Spoiler (Station Wagon 2500
cc GT model only)
A: REMOVAL AND INSTALLATION
1) Open rear gate and remove rear gate trim upper and
side.
2) Remove high-mount stop light.
B5M0415A
3) Remove plastic caps and harness covers.
B5M0306
4) Remove roof spoiler mounting nuts.
CAUTION:

When removing nuts, be careful not to drop them
inside rear gate.

Be careful since two-sided tape is placed between
roof spoiler and body panel.
5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0416
21. Side Spoiler (2500 cc GT model
only)
A: REMOVAL AND INSTALLATION
1) Remove tapping screws, clip and end cover.
2) Installation is in the reverse order of removal.
60
5-1SERVICE PROCEDURE
19. Rear Spoiler (4 Door Sedan 2500 cc GT model only) - 21. Side Spoiler (2500 cc GT model only)

5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0305
20. Roof Spoiler (Station Wagon 2500
cc GT model only)
A: REMOVAL AND INSTALLATION
1) Open rear gate and remove rear gate trim upper and
side.
2) Remove high-mount stop light.
B5M0415A
3) Remove plastic caps and harness covers.
B5M0306
4) Remove roof spoiler mounting nuts.
CAUTION:

When removing nuts, be careful not to drop them
inside rear gate.

Be careful since two-sided tape is placed between
roof spoiler and body panel.
5) Installation is in the reverse order of removal.
Tightening torque:
7.4±2.0 N⋅m (0.75±0.2 kg-m, 5.4±1.4 ft-lb)
B5M0416
21. Side Spoiler (2500 cc GT model
only)
A: REMOVAL AND INSTALLATION
1) Remove tapping screws, clip and end cover.
2) Installation is in the reverse order of removal.
60
5-1SERVICE PROCEDURE
19. Rear Spoiler (4 Door Sedan 2500 cc GT model only) - 21. Side Spoiler (2500 cc GT model only)

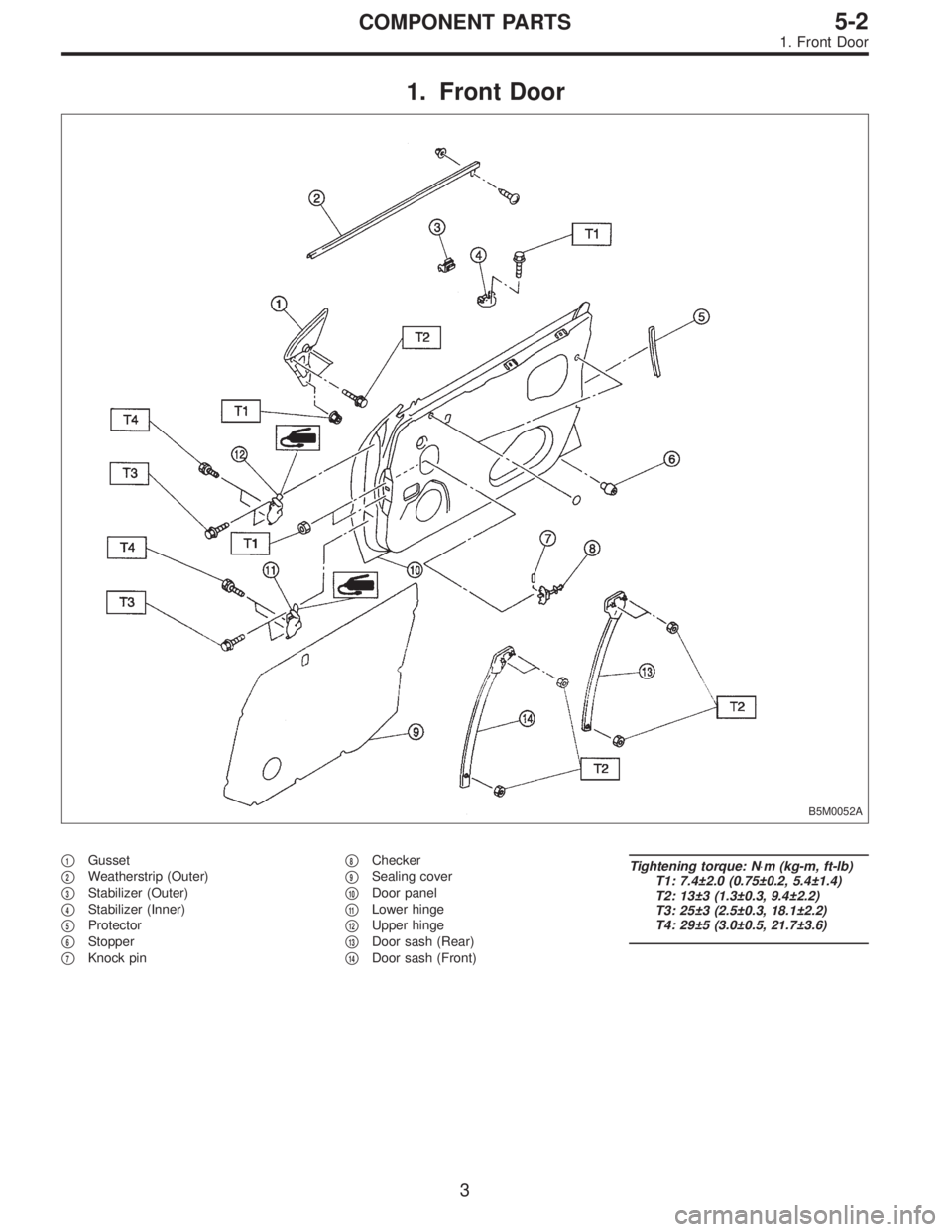

1. Front Door
B5M0052A

1Gusset


2Weatherstrip (Outer)


3Stabilizer (Outer)


4Stabilizer (Inner)


5Protector


6Stopper


7Knock pin

8Checker


9Sealing cover


10Door panel


11Lower hinge


12Upper hinge


13Door sash (Rear)


14Door sash (Front)
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T2: 13±3 (1.3±0.3, 9.4±2.2)
T3: 25±3 (2.5±0.3, 18.1±2.2)
T4: 29±5 (3.0±0.5, 21.7±3.6)
3
5-2COMPONENT PARTS
1. Front Door

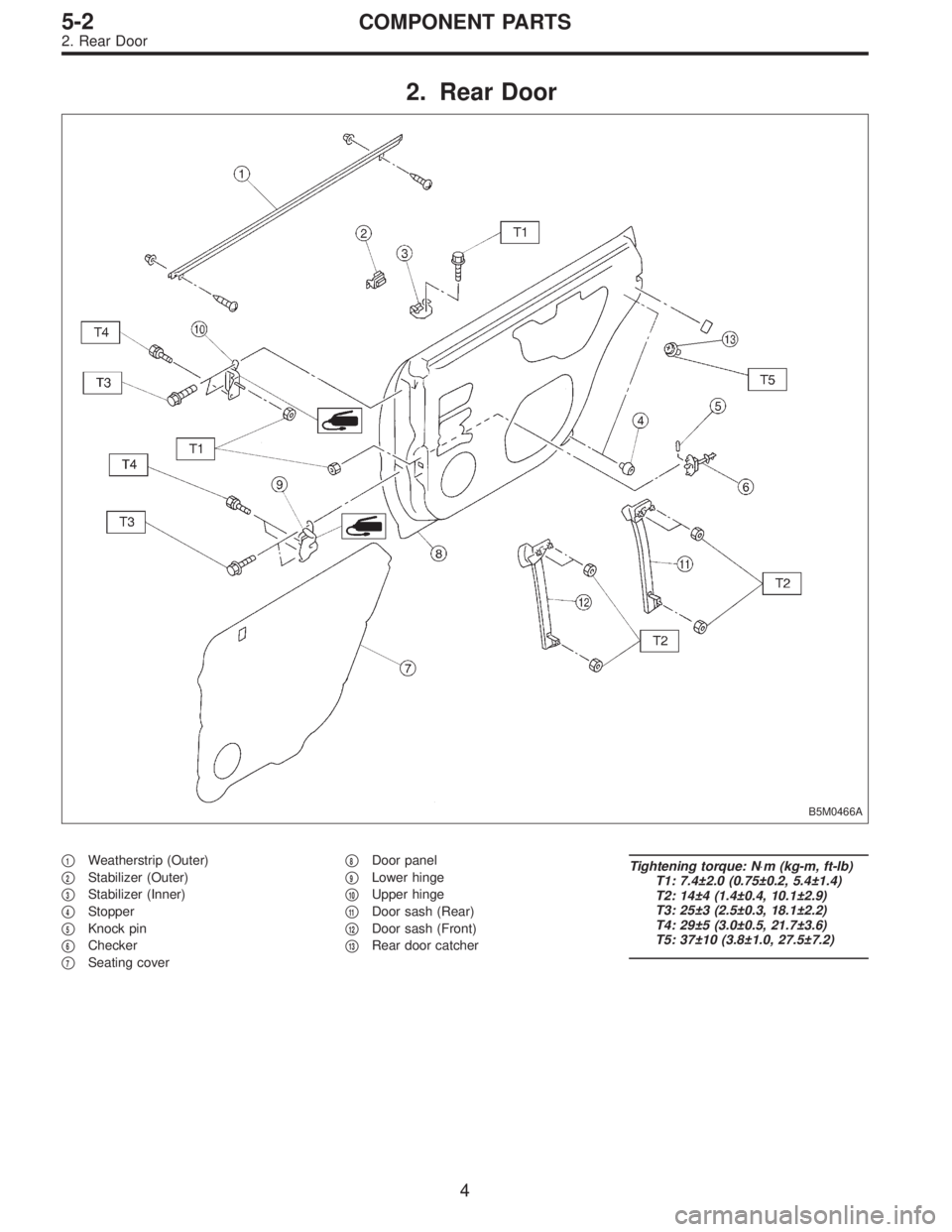

2. Rear Door
B5M0466A

1Weatherstrip (Outer)


2Stabilizer (Outer)


3Stabilizer (Inner)


4Stopper


5Knock pin


6Checker


7Seating cover

8Door panel


9Lower hinge


10Upper hinge


11Door sash (Rear)


12Door sash (Front)


13Rear door catcher
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T2: 14±4 (1.4±0.4, 10.1±2.9)
T3: 25±3 (2.5±0.3, 18.1±2.2)
T4: 29±5 (3.0±0.5, 21.7±3.6)
T5: 37±10 (3.8±1.0, 27.5±7.2)
4
5-2COMPONENT PARTS
2. Rear Door

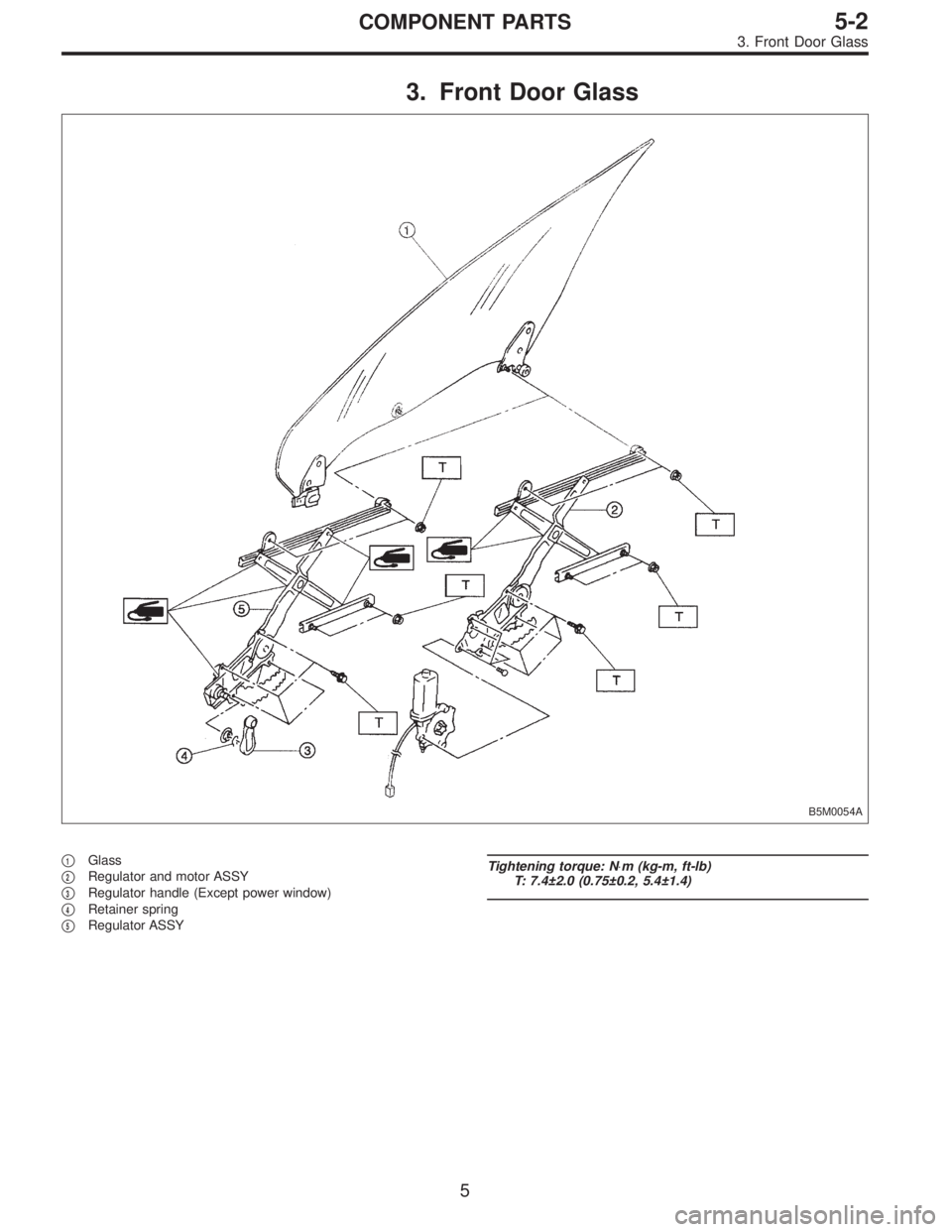

3. Front Door Glass
B5M0054A

1Glass


2Regulator and motor ASSY


3Regulator handle (Except power window)


4Retainer spring


5Regulator ASSY
Tightening torque: N⋅m (kg-m, ft-lb)
T: 7.4±2.0 (0.75±0.2, 5.4±1.4)
5
5-2COMPONENT PARTS
3. Front Door Glass

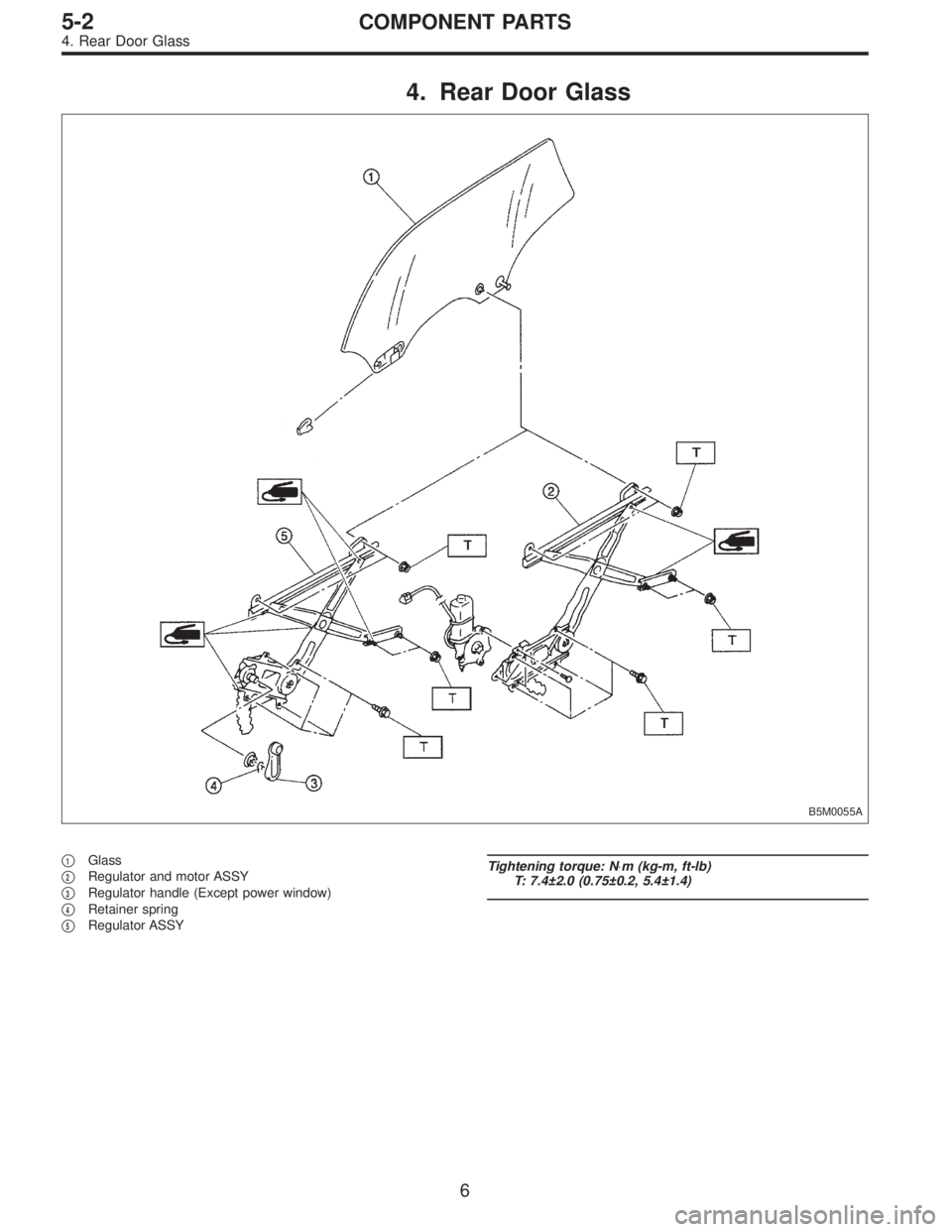

4. Rear Door Glass
B5M0055A

1Glass


2Regulator and motor ASSY


3Regulator handle (Except power window)


4Retainer spring


5Regulator ASSY
Tightening torque: N⋅m (kg-m, ft-lb)
T: 7.4±2.0 (0.75±0.2, 5.4±1.4)
6
5-2COMPONENT PARTS
4. Rear Door Glass
