1997 SUBARU LEGACY torque

1. Front Seat
G5M0522
1Headrest free bushing

2Headrest lock bushing

3Headrest ASSY

4Front backrest frame ASSY

5Protector

6Cover (Bolt) (outer)

7Cover (Bolt) (inner)

8Inner belt ASSY

9Inner slide rail ASSY
10Connect wire

11Outer slide rail ASSY

12Front cushion frame ASSY

13Cushion ASSY

14Reclining lever

15Hinge spring cover

16Reclining hinge ASSY

17Backrest ASSY

18Hinge cover
19Tilt lever cover

20Tilt lever ASSY
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 23±5 (2.3±0.5, 16.6±3.6)
T2: 29±7 (3.0±0.7, 21.7±5.1)
T3: 52±10 (5.3±1.0, 38±7)
2
5-3COMPONENT PARTS
1. Front Seat

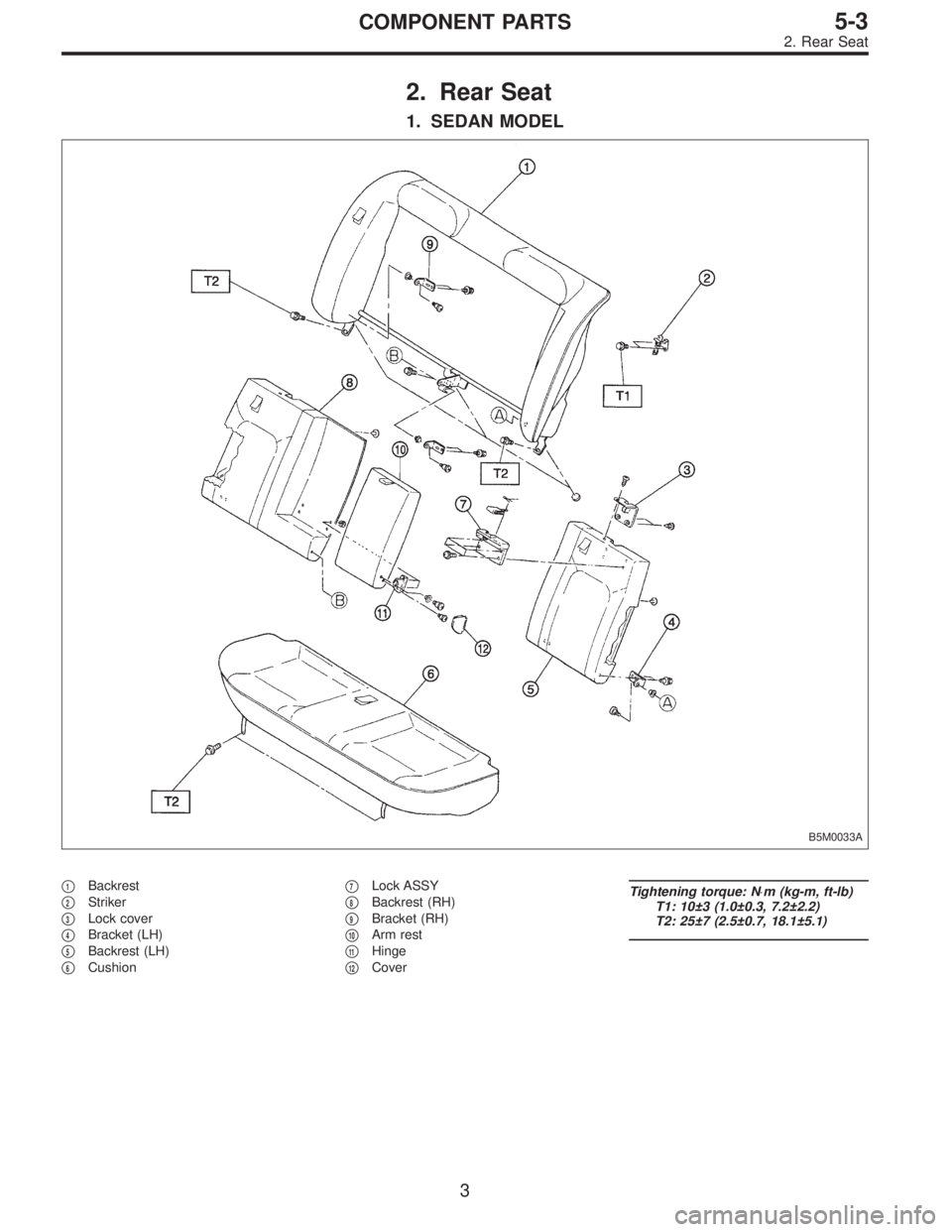

2. Rear Seat
1. SEDAN MODEL
B5M0033A
1Backrest

2Striker

3Lock cover

4Bracket (LH)

5Backrest (LH)

6Cushion
7Lock ASSY

8Backrest (RH)

9Bracket (RH)

10Arm rest

11Hinge

12Cover
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 10±3 (1.0±0.3, 7.2±2.2)
T2: 25±7 (2.5±0.7, 18.1±5.1)
3
5-3COMPONENT PARTS
2. Rear Seat

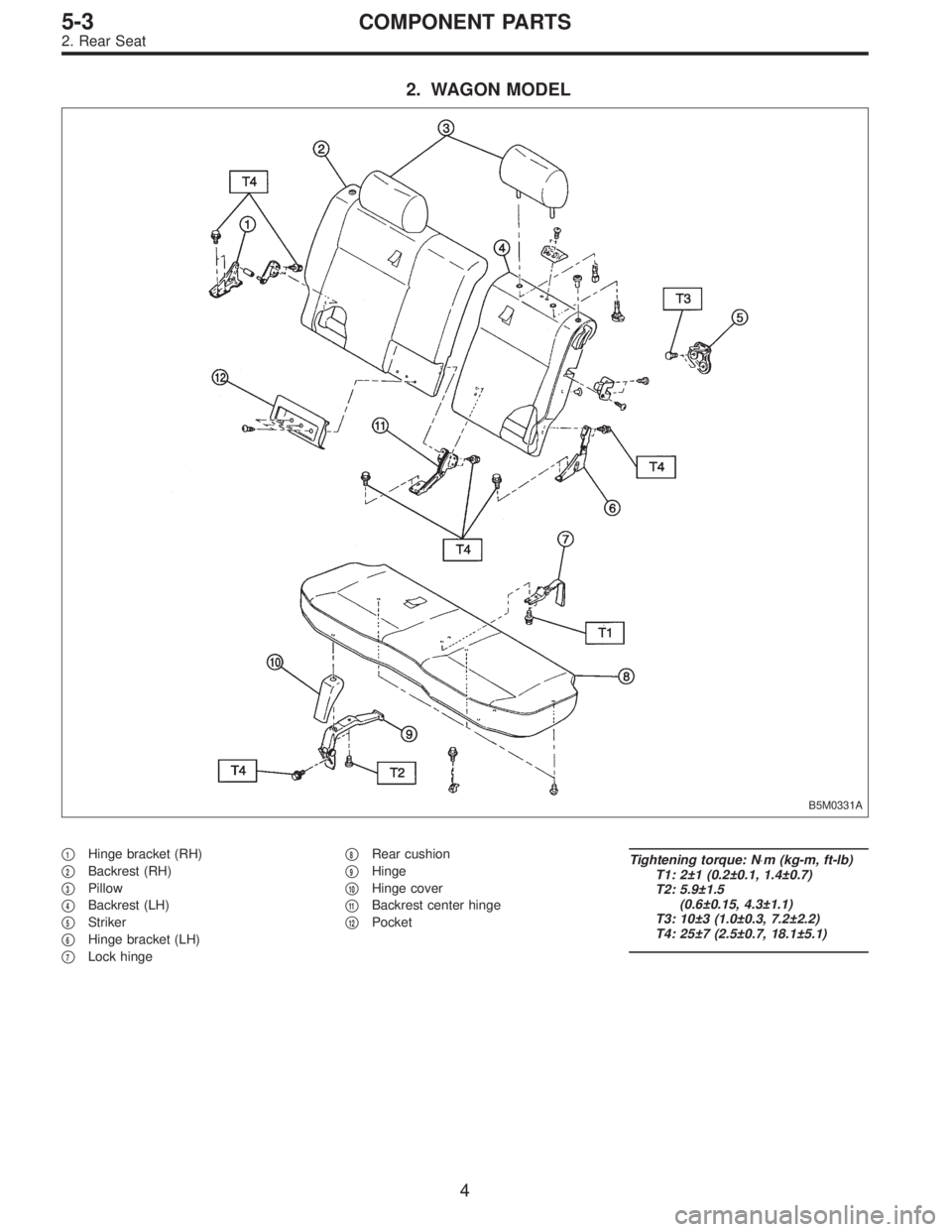

2. WAGON MODEL
B5M0331A
1Hinge bracket (RH)

2Backrest (RH)

3Pillow

4Backrest (LH)

5Striker

6Hinge bracket (LH)

7Lock hinge
8Rear cushion

9Hinge

10Hinge cover

11Backrest center hinge

12Pocket
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 2±1 (0.2±0.1, 1.4±0.7)
T2: 5.9±1.5
(0.6±0.15, 4.3±1.1)
T3: 10±3 (1.0±0.3, 7.2±2.2)
T4: 25±7 (2.5±0.7, 18.1±5.1)
4
5-3COMPONENT PARTS
2. Rear Seat

3. Front Seat Belt
G5M0337
1Adjuster anchor ASSY

2Through anchor cover

3Webbing guide

4Inner belt ASSY

5Outer belt ASSY
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 13±3 (1.3±0.3, 9.4±2.2)
T2: 35±13 (3.6±1.3, 26±9)
5
5-3COMPONENT PARTS
3. Front Seat Belt

4. Rear Seat Belt
B5M0035B
1Outer seat belt (LH)

2Center seat belt

3Outer seat belt (RH)

4Inner seat belt
5Lap anchor cover (LH)

6Lap anchor cover (RH)Tightening torque: N⋅m (kg-m, ft-lb)
T: 35±13 (3.6±1.3, 26±9)
6
5-3COMPONENT PARTS
4. Rear Seat Belt

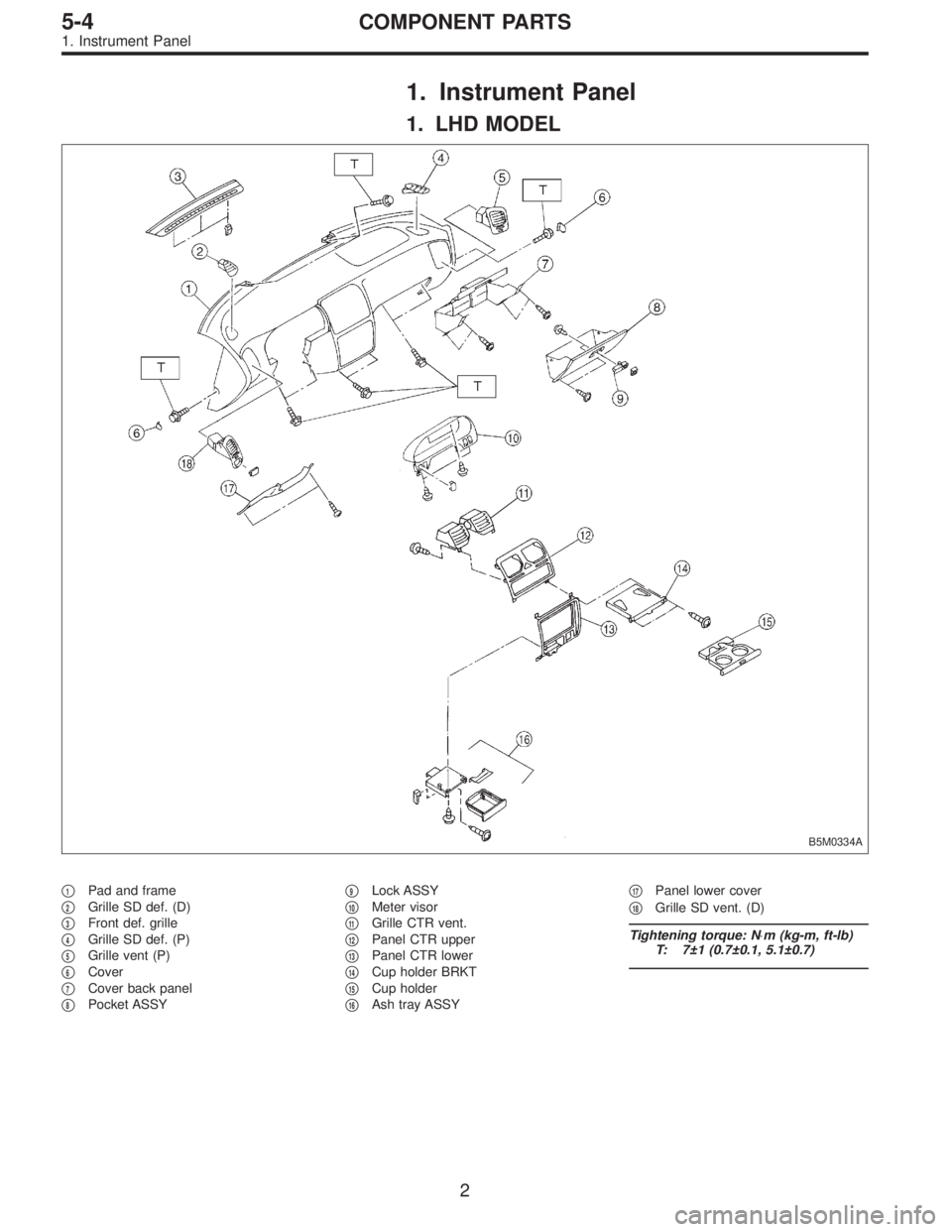

1. Instrument Panel
1. LHD MODEL
B5M0334A

1Pad and frame


2Grille SD def. (D)


3Front def. grille


4Grille SD def. (P)


5Grille vent (P)


6Cover


7Cover back panel


8Pocket ASSY

9Lock ASSY


10Meter visor


11Grille CTR vent.


12Panel CTR upper


13Panel CTR lower


14Cup holder BRKT


15Cup holder


16Ash tray ASSY

17Panel lower cover


18Grille SD vent. (D)
Tightening torque: N⋅m (kg-m, ft-lb)
T: 7±1 (0.7±0.1, 5.1±0.7)
2
5-4COMPONENT PARTS
1. Instrument Panel

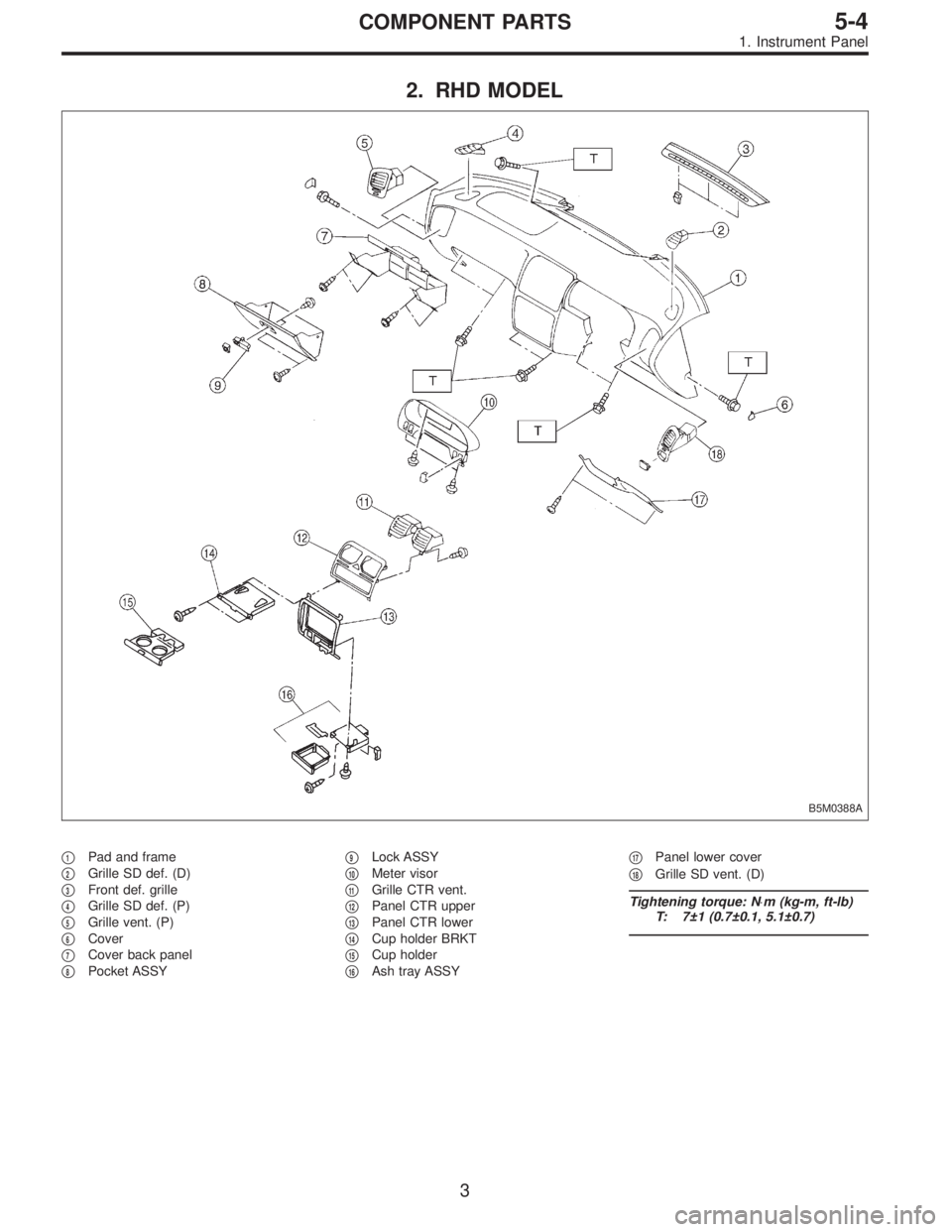

2. RHD MODEL
B5M0388A

1Pad and frame


2Grille SD def. (D)


3Front def. grille


4Grille SD def. (P)


5Grille vent. (P)


6Cover


7Cover back panel


8Pocket ASSY

9Lock ASSY


10Meter visor


11Grille CTR vent.


12Panel CTR upper


13Panel CTR lower


14Cup holder BRKT


15Cup holder


16Ash tray ASSY

17Panel lower cover


18Grille SD vent. (D)
Tightening torque: N⋅m (kg-m, ft-lb)
T: 7±1 (0.7±0.1, 5.1±0.7)
3
5-4COMPONENT PARTS
1. Instrument Panel

1. SRS Airbag
1. LHD MODEL
B5M0401A

1Combination switch ASSY with roll connector


2TORX®bolt


3Airbag module ASSY (Driver)


4Airbag module ASSY (Passenger)


5BRKT B


6BRKT P AB


7BRKT SD A


8Front sensor ASSY RH


9Grommet


10TORX®bolt


11Airbag control module


12Protector RH


13Protector LH


14Airbag main harness


15Front sensor ASSY LH
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 1.8±0.5 (0.18±0.05, 1.3±0.4)
T2: 2.5±0.5 (0.25±0.05, 1.8±0.4)
T3: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T4: 7.4±0.5 (0.75±0.05, 5.4±0.4)
T5: 10±2 (1.0±0.2, 7.2±1.4)
T6: 20±4 (2.0±0.4, 14.5±2.9)
T7: 32±10 (3.3±1.0, 23.9±7.2)
2
5-5COMPONENT PARTS
1. SRS Airbag
