Page 2574 of 3342
B4M0493

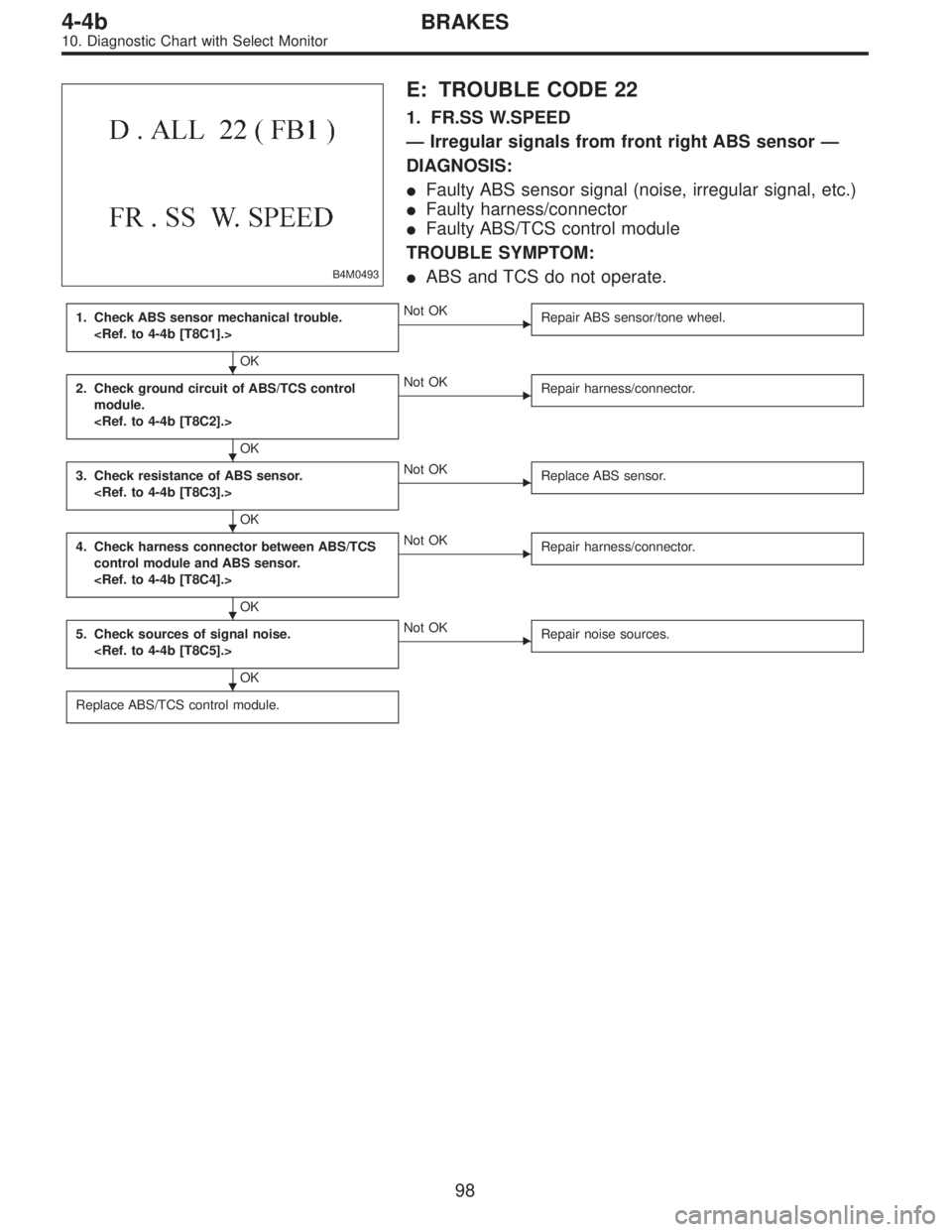

E: TROUBLE CODE 22
1. FR.SS W.SPEED
—Irregular signals from front right ABS sensor—
DIAGNOSIS:
Faulty ABS sensor signal (noise, irregular signal, etc.)
Faulty harness/connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
1. Check ABS sensor mechanical trouble.
OK
Not OK
Repair ABS sensor/tone wheel.
2. Check ground circuit of ABS/TCS control
module.
OK
Not OK
Repair harness/connector.
3. Check resistance of ABS sensor.
OK
Not OK
Replace ABS sensor.
4. Check harness connector between ABS/TCS
control module and ABS sensor.
OK
Not OK
Repair harness/connector.
5. Check sources of signal noise.
OK
Not OK
Repair noise sources.
Replace ABS/TCS control module.
98
4-4bBRAKES
10. Diagnostic Chart with Select Monitor
Page 2575 of 3342
B4M0494

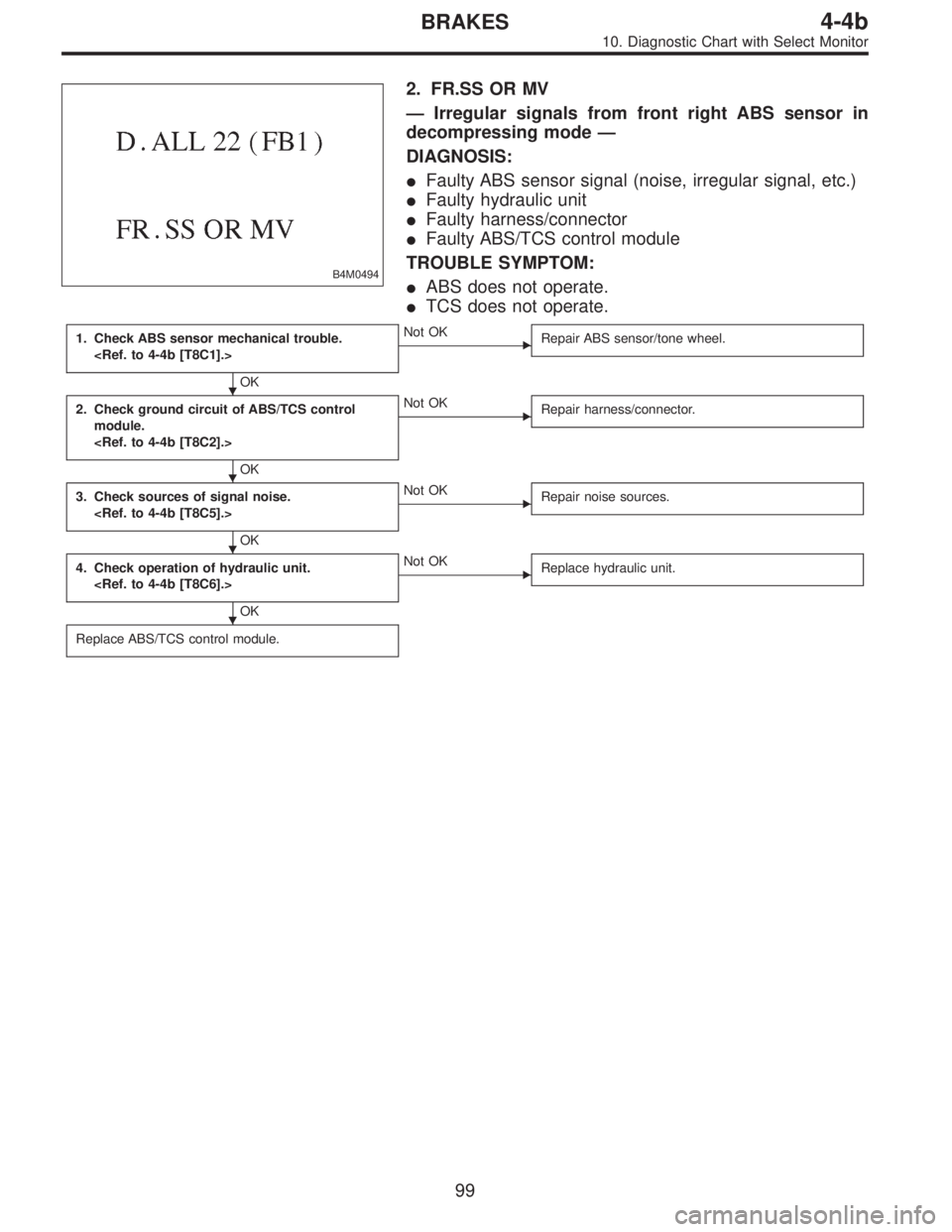

2. FR.SS OR MV
—Irregular signals from front right ABS sensor in
decompressing mode—
DIAGNOSIS:
Faulty ABS sensor signal (noise, irregular signal, etc.)
Faulty hydraulic unit
Faulty harness/connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS does not operate.
TCS does not operate.
1. Check ABS sensor mechanical trouble.
OK
Not OK
Repair ABS sensor/tone wheel.
2. Check ground circuit of ABS/TCS control
module.
OK
Not OK
Repair harness/connector.
3. Check sources of signal noise.
OK
Not OK
Repair noise sources.
4. Check operation of hydraulic unit.
OK
Not OK
Replace hydraulic unit.
Replace ABS/TCS control module.
99
4-4bBRAKES
10. Diagnostic Chart with Select Monitor
Page 2576 of 3342
B4M0495

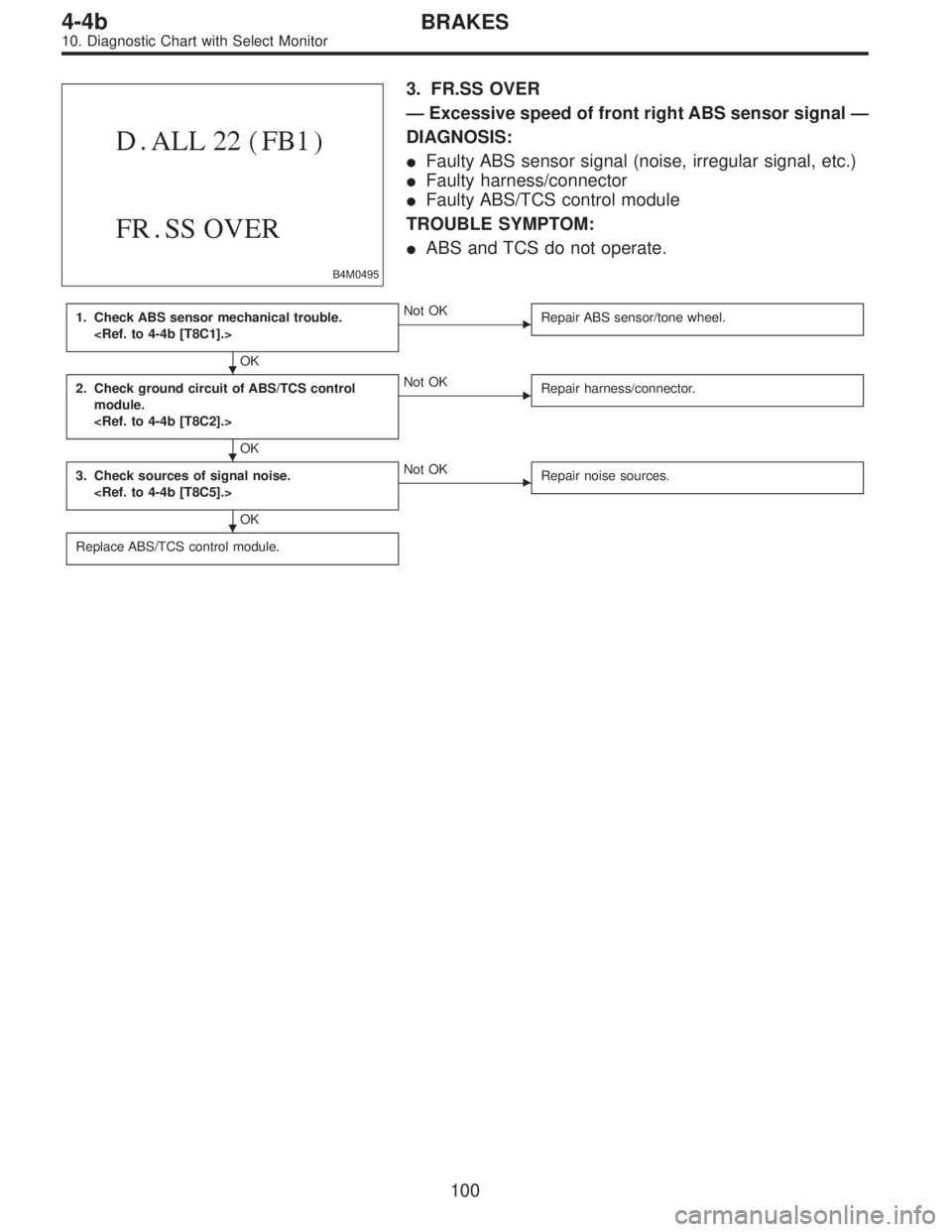

3. FR.SS OVER
—Excessive speed of front right ABS sensor signal—
DIAGNOSIS:
Faulty ABS sensor signal (noise, irregular signal, etc.)
Faulty harness/connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
1. Check ABS sensor mechanical trouble.
OK
Not OK
Repair ABS sensor/tone wheel.
2. Check ground circuit of ABS/TCS control
module.
OK
Not OK
Repair harness/connector.
3. Check sources of signal noise.
OK
Not OK
Repair noise sources.
Replace ABS/TCS control module.
100
4-4bBRAKES
10. Diagnostic Chart with Select Monitor
Page 2577 of 3342
B4M0496
F: TROUBLE CODE 23
1. FL.SS OPEN
—Faulty front left ABS sensor (Open circuit)—
DIAGNOSIS:
Faulty ABS sensor
Faulty harness and connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS
OPEN.
B4M0497
2. FL.SS SHORT
—Faulty front left ABS sensor (Short circuit)—
DIAGNOSIS:
Faulty ABS sensor
Faulty harness and connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS
SHORT.
101
4-4bBRAKES
10. Diagnostic Chart with Select Monitor
Page 2578 of 3342
B4M0498

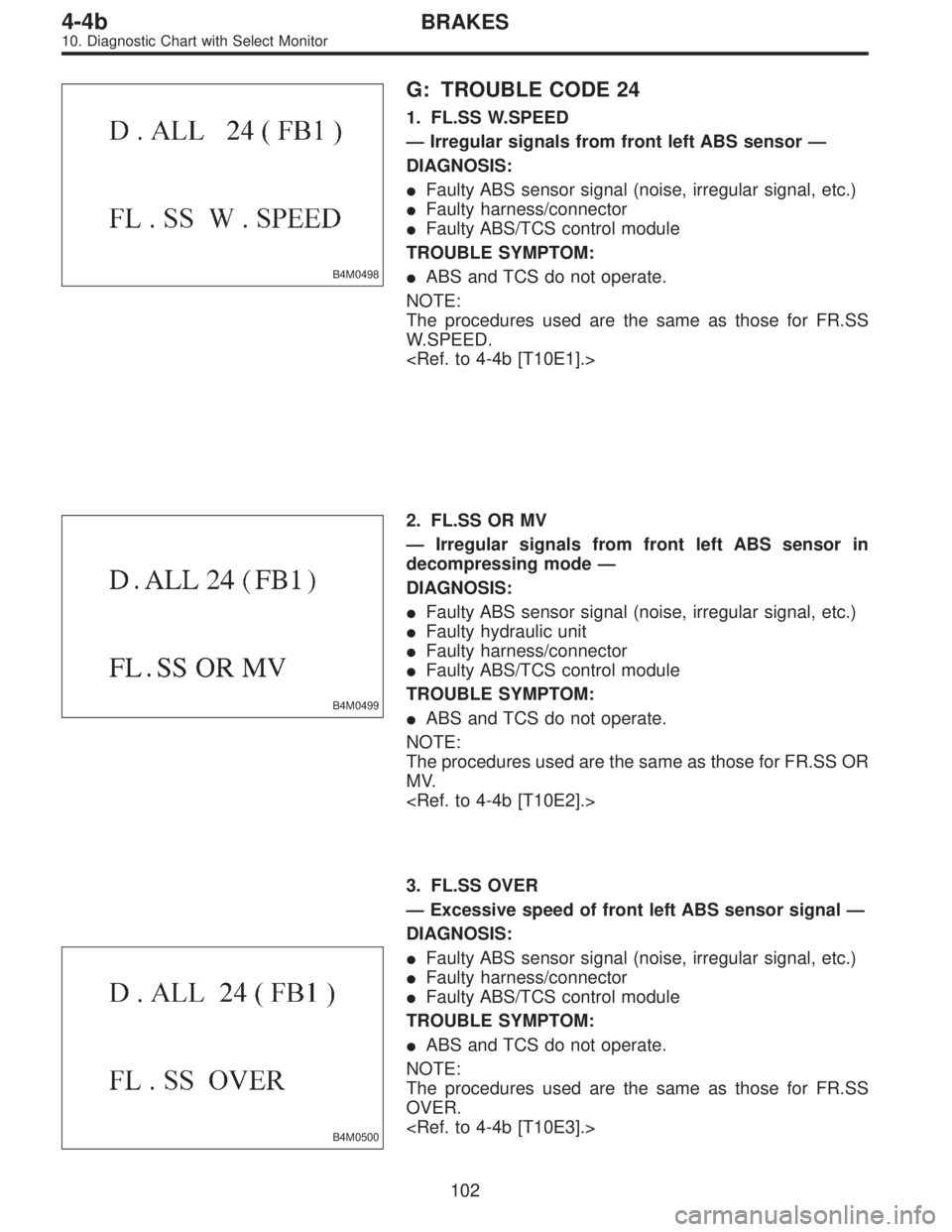

G: TROUBLE CODE 24
1. FL.SS W.SPEED
—Irregular signals from front left ABS sensor—
DIAGNOSIS:
Faulty ABS sensor signal (noise, irregular signal, etc.)
Faulty harness/connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS
W.SPEED.
B4M0499
2. FL.SS OR MV
—Irregular signals from front left ABS sensor in
decompressing mode—
DIAGNOSIS:
Faulty ABS sensor signal (noise, irregular signal, etc.)
Faulty hydraulic unit
Faulty harness/connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS OR
MV.
B4M0500
3. FL.SS OVER
—Excessive speed of front left ABS sensor signal—
DIAGNOSIS:
Faulty ABS sensor signal (noise, irregular signal, etc.)
Faulty harness/connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS
OVER.
102
4-4bBRAKES
10. Diagnostic Chart with Select Monitor
Page 2579 of 3342
B4M0501

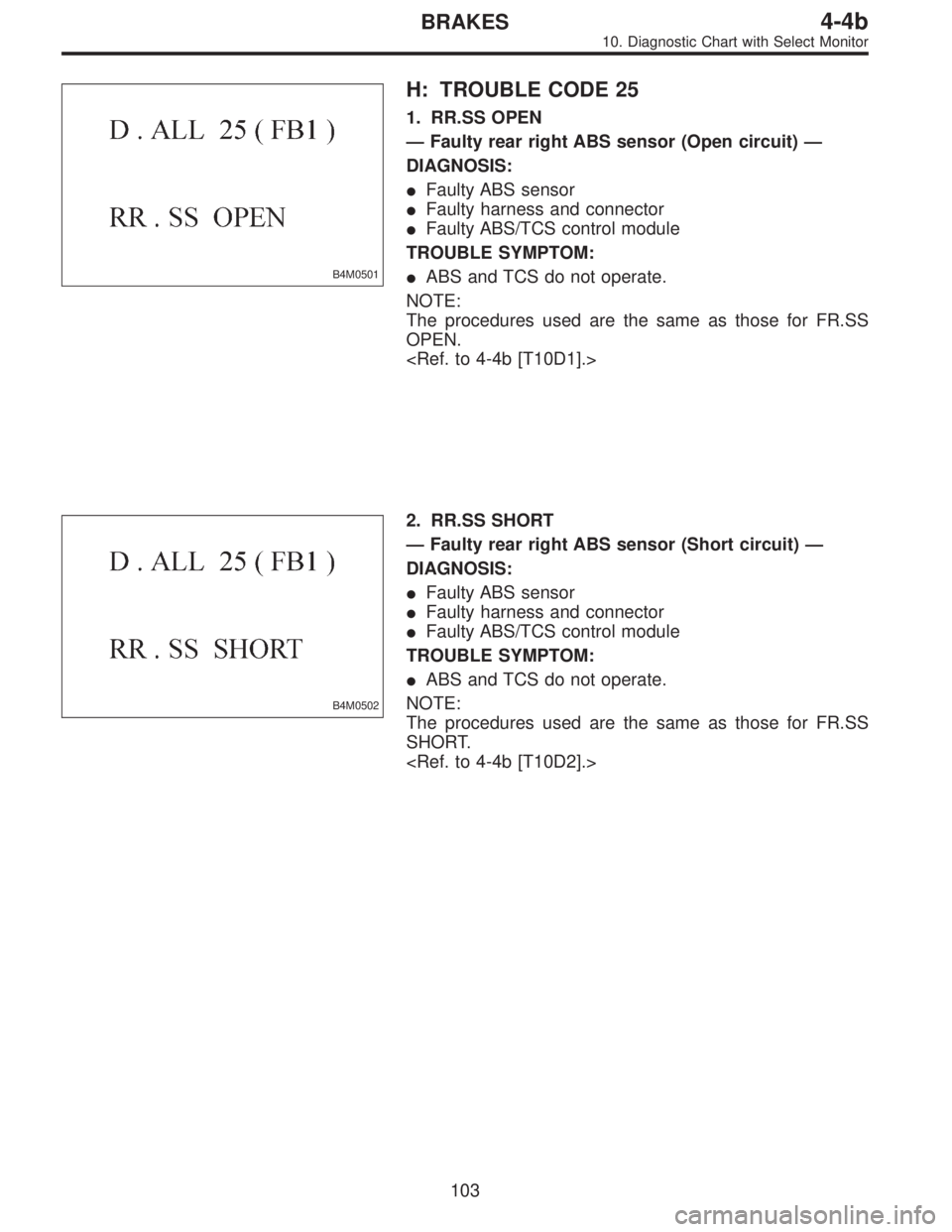

H: TROUBLE CODE 25
1. RR.SS OPEN
—Faulty rear right ABS sensor (Open circuit)—
DIAGNOSIS:
Faulty ABS sensor
Faulty harness and connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS
OPEN.
B4M0502
2. RR.SS SHORT
—Faulty rear right ABS sensor (Short circuit)—
DIAGNOSIS:
Faulty ABS sensor
Faulty harness and connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS
SHORT.
103
4-4bBRAKES
10. Diagnostic Chart with Select Monitor
Page 2580 of 3342
B4M0503

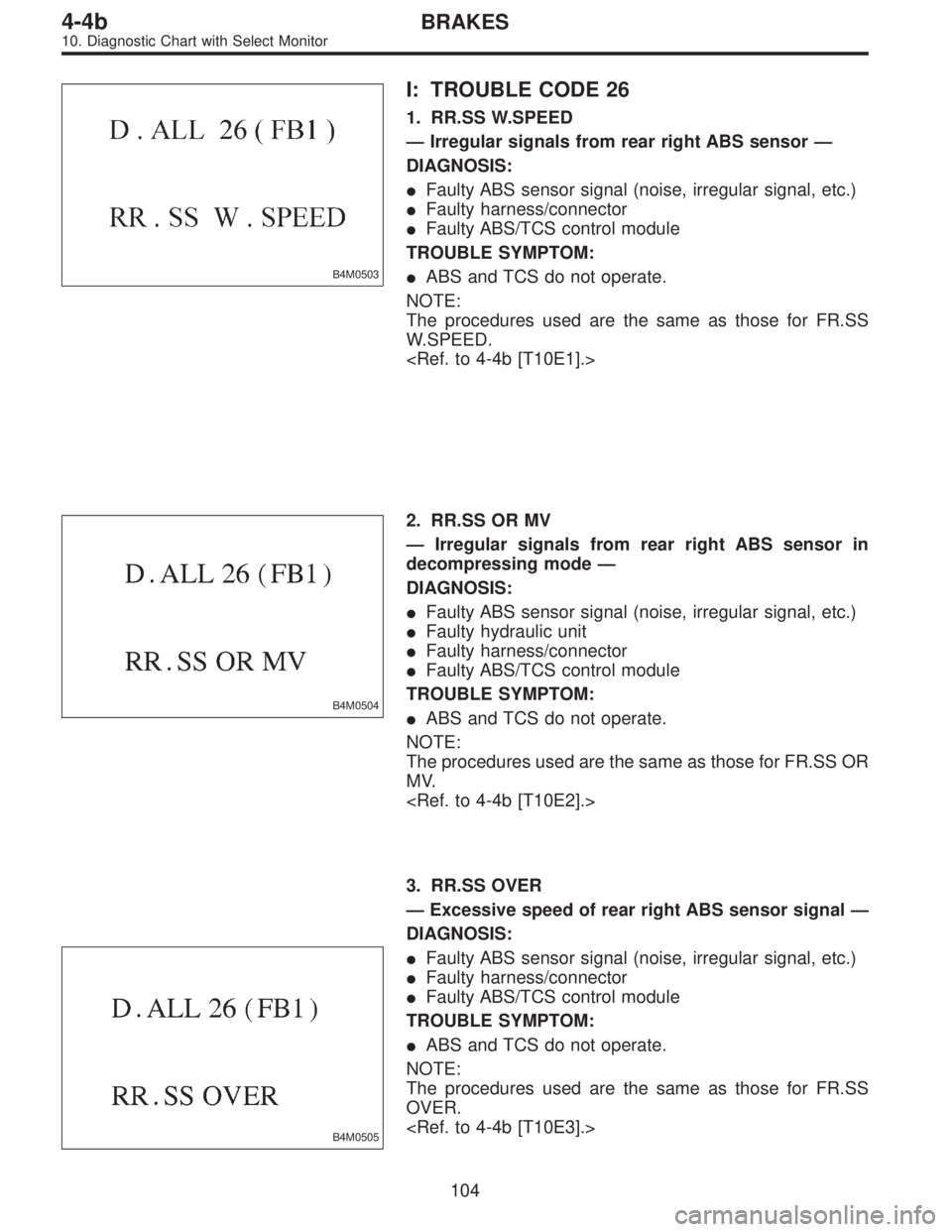

I: TROUBLE CODE 26
1. RR.SS W.SPEED
—Irregular signals from rear right ABS sensor—
DIAGNOSIS:
Faulty ABS sensor signal (noise, irregular signal, etc.)
Faulty harness/connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS
W.SPEED.
B4M0504
2. RR.SS OR MV
—Irregular signals from rear right ABS sensor in
decompressing mode—
DIAGNOSIS:
Faulty ABS sensor signal (noise, irregular signal, etc.)
Faulty hydraulic unit
Faulty harness/connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS OR
MV.
B4M0505
3. RR.SS OVER
—Excessive speed of rear right ABS sensor signal—
DIAGNOSIS:
Faulty ABS sensor signal (noise, irregular signal, etc.)
Faulty harness/connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS
OVER.
104
4-4bBRAKES
10. Diagnostic Chart with Select Monitor
Page 2581 of 3342
B4M0506

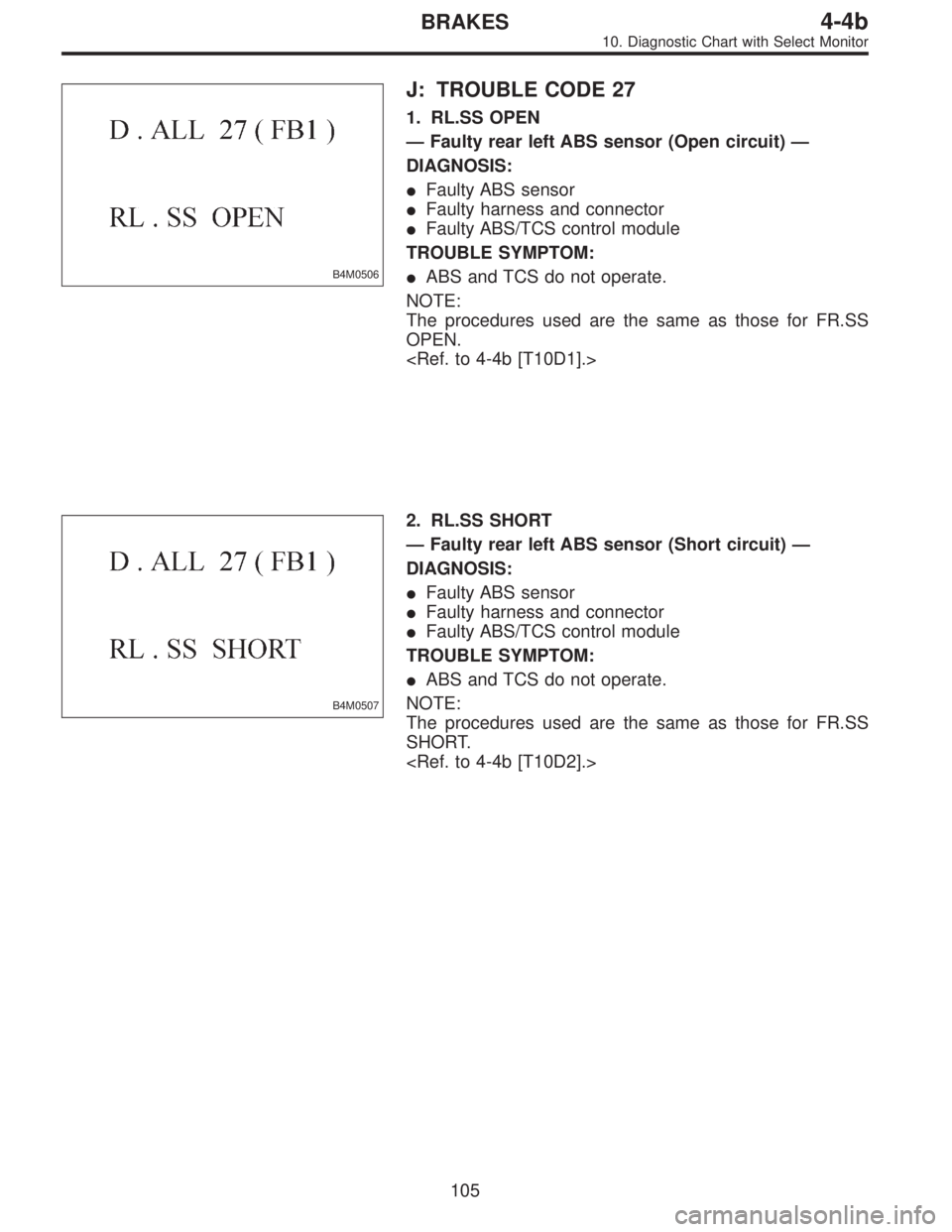

J: TROUBLE CODE 27
1. RL.SS OPEN
—Faulty rear left ABS sensor (Open circuit)—
DIAGNOSIS:
Faulty ABS sensor
Faulty harness and connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS
OPEN.
B4M0507
2. RL.SS SHORT
—Faulty rear left ABS sensor (Short circuit)—
DIAGNOSIS:
Faulty ABS sensor
Faulty harness and connector
Faulty ABS/TCS control module
TROUBLE SYMPTOM:
ABS and TCS do not operate.
NOTE:
The procedures used are the same as those for FR.SS
SHORT.
105
4-4bBRAKES
10. Diagnostic Chart with Select Monitor
