1997 SUBARU LEGACY torque

1. Exhaust System
1. 2500 cc MODEL
B2M0311A

1Upper front exhaust pipe cover CTR


2Lower front exhaust pipe cover CTR


3Band RH


4Band LH


5Upper front exhaust pipe cover LH


6Lower front exhaust pipe cover LH


7Front exhaust pipe


8Lower front exhaust pipe cover RH


9Upper front exhaust pipe cover RH


10Gasket


11Spring


12Rear exhaust pipe

13Self-locking nut


14Gasket


15Muffler


16Cushion rubber


17Clamp


18Upper center exhaust pipe cover


19Center exhaust pipe


20Clamp B


21Upper rear catalytic converter cover


22Lower rear catalytic converter cover


23Gasket


24Front oxygen sensor

25Rear oxygen sensor


26Front catalytic converter


27Lower front catalytic converter cover


28Upper front catalytic converter cover
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 13±3 (1.3±0.3, 9.4±2.2)
T2: 18±5 (1.8±0.5, 13.0±3.6)
T3: 30±5 (3.1±0.5, 22.4±3.6)
T4: 35±5 (3.6±0.5, 26.0±3.6)
T5: 48±5 (4.9±0.5, 35.4±3.6)
2
2-9COMPONENT PARTS
1. Exhaust System

2. 2200 cc MODEL
B2M0723A

1Upper front exhaust pipe cover CTR


2Lower front exhaust pipe cover CTR


3Band RH


4Band LH


5Upper front exhaust pipe cover LH


6Lower front exhaust pipe cover LH


7Front exhaust pipe


8Lower front exhaust pipe cover RH


9Upper front exhaust pipe cover RH


10Gasket


11Spring


12Rear exhaust pipe


13Self-locking nut

14Gasket


15Muffler


16Cushion rubber


17Clamp


18Upper center exhaust pipe cover


19Center exhaust pipe


20Clamp B


21Upper rear catalytic converter cover


22Lower rear catalytic converter cover


23Gasket


24Front oxygen sensor


25Rear oxygen sensor (California 2200
cc model)

26Rear oxygen sensor (Except Califor-
nia 2200 cc model)


27Front catalytic converter


28Lower front catalytic converter cover


29Upper front catalytic converter cover
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 13±3 (1.3±0.3, 9.4±2.2)
T2: 18±5 (1.8±0.5, 13.0±3.6)
T3: 30±5 (3.1±0.5, 22.4±3.6)
T4: 35±5 (3.6±0.5, 26.0±3.6)
T5: 48±5 (4.9±0.5, 35.4±3.6)
3
2-9COMPONENT PARTS
1. Exhaust System

B2M0313

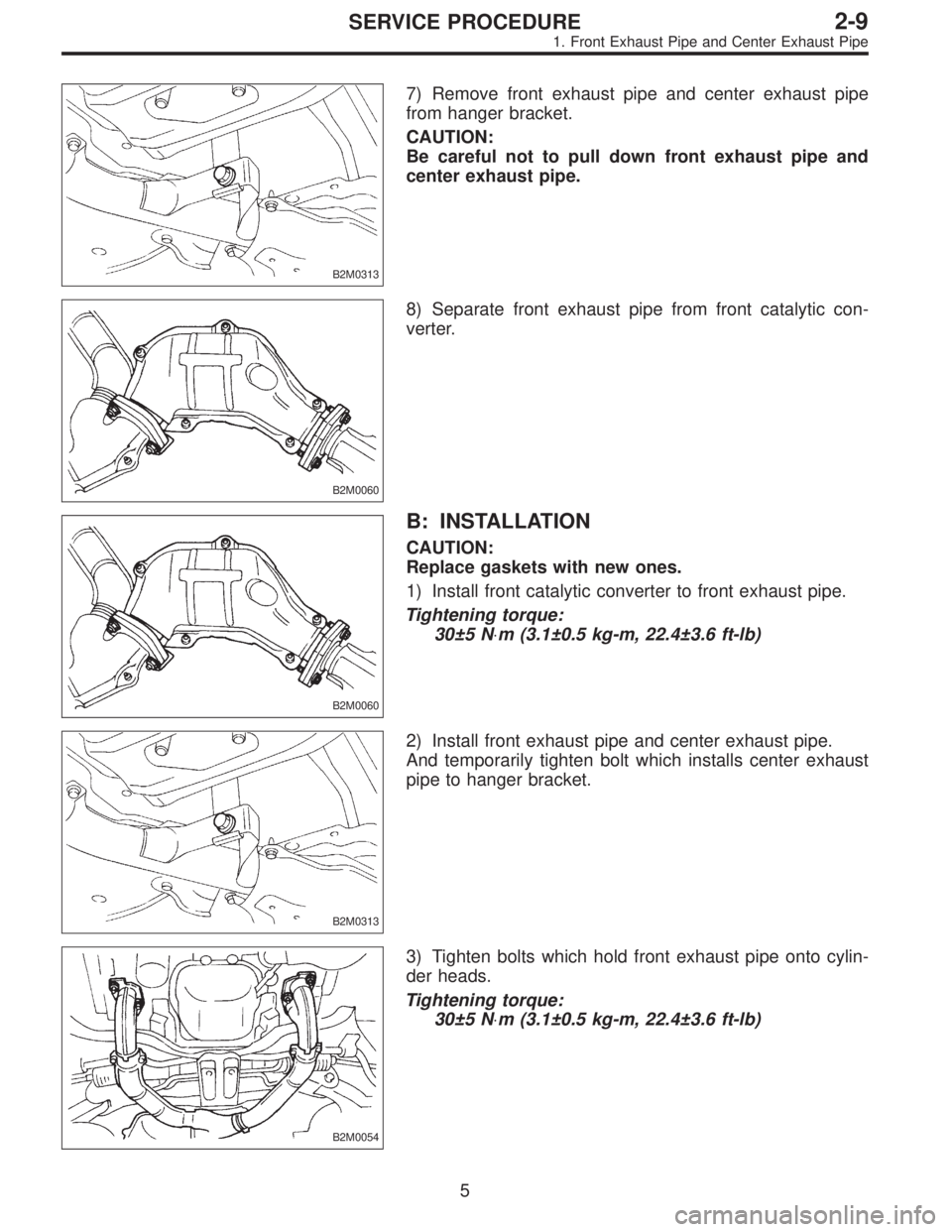

7) Remove front exhaust pipe and center exhaust pipe
from hanger bracket.
CAUTION:
Be careful not to pull down front exhaust pipe and
center exhaust pipe.
B2M0060
8) Separate front exhaust pipe from front catalytic con-
verter.
B2M0060
B: INSTALLATION
CAUTION:
Replace gaskets with new ones.
1) Install front catalytic converter to front exhaust pipe.
Tightening torque:
30±5 N⋅m (3.1±0.5 kg-m, 22.4±3.6 ft-lb)
B2M0313
2) Install front exhaust pipe and center exhaust pipe.
And temporarily tighten bolt which installs center exhaust
pipe to hanger bracket.
B2M0054
3) Tighten bolts which hold front exhaust pipe onto cylin-
der heads.
Tightening torque:
30±5 N⋅m (3.1±0.5 kg-m, 22.4±3.6 ft-lb)
5
2-9SERVICE PROCEDURE
1. Front Exhaust Pipe and Center Exhaust Pipe

B2M0055
4) Install center exhaust pipe to rear exhaust pipe.
Tightening torque:
18±5 N⋅m (1.8±0.5 kg-m, 13.0±3.6 ft-lb)
B2M0313
5) Tighten bolt which holds center exhaust pipe to hanger
bracket.
Tightening torque:
35±5 N⋅m (3.6±0.5 kg-m, 26.0±3.6 ft-lb)
B2M0312
6) Connect rear oxygen sensor connector. (Except Califor-
nia 2200 cc model)
B2M0725
7) Lower the vehicle.
8) Connect rear oxygen sensor connector. (California
2200 cc model)
B2M0724
9) Connect front oxygen sensor connector.
6
2-9SERVICE PROCEDURE
1. Front Exhaust Pipe and Center Exhaust Pipe

B2M0055

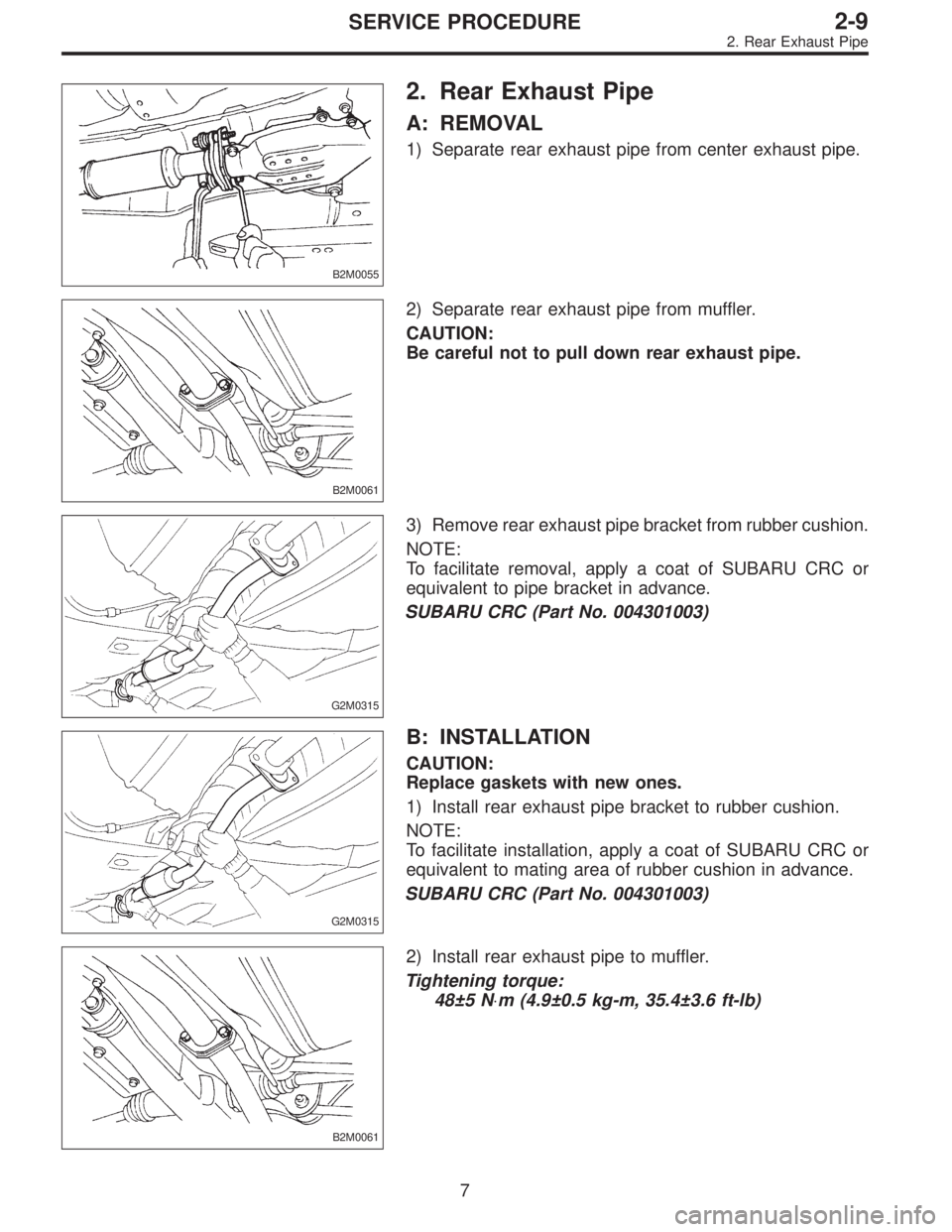

2. Rear Exhaust Pipe
A: REMOVAL
1) Separate rear exhaust pipe from center exhaust pipe.
B2M0061
2) Separate rear exhaust pipe from muffler.
CAUTION:
Be careful not to pull down rear exhaust pipe.
G2M0315
3) Remove rear exhaust pipe bracket from rubber cushion.
NOTE:
To facilitate removal, apply a coat of SUBARU CRC or
equivalent to pipe bracket in advance.
SUBARU CRC (Part No. 004301003)
G2M0315
B: INSTALLATION
CAUTION:
Replace gaskets with new ones.
1) Install rear exhaust pipe bracket to rubber cushion.
NOTE:
To facilitate installation, apply a coat of SUBARU CRC or
equivalent to mating area of rubber cushion in advance.
SUBARU CRC (Part No. 004301003)
B2M0061
2) Install rear exhaust pipe to muffler.
Tightening torque:
48±5 N⋅m (4.9±0.5 kg-m, 35.4±3.6 ft-lb)
7
2-9SERVICE PROCEDURE
2. Rear Exhaust Pipe

B2M0055

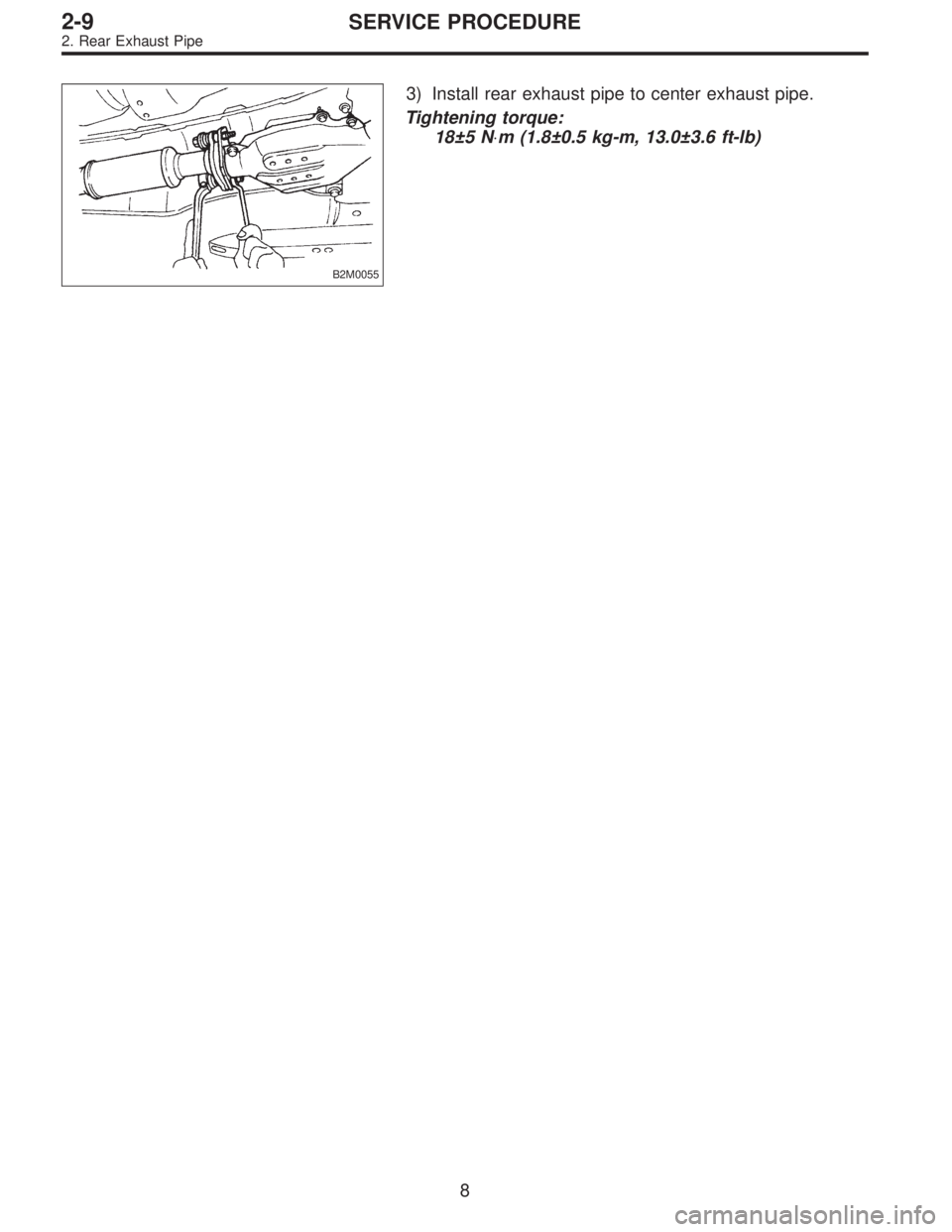

3) Install rear exhaust pipe to center exhaust pipe.
Tightening torque:
18±5 N⋅m (1.8±0.5 kg-m, 13.0±3.6 ft-lb)
8
2-9SERVICE PROCEDURE
2. Rear Exhaust Pipe

B2M0061

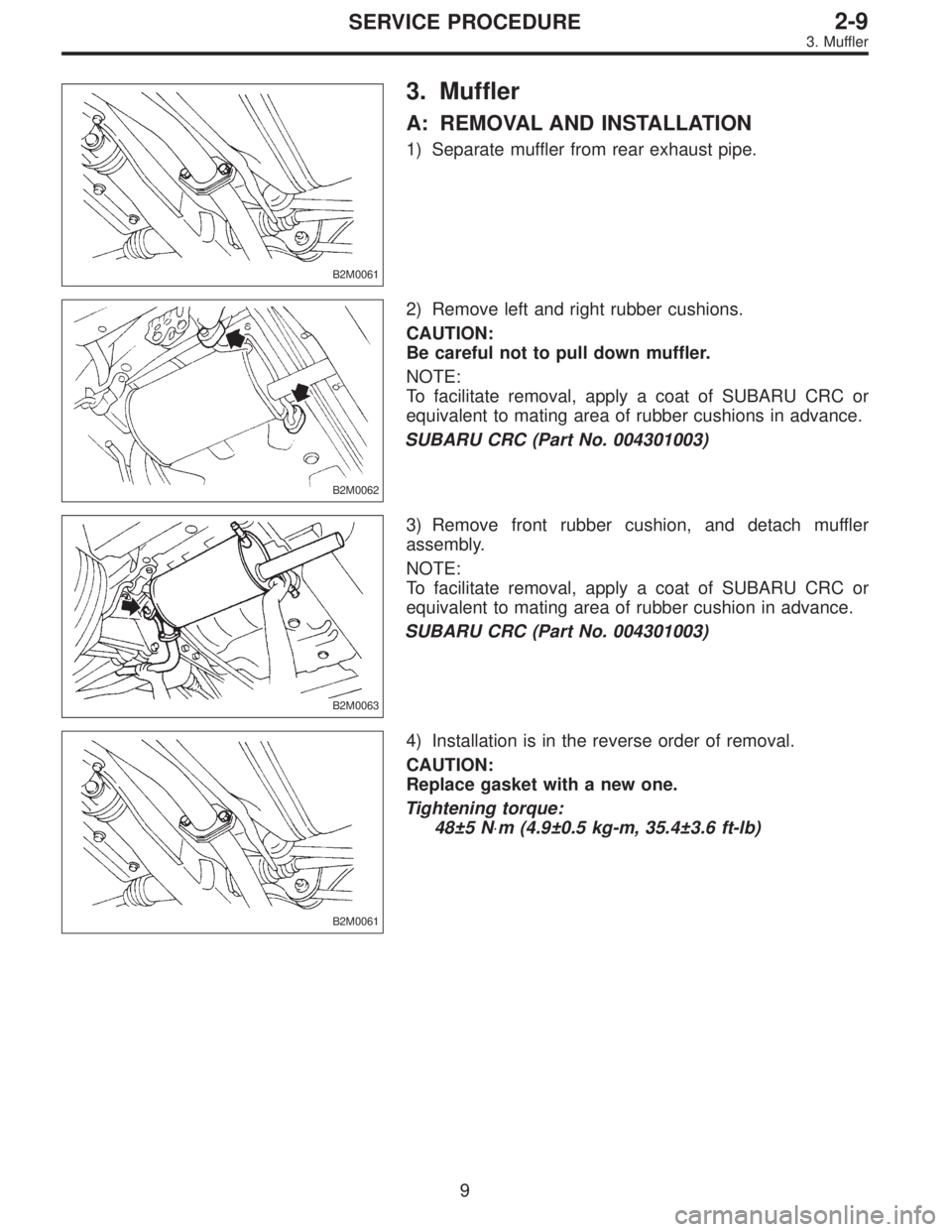

3. Muffler
A: REMOVAL AND INSTALLATION
1) Separate muffler from rear exhaust pipe.
B2M0062
2) Remove left and right rubber cushions.
CAUTION:
Be careful not to pull down muffler.
NOTE:
To facilitate removal, apply a coat of SUBARU CRC or
equivalent to mating area of rubber cushions in advance.
SUBARU CRC (Part No. 004301003)
B2M0063
3) Remove front rubber cushion, and detach muffler
assembly.
NOTE:
To facilitate removal, apply a coat of SUBARU CRC or
equivalent to mating area of rubber cushion in advance.
SUBARU CRC (Part No. 004301003)
B2M0061
4) Installation is in the reverse order of removal.
CAUTION:
Replace gasket with a new one.
Tightening torque:
48±5 N⋅m (4.9±0.5 kg-m, 35.4±3.6 ft-lb)
9
2-9SERVICE PROCEDURE
3. Muffler

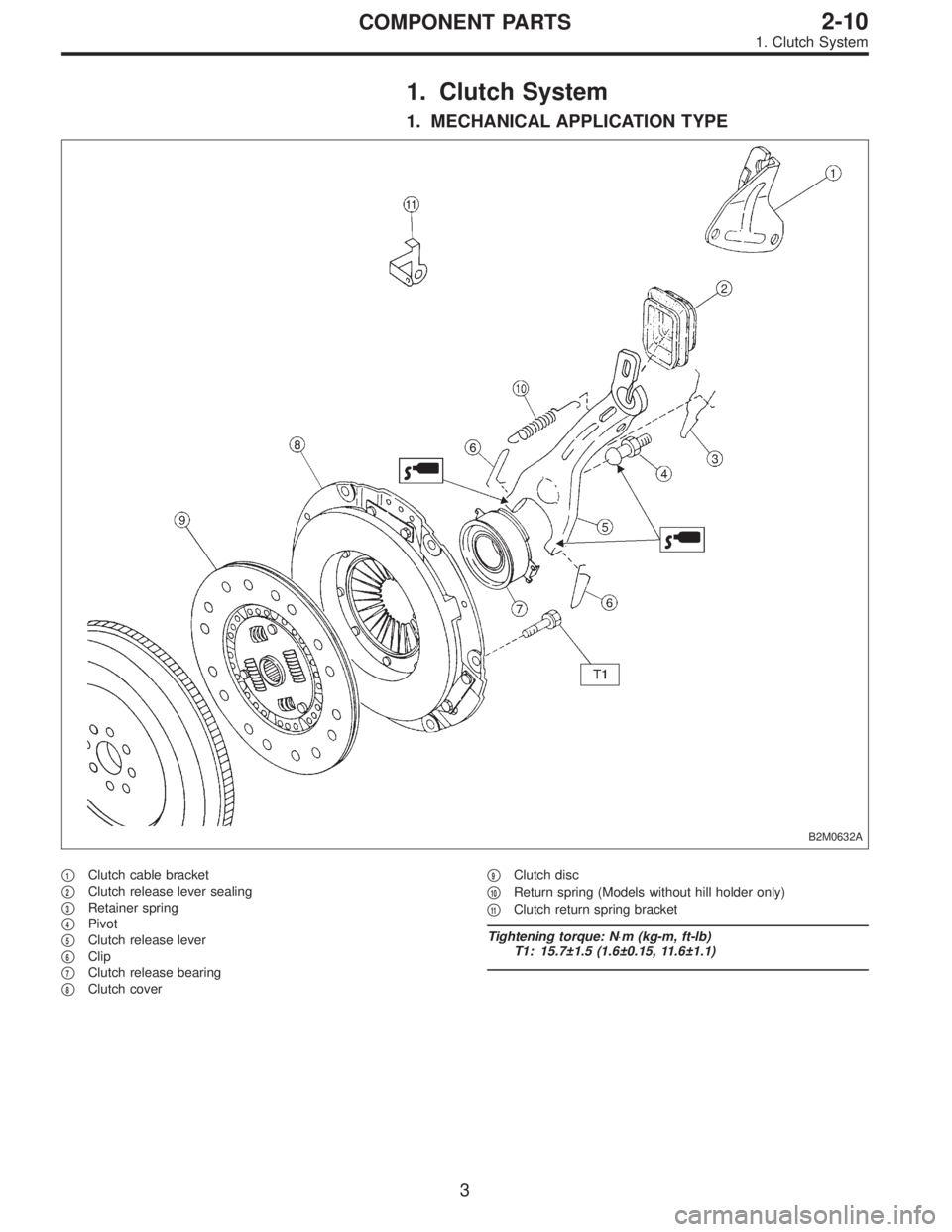

1. Clutch System
1. MECHANICAL APPLICATION TYPE
B2M0632A

1Clutch cable bracket


2Clutch release lever sealing


3Retainer spring


4Pivot


5Clutch release lever


6Clip


7Clutch release bearing


8Clutch cover

9Clutch disc


10Return spring (Models without hill holder only)


11Clutch return spring bracket
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 15.7±1.5 (1.6±0.15, 11.6±1.1)
3
2-10COMPONENT PARTS
1. Clutch System
