1997 FORD PROBE Owners Manual

174 [ER09990(ALL)04/96]Your vehicle has metric (12 mm) wheel studs
and lug nuts. During wheel removal and
replacement, make certain that you use the same
lug nuts to reinstall the wheel or replace them
with nuts of the same metric size and threading.
*
[ER10000(ALL)01/96]
RWARNING
Installation of an English thread nut on a
metric stud (or vice-versa) will not
properly secure the wheel to the hub.
Damaged studs may result in wheel
separation and possible injury.
*
[ER10200(ALL)03/96]
5. Lower the vehicle by turning the jack handle
counterclockwise.
[ER10300(ALL)01/96]
6. Remove the jack and fully tighten the lug
nuts in the order shown in the illustration
under step 2.
[ER10700(ALL)01/96]
7. Put the tire, jack, and wrench away.
[ER10750(ALL)01/96]
8. Unblock the wheels.
%
*
[ER11000(ALL)02/96]
Jump-Starting Your Vehicle
[ER11100(ALL)01/96]
Your vehicle has a Motorcraft maintenance-free
battery. Your vehicle's battery may die if you
leave the lights on or any electrical equipment
on after you turn the engine off. If this happens,
you may be able to jump-start from a booster
battery to start your vehicle.
*
[ER11150(ALL)02/96]
RWARNING
The gases around the battery can explode
if exposed to flames, sparks, or lit
cigarettes. An explosion could result in
injury or vehicle damage.
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

175
*
[ER11200(ALL)02/96]
RWARNING
To protect yourself when charging a
battery, always shield your face and eyes.
Make sure that you can breathe fresh air.
%*
[ER11300(ALL)02/96]
RWARNING
Applying too much pressure on the ends
when lifting a battery could cause acid to
spill. Lift the battery with a carrier or
with your hands on the opposite corners.
%*
[ER11400(ALL)05/96]
RWARNING
Batteries contain sulfuric acid which burns
skin, eyes, and clothing.
*
[ER11500(ALL)02/96]
If the acid touches someone's skin, eyes, or
clothing, immediately flush the area with water
for at least 15 minutes. If someone swallows the
acid, have him or her drink lots of milk or water
first, then Milk of Magnesia, a beaten egg, or
vegetable oil. Call a doctor immediately.
*
[ER11600(ALL)01/96]
RWARNING
Do not push-start your vehicle. You could
damage the catalytic converter. For further
information, seeJumper Cablesin the
Index.
*
[ER11700(ALL)02/96]
To avoid damaging your vehicle or your battery,
and to avoid injury to yourself, follow these
directions for preparing your vehicle to
jump-start and connecting the jumper cables in
the order they are given. If in doubt, call for
road service.
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

176 %
*
[ER11800(ALL)02/96]
Preparing Your Vehicle
*
[ER11900(ALL)02/96]
1. Your vehicle has a 12-volt starting system, so
you need to use a 12-volt jumper system.
You will damage your starting motor,
ignition system, and other electrical parts if
you connect them to a 24-volt power supply
(either two 12-volt batteries in series or a
24-volt generator set).
*
[ER12000(ALL)02/96]
2. Do not disconnect the battery of the disabled
vehicle. You could damage the vehicle's
electrical system.
*
[ER12100(ALL)02/96]
3. Park the booster vehicle close to the hood of
the disabled vehicle.Make sure the vehicles
do not touch each other.Set the parking
brake on both vehicles and stay clear of the
engine cooling fan and other moving parts.
*
[ER12200(ALL)02/96]
4. Check all battery terminals and remove any
excessive corrosion before you attach the
jumper cables.
%*
[ER12400(ALL)02/96]
Connecting the jumper cables
*
[ER12500(ALL)02/96]
1. Connect one end of the first jumper cable to
the positive (+) terminal of the discharged
battery. (You can connect either jumper cable
to the positive (+) terminal, as long as you
use the same cable for both positive
terminals.) Most jumper cables have a red
cable and a black cable. The red cable is
generally used for the positive terminals and
the black for the negative ones.
*
[ER12600(ALL)02/96]
2. Connect the other end of the first cable to
the positive (+) terminal of the booster
battery.
*
[ER12700(ALL)02/96]
3. Connect one end of the second cable to the
negative (S) terminal of the booster battery
Ð NOT to the discharged battery.
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

177
*
[ER12800(ALL)01/96]
4. Connect the other end of the second cable to
a good metallic surface on the engine or
frame of the disabled vehicle.
*
[ER12900(ALL)02/96]
RWARNING
Do not connect the end of the second
cable to the negative (S) terminal of the
battery to be jumped. A spark may cause
an explosion of the gases that surround
the battery.
[ER13000(ALL)01/96]
two third page art:0030135-C
The sequence for connecting the jumper cables
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

178
*
[ER13100(ALL)02/96]
Jump-Starting
*
[ER13200(ALL)02/96]
1. Make sure that the jumper cables are not in
the way of moving engine parts, then start
the booster vehicle. Run the engine at a
moderate speed.
*
[ER13300(ALL)02/96]
2. Let the discharged battery charge for a few
minutes and then start the disabled vehicle.
It may take a couple of tries before the
vehicle starts. If the vehicle does not start
after several attempts, there may be a
different problem.
*
[ER13400(ALL)02/96]
3. When both vehicles are running, let them
idle for a few minutes to charge the
discharged battery.
%*
[ER13500(ALL)02/96]
Removing jumper cables
[ER13600(ALL)01/96]
1.Always remove the jumper cables in
reverse order.Remove the negative (-) end
of the jumper cable from the metallic surface
on the engine or frame of the disabled
vehicle.
*
[ER13700(ALL)03/96]
2. Remove the negative (S) cable from the
booster battery.
*
[ER13800(ALL)02/96]
3. Remove the positive (+) cable from the
booster battery.
*
[ER13900(ALL)02/96]
4. Remove the other end of the positive (+)
cable from the discharged battery.
*
[ER14000(ALL)02/96]
After the vehicle is started, let it idle for a while
to let the engine ªrelearnº its idle conditions.
Drive it around for a while with all electrical
accessories turned off to let the battery recharge.
Driveability may be deteriorated slightly until all
drive modes are ªrelearned.ºYou may need to
use a battery charger to fully recharge the
battery.
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

179
*
[ER14100(ALL)03/96]
If you need to replace your battery, seeBattery
in theMaintenance and Carechapter.
%
*
[ER15000(ALL)04/96]
Towing Your Vehicle
*
[ER15100(ALL)03/96]

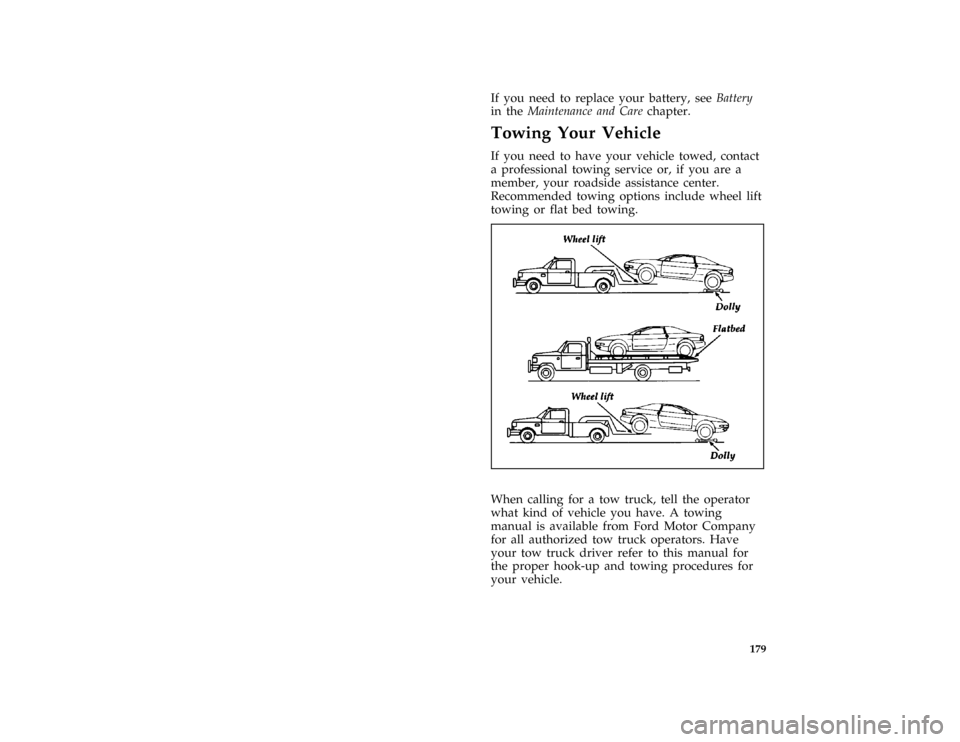

If you need to have your vehicle towed, contact
a professional towing service or, if you are a
member, your roadside assistance center.
Recommended towing options include wheel lift
towing or flat bed towing.
[ER15200(ALL)01/96]
half page art:0032391-A*
[ER15300(ALL)01/96]
When calling for a tow truck, tell the operator
what kind of vehicle you have. A towing
manual is available from Ford Motor Company
for all authorized tow truck operators. Have
your tow truck driver refer to this manual for
the proper hook-up and towing procedures for
your vehicle.
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

180
*
[ER15400(ALL)01/96]
Towing With the Back Wheels Off the
Ground
[ER15500(ALL)01/96]
For automatic and manual transaxle vehicles, if
it is necessary to tow your vehicle from the rear
(with the rear wheels off the ground), a dolly
must be placed under the front tires to prevent
transaxle damage.
[ER15600(ALL)01/96]
If the slingbelt towing method must be used, use
the following procedure:
[ER15700(ALL)01/96]
1. Place the front wheels on wheel dollies.
[ER15800(ALL)01/96]
2. Place T-hooks into the T-hook slots located
on the frame rail behind the rear wheels.
[ER15900(ALL)01/96]
3. Route the tow chain to clear the exhaust
pipes.
[ER16000(ALL)01/96]
4. Position the tow bar under the rear bumper.
[ER16100(ALL)01/96]
5. Slowly raise the vehicle off the ground.
[ER16200(ALL)01/96]
6. Attach safety chains around the rear
crossmember.
File:10prerp.ex
Update:Thu Jun 13 09:57:39 1996

181 [ER16300(ALL)01/96]
two third page art:0032195-A
*
[ER16400(ALL)01/96]
Do not use your vehicle's steering column lock
to secure the wheels in a straight-ahead position.
Always use a steering wheel clamping device
designed for towing service.
*
[ER16500(ALL)01/96]
Refer toTowing behind another vehicle
Ðrecreational vehiclein the Index for information
on towing behind an RV.
