1997 FORD PROBE Owners Manual

62
*
[CF16000(ALL)01/96]
START cranks the engine. Release the key once
the engine starts so that you do not damage the
starter. The key should return to ON when you
release it. The START position also allows you
to test the brake warning light.
%
*
[CF16010(ALL)02/96]
The Turn Signal Lever
*
[CF16020(ALL)02/96]
You can use the turn signal lever on the left side
of the steering column to:
*
[CF16030(ALL)02/96]
q
operate the headlamps and parking lamps
*
[CF16040(ALL)02/96]
q
operate the turn signals and cornering lamps
*
[CF16050(ALL)03/96]
q
turn the high beams on/off
*
[CF16060(ALL)03/96]
q
flash the lamps
*
[CF16070(ALL)02/96]
Headlamps and Parking Lamps
*
[CF16080(ALL)02/96]
To turn the parking lamps or headlamps on,
twist the knob at the end of the turn signal
lever.
[CF16100(ALL)01/96]
FIRST STOP Ð Turning the knob to the first
stop (g) will turn on the the license plate
lamps, parking lamps, side marker lamps, tail
lamps and instrument panel lamps.
[CF16200(ALL)03/96]
SECOND STOP Ð Turning the knob to the
second stop (B) will turn on the headlamps,
license plate lamps, parking lamps, side marker
lamps, tail lamps, and instrument panel lamps.
[CF16300(ALL)01/96]
quarter page art:0032032-A
Headlamp control
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996

63
WARNING
TheDaytim eRunnin gLigh t(DRL )system

64
WARNING
Alwaysremov eth eRETR A(20A )fuse
WARNING
Whe nreinstallin gtheRETR Afuse ,make

65 [CF17800(ALL)01/96]
half page art:0032085-B

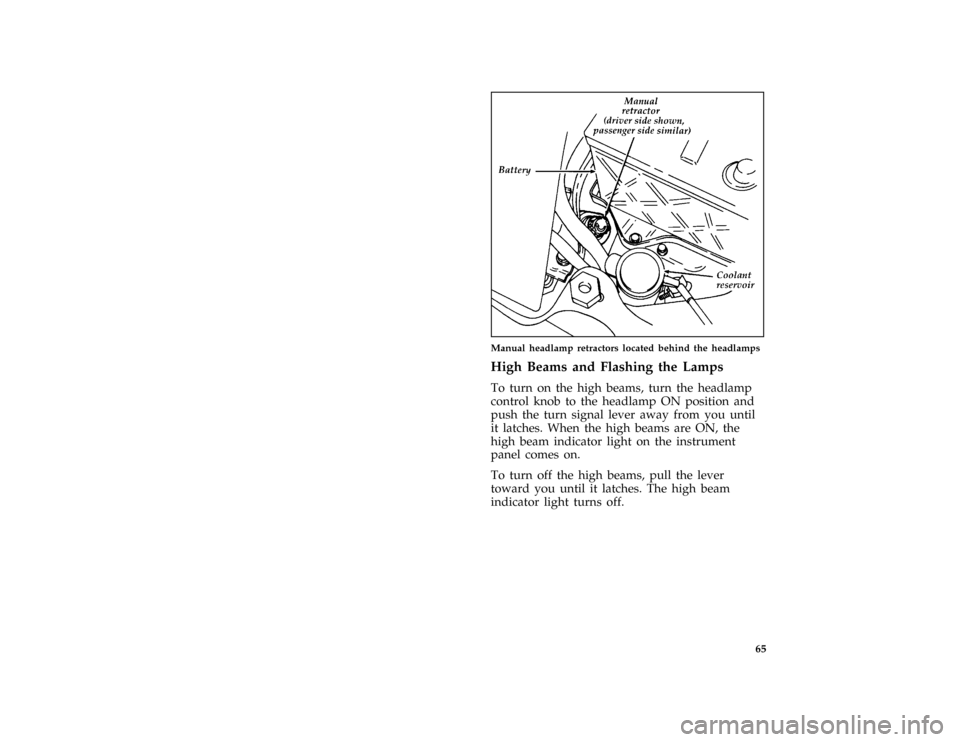

Manual headlamp retractors located behind the headlamps
*
[CF17900(ALL)08/95]
High Beams and Flashing the Lamps
*
[CF18000(ALL)01/96]
To turn on the high beams, turn the headlamp
control knob to the headlamp ON position and
push the turn signal lever away from you until
it latches. When the high beams are ON, the
high beam indicator light on the instrument
panel comes on.
*
[CF18100(ALL)01/96]
To turn off the high beams, pull the lever
toward you until it latches. The high beam
indicator light turns off.
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996

66 %
*
[CF18200(ALL)01/96]
Flashing the Lights
*
[CF18300(ALL)01/96]
To flash the headlamps, pull the lever toward
you for a moment and then release it. The
headlamps will flash whether the headlamp
knob is in the on or off position.
[CF18400(ALL)01/96]
quarter page art:0032034-A

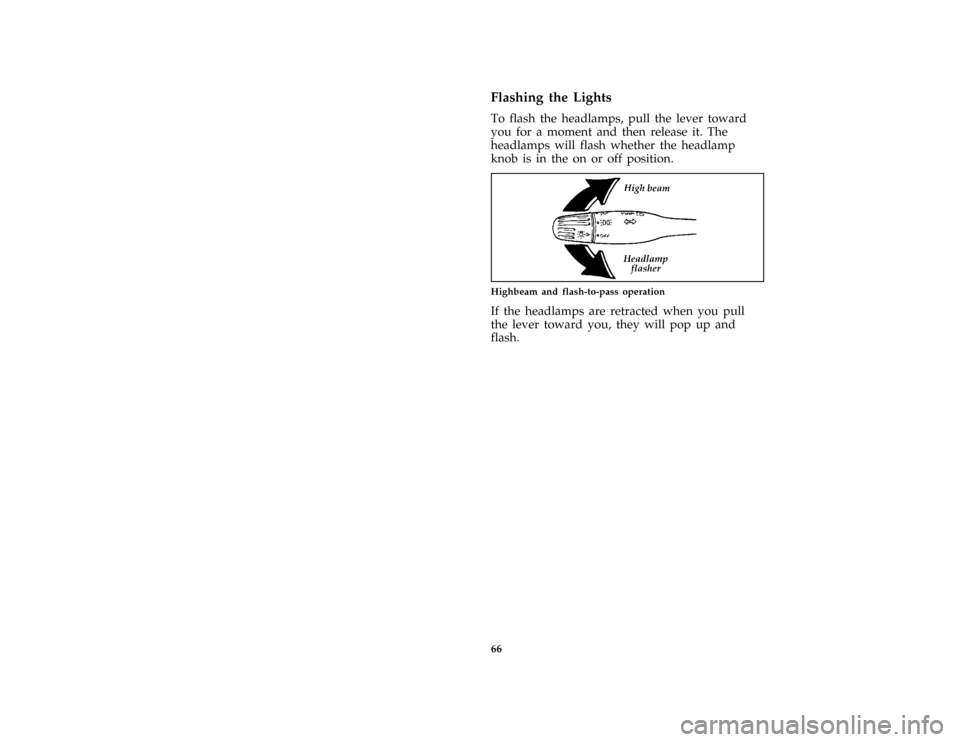

Highbeam and flash-to-pass operation
[CF18500(ALL)01/96]
If the headlamps are retracted when you pull
the lever toward you, they will pop up and
flash.
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996

67 %
*
[CF18600(ALL)01/96]
Turn Signals
*
[CF18700(ALL)01/96]
Move the lever up to signal a right turn. Move
it down to signal a left turn. The corresponding
indicator light in the instrument cluster will
flash.
[CF18800(ALL)01/96]
If the turn signal stays on after you turn, move
the lever back to the center (OFF) position.
*
[CF18900(ALL)01/96]
For lane changes, move the lever far enough to
signal but not to latch. The lever will return to
the off position when you release it.
[CF19000(ALL)01/96]
half page art:0032033-A

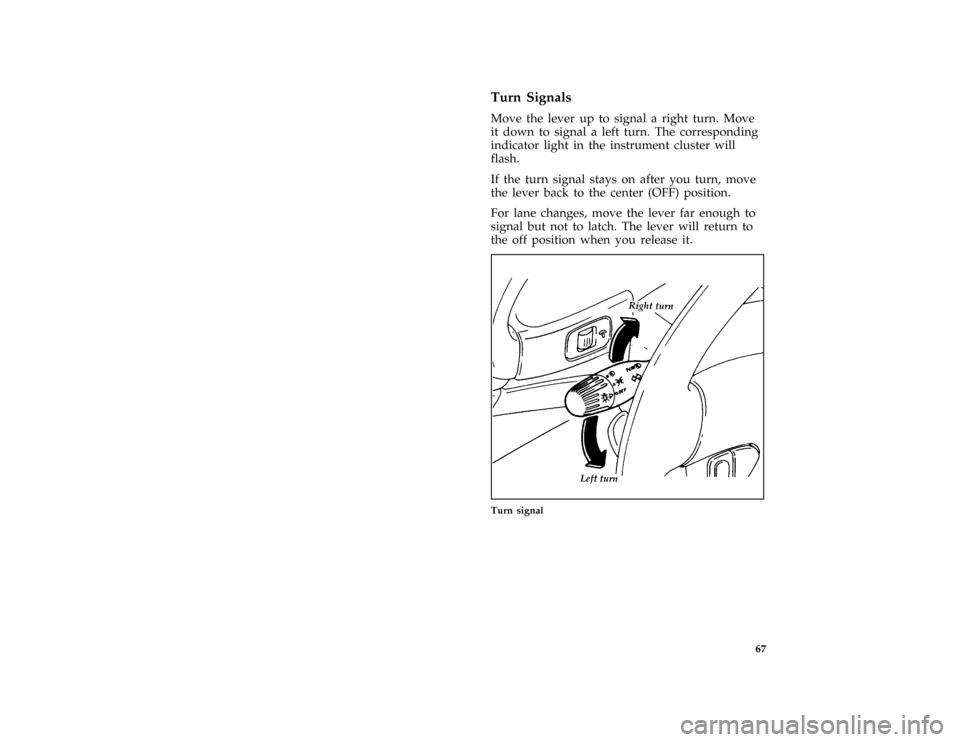

Turn signal
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996

68
%*
[CF19100(ALL)01/96]
Windshield Wipers and Washer
*
[CF19200(ALL)01/96]
To operate the windshield wipers and washers,
make sure your ignition key is turned to the ON
position.
[CF19300(ALL)01/96]
The windshield wipers have two speeds. To
operate the wipers, pull down the lever on the
right side of your steering column. The first
position is LO (Low) and the second position is
HI (High). To turn the wipers off, return the
lever to the uppermost position.
[CF19400(ALL)01/96]
quarter page art:0032071-C
Windshield wiper control
[CF19500(ALL)01/96]
ONE-TOUCH WIPER CONTROL (If equipped)
Ð For one wiping cycle, push the lever away
from you and release it with the lever in the
OFF or interval position. The ignition switch
must be in the ON position for this operation.
[CF19600(ALL)01/96]
quarter page art:0032058-B
One touch wiper control
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996

69 [CF19700(ALL)01/96]
Interval Wipers (If equipped)
[CF19800(ALL)01/96]
In addition to two speed wipers, your vehicle
may have wipers that you can set to operate at
varying intervals. For example, you can set the
interval so they wipe less often when it drizzles
and more often in heavier rain.
[CF19900(ALL)01/96]
quarter page art:0032035-B

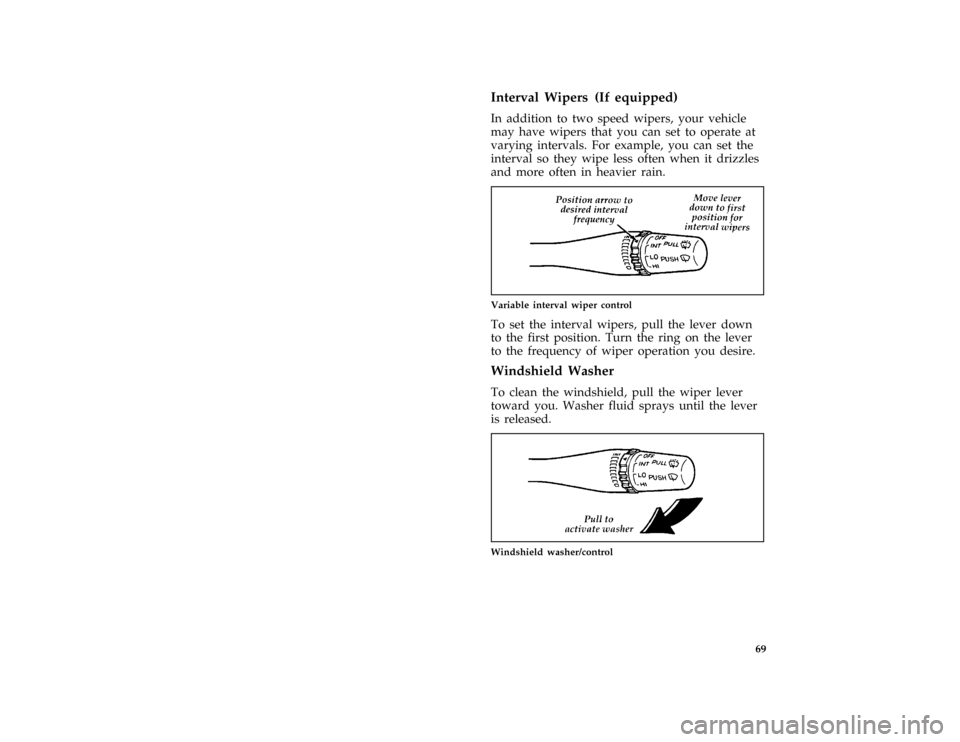

Variable interval wiper control
[CF19950(ALL)01/96]
To set the interval wipers, pull the lever down
to the first position. Turn the ring on the lever
to the frequency of wiper operation you desire.
*
[CF20000(ALL)01/96]
Windshield Washer
[CF20100(ALL)01/96]
To clean the windshield, pull the wiper lever
toward you. Washer fluid sprays until the lever
is released.
[CF20200(ALL)02/96]
quarter page art:0032057-B
Windshield washer/control
