1997 FORD PROBE Owners Manual

223
*
[MC38500(ALL)01/96]
To make sure that the catalytic converter and the
other emission control parts continue to work
properly:
*
[MC38600(ALL)01/96]
q
Use only unleaded fuel.
*
[MC38700(ALL)01/96]
q
Avoid running out of fuel.
*
[MC38800(ALL)01/96]
q
Do not turn off the ignition while your
vehicle is moving, especially at high speeds.
*
[MC38900(ALL)01/96]
q
Do not push start your vehicle.
*
[MC38950(ALL)03/96]
q
Have the services listed in yourMaintenance
Schedulebooklet performed according to the
specified schedule.
*
[MC39000(ALL)01/96]
RWARNING
Do not park, idle, or drive your vehicle in
dry grass or other dry ground cover. The
emission system heats up the engine
compartment and exhaust system, which
can start a fire.
*
[MC39100(ALL)01/96]
Watch for fluid leaks, strange odors, smoke, loss
of oil pressure, the charge warning light, the
check engine light, or the temperature warning
light. These sometimes indicate that the emission
system is not working properly.
*
[MC39200(ALL)01/96]
Do not make any unauthorized changes to your
vehicle or engine. Changes that cause more
unburned fuel to reach the exhaust system can
increase the temperature of the engine or
exhaust system.
%*
[MC39300(ALL)01/96]
In general, maintenance, replacement, or service
of the emission control devices or systems in
your new Ford Motor Company vehicle or
engine may be performed at your expense by
any automotive repair establishment or
individual using automotive parts equivalent to
those with which your vehicle or engine was
originally equipped.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

224
*
[MC39400(ALL)01/96]
By law, anyone who manufactures, repairs,
services, sells, leases, trades vehicles, or
supervises a fleet of vehicles is not permitted to
intentionally remove an emission control device
or prevent it from working. In some of the
United States and in Canada, vehicle owners
may be liable if their emission control device is
removed or is prevented from working.
*
[MC39500(ALL)08/95]
Never use a metal exhaust collector when you
service your vehicle. If the metal collector
contacts any of your vehicle's plastic trim or
bumper parts they could melt or deform.
*
[MC39600(ALL)01/96]
Do not drive your vehicle if it does not operate
properly. See your dealer if the engine runs on
for more than five seconds after you shut it off
or if it misfires, surges, stalls, or backfires.
%*
[MC39700(ALL)01/96]
Information about your vehicle's emission
control system is on the Vehicle Emission
Control Information decal located on or near the
engine. This decal identifies engine displacement
and gives some tune-up specifications.
%*
[MC39800(ALL)03/96]
How to Prepare Your Vehicle for
Inspection/Maintenance (I/M) Testing
*
[MC39900(ALL)05/96]
In some localities it may become a legal
requirement to pass an
Inspection/Maintenance (I/M) test of the
On-Board Diagnostic (OBD) II system. If the
vehicle's powertrain system or its battery has
just been serviced, the OBD II system is reset to
a not ready for I/M testing condition. To
prepare for I/M testing, the law specifies that
additional mixed city and highway driving is
required to complete the check of the OBD II
system.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

225
*
[MC39910(ALL)03/96]
The driving modes required to reach the ready
condition consist of a minimum of 30 minutes of
city and highway driving as described below.
*
[MC39920(ALL)03/96]
q
20 minutes of driving in stop and go
city-type traffic with at least four idle periods.
*
[MC39930(ALL)03/96]
q
10 minutes of driving on an expressway or
highway
*
[MC39940(ALL)05/96]
Before completing the above driving modes, the
engine must be warmed up and at operating
temperature. Once started, the vehicle must not
be turned off during the above driving modes. If
the vehicle owner is unable to meet the I/M
requirements by using these driving patterns, an
authorized service center can perform a detailed
OBD II drive cycle as it would any other type of
repair work.
%
*
[MC42000(ALL)03/96]
Lights and Bulb Replacement
*
[MC42100(ALL)01/96]
It is a good idea to check the operation of the
following lights frequently:
*
[MC42200(ALL)01/96]
q
headlamps
*
[MC42400(ALL)01/96]
q
tail lamps
*
[MC42500(ALL)01/96]
q
brakelamps
*
[MC42600(ALL)01/96]
q
hazard flasher
*
[MC42700(ALL)01/96]
q
turn signals
*
[MC42800(ALL)01/96]
q
side markers
*
[MC42900(ALL)05/96]
q
license plate lamps
[MC43000(ALL)01/96]
q
fog lamps (GT model)
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

226 %
*
[MC43100(ALL)01/96]
The alignment of your headlamps should be
checked if:
*
[MC43200(ALL)01/96]
q
oncoming motorists frequently signal you to
turn off your vehicle's high beams when you
do not have the high beams on
*
[MC43300(ALL)01/96]
q
the headlamps do not seem to give you
enough light to see clearly at night
*
[MC43400(ALL)01/96]
q
the headlamp beams are pointed substantially
away from a position slightly down and to
the right
%*
[MC43500(ALL)01/96]
Headlamp Bulb
[MC43600(ALL)01/96]
Your vehicle has retractable halogen headlamps.
If you need to replace a headlamp, have it done
by a Ford service technician.
% [MC43700(ALL)04/96]
High-Mount Brakelamp Bulb
[MC43800(ALL)01/96]
To replace the bulb:
[MC43900(ALL)01/96]
1. Remove the two side trim liftgate panels.
[MC44000(ALL)01/96]
2. Remove the liftgate trim clip and the liftgate
trim.
[MC44100(ALL)01/96]
3. Remove the bulb from the socket by pushing
it in and turning it counterclockwise.
[MC44200(ALL)01/96]
4. Install the bulb by pushing straight into the
lamp socket and turning it clockwise until it
locks in place.
[MC44300(ALL)01/96]
5. Replace the liftgate trim and trim clip.
[MC44400(ALL)01/96]
6. Replace the two side trim liftgate panels.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

227 [MC44500(ALL)01/96]
one third page art:0032061-B
High-mount brakelamp
% [MC46000(ALL)01/96]
Rear Lamp Bulbs
[MC46100(ALL)01/96]
To replace a bulb:
[MC46200(ALL)01/96]
1. Remove the attaching screw and the rear
lens cover.
[MC46300(ALL)01/96]
one third page art:0032120-A
Removing the attaching screw and lens
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

228 [MC46400(ALL)01/96]2. Partially remove the rear lens by pulling the
lock tabs out of the slots.
[MC46500(ALL)01/96]
half page art:0032121-C
Pulling out the lock tabs
[MC46600(ALL)01/96]
3. Turn the socket counterclockwise to remove
it from the lens.
[MC46700(ALL)01/96]
4. Remove the bulb from the socket by pushing
it in and turning it counterclockwise.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

229 [MC46800(ALL)01/96]

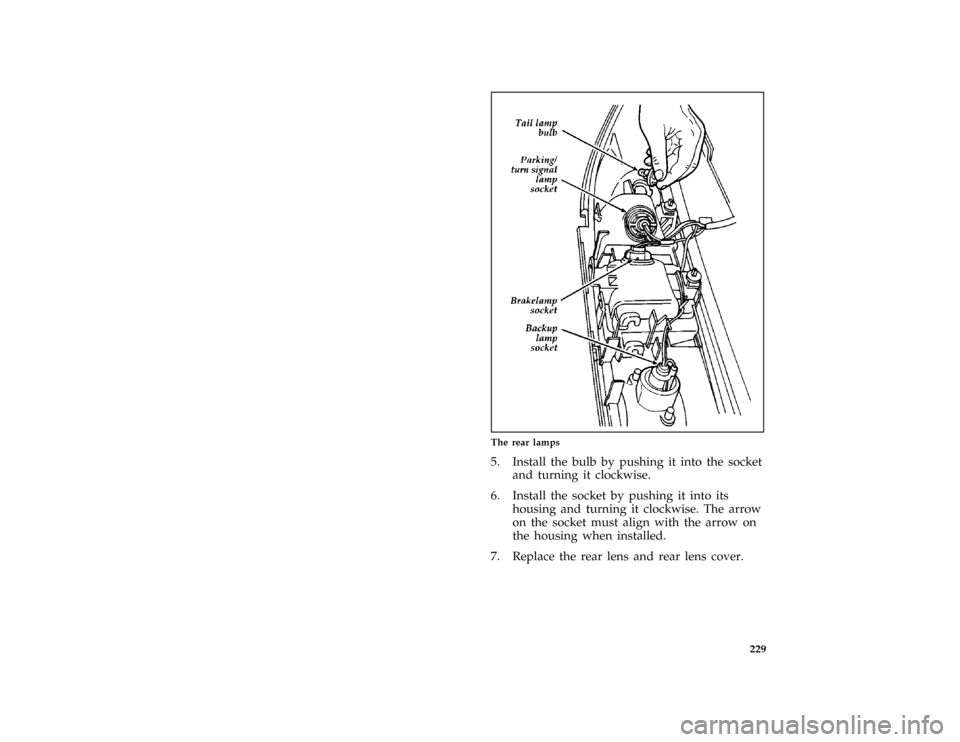

two third page art:0032122-A
The rear lamps
[MC46900(ALL)01/96]
5. Install the bulb by pushing it into the socket
and turning it clockwise.
[MC47000(ALL)01/96]
6. Install the socket by pushing it into its
housing and turning it clockwise. The arrow
on the socket must align with the arrow on
the housing when installed.
[MC47100(ALL)01/96]
7. Replace the rear lens and rear lens cover.
File:11prmcp.ex
Update:Thu May 16 12:08:53 1996

230
*
[MC47200(ALL)02/96]

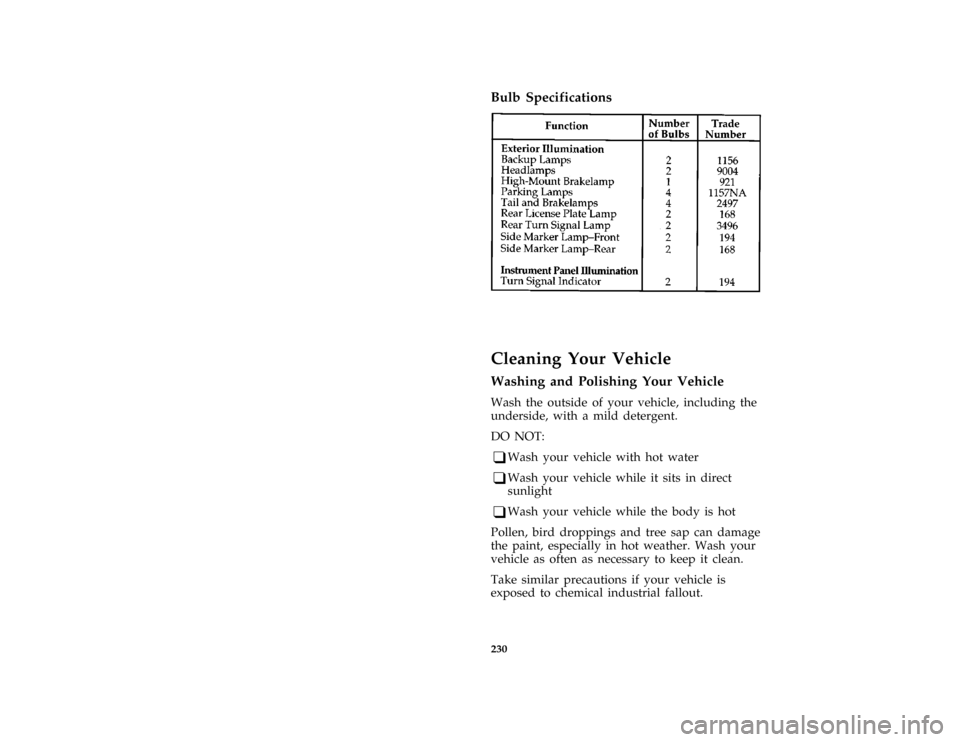

Bulb Specifications
[MC47300(ALL)01/96]
sixteen pica chart:0030275-G%*
[MC60000(ALL)04/96]
Cleaning Your Vehicle
%*
[MC60100(ALL)01/96]
Washing and Polishing Your Vehicle
*
[MC60200(ALL)01/96]
Wash the outside of your vehicle, including the
underside, with a mild detergent.
*
[MC60300(ALL)01/96]
DO NOT:
*
[MC60400(ALL)01/96]
q
Wash your vehicle with hot water
*
[MC60500(ALL)01/96]
q
Wash your vehicle while it sits in direct
sunlight
*
[MC60600(ALL)01/96]
q
Wash your vehicle while the body is hot
*
[MC60700(ALL)01/96]
Pollen, bird droppings and tree sap can damage
the paint, especially in hot weather. Wash your
vehicle as often as necessary to keep it clean.
*
[MC60800(ALL)01/96]
Take similar precautions if your vehicle is
exposed to chemical industrial fallout.
