1997 FORD PROBE Owners Manual

78
WARNING
Do no tle tchildre npla ywit hthepower
%
WARNING
Th erigh tsid evie wmirro rmake sobjects

79 [CF28200(ALL)01/96]
Dual-Electric Remote Control Mirrors
(If equipped)
[CF28300(ALL)01/96]
Dual-electric remote control mirrors are
collapsible. The mirror heads can be folded
rearward to prevent damage when using an
automatic car wash.
*
[CF28400(ALL)01/96]
To adjust the side mirrors:
[CF28500(ALL)01/96]
1. Locate the control switch in the power
control panel on the driver's door.
[CF28600(ALL)01/96]
2. Select the right or left mirror by moving the
selector switch right or left.
[CF28700(ALL)01/96]
3. Push the control switch in the direction you
want to move the mirror.
[CF28800(ALL)01/96]
4. Return the selector switch to the middle OFF
position to keep the mirror in place.
[CF28900(ALL)01/96]
half page art:0030108-C
Dual-electric side mirror control switches
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996

80
WARNING
Do no tpu tobject son theledg ebetween

81 [CF31200(ALL)01/96]
Center Console Storage (If equipped)
[CF31300(ALL)01/96]
To open the center console storage bin, push the
button and slide the lid back. When it is back as
far as it will go, push the button and lift the lid.
[CF31400(ALL)01/96]
Cupholders
[CF31500(ALL)01/96]
The cupholders are located inside the center
console storage bin. The driver cupholder is
integrated in the storage bin. To use the
passenger cupholder, rotate it upward then twist
the cupholder until it is in a horizontal position.
When the passenger cupholder is not in use,
twist it back to the vertical position and rotate it
into the storage bin.
*
[CF31600(ALL)04/96]
NOTE: Do not place heavy objects in the
cupholders.
[CF31700(ALL)01/96]
half page art:0032378-A

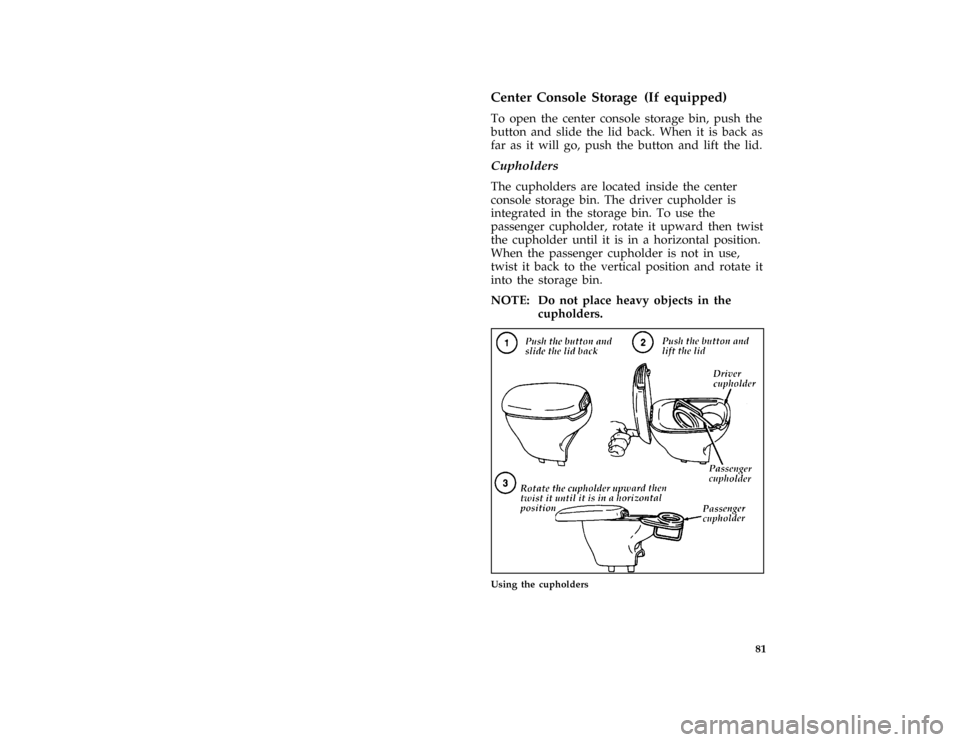

Using the cupholders
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996

82
WARNING
If yo udriv ewit hthehatchbac klid open,

83
[CF33300(ALL)01/96] Usingth eLuggag eCompartmen tCover
WARNING
D o no tpu tobject son theledg ebetween

84 [CF33600(ALL)04/96]To remove the luggage compartment cover:
[CF34700(ALL)04/96]
1. Raise the hatchback to the fully open
position.
[CF34800(ALL)01/96]
2. Standing outside the vehicle, unfasten the lift
cords from the hatchback lid.
[CF34900(ALL)01/96]
3. Disconnect the two front package tray lift
cords from the lower trunk side trim.
[CF35000(ALL)01/96]
4. Lower the cover and slide it rearward to
disengage it from the sockets and remove it.
[CF35100(ALL)01/96]
two third page art:0032088-D

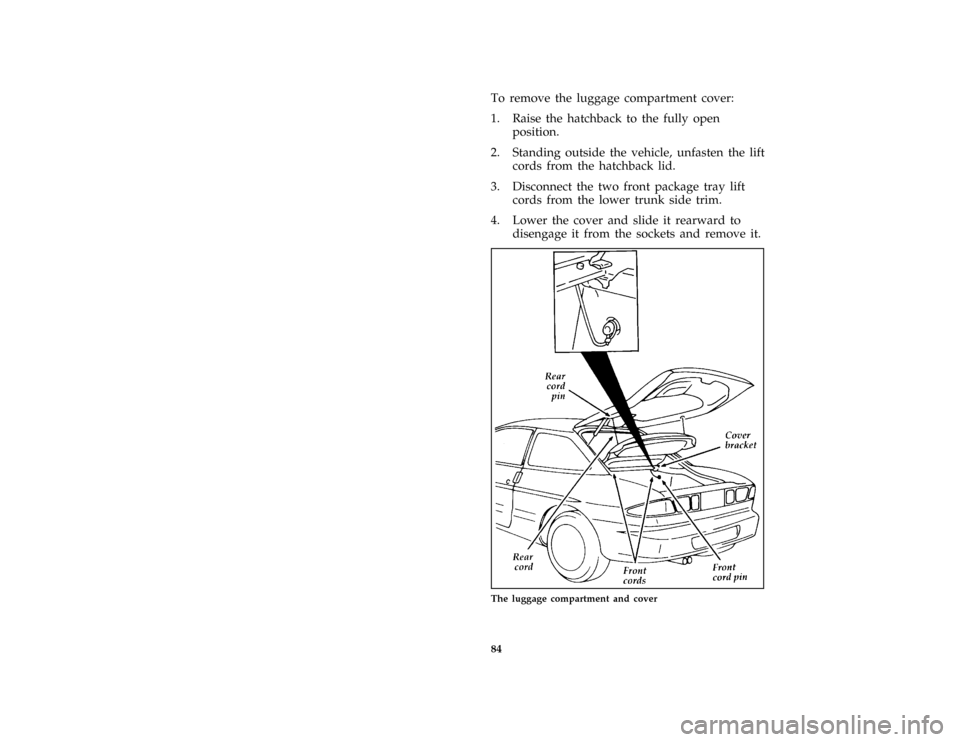

The luggage compartment and cover
File:05prcfp.ex
Update:Tue Jun 11 11:03:33 1996

85
WARNING
Thecove rma ycaus einjur yin asudden
WARNING
Do no tpus hdow non theluggage
