If your engine cranks, but does not start after a collision:
*
[ST10700(ALL)02/95]1.
Turn the key in the ignition to the OFF position.
*
[ST10800(ALL)03/95]2.
Check under the vehicle for leaking fuel.
*
[ST10900(ALL)02/95]3.
If you do not see or smell fuel, push the fuel pump shut-off
reset button down. If the red button is already set, you may
have a different mechanical or electrical problem.
*
[ST11000(ALL)02/95]4.
Turn the ignition key to the ON position for a few seconds,
then turn it to the OFF position.
*
[ST11100(ALL)02/95]5.
Check under the vehicle again for leaking fuel. If you see or
smell fuel, do not start your vehicle again. If there is no fuel,
you can try to start your vehicle again.
*
[ST11200(ALL)02/95]6.
Check all vehicle warning lights before driving your vehicle.
%*
[ST11300(ALL)02/95]
Guarding Against Exhaust Fumes
[ST11400(ALL)02/95]
Carbon monoxide, although colorless and odorless, is present in
exhaust fumes.
*
[ST11500(ALL)02/95]
RWARNING
Never let your vehicle idle in an enclosed area, and do
not sit in a parked vehicle, (with the engine running) for
more than a short period of time. Exhaust fumes,
particularly carbon monoxide, might build up. These
fumes are harmful and could kill you.
*
[ST11600(ALL)02/95]
RWARNING
If you ever smell exhaust fumes of any kind inside your
vehicle, have your dealer inspect and fix your vehicle
immediately. Do not drive if you smell exhaust fumes.
These fumes are harmful and could kill you.
File:wnsts.ex
Update:Tue Mar 19 08:25:19 1996

Starting Your Windstar
63
*
[ST11700(ALL)02/95]
Have the exhaust and body ventilation systems checked by a
qualified technician whenever:
*
[ST11800(ALL)02/95]
n
your vehicle is raised for service
*
[ST11900(ALL)02/95]
n
the sound of the exhaust system changes
*
[ST12000(ALL)02/95]
n
your vehicle has been damaged in an accident
[ST12100(ALL)02/95]
If the exhaust system has any indications of leaks it should be
repaired immediately.
*
[ST12200(ALL)02/95]
Improve your ventilation by keeping all air intake vents clear of
snow, leaves, and other objects.
[ST12300(ALL)02/95]
If the engine idles while you are stopped in an open area for
long periods of time, open the windows at least one inch. Also,
adjust the heating or air conditioning to bring in outside air.
*
[ST12400(ALL)02/95]
Read the sectionClimate Control Systemsfor instructions on
bringing fresh outside air into your vehicle. Refer to the Index.
File:wnsts.ex
Update:Tue Mar 19 08:25:19 1996

65
Warning Lights and Gauges
%*
[LG00250(ALL)01/95]
The instrument panel (dashboard) on your vehicle is divided
into several different sections. The illustrations on the following
pages show the major parts of the instrument panel that are
described in this chapter. Some items shown may not be on all
vehicles.
*
[LG00270(ALL)02/95]
Your vehicle has one of the following clusters:
[LG00290(ALL)06/94]
n
Mechanical Cluster
[LG00300(ALL)05/89]
n
Mechanical Cluster with a tachometer
[LG00320(ALL)10/93]
n
Electronic Cluster
*
[LG00330(ALL)05/94]
If you are not sure which cluster your vehicle has, check the
diagrams on the following pages.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

66
[LG00401(ALL)04/95]
33-1/2 pica
art:0050230-C

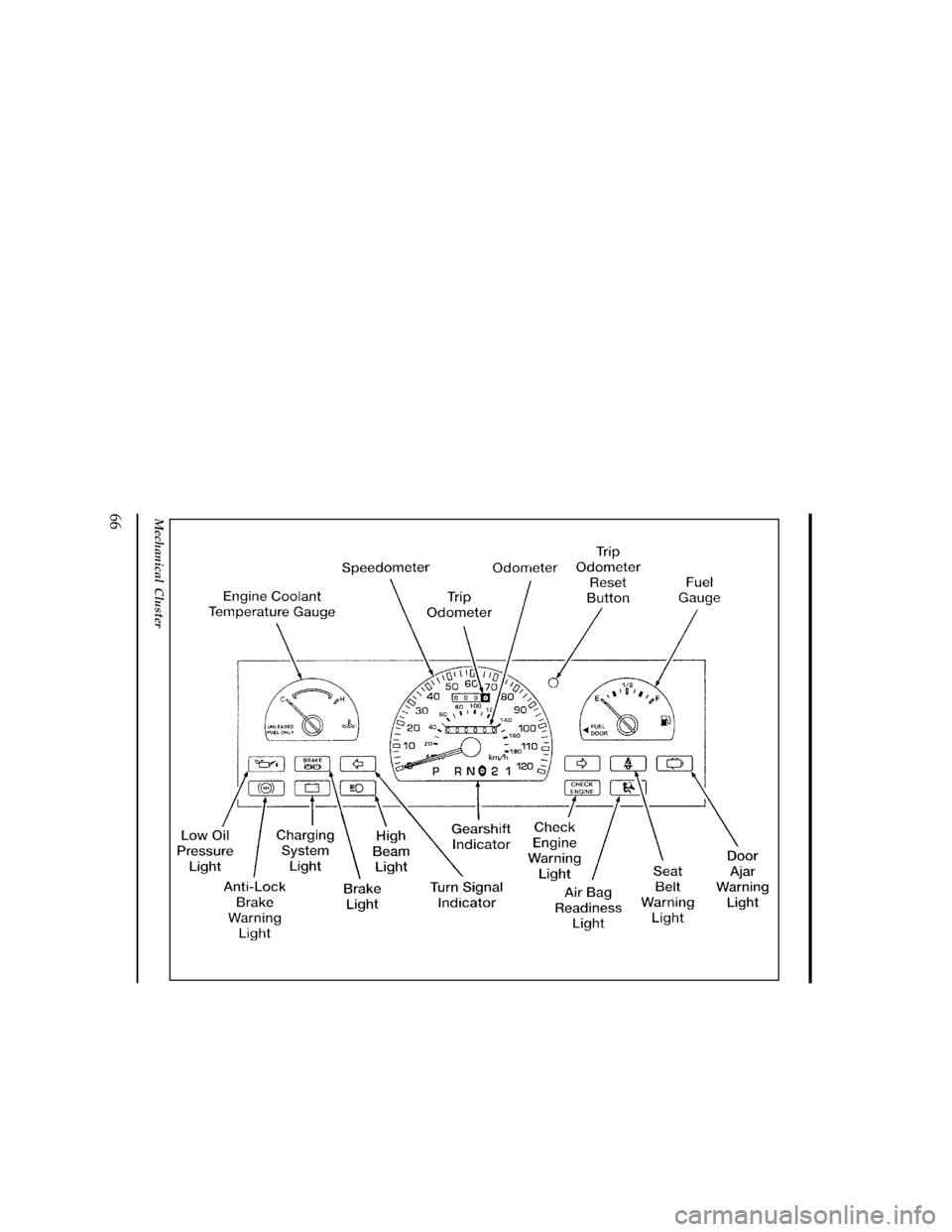

Mechanical Cluster
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

Warning Lights and Gauges
67
[LG00450(ALL)04/95]
33-1/2 pica art:0050127-F
The mechanical cluster with tachometer
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

68
%*
[LG00475(ALL)06/94]
The Mechanical Cluster
[LG00501(ALL)06/94]
The following warning lights and gauges are on the Mechanical
Cluster. All of these indicators alert you to the status of vehicle
systems or possible problems with your vehicle. Some of the
lights listed are optional. The following section explains each of
the indicators.
[LG00600(ALL)12/93]
Warning and Indicator Lights
%*
[LG00900(ALL)03/95]
Brake System Light
[LG01000(ALL)11/93]
The warning light for the brakes indicates two things Ð that
either the parking brake is on or not fully released, or that the
brake fluid level is low in the master cylinder reservoir. If the
fluid level is low, the brake system should be checked by a
qualified service technician.
[LG01100(ALL)11/93]
6 pica art:0050144-B
The brake system light
[LG01200(ALL)12/93]
The BRAKE light normally comes on when you turn the
ignition key to the ON or START position to verify that the
indicator bulb is working. If the light stays on or comes on
when the engine is running and after you have released the
parking brake fully, have the hydraulic brake system serviced.
*
[LG01300(ALL)05/95]
RWARNING
The BRAKE light indicates that the brakes may not be
working properly. Have the brakes checked immediately.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

Warning Lights and Gauges
69
% [LG01400(ALL)02/95]
Anti-lock Brake System (ABS) Warning Light
*
[LG01500(ALL)12/93]
To check the anti-lock brake warning light, turn the ignition key
to the ON position. The ABS warning light should glow
momentarily.
*
[LG01600(ALL)10/93]
NOTE: If it does not glow at all or stays on for a long time,
have your vehicle's electrical system checked
immediately.
[LG01700(ALL)11/93]
6 pica art:0050147-B
The anti-lock brake warning light
*
[LG01800(ALL)05/95]
RWARNING
If the anti-lock brake system warning light remains on or
comes on while driving, have the braking system checked
by a qualified service technician as soon as possible.
[LG01820(ALL)06/95]
NOTE: If a fault occurs in the anti-lock system, and the brake
warning light is not lit, the anti-lock system is
disabled but normal brake function remains
operational.
% [LG01900(ALL)04/95]
Safety Belt Warning Light and Chime
*
[LG02000(ALL)03/95]
This warning light and chime remind you to fasten your safety
belt. The following conditions will take place:
[LG02010(ALL)02/95]
n
If the driver does not fasten the safety belt before the
ignition is turned to ON, the chime will sound for four (4) to
eight (8) seconds and the light will illuminate for one (1) to
two (2) minutes, or until the safety belt is fastened.
File:wnlgs.ex
Update:Tue Mar 19 08:25:03 1996

70
[LG02021(ALL)02/95]
n
If the driver fastens the safety belt before the ignition is
turned to ON, the chime will not sound and the light will
not illuminate.
[LG02050(ALL)02/95]
n
If the safety belt is buckled while the light is on and the
chime is sounding, both the light and the chime turn off.
[LG02100(ALL)11/93]
6 pica art:0050148-B
The safety belt warning light
%*
[LG02200(ALL)03/95]
Check Engine Warning Light
*
[LG02301(ALL)05/95]
The Powertrain On-Board Diagnostic II (OBD II) system consists
of the hardware and software necessary to monitor the
operation of the powertrain. The OBD II system is designed to
check the function of the vehicle's powertrain control system
during normal operation. If an emission problem is detected, the
Check Engine Warning Light (in the cluster) is turned on.
[LG02400(ALL)11/93]
6 pica art:0050065-B
The check engine warning light
*
[LG02410(ALL)05/95]
Modification or additions to the vehicle may cause incorrect
operation of the OBD II system. Additions such as burglar
alarms, cellular phones, and CB radios must be carefully
installed. Do not install these devices by tapping into or running
wires close to powertrain control system wires or components.
File:wnlgs.ex
