1996 FORD WINDSTAR windshield wipers

55
Starting Your Windstar
*
[ST02000(ALL)03/95]
Ignition
%*
[ST02100(ALL)01/95]
Understanding the Positions of the Ignition
*
[ST02300(ALL)09/93]
13-1/2 pica
art:0040047-C
The ignition positions
% [ST02401(ALL)02/94]
ACCESSORY allows you to operate some of your vehicle's
electrical accessories while the engine is not running. For
example, you can use ACCESSORY to turn on the radio or
windshield wipers without starting the engine.
*
[ST02501(ALL)01/93]
LOCK locks the steering wheel and the gearshift lever.
*
[ST02600(ALL)01/93]
OFF allows you to shut off the engine and all accessories
without locking the steering wheel, or the gearshift lever.
*
[ST02701(ALL)01/93]
ON allows you to test your vehicle's warning lights to make
sure they work before you start the engine. The key returns to
the ON position once the engine is started and remains in this
position while the engine runs.
*
[ST02801(ALL)01/93]
START cranks the engine. Release the key once the engine starts
so that you don't damage the starter. The key should return to
the ON position when you release it. The START position also
allows you to test the brake warning light.
File:wnsts.ex
Update:Tue Mar 19 08:25:19 1996

129
Steering Column Controls
*
[SC00900(ALL)01/95]
The controls on the steering column and wheel are designed to
give you easy access to the controls while you are driving.
*
[SC01000(ALL)01/93]
Turn Signal Lever
*
[SC01100(ALL)01/95]
You can use the turn signal lever on the left side of the steering
column to:
*
[SC01200(ALL)01/93]
n
operate the turn signals.
*
[SC01300(ALL)01/93]
n
turn the headlamps to high beam.
*
[SC01400(ALL)01/93]
n
flash the headlamps.
*
[SC01500(ALL)01/93]
n
turn the windshield wipers and washer on/off.
%*
[SC01600(ALL)01/95]
Turn Signals
[SC01700(ALL)02/95]
To turn on the right turn signal, push the turn signal lever up.
The right-side arrow on the instrument panel will flash.
[SC01800(ALL)02/95]
To turn on the left turn signal, pull the turn signal lever down.
The left-side arrow on the instrument panel will flash.
*
[SC01900(ALL)11/93]
7-1/2 pica art:0040085-D

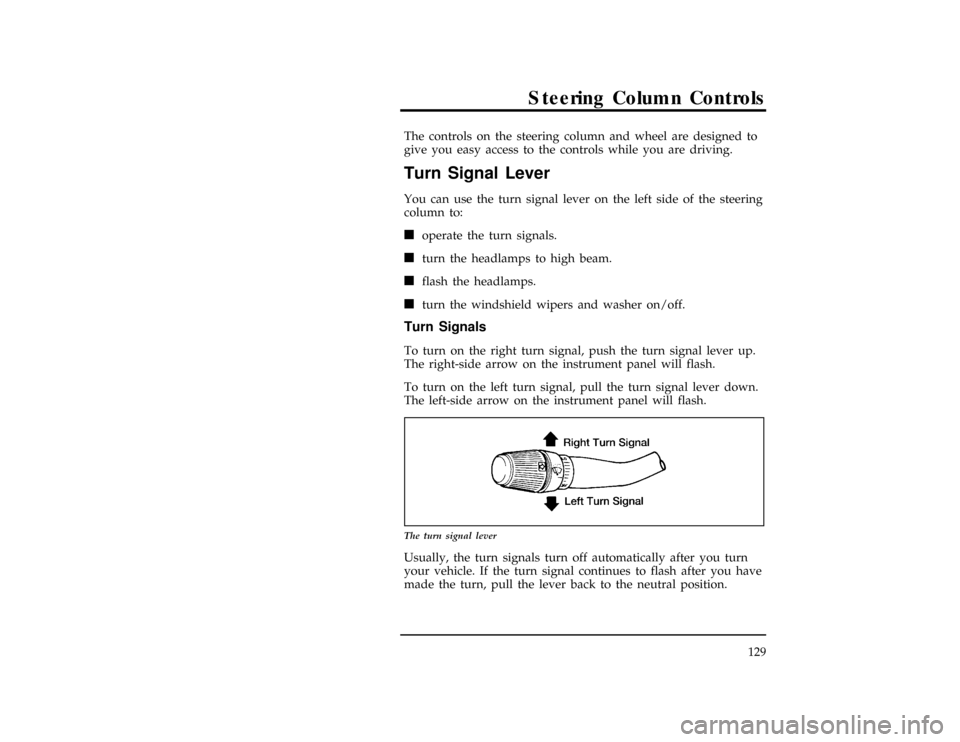

The turn signal lever
[SC02000(ALL)02/95]
Usually, the turn signals turn off automatically after you turn
your vehicle. If the turn signal continues to flash after you have
made the turn, pull the lever back to the neutral position.
File:wnscs.ex
Update:Tue Mar 19 08:22:27 1996

Steering Column Controls
131
%*
[SC03100(ALL)03/95]
Windshield Wipers and Washer
%*
[SC03200(ALL)03/95]
Variable Interval Wipers
[SC03300(ALL)11/93]
Your vehicle has wipers that operate at varying intervals. For
example, you can set the interval so they wipe less often in
light rain or more often in heavier rain. The wiper delays range
from about 1.5 to 20 seconds.
*
[SC03400(ALL)09/93]
10-1/2 pica art:0040087-E

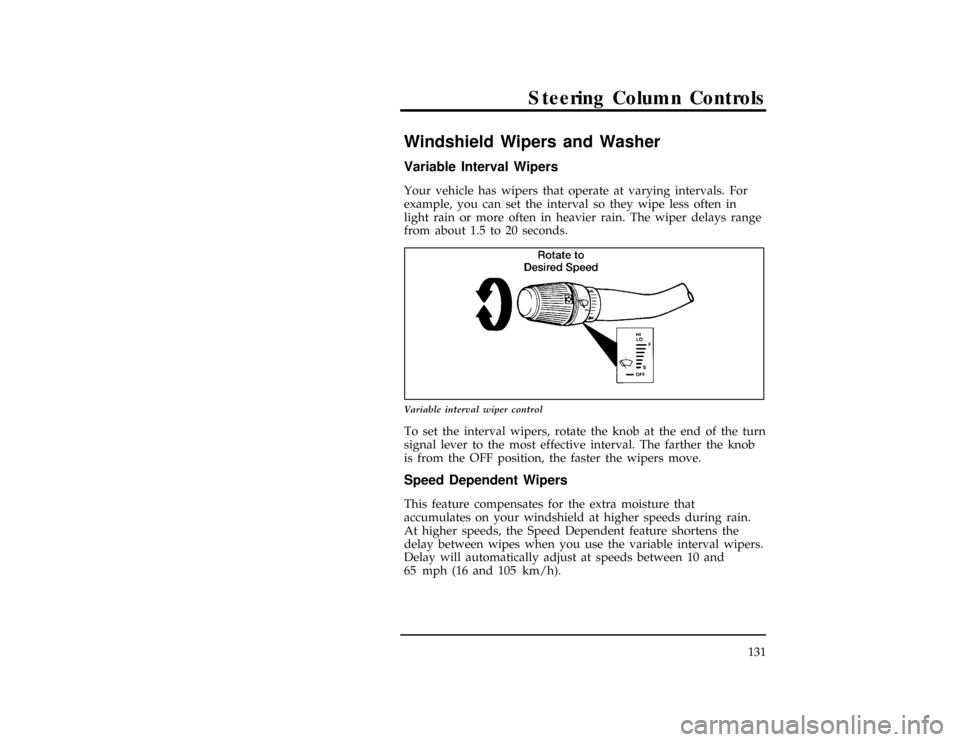

Variable interval wiper control
*
[SC03500(ALL)01/93]
To set the interval wipers, rotate the knob at the end of the turn
signal lever to the most effective interval. The farther the knob
is from the OFF position, the faster the wipers move.
[SC03510(ALL)12/93]
Speed Dependent Wipers
[SC03520(ALL)01/95]
This feature compensates for the extra moisture that
accumulates on your windshield at higher speeds during rain.
At higher speeds, the Speed Dependent feature shortens the
delay between wipes when you use the variable interval wipers.
Delay will automatically adjust at speeds between 10 and
65 mph (16 and 105 km/h).
File:wnscs.ex
Update:Tue Mar 19 08:22:27 1996

132
[SC03530(ALL)12/93]
The Speed Dependent feature comes disabled from the factory,
but can be activated at any time by using the following
procedure.
[SC03560(ALL)12/93]1.
Make sure the two front doors are securely closed.
[SC03570(ALL)04/95]2.
Insert the key into the ignition and turn first to the ON
position (the gauges on the instrument panel willnot
illuminate) and then back to the OFF position. Remove the
key and within 30 seconds:
[SC03575(ALL)12/93]3.
Press and hold the washer button on the end of the turn
signal lever.
[SC03580(ALL)04/95]4.
Within two seconds, put the key back in the ignition and
turn to the ON position.
[SC03585(ALL)06/94]5.
Hold the washer button down until a long (two second) tone
is heard. Release the button while the tone is active.
[SC03591(ALL)12/93]6.
After the long tone, a confirmation sequence will be heard.
One beep indicates the feature is inactive. Two beeps
indicates the feature is active.
[SC03595(ALL)12/93]
Repeat this procedure any time you want to cancel or reactivate
the Speed Dependent feature.
*
[SC03600(ALL)04/95]
Windshield Washer
[SC03700(ALL)08/94]
To clean the windshield, push in the washer button on the end
of the turn signal lever. For a constant spray, push and hold the
button. If the windshield wipers are off, one momentary push
results in one wipe and a longer push in three wipes and
activation of washer fluid. If the windshield wipers are in
interval mode a quick tap results in two wipe cycles and a
longer tap in three wipes and washer fluid activation.
*
[SC03800(ALL)01/93]
Do not try to clean the windshield when the washer fluid
container is empty and never activate the washers for more than
fifteen seconds continuously. This could damage the washer
pump system.
File:wnscs.ex
Update:Tue Mar 19 08:22:27 1996

Steering Column Controls
133
*
[SC03900(ALL)01/93]
RWARNING
In freezing weather, the washer solution may freeze on
the windshield and obscure your vision. Always warm
up the windshield with the defroster before you use the
washer fluid. If you cannot see through the windshield
clearly, it can increase the risk of being involved in a
collision.
*
[SC04000(ALL)04/95]
For information about refilling the washer fluid or replacing
your windshield wiper blades, seeWindshield washer fluid and
Wipersin the Index.
%*
[SC04100(ALL)01/93]
Gearshift Lever
[SC04200(ALL)06/94]
The gearshift lever on your vehicle is mounted on the steering
column. On the end of the gearshift lever is the Overdrive
On/Off button and the OVERDRIVE OFF lamp. For additional
information about the gearshift lever and the Overdrive On/Off
button, see theDriving Your Vehiclechapter.
[SC04300(ALL)09/93]
13-1/2 pica
art:0050016-A

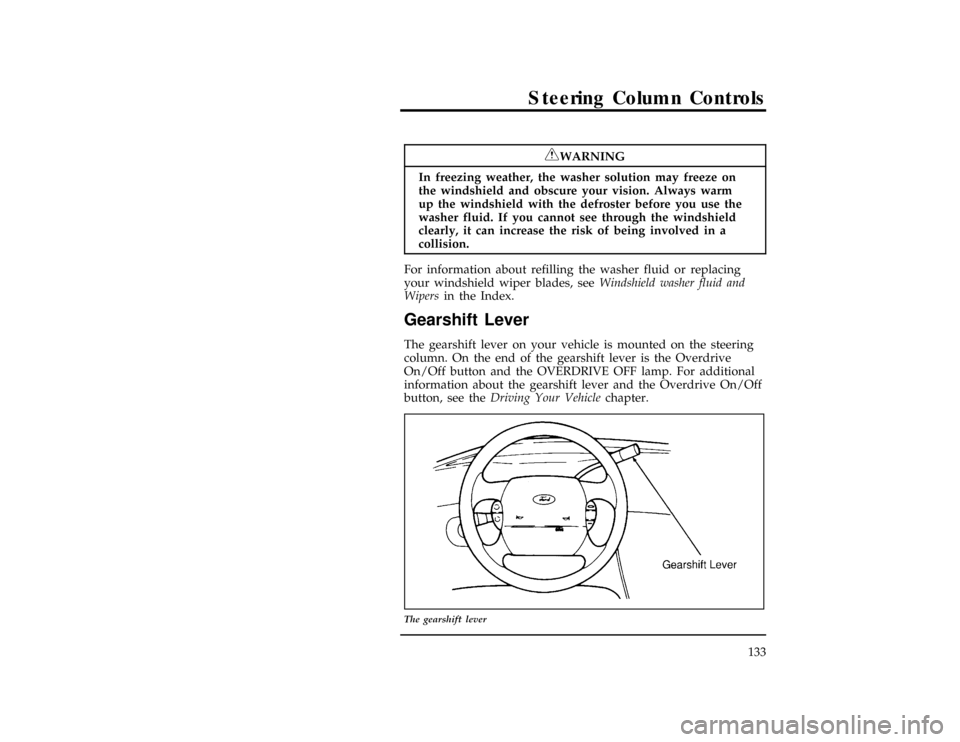

The gearshift lever
File:wnscs.ex
Update:Tue Mar 19 08:22:27 1996

Servicing Your Windstar
325
*
[SV21555(ALL)02/95]
RWARNING
The gases around the battery can explode if exposed to
flames, sparks, or lit cigarettes. An explosion could result
in injury or vehicle damage.
%*
[SV21560(ALL)05/95]
RWARNING
Batteries contain sulfuric acid which burns skin, eyes,
and clothing.
*
[SV21562(ALL)05/95]
If the acid touches someone's skin, eyes, or clothing,
immediately flush the area with water for at least 15 minutes. If
someone swallows the acid, have him or her drink lots of milk
or water first, then Milk of Magnesia, a beaten egg, or vegetable
oil. Call a doctor immediately.
%*
[SV21570(ALL)05/95]
RWARNING
Applying too much pressure on the ends when lifting a
battery could cause acid to spill. Lift the battery with a
carrier or with your hands on the opposite corners.
%*
[SV21580(ALL)03/95]
Windshield Washer Fluid and Wipers
%*
[SV21600(ALL)03/95]
Washer Fluid
[SV21700(ALL)02/95]
Check the level of the windshield washer fluid every time you
stop for fuel. The reservoir for washer fluid is located on the
front, passenger side of the engine compartment. This reservoir
contains the fluid for both the windshield and liftgate washers.
*
[SV21900(ALL)05/95]
RWARNING
Do not put windshield washer fluid in the container for
the engine coolant.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
327
%*
[SV22300(ALL)03/95]
Wiper Blades
[SV22400(ALL)02/95]
Check the windshield wipers at least twice a year. Also check
them whenever they seem less effective than usual. Such
substances as tree sap and some hot wax treatments used by
commercial car washes reduce the effectiveness of wipers.
*
[SV22500(ALL)01/93]
If the blades do not wipe properly, clean both the windshield
and the wiper blades. Use undiluted windshield washer solution
or a mild detergent. Rinse thoroughly with clear water. Do not
use fuel, kerosene, paint thinner, or other solvents to clean your
wiper blades. These will damage your blades.
[SV22550(ALL)04/95]
Your wipers have a service feature that allows you to pull the
wiper arms and blades away from the windshield and into an
upright position. This service position allows you easy access to
the blades from either side of your vehicle.
*
[SV22600(ALL)04/95]
To reach the wiper blades easily, turn the ignition switch to
ACCESSORY and turn your wipers on. Wait for them to reach a
vertical position and turn the ignition to OFF. Moving the
wipers manually may damage them.
*
[SV22700(ALL)03/95]
Replacing the wiper blades
*
[SV22800(ALL)01/95]
If the wipers still do not work properly after you clean them,
you may need to replace the wiper blade assembly. When
replacing the wiper blade assembly always use a Motorcraft part
or equivalent.
*
[SV22900(ALL)10/93]
To replace the wiper blades:
*
[SV23000(ALL)04/95]1.
Pull the wiper arm away from the windshield and lock into
the service position.
[SV23100(ALL)04/95]2.
Turn the blade at an angle from the wiper arm. Squeeze the
lock tabs of the plastic clip together to release the blade and
pull the wiper blade down toward the windshield to remove
it from the arm.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

395
Index
Tires
cleaning..................... 3,335
replacing...................... 330
rotating...................... 329
snow tires and chains................ 333
storing your vehicle................. 368
tire grades..................... 332
treadwear..................... 332
Towing your vehicle, with a tow truck......... 281
Trailer towing, tips.................. 257
Transaxle, fluid, checking and adding (automatic).... 336
Transmitter (see Remote entry)............. 151
Trip odometer...................... 80
Turn signal, indicator lights............. 75,92
V
Variable interval wipers................ 131
Vehicle storage.................... 366
W
Warning chimes, safety belt................ 83
Warning lights (see Lights)................ 65
Warranties, radio................... 234
Warranty Information Booklet.............. 3
Washer fluid, reservoir................. 325
Wheels
cleaning..................... 3,335
inspection and maintenance............. 328
Windows....................... 160
Windshield washer fluid and wipers
checking and adding fluid.............. 325
checking and replacing wiper blades......... 327
operation...................... 131
reservoir...................... 325
specifications.................... 326
