1996 FORD WINDSTAR Owners Manual

22
*
[SR11500(ALL)05/95]
RWARNING
Do not attempt to service, repair, or modify the Air Bag
Supplemental Restraint System or its fuses. See your
Ford or Lincoln-Mercury dealer.
*
[SR11600(ALL)05/95]
If a collision occurs, the sensors sense the severity of the impact
and activates the air bags if necessary. The air bag system is
designed to deploy in frontal and front-angled collisions more
severe than hitting a parked vehicle (of similar size and weight)
head-on at about 28 mph (45 km/h). Because the system senses
the crash severity rather than vehicle speed, some frontal
collisions at speeds above 28 mph (45 km/h) will not inflate the
air bag.
*
[SR11650(ALL)05/95]
When the sensors activate the system, the air bags inflate
rapidly, filling with non-toxic nitrogen gas in a fraction of a
second. Immediately after inflation, the air bags deflate by
releasing the nitrogen gas through vent holes. The whole
process takes place in a matter of seconds.
*
[SR12500(ALL)05/95]
RWARNING
Air bag system components get hot after inflation. Do
not touch them after inflation.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
23
*
[SR12700(ALL)05/95]
17-1/2 pica
art:0050087-A

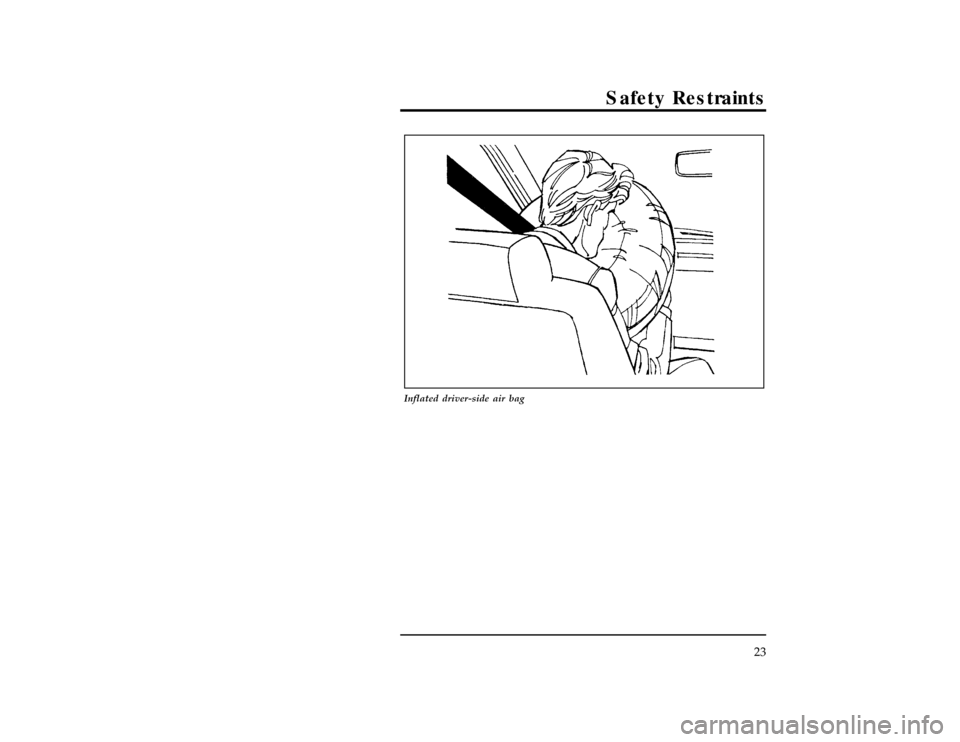

Inflated driver-side air bag
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

24
*
[SR12800(ALL)05/95]
17-1/2 pica
art:0050088-A

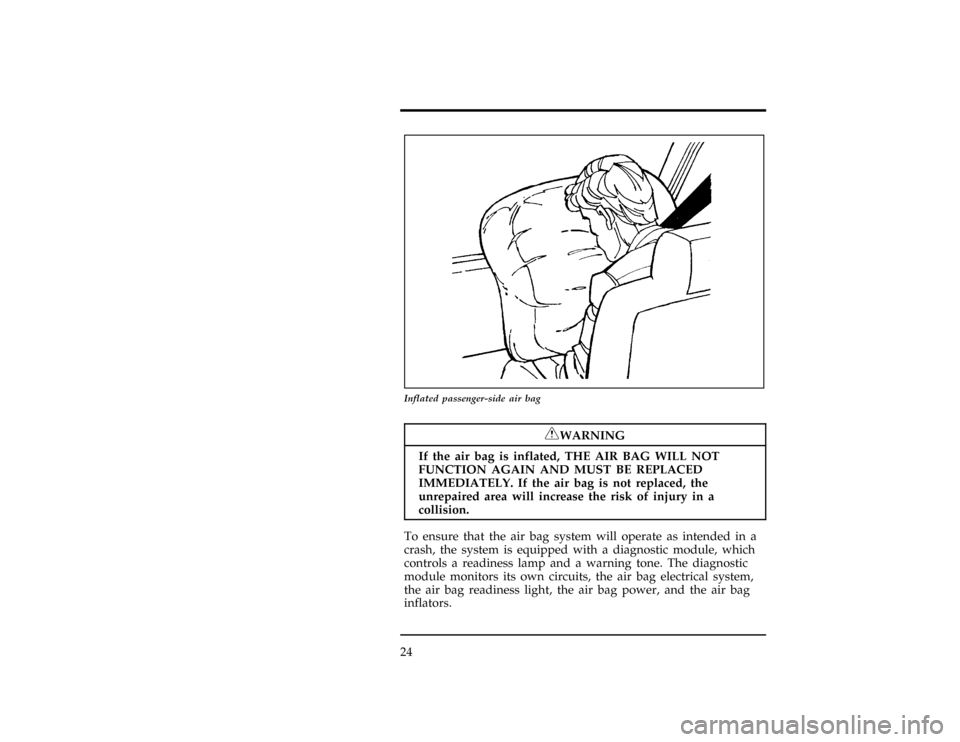

Inflated passenger-side air bag
*
[SR12900(ALL)05/95]
RWARNING
If the air bag is inflated, THE AIR BAG WILL NOT
FUNCTION AGAIN AND MUST BE REPLACED
IMMEDIATELY. If the air bag is not replaced, the
unrepaired area will increase the risk of injury in a
collision.
*
[SR12910(ALL)05/95]
To ensure that the air bag system will operate as intended in a
crash, the system is equipped with a diagnostic module, which
controls a readiness lamp and a warning tone. The diagnostic
module monitors its own circuits, the air bag electrical system,
the air bag readiness light, the air bag power, and the air bag
inflators.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
25
*
[SR12920(ALL)05/95]
The air bag system uses a readiness light and a tone to indicate
the condition of the system. The readiness light is in the
instrument cluster. When you turn the ignition to the ON
position, this light will illuminate for approximately six (6)
seconds and then turn off. This indicates that the system is
operating normally.NOTE:Maintenance of the air bag system is
not required.
%*
[SR12930(ALL)05/95]
A problem with the system is indicated by one or more of the
following:
*
[SR12940(ALL)05/95]
n
the readiness light will either flash or stay lit,
*
[SR12950(ALL)05/95]
n
or it will not light immediately after ignition is turned on,
% [SR12960(ALL)05/95]
n
a group of five beeps will be heard. The tone pattern will
repeat periodically until the problem and light are repaired.
[SR12970(ALL)05/95]
If any of these things happen, even intermittently, have the air
bag system serviced at your Ford or Lincoln-Mercury dealer
immediately.
%*
[SR13000(ALL)03/95]
Disposal of supplemental air bag equipped vehicles
[SR13150(ALL)02/95]
For disposal of air bags or air bag equipped vehicles, see your
local Ford or Lincoln-Mercury dealer. Air bags MUST be
disposed of by qualified personnel.
*
[SR13700(ALL)05/95]
Safety Restraints for Children
*
[SR13800(ALL)02/95]
In the U.S. and Canada, you are required by law to use safety
restraints for children. If small children ride in your vehicle Ð
this generally includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or less Ð you must
put them in safety seats that are made specially for children.
Safety belts alone do not provide maximum protection for these
children. Check your local and state laws for specific
requirements.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

26
*
[SR13900(ALL)05/95]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.
*
[SR14000(ALL)05/95]
RWARNING
Passengers should not be allowed to ride in the cargo
area. Persons not riding in a seat with a fastened seat
belt are much more likely to suffer serious injury in a
collision. Cargo should always be secured to prevent it
from shifting and causing damage to the vehicle or harm
to passengers.
*
[SR14100(ALL)05/95]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
*
[SR14200(ALL)05/95]
RWARNING
Never leave a child unattended in your vehicle.
*
[SR14300(ALL)05/95]
RWARNING
Safety belts and seats can become hot in a vehicle that
has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you
place a child anywhere near them.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
27
*
[SR14400(ALL)05/95]
When possible, put children in the rear seat of your vehicle. Accident
statistics suggest that children are safer when properly restrained in the
rear seating positions than in the front seating positions.
*
[SR14500(ALL)05/95]
Built-In Child Seat (If equipped)
[SR14600(ALL)04/95]
The second row bench seat may include two optional built-in
child safety seats (one on the driver side and one on the
passenger side). This child restraint is to be usedonlyby
children who are at least one year old, weigh between 9 and
27 kilograms (20 and 60 pounds) and whose shoulders (top) are
below the bottom of the headrest in thefull upposition.
*
[SR14625(ALL)05/95]
If your child is less than one year old or weighs less than
9 kilograms (20 pounds),alwaysuse a rear facing infant or
convertible seat because a child of that size is not sufficiently
developed to withstand crash forces in a front facing position.
Follow the specific manufacturer's instructions for weight and
height restrictions.
*
[SR14700(ALL)05/95]
RWARNING
Always latch the vehicle seat to the floor, whether the
seat is occupied or empty. If not latched, the seat may
cause injury during a sudden stop.
*
[SR15200(ALL)05/95]
Children must be properly buckled before riding in the vehicle.
It is the law in every state and province. This child seat
conforms to all Federal/Canadian motor vehicle safety
standards.
*
[SR15301(ALL)05/95]
Built-in child seat belt retractors
*
[SR15320(ALL)06/95]
The belts on the built-in child seat are equipped with a retractor
that locks when both belt tongues are latched into the crotch
safety belt and buckle.
*
[SR15340(ALL)04/95]
The retractor will switch from the emergency locking mode to
the automatic locking mode when the shoulder belts are pulled
all the way out. The retractor will switch back to emergency
locking mode when the belts are unbuckled and the shoulder
belts retract completely.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

28
*
[SR15360(ALL)04/95]
The automatic locking mode must be used to hold small
children in position, particularly sleeping children and those
who may try to squirm out of the belts. The emergency locking
mode is also used while buckling the belts.
*
[SR15380(ALL)03/95]
Frequently check the child seat's lap and shoulder harness belts
for correct placement and tightness. Use the child seat only if
the harness belts will stay snug when belts are placed into the
lock mode with a child in the seat. If belts do not remain snug,
take the vehicle to the dealer for child seat repair.
*
[SR15400(ALL)05/95]
Always adjust the lap and shoulder harness belts provided with
this child seat snugly around your child.
*
[SR15500(ALL)05/95]
RWARNING
Never leave a child unattended in your vehicle.
*
[SR15600(ALL)05/95]
RWARNING
Safety belts and seats can become hot in a vehicle that
has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you
place a child anywhere near them.
*
[SR15700(ALL)05/95]
RWARNING
Failure to follow all of the instructions on the use of this
child restraint system can result in your child striking the
vehicle's interior during a sudden stop or crash.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
29
*
[SR15800(ALL)05/95]
How to use the Built-In Child Seat
*
[SR15900(ALL)05/95]
Read the following procedures and all of the labels on the
Built-In Child Seat before using the seat.
*
[SR16000(ALL)05/95]
RWARNING
Never use the Built-In Child Seat as a booster cushion
with the adult safety belts. A child using the adult belts
could slide forward and out from under the safety belts.
[SR16100(ALL)04/00]1.
Push the headrest release lever and grasp the headrest as
shown in Figure 1. Then release the lever and rotate the
headrestfull upuntil the latch ªclicksº in thefull up
position. Refer to Figure 2.
[SR16200(ALL)04/95]
10-1/2 pica
art:0050134-B
Figure 1: Releasing the headrest
