Engine Compartment
[SV04800(ALL)08/94]
Your vehicle has a 3.0 liter SFI, V-6 engine or an optional 3.8
liter SFI, V-6 engine. The following illustrations show diagrams
of your engine and where you can find items you should
service regularly.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

306
[SV04900(ALL)08/94]
33-1/2 pica
art:0050234-B

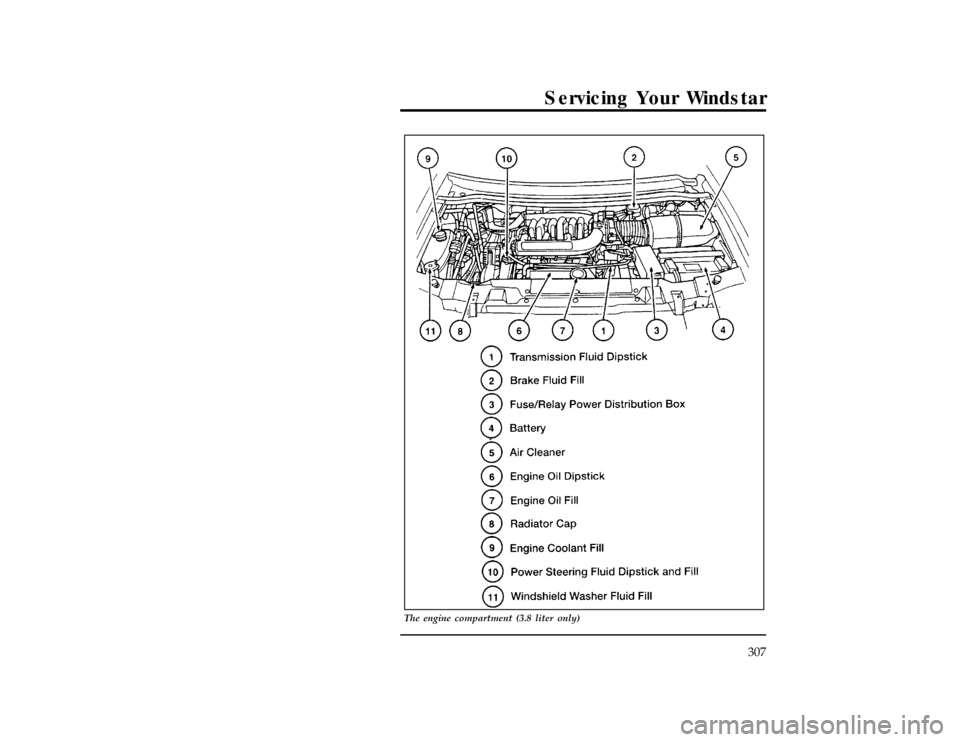

The engine compartment (3.0 liter only)
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
307
[SV05000(ALL)04/95]
33-1/2 pica
art:0050038-C

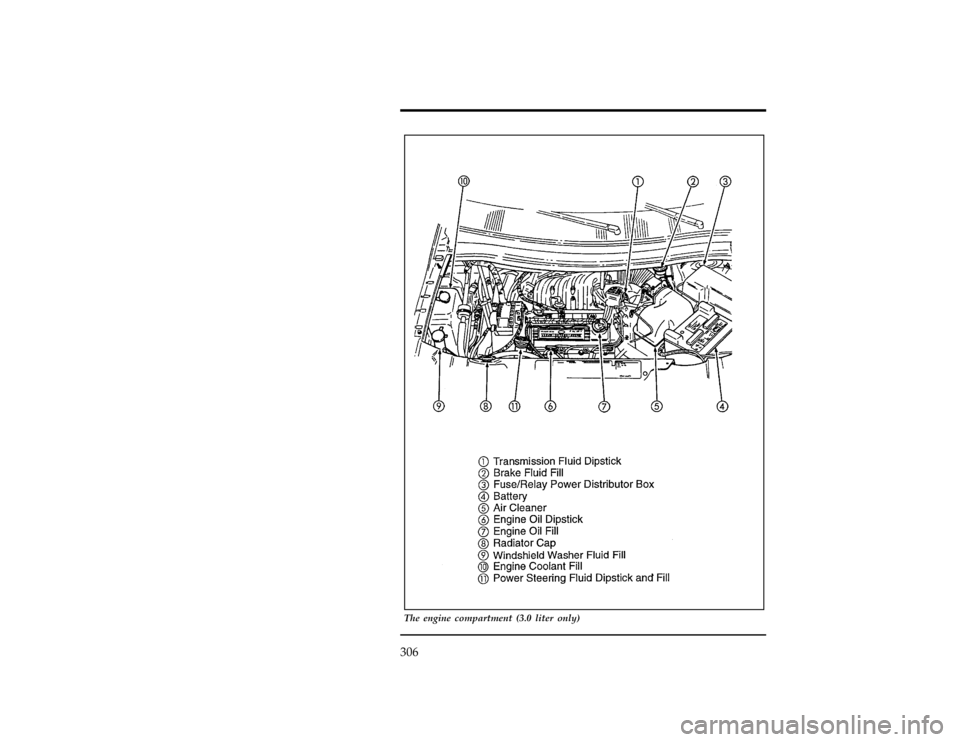

The engine compartment (3.8 liter only)
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

308
*
[SV05100(ALL)03/95]
What to Check When You Stop at a Service
Station
%*
[SV05200(ALL)03/95]
Filling Your Fuel Tank With Fuel
[SV05750(ALL)11/93]1.
Open the fuel door (located on the driver's side of the
vehicle).
[SV05800(ALL)11/93]2.
Unscrew the fuel cap by exerting pressure on the plastic cap
and rotating the fuel cap counterclockwise.
[SV05900(ALL)11/93]3.
Turn the fuel cap 3/4 of a turn until a hissing sound is
heard. Wait until the hissing sound stops and then continue
rotating counterclockwise to remove the fuel cap.
[SV06000(ALL)11/93]4.
Follow the fuel cap removal instructions and use caution to
minimize the possibility of fuel spraying when you unscrew
the cap.
*
[SV06050(ALL)05/95]
RWARNING
If the fuel cap is venting vapor or if you hear a hissing
sound, wait until it stops before completely removing the
cap.
[SV06060(ALL)04/95]
RWARNING
Turn the fuel cap 3/4 of a turn to relieve any pressure
and vacuum in the fuel tank. The cap will start
unthreading after 3/4 of a turn.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
309
[SV06100(ALL)09/93]
10-1/2 pica
art:0050054-A
The fuel door
*
[SV06200(ALL)01/93]
To replace and secure the fuel cap, place it in position and
rotate it clockwise until it clicks (ratchets). The ratcheting
mechanism allows the fuel cap to be sealed without
overtightening.
[SV06290(ALL)05/95]
If you lose the fuel cap, replace it with an authorized Motorcraft
or equivalent part.
%*
[SV06300(ALL)05/95]
RWARNING
If you do not use the proper fuel cap, the pressure in the
fuel tank can damage the fuel system or cause it to work
improperly in a collision.
*
[SV06600(ALL)01/95]
NOTE: If you replace your fuel cap with an aftermarket fuel
filler cap, the customer warranty may be void for any
damage to the fuel tank and/or fuel system.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

310
*
[SV06700(ALL)05/95]
A venting fuel tank is not an abnormal condition. It may be
caused by:
*
[SV06800(ALL)05/95]
n
too volatile a fuel for the weather conditions. Service stations
sometimes sell winter grade fuel in the summer.
*
[SV06900(ALL)01/93]
n
pulling a heavy load on hot days, or at high altitudes.
*
[SV07000(ALL)05/95]
n
extended periods of idling with the engine RPM increased
above the normal idle range.
*
[SV07100(ALL)05/95]
n
parking the vehicle in full sunlight for extended periods on
extremely hot days.
%*
[SV07200(ALL)05/95]
Choosing the Right Fuel
*
[SV07300(ALL)05/95]
Use only UNLEADED FUEL in your vehicle. Using leaded fuel
is prohibited by federal law. Any vehicle damage may not be
covered by your warranty.
% [SV07450(ALL)02/95]
Octane recommendations
*
[SV07550(ALL)04/95]
Your vehicle is designed to use regular gasoline with an
octane rating of 87.
*
[SV07650(ALL)03/95]
6 pica art:0040193-A
Typical octane rating label
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

Servicing Your Windstar
311
[SV07750(ALL)02/95]
We do not recommend gasolines labeled ªregularº that are sold
with octane ratings of 86 or even less in high altitude areas.
%*
[SV07850(ALL)05/95]
Do not be concerned if your vehicle sometimes knocks lightly.
However, if it knocks heavily under most driving conditions on
the recommended octane rating fuel, see your dealer or a
qualified service technician to prevent any engine damage.
%*
[SV07950(ALL)05/95]
Fuel quality
*
[SV08050(ALL)02/95]
If you are experiencing starting, rough idle, or hesitation
problems try a different brand of fuel. If the condition persists,
see your dealer or qualified service technician.
*
[SV08850(ALL)05/95]
It should not be necessary to add any aftermarket products to
your fuel tank if you continue to use a high-quality fuel.
File:wnsvs.ex
Update:Tue Mar 19 08:16:43 1996

312
%*
[SV08950(ALL)04/95]
Gasolines for clean air
*
[SV09050(ALL)05/95]
Ford approves the use of gasolines, including those
reformulated, that contain oxygenates such as ethanol (10%
maximum), and MTBE (15% maximum). If methanol is used, the
gasoline should contain no more than 5% with cosolvents.
%*
[SV10200(ALL)05/95]
Safety Information Relating to Automotive Fuels
*
[SV10300(ALL)05/95]
RWARNING
Automotive fuels can cause serious injury or death if
misused or mishandled.
*
[SV10400(ALL)05/95]
Gasoline and other automotive fuels are extremely flammable.
Turn your vehicle off and do not smoke while refueling your
vehicle. Keep sparks and other sources of ignition away from
fuels.
*
[SV10500(ALL)02/95]
Automotive fuels can be harmful or fatal if swallowed. Never
attempt to siphon any fuel by mouth.
*
[SV10600(ALL)02/95]
If any fuel is swallowed, call a physician or poison control
center immediately.Do not delay calling a physician merely
because no adverse effects are noticed at first; the toxic effects
of fuels may not become apparent for many hours.
File:wnsvs.ex
