1996 FORD WINDSTAR Owners Manual

46
[SR31650(ALL)06/95]
17-1/2 pica
art:0050280-AFile:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
47
[SR31701(ALL)06/95]
17-1/2 pica
art:0050281-AFile:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

48
[SR31750(ALL)05/95]7.
Before placing the child into the child seat, forcibly tilt the
seat from side to side and in forward directions to make
sure that the seat is securely held in place. See Figure 7.
[SR31801(ALL)06/95]
17-1/2 pica
art:0050282-A
Checking that the seat is secure
[SR31850(ALL)05/95]8.
Double check the retractor is in the automatic locking mode.
Try to pull more belt out of the retractor. If you cannot, the
belt is in the automatic locking mode. See Figure 8.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
49
[SR31901(ALL)06/95]
17-1/2 pica
art:0050283-A
Checking the retractor
[SR31950(ALL)06/95]9.
Check to make sure that the seat is properly secured prior to
each use. If the retractor is not locked, repeat steps 6
through 8.
[SR32001(ALL)05/95]
NOTE: To remove retractor from the automatic lock mode,
allow seat belt to retract fully to its stowed position
and the retractor will automatically switch back to the
vehicle sensitive locking mode for normal adult usage.
[SR32050(ALL)05/95]
Installing a Child Safety Seat at the Rear Center
Seating Position with Locking Adjustable Lap Belt
[SR32101(ALL)05/95]1.
Lengthen the lap belt. To lengthen the belt, hold the tongue
so that its bottom is perpendicular to the direction of
webbing while sliding the tongue up the webbing.
[SR32150(ALL)05/95]2.
Place the child safety seat in the center seating position.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

50
[SR32201(ALL)05/95]3.
Route the tongue and webbing through the child seat
according to the child seat manufacturer's instructions.
[SR32250(ALL)05/95]4.
Insert the belt tongue into the proper buckle for the center
seating position until you hear a snap and feel it latch. Make
sure the tongue is securely fastened to the buckle by pulling
on tongue.
[SR32301(ALL)05/95]5.
Push down on the child seat while pulling on the loose end
of the lap belt webbing to tighten the belt.
[SR32350(ALL)05/95]6.
Before placing the child into the child seat, forcibly tilt the
child seat from side to side and in forward directions to
ensure that the seat is held securely in place. If the child seat
moves excessively, repeat steps 5 through 6 or properly
install the child seat in a different seating position.
*
[SR32800(ALL)05/95]
Attaching Safety Seats With Tether Straps
*
[SR33000(ALL)05/95]
Some manufacturers make safety seats that include a tether
strap that goes over the back of the vehicle seat and attaches to
an anchoring point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of your child safety
seat for information about ordering a tether strap.
[SR33101(ALL)11/93]
You can attach a tether strap to the front passenger or second
row seats by using the built-in tether anchors provided on the
back of the seats as described below.
[SR33201(ALL)11/93]
Follow the child seat manufacturer's instructions to attach the
tether strap to the tether anchor.
[SR33301(ALL)06/95]
RWARNING
Use only the tether attachment locations shown below.
The tether anchor may not perform properly if the wrong
mounting location is used.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
51
[SR33401(ALL)06/95]
Three tether strap anchor locations have been provided in your
vehicle. They are as follows:
[SR33501(ALL)06/95]
24 pica art:0050183-A

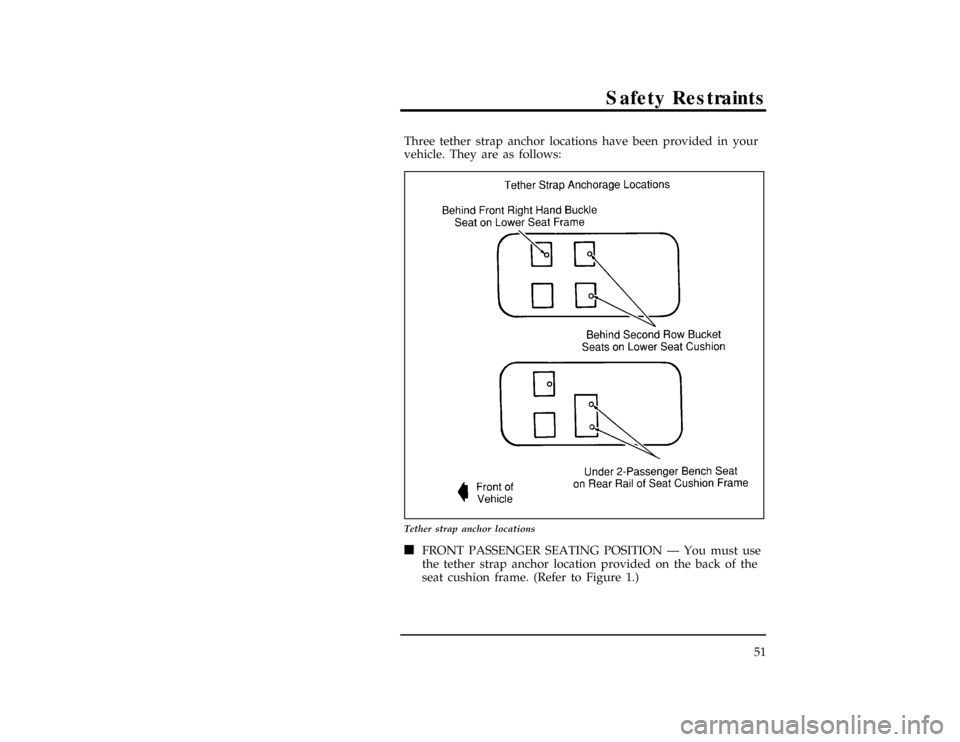

Tether strap anchor locations
[SR33601(ALL)06/95]
n
FRONT PASSENGER SEATING POSITION Ð You must use
the tether strap anchor location provided on the back of the
seat cushion frame. (Refer to Figure 1.)
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

52
[SR33701(ALL)06/95]
10-1/2 pica
art:0050180-A

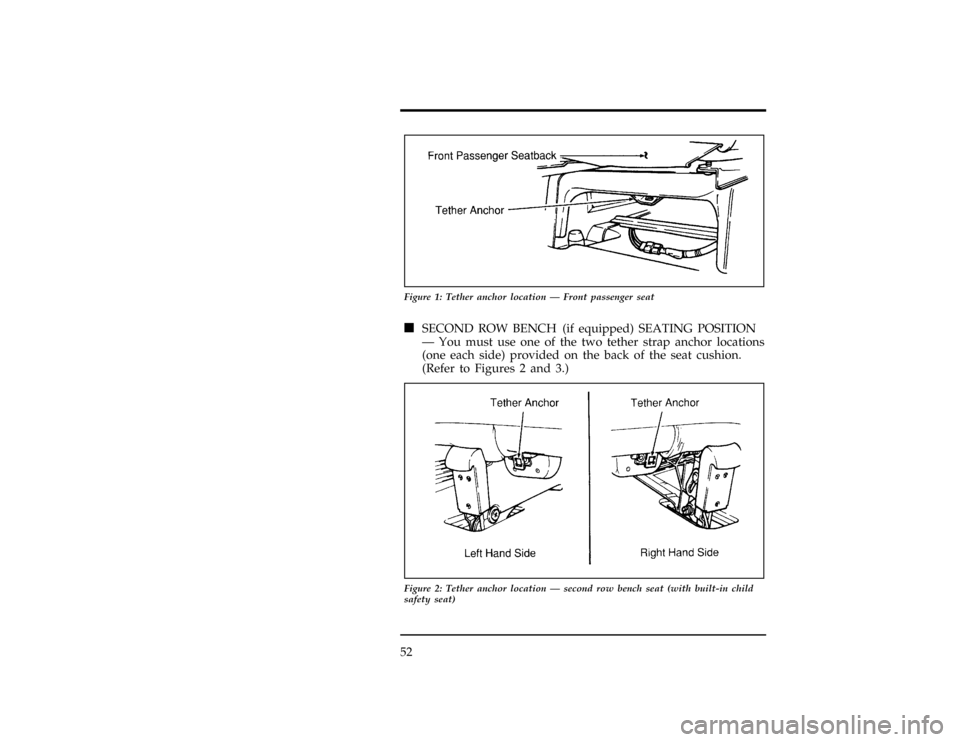

Figure 1: Tether anchor location Ð Front passenger seat
[SR33801(ALL)06/95]
n
SECOND ROW BENCH (if equipped) SEATING POSITION
Ð You must use one of the two tether strap anchor locations
(one each side) provided on the back of the seat cushion.
(Refer to Figures 2 and 3.)
[SR33901(ALL)06/95]
13-1/2 pica
art:0050181-A
Figure 2: Tether anchor location Ð second row bench seat (with built-in child
safety seat)
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Safety Restraints
53
[SR34001(ALL)06/95]
17-1/2 pica
art:0050184-A
Figure 3: Tether anchor location Ð second row bench seat (without built-in
child safety seat)
[SR34101(ALL)06/85]
n
SECOND ROW BUCKET (if equipped) SEATING POSITION
Ð You must use the tether strap anchor location provided
on the back of the seat cushion. (Refer to Figure 4.)
File:wnsrs.ex
