Safety Restraints
25
*
[SR12920(ALL)05/95]
The air bag system uses a readiness light and a tone to indicate
the condition of the system. The readiness light is in the
instrument cluster. When you turn the ignition to the ON
position, this light will illuminate for approximately six (6)
seconds and then turn off. This indicates that the system is
operating normally.NOTE:Maintenance of the air bag system is
not required.
%*
[SR12930(ALL)05/95]
A problem with the system is indicated by one or more of the
following:
*
[SR12940(ALL)05/95]
n
the readiness light will either flash or stay lit,
*
[SR12950(ALL)05/95]
n
or it will not light immediately after ignition is turned on,
% [SR12960(ALL)05/95]
n
a group of five beeps will be heard. The tone pattern will
repeat periodically until the problem and light are repaired.
[SR12970(ALL)05/95]
If any of these things happen, even intermittently, have the air
bag system serviced at your Ford or Lincoln-Mercury dealer
immediately.
%*
[SR13000(ALL)03/95]
Disposal of supplemental air bag equipped vehicles
[SR13150(ALL)02/95]
For disposal of air bags or air bag equipped vehicles, see your
local Ford or Lincoln-Mercury dealer. Air bags MUST be
disposed of by qualified personnel.
*
[SR13700(ALL)05/95]
Safety Restraints for Children
*
[SR13800(ALL)02/95]
In the U.S. and Canada, you are required by law to use safety
restraints for children. If small children ride in your vehicle Ð
this generally includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or less Ð you must
put them in safety seats that are made specially for children.
Safety belts alone do not provide maximum protection for these
children. Check your local and state laws for specific
requirements.
File:wnsrs.ex
Update:Tue Mar 19 08:27:08 1996

Starting Your Windstar
63
*
[ST11700(ALL)02/95]
Have the exhaust and body ventilation systems checked by a
qualified technician whenever:
*
[ST11800(ALL)02/95]
n
your vehicle is raised for service
*
[ST11900(ALL)02/95]
n
the sound of the exhaust system changes
*
[ST12000(ALL)02/95]
n
your vehicle has been damaged in an accident
[ST12100(ALL)02/95]
If the exhaust system has any indications of leaks it should be
repaired immediately.
*
[ST12200(ALL)02/95]
Improve your ventilation by keeping all air intake vents clear of
snow, leaves, and other objects.
[ST12300(ALL)02/95]
If the engine idles while you are stopped in an open area for
long periods of time, open the windows at least one inch. Also,
adjust the heating or air conditioning to bring in outside air.
*
[ST12400(ALL)02/95]
Read the sectionClimate Control Systemsfor instructions on
bringing fresh outside air into your vehicle. Refer to the Index.
File:wnsts.ex
Update:Tue Mar 19 08:25:19 1996

108
% [IP01731(ALL)10/93]
Air Conditioning (A/C) Controls Ð Main (Front) System
Only (Manual Air Conditioning)
[IP01740(ALL)05/95]
10-1/2 pica
art:0050130-C

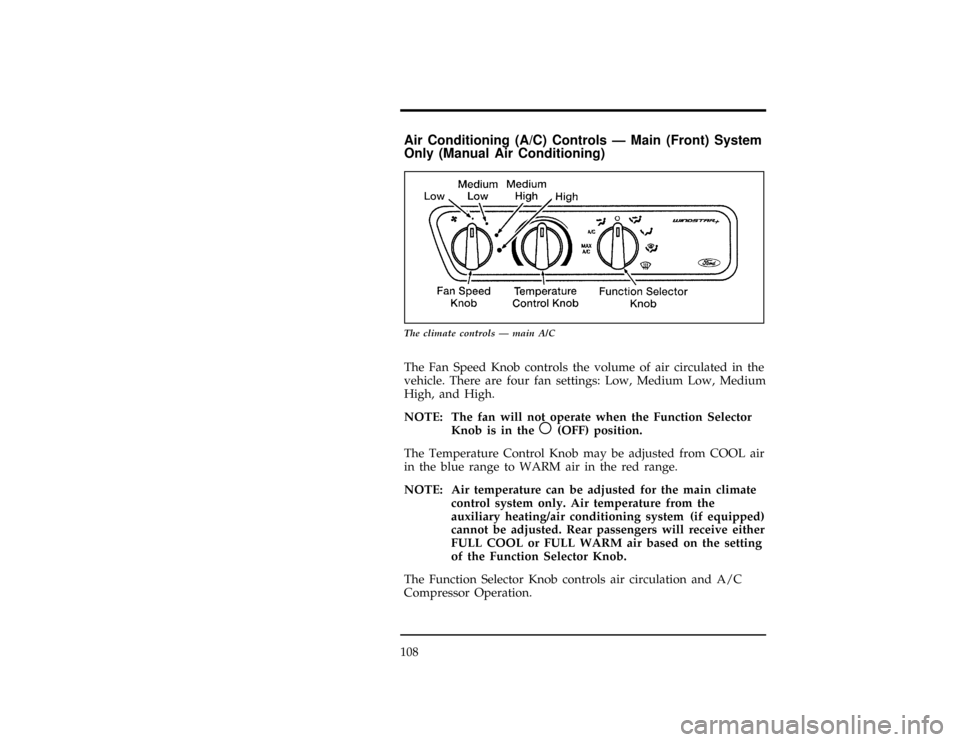

The climate controls Ð main A/C
[IP01751(ALL)05/95]
The Fan Speed Knob controls the volume of air circulated in the
vehicle. There are four fan settings: Low, Medium Low, Medium
High, and High.
[IP01756(ALL)05/95]
NOTE: The fan will not operate when the Function Selector
Knob is in them(OFF) position.
[IP01761(ALL)06/94]
The Temperature Control Knob may be adjusted from COOL air
in the blue range to WARM air in the red range.
[IP01766(ALL)06/94]
NOTE: Air temperature can be adjusted for the main climate
control system only. Air temperature from the
auxiliary heating/air conditioning system (if equipped)
cannot be adjusted. Rear passengers will receive either
FULL COOL or FULL WARM air based on the setting
of the Function Selector Knob.
[IP01771(ALL)06/94]
The Function Selector Knob controls air circulation and A/C
Compressor Operation.
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

Instrument Panel Controls
109
[IP01775(ALL)05/95]
The air conditioning settings include MAX A/C, A/C andS
(Panel/Floor). However, heating capabilities are also provided in
these modes. Adjust the Temperature Control Knob as necessary
to receive cool (air-conditioned) or warm (heated) air when in
these modes.
[IP01780(ALL)06/94]
NOTE: The A/C compressor will only operate when outside
air temperatures are above approximately45ÊF (7ÊC).
[IP01785(ALL)06/94]
The climate control system provides fresh outside air in all
function control settings except for MAX A/C andm(OFF).
Only recirculated interior air is available in MAX A/C.
[IP01791(ALL)04/95]
InMAX A/C, air from inside the passenger compartment is
recirculated continuously and the A/C compressor is engaged.
In this position, the system provides maximum cooling,
maximum dehumidifying, and greater fuel efficiency. It also has
a greater noise level because the sound of the air from the
blower motor is not muffled by a closed damper door as it
would be in all other functional settings.
[IP01802(ALL)04/95]
InA/C, outside air is drawn into the system and the A/C
compressor is engaged. The cooling process and the distribution
of cooled air is the same as that provided with MAX A/C.
Because outside air is drawn into the system, it will not have
the advantage of cooling already cooled air. It will have a lower
noise level because a closed damper door muffles the sound of
the air from the blower motor.
[IP01812(ALL)06/94]
InQ(PANEL), air is drawn from the outside and directed into
the passenger compartment through the instrument panel
registers. The temperature of the air can be varied by adjusting
the Temperature Control Knob. This mode is normally used as a
vent setting. The A/C compressor does not operate in this
mode, only heating capabilities are provided.
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

110
[IP01822(ALL)08/94]
Inm(OFF), air supply is shut off from all outlets and all
blower motor operation is stopped. Use this setting when
driving through an area where outside air is unpleasant or
dusty.
[IP01852(ALL)05/95]
RWARNING
Operating with the Function Selector Knob in OFF or in
MAX A/C for extended periods of time in cold weather
can result in fog buildup on interior glass surfaces.
[IP01857(ALL)05/95]
This fogging can make it difficult to see the road for safe
driving. Operating in the A/C,Q(PANEL),S
(PANEL/FLOOR),R(FLOOR),P(DEFROST/FLOOR) and
V(DEFROST) positions will help prevent fogging. Adjust the
temperature as necessary for comfort.
[IP01862(ALL)05/95]
InS(PANEL/FLOOR), approximately equal amounts of
airflow are directed to the instrument panel registers and the
floor outlets. This setting will engage the A/C compressor, thus
providing you with an additional A/C mode.
[IP01872(ALL)05/95]
InR(FLOOR), most of the system's air supply is directed to
the floor outlets with a small amount going to the windshield
and side window demisters.
[IP01882(ALL)04/95]
InP(DEFROST/FLOOR), approximately equal amounts of air
are directed to the windshield and floor outlets with a small
amount to the side windows.
[IP01886(ALL)04/95]
NOTE: If outside air temperatures are above approximately
45ÊF (7ÊC), theP(DEFROST/FLOOR) andV
(DEFROST) positions will also automatically engage
the air-conditioning compressor in order to reduce the
humidity in the air and aid in clearing the inside
glass. Adjust the Temperature Control Knob as
necessary for comfort.
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

112
[IP01992(ALL)06/94]2.
Turn the Temperature Control Knob toward the WARM
(red) area.
[IP02002(ALL)06/94]3.
Turn the Fan Speed Knob to the speed of your choice. When
your vehicle warms up, you may want to set the Fan Speed
Knob to a lower speed, or adjust the Temperature Control
Knob to a lower setting to maintain a comfortable
temperature.
*
[IP02012(ALL)10/93]
To defrost the windshield and side windows:
[IP02016(ALL)08/94]
n
Turn the Function Selector Knob toV(DEFROST), turn the
Temperature Control Knob to the WARM (red) area and turn
the Fan Speed Knob to the position of your choice.
*
[IP02021(ALL)10/93]
To heat and defrost at the same time:
[IP02031(ALL)04/95]
n
Turn the Function Selector Knob toP
(DEFROST/FLOOR),turn the Temperature Control Knob and
the Fan Speed Knob to provide the temperature and fan
speed you prefer.
[IP02050(ALL)06/94]
Do not place objects under the front seats unless your vehicle is
equipped with an under seat storage tray. Improperly stored
objects will interfere with the flow of air to the back seats.
[IP02060(ALL)06/94]
Remove any snow, ice, or leaves from the area below the
windshield on the outside of your vehicle. They could block the
air intake.
[IP02070(ALL)06/94]
Heating and Air Conditioning System
*
[IP02075(ALL)06/94]
Turning On the Heat
[IP02080(ALL)06/94]
You can heat the inside of your vehicle and defrost the
windshield using the Function Selector Knob located in the
control assembly in the instrument panel.
[IP02085(ALL)05/95]
The seven function selector modes are: MAX A/C, AC,Q
(PANEL),S(PANEL/FLOOR),R(FLOOR),P
(DEFROST/FLOOR), andV(DEFROST). If your vehicle is
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

Instrument Panel Controls
113 equipped with a rear seat climate control system, the instrument
panel will also include a rear seat climate control knob. To turn
on the rear passenger compartment control system, select REAR
CTRL, Medium Low, Medium High, or High. With the knob set
to REAR CTRL, rear seat passengers will have control of rear
fan speed on the rear seat climate control panel. Positions
Medium Low, Medium High, or High will control rear fan
speed from the front control panel.
[IP02090(ALL)05/95]
10-1/2 pica
art:0050059-D
The climate controls Ð main and auxiliary system A/C Ð Heater System Ð if
equipped
[IP02095(ALL)04/95]
The standard heating system and the heating portion of the
heating and air conditioning system are essentially identical.
There is one exception, however; the air conditioning
compressor will automatically engage when theP
(DEFROST/FLOOR) orV(DEFROST) position is selected to
aid in defogging and defrosting the inside glass when the
outside temperature is above approximately45ÊF (7ÊC).Refer to
the heating system operating instructions covered previously for
a more detailed explanation of heating system operation.
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

114
[IP02126(ALL)10/93]
Turning on the Air Conditioner
*
[IP02132(ALL)09/93]
To cool your vehicle quickly in warm weather:
[IP02142(ALL)06/94]1.
Turn the Function Selector Knob to MAX A/C.
[IP02144(ALL)06/94]2.
Turn the Temperature Control Knob to COOL.
[IP02154(ALL)06/94]3.
Turn the Fan Speed Knob to the position of your choice.
[IP02164(ALL)05/95]4.
If your vehicle is equipped with the rear passenger
compartment air conditioning unit, it will be on when the
front system is on MAX A/C, A/C or PANEL/FLOOR and
the rear climate control knob is set to REAR CTRL, Medium
Low, Medium High, or High. Refer to the previous section
for an explanation of the heating system.
[IP02174(ALL)10/93]5.
Adjust your instrument panel registers.
[IP02184(ALL)03/94]6.
If the inside of your vehicle is very warm, you may want to
drive for a few minutes with the windows down and the air
conditioner on. This forces most of the hot, stale air out of
the vehicle and allows the air conditioner to cool the interior
more quickly.
*
[IP02194(ALL)05/95]
The air conditioner may be used to cool the outside air being
drawn into your vehicle, but using recirculated air is more
economical and cools your vehicle more quickly.
*
[IP02202(ALL)07/93]
Cooling your vehicle with outside air
[IP02212(ALL)10/93]
Cooling your vehicle with air conditioned outside air is quieter
but less economical than using recirculated air. It also has less
cooling capacity.
[IP02222(ALL)10/93]
To cool your vehicle with outside air:
[IP02232(ALL)06/94]1.
Turn the Function Selector Knob to the A/C orS
(PANEL/FLOOR).
[IP02242(ALL)06/94]2.
Turn the Temperature Control Knob to COOL.
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996
