1996 FORD WINDSTAR rear view mirror

118
[IP09700(ALL)03/94]
10-1/2 pica
art:0050036-B

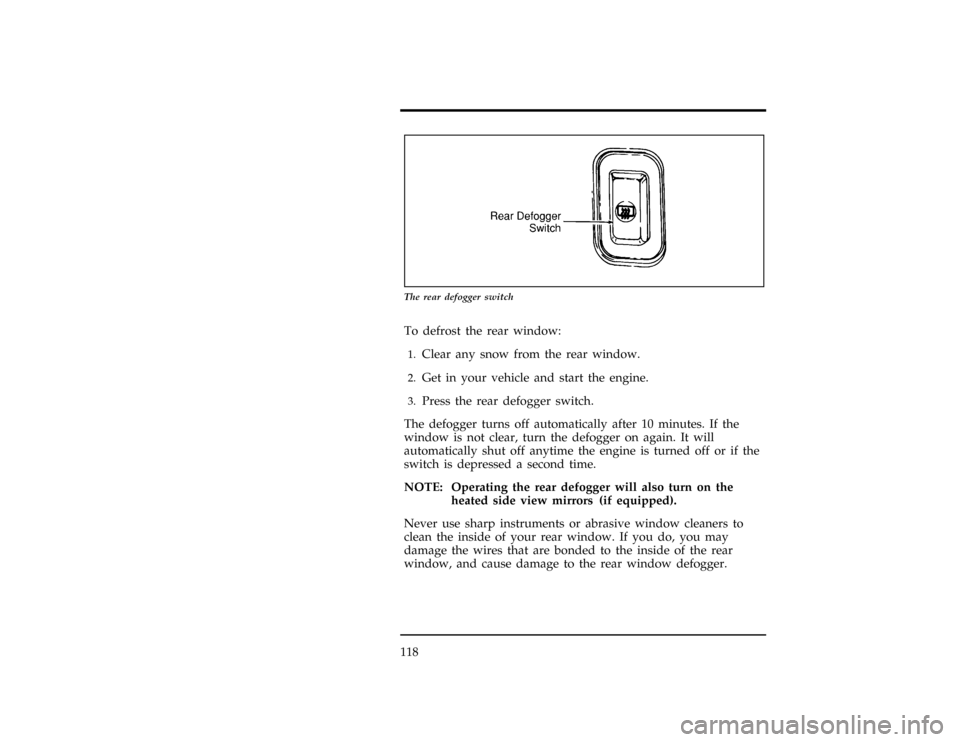

The rear defogger switch
*
[IP09800(ALL)02/95]
To defrost the rear window:
*
[IP09900(ALL)02/95]1.
Clear any snow from the rear window.
*
[IP10000(ALL)02/95]2.
Get in your vehicle and start the engine.
[IP10100(ALL)10/93]3.
Press the rear defogger switch.
[IP10200(ALL)11/93]
The defogger turns off automatically after 10 minutes. If the
window is not clear, turn the defogger on again. It will
automatically shut off anytime the engine is turned off or if the
switch is depressed a second time.
[IP10250(ALL)03/94]
NOTE: Operating the rear defogger will also turn on the
heated side view mirrors (if equipped).
*
[IP10300(ALL)04/95]
Never use sharp instruments or abrasive window cleaners to
clean the inside of your rear window. If you do, you may
damage the wires that are bonded to the inside of the rear
window, and cause damage to the rear window defogger.
File:wnips.ex
Update:Tue Mar 19 08:23:17 1996

188
[FV30500(ALL)08/93]
13-1/2 pica
art:0050010-A

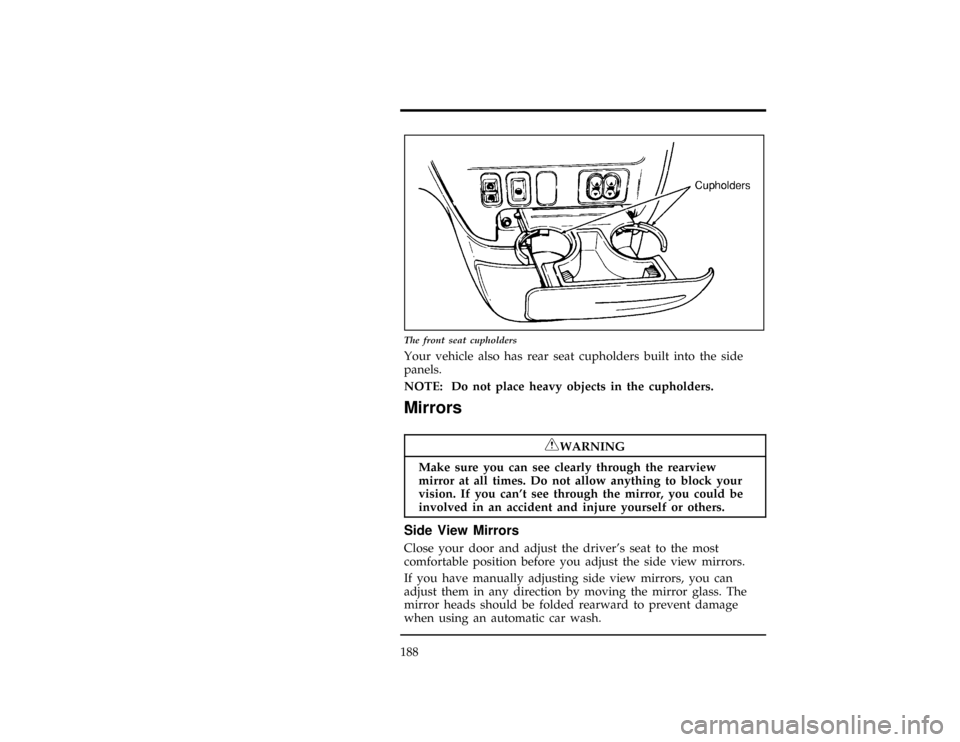

The front seat cupholders
[FV30800(ALL)06/94]
Your vehicle also has rear seat cupholders built into the side
panels.
*
[FV30850(ALL)06/94]
NOTE: Do not place heavy objects in the cupholders.
%*
[FV31000(ALL)01/95]
Mirrors
*
[FV31100(ALL)05/95]
RWARNING
Make sure you can see clearly through the rearview
mirror at all times. Do not allow anything to block your
vision. If you can't see through the mirror, you could be
involved in an accident and injure yourself or others.
%*
[FV31600(ALL)01/93]
Side View Mirrors
*
[FV31700(ALL)01/93]
Close your door and adjust the driver's seat to the most
comfortable position before you adjust the side view mirrors.
[FV31800(ALL)11/93]
If you have manually adjusting side view mirrors, you can
adjust them in any direction by moving the mirror glass. The
mirror heads should be folded rearward to prevent damage
when using an automatic car wash.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

Features
189
*
[FV31900(ALL)12/93]
NOTE: Be careful. The convex side view mirror on the right
makes objects appear smaller and farther away than
they actually are. Use the inside rearview mirror (or
look behind you) to determine the actual size and
distance of objects that appear in the convex mirror.
%*
[FV32000(ALL)09/93]
Dual Electric Remote Controlled Mirrors (If equipped)
[FV32100(ALL)10/93]
If you have power side view mirrors, you can adjust them in
any direction by using the mirror controls on the door panel.
[FV32150(ALL)11/93]
10-1/2 pica
art:0050031-A

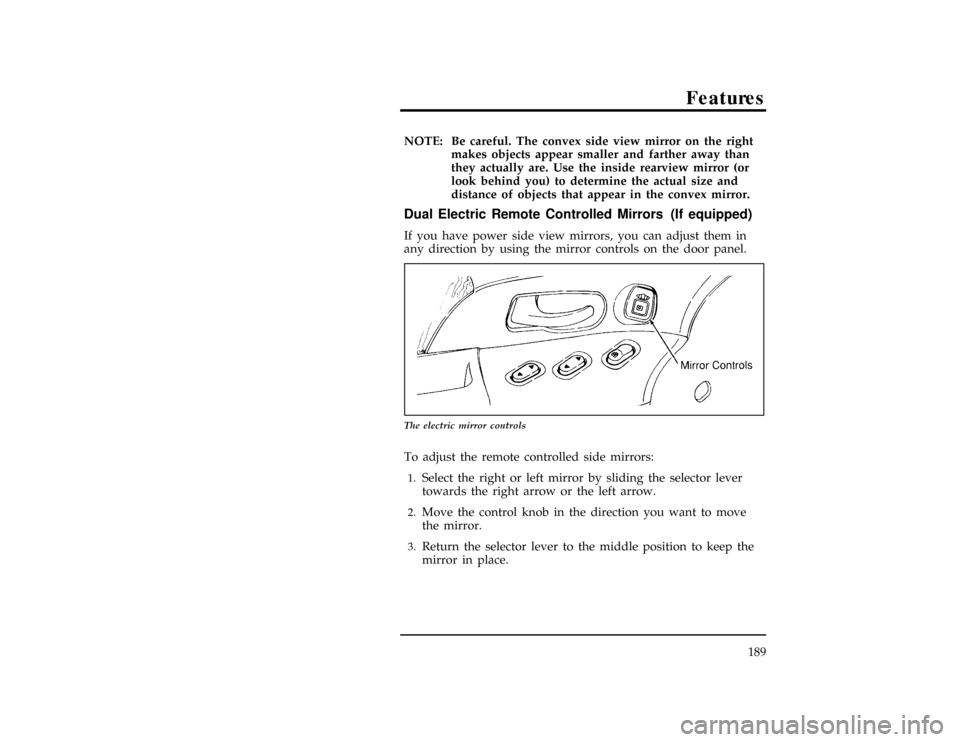

The electric mirror controls
*
[FV32200(ALL)08/91]
To adjust the remote controlled side mirrors:
[FV32300(ALL)08/93]1.
Select the right or left mirror by sliding the selector lever
towards the right arrow or the left arrow.
*
[FV32400(ALL)01/93]2.
Move the control knob in the direction you want to move
the mirror.
[FV32500(ALL)08/93]3.
Return the selector lever to the middle position to keep the
mirror in place.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

190
[FV32550(ALL)12/93]
7-1/2 pica art:0050214-A

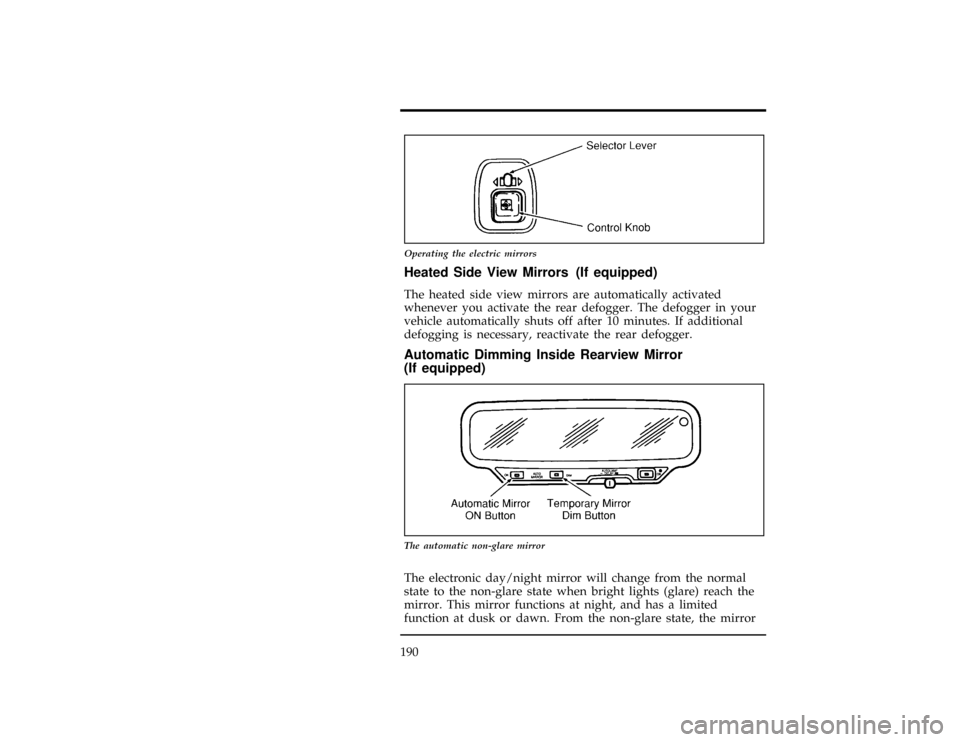

Operating the electric mirrors
% [FV32620(ALL)10/93]
Heated Side View Mirrors (If equipped)
[FV32640(ALL)11/93]
The heated side view mirrors are automatically activated
whenever you activate the rear defogger. The defogger in your
vehicle automatically shuts off after 10 minutes. If additional
defogging is necessary, reactivate the rear defogger.
%*
[FV32700(ALL)01/95]
Automatic Dimming Inside Rearview Mirror
(If equipped)
[FV32800(ALL)11/93]
10-1/2 pica
art:0050191-A
The automatic non-glare mirror
*
[FV32900(ALL)01/95]
The electronic day/night mirror will change from the normal
state to the non-glare state when bright lights (glare) reach the
mirror. This mirror functions at night, and has a limited
function at dusk or dawn. From the non-glare state, the mirror
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

Features
191 will return to the normal state after a short delay. The delay
starts when the glare goes away. The delay prevents excessive
changing of the mirror as traffic moves behind and around the
vehicle, or on rolling hills and curves.
*
[FV33000(ALL)01/95]
The electronic mirror measures the brightness of the light
coming in from the rear of the vehicle. It automatically makes a
correction in the glare state. The mirror may be turned off in
either the normal or non-glare position.
*
[FV33100(ALL)06/94]
There are two light sensors (photocells) in this mirror. The
sensor that detects rear glare is located inside a window in the
upper RH corner of the mirror. The second light sensor which
determines outside light level is located on the backside of the
mirror case.
*
[FV33200(ALL)01/95]
One important safety feature is that the mirror automatically
returns to the normal position whenever the vehicle is placed in
R (Reverse) (when the mirror is in the ON position). This
feature ensures a bright clear view in the mirror when backing
up.
*
[FV33400(ALL)03/95]
To turn on the automatic mirror, have the key in the ON
position and push the ON button once. The light in the center
of the button will light indicating the mirror is on. To turn the
mirror off push the ON button again.
*
[FV33500(ALL)05/93]
The mirror can be temporarily darkened, if wanted, by pushing
the Dim button. After releasing the button, the mirror will
return to the previous operation mode after a short delay.
% [FV33600(ALL)09/93]
Illuminated Courtesy Mirror (If equipped)
[FV33700(ALL)01/93]
Your vehicle may have illuminated courtesy mirrors on the sun
visors. You can turn on the lighted mirrors by lifting the mirror
door cover.
File:wnfvs.ex
Update:Tue Mar 19 08:21:54 1996

392
Mileage, calculating fuel economy............ 314
Mirrors
automatic dimming rearview mirror.......144, 190
heated....................... 190
rearview...................... 188
vanity mirror, illuminated.............. 191
Motorcraft parts.................... 364
O
Octane rating..................... 310
Odometer
description.................... 79,96
trip odometer..................... 80
Oil (see Engine oil).................. 316
On-board diagnostic (OBD II) system.......... 361
Order forms, service information............ 198
Overdrive...................... 237
P
Panic alarm feature, remote entry system........ 152
Parking brake
operation...................... 244
warning light................... 68,84
Parts (see Motorcraft Parts)............... 364
PCV valve, specifications................ 364
Power door locks................... 146
Power features
door locks..................... 146
lumbar support................... 170
mirrors....................... 189
seats........................ 169
windows...................... 160
Power steering
dipstick...................... 339
driving with power steering............. 240
fluid, checking and adding.............. 339
fluid, specifications................. 365
servicing...................... 240
File:wnixs.ex
Update:Tue Mar 19 08:12:49 1996

393
Index
R
Radio (see Electronic sound systems).......... 195
Rear climate control system............... 116
Rearview mirror.................... 190
Rear window..................... 160
defroster...................... 117
washer....................... 119
Refill capacities for fluids................ 363
Relays........................ 350
Remote entry system
illuminated entry.................. 154
locking/unlocking doors............... 152
panic alarm..................... 152
replacement/additional transmitters.......... 154
replacing the batteries................ 153
Restraints, safety (see Safety restraints)
adult......................... 7
child......................... 25
infant...................... 25,39
Roadside assistance.................. 283
Roadside emergencies................. 261
Rotating the tires................... 329
S
Safe driving tips.................... 245
Safety information relating to automotive fuels...... 312
Safety restraints
center front lap belt.................. 17
center rear lap belt.................. 17
cleaning the safety belts................ 18
extension assembly.................. 18
for children...................... 25
for infants.................... 25,39
lap and shoulder belts................. 9
lap belt........................ 17
maintenance..................... 18
replacement...................... 18
File:wnixs.ex
Update:Tue Mar 19 08:12:49 1996
