1996 FORD MUSTANG Owners Manual

279
*
[SV36600( ALL)03/95]
The following charts tell you which fuses or
circuit breakers protect the wiring for each
electrical part of your vehicle. If a fuse blows or
a circuit breaker opens a circuit,allthe parts of
your vehicle that use that circuit will not work.
*
[SV36610( ALL)01/95]
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakersin this chapter.
[SV36700(M )03/93]
half page art:0011154-A
The instrument panel fuse panel location
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

280 [SV37200(M )06/93]

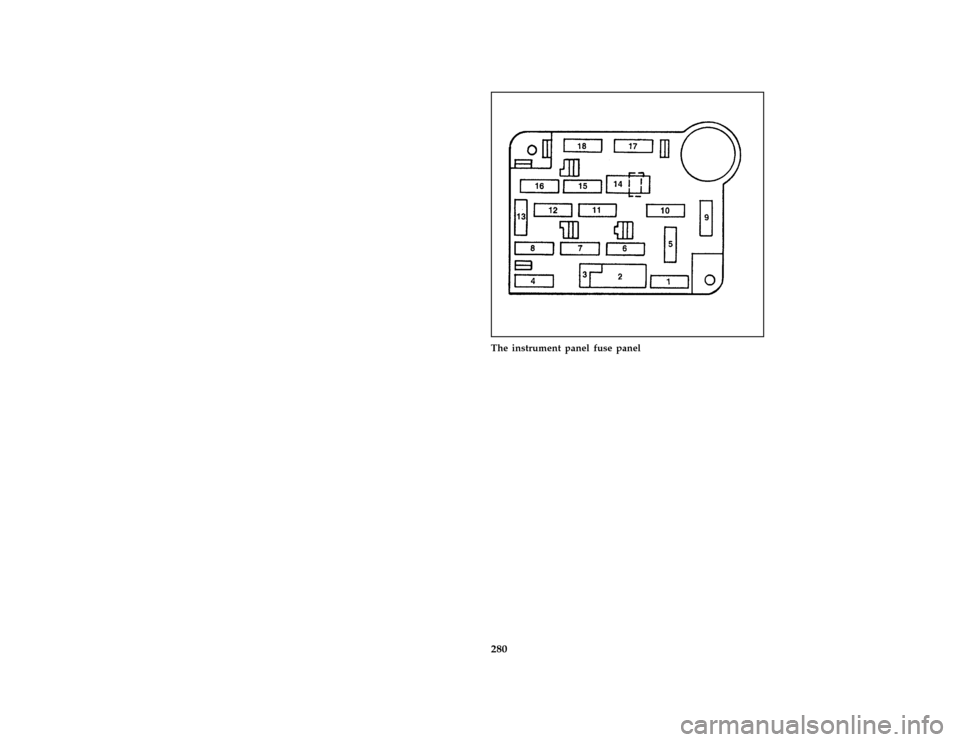

half page art:0011172-AThe instrument panel fuse panel
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

281 %
*
[SV37500( ALL)02/95]
The Instrument Panel Fuses, Circuit
Breakers and Relays
[SV37600(M )06/93]
thirty-four pica chart:0010389-GFile:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

282 [SV37700(M )10/95]
twenty-four pica chart:0010492-G
%*
[SV39000( ALL)01/95]
High Current Fuses
*
[SV39200( ALL)01/95]
High current fuses are circuit protectors that are
part of the wiring harness for some electrical
equipment. These, like fuses, open when the
circuit load exceeds their amperage rating. High
current fuses may be purchased from your Ford
or Lincoln-Mercury dealer.
*
[SV39300(MBC )01/95]
The high current fuse panel is located in the
engine compartment on the left-hand fender
apron.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

283
*
[SV39600( ALL)05/95]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[SV39700( ALL)07/95]
Ford recommends that high current fuses be
replaced by a qualified technician.
[SV39800(M )08/93]
one third page art:0011156-B
The high current fuse panel location
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

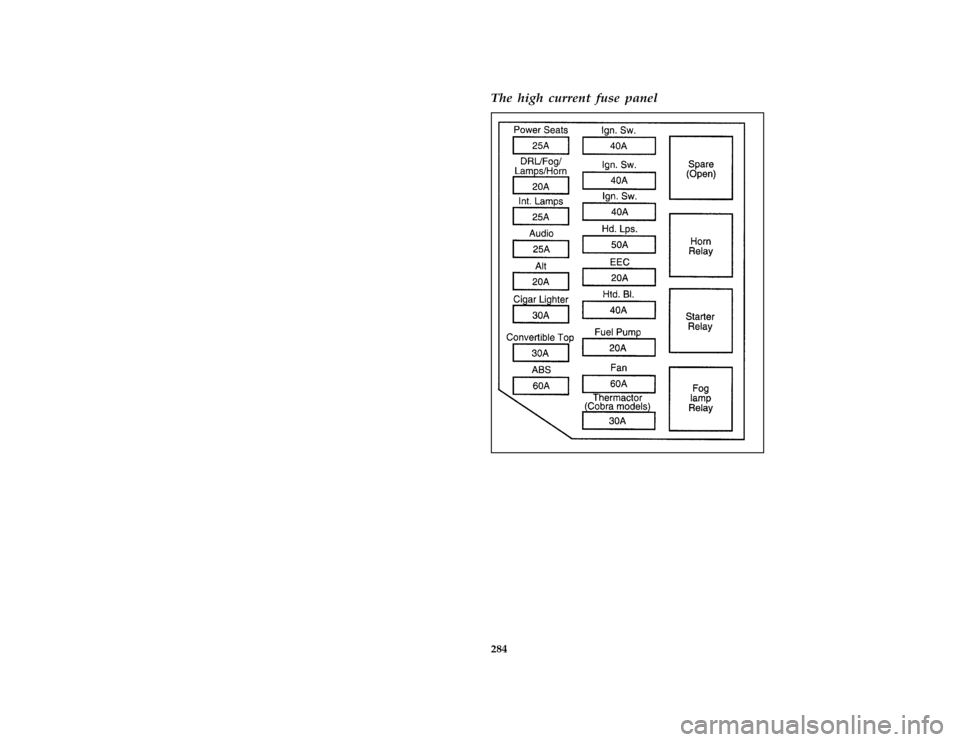

284 % [SV40100( ALL)06/93]The high current fuse panel
[SV40300(M )10/95]
two third page art:0011159-CFile:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

285 [SV40600( ALL)06/93]

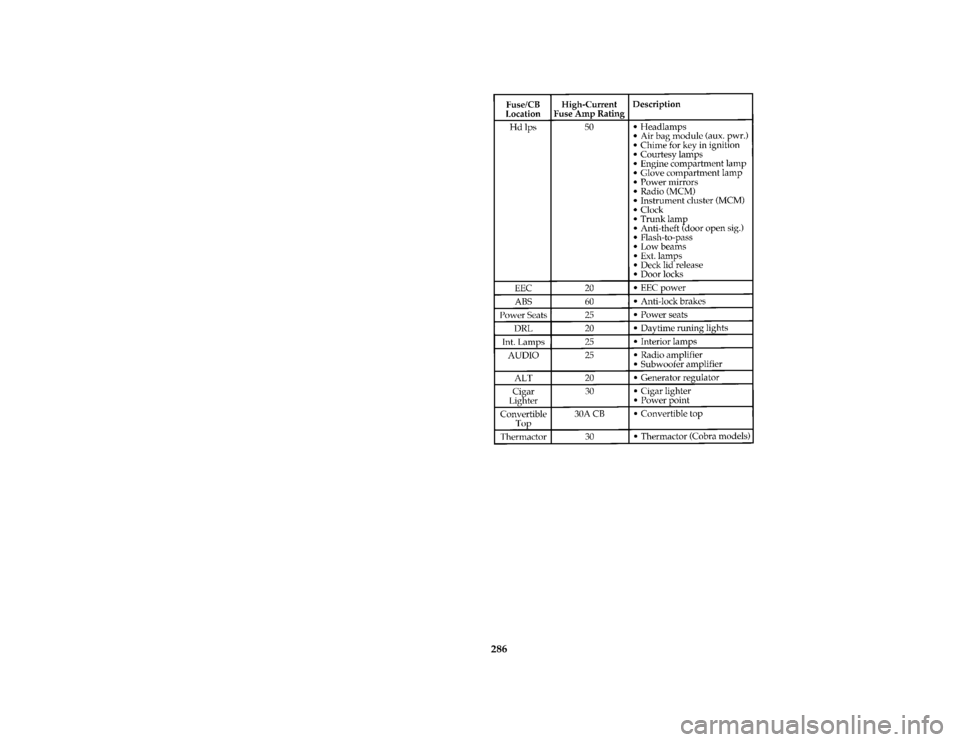

The high current fuses and relays
[SV40800(M )05/95]
thirty-two pica chart:0011160-BFile:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

286 [SV40900(M )10/95]
thirty-six pica chart:0011161-C
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996
