1996 FORD MUSTANG Owners Manual

230
*
[AC01600( ALL)01/95]
NOTE: Mobile communications systems may
harm the operation of your vehicle,
particularly if they are not properly
designed for automotive use or are not
properly installed. For example, when
operated, such systems may cause the
engine to stumble or stall. In addition,
such systems may themselves be
damaged or their operation affected by
operating your vehicle. (Citizens band
[CB] transceivers, garage door openers,
and other transmitters whose power
output is 5 watts or less will not
ordinarily affect your vehicle's
operation.)
*
[AC01700( ALL)05/95]
NOTE: Because we have no control over the
installation, design, or manufacture of
such systems, Ford cannot assume
responsibility for any adverse effects or
damage that may result if you use this
equipment.
File:14rcacm.ex
Update:Wed Mar 27 09:35:46 1996

232 % [AC01800(M )12/94]
thirty-six pica chart:0011320-A
File:14rcacm.ex
Update:Wed Mar 27 09:35:46 1996

233 [AC01900(M )12/94]

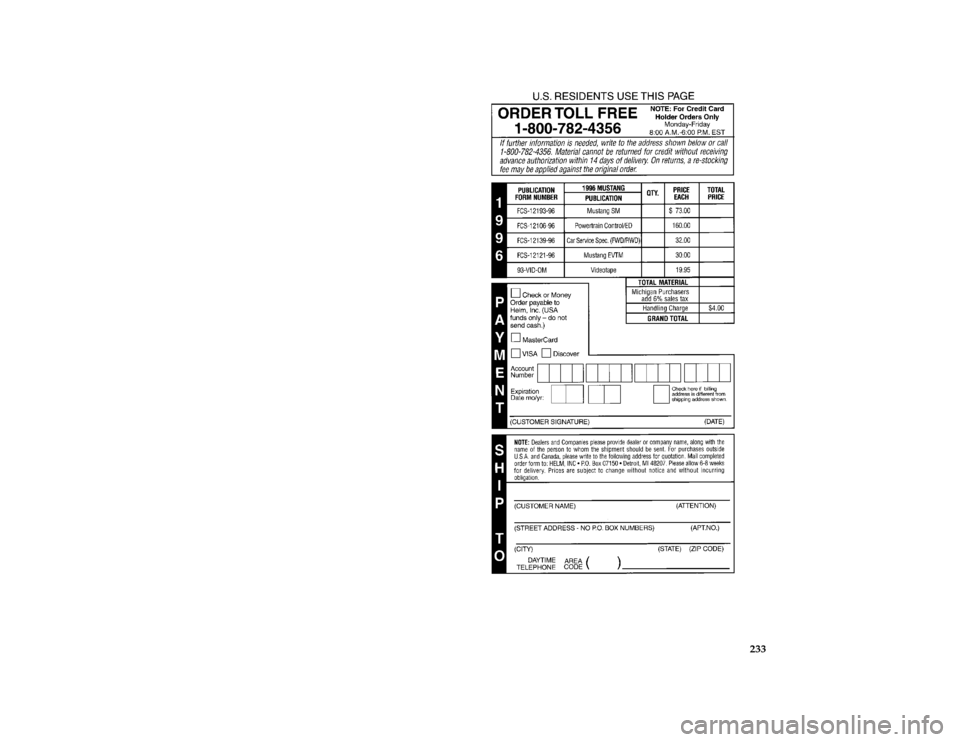

thirty-six pica chart:0011321-A
File:14rcacm.ex
Update:Wed Mar 27 09:35:46 1996

234 [AC02000(M )12/94]

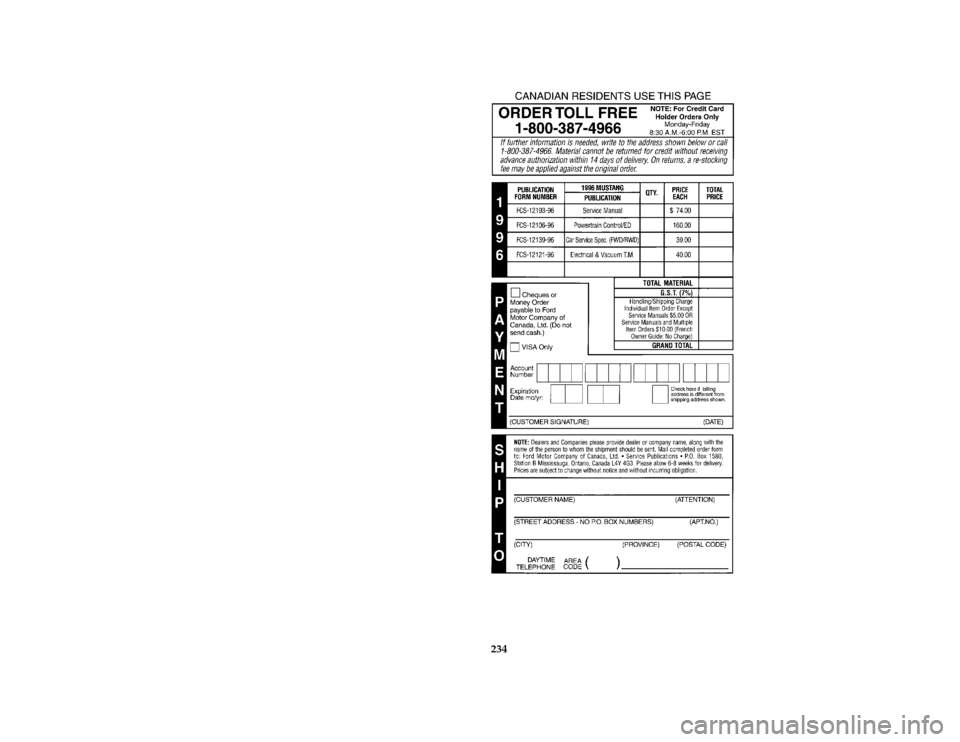

thirty-six pica chart:0011322-A
File:14rcacm.ex
Update:Wed Mar 27 09:35:46 1996

235
Servicing Your Mustang
%*
[SV00300( ALL)03/95]
Service Made Easy
*
[SV00400( ALL)01/95]
Ford has two goals for servicing your vehicle.
*
[SV00550( ALL)01/95]
1. When we can, we design parts that do not
need to be serviced.
*
[SV00600( ALL)01/95]
2. We want to make servicing your vehicle as
easy as possible. To help you:
*
[SV00700( ALL)01/95]
q
We highlight do-it-yourself items in yellow in
the engine compartment so that you can find
them easily.
*
[SV00800( ALL)01/95]
q
When possible, we design parts Ð such as
the headlamp bulbs Ð that can be replaced
without tools.
*
[SV00900( ALL)05/94]
q
We give you a Maintenance Schedule that
makes tracking routine service for your
vehicle easy. The maintenance schedule is
located in theMaintenance Schedule and Record
booklet.
*
[SV01000( ALL)01/95]
This chapter tells you about the basic parts that
you need to check and service regularly.
*
[SV01100( ALL)02/95]
If your vehicle needs professional servicing, your
dealership can provide the parts and service
required. Check yourWarranty Information Booklet
to find out which parts and services are covered.
Also see theCustomer Assistancechapter of this
Owner Guide.
*
[SV01250( ALL)03/95]
Ford Motor Company recommends that the
Owner Maintenance Checks listed in the
Maintenance Schedule and Recordbooklet be
performed for the proper operation of your
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

236vehicle. In addition to the conditions listed in
theOwner Maintenance Checklist, be alert for any
unusual noise, vibration, or other indication that
your vehicle may need service. If you do notice
something unusual, see that your vehicle is
serviced promptly.
*
[SV01275( ALL)03/95]
Use only recommended fuels, lubricants, fluids,
and service parts conforming to Ford
specifications. Motorcraft parts are designed and
built to provide the best performance in your
vehicle. Using these parts for replacement is
your assurance that Ford-built quality stays in
your vehicle.
%*
[SV01400( ALL)09/95]
NOTE: Always dispose of used automotive
fluids in a responsible manner. Follow
your community's standards for
disposing of these types of fluids. Call
your local recycling center to find out
about recycling automotive fluids.
%
*
[SV01600( ALL)06/95]
Precautions When Servicing Your
Vehicle
*
[SV01700( ALL)06/95]
Be especially careful when inspecting or
servicing your vehicle. Here are some general
precautions for your safety:
%*
[SV01800(MBC )10/95]
q
Do not work on a hot engine. The engine
cooling fan may come on unexpectedly.
Always turn the engine off and let it cool.
*
[SV01850(MBC )10/95]
RWARNING
The cooling fan is automatic and may
come on at any time. Always disconnect
the negative terminal of the battery before
working near the fan.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

237
*
[SV01900( ALL)06/95]
q
If you must work with the engine running,
avoid wearing loose clothing or jewelry that
could get caught in moving parts. Take
appropriate precautions with long hair.
*
[SV02000( ALL)06/95]
q
Do not work on a vehicle in an enclosed
space with the engine running, unless you are
sure you have enough ventilation.
*
[SV02100( ALL)08/95]
q
Never get under a vehicle while it is
supported only by a jack. If you must work
under a vehicle, use safety stands.
*
[SV02200( ALL)06/95]
q
Keep all lit cigarettes and other smoking
materials away from the battery and all
fuel-related parts.
*
[SV02600(MBC )03/95]
If you disconnect the battery, the engine must
ªrelearnº its idle conditions before your vehicle
will drive properly. To find out how the engine
does this, seeBatteryin this chapter.
*
[SV02800( ALL)03/95]
Working with the engine off:
[SV02900(M )03/95]
1. Set the parking brake fully, block the wheels,
and make sure that the gearshift is securely
latched in P (Park) (automatic transmission)
or 1 (First) (manual transmission).
*
[SV03100( ALL)06/95]
2. Remove the key from the ignition after you
turn the engine off.
*
[SV03150( ALL)06/95]
3. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
*
[SV03200( ALL)03/95]
Working with the engine on:
[SV03300(M )03/95]
1. Set the parking brake fully, and make sure
that the gearshift is securely latched in P
(Park) (automatic transmission) or Neutral
(manual transmission).
*
[SV03501( ALL)03/95]
2. Block the wheels. This will prevent your
vehicle from moving unexpectedly.
File:15rcsvm.ex
Update:Thu Mar 28 14:48:54 1996

238
*
[SV03600( ALL)02/95]
RWARNING
Do not start your engine with the air
cleaner removed and do not remove it
while the engine is running.
%*
[SV03650( ALL)03/95]
Opening the Hood
[SV03800( ALL)03/95]
1. Inside the vehicle, pull the hood release
located under the lower left corner of the
instrument panel.
[SV04000( ALL)03/95]
2. Go around to the front of the vehicle, and
release the auxiliary catch that is located
under the front edge of the hood at the
center of the vehicle.
[SV04085(M )05/95]
one third page art:0011350-A
The auxiliary catch under the front edge of the hood
[SV04100(M )01/89]
3. Lift the hood and secure it with the prop
rod using only the hole marked ªPROPº.
[SV04300(M )01/89]
Whenever you close the hood, make sure the
prop rod is secured in its retainer and that the
hood latches securely.
*
[SV04450( ALL)01/95]
NOTE: Apply lubricant to the hood latch at
six-month intervals to maintain smooth
and trouble-free operation.
