194
%*
[DR17550(MBC )04/95]
Trailer Towing
*
[DR17650( ALL)01/95]
Your vehicle does not come from the factory
fully equipped to tow. No towing packages are
available through Ford or Lincoln/Mercury
dealers.
*
[DR17700( ALL)01/95]
Because towing a trailer puts extra strain on
your vehicle, you must follow certain
precautions for your safety and the good of your
vehicle:
*
[DR17800( ALL)01/95]
q
Stay within the load limits for towing your
vehicle. (SeeTrailer towing specificationsin this
chapter.)
*
[DR17900( ALL)01/95]
q
Carefully and thoroughly prepare your
vehicle for towing, making sure to use the
right equipment and to attach it properly.
(SeePreparing to Towin this chapter.)
*
[DR18000( ALL)01/95]
q
Use extra caution when driving your vehicle
while you tow. (SeeDriving while you towin
this chapter.)
*
[DR18100( ALL)01/95]
q
Service your vehicle more frequently if you
tow a trailer. (SeeServicing your vehicle if you
towin this chapter.)
*
[DR18175( ALL)01/95]
Ten to 15% of the loaded trailer's weight should
be on the tongue. However, the tongue load
should never exceed 10% of the maximum
weight that your vehicle can safely tow.
*
[DR18250( ALL)05/95]
RWARNING
Do not tow a trailer when the temporary
spare tire is being used.
[DR18300( ALL)12/94]
Your vehicle is classified as a light duty towing
vehicle. The amount of weight that you can
safely tow depends on the optional equipment
on your vehicle. See the following chart.
File:10rcdrm.ex
Update:Wed Mar 27 09:33:56 1996

205 [RE03810(M )09/95]
NOTE: If your vehicle is equipped with a 3.8L
engine you will need to perform
additional steps after your vehicle has
been jump started. SeeReadiness for
Inspection/Maintenance Testingin
Servicing Your Vehicle Chapter.
%
*
[RE03900( ALL)03/95]
Changing a Tire
*
[RE04000( ALL)01/95]
If you get a flat tire while you are driving, do
not apply the brake heavily. Instead, gradually
decrease the speed. Hold the steering wheel
firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off
the ignition, set the parking brake, and turn on
the hazard flashers.
%*
[RE04100( ALL)03/95]
The Temporary Spare Tire
[RE04225(MBC )03/94]
You have a high pressure temporary spare tire.
This spare tire is smaller than a regular tire and
is designed for emergency use only. Use it only
when you get a flat tire and replace it as soon
as you can. This spare tire is marked with the
words ªTEMPORARY USE ONLYº so that you
can easily identify it.
*
[RE04250( ALL)01/95]
NOTE: Extended use of other than
conventional spare tires on a
Traction-Lok rear axle could result in a
permanent reduction in effectiveness.
This loss of effectiveness does not
affect normal driving and should not
be noticeable to the driver.
*
[RE04300( ALL)01/93]
RWARNING
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing
you to lose control of the vehicle, possibly
injuring yourself or others.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

206
*
[RE04400( ALL)01/95]
When you drive with the temporary spare tire,
DO NOT:
*
[RE04500( ALL)01/95]
q
exceed 50 mph (80 km/h) under any
circumstances.
*
[RE04600( ALL)01/95]
q
load your vehicle so that it is heavier than
the maximum vehicle load rating listed on
the tire decal.
*
[RE04700( ALL)01/95]
q
tow a trailer.
*
[RE04800( ALL)01/95]
q
use tire chains on this tire.
*
[RE04900( ALL)01/95]
q
try to repair the temporary spare tire or
remove it from its wheel.
*
[RE05000( ALL)01/95]
q
use the wheel for any other type of vehicle.
*
[RE05100( ALL)01/95]
q
drive through an automatic car wash with
this tire. Because the temporary spare tire is
smaller than a conventional tire, it reduces
the ground clearance. Your vehicle may get
caught in the rails and it could be damaged.
%*
[RE05500( ALL)03/95]
Spare Tire Location
[RE05600( ALL)11/90]
The spare is stored in the trunk.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

207 [RE05800(M )11/93]

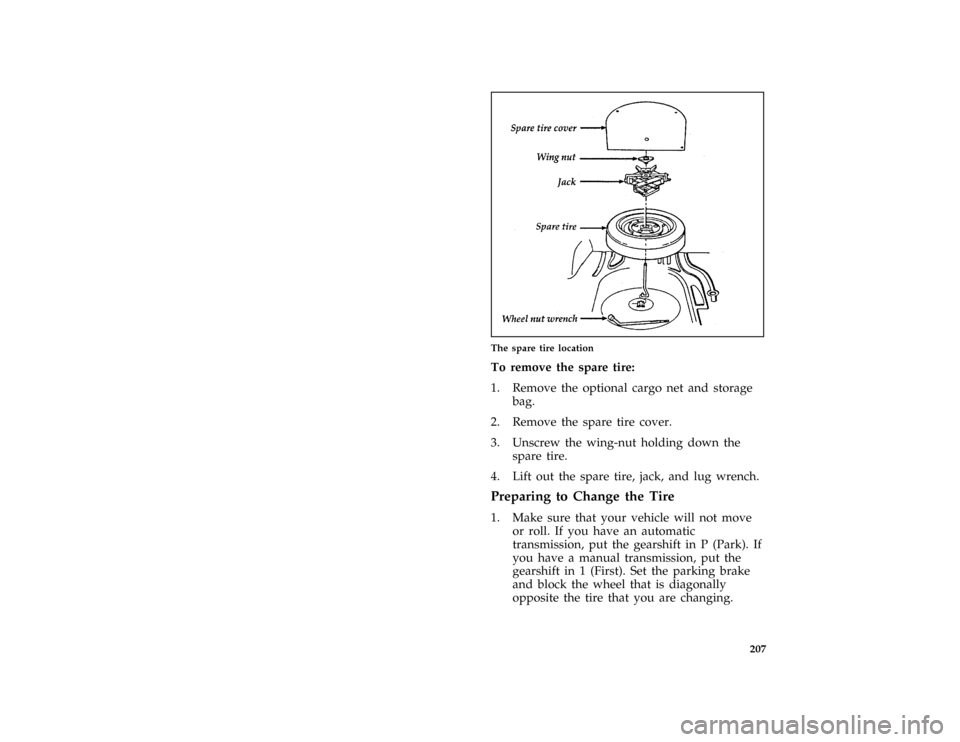

half page art:0010338-C
The spare tire location
%*
[RE06500( ALL)02/95]
To remove the spare tire:
[RE06520(M )06/93]
1. Remove the optional cargo net and storage
bag.
[RE06530(M )05/90]
2. Remove the spare tire cover.
[RE06540(M )05/90]
3. Unscrew the wing-nut holding down the
spare tire.
*
[RE06560(M )01/89]
4. Lift out the spare tire, jack, and lug wrench.
%*
[RE07300( ALL)03/95]
Preparing to Change the Tire
[RE07500(M )03/95]
1. Make sure that your vehicle will not move
or roll. If you have an automatic
transmission, put the gearshift in P (Park). If
you have a manual transmission, put the
gearshift in 1 (First). Set the parking brake
and block the wheel that is diagonally
opposite the tire that you are changing.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

208
*
[RE07535(M )05/95]
When one of the back wheels is off the ground,
the transmission alone will not prevent the
vehicle from moving or slipping off the jack,
even if the vehicle is in P (Park) or 1 (First). To
prevent the vehicle from moving when you
change a tire, be sure the parking brake is set,
then block the wheel (both directions) that is
diagonally opposite (other side and end of the
vehicle) to the tire that is being changed.
*
[RE07560( ALL)09/95]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
*
[RE07875( ALL)05/95]
RWARNING
To avoid injury, never run the engine
with one wheel off the ground, such as
when changing a tire.
*
[RE07900( ALL)03/95]
2. Get out the spare tire and jack.
[RE08010(M )03/95]
3. Remove wheel covers with the tapered end
of a wheel nut wrench. Insert the handle of
the wrench and twist it against the inner
wheel cover flange. To remove aluminum
wheel center ornaments, insert the curled
end of lug wrench into pry-off notch and
pry against the wheel. To avoid damage to
aluminum wheel, do not twist wrench. For
more about removing wheel covers, see the
information later in this section.
*
[RE08100(MBC )09/95]
4. Loosen each wheel lug nut one-half turn
counterclockwise, but do not remove them
until the tire is raised off the ground. You
should pull up on the handle rather than
push to develop maximum force to loosen
wheel lug nuts. SeeAnti-Theft Wheel Lug
Nutslater in this chapter for information on
removing anti-theft lug nuts.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

210 [RE08550( ALL)10/92]

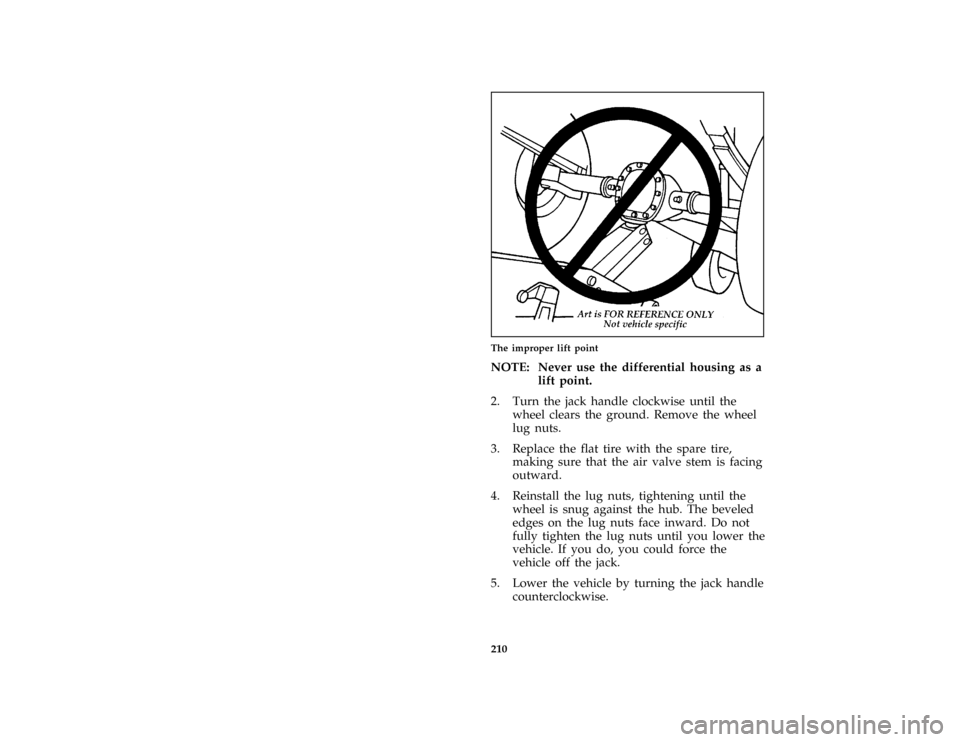

half page art:0010759-AThe improper lift point
[RE08570( ALL)05/92]
NOTE: Never use the differential housing as a
lift point.
*
[RE08900( ALL)01/95]
2. Turn the jack handle clockwise until the
wheel clears the ground. Remove the wheel
lug nuts.
*
[RE08920( ALL)01/95]
3. Replace the flat tire with the spare tire,
making sure that the air valve stem is facing
outward.
*
[RE08940( ALL)03/95]
4. Reinstall the lug nuts, tightening until the
wheel is snug against the hub. The beveled
edges on the lug nuts face inward. Do not
fully tighten the lug nuts until you lower the
vehicle. If you do, you could force the
vehicle off the jack.
*
[RE08960( ALL)01/95]
5. Lower the vehicle by turning the jack handle
counterclockwise.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

212of the wheelcover until it is snapped firmly in
place on the wheel.
%*
[RE12700(MBC )03/95]
Anti-Theft Wheel Lug Nuts (If equipped)
[RE12801(M )10/95]
The aluminum wheels on Mustang 4.6L engine
vehicles are secured with locking lug nuts. One
of the lug nuts on each wheel must be removed
and installed with a special key. The key and a
registration card are attached to the lug wrench
and stored with the spare tire. If you lose the
key, send the registration card to the
manufacturer (not to the dealer) to get a
replacement key.
*
[RE12850(MBC )03/95]
NOTE: If entire lug wrench/lug nut key
assembly is lost, see your nearest Ford
or Lincoln-Mercury dealer who has
access to a master set of keys.
*
[RE12875(MBC )09/95]
NOTE: DO NOT USE A POWER IMPACT
WRENCH ON THE LUG NUT KEY.
[RE13000(MBC )03/95]

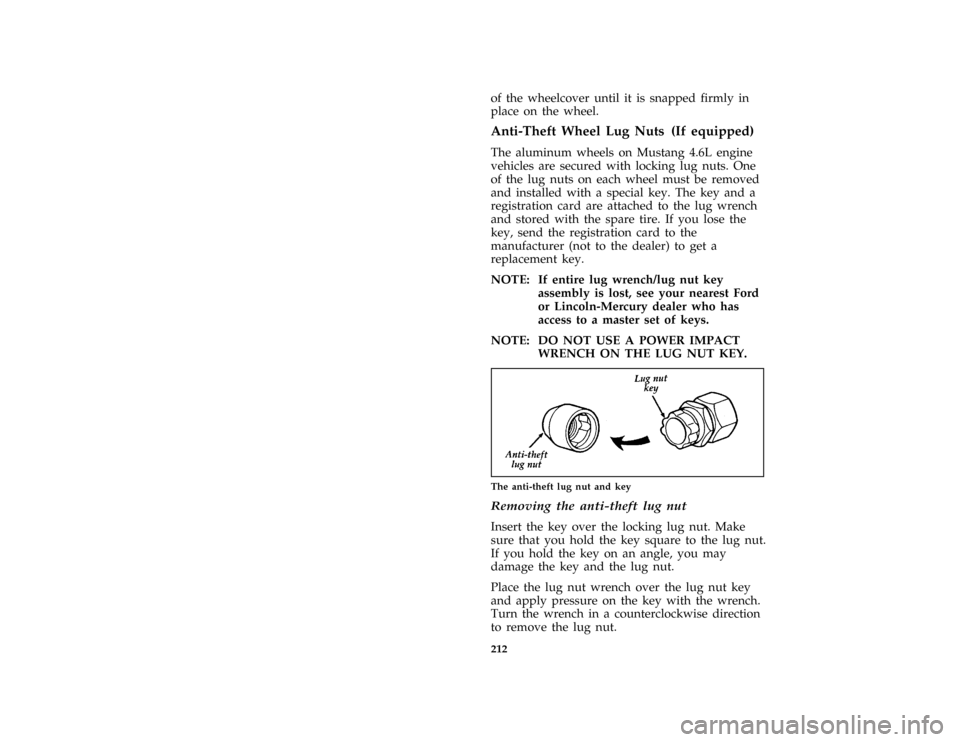

quarter page art:0010357-B
The anti-theft lug nut and key
*
[RE13100(MBC )03/95]
Removing the anti-theft lug nut
*
[RE13300(MBC )03/95]
Insert the key over the locking lug nut. Make
sure that you hold the key square to the lug nut.
If you hold the key on an angle, you may
damage the key and the lug nut.
*
[RE13400(MBC )03/95]
Place the lug nut wrench over the lug nut key
and apply pressure on the key with the wrench.
Turn the wrench in a counterclockwise direction
to remove the lug nut.
File:12rcrem.ex
Update:Wed Mar 27 09:34:49 1996

215
Customer Assistance
%*
[HS00205( ALL)06/94]
Roadside Assistance
*
[HS00210( ALL)08/95]
Ford Motor Company has set up a 24-hour,
seven-day-a-week hotline with trained operators
who put you in touch with the help you need if
you experience a problem with your vehicle.
This complimentary service is provided to you
throughout your warranty period of 3 years or
36,000 miles (60,000 km), whichever comes first.
To purchase Roadside Assistance coverages
beyond this period (available through Ford Auto
Club in the United States or Ford and
Lincoln-Mercury dealers in Canada), contact
your Ford or Lincoln-Mercury dealer.
*
[HS00215( ALL)06/94]
Roadside Assistance will cover the following:
*
[HS00220( ALL)06/94]
q
Mount your spare if you have a flat tire.
*
[HS00225( ALL)06/94]
q
Jump-start your battery if it is dead.
*
[HS00230( ALL)06/94]
q
Unlock your vehicle if you are locked out.
*
[HS00235( ALL)06/94]
q
Bring you fuel if you run out.
*
[HS00240( ALL)06/94]
q
Tow your vehicle if you are stranded. Even
non-warranty related tows, like accidents or
getting stuck in mud or snow, are covered
(some exclusions apply, such as impound
towing and repossession).
*
[HS00245( ALL)06/94]
How to use Roadside Assistance
*
[HS00250( ALL)06/94]
Your Roadside Assistance identification card can
be found in the Owner Guide portfolio in your
glove compartment. Complete the card and place
it in your wallet for quick reference.
