1996 FORD MUSTANG Owners Manual

56
*
[ST11900( ALL)03/95]
For best results, plug the heater in at least three
hours before you start your vehicle. Using the
heater for longer than three hours will not
damage the engine, so you can plug it in at
night to start your vehicle the following
morning.
*
[ST12000( ALL)12/91]
NOTE: Be sure to disconnect the engine block
heater before driving your vehicle.
%*
[ST13100( ALL)05/95]
Guarding Against Exhaust Fumes
*
[ST13200( ALL)02/95]
Carbon monoxide, although colorless and
odorless, is present in exhaust fumes. Take
precautions to avoid its dangerous effects.
*
[ST13300( ALL)09/95]
RWARNING
Do not start your vehicle in a closed
garage or other enclosed area. Never sit in
a stopped vehicle for more than a short
period of time with the engine running.
Exhaust fumes are toxic. SeeGuarding
Against Exhaust Fumesin this chapter for
more instructions.
*
[ST13400( ALL)05/95]
RWARNING
If you smell exhaust fumes inside your
vehicle, have your dealer inspect your
vehicle immediately. Do not drive if you
smell exhaust fumes.
*
[ST13500( ALL)01/95]
Have the exhaust and body ventilation systems
checked whenever:
*
[ST13600( ALL)02/95]
q
your vehicle is raised for service
*
[ST13700( ALL)02/95]
q
the sound of the exhaust system changes
*
[ST13800( ALL)01/95]
q
your vehicle has been damaged in a collision
*
[ST13900( ALL)01/95]
Improve your ventilation by keeping all air inlet
vents clear of snow, leaves, and other debris.
File:04rcstm.ex
Update:Wed Mar 27 09:28:42 1996

57 [ST14000( ALL)12/94]
If the engine is idling while you are stopped in
an open area for long periods of time, open the
windows at least one inch (2.5 cm). Also, the
heating or air conditioning system should be set
to any function except MAX A/C or AUTO.
[ST14100(M )12/88]
q
If you use the heater, set the fan speed on
MEDIUM or HIGH with the function control
knob at any desired position.
[ST14150(M )12/88]
q
If you use the air conditioner, set the fan
speed on MEDIUM or HIGH with the
function control knob at any position except
OFF and the temperature control lever at
mid-position.
%
*
[ST17100( ALL)03/95]
If the Engine Cranks but Does
Not Start or Does Not Start After
a Collision
[ST17110( ALL)07/95]
Fuel System Shut-off Switch
[ST17200( ALL)07/95]
If the engine cranks but does not start or does
not start after a collision, the fuel system shut-off
switch may have been triggered. The shut-off
switch is a device intended to stop the fuel
system when your vehicle has been involved in
a substantial jolt.
[ST17410(M )12/94]
Once the shut-off switch is triggered, you must
reset the switch by hand before you can start
your vehicle. The switch is on the left side of the
trunk near the left tail lamp.
File:04rcstm.ex
Update:Wed Mar 27 09:28:42 1996

58 [ST17500(M )09/93]
one third page art:0010012-DThe fuel pump shut-off switch
*
[ST18700( ALL)05/95]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
*
[ST18800( ALL)03/95]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ST18900( ALL)04/95]
1. Turn the ignition key to the OFF position.
*
[ST19000( ALL)03/95]
2. Check under the vehicle for leaking fuel.
*
[ST19100( ALL)03/95]
3. If you do not see or smell fuel, push the red
reset button down. If the button is already
set, you may have a different mechanical
problem.
*
[ST19200( ALL)03/95]
4. Turn the ignition key to the ON position for
a few seconds, then turn it to the OFF
position.
File:04rcstm.ex
Update:Wed Mar 27 09:28:42 1996

59
*
[ST19300( ALL)03/95]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
*
[ST19350( ALL)03/95]
6. Check all vehicle warning lights before
driving the vehicle.
*
[ST19400( ALL)01/95]
Pushing
[ST19500(M )03/95]
Vehicles with automatic transmissions cannot be
started by pushing. Vehicles with manual
transmissions should not be push started due to
possible catalytic converter damage. Follow the
directions underIf Your Vehicle Needs a
Jump-Start.
File:04rcstm.ex
Update:Wed Mar 27 09:28:42 1996

61
Warning Lights and
Gauges
%*
[LG00400( ALL)01/95]
The instrument panel (dashboard) on your
vehicle is divided into several different sections.
The illustrations on the following pages show
the major parts of the instrument panel that are
described in this chapter. Some items shown
may not be on all vehicles.
*
[LG00450(M )06/93]
In your vehicle, the warning lights and gauges
are grouped together on the instrument panel.
We call this grouping a cluster.
File:05rclgm.ex
Update:Wed Mar 27 09:29:39 1996

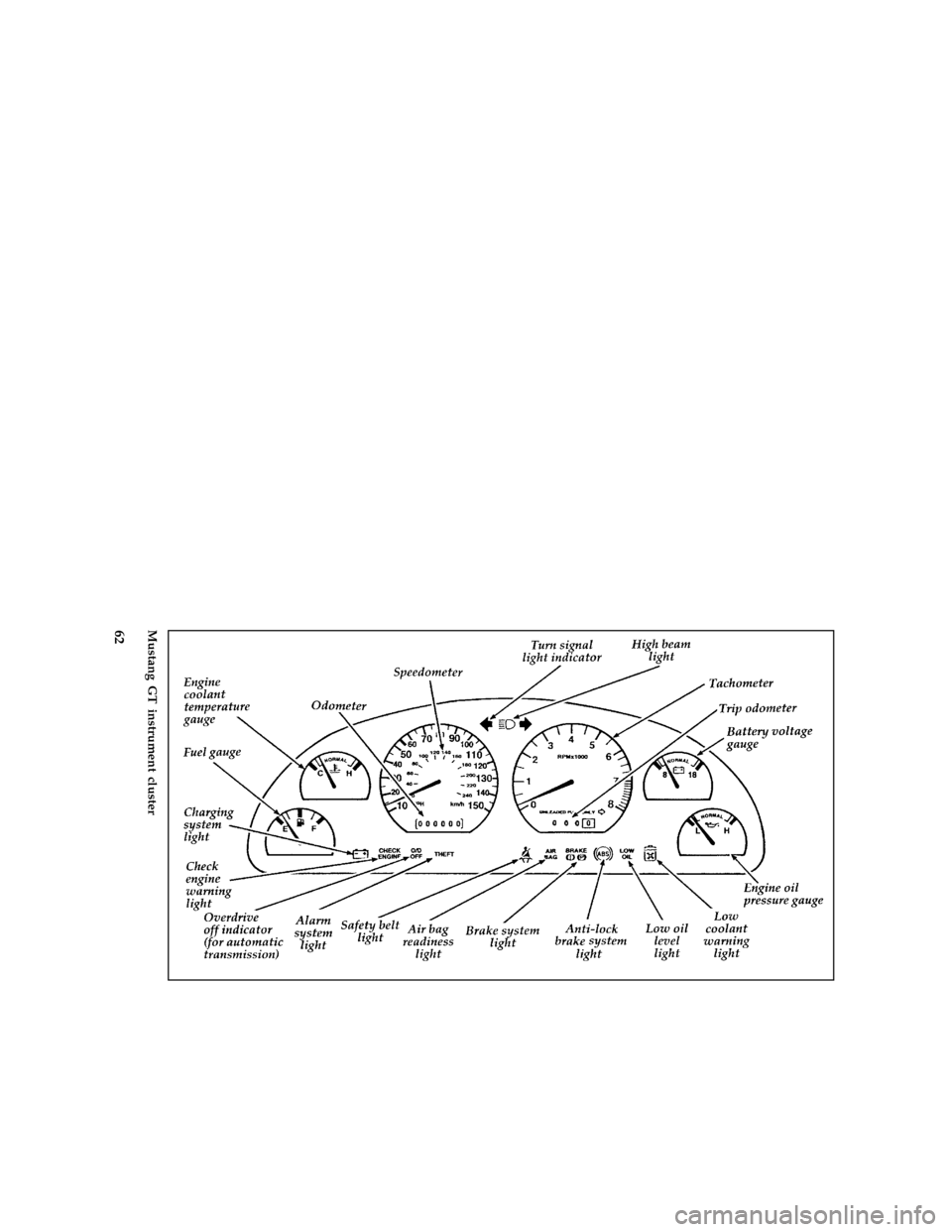

62 % [LG01900(M )05/95]
full page art:0010106-KMustang GT instrument cluster
File:05rclgm.ex
Update:Wed Mar 27 09:29:39 1996

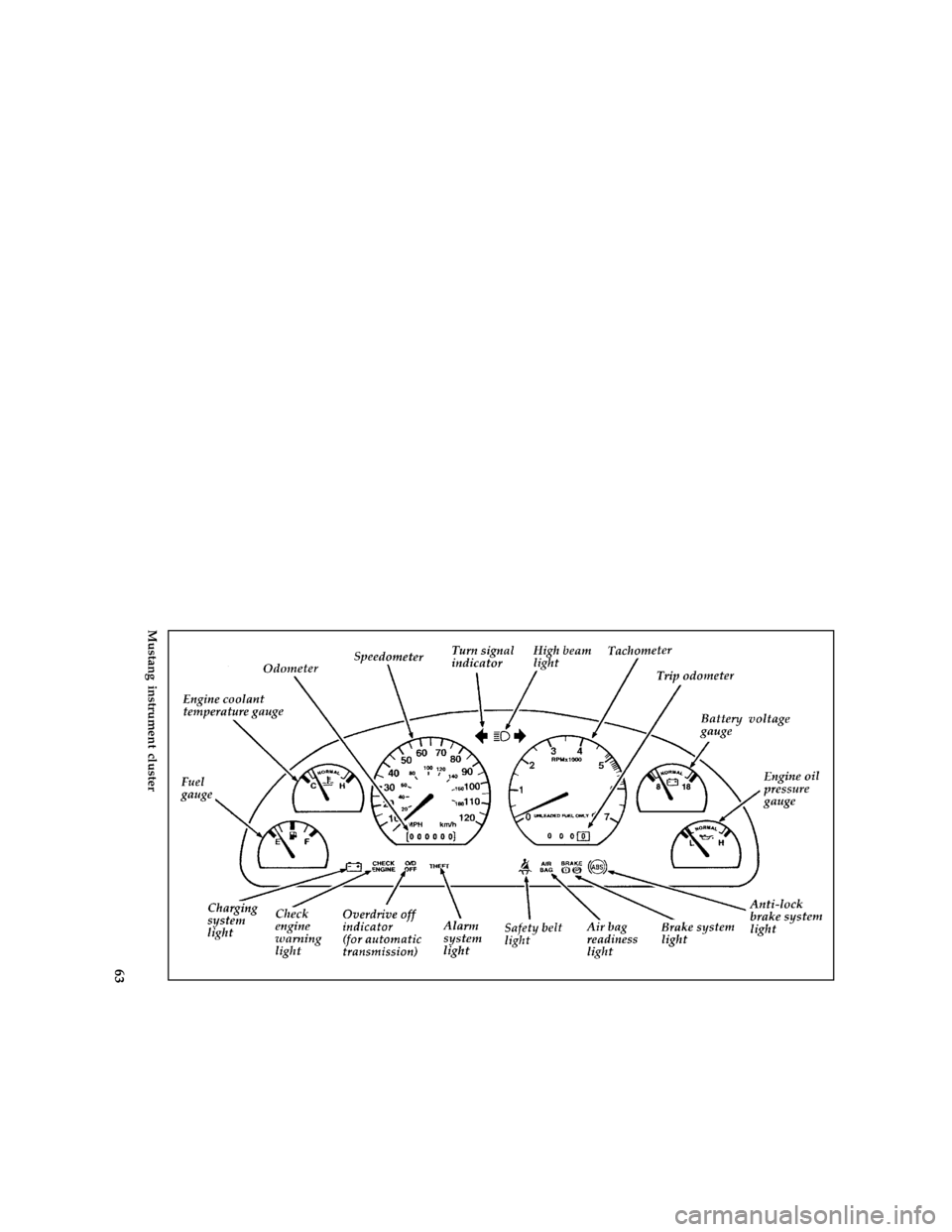

63 % [LG01950(M )05/95]
full page art:0011226-D
Mustang instrument cluster
File:05rclgm.ex
Update:Wed Mar 27 09:29:39 1996

64
[LG02710(M )06/93]
The Cluster
[LG02715(M )06/93]
The following warning lights and gauges are on
the cluster. All of the warning lights and gauges
alert you to possible problems with your vehicle.
Some of the lights listed are optional. The
following sections detail what each of these
indicators means.
%*
[LG02900( ALL)06/95]
Brake System Warning Light
*
[LG03000( ALL)03/95]
The warning light for the brakes can show two
things Ð that the parking brake is not fully
released, or that the brake fluid level is low in
the master cylinder reservoir. If the fluid level is
low, the brake system should be checked by a
qualified service technician.
[LG03050(M )05/95]
one inch art:0011354-A[LG03100( ALL)01/95]
This light comes on when the parking brake is
set, or if it is not set, it comes on briefly when
you turn the ignition key to START. It normally
goes off shortly after the engine starts and you
release the parking brake. If the light stays on
after you have fully released the parking brake,
have the hydraulic brake system serviced.
*
[LG03200( ALL)05/95]
RWARNING
The BRAKE light indicates that the brakes
may not be working properly. Have the
brakes checked immediately.
File:05rclgm.ex
Update:Wed Mar 27 09:29:39 1996
