1995 CADILLAC SEVILLE Owners Manual

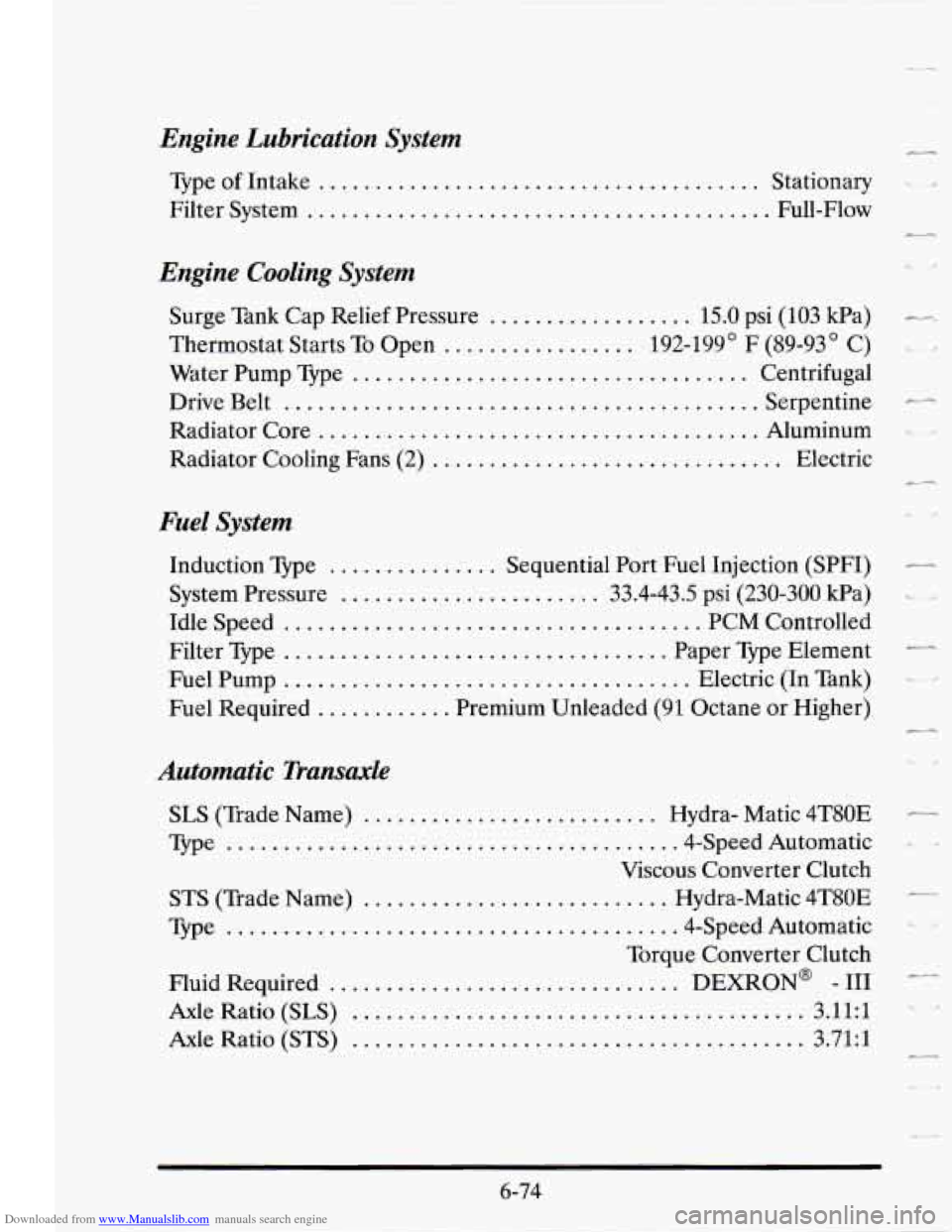

Downloaded from www.Manualslib.com manuals search engine Engine Lubrication System
Type of Intake ....................................... Stationary
Filter System
......................................... Full-Flow
Engine Cooling System
Surge Tank Cap Relief Pressure .................. 15.0 psi (103 kPa)
Thermostat Starts
To Open ................. 192-199" F (89-93' C)
Water Pump Type ................................... Centrifugal
Drive Belt
.......................................... Serpentine
Radiator Core
....................................... Aluminum
Radiator Cooling Fans
(2) ............................... Electric
Fuel System
Induction Type ............... Sequential Port Fuel Injection (SPFI)
System Pressure
....................... 33.4-43.5 psi (230-300 kPa)
Idle Speed
..................................... PCM Controlled
Filter Type
.................................. Paper Type Element
Fuel Pump
.................................... Electric (In Tank)
Fuel Required
............ Premium Unleaded (91 Octane or Higher)
Automatic Transaxle
SLS (Trade Name)
Type ............
STS (Trade Name)
Type
............
Fluid Required ...
Axle Ratio (SLS) .
Axle Ratio (STS) .
.......................... Hydra- Matic 4T80E
........................... .4-Speed Automatic
Viscous Converter Clutch
........................... Hydra-Matic 4T80E
........................... .4-Speed Automatic
Torque Converter Clutch
....................................... 3.11:l
....................................... 3.71:l
............................ DEXRON~ - 111
6-74
1
r

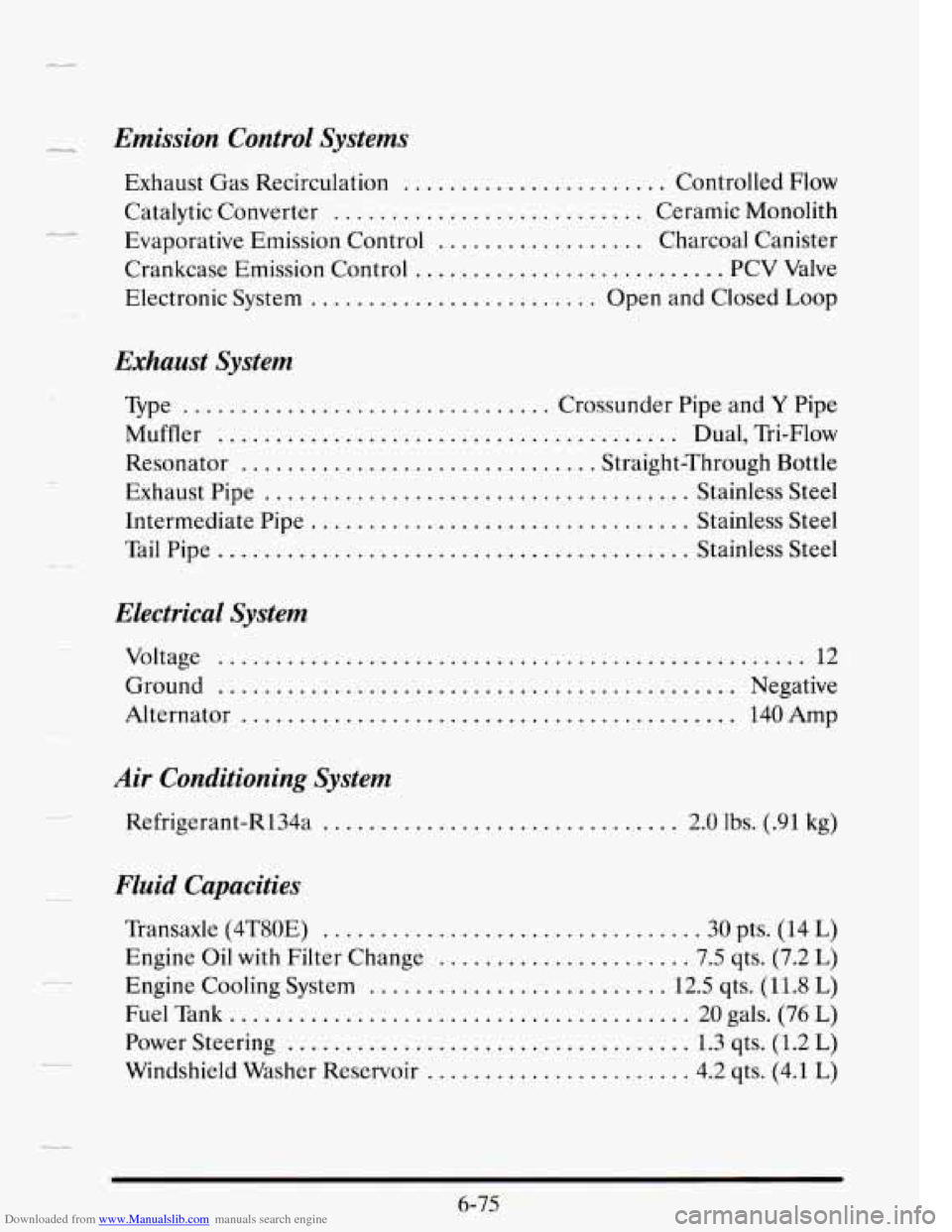

Downloaded from www.Manualslib.com manuals search engine Emission Control Systems
C.._
Exhaust Gas Recirculation ....................... Controlled Flow
Catalytic Converter ........................... Ceramic Monolith
Evaporative Emission Control
.................. Charcoal Canister
Crankcase Emission Control
........................... PCV Valve
Electronic System
......................... Open and Closed Loop
Exhaust System
Type ................................ Crossunder Pipe and Y Pipe
Muffler
........................................ Dual, Tri-Flow
Resonator
............................... Straight-Through Bottle
Exhaust Pipe
..................................... Stainless Steel
Intermediate Pipe
................................. Stainless Steel
Tail Pipe
......................................... Stainless Steel
Electrical System
Voltage ................................................... 12
Ground
.............................................. Negative
Alternator
........................................... 140Amp
Air Conditioning System
Refrigerant-R134a ............................... 2.0 lbs. (.91 kg)
Fluid Capacities
Transaxle (4T80E) ................................ .30 pts. (14 L)
Engine Oil with Filter Change ...................... 7.5 qts. (7.2 L)
Engine Cooling System .......................... 12.5 qts. (1 1.8 L)
Fuel Tank. ....................................... 20 gals. (76 L)
Power Steering ................................... 1.3 qts. (1.2 L)
Windshield Washer Reservoir ....................... 4.2 qts. (4.1 L)

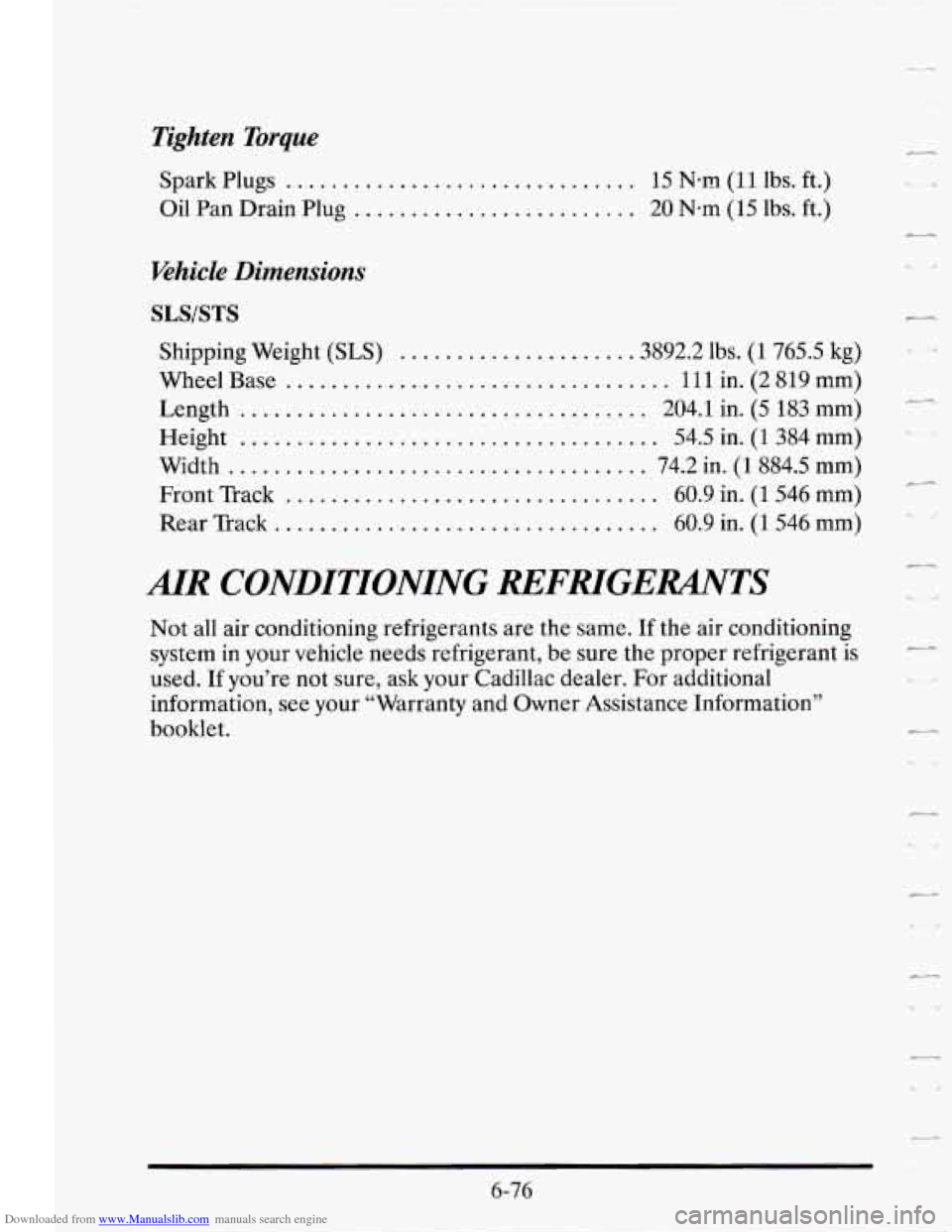

Downloaded from www.Manualslib.com manuals search engine Tighten Torque
Spark Plugs ............................... 15 Nm (11 lbs. ft.)
Oil Pan Drain Plug
......................... 20 N-m (15 lbs. ft.)
Vehicle Dimensions
SLSfSTS
Shipping Weight (SLS) .................... .3892.2 lbs. (1 765.5 kg)
Wheel Base
.................................. 111 in. (2 819 mm)
Length .................................... 204.1 in. (5 183 mm)
Height
..................................... 54.5 in. (1 384 mm)
Width
..................................... 74.2 in. (1 884.5 mm)
Front Track ................................. 60.9 in. (1 546 mm)
Rear Track
.................................. 60.9 in. (1 546 mm)
AIR CONDITIONING REFHGERANTS
Not all air conditioning refrigerants are the same. If the air conditioning
system in your vehicle needs refrigerant, be sure the proper refrigerant is
used.
If you’re not sure, ask your Cadillac dealer. For additional
information, see your “Warranty and Owner Assistance Information”
booklet.
6-76
r
L

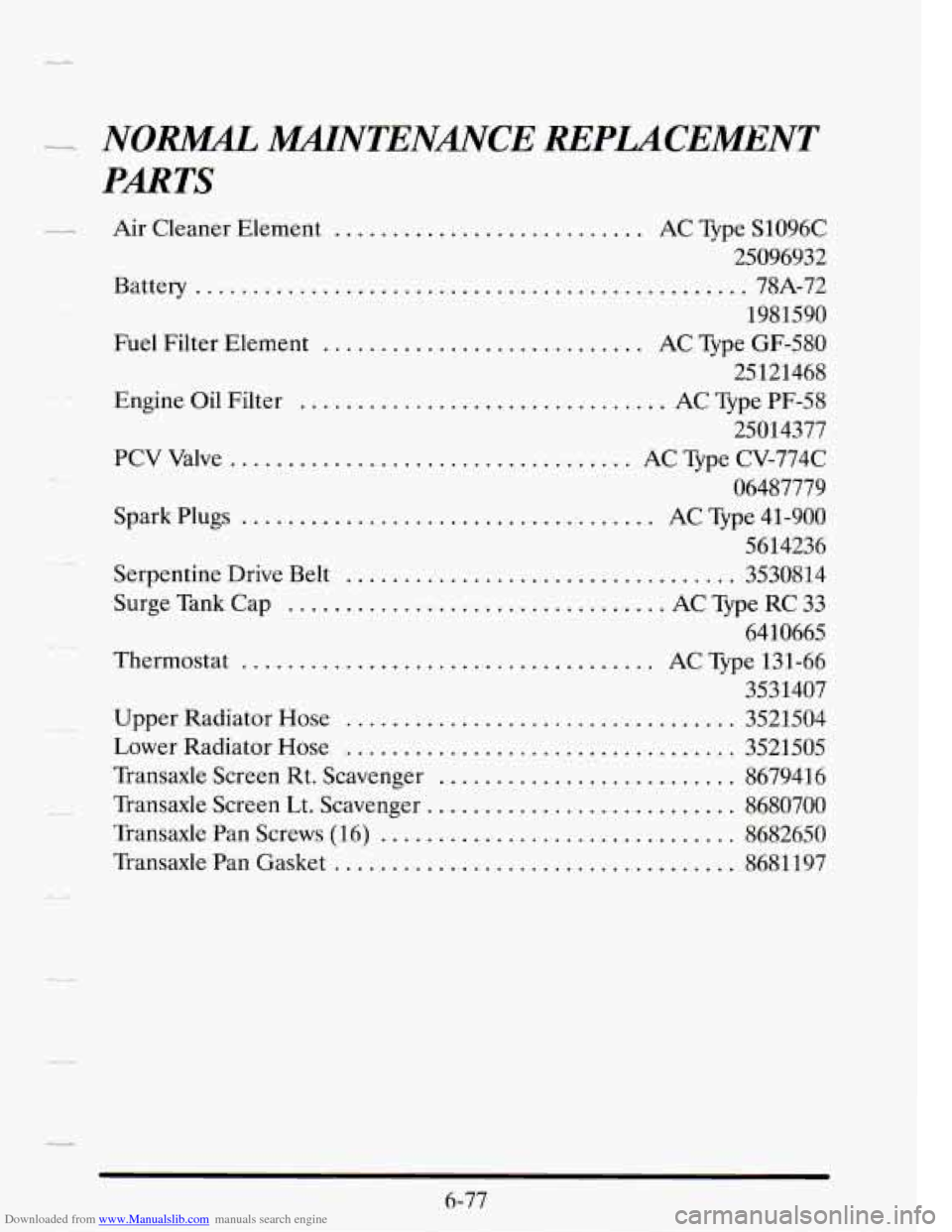

Downloaded from www.Manualslib.com manuals search engine _4 NOW MNTENMCE REPLACEMENT
PARTS
-c
-_
Air Cleaner Element ........................... AC Type S1096C
25096932
Battery
................................................ 78A-72
1981590
Fuel Filter Element ............................ AC Type GF-580
25121468
25014377
PCVValve
................................... AC Type CV-774C
06487779
5614236
Serpentine Drive Belt
.................................. 3530814
6410665
3531407
Upper Radiator Hose
.................................. 3521504
Lower Radiator Hose
.................................. 3521505
Transaxle Screen Rt. Scavenger
.......................... 8679416
Engine
Oil Filter
................................ AC Type PF-58
Spark Plugs
.................................... AC Type 41-900
Surge Tank Cap
................................. AC Type RC 33
Thermostat
.................................... AC Type 131-66
Transaxle Screen Lt. Scavenger
........................... 8680700
Transaxle Pan Screws (16)
............................... 8682650
Transaxle Pan Gasket
................................... 8681 197

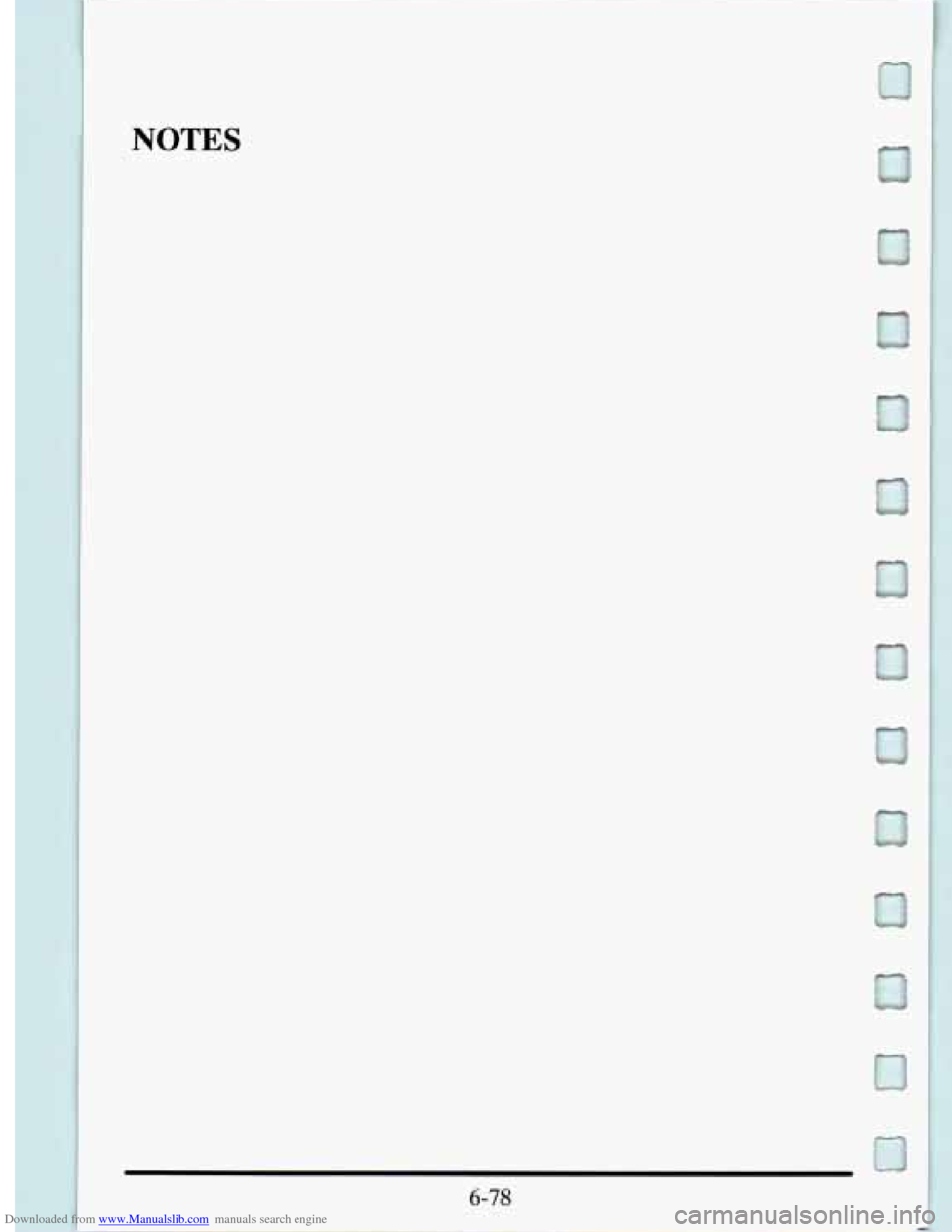

Downloaded from www.Manualslib.com manuals search engine NOTES
n
6-78

Downloaded from www.Manualslib.com manuals search engine I
r

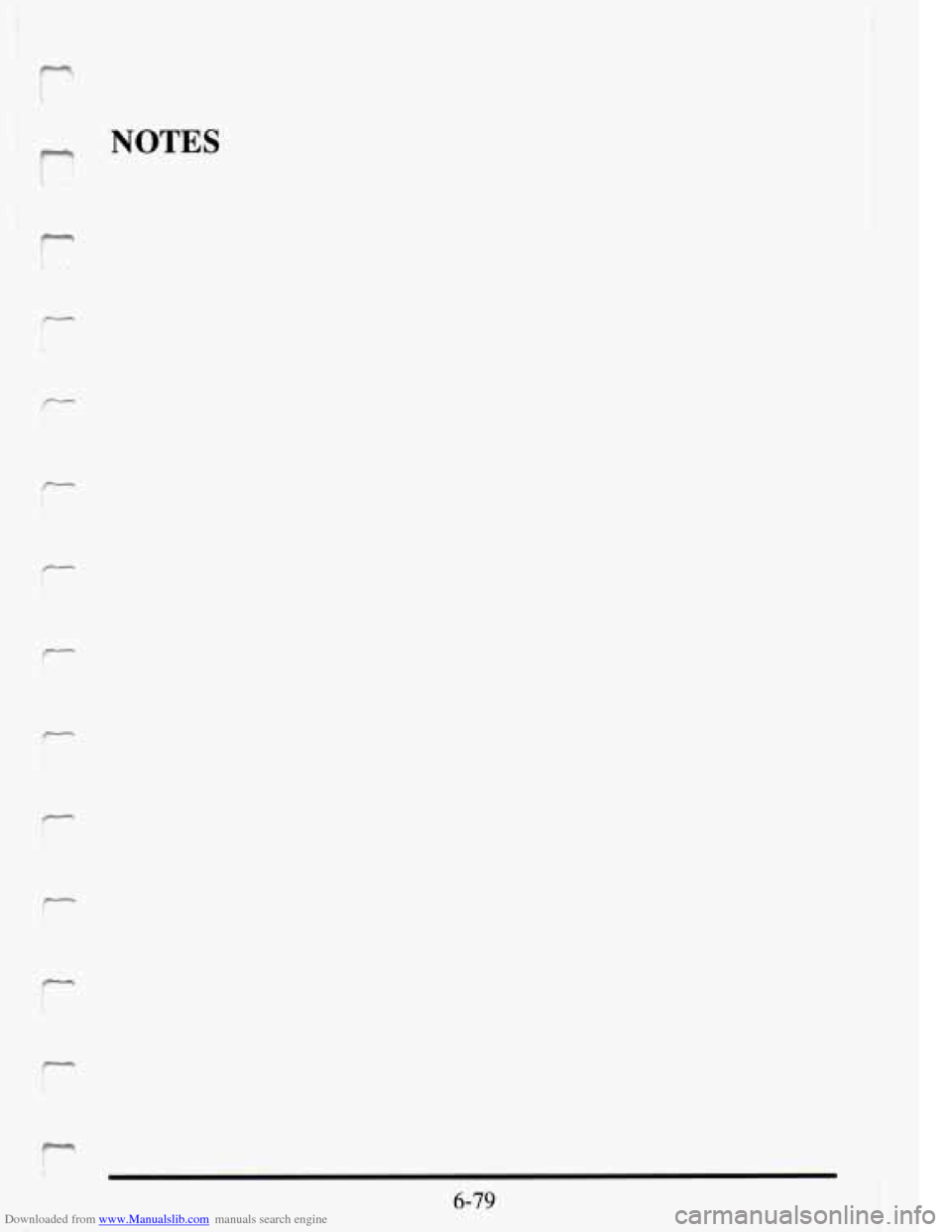

NOTES
6-79

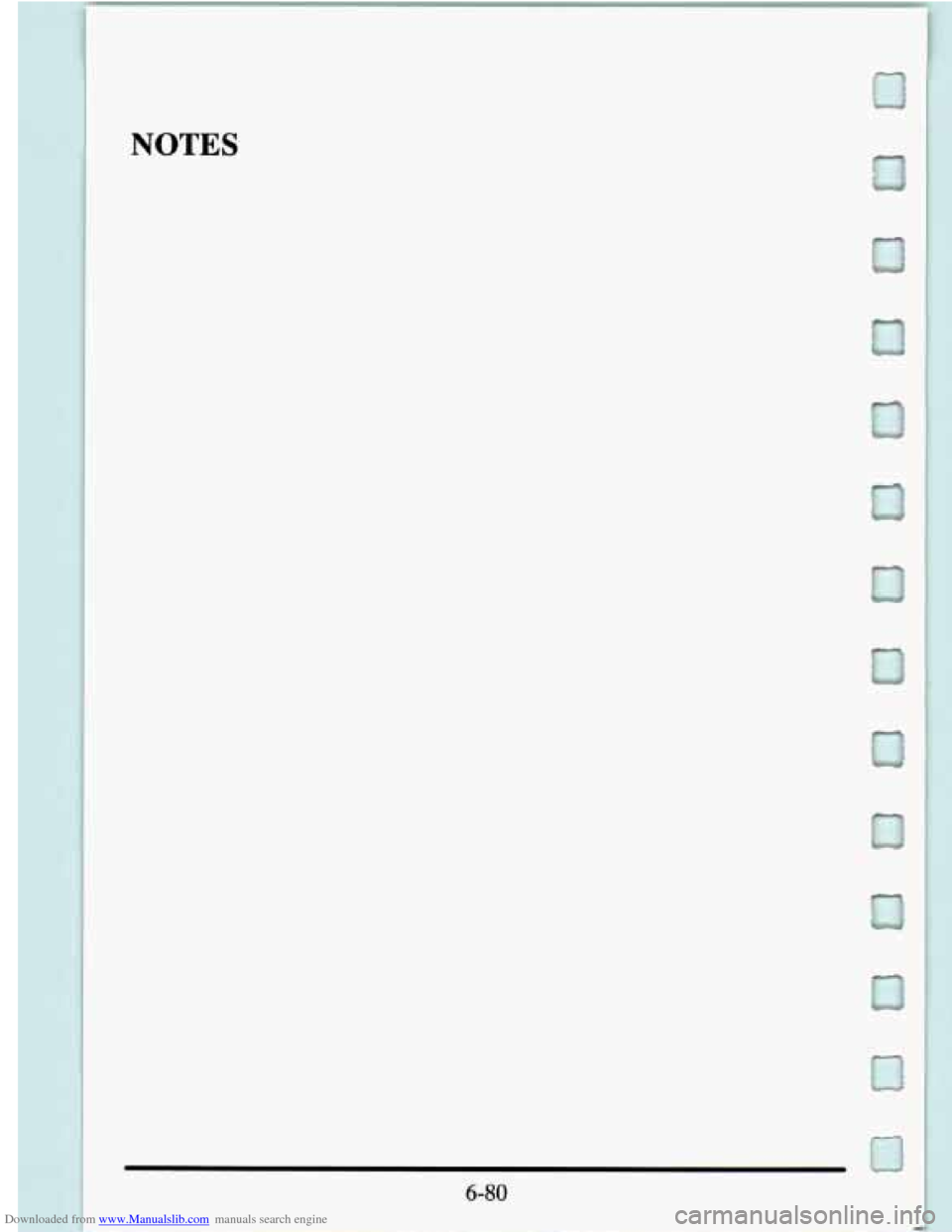

Downloaded from www.Manualslib.com manuals search engine NOTES
I
6-80

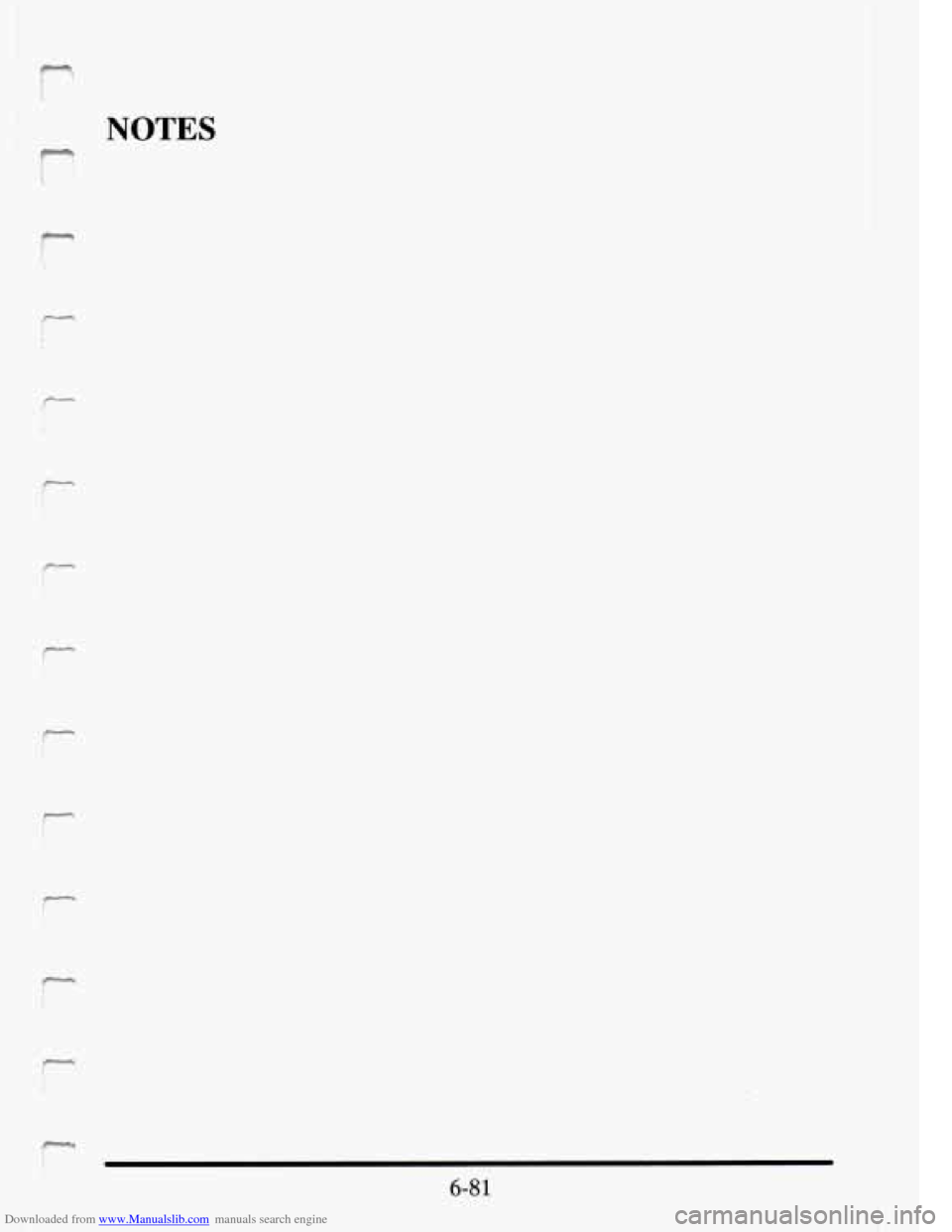

Downloaded from www.Manualslib.com manuals search engine NOTES
