1995 CADILLAC SEVILLE Owners Manual

Downloaded from www.Manualslib.com manuals search engine FLOOR AUTS
Your Cadillac is equipped with rubber-backed front and rear floor mats.
Keep them clean by vacuuming and using a
spot cleaner, if necessary. Do
not machine wash.
SUNGLASS COMPMTMENT
I

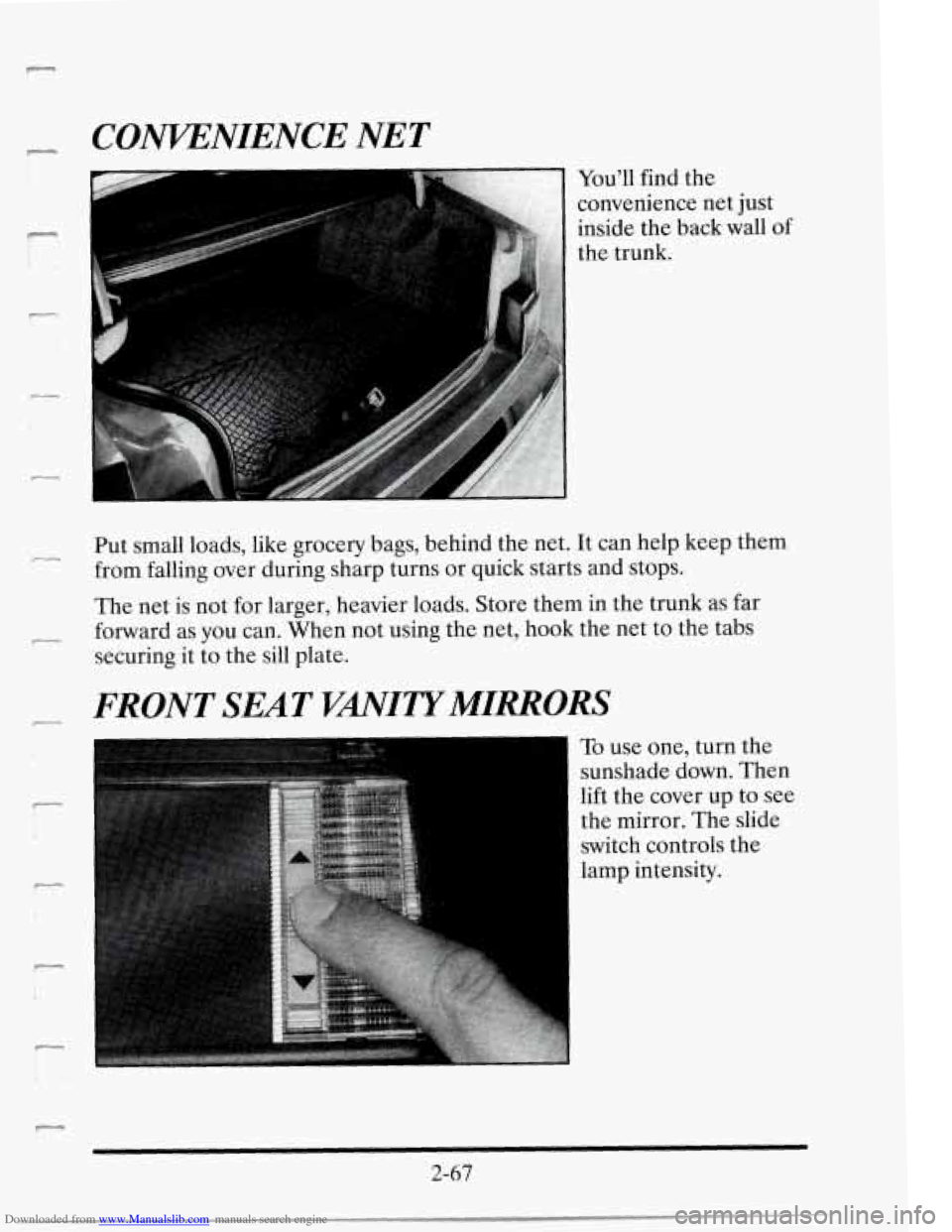

Downloaded from www.Manualslib.com manuals search engine COmNIENCE NET
r
r
You’ll find the
convenience net just
inside the back wall
of
the trunk.
Put small loads, like grocery bags, behind the net. It can help keep them
from falling over during sharp turns or quick starts and stops.
The net is not for larger, heavier loads. Store them in the trunk as far
forward as
you can. When not using the net, hook the net to the tabs
securing it to the sill plate.
FRONT SEAT VMITYMIIRRORS
To use one, turn the
sunshade down. Then
lift the cover up to see
the mirror. The slide
lamp intensitv.
I switch controls the
2-67

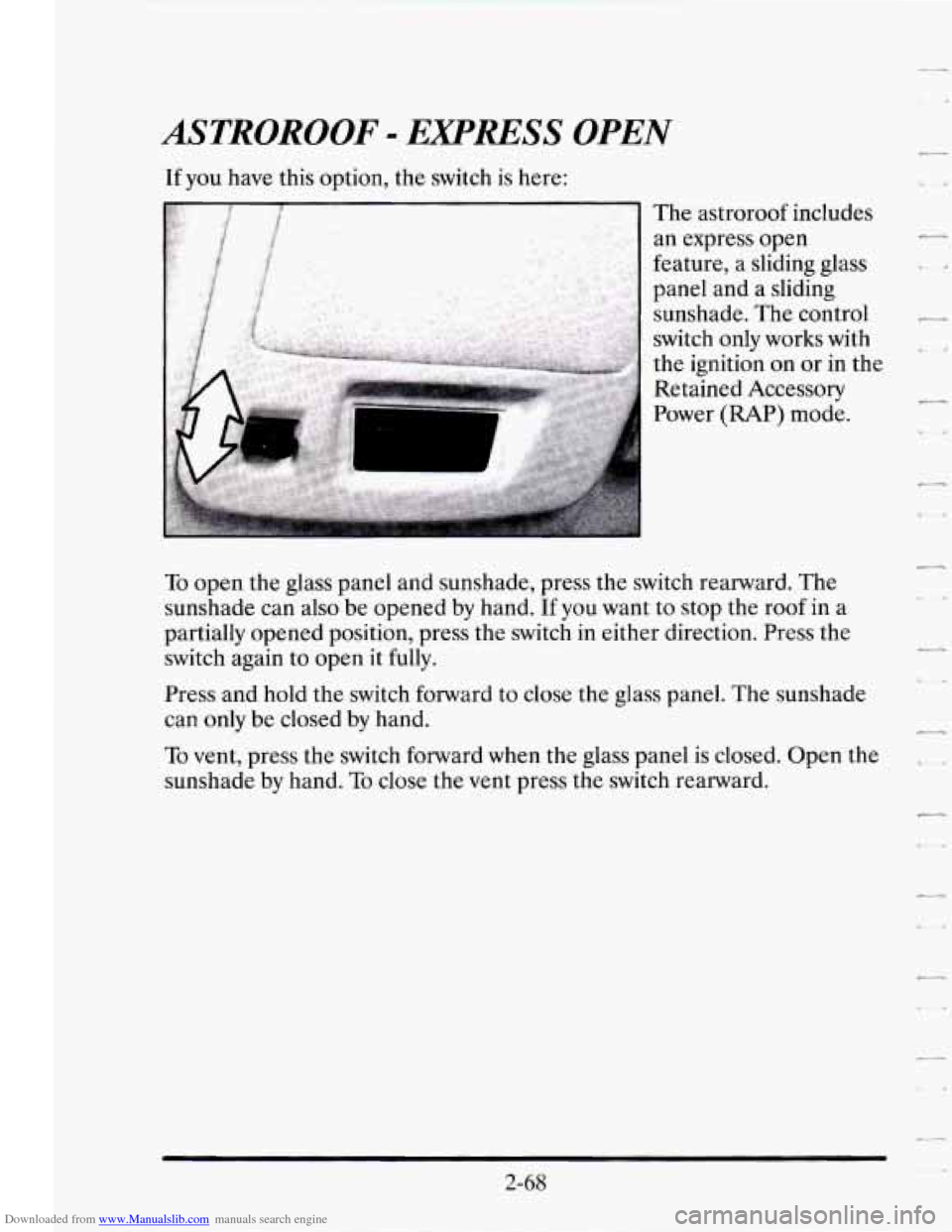

Downloaded from www.Manualslib.com manuals search engine ASTROROOF - EXPRESS OPEN
If you have this option, the switch is here:
The astroroof includes
an express open
feature, a sliding glass
panel and a sliding
sunshade. The control
switch only works with
the ignition
on or in the
Retained Accessory
Power
(RAP) mode.
To open the glass panel and sunshade, press the switch rearward. The
sunshade can also be opened by hand.
If you want to stop the roof in a
partially opened position, press the switch in either direction. Press the
switch again to open it fully.
Press and hold the switch forward to close the glass panel. The sunshade
can
only be closed by hand.
To vent, press the switch forward when the glass panel is closed. Open the
sunshade by hand. To close the vent press the switch rearward.
2-68
-

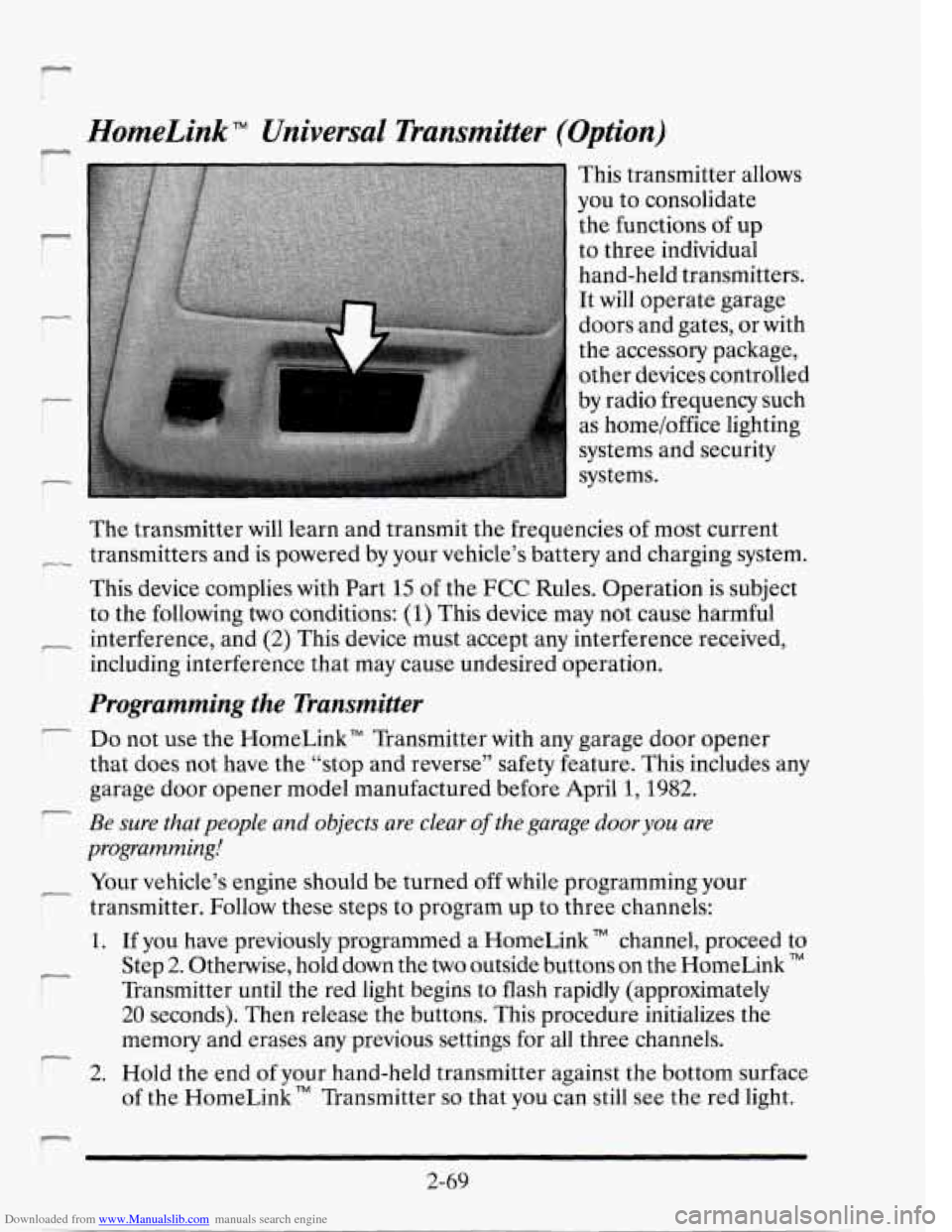

Downloaded from www.Manualslib.com manuals search engine HomeLink TM Universal Transmitter (Option) L
This transmitter allows
you to consolidate
to three individual
hand-held transmitters. It will operate garage
doors and gates, or with
the accessory package,
other devices controlled
as home/office lighting
r the functions of up
I
I by radio frequency such
systems and security
systems.
The transmitter will learn and transmit the frequencies
of most current
- transmitters and is powered by your vehicle’s battery and charging system.
This device complies with Part
15 of the FCC Rules. Operation is subject
to the following
two conditions: (1) This device may not cause harmful
including interference that may cause undesired operation.
- interference, and (2) This device must accept any interference received,
Programming the Transmitter
Do not use the HomeLink” Transmitter with any garage door opener
that does not have the “stop and reverse” safety feature. This includes any
garage door opener model manufactured before April
1,1982.
Be sure that people and objects are clear of the garage dooryou are
programming!
-
r
r Your vehicle’s engine should be turned off while programming your
transmitter. Follow these steps
to program up to three channels:
r
1. If you have previously programmed a HomeLink TM channel, proceed to
Step
2. Otherwise, hold down the two outside buttons on the HomeLink TM
Transmitter until the red light begins to flash rapidly (approximately
20 seconds). Then release the buttons. This procedure initializes the
memory and erases any previous settings for all three channels.
2. Hold the end of your hand-held transmitter against the bottom surface
of the HomeLink“ Transmitter so that you can still see the red light.
r
2-69

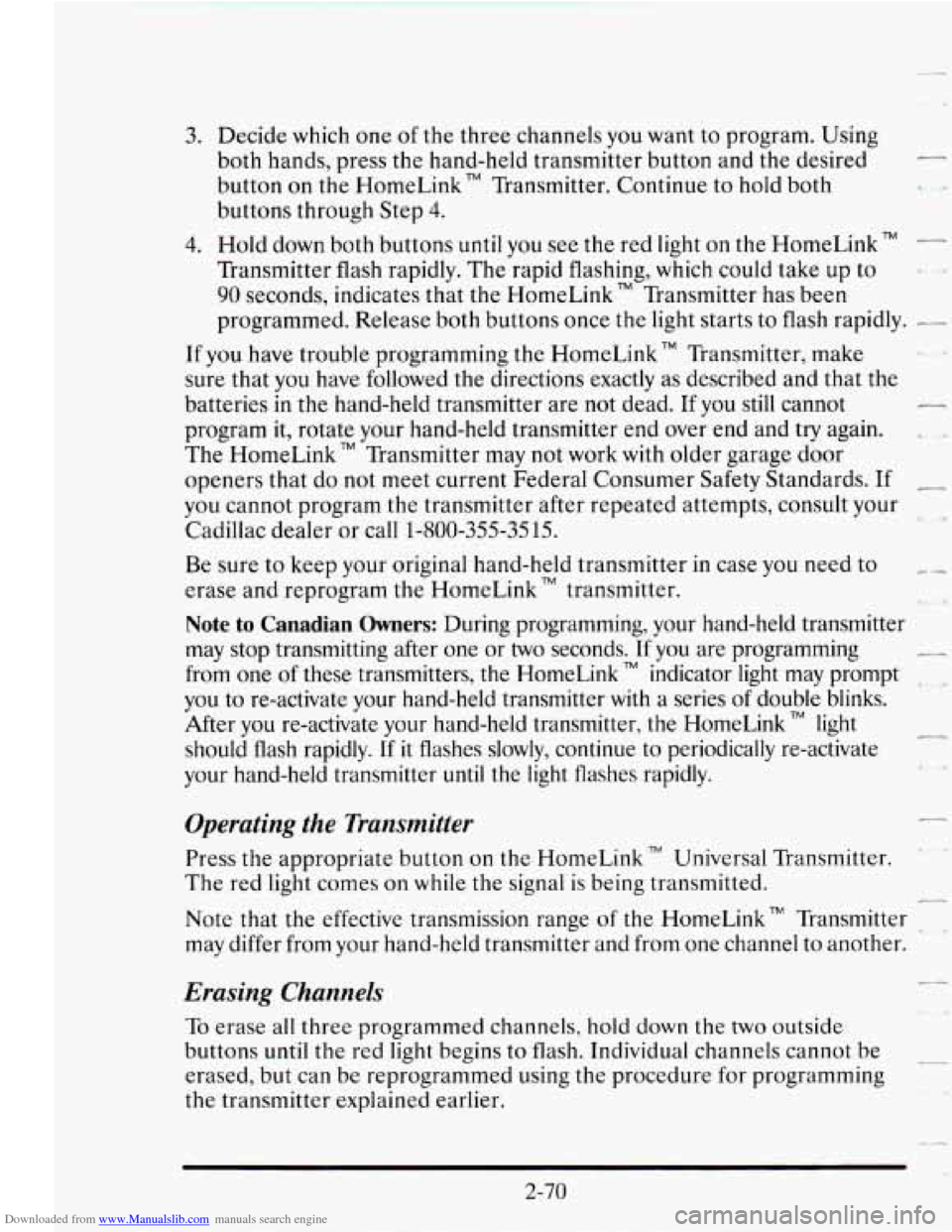

Downloaded from www.Manualslib.com manuals search engine 3. Decide which one of the three channels you want to program. Using
both hands, press the hand-held transmitter button and the desired
button on the HomeLink
TM Transmitter. Continue to hold both
buttons through Step
4.
4. Hold down both buttons until you see the red light on the HomeLink“ -
Transmitter flash rapidly. The rapid flashing, which could take up to
90 seconds, indicates that the HomeLink” Transmitter has been
programmed. Release both buttons once
the light starts to flash rapidly. -
If you have trouble programming the HomeLink TM Transmitter, make
sure that you have followed the directions exactly as described and that the
batteries in the hand-held transmitter are not dead. If you still cannot
program it, rotate your hand-held transmitter end over end and try again.
The HomeLink TM Transmitter may not work with older garage door
openers that do not meet current Federal Consumer Safety Standards. If
you cannot program the transmitter after repeated attempts, consult your
Cadillac dealer or call
1-800-355-35 15.
Be sure to keep your original hand-held transmitter in case you need to -
erase and reprogram the HomeLink TM transmitter. -1
Note to Canadian Owners: During programming, your hand-held transmitter
may stop transmitting after one or
two seconds. If you are programming -
from one of these transmitters, the HomeLink indicator light may prompt
you to re-activate your hand-held transmitter
with a series of double blinks.
After you re-activate your hand-held transmitter,
the HomeLink TM light
should flash rapidly.
If it flashes slowly, continue to periodically re-activate
your hand-held transmitter
until the light flashes rapidly.
Operating the Transmitter
Press the appropriate button on the HomeLink TM Universal Transmitter.
The red light comes
on while the signal is being transmitted.
Note that the effective transmission range
of the HomeLink” Transmitter
may differ from your hand-held transmitter and from one channel to another.
-
Emsing Channels
To erase all three programmed channels, hold down the two outside
buttons until the red light begins to flash. Individual channels cannot be
erased,
but can be reprogrammed using the procedure for programming
the transmitter explained earlier.
-
2-70

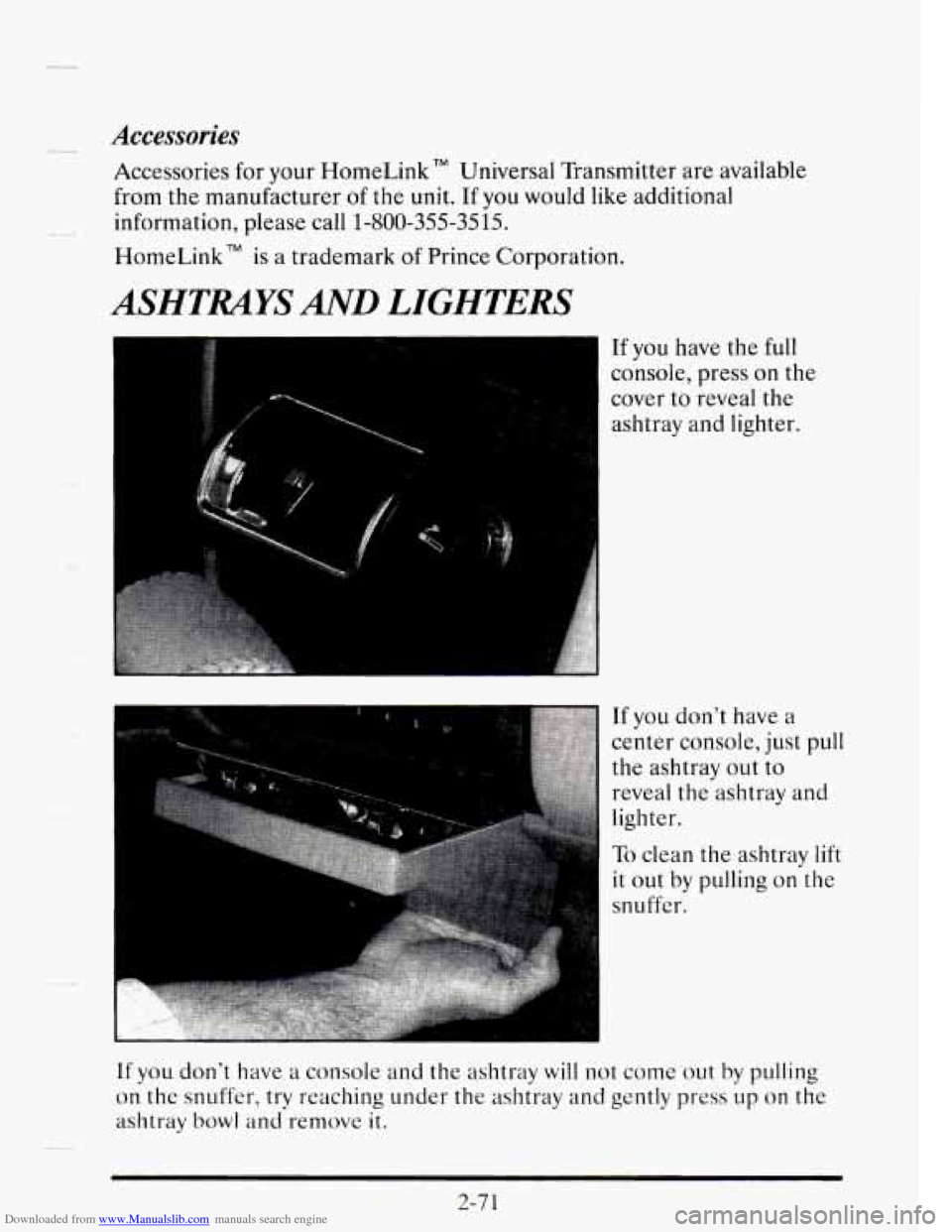

Downloaded from www.Manualslib.com manuals search engine Accessories
Accessories for your HomeLink Universal Transmitter are available
from the manufacturer of the unit. If you would
like additional
information, please call
1-800-355-3515.
HomeLink" is a trademark of Prince Corporation.
ASHTRAYS AND LIGHTERS
If you have the full
console, press on
the
cover to reveal the
ashtray and lighter.
If you don't have a
center console, just pull
the ashtray out to
reveal
the ashtray and
lighter.
To clean the ashtray lift
it out by pulling on the
snuffer.
If you don't have a console and the ashtray will not come out by pulling
on the snuffer, try reaching under the ashtray and gently press up on the
ashtray
bowl and remove it.

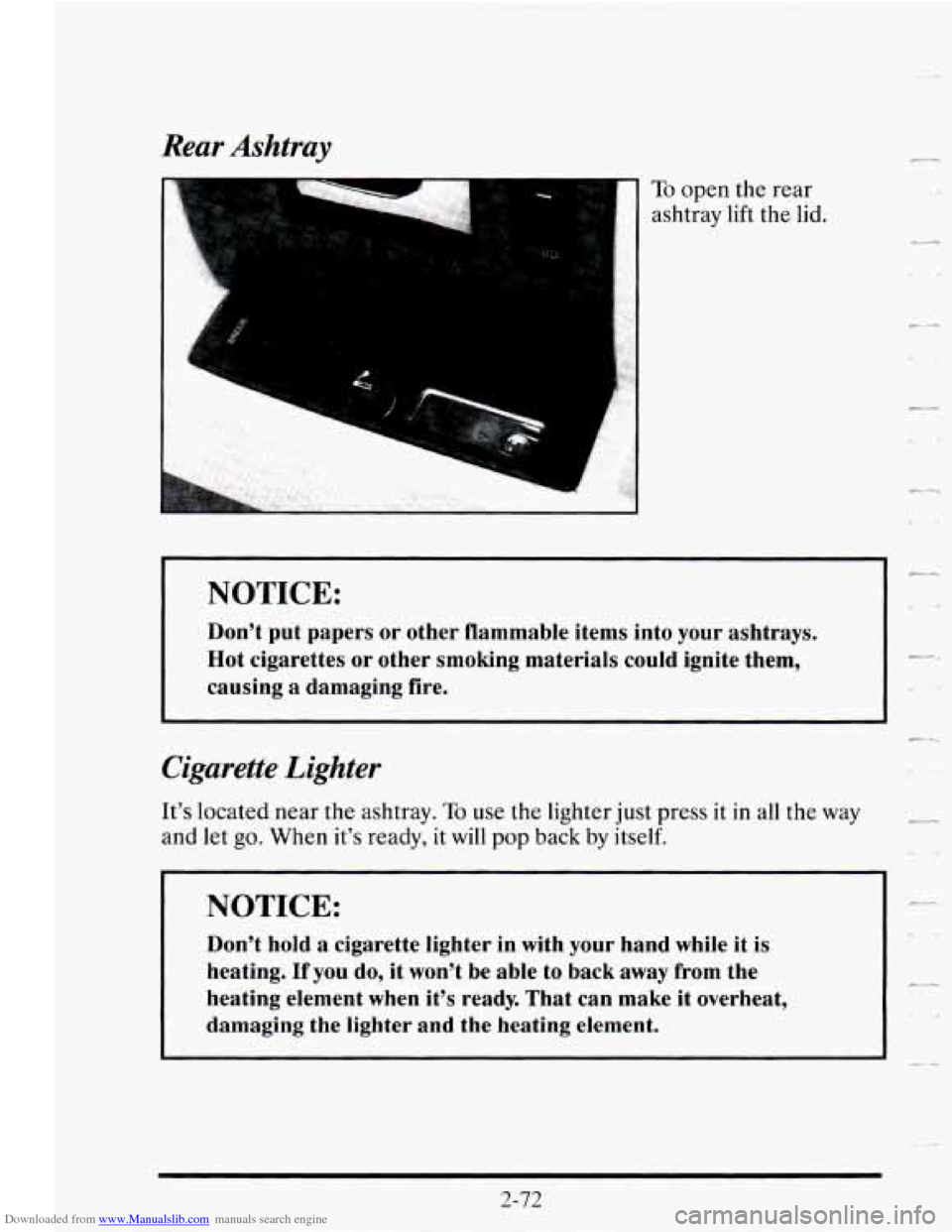

Downloaded from www.Manualslib.com manuals search engine Rear Ashtray
NOTICE:
Don't put papers or other flammable items into your ashtrays.
Hot cigarettes or other smoking materials could ignite them,
causing
a damaging fire.
Cigarette Lighter
It's located near the ashtray. To use the lighter just press it in all the way -
and let go. When it's ready, it will pop back by itself.
NOTICE:
Don't hold a cigarette lighter in with your hand while it is
heating.
If you do, it won't be able to back away from the
heating element when it's ready. That can make it overheat,
damaging the lighter and the heating element.
2-72

Downloaded from www.Manualslib.com manuals search engine Lu

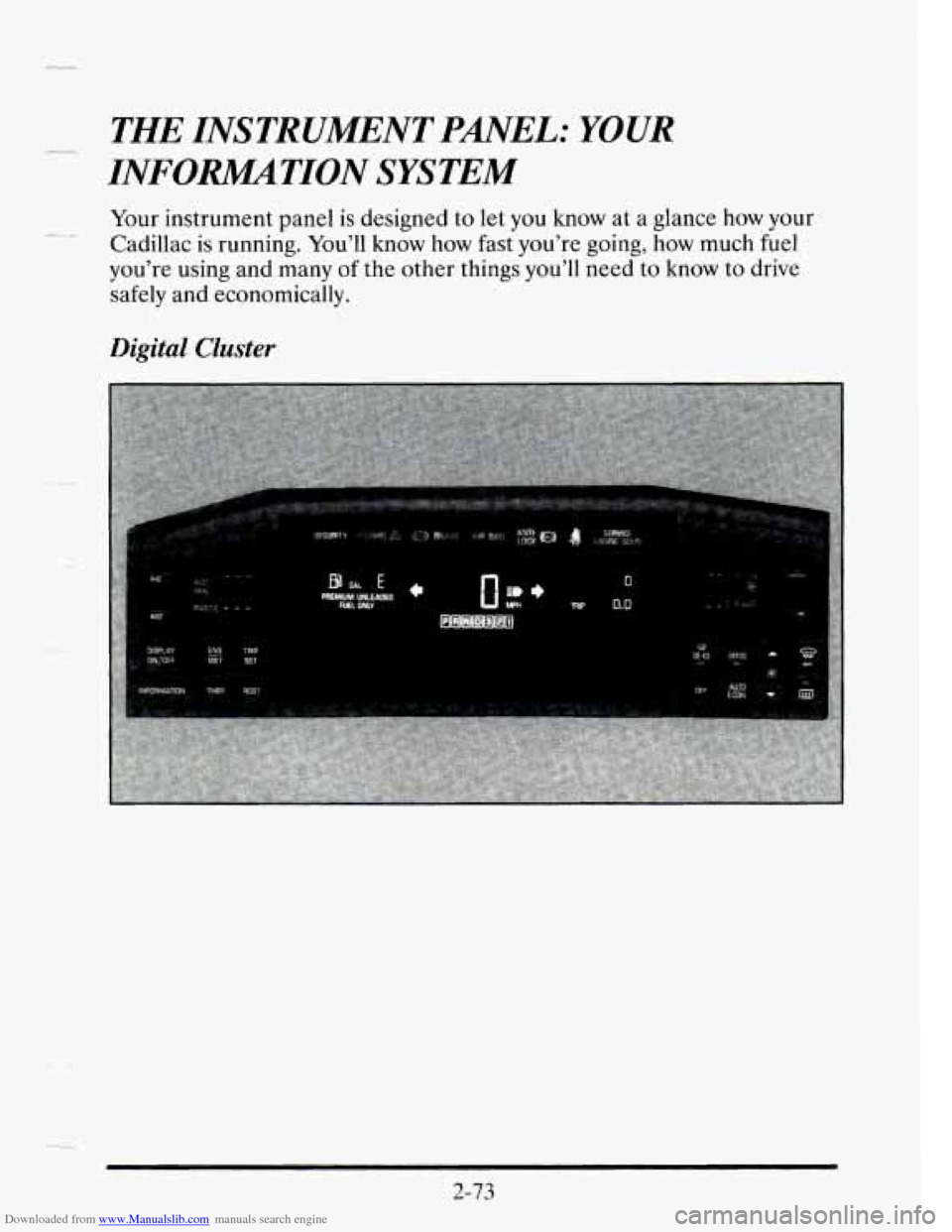

THE INSTRUMENT PANEL: YOUR
INFORMATION SYSTEM
Your instrument panel is designed to let you know at a glance how your
Cadillac is running.
You’ll know how fast you’re going, how much fuel
you’re using and many
of the other things you’ll need to know to drive
safely and economically.
Digital Cluster
2-73
