1995 CADILLAC SEVILLE Owners Manual

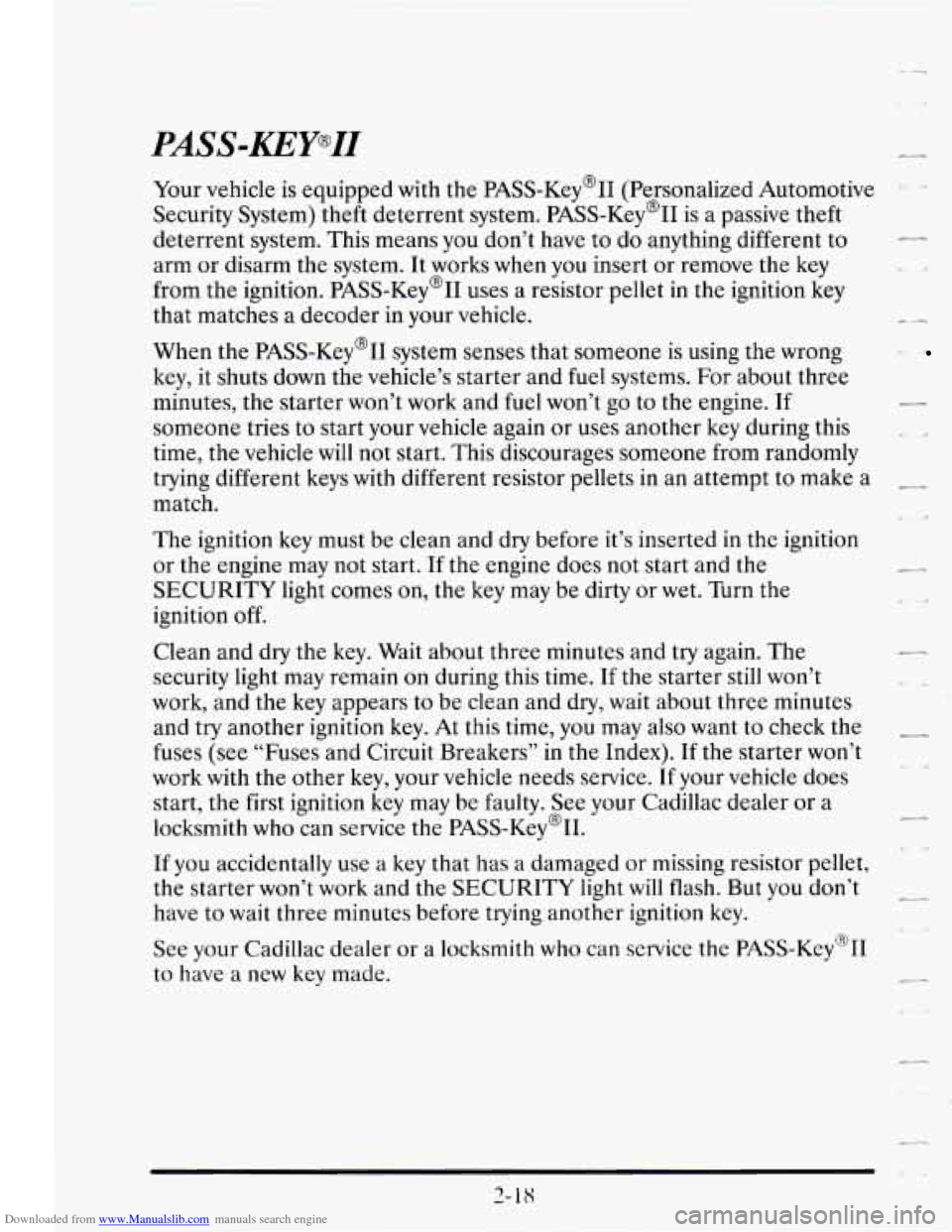

Downloaded from www.Manualslib.com manuals search engine PASSmKEY’II
Your vehicle is equipped with the PASS-Key@II (Personalized Automotive
Security System) theft deterrent system. PASS-Key@II is a passive theft
deterrent system. This means
you don’t have to do anything different to
arm or disarm the system. It works when you insert or remove the key
from the ignition. PASS-Key’II uses
a resistor pellet in the ignition key
that matches
a decoder in your vehicle.
When the PASS-Key% system senses that someone is using the wrong
key, it shuts down the vehicle’s starter and fuel systems. For about three
minutes, the starter won’t work and fuel won’t
go to the engine. If
someone tries to start your vehicle again or uses another key during this
time, the vehicle will not start. This discourages someone from randomly
trying different keys with different resistor pellets in an attempt to make a
I--
match.
The ignition key must be clean and
dry before it’s inserted in the ignition
or the engine may not start.
If the engine does not start and the
SECURITY light comes on, the key may be dirty or wet. Turn the
ignition
off.
--
Clean and dry the key. Wait about three minutes and try again. The
security light may remain
on during this time. If the starter still won’t
work, and the key appears to be clean and dry, wait about three minutes
and try another ignition key. At this time, you may also want to check the
-
fuses (see “Fuses and Circuit Breakers” in the Index). If the starter won’t
work with the other key, your vehicle needs service. If your vehicle does
start, the first ignition key may be faulty. See your Cadillac dealer or a
locksmith who can service the PASS-Key@II. .I
If you accidentally use a key that has a damaged or missing resistor pellet,
the starter won’t
work and the SECURITY light will flash. But you don’t
have to wait three minutes before trying another ignition key. -
See your Cadillac dealer or a locksmith who can service the PASS-Key%
to have a new key made.
-
3- 18

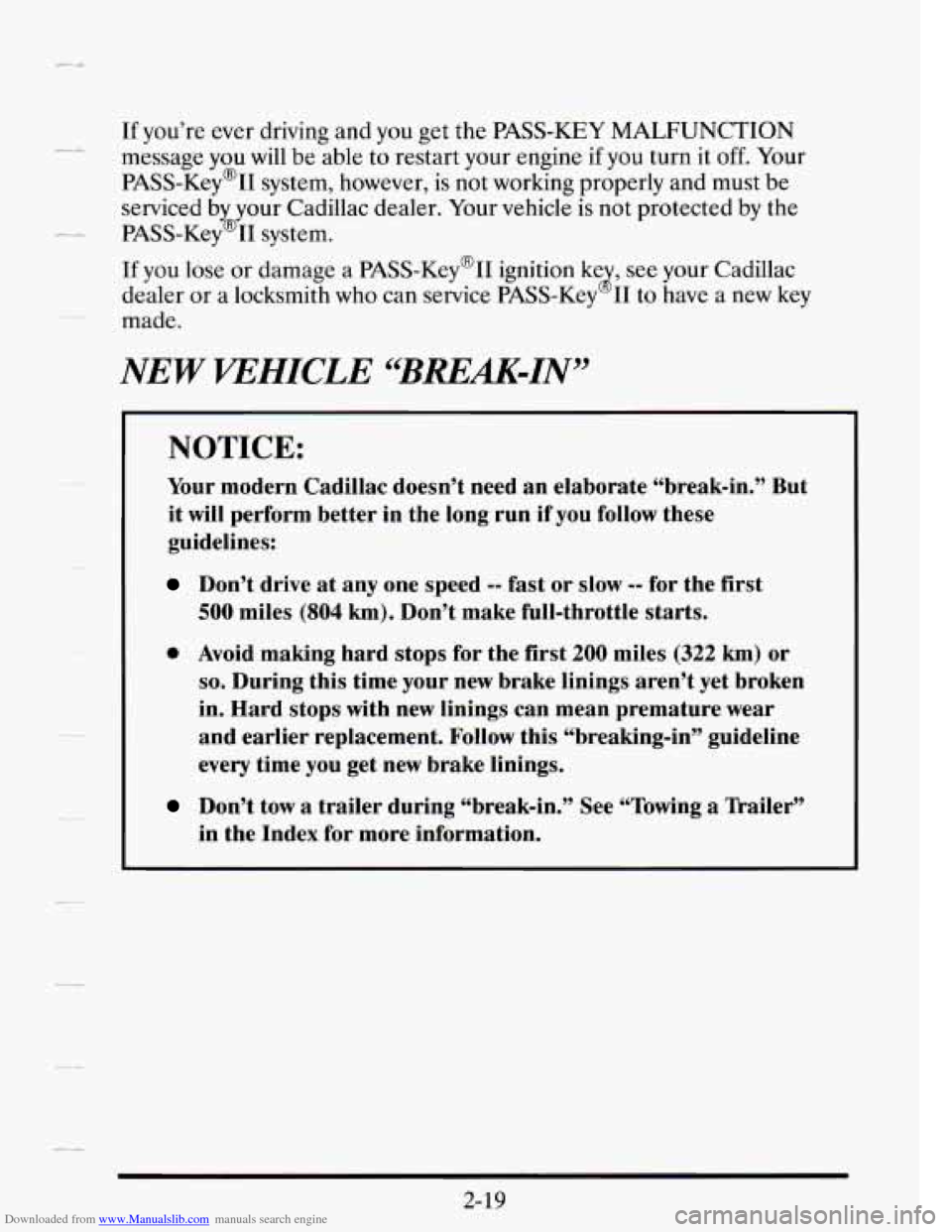

Downloaded from www.Manualslib.com manuals search engine If you’re ever driving and you get the PASS-KEY MALFUNCTION
message you
will be able to restart your engine if you turn it off. Your
PASS-Key@II system, however, is not working properly and must be
serviced by your Cadillac dealer.
Your vehicle is not protected by the
If you lose or damage a PASS-Key@II ignition ke , see your Cadillac
dealer
or a locksmith who can service PASS-Key I1 to have a new key
-
PP PASS-Key@II system.
8
- made.
NEW WHICLE t4BREM-IN”
NOTICE:
Your modern Cadillac doesn’t need an elaborate “break-in.” But
it will perform better in the long run
if you follow these
guidelines:
Don’t drive at any one speed -- fast or slow -- for the first
500 miles (804 km). Don’t make full-throttle starts.
0 Avoid making hard stops for the first 200 miles (322 km) or
so. During this time your new brake linings aren’t yet broken
in. Hard stops with new linings can mean premature wear
and earlier replacement. Follow this “breaking-in” guideline
every time you get new brake linings.
Don’t tow a trailer during “break-in.” See “Towing a Bailer”
in the Index for more information.
2-19

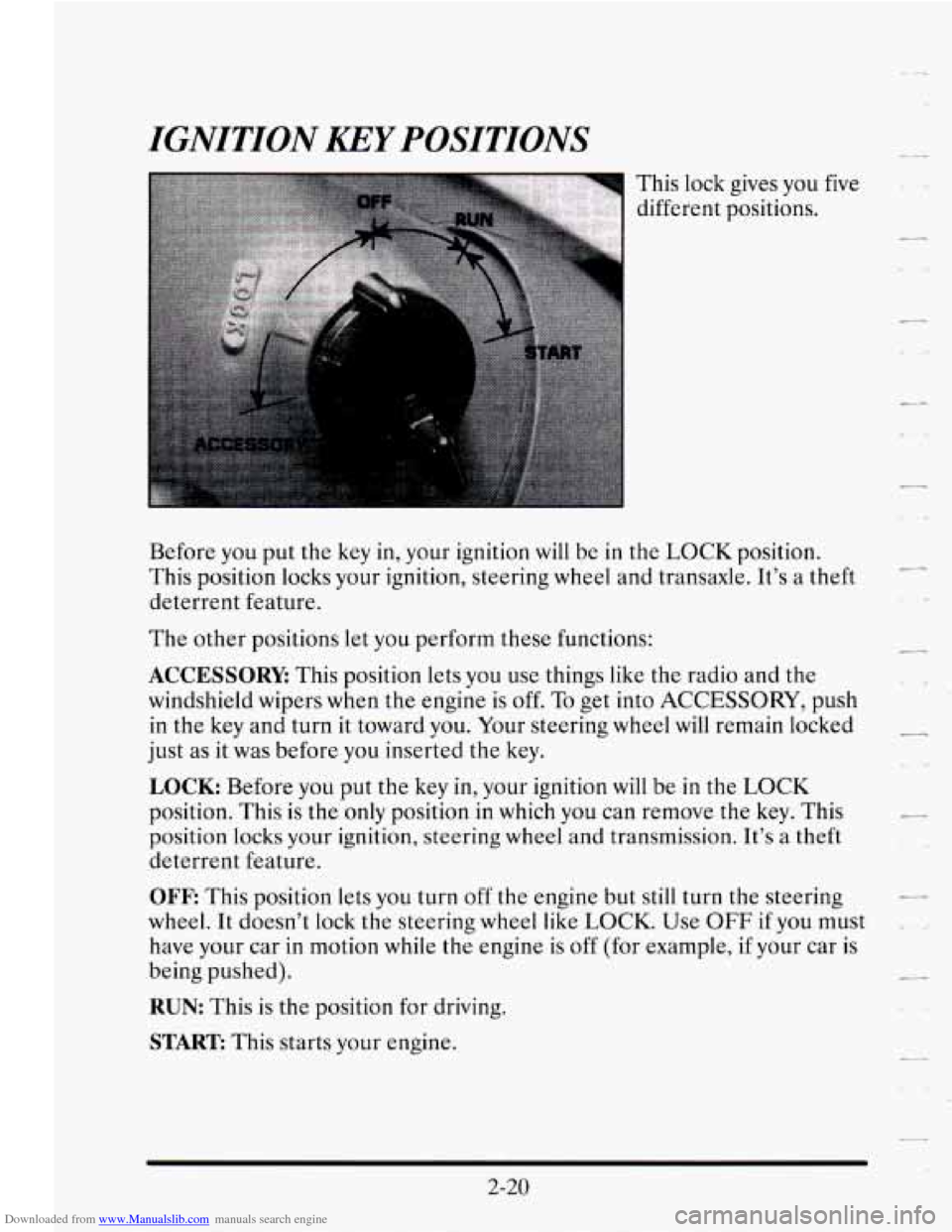

Downloaded from www.Manualslib.com manuals search engine IGNITION KEY POSITIONS
This lock gives you
different positions. five
Before you put the key in, your ignition will be
in the LOCK position.
This position locks your ignition, steering wheel and transaxle. It’s a theft
deterrent feature. --
The other positions let you perform these functions:
ACCESSORY: This position lets you use things like the radio and the
windshield wipers when the engine is off. To get into ACCESSORY, push
in the key and turn
it toward you. Your steering wheel will remain locked
just as it was before
you inserted the key.
LOCK Before you put the key in, your ignition will be in the LOCK
position. This is the only position
in which you can remove the key. This
position locks your ignition, steering wheel and transmission. It’s a theft
deterrent feature.
!L .R
OFF This position lets you turn off the engine but still turn the steering -
wheel. It doesn’t lock the steering wheel like LOCK. Use OFF if you must .
have your car in motion while the engine is off (for example, if your car is
being pushed).
RUN: This is the position for driving.
START: This starts your engine.
2-20

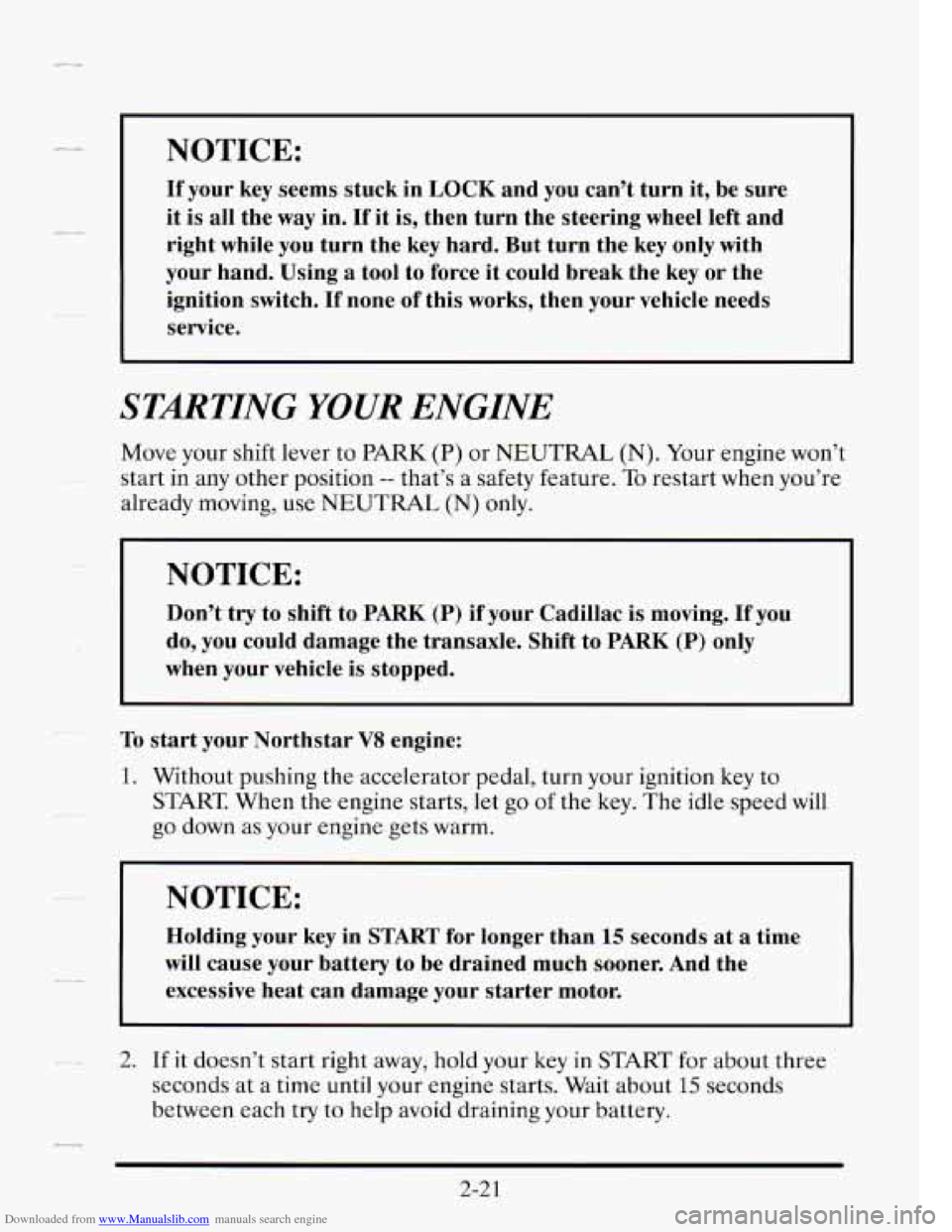

Downloaded from www.Manualslib.com manuals search engine NOTICE:
If your key seems stuck in LOCK and you can’t turn it, be sure
it is all the
way in. If it is, then turn the steering wheel left and
right while you turn the key hard. But turn the key only with
your hand. Using
a tool to force it could break the key or the
ignition switch.
If none of this works, then your vehicle needs
service.
STARTING YOUR ENGINE
Move your shift lever to PARK (P) or NEUTRAL (N). Your engine won’t
start in any other position
-- that’s a safety feature. To restart when you’re
already moving, use
NEUTRAL (N) only.
NOTICE:
Don’t try to shift to PARK (P) if your Cadillac is moving. If you
do, you could damage the transaxle. Shift to PARK
(P) only
when your vehicle is stopped.
To start your Northstar V8 engine:
1. Without pushing the accelerator pedal, turn your ignition key to
START When the engine starts, let go of the key. The idle speed will
go down as your engine gets warm.
NOTICE:
Holding your key in START for longer than 15 seconds at a time
will cause your battery to be drained much sooner. And the
excessive heat can damage your starter motor.
- -- 2. If it doesn’t start right away, hold your key in START for about three
seconds at a time until your engine starts. Wait about 15 seconds
between
each try to help avoid draining your battery.
2-21

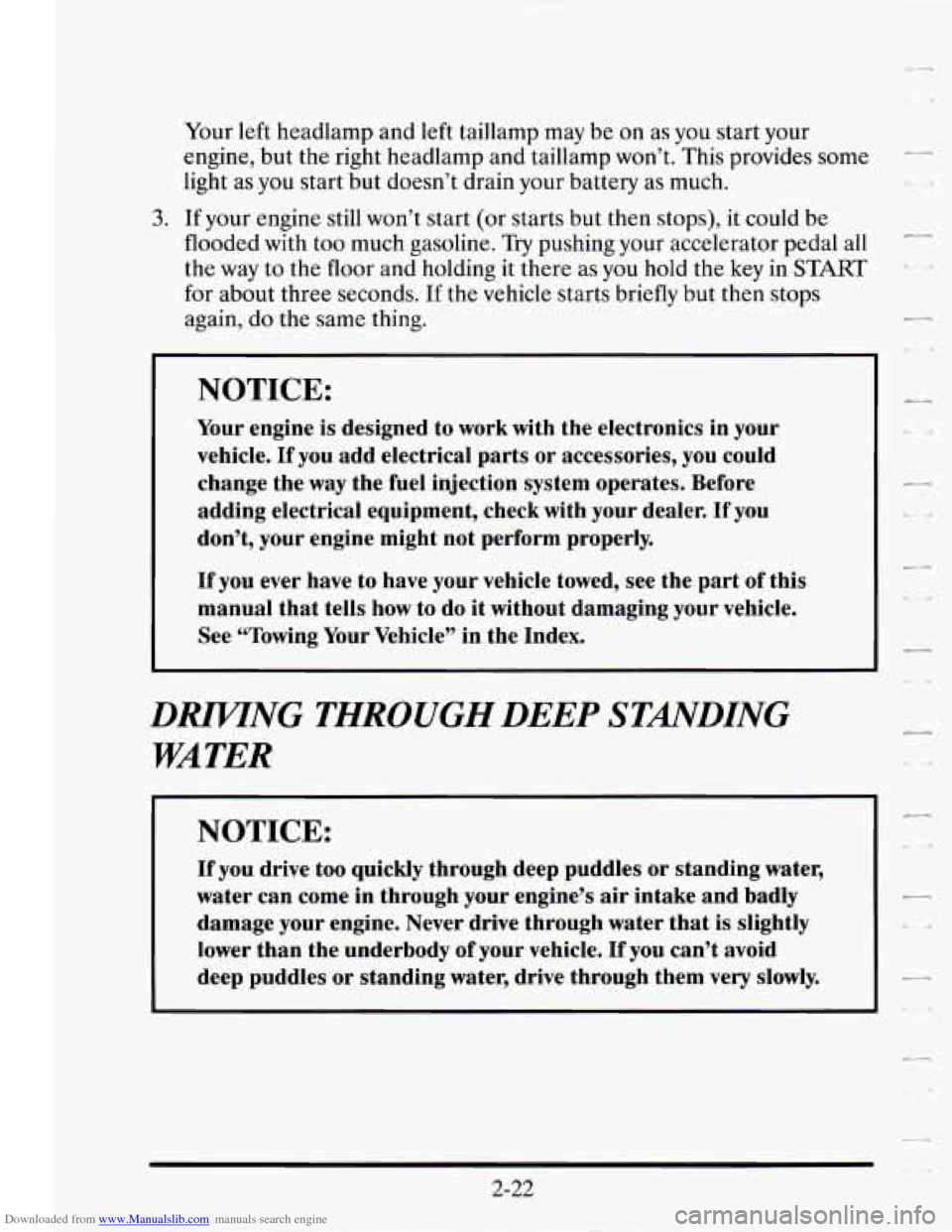

Downloaded from www.Manualslib.com manuals search engine Your left headlamp and left taillamp may be on as you start your
engine, but the right headlamp and taillamp won’t. This provides some
light as
you start but doesn’t drain your battery as much.
3. If your engine still won’t start (or starts but then stops), it could be
flooded with too much gasoline.
Try pushing your accelerator pedal all
the way to the floor and holding it there as
you hold the key in START
for about three seconds. If the vehicle starts briefly but then stops
again, do the same thing.
NOTICE:
Your engine is designed to work with the electronics in your
vehicle. If you add electrical parts or accessories, you could
change the way the fuel injection system operates. Before
adding electrical equipment, check with your dealer.
If you
don’t, your engine might not perform properly.
If you ever have to have your vehicle towed, see the part of this
manual that tells how to do it without damaging your vehicle.
See “Towing Your Vehicle” in the Index.
DMNG THROUGHDEEP STANDING
WATER
NOTICE:
If you drive too quickly through deep puddles or standing water,
water can come in through your engine’s air intake and badly
damage your engine. Never drive through water that is slightly
lower than the underbody
of your vehicle. If you can’t avoid
deep puddles
or standing water, drive through them very slowly.
c_
.I
2-22

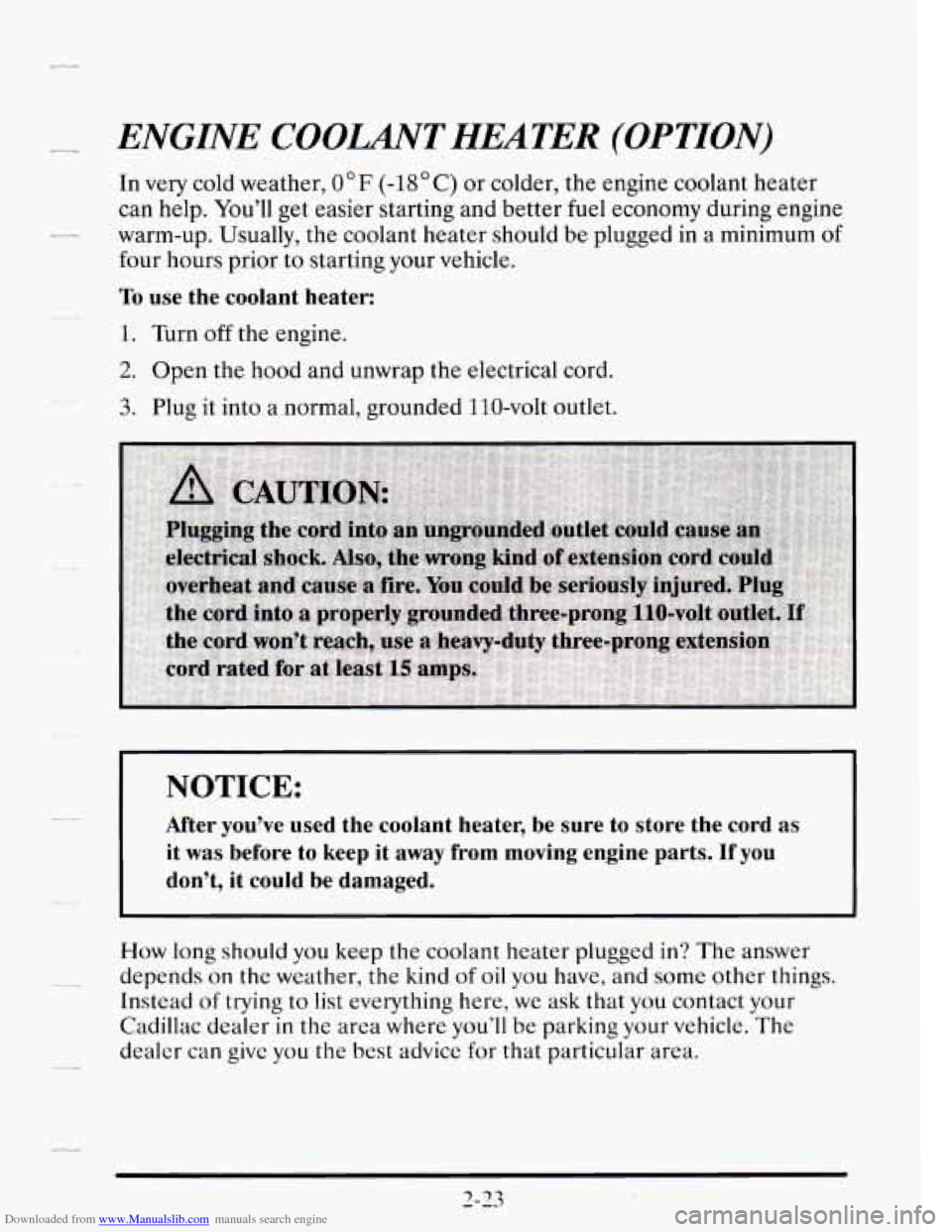

Downloaded from www.Manualslib.com manuals search engine - ENGINE COOLANT HEATER (OPTION)
In very cold weather, 0°F (-18OC) or colder, the engine coolant heater
can help. You’ll get easier starting and better fuel economy during engine
four hours prior to starting your vehicle.
To use the coolant heater:
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord.
3. Plug it into a normal, grounded 110-volt outlet.
c_ warm-up. Usually, the coolant heater should be plugged in a minimum of
I NOTICE:
- ~~ - After you’ve used the coolant heater, be sure to store the cord as
it was before to keep it away from moving engine parts. If you
don’t,
it could be damaged.
How long should you keep the coolant heater plugged in? The answer
Instead
of trying to list everything here, we ask that you contact your
Cadillac dealer in the area where you’ll be parking your vehicle. The
dealer can give you the best advice for that particular area.
,-- depends on the weather, the kind of oil you have, and some other things.

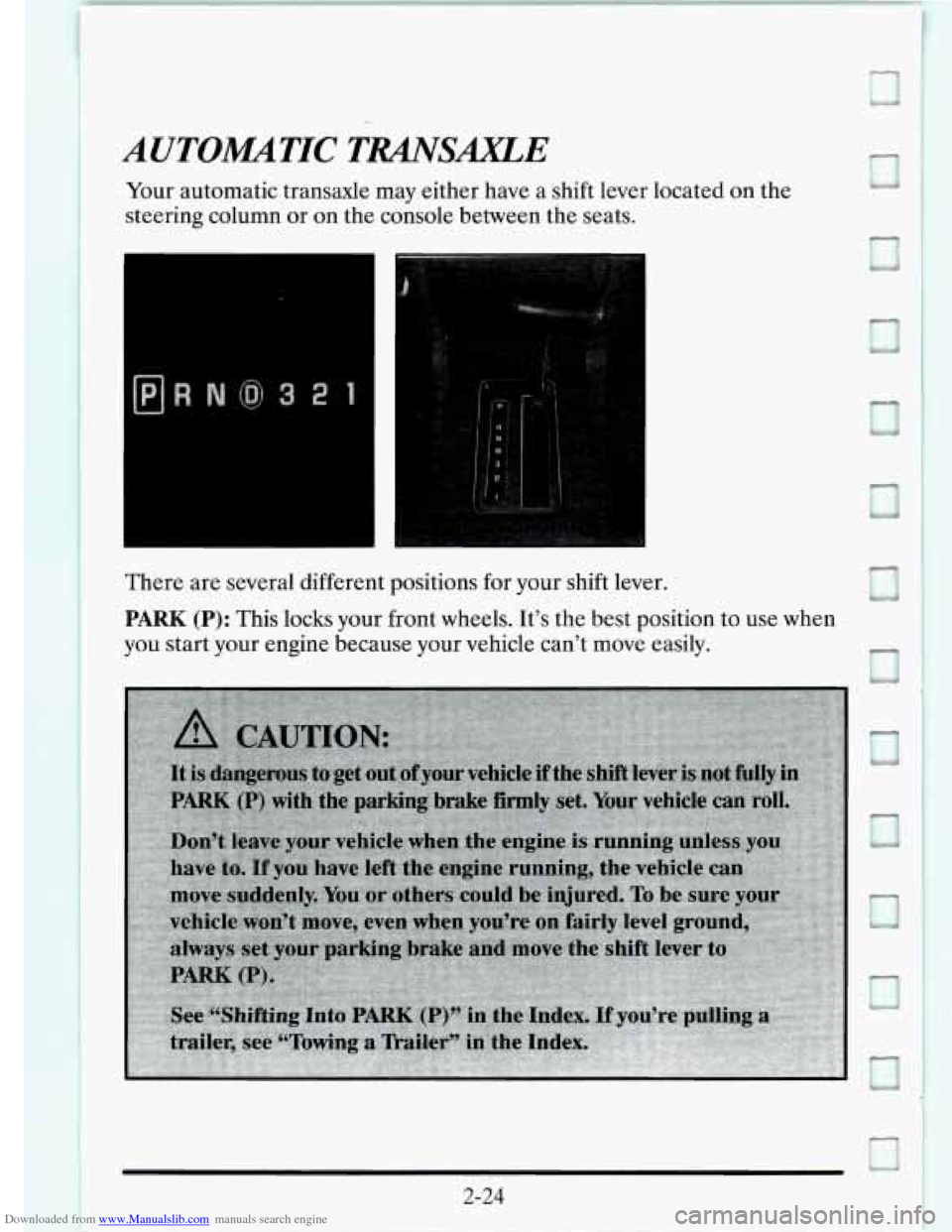

Downloaded from www.Manualslib.com manuals search engine AUTOlMATIC TMSAXLE
-
Your automatic transaxle may either have a shift lever located on the
steering column or on the console between the seats.
3
a
There are several different positions for your shift lever.
PARK (P): This locks your front wheels. It’s the best position to use when
you start your engine because your vehicle can’t move easily.
U
2-24

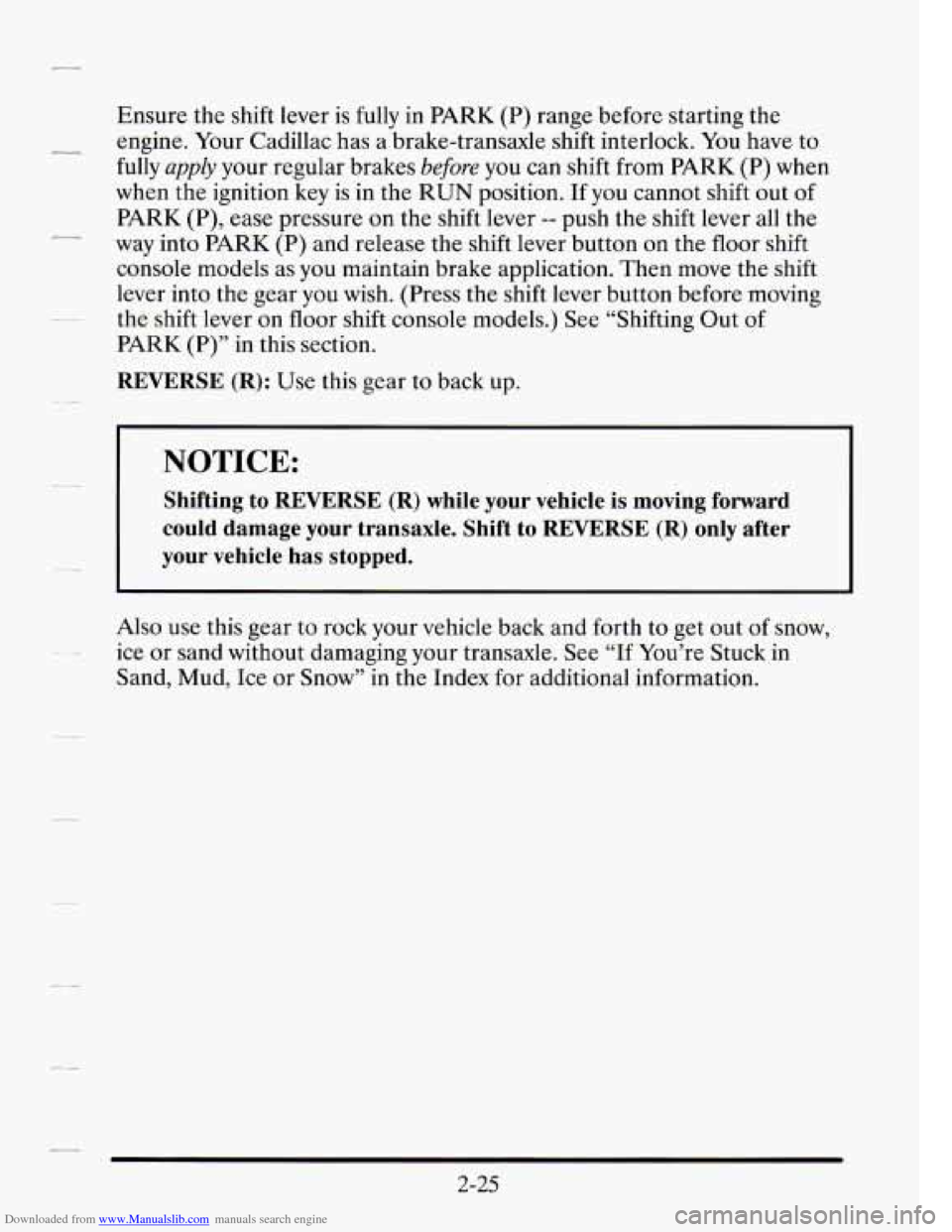

Downloaded from www.Manualslib.com manuals search engine Ensure the shift lever is fully in PARK (P) range before starting the
- engine. Your Cadillac has a brake-transaxle shift interlock. You have to
fully
apply your regular brakes before you can shift from PARK (P) when
when the ignition key is in the RUN position. If
you cannot shift out of
PARK (P), ease pressure on the shift lever -- push the shift lever all the
way into
PARK (P) and release the shift lever button on the floor shift
console models as you maintain brake application. Then move the shift
lever into the gear you wish. (Press the shift lever button before moving
PARK
(P)” in this section.
REVERSE (R): Use this gear to back up.
c_
- .~. the shift lever on floor shift console models.) See “Shifting Out of
NOTICE: -.- -
Shifting to REVERSE (R) while your vehicle is moving forward
could damage your transaxle. Shift to REVERSE (R) only after
. ~- your vehicle has stopped.
Also use this gear to rock your vehicle back and forth to get out of snow,
ice or sand without damaging your transaxle. See
“If You’re Stuck in
Sand, Mud, Ice or Snow” in the Index for additional information.
2-25
