1995 CADILLAC SEVILLE Owners Manual

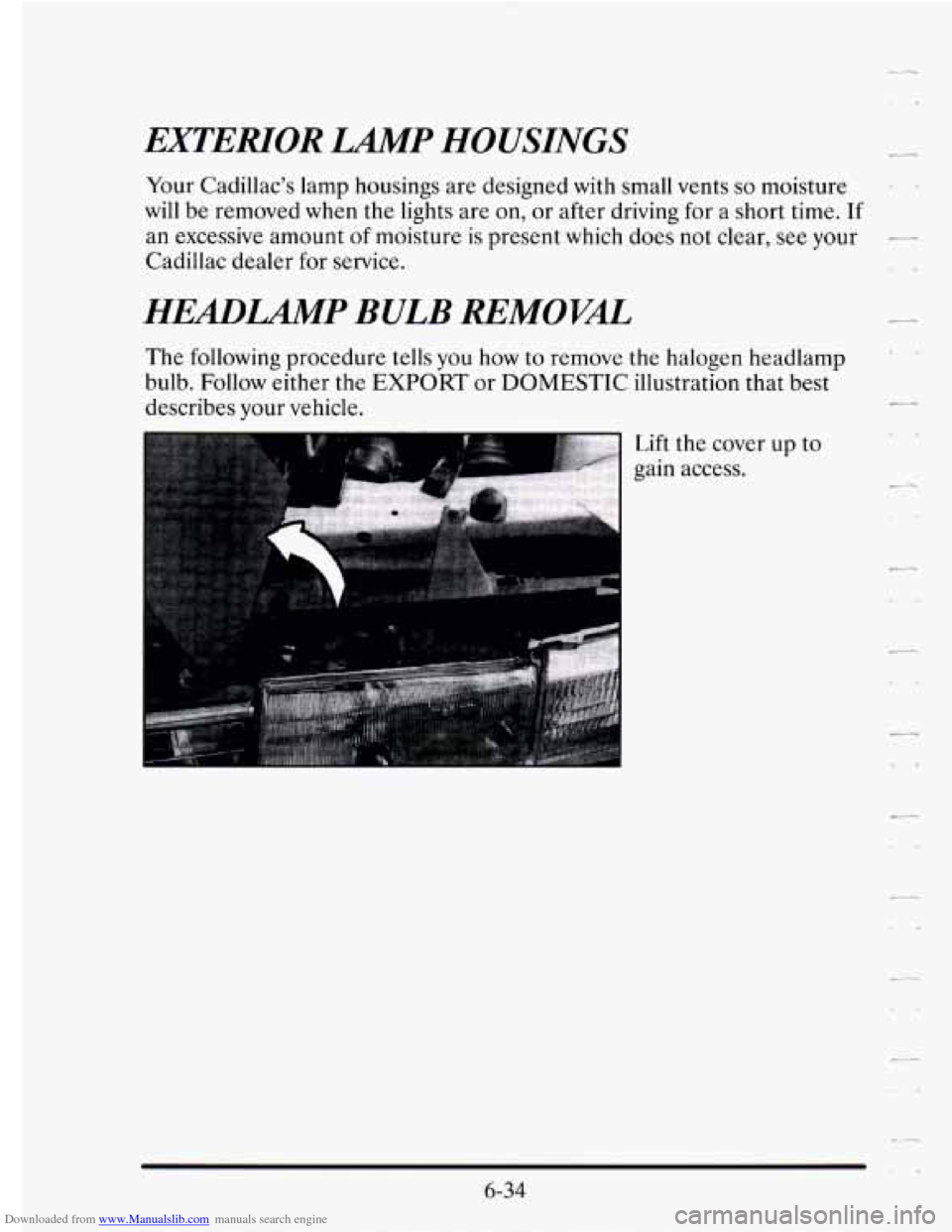

Downloaded from www.Manualslib.com manuals search engine EXTElUOR LA2MP HOUSINGS
Your Cadillac’s lamp housings are designed with small vents so moisture *- 1
will be removed when the lights are on, or after driving for a short time. If
an excessive amount of moisture is present which does not clear, see your -
Cadillac dealer for service.
HEmMP BULB REMOVL
The following procedure tells you how to remove the halogen headlamp
bulb. Follow either the
EXPORT or DOMESTIC illustration that best
describes your vehicle.
1
bJ
6-34

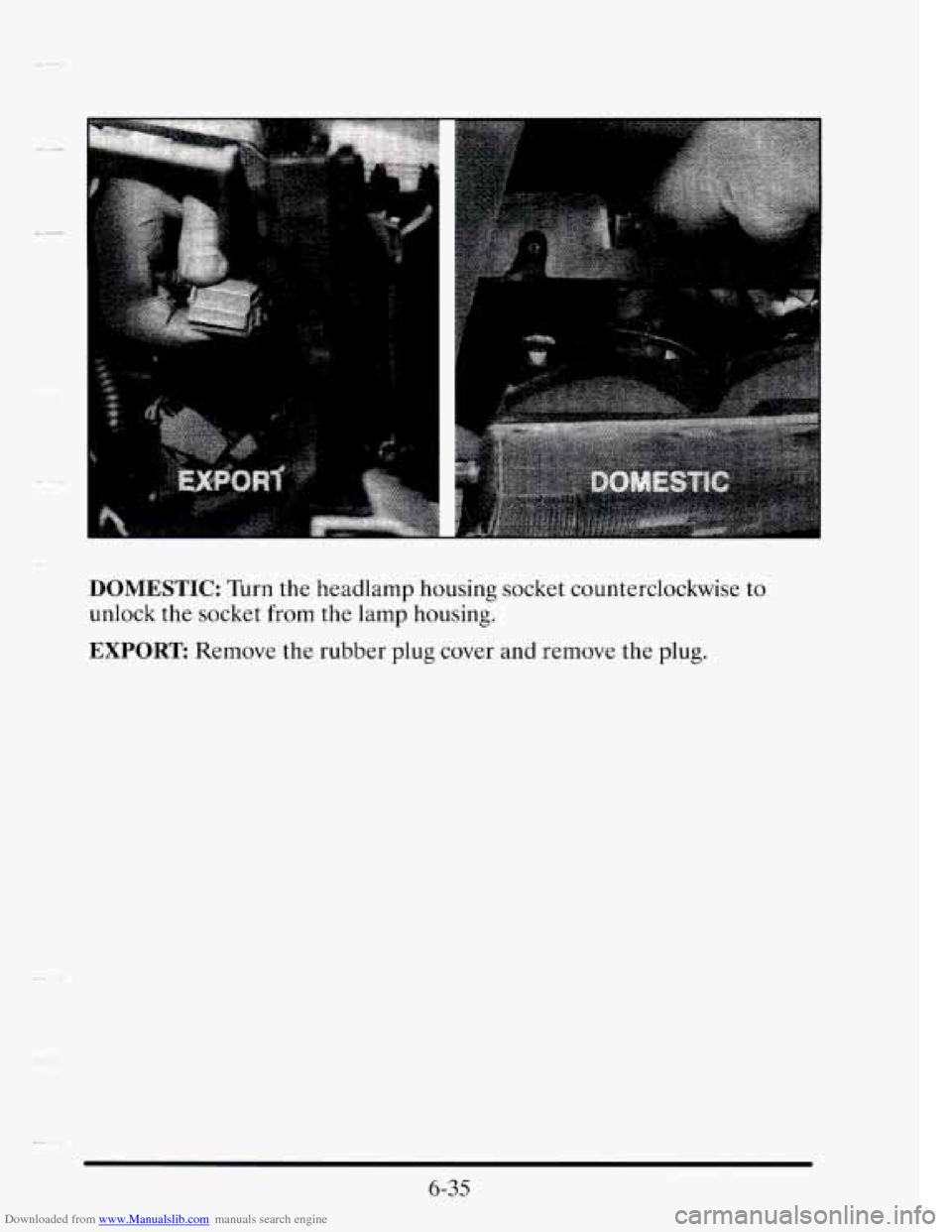

Downloaded from www.Manualslib.com manuals search engine DOMESTIC: Turn the headlamp housing socket counterclockwise to
unlock the socket from the lamp housing.
EXPORT Remove the rubber plug cover and remove the plug.
6-35

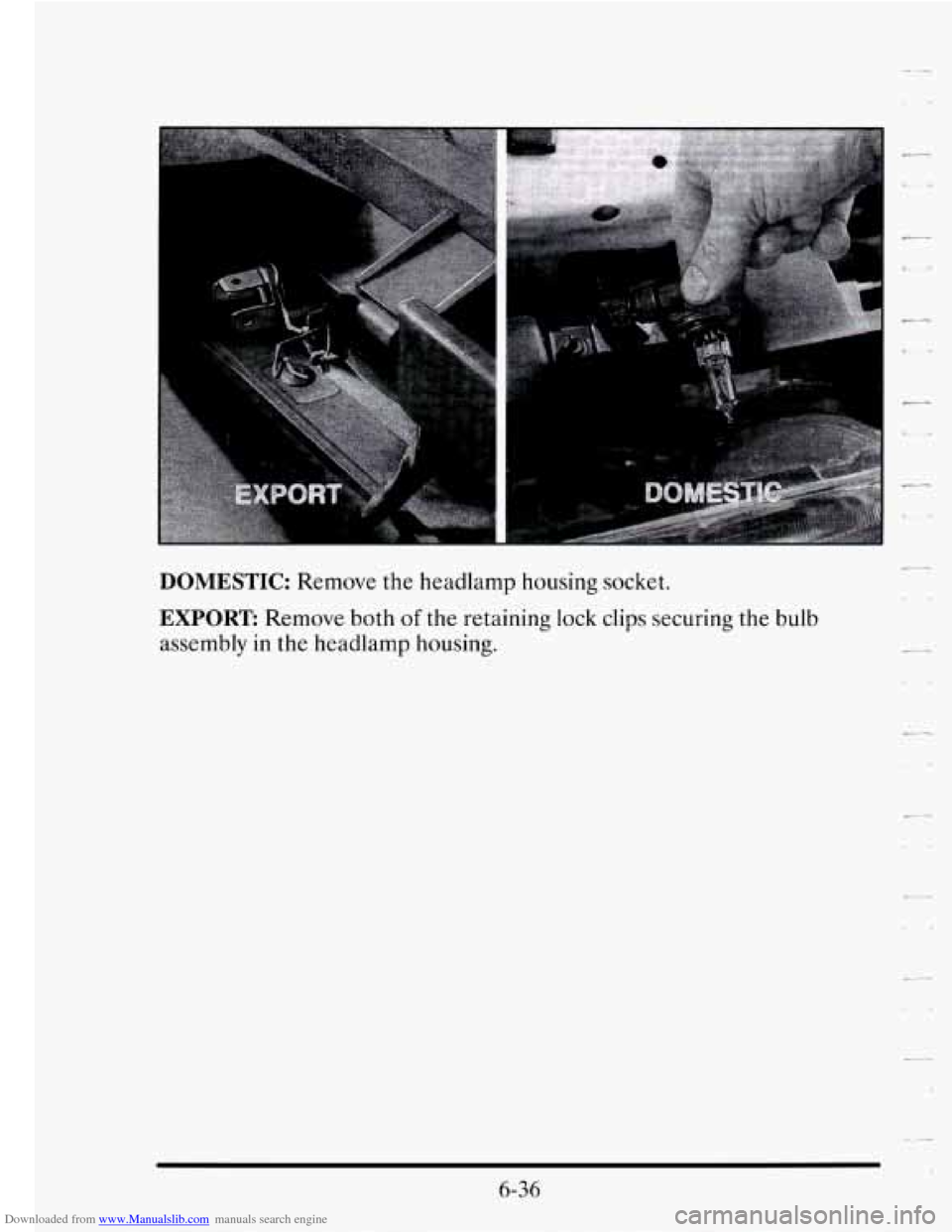

Downloaded from www.Manualslib.com manuals search engine DOMESTIC: Remove the headlamp housing socket.
EXPORT Remove both of the retaining lock clips securing the bulb
assembly in the headlamp housing.

Downloaded from www.Manualslib.com manuals search engine .. .
7

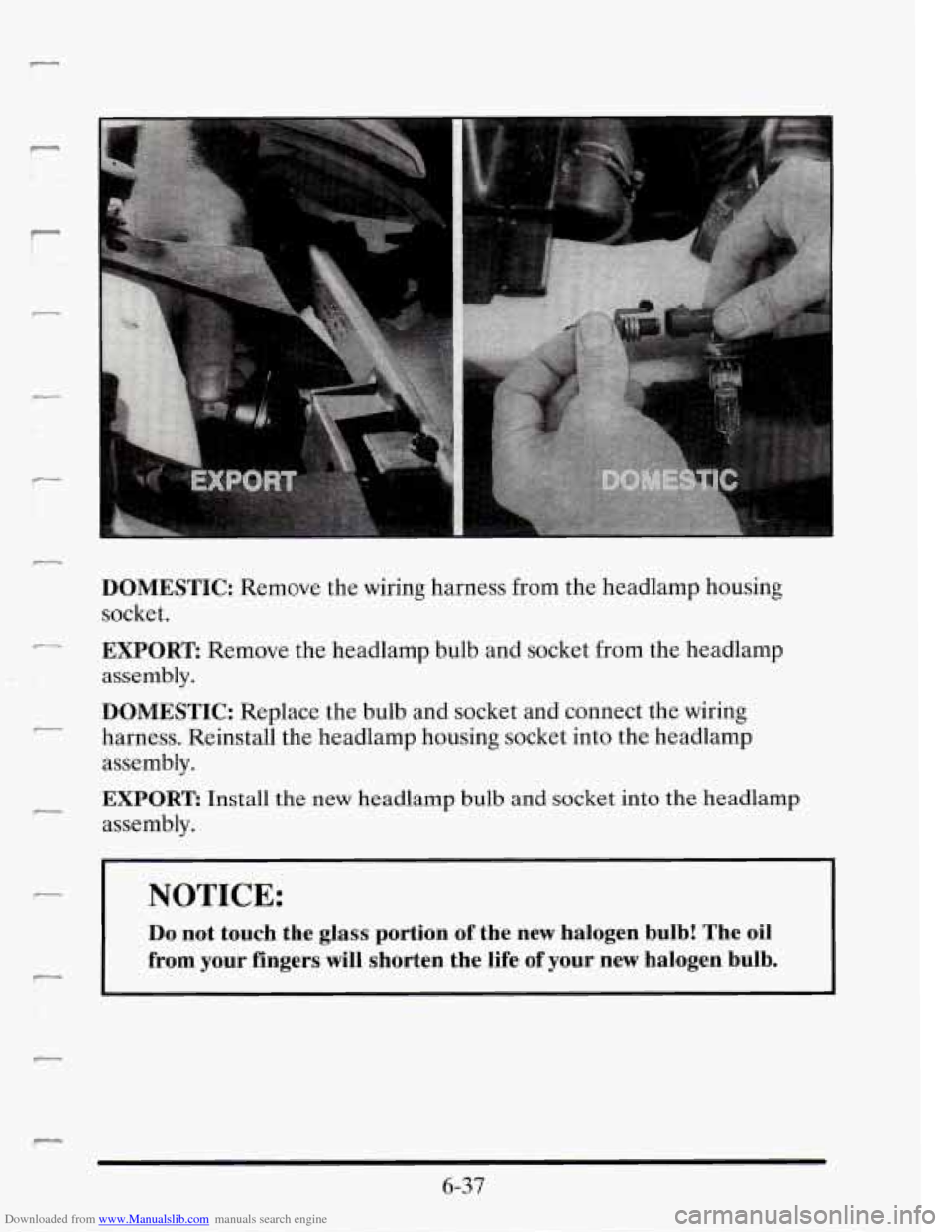

DOMESTIC: Remove the wiring harness from the headlamp housing
socket.
r EXPORT Remove the headlamp bulb and socket from the headlamp
assembly.
DOMESTIC: Replace the bulb and socket and connect the wiring
harness. Reinstall the headlamp housing socket into the headlamp
assembly. P-
EXPORT: Install the new headlamp bulb and socket into the headlamp
assembly. *---.
- NOTICE:
Do not touch the glass portion of the new halogen bulb! The oil
from your fingers will shorten the life of your new halogen bulb. r
r
i.
6-37

Downloaded from www.Manualslib.com manuals search engine TMLLAlUP BULB REPLACEMENT
1. Open the trunk to gain access to the taillamp housing.
2. Remove
the
convenience net
and pull trim away
to access the wing
nuts.
G
6-38
,d

Downloaded from www.Manualslib.com manuals search engine 3. Remove the four
wing nuts.
6-39

Downloaded from www.Manualslib.com manuals search engine L_
._ 1

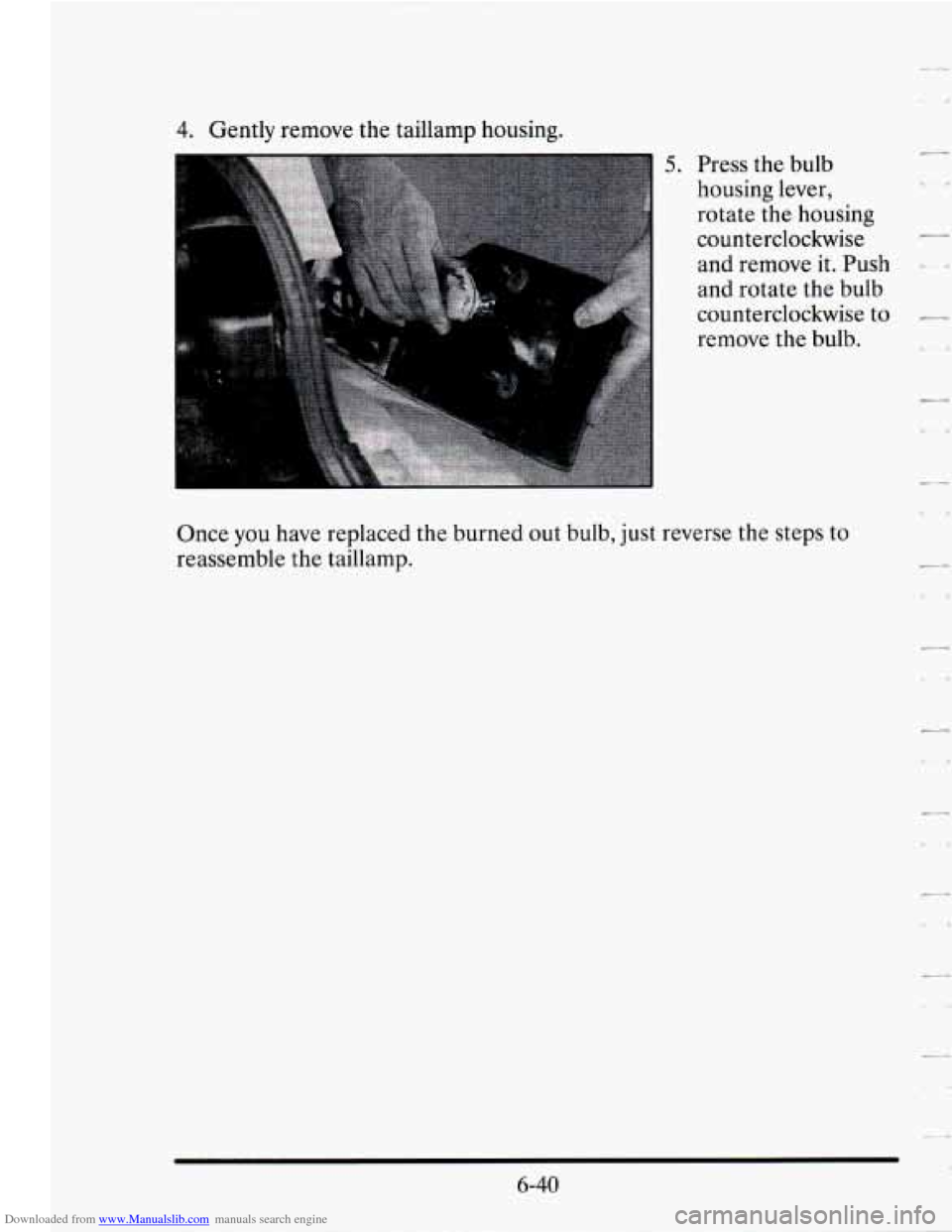

4. Gently remove the taillamp housing.
5. Press the bulb
housing lever,
rotate
the housing
counterclockwise
and remove it. Push
and rotate the bulb
counterclockwise to
-
remove the bulb.
Once
you have replaced the burned out bulb, just reverse the steps to
reassemble the taillamp.
-
6-40

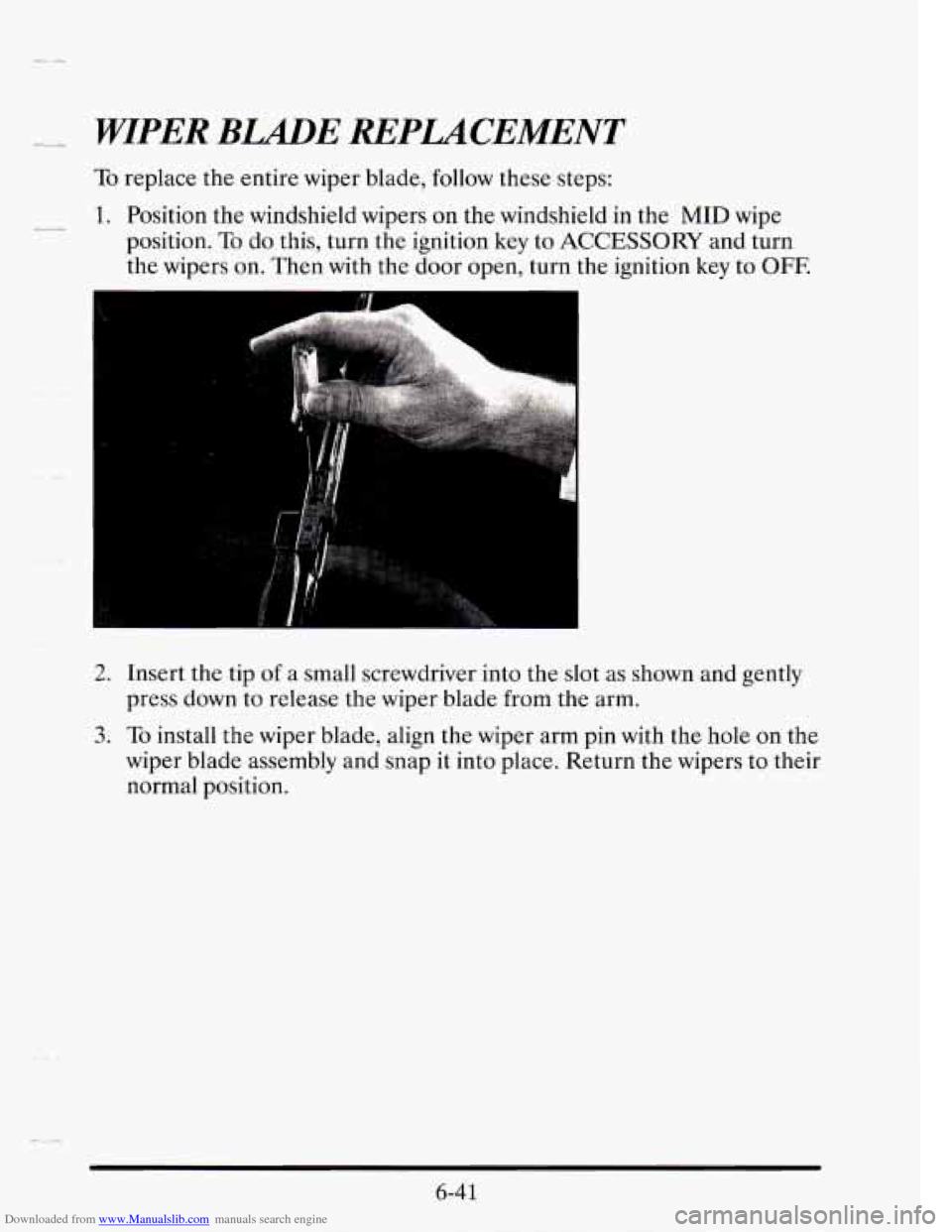

Downloaded from www.Manualslib.com manuals search engine - _x WIPER BLADE REPLACEMENT
To replace the entire wiper blade, follow these steps:
.-, 1. Position the windshield wipers on the windshield in the MID wipe
position.
To do this, turn the ignition key to ACCESSORY and turn
the wipers on. Then with the door open, turn the ignition key
to OFE
2. Insert the tip of a small screwdriver into the slot as shown and gently
press down
to release the wiper blade from the arm.
3. To install the wiper blade, align the wiper arm pin with the hole on the
wiper blade assembly and snap it into place. Return the wipers to their
normal position.
6-4 1
