1995 CADILLAC SEVILLE Owners Manual

Downloaded from www.Manualslib.com manuals search engine Analog Cluster
0
Canadian Analog Cluster
Q

Downloaded from www.Manualslib.com manuals search engine _-
Speedometer and Odometer
Your speedometer lets you see your speed in both miles per hour (mph)
and kilometers per hour (kmih). Your odometer shows how far your
vehicle has been driven, in either miles (used in the United States) or
kilometers (used in Canada).
You may wonder what happens
if a car has to have a new odometer
installed. The new one may read the correct mileage. This
is because your
car’s computer has stored the mileage in memory.
EnglishlMetric Button
ENG
You can go back and
forth from English
(miles) to metric
(kilometers) by
pressing this button.
.- -
The same button also makes other readings (like temperature, fuel and
odometer) go between English and metric.
2-75

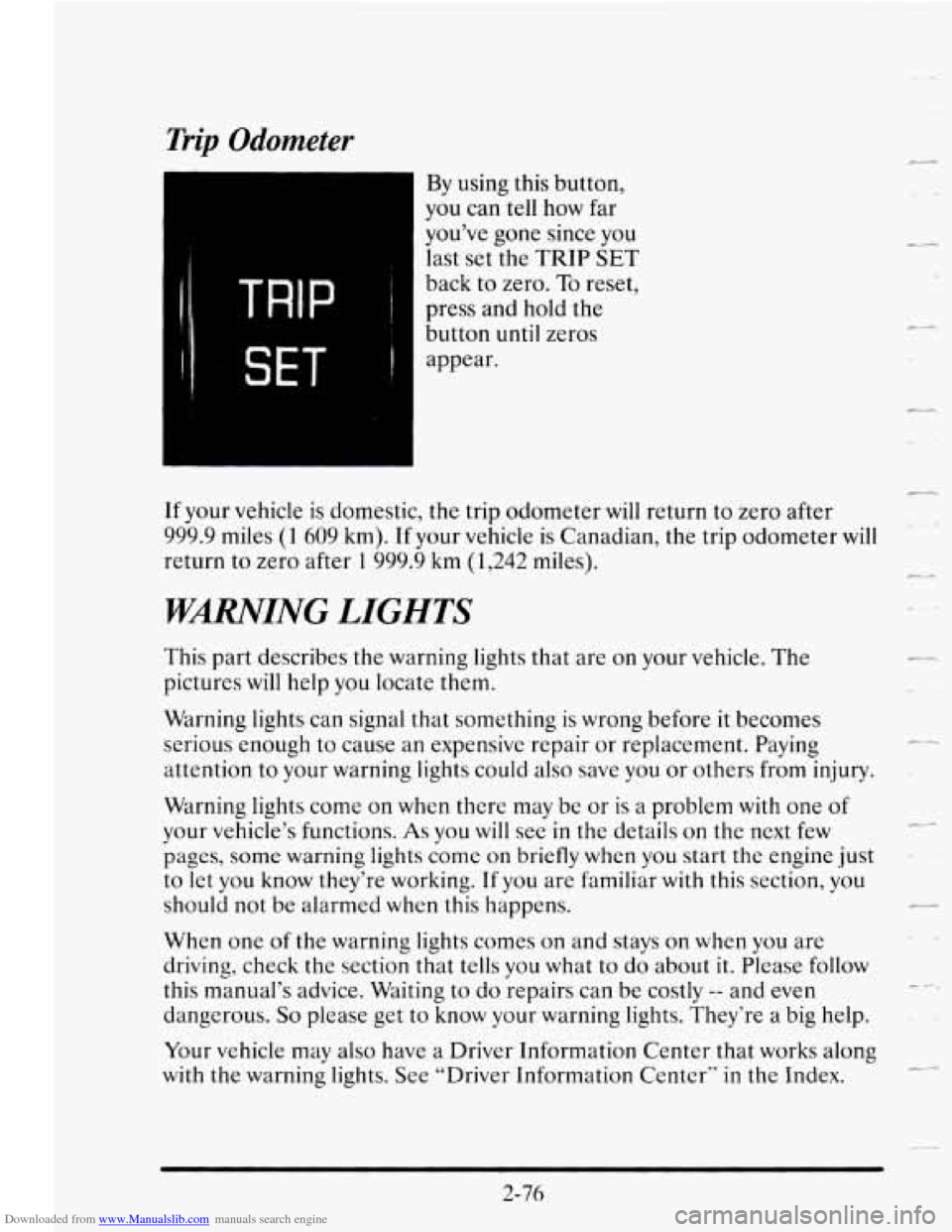

Downloaded from www.Manualslib.com manuals search engine Trip Odometer
TRIP ~
SET I
By using this button,
you can tell how far
you’ve gone since you
last
set the TRIP SET
back to zero. To reset,
press and hold the
button until zeros
appear.
If your vehicle is domestic, the trip odometer will return to zero after
999.9 miles
(1 609 km). If your vehicle is Canadian, the trip odometer will
return to zero after 1 999.9 km (1,242 miles).
WMING LIGHTS
This part describes the warning lights that are on your vehicle. The
pictures will help
you locate them.
Warning lights can signal that something is wrong before it becomes
serious enough
to cause an expensive repair or replacement. Paying
attention to your warning lights could also save you or others from injury.
Warning lights come
on when there may be or is a problem with one of
your vehicle’s functions. As you will see in the details on the next few
pages, some warning lights come
on briefly when you start the engine just
to let you know they’re working.
If you are familiar with this section, you
should not be alarmed
when this happens.
When one of the warning lights comes on and stays on when you are
driving, check the section that tells you
what to do about it. Please follow
this manual’s advice. Waiting to do repairs can
be costly -- and even
dangerous.
So please get to know your warning lights. They‘re a big help.
Your vehicle may also have a Driver Information Center that works along
with the warning lights. See “Driver Information Center‘‘ in the Index.
r
L
c.-d
c +..
2-76

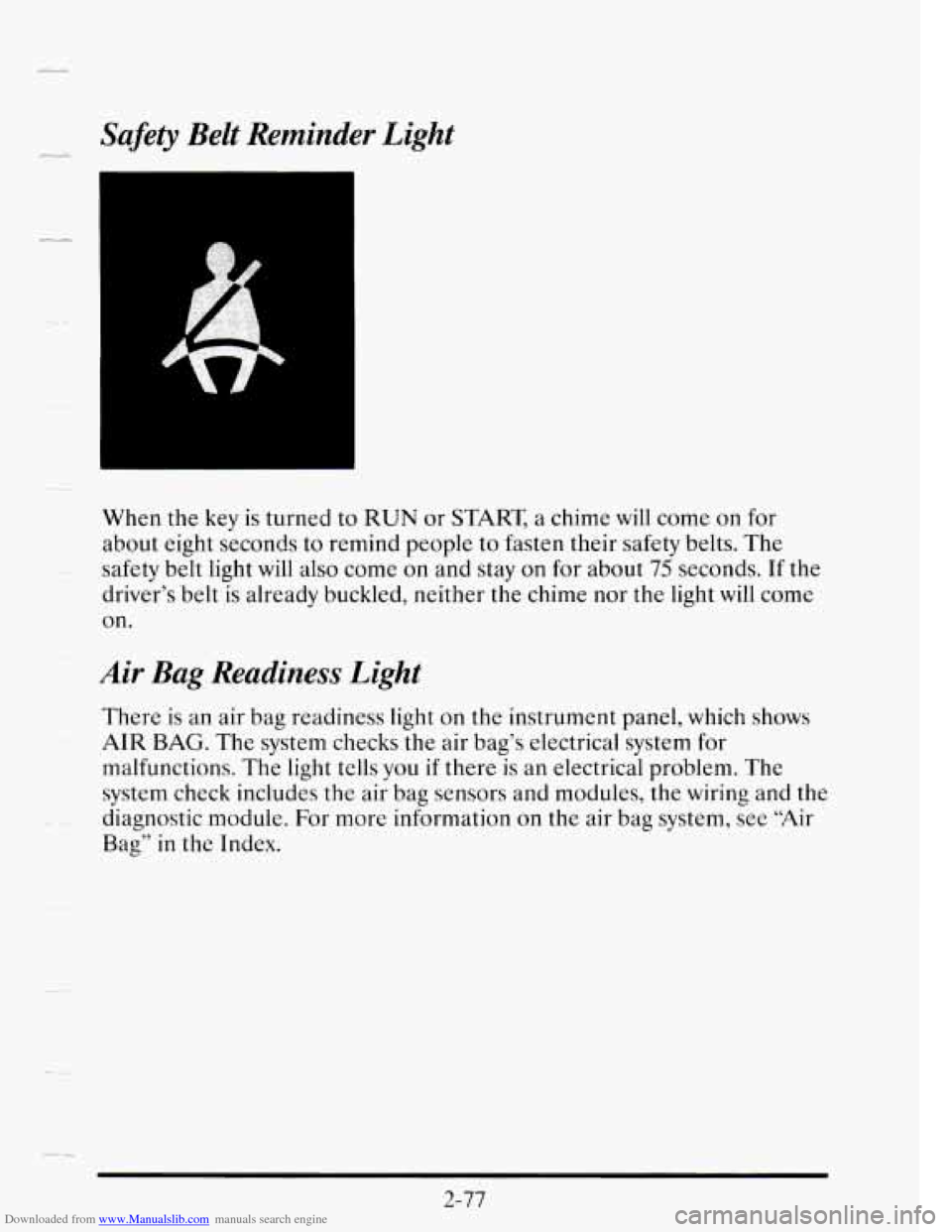

Downloaded from www.Manualslib.com manuals search engine .F* Safety Belt Reminder Light
When the key is turned to RUN or START a chime will come on for
about eight seconds to remind people to fasten their safety belts. The
safety belt light will also come on and stay on
for about 75 seconds. If the
driver’s belt
is already buckled, neither the chime nor the light will come
on.
Air Bag Readiness Light
There is an air bag readiness light on the instrument panel, which shows
AIR BAG.
The system checks the air bag’s electrical system for
malfunctions. The light tells you
if there is an electrical problem. The
system check includes the air bag sensors and modules, the wiring and the
.~ diagnostic module. For more information on the air bag system, see “Air
Bag” in the Index.
2-77

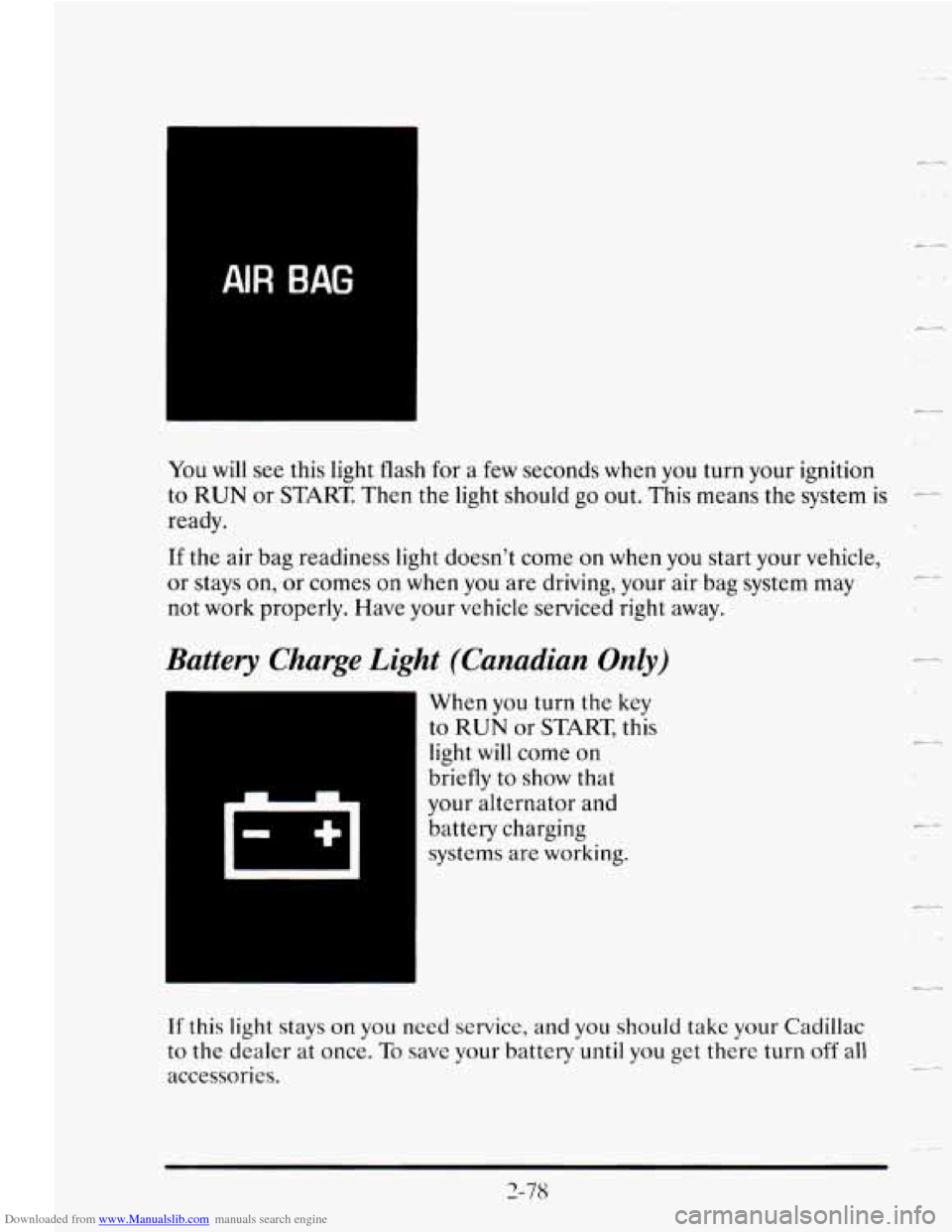

Downloaded from www.Manualslib.com manuals search engine You will see this light flash for a few seconds when you turn your ignition
to RUN or START Then the light should
go out. This means the system is --
ready.
If the air bag readiness light doesn't come on when you start your vehicle,
or stays on, or comes
on when you are driving, your air bag system may
not work properly. Have your vehicle serviced right away.
Battery Charge Light (Canadian Only)
When you turn the key
to
RUN or START, this
light
will come on
briefly to show that
your alternator and
battery charging
systems are working.
If this light stays on you need service, and you should take your Cadillac
to the dealer at once. To save your battery until you get there turn off all
accessories.
2-78
7
c c
cc

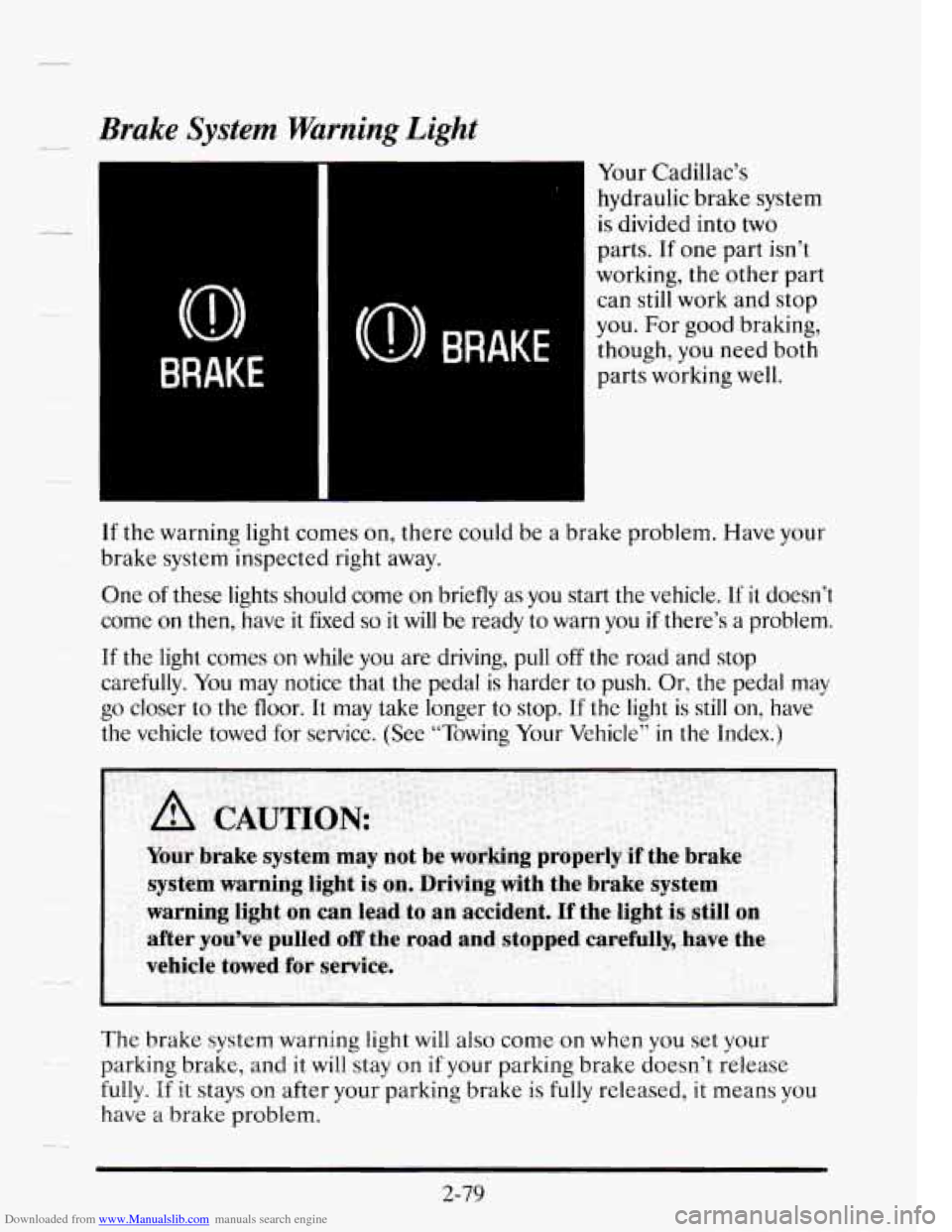

Downloaded from www.Manualslib.com manuals search engine Brake System Warning Light
Your Cadillac’s hydraulic brake system
is divided into two
parts. If one part isn’t
working, the other part
can still work and stop
you.
For good braking,
though,
you need both
parts working well.
If the warning light comes on, there could be a brake problem. Have your
brake system inspected right away.
One of these lights should come on briefly as you start the vehicle. If it doesn’t
come on then, have it fixed
so it will be ready to warn you if there’s a problem.
If the light comes on while you are driving, pull off the road and stop
carefully. You may notice that
the pedal is harder to push. Or, the pedal may
go closer to the floor. It may take longer to stop. If the light is still on, have
the vehicle towed for service. (See “Towing Your Vehicle” in the Index.)
The brake system warning light will also come
on when you set your
parking brake, and it will stay
on if your parking brake doesn’t release
fully.
If it stays on after your parking brake is fully released, it means you
have
a brake problem.
-4
2-79

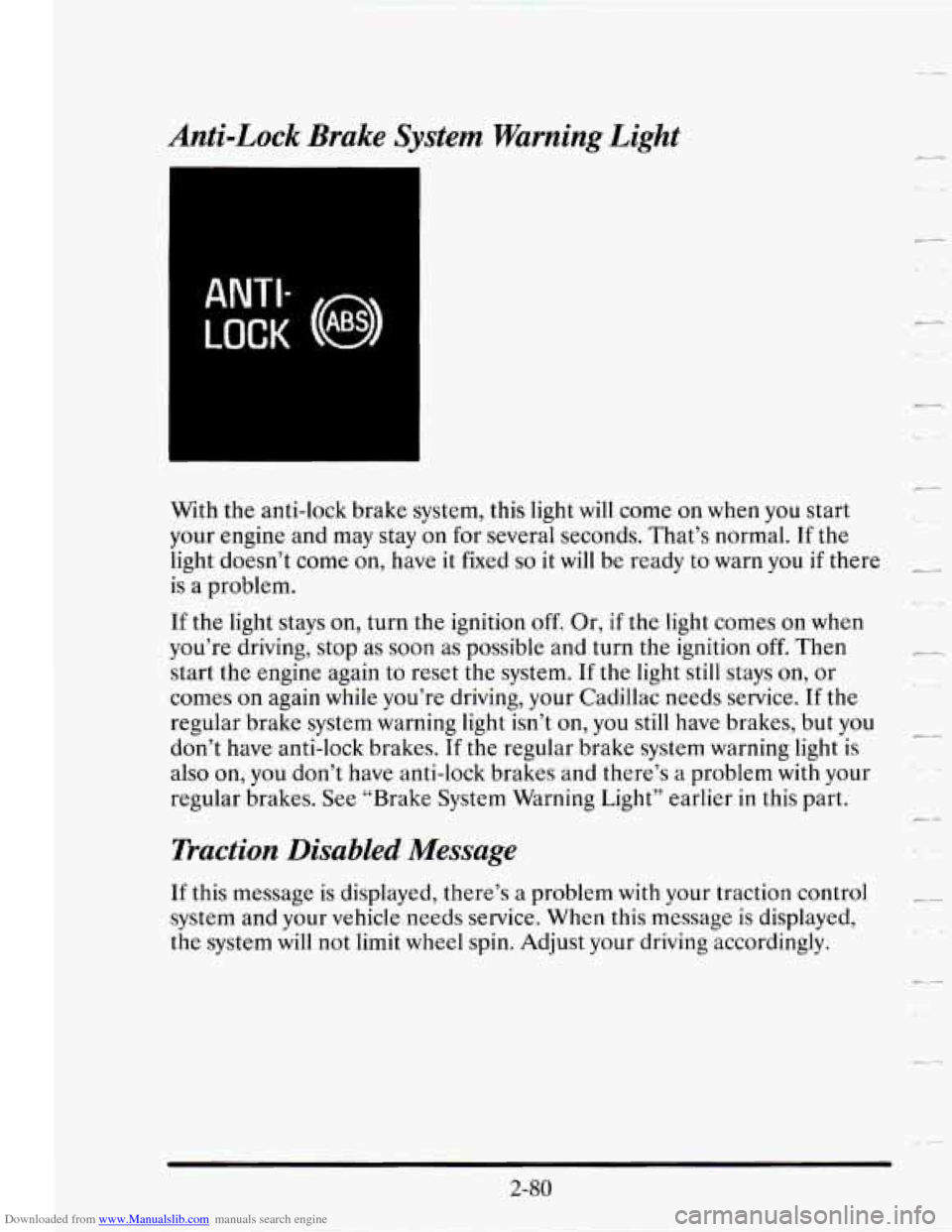

Downloaded from www.Manualslib.com manuals search engine Anti-Lock Brake System Warning Light
ANTI-
LOCK (0 ABS)
With the anti-lock brake system, this light will come on when you start
your engine and may stay on
for several seconds. That’s normal. If the
light doesn’t come on, have it fixed
so it will be ready to warn you if there
is a problem.
If the light stays on, turn the ignition off. Or, if the light comes on when
you’re driving, stop as soon as possible and turn the ignition
off. Then
start the engine again to reset the system. If the light still stays
on, or
comes on again while you’re driving, your Cadillac needs service.
If the
regular brake system warning light isn’t on, you still have brakes, but you
don’t have anti-lock brakes.
If the regular brake system warning light is
also on, you don’t have anti-lock brakes and there’s
a problem with your
regular brakes.
See “Brake System Warning Light” earlier in this part.
Traction Disabled Message
If this message is displayed, there’s a problem with your traction control
system and your vehicle needs service. When this message is displayed,
the system will not limit wheel spin. Adjust your driving accordingly.
-,.
c-
2-80

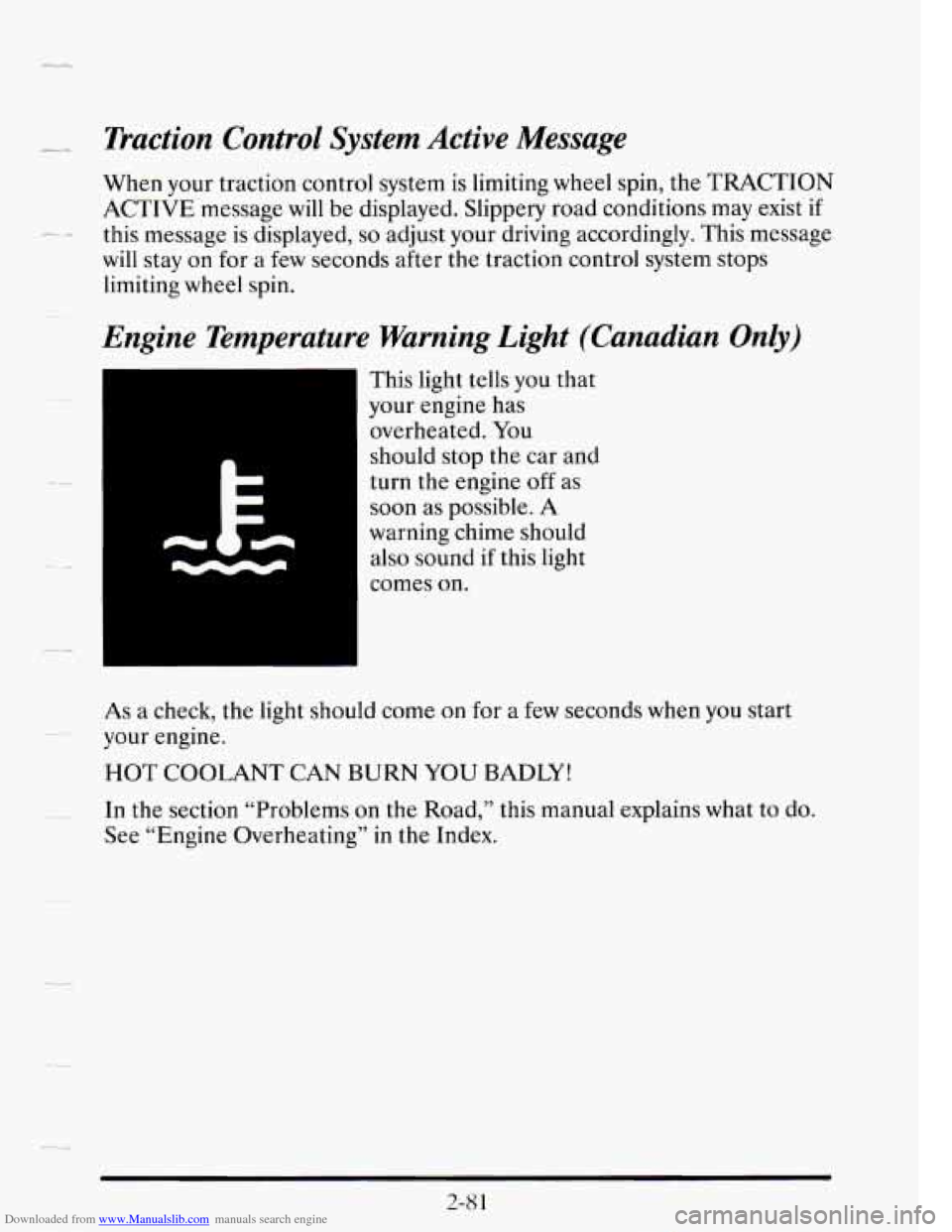

Downloaded from www.Manualslib.com manuals search engine - Traction Control System Active Message
When your traction control system is limiting wheel spin, the TRACTION
ACTIVE message will be displayed. Slippery road conditions may exist
if
will stay on for a few seconds after the traction control system stops
limiting wheel spin.
/-. .- this message is displayed, so adjust your driving accordingly. This message
Engine Temperature Warning Light (Canadian Only)
This light tells you that
your engine has
overheated. You
should stop the car and
turn the engine
off as
soon as possible.
A
warning chime should
also sound if this light
comes
on.
As a check, the light should come on for a few seconds when you start
your engine.
HOT COOLANT CAN BURN YOU BADLY!
In the section “Problems on the Road,” this manual explains what to do.
See “Engine Overheating” in the Index.
..
2-8 1
