1993 CHEVROLET TRACKER Owners Manual

2 (Second Gear) - Press the clutch
pedal as you let up on the accelerator
pedal and shift into
2. Then, slowly
let up on the clutch pedal as you press
the accelerator pedal.
3, 4 and 5 (Third, Fourth and Fifth
Gears)
- Shift into 3, 4 and 5 the
same way
you do for 2. Slowly let up
on the clutch pedal
as you press the
accelerator pedal.
To Stop - Let up on the accelerator
pedal and press the brake pedal. Just
before the vehicle stops, press the
clutch pedal and the brake pedal, and
shift to
Neutral.
Neutral - Use this position when
R (Reverse) - To back up, press
you
start or
idle your engine.
down the clutch pedal and shift into
R. Let up on the clutch pedal slowly
while pressing the accelerator pedal.
You cannot go from 5 (Fifth Gear) into
R (Reverse). If you try, you will be
locked out.
You must first shift into
Neutral, move the lever to the left, back
to the right, and then shift into
R (Reverse). This is a safety feature.
Shift to R (Reverse) only after
your vehicle
is stopped. Shifting to
R (Reverse) while your vehicle is
moving could damage your
transmission.
Also, use Reverse along with the
parking brake, for parking your vehicle.
ProCarManuals.com

Features & Controls
shifi Speeds (MANUAL TRANSMISSION)
MANUAL TRANSMISSION RECOMMENDED SHIFT SPEEDS IN MPH (km/h)
Engine
1.6L L4 47 11
21 29 41
34
27
15 Acceleration Shift Speed Cruise Shift Speed
1to2 4to5 1to2 2to3 3to4 4to5 3to4
2to3
(24) (76)
(18) (34) (47) (66) (55) (43)
This chart shows when
to shift to the
next higher gear for best fuel economy.
If your speed drops below 20 mph
(32 km/h), or if the engine is not
running smoothly, you should downshift
to the next lower gear. You may have to
downshift two or more gears to keep the
engine running smoothly or for good
performance.
. . 56
A
LAU I IUlV
If you skip more than one
could lose control
of your vehicle.
And
you could injure yourself or
others. Don’t shift from
5 to 2 or
4 to 1.
L gear when you downshift, you
If you skip more than one gea~
when you downshift, or if 1
race the engine when you
downshift, you can damr-- thc
clutch
or transmission
ProCarManuals.com

Four-wheel Drive
CAUTION I
It can be dangerous to get out
4 b of your vehicle if the shift
rcyer is not fdly in P (Park)
(automatic transmission) or
R (Reverse) (manual transmission)
with the parking brake firmly set.
If you have four-wheel drive, also
be sure the transfer case is in a
drive gear. Your vehicle can roll.
If you have left the engine
running,
the vehicle can move
suddenly.
You or others could be
injured. To be sure your vehicle
won’t move, follow the step
below. If you are parking on a
hill’, or if you’re pulling a trailer,
see “Parking on Hills” cw
“Towing a Trailer” in the Index.
[f your vehicle has four-wheel drive,
you can send your engine’s driving
power to all four wheels for extra
traction.
To shift out of two-wheel drive
and into four-wheel drive, lock the
free-wheeling hubs and move
the
transfer case shift lever to 4H or 4L
(see the following). You should use 2H
for most normal driving.
Rear wheel anti-lock brakes
do not work
when you shift into four-wheel drive.
Your regular brakes will still work.
When
you shift back into two-wheel
drive, your rear wheel anti-lock brakes
will take over again. Driving
in 4H or 4L positions for
a long time on dry or wet
pavement could shorten
thP 1 nf
your vehicle’s drivetrain.
ProCarManuals.com

Features & Controls

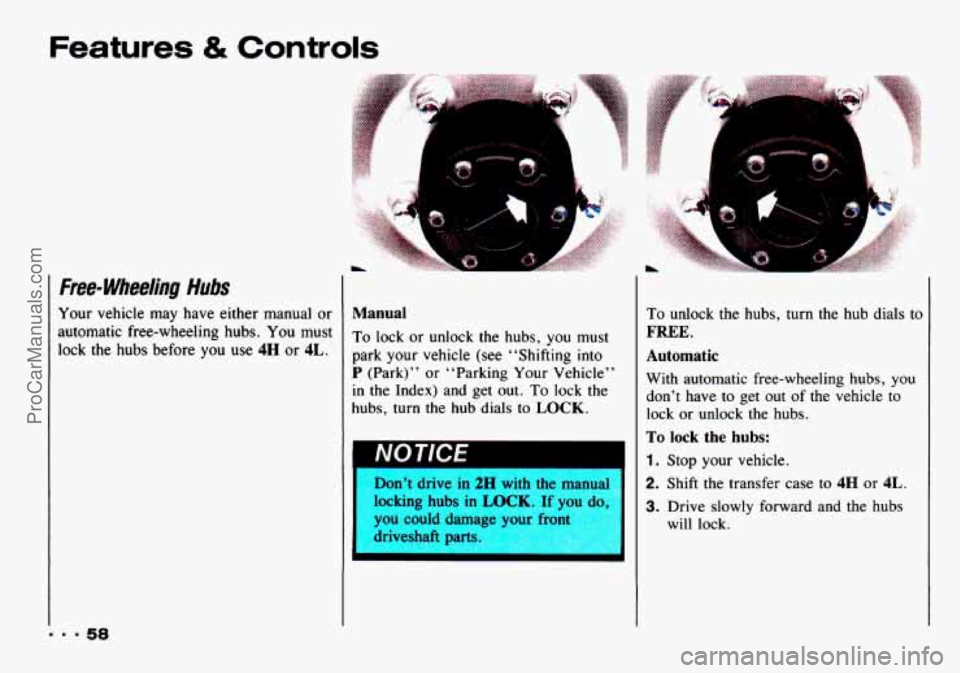

Free- Wheeling Hubs
Your vehicle may have either manual or
automatic free-wheeling hubs. You must
lock
the hubs before you use 4H or 4L.
Manual
To lock or unlock the hubs, you must
park your vehicle (see “Shifting into
P (Park)” or “Parking Your Vehicle”
in the Index) and get out. To lock the
hubs, turn
the hub dials to LOCK.
Don’t drive in 2H with the manual
locking hubs in
LOCK. If yo1
you could damage your front 7
driveshaft parts. I
To unlock the hubs, turn the hub dials to
FREE.
Automatic
With automatic free-wheeling hubs, you
don’t have to get out of the vehicle to
lock
or unlock the hubs.
To lock the hubs:
1. Stop your vehicle.
2. Shift the transfer case to 4H or 4L.
3. Drive slowly forward and the hubs
will lock.
ProCarManuals.com

To unlock the hubs:
1. Stop your vehicle.
2. Drive seven feet (two meters) in the
direction opposite to the direction
you were driving before you stopped.
3. Then, press the clutch if you have a
manual transmission, and shift the
transfer
case to 2H. The hubs will
unlock.
Transfer Case
The transfer case shift lever is on the
floor to the right of the driver. Use this
lever to shift into and out of four-wheel
drive. An indicator light comes on when
the transfer case is in
4H or 4L.
2H: This setting is for driving in most
street and highway situations. Your front
axle
is not engaged in two-wheel drive.
4H: This setting engages your front axle
to help drive your vehicle. Use
4H
when you need extra traction, such as
on wet or icy roads,
or in most off-road
situations.
N (Neutral): Shift to this setting only
when your vehicle needs
to be towed.
4L: This setting also engages your front
axle to give you extra traction, but
should be used only for driving downhill
or on slippery surfaces when you’re
driving slower than
35 mph (55 km/h).
Remember that driving in 4H or 4L may
reduce fuel economy. Also, driving
in
four-wheel drive on dry pavement could
cause your tires to wear faster and make
your transfer case harder to shift.
You can shift from
2H to 4H or from
4H to 2H at any speed if your hubs are
locked and your wheels are straight
ahead. Your front
axle will engage
faster if you take your foot off the
accelerator pedal for a
few seconds as
you shift.
ProCarManuals.com

Features & Controls
900
To shift into or out of 4L:
1. Stop your vehicle and shift your
transmission to
N (Neutral).
2. Shift the transfer case in one
continuous motion.
Don't pause in
N (Neutral) as you shift
into
4H, or your gears could clash.
1.1
rn Parking
Parking Brake
The parking brake lever is located
between the seats.
'9
R :
I
To set the parking brake: Hold the
brake pedal down and pull up on the
parking brake lever.
If the ignition is
on, the brake system warning light will
come on.
ProCarManuals.com

To release the parking brake: Hold the
brake pedal down. Pull the parking
brake lever up
until you can push in the
release button. Hold the release button
in as you move the brake lever all the
way down.
I NOTICE
Driving with the parking brake on
can cause your rear brakes to
overheat.
You may have to replac=
them, and
you could also dvwe
other parts
of your vehicle.
If you are on a hill: See “Parking on
Hills” in
the Index. That section shows
how to turn your front wheels.
If you are towing a trailer and are
parking on any hill:
See “Towing a
Trailer”
in the Index. That section
shows what to
do first to keep the trailer
from moving.
Shifiing into P (Park)
(AUTOMATIC TRANSMlSS/ON)
It can be dangerous to get out
of your vehicle if
the shift
lever is not fully in
P (Park) with
the parking brake firmly set. Your
vehicle can roll,
If you have left the engine
running, the vehicle can move
suddenly. You or others could be
injured. To be sure your vehicle
won’t move, when you’re on fairly
level ground, use the steps that
follow.
If you have four-wheel drive and
your transfer case
is in
N (Neutral), your vehicle will be
free
to roll even if your shift lever
is in
P (Park). So, be sure the
transfer case
is in a drive gear -
not in N (Neutral).
If
you are parking on a hill, or if
you’re pulling a trailer, also see
‘‘Parking on Hills”
or ‘‘Towing a
Trailer” in the Index.
ProCarManuals.com

Features & Controls
1. Hold the brake pedal down with your
right foot and set the parking brake.
2. Move the shift lever into the P (Park)
position like this:
Hold in the button on the lever,
and push the lever all the way
toward the front of your vehicle.
3. If you have four-wheel drive, be sure
the transfer case is in a drive gear
-
not in N (Neutral).
4. Move the ignition key to LOCK.
5. Remove the key and take it with you.
If you can walk away from your
vehicle with the ignition key in your
hand, your vehicle is
in P (Park).
Leaving Your Vehide with the
Engine Running
(AUTOMATIC TRANSMISSION)
A It can be dangerous to leave
your vehicle with the engine
running. Your vehicle could move
suddenly if the &ifl lever is not
fully in P (Park) with the parking
brake firmly set.
If you have f0.w-wheel drive and
your -fer we is. in
N (Neutral), your vehicle will be
free to roll, even if your shift lever
is in P (Park). So be sure the
transfer case is in a drive gear -
not in N (Neutral).
And, if you leave the vehicle with
the
engine running, it could
overheat and even catch fire. You
or others could be injured. Don't
leave your vehicle with the engine
running unless you have to.
If you have to leave your vehicle with
the engine running, be sure your vehicle
is in
P (Park) and your parking brake is
firmly set before you leave
it. If you
have four-wheel drive, be sure that the
transfer case is in a drive gear
- not in
N (Neutral). After you've moved the
shift lever into the
P (Park) position,
hold the regular brake pedal down.
Then, see if you can move the shift
lever away from
P (Park) without first
pushing the button. If you can, it means
that the shift lever wasn't fully locked
into
P (Park).
