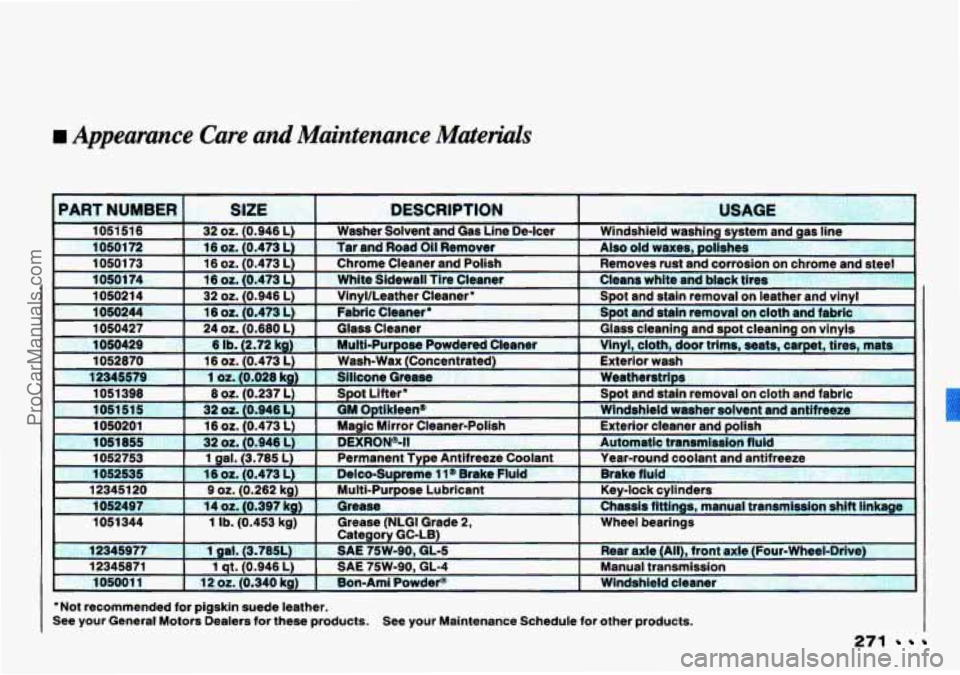

1993 CHEVROLET TRACKER Owners Manual

rn Appearance Care and Maintenance Materials
'Not recommended for pigskin suede leather.
See your General Motors Dealers for these products. See your Maintenance Schedule for other products.
271
ProCarManuals.com

Service & Appearance Care
= 9 272
I
rn Vehicle Identification
Number
This is the legal identifier for your Geo.
It appears
on a plate in the front corner
of the instrument panel, on the driver’s
side, You can see it
if you look through
the windshield from outside your
vehicle. The VIN also appears on the
Vehicle Certification and Service Parts
labels and the certificates
of title and
registration.
Engine Identification
The eighth character in your VIN is the
engine code for your
1993 GM engine.
This code will help you identify your
engine, specifications, and replacement
parts
in this section.
I Service Pads
Identification Lube1
You’ll find this label inside the glove
box on the door. It’s very helpful if you
ever need to order parts. On this label
is:
Your VIN.
Its model designation.
A list of all production options and
special equipment.
Be sure that this label is not removed
from the vehicle.
rn Add-on Electrical
Equipment
Don’t add anything electrical to
your Geo unless you check with
your dealer first. Some electrica
equipment can damage you
vehicle and the damage
woulan.1
be covered by your warranty.
Some of
;+ san just keep other
things frc
wnrkinp as thev
should.
ProCarManuals.com

1
I Fuses and Circuit
Breakers
The wiring circuits in your car are
protected from short circuits
by fuses,
circuit breakers
or a thermal link in the
wiring itself. This greatly reduces
the
chance of fires caused by electrical
problems.
The main fuse
box in your engine
compartment
on the right side. It
protects all electrical loads. For
access to the main fuses, pull off
cover.
A spare fuse is also inside the
fuse box. Another fuse
box is under
the left side
of the instrument panel. The fuses here
protect each separate circuit including
headlights.
If you have electrical failure,
check here first.
ProCarManuals.com

Service & Appearance Care
b. . /. , ,.
s Y
Look at the silver-colored band inside
the fuse.
If the band is broken or
melted, replace the fuse. Be sure you
replace a bad fuse with a new
one of the
correct size.
If you ever have a problem on the road
and don't have a spare fuse, you can
borrow one. Just pick some feature of
your car that
you can get along without
- like the radio or cigarette lighter -
and use its fuse, if it is the size you
need. Replace it as soon as you can.
Before replacing a fuse turn every
vehicle electrical switch off.
... 274

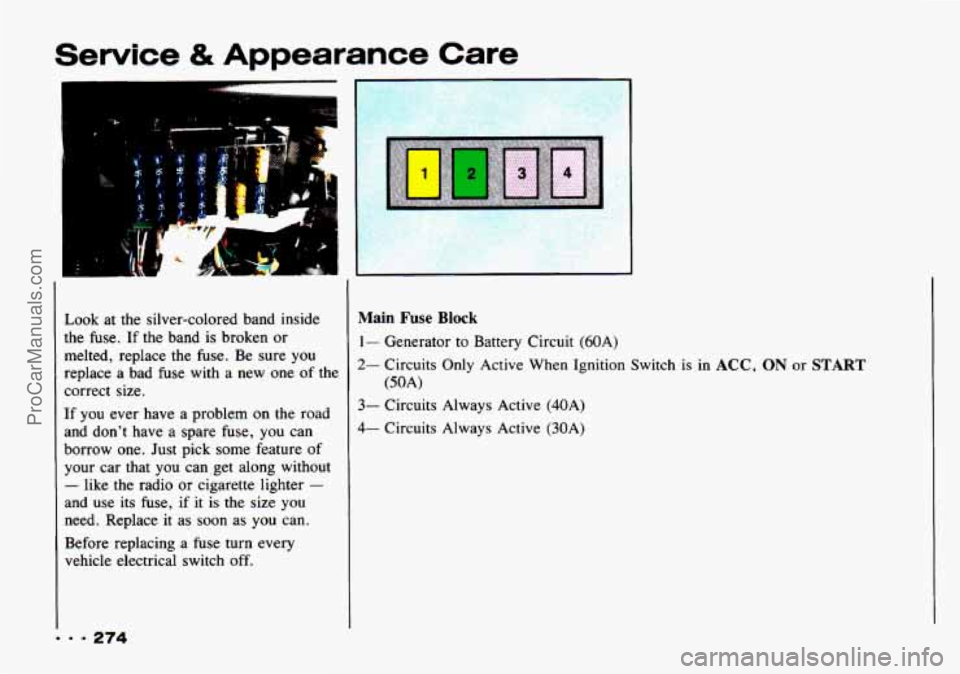

Main Fuse Block
1- Generator to Battery Circuit (60A)
2- Circuits Only Active When Ignition Switch is in ACC, ON or START
3- Circuits Always Active (40A)
4- Circuits Always Active (30A)
(50A)
ProCarManuals.com

[ Instrument Panel Fuse Block
1 - Right Headlight (15A)
2- Left Headlight; High Beam Indicator Light (1 5A)
3-Taillights; Interior Light; Sidemarker Lights; Instrument Cluster Lights (15A)
4-Stop Lights; Horn (15A)
5- Hazard Lights (15A)
6-Door Lock (Option) (20A)
7- Lighter; Radio (20A)
8-Ignition System; Warning and Indicator Lights (15A)
9-Turn Signal Lights; Back-up Lights (15A)
10- Wiperwasher
(1 SA)
1 1 - Rear Defogger ( 15A)
12-Heater (25A) 13-Rear Wheel Anti-Lock Main Relay (20A)
14-Electronic Fuel Injection Main Relay (15A)
ProCarManuals.com

Service & Appearance
I Replacement Bulbs
Care
Back-up ............................................................. 1156
Dome
............................................................. 9605 1559
Front Parking and Turn Signal
......................................... 1157 NA
Headlight (Halogen) ..................................................... 9004
Heater or Air Conditioning Control
.................................... 96052599
Charging System
................................................... 9433184
Check Engine
..................................................... 9433 184
Engineoil Pressure
................................................ 9433184
Indicator
and Warning
Brake
............................................................ 9433184
4WD
............................................................. 9433184
Headlight HighBeam
............................................... 9433184
Safety Belt
........................................................ 9433184
TurnSignal
....................................................... 9433184
Instrument Cluster
.................................................... 9605 156
License Plate
............................................................ 194
Lighter
............................................................. 9433184
Rear Defogger Switch
............................................. 96061736
Rear Wiper/Washer Switch
........................................... 9606 1736
Rear
Hazard and Turn Signal
........................................... 1156
Rear Parking andstop
................................................... 1157
Sidemarker
................................................. ........ 194
9 - 276
ProCarManuals.com

Capacities and Specifictu?ons
Engine
Type ....................................................................L4
Compression Ratio. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8.9: 1
Firing Order . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . l-3-4-2
Fuel Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Fuel Injection
Piston Displacement
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .97 CID (1.6L)
Valve Arrangement . . . . . . . . . . . , . . . . . . . . . . . , . . . . . . . . . . . . . . . . .In-Head “V” Type
AC Belt Tension.
. . . .Deflect Belt 0.31-0.47 in. (8-12 mm) @ 22 Ibs. (10 kg.) Pressure
Fan Belt Tension
. . . . .Deflect Belt 0.20-0.32 in. (5-8 mm) @ 22 Ibs. (10 kg.) Pressure
Thermostat Temperature Specification.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .180”F (82°C)
Replacement Parts
Air Cleaner Filter ................................................... 96057994
Battery
..............................................................26-60s
Engineoil Filter .................................................... 96062415
Fuel Filter
................................................... AC TypeGE571
PCVValve
........................................................96058079
Radiator Pressure Cap . . . . . . . . . , . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13 psi
Spark Plug.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .R43XLS (0.028”- 0.032” Gap)
277 9
ProCarManuals.com

Service & Appearance Care
Capacities (Approximate)
The following approximate capacities are given in U.S. and metric conversions.
Automatic Transmission Air
Conditioning?.
................ .See the refrigerant information label under hood.
.............................................
................................................... Drain and Refill .3.0 qt. (2.8 L)**
Overhaul .4.9 qt. (4.6 L)
Cooling System
Automatic Transmission. ...................................... S.5 qt. (5.2 L)
I Manual Transmission. ........................................ S.6 qt. (5.3 L)
FuelT ank....................................................llgal.(42.0L) .
Crankcase
..........................................
........................................
With Filter Change. .4.5 qt. (4.2 L)*
Without Filter Change .4.2 qt. (4.0 L)*
Front Differential ............................................... 1 1 qt. (1 .O L)
Manual Transmission. .1.6 qt. (1.5 L)**
Rear Differential. .2.3 qt. (2.2 L)
Transfer Case .................................................. 1 .8 qt. (1.7 L)
..........................................
..............................................
Wheel Nuts
Wheel Nut Torque .60 lb. ft. (80 N-m)
? Not all air conditioning refrigerants are the same. If the air conditioning system in
your vehicle needs refrigerant, be sure
the proper refrigerant is used. If you’re not
sure, ask your Geo dealer.
after filling.
See “Engine Oil” in the Index.
Transmission Fluid” in the Index.
.........................................
*.When changing the oil filter, additional oil may be needed. Recheck the oil level
** Recheck fluid level after filling. See “Automatic Transmission Fluid” or “Manual
9 278
