1993 CHEVROLET TRACKER clutch

c
Note that even if the engine is not
running
ACC and ON allow you to
operate your electrical accessories, such
as the radio and ventilation fan.
4 Starting Your Engine
Automatic Transmission: Move your
shift lever to
P (Park) or N (Neutral).
Your engine
won’t start in any other
position
- that’s a safety feature. To
restart when you’re already moving, use
N (Neutral) only.
I Don’t try to shift to P (Park) if
your Geo is moving. If you do,
you could damage the
transmission. Shift to P (Park)
only
when your vehicle is stopped. I
Manual Transmission: Shift your gear
selector
to neutral and hold the clutch
pedal to the floor while starting the
engine. Your vehicle won’t start
if the
clutch pedal is
not all the way down -
that’s a safety feature.
1. Don’t push the accelerator pedal
before starting
your engine. In some
other vehicles you might need to do
this, but because
of your vehicle’s
computer systems, you don’t.
2. Turn your ignition key to START.
When the engine starts, let go of the
key.
49.’.
ProCarManuals.com

Features & Controls

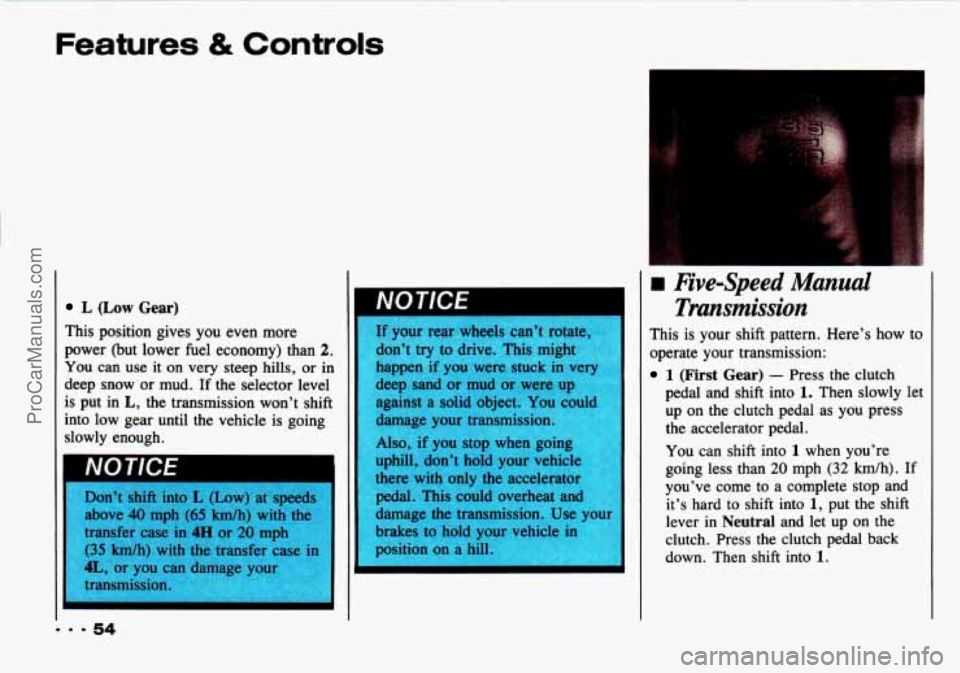

L (Low Gear)
This position gives you even more
power (but lower fuel economy)
than 2.
You can use it on very steep hills, or in
deep snow or mud.
If the selector level
is put in
L, the transmission won’t shift
into low gear until the vehicle is going
slowly enough.
I NOTICE
above 40 mph (65 km/h) with the
transfer case
in 4H or 20 mph
(35 km/h) with the transfer case in
4L, or you can damage your
IVU I IbC Transmission
This is your shift pattern. Here’s how to
operate your transmission:
1 (Fist Gear) - Press the clutch
pedal and shift into
1. Then slowly let
up on the clutch pedal as you press
the accelerator pedal.
You can shift into 1 when you’re
going less than
20 mph (32 km/h). If
you’ve come to a complete stop and
it’s hard
to shift into 1, put the shift
lever in
Neutral and let up on the
clutch. Press the clutch pedal back
down. Then shift into
1.
I Five-Sveed Manual
... 54
ProCarManuals.com

2 (Second Gear) - Press the clutch
pedal as you let up on the accelerator
pedal and shift into
2. Then, slowly
let up on the clutch pedal as you press
the accelerator pedal.
3, 4 and 5 (Third, Fourth and Fifth
Gears)
- Shift into 3, 4 and 5 the
same way
you do for 2. Slowly let up
on the clutch pedal
as you press the
accelerator pedal.
To Stop - Let up on the accelerator
pedal and press the brake pedal. Just
before the vehicle stops, press the
clutch pedal and the brake pedal, and
shift to
Neutral.
Neutral - Use this position when
R (Reverse) - To back up, press
you
start or
idle your engine.
down the clutch pedal and shift into
R. Let up on the clutch pedal slowly
while pressing the accelerator pedal.
You cannot go from 5 (Fifth Gear) into
R (Reverse). If you try, you will be
locked out.
You must first shift into
Neutral, move the lever to the left, back
to the right, and then shift into
R (Reverse). This is a safety feature.
Shift to R (Reverse) only after
your vehicle
is stopped. Shifting to
R (Reverse) while your vehicle is
moving could damage your
transmission.
Also, use Reverse along with the
parking brake, for parking your vehicle.
ProCarManuals.com

Features & Controls
shifi Speeds (MANUAL TRANSMISSION)
MANUAL TRANSMISSION RECOMMENDED SHIFT SPEEDS IN MPH (km/h)
Engine
1.6L L4 47 11
21 29 41
34
27
15 Acceleration Shift Speed Cruise Shift Speed
1to2 4to5 1to2 2to3 3to4 4to5 3to4
2to3
(24) (76)
(18) (34) (47) (66) (55) (43)
This chart shows when
to shift to the
next higher gear for best fuel economy.
If your speed drops below 20 mph
(32 km/h), or if the engine is not
running smoothly, you should downshift
to the next lower gear. You may have to
downshift two or more gears to keep the
engine running smoothly or for good
performance.
. . 56
A
LAU I IUlV
If you skip more than one
could lose control
of your vehicle.
And
you could injure yourself or
others. Don’t shift from
5 to 2 or
4 to 1.
L gear when you downshift, you
If you skip more than one gea~
when you downshift, or if 1
race the engine when you
downshift, you can damr-- thc
clutch
or transmission
ProCarManuals.com

To unlock the hubs:
1. Stop your vehicle.
2. Drive seven feet (two meters) in the
direction opposite to the direction
you were driving before you stopped.
3. Then, press the clutch if you have a
manual transmission, and shift the
transfer
case to 2H. The hubs will
unlock.
Transfer Case
The transfer case shift lever is on the
floor to the right of the driver. Use this
lever to shift into and out of four-wheel
drive. An indicator light comes on when
the transfer case is in
4H or 4L.
2H: This setting is for driving in most
street and highway situations. Your front
axle
is not engaged in two-wheel drive.
4H: This setting engages your front axle
to help drive your vehicle. Use
4H
when you need extra traction, such as
on wet or icy roads,
or in most off-road
situations.
N (Neutral): Shift to this setting only
when your vehicle needs
to be towed.
4L: This setting also engages your front
axle to give you extra traction, but
should be used only for driving downhill
or on slippery surfaces when you’re
driving slower than
35 mph (55 km/h).
Remember that driving in 4H or 4L may
reduce fuel economy. Also, driving
in
four-wheel drive on dry pavement could
cause your tires to wear faster and make
your transfer case harder to shift.
You can shift from
2H to 4H or from
4H to 2H at any speed if your hubs are
locked and your wheels are straight
ahead. Your front
axle will engage
faster if you take your foot off the
accelerator pedal for a
few seconds as
you shift.
ProCarManuals.com

If your engine has stopped running,
you’ll need to restart
it. With the
brake pedal depressed and the
parking brake still applied, shift the
transmission
to P (Park) (or, shift to
Neutral if your vehicle has a
manual transmission) and restart the
engine. Then, shift to reverse,
release the parking brake, and
slowly back down the hill in
reverse.
As you are backing down the hill,
put your
left hand on the steering
wheel at the
12 o’clock position.
This way, you’ll be able
to tell if
your wheels are straight or turned to
the left or right as you back down. Here
are some things you
must not do
if you stall, or are about to stall, when
going up
a hill.
Never attempt to prevent a stall by
shifting into
N (Neutral) (or
depressing the clutch, if you have a
manual transmission)
to “rev-up” the
engine and regain forward
momentum. This won’t work. Your
vehicle will roll backwards very
quickly and you could go out of
control.
Instead, apply the regular brake to stop
the vehicle. Then apply the parking
brake. Shift into reverse, release the
parking brake, and slowly back down.
Never attempt to turn around if you
are about to stall when going up a
hill.
If the hill is steep enough to
stall your vehicle, it’s steep enough
to cause you to roll over if you turn
around. If you can’t make it up the
hill, you must back down the hill.
Q: Suppose, after stalling, I try to
back down the hill and decide
I
just can’t do it. What should I do?
A: Set the parking brake, put your
transmission
in P (Park) (or the
ProCarManuals.com

If you decide you can go down a hill
safely, then try to keep your vehicle
headed straight down, and use a low
gear. This way, engine drag can help
your brakes and they won’t have to do
all the work. Descend slowly, keeping
your vehicle under control at all times.
A
Heavy braking when going
down a hill can cause your
brakes to overheat and fade. This
could cause loss of control and a
serious accident. Apply the brakes
lightly when descending a hill and
use
a low gear to keep vehicle
speed under control.
Q:
A:
0
0
Are there some things I should not
do when driving down a hill?
Yes! These are important because if
you ignore them you could lose
control and have a serious accident.
When driving downhill, avoid turns
that take you across the incline
of
the hill. A hill that’s not too steep to
drive down may be too steep to
drive across. You could roll over if
you don’t drive straight down.
Never go downhill with the
transmission in
Neutral, or with the
clutch pedal depressed in a manual
shift. This is called
ProCarManuals.com

Your Driving and the Road
= - 9 188
3. Shift your automatic transmission
into
P (Park), or your manual
transmission into
2 (Second).
4. Shift the transfer case to N (Neutral).
5. Set the hubs to FREE. See
“Four-Wheel Drive” in the Index.
6. Release the parking brake. Stop towing every
200 miles (300 km)
and
start the engine. Leave the transfer
case shift lever in
N (Neutral). Shift
your automatic transmission
to
D (Drive); leave a manual transmission
in
2 (Second) and release the clutch.
Run the engine at medium speed for one
minute to circulate
the oil in the transfer
case. Turn
the ignition key to ACC.
Now, you can continue towing your
Geo
.
NU I Kt
Make sure that the towing speed
does not exceed
50 mph
(80 km/h), or your Geo could
badly damaged.
