Depending on your speed, this can be
rather violent for an unprepared driver.
This is one of the reasons driving
experts recommend that you use your
safety belts and keep both hands on the
steering wheel.
The fact that such emergency situations are always possible is a good reason to
practice defensive driving at all times. Off-Road Recovery
You may find sometime that your right
wheels have dropped off the edge of a
road onto the shoulder
(A) while you’re
driving.
If the level of the shoulder is only
slightly below the pavement, recovery
should be fairly easy. Ease
off the
accelerator and then, if there is nothing
in the way, steer
so that your vehicle
straddles the edge of the pavement. You
can turn the steering wheel up to
1/4
turn (B) until the right front tire contacts
the pavement edge. Then turn your
steering wheel to go straight down the
roadway.
If the shoulder appears to be about four
inches
(100 mm) or more below the
pavement,
this difference can cause
problems. If there is not enough room to
pull entirely onto the shoulder and stop,
then follow the same procedures. But
if
the right front tire scrubs against the
side of the pavement, do NOT steer
more sharply. With too much steering
angle, the vehicle may jump back onto
the road with
so much steering input
that it crosses over into the oncoming
traffic before you can bring it back
under control. Instead, ease
off again on
the accelerator and steering input,
straddle the pavement once more, then
try again.
I
136-
ProCarManuals.com

Your Driving and the Road

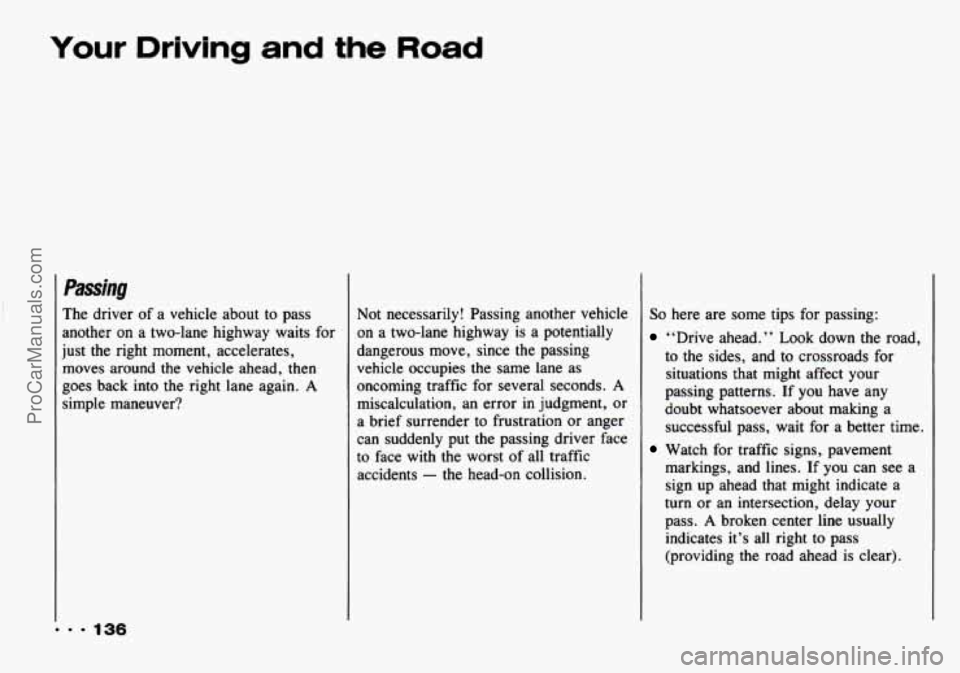

Passing
The driver of a vehicle about to pass
another on a two-lane highway waits for
just the right moment, accelerates,
moves around the vehicle ahead, then
goes back into the right lane again.
A
simple maneuver? Not
necessarily! Passing another vehicle
on a two-lane highway is a potentially
dangerous move, since the passing
vehicle occupies the same lane
as
oncoming traffic for several seconds. A
miscalculation, an error in judgment, or
a brief surrender to frustration
or anger
can suddenly put the passing driver face
to face with the worst of all traffic
accidents
- the head-on collision.
So here are some tips for passing:
“Drive ahead.” Look down the road,
to the sides, and to crossroads for
situations that might affect your
passing patterns.
If you have any
doubt whatsoever about making a
successful pass, wait
for a better time.
Watch for traffic signs, pavement
markings, and lines.
If you can see a
sign up ahead that might indicate a
turn or an intersection, delay your
pass.
A broken center line usually
indicates it’s all right to pass
(providing the road ahead is clear).
ProCarManuals.com

Never cross a solid line on your side
of the lane or a double solid line,
even if the road seems empty of
approaching traffic.
If you suspect that the driver of the
vehicle you want to pass isn’t aware
of your presence, tap the horn a
couple of times before passing. Or, if
your Geo has the Passing Signal
option, you can use that. See
“Passing Signal” in the Index.
Do not get too close to the vehicle
you want to pass while you’re
awaiting
an opportunity. For one
thing, following too closely reduces
your area of vision, especially if
you’re following a larger vehicle.
Also, you won’t have adequate space
if the vehicle ahead suddenly slows or
stops. Keep back a reasonable
distance.
When it looks like a chance to pass is
coming up, start
to accelerate but stay
in the right lane and don’t get too
close. Time your move
so you will be
increasing speed as the time comes
to
move into the other lane. If the way is
clear to pass, you will have a
“running start” that more than makes
up for the distance you would lose by
dropping back. And if something
happens to cause you to cancel your
pass, you need only slow down and
drop back again and wait for another
opportunity.
If other cars are lined up to pass a
slow vehicle, wait your turn. But take
care that someone isn’t trying to pass
you as you pull out to pass the slow
vehicle. Remember to glance over
your shoulder and check the blind
spot.
Check your mirrors, glance over your
shoulder, and start your left lane
change signal before moving out
of
the right lane to pass. When you are
far enough ahead of the passed
vehicle to see its front in your inside
mirror, activate your right lane
change signal and move back into the
right lane. (Remember that your right
outside mirror is convex. The vehicle
ProCarManuals.com

Your Driving and the Road
you just passed may seem to be
further away from
you than it really
is.)
Try not to pass more than one vehicle
at a time on two-lane roads.
Reconsider before passing the next
vehicle.
vehicle too rapidly. Even though the
brake lights are not flashing, it may
be slowing down or starting to turn.
If you’re being passed, make it easy
for the following driver to get ahead
of you. Perhaps you can ease a little
to the right.
Don’t overtake a slowly moving
Loss of Control
Let’s review what driving experts say
about what happens when the three
control systems (brakes, steering and
acceleration) don’t have enough friction
where the tires meet
the road to do what
the driver has asked.
In any emergency, don’t give up. Keep
trying to steer and constantly seek an
escape route or area of less danger.
Skidding
In a skid, a driver can lose control of
the vehicle. Defensive drivers avoid
most skids by taking reasonable care
suited to existing conditions, and by not
“overdriving” those conditions. But
skids are always possible. The three types
of skids correspond
to
your Geo’s three control systems. In the
braking skid your wheels aren’t rolling.
In the steering or cornering skid,
too
much speed or steering in a curve causes
tires to slip and lose cornering force.
And in the acceleration skid too much
throttle causes the driving wheels to
spin.
A cornering skid and an acceleration
skid are best handled by easing your
foot off the accelerator pedal. If your
vehicle starts to slide (as when you turn
a corner on a wet, snow- or ice-covered
road), ease your foot off the accelerator
ProCarManuals.com

pedal as soon as you feel the vehicle
start to slide. Quickly steer the way you
want the vehicle to go. If you start
steering quickly enough, your vehicle
will straighten out. As
it does, straighten
the front wheels.
Of course, traction is reduced when
water, snow, ice, gravel, or other
material is
on the road. For safety,
you’ll want to slow down and adjust
your driving to these conditions. It is
important to slow down
on slippery
surfaces because stopping distance
will
be longer and vehicle control more
limited. While
driving on a surface with reduced
traction,
try your best to avoid sudden
steering, acceleration, or braking
(including engine braking by shifting to
a lower gear). Any sudden changes
could cause the tires to slide.
You may
not realize the surface
is slippery until
your vehicle is skidding. Learn to
recognize warning clues
- such as
enough water, ice
or packed snow on
the. road to make a “mirrored surface’’
- and slow down when you have any
doubt. Remember: the
rear wheel anti-lock
braking system (RWAL) helps avoid
only a rear braking skid. In a braking
skid (where the front wheels are no
longer rolling), release enough pressure
on the brakes to get the front wheels
rolling again. This restores steering
control. Push the brake pedal down
steadily when you have to stop
suddenly. As long as the front wheels
are rolling, you will have steering
control. Steer the way you want to go.
ProCarManuals.com

Your Driving and the Road
Driving Guidelines
... 140
This multipurpose passenger vehicle is
defined as a utility vehicle in Consumer
Information Regulations issued by the
National Highway Traffic Safety
Administration (NHTSA) of the United
States Department of Transportation.
Utility vehicles have higher ground
clearance and a narrower track to make
them capable of performing in a wide
variety of off-road applications. Specific
design characteristics give them a higher
center of gravity than ordinary cars. An
advantage
of the higher ground
clearance
is a better view of the road
allowing you to anticipate problems. They
are not designed for cornering at
the same speeds as conventional
two-wheel drive vehicles any more than
low-slung sports cars are designed to
perform satisfactorily under off-road
conditions. If at all possible, avoid sharp
turns or abrupt maneuvers. As with
other vehicles of this type, failure to
operate this vehicle correctly may result
in
loss of control or vehicle rollover.
1 Off-Road Driving with
Your Geo Four-Wheel-
Drive Vehicle
This off-road guide is for vehicles that
have four-wheel drive.
Also, see “Anti-Lock Brakes” in the
Index.
If your vehicle doesn’t have four-wheel
drive, you shouldn’t drive off-road
unless you’re on a level, solid surface.
Off-road driving can be great
fun. But it
does have some definite hazards. The
greatest of these is the terrain itself.
“Off-roading” means you’ve left the
great North American road system
behind. Traffic lanes aren’t marked.
Curves aren’t banked. There are no road
ProCarManuals.com

signs. Surfaces can be slippery, rough,
uphill or downhill. In short, you’ve
gone right back to nature.
Off-road driving involves some new
skills. And that’s why
it’s very
important that you read this guide.
You’ll find many driving tips and
suggestions. These will help make your
off-road driving safer and more
enjoyable.
Before You Go Off-Roading
There are some things to do before you
go out. For example, be sure to have all
necessary maintenance and service work
done. Be sure
to read all the information
about your four-wheel drive vehicle in
this manual.
Is there enough fuel? Is the spare
tire fully inflated? Are the fluid
levels up where they should be? What
are the local laws that apply to
off-roading where you’ll be driving? If
you don’t
know, you should check with
law enforcement people in the area. Wil
you be on someone’s private land?
If so
be sure to get the necessary permission.
Loading Your Vehicle for Off-Road
Driving
There are some important things to
remember about how to load your
vehicle.
The heaviest things should be on the
load floor and forward of your rear
axle. Put heavier items as far forward
as you can.
Be sure the load is secured properly,
so driving on the off-road terrain
doesn’t
toss things around.
ProCarManuals.com

Your Driving and the Road
A Cargo on the load floor
L piled higher than the
seatbacks can be thrown forwarc
during a sudden stop. You or
your passengers could be
injured. Keep cargo below the
top of the seatbacks.
floor can be tossed about when
driving over rough terrain. You
or your passengers can be strucl
by flying objects. Secure the
cargo properly.
Heavy loads on the roof raise
the vehicle’s center of gravity,
making it more likely to roll
over. You can be seriously or
fatally injured if the vehicle rolls
over. Put heavy loads inside the
cargo area, not on the roof.
Keep cargo
in the cargo area as
far forward and low as possible.
Unsecured cargo on the load
I
You’ll find other important information
in this manual. See “Vehicle Loading,”
and “Tires” in the Index.
Traveling to Remote Areas
It makes sense to plan your trip,
especially when going to a remote area.
Know the terrain and plan your route.
You are much less likely to get bad
surprises. Get accurate maps
of trails
and terrain.
Try to learn of any blocked
or closed roads.
It’s also
a good idea to travel with at
least one other vehicle.
If something
happens to one of them,
the other can
help quickly. Does
your vehicle have a winch? If
so,
be sure to read the winch instructions.
In a remote area, a winch can be handy
if you get stuck. But you’ll want to
know how to use it properly.
... 142
ProCarManuals.com
